Peco BRUSH BLAZER TBB-3002 User manual

COMMERCIAL WALK-BEHINDCOMMERCIAL WALK-BEHIND
FIELD & BRUSH CUTTERFIELD & BRUSH CUTTER
COMMERCIAL WALK-BEHIND
FIELD & BRUSH CUTTER
MODEL #: TBB-3002MODEL #: TBB-3002MODEL #: TBB-3002
by
BRUSH
BRUSHBRUSHBRUSH
BRUSH BLAZER
BLAZERBLAZERBLAZER
BLAZER
R RR
P PP
PECO PECOPECO PECO PECOPECO
P PP P PP P P
PECO PECO
R RR
OPERATOR’S MANUALOPERATOR’S MANUALOPERATOR’S MANUAL
MANUAL PART#: Q0002 Rev.1 - Nov 2021
P PP
PECO PECOPECO PECO PECOPECO
P PP P PP P P
PECO PECO
R RR

2
PECO BRUSH BLAZER
TABLE OF CONTENTS
SECTION PAGE
Safety Alert Symbols - - - - - - - - - - - - - - - - - - - - - 2
General Safety Rules - - - - - - - - - - - - - - - - - - - - - 3
Safety Decals - - - - - - - - - - - - - - - - - - - - - - - - - - 4
Peco Limited Warranty - - - - - - - - - - - - - - - - - - - - 5
Controls - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
Operation - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-10
Tips On Brush Cutting - - - - - - - - - - - - - - - - - - - - 10
Pump Adjustment - - - - - - - - - - - - - - - - - - - - - - - 11
Pump Belt Adjustment - - - - - - - - - - - - - - - - - - - - 12
Drive Belt Idler Adjustment - - - - - - - - - - - - - - - - - 13
Drive Belt Adjustment - - - - - - - - - - - - - - - - - - - - - 14
Deck Belt Adjustment - - - - - - - - - - - - - - - - - - - - - 15
Mower Deck Pulley Alignment - - - - - - - - - - - - - - - 15
SECTION PAGE
Deck And Drive Belt Removal And Replacement - 16-17
Track Removal/Replacement - - - - - - - - - - - - - - - - 18
Blade Shaft Assembly - - - - - - - - - - - - - - - - - - - - - 19
Blade Replacement - - - - - - - - - - - - - - - - - - - - - - 19
Label Replacement Part Numbers - - - - - - - - - - - - - 20
Regular Maintenance - - - - - - - - - - - - - - - - - - - - - 21
Scheduled Replacement Parts List - - - - - - - - - - - - 22
Hydraulic Oil Specifications - - - - - - - - - - - - - - - - - 22
Exploded Views And Parts Lists - - - - - - - - - - - - 23-38
Torque Specifications - - - - - - - - - - - - - - - - - - - - - 39
California Emission Control Warranty Statement - 40-41
Safety Alert Symbol
This Safety Alert Symbol means: “ATTENTION! BECOME
ALERT! YOUR SAFETY IS INVOLVED!”
This symbol is used to call attention to safety precautions that
Should be followed by the operator to avoid accidents. When
you see this symbol, carefully read the message that follows
and heed its advice. Failure to comply with safety precautions
could result in death or serious bodily injury.
Safety Signs
The signal words DANGER, WARNING, and CAUTION are used on the equipment safety signs. These words
are intended to alert the viewer to the existence and the degree of hazard seriousness.
DANGER
!
CAUTION
This signal word indicates a potentially hazardous situation which, if not
avoided, will result in death or serious injury.
This signal word indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
It may also be used to alert against unsafe practices.
This signal word indicates a potentially hazardous situation which, if not
avoided, will result in minor or moderate injury.
It may also be used to alert against unsafe practices.
White letters on RED
Black letters on ORANGE
Black letters on YELLOW
WARNING
!
!
!

3
— Read all safety and operating instructions before using the machine.
— Do not operate the machine near people or animals.
— Remove any objects that could be thrown by the rotating blades.
— Always wear eye and ear protection when operating the machine.
— Keep body parts away from rotating belts and blades.
— Use caution when operating the machine on slopes. Keep a firm grip on the handle bars.
— Keep combustibles away from the engine when it is hot.
— Disengage the blades when crossing roads, sidewalks or gravel drives.
— Use extra caution when operating in slippery or wet conditions.
— Do not cut while in reverse or moving backwards. Use extra caution while moving backwards.
— Do not remove or alter standard parts on the machine. Doing so may result in serious injury and will void the
warranty.
— Do not operate the machine when excessive noise or vibration is present. Immediately shut off the engine, disconnect
the spark plug wire and allow all moving parts to come to a complete stop. Inspect for damage, then clean or repair
damaged parts if necessary.
— Do not operate the machine while under the influence of alcohol or medication.
— Do not operate the machine in poor light conditions. Doing so may result in serious injury.
— Do not move up and down the face of slopes, always move across the face.
— Watch for holes, ruts and bumps. Tall grass can hide obstacles.
— Do not operate the machine on slopes greater than 20 degrees.
— Do not operate the machine on slopes that are wet or excessively steep.
— Keep children and pets out of the operating area, and under close adult supervision.
— Stop the machine immediately if children or pets enter the work area.
— Never allow children to operate the machine.
— Use extra caution when approaching shrubs, trees or other objects that may obscure your vision.
— Never run the engine in an enclosed area without proper ventilation. The exhaust contains carbon monoxide, which is
a colorless, odorless, deadly poisonous gas.
— Allow the engine to cool down before filling the gas tank.
— Never make adjustments or repairs while the engine is running.
— Do not change the engine governor speed. Doing so may result in injury and will void the warranty.
— No list of warnings and cautions can be all-inclusive. If situations occur that are not covered by this manual, the
operator must apply common sense and operate this machine in a safe manner.
— WARNING TO PURCHASERS OF INTERNAL COMBUSTION ENGINE EQUIPPED MACHINERY OR
DEVICES IN THE STATE OF CALIFORNIA: The Brush Blazer does not have a spark arrester muffler. If this
machine is to be used on any forest covered or brush covered land in the state of California, the law requires
that a spark arrester must be attached to the exhaust system and must comply with Section 4442 of the
California Public Resources Code.
—The Brush Blazer fuel tank is compliant with the California Air Resources Board (C.A.R.B)
GENERAL SAFETY RULES
WARNING
!
READ THIS OWNER’S MANUAL CAREFULLY BEFORE OPERATING THE PECO BRUSH BLAZER.
DO NOT ALLOW ANYONE WHO IS NOT FAMILIAR WITH THE SAFETY AND OPERATING
INSTRUCTIONS TO OPERATE THE PECO BRUSH BLAZER. FAILURE TO DO SO MAY RESULT
IN SERIOUS INJURY OR DEATH

4
This label reminds you that flying debris is projected
in the direction of these arrows. Anything or anyone
within this field is in danger of being hit by flying debris.
This label lists safe operation procedures.
This label warns you of the dangers of carbon monoxide.
Do not operate the Brush Blazer without the hoods in place. Keep hands
and other body parts away from rotating belts.
Keep hands and feet clear of the deck edge. Never reach under the mower
deck until the blades have come to a complete stop.
This label reminds you that
other people are in danger
of being hurt by the blades
and flying debris.
SAFETY DECALS

5
New PECO, Inc. extends the following warranties to the ORIGINAL PURCHASER of each New PECO, Inc. consumer product
purchased from one of our Dealers or directly from New PECO, Inc., subject to the following limitations:
A. ITEMS COVERED UNDER WARRANTY:
1. PRODUCT WARRANTY – Any part or parts which are deemed defective in material or workmanship, as delivered to the
original purchaser, will either be repaired or replaced, as New PECO, Inc. elects, without charge for parts or labor, if
the defect appears within 12 months from the date of purchase of the product to the Original Purchaser.
2. PARTS REPLACED DURING WARRANTY – Any New PECO, Inc. part which is furnished in performance of this warranty
and is defective in material or workmanship as delivered to the purchaser will be repaired or replaced, as New PECO,
Inc. elects, before the expiration of the original warranty period.
B. WARRANTY DISTINCTIONS:
1. RESIDENTIAL - Products put to a personal use around a single household or residence are considered Residential.
Products designated as “Residential” are warrantied for 12 months from the date of purchase of the product, to the
ORIGINAL PURCHASER with proof of purchase, when used for or in residential applications.
2. COMMERCIAL – Products put to any business use (agricultural, commercial or industrial) or used at multiple locations
are considered Commercial. Products designated as “Commercial” are warrantied for 12 months from the date of
purchase of the product, to the ORIGINAL PURCHASER with proof of purchase, when used for or in commercial
applications. Products designated as “Residential” are warrantied for 90 days from the date of purchase of the
product, to the ORIGINAL PURCHASER with proof of purchase, when used for or in Commercial applications.
3. RENTAL – Products used for Rental or Lease Purposes are warrantied for 45 days from date of purchase of the product,
to the ORIGINAL PURCHASER with proof of purchase, when used for or in a rental business.
C. ITEMS NOT COVERED BY NEW PECO WARRANTY:
1. ENGINES & BATTERIES: Engines and Batteries attached to New PECO, Inc. products are covered under their respective
separate manufacturer warranties and those companies must be contacted directly to file a warranty claim. Briggs &
Stratton: https://www.briggsandstratton.com/na/en_us/support/warranty.html
2. UNAPPROVED ALTERATION OR MODIFICATION: All obligations of New PECO, Inc. under this warranty shall be
terminated if products are altered or modified in any way not approved by New PECO, Inc.
3. ACCIDENTS & NORMAL MAINTENANCE: This warranty covers ONLY manufacturers defective material and
workmanship. It does not cover depreciation or damage caused by normal wear & tear, accident, improper
maintenance, misuse or abuse of products. New PECO, Inc. products must be operated and maintained in
accordance with the instructions furnished in the manuals. The cost of normal maintenance and normal replacement
of service items such as belts, cutting blades, hoses, bags, etc., which are not defective shall be paid for by the
purchaser.
4. NO SERVICE CENTER WARRANTY: The selling Service Center/Dealer makes no warranty on his own on any item
warranted by New PECO, Inc. unless he delivers to purchaser a separate written warranty certificate specifically
warranting the item. The Service Center or Dealer has no authority to make any representation or promise on behalf
of New PECO, Inc. or to modify the terms of the original warranty in any way.
5. NO REPRESENTATIONS ADDITONAL WARRANTIES, DISCLAIMER: Neither New PECO, Inc. nor any company affiliated
with New PECO, Inc. makes any warranties, representations or promises as to the quality of performance of its
products other than those set forth herein. Except as described above, New PECO, Inc. makes no other warranties
AND SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES OF FITNESS AND MERCHANTABILITY.
6. REMEDIED EXCLUSIVE: The only remedies the purchaser has in connection with the breach or performance of any
warranty on New PECO, Inc. consumer products are set forth above. In no event will New PECO, Inc. be liable for
special incidental or consequential damages.
Warranty service is available through your local authorized service dealer or distributor. If you do not know the dealer or
distributor in your area, search by your zip code on www.lawnvac.com or contact our Sales Department at New PECO, Inc.
800-438-5823 or email [e-mail].
PECO LIMITED WARRANTY FOR NEW PRODUCTS
2020 (v1.0)

6
Instrument Cluster
CONTROLS
Blade
Engage/
Disengage
Lever
Other Controls
Battery
Charge
Meter
Hour Meter
Left
Steering
Control
Handle
With
Operator
Presence
Switch
Key/Start
Switch
Right
Steering
Control
Handle
Throttle
Control
Fuel
Shutoff

7
OPERATION
The PECO Brush Blazer is equipped with an Operator Presence Switch located on the Left Steering Control Handle.
Your left hand must be on the Left Steering Control Handle at all times when operating the machine. Removing your
left hand from the Left Steering Control Handle will engage the kill switch on the engine. This feature is designed and
installed for your safety. Familiarize yourself with the controls and descriptions in the section below.
Starting The Brush Blazer
1. Place
Your Left
Hand On
The Left
Steering
Control
Handle
2. Push
The
Throttle
Control
Forward
3. Turn The Key Switch To The Run Position
And Wait For The Fuel Pump To Engage.
Once The Fuel Pump Is Engaged, Turn The
Key To The Start Position And Release
WARNING
!
READ THE SAFETY AND OPERATION PROCEDURES BEFORE USING THE PECO
BRUSH BLAZER. DO NOT LET ANYONE OPERATE THE PECO BRUSH BLAZER IF
THEY HAVE NOT READ AND ARE FAMILIAR WITH THE SAFETY AND OPERATION
PROCEDURES. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH.

8
OPERATION

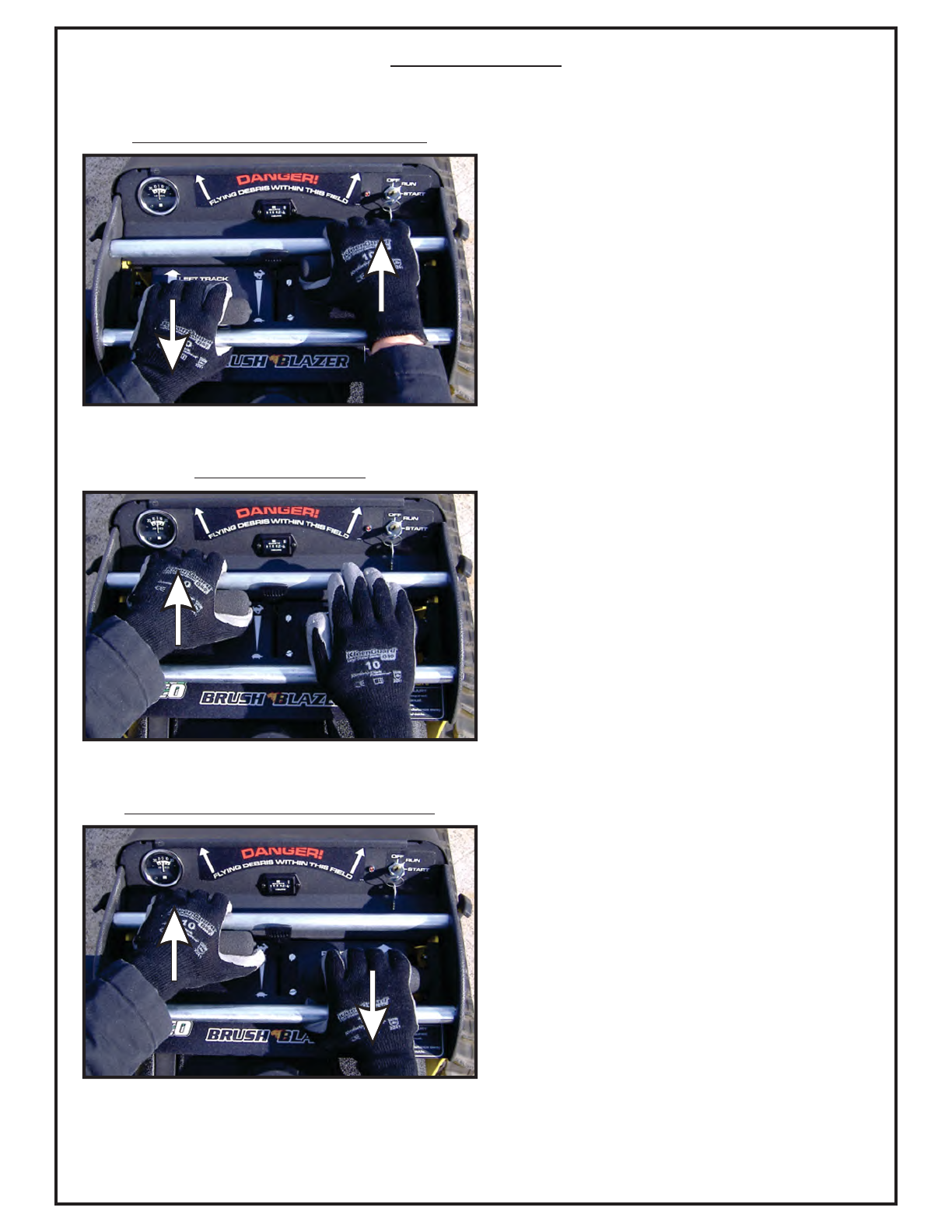

Forward Movement
Grab the front handle bar with your fingers and
the Steering Control Handles with your thumbs.
Push both Steering Control Handles forward at
the same time to move forward. Push the
controls slightly to move forward slowly. Pushing
harder will increase the speed of your forward
movement.
Grab the rear handle bar with your thumbs and
the Steering Control Handles with your fingers.
Pull the Steering Control Handles back, towards
you, at the same time. Pull back slightly to
move slowly in reverse. Pull back harder to
increase the speed of your reverse movement.
Reverse Movement
Keep your left hand on the Left Steering Control
Handle. Push the Right Steering Control Handle
forward to steer to the left. Push the Right
Steering Control Handle slightly to steer slowly.
Pushing the control harder will execute a
sharper turn.
Steering Left
WARNING
!
USE EXTREME CAUTION WHEN
OPERATING THE MACHINE IN
REVERSE TO AVOID GETTING
CAUGHT UNDER THE MACHINE.
FAILURE TO DO SO MAY RESULT
IN SERIOUS INJURY OR DEATH.

9
OPERATION
Grab the Left Steering Control Handle with your
left hand and pull back while at the same time
grabbing the Right Steering Control Handle with
your right hand and pushing forward. This will
spin the machine left, without mowing forward.
Keep your right hand on the Right Steering
Control Handle. Grab the Left Steering Control
Handle with your left hand and push forward to
steer right. Push the control forward slightly to
steer slowly. Pushing the control harder will
execute a sharper turn.
Grab the Left Steering Control Handle with your
left hand and push forward while at the same
time grabbing the Right Steering Control Handle
with your right hand and pulling back. This will
spin the machine right, without mowing forward.
Left Zero Turn Maneuver
Steering Right
Right Zero Turn Maneuver

10
OPERATION

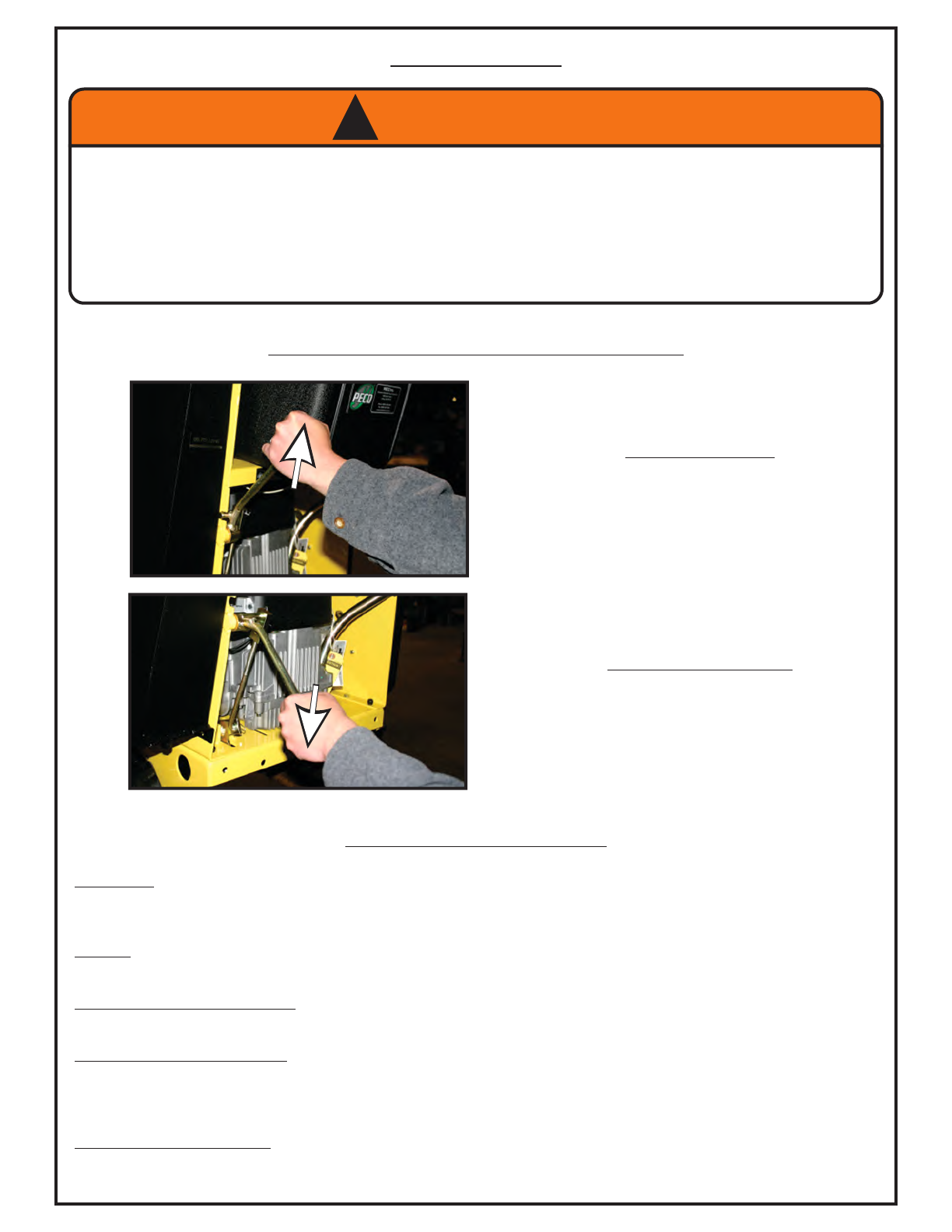

Blade Engagement/Disengagement
Engagement
While holding the Left Steering Control Handle
with your right hand, reach down and pull up
slowly on the Blade Engagement Control with
your left hand.
Disengagement
While holding the Left Steering Control Handle
with your right hand, push the Blade Engagement
Control down with your left hand.
Tips On Brush Cutting
Obstacles: Always check your work area before mowing and remove any debris that might get tangled in or damage
the machine. If the mower becomes tangled, turn off the engine and disconnect the spark plug wire before reaching
into the mower deck area.
Slopes: Do not operate the Brush Blazer on slopes more than 20 degrees. If you have to operate the machine on
sloping terrain, move across the face of the slope, not up and down.
If The Machine Gets Hung Up: Disengage the blade immediately. Try moving in reverse and backing away from the
obstacle.
Cutting Brush And Saplings: The Brush Blazer can cut saplings up to 4” in diameter. When cutting saplings or
brush, allow the Brush Blazer to ride up and over the material slowly. Adjust your forward speed to varying
conditions. After cutting brush or saplings, you may want to mow over it again to remove any remaining branches. It
its recommended to mow from the trunk end toward the top as the brush lies on the ground.
Cutting In Wet Conditions: Use extreme caution when cutting in wet or slippery conditions. Avoid steep slopes or
other slippery areas. Use a lower speed when conditions are wet or slippery.
WARNING
!
THE BRUSH BLAZER CAN EASILY THROW STONES, STICKS AND OTHER DEBRIS AT
GREAT VELOCITY, POSSIBLY CAUSING PROPERTY DAMAGE OR PERSONAL INJURY.
DO NOT RUN THE BRUSH BLAZER OVER GRAVEL DRIVEWAYS, LOOSE STONES OR
MULCH WITH THE BLADES ENGAGED. IF NECESSARY TO CLEAR DEBRIS FROM MOWER
DECK, DISENGAGE THE BLADE, TURN THE KEY SWITCH TO THE OFF POSITION
AND DISCONNECT THE SPARK PLUG WIRE.

11
PUMP ADJUSTMENT
PUMP LOCATION
RELATIVE TO
BRUSH BLAZER
Travel Adjustment:
Pulling To The Left -
If the machine pulls to the left when traveling
forward, adjust the Left FRS Rod by first loosening
the Adjustment Locking Nut (Figure A). Next turn
the Left FRS Rod counter-clockwise one full
revolution (This action will lengthen the Rod, which
will increase the speed of the Left Motor and even
out forward speeds), tighten the Adjustment
Locking Nut and test forward travel (Figure B).
Pulling To The Right -
If the machine pulls to the right when traveling
forward, adjust the Right FRS Rod by first
loosening the Adjustment Locking Nut (Figure A).
Next turn the Right FRS Rod counter-clockwise
one full revolution (This action will lengthen the
rod, which will increase the speed of the right
motor and even out forward speeds), tighten the
Adjustment Locking Nut and test forward travel
(Figure B).
Note: If the forward travel still pulls to either the
left or right, repeat the corresponding step above.
Clockwise Rotation
Decreases Forward
Speed / Increases
Reverse Speed
Counter-Clockwise
Rotation Increases
Forward Speed /
Decreases Reverse
Speed
Adjustment
Locking Nut
Figure A
Figure B

12
PUMP BELT ADJUSTMENT
The Pump Belt should be checked periodically for the correct tension. There should be 1” of movement for 10 lbs. of
tension applied to the center of the Belt. To adjust the Belt, follow the steps below and refer to the figures below:
1. Use a floor jack to raise the machine off the ground and blocks to support the chassis and deck.
2. Remove the Chassis Rear Guard and the Chassis Pan (Figure A).
3. Check the tension on the Belt using a belt tension gauge (Figure B).
4. If the belt tension needs adjustment, loosen the Pump Belt Idler Bolt (Figure C).
5. Push the Pump Belt Idler forward to increase the tension, then tighten the Pump Belt Idler Bolt.
6. Check the tension on the belt again, and adjust the Pump Belt Idler if necessary.
7. Replace the Chassis Rear Guard and the Chassis Pan.

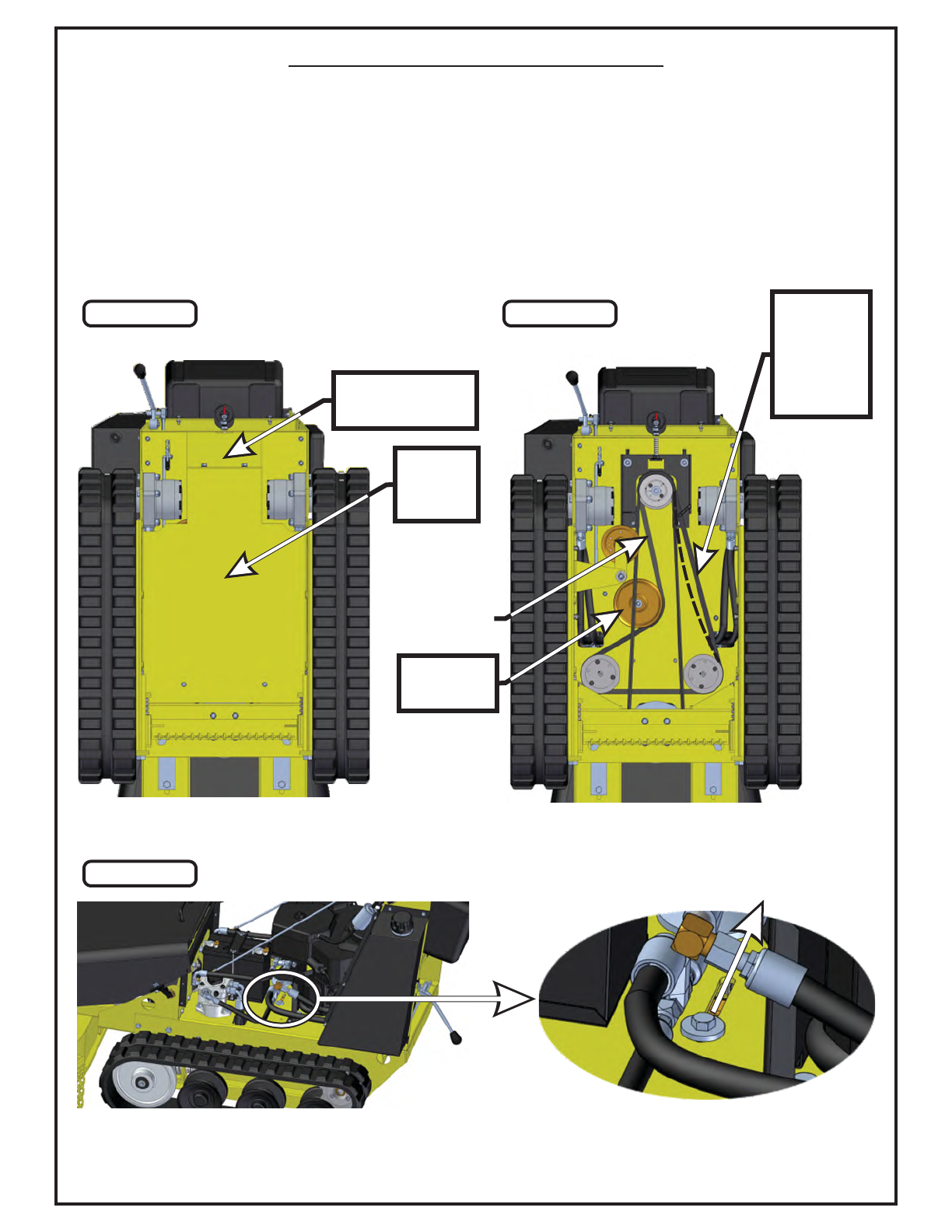

Remove Chassis
Rear Guard
Remove
Chassis
Pan
Pump Belt
Pump Belt
Idler
Apply
10 lbs.
Tension
Here
For 1” Of
Movement
Pump Belt Idler Bolt Location
Relative To Brush Blazer
Direction To Move Pump
Belt Idler Bolt To Increase
The Pump Belt Tension
Figure A
Figure C
Figure B

13

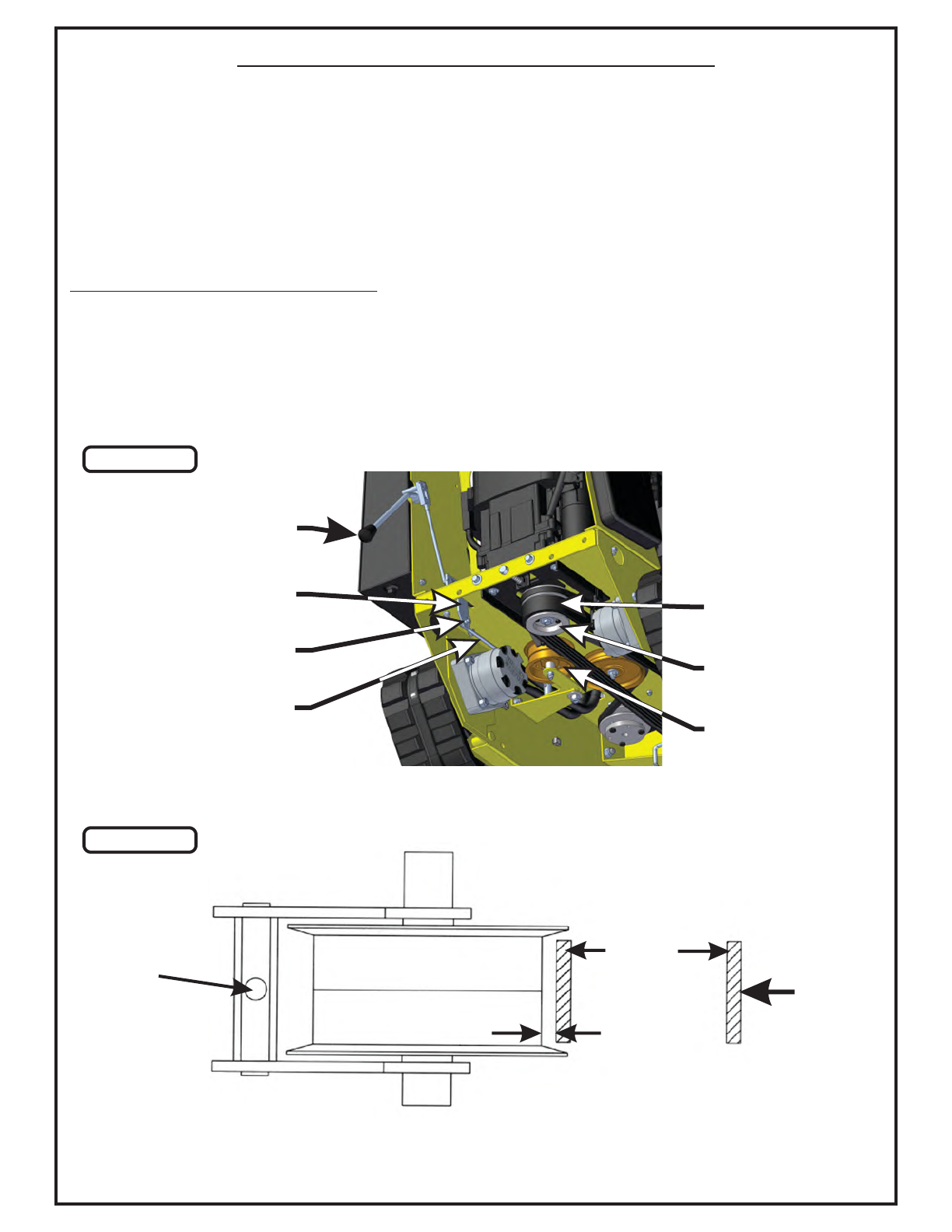

DRIVE BELT IDLER ADJUSTMENT
When the Blade Engagement Control is disengaged, the Engine Pulley should freely spin without turning the Belt or
Blades. The Drive Belt Idler must be checked periodically to ensure that the tension is correct, Follow the steps below
and refer to the figures for reference:
1. Make sure the Blade Engagement Control Handle is disengaged.
2. Remove the Winch Assembly, if you have one equipped, Chassis Rear Guard and the Chassis Pan
(See Page 12 Figure A).
3. Place tension on the Drive Belt as shown in the Figure B.
4. Measure the gap between the Idler and the Belt. There should be 1/8”-3/16” gap between the
Idler and the Belt.
If The Idler Needs To Be Adjusted -
1. Remove the Cotter Pin from the end of the Adjustment Rod and remove the end of the
Adjustment Rod from the Clutch Control Crank (Figure A).
2. Turn the Adjustment Rod clockwise to move the Idler closer to the Belt, or counter-clockwise to
move the Idler away from the Belt.
3. Once the gap between the Idler and the Belt is correct, insert the Adjustment Rod into the Clutch
Control Crank and fasten with the Cotter Pin.
4. Replace the Winch Assembly, if applicable, Chassis Rear Guard and the Chassis Pan.
Adjustment
Rod
1/8” To 3/16”
Gap
Belt
Cross-
Section
Drive Belt Idler
Fully Disengaged Place
Tension
Here
Clutch Control Crank
Blade Engagement
Control Handle
Cotter Pin
Adjustment Rod
Drive Belt
Engine Pulley
Drive Belt Idler
Figure A
Figure B

14
DRIVE BELT ADJUSTMENT
The Drive Belt should be checked periodically for the correct tension. There should be 1” of movement for 16 lbs. of
tension applied to the center of the Belt. Apply the tension to the center of the Belt, on the side of the Belt opposite the
Drive Belt Idler. To adjust the Belt, follow the steps below and refer to Figure A for reference:
1. Use a floor jack to raise the machine off the ground and blocks to support the chassis and deck.
2. Remove the Winch Assembly, if you have one equipped, Chassis Rear Guard and the Chassis Pan
(See Page 12 Figure A).
3. Engage the Blade Engagement Control Handle by putting in the ‘Up’ position (Figure A).
4. Use a tension gauge to check the tension on the Drive Belt. Apply tension to the center of the
Belt, on the side opposite the Drive Belt Idler. The correct tension is 1” of movement for 16 lbs. of
tension applied to the center of the Belt.
5. If the Belt needs adjustment, first loosen the (4) Engine Mount Bolts, then turn the Drive Belt
Adjustment Bolt clockwise to increase the tension or counter-clockwise to decrease the tension.
6. When the desired belt tension is achieved, tighten the (4) Engine Mount Bolts.
7. Disengage the Blade Engagement Control Handle by putting in the ‘down’ position.
8. Replace the Winch Assembly, if applicable, Chassis Rear Guard and the Chassis Pan.
Apply 16 lbs.
Tension Here
For 1” Of
Movement
Blade Engagement
Control Handle Drive Belt Idler
Engine Mount
Bolts 4X
Drive Belt
Adjustment
Bolt
Figure A

15
DECK BELT ADJUSTMENT
The Deck Belt should be checked periodically for the correct tension. The Deck Belt should move 1/2” with 18 lbs. of
tension on the Belt. To adjust the tension on the Belt follow the steps below and use the figure for reference:
1. Place tension on the center of the Deck Belt as shown in Figure A.
2. If the Belt needs adjustment, loosen the (4) Deck Mounting Bolts.
3. Loosen the (2) Deck Adjustment Flange Nuts.
4. Turn each of the Adjustment Bolts clockwise to increase tension or counter-clockise to decrease
tension.
5. When proper tension is achieved, tighten the Deck Adjustment Flange Nuts.
6. Tighten the Deck Mounting Bolts.
MOWER DECK PULLEY ALIGNMENT
1. Use a plumbers level on the Counter Shaft Pulley.
2. Use a 30” straight edge to level the Blade Shaft Pulleys with the Counter Shaft Pulley (Figure B)
3. Use a 30” straight edge to level the Blade Shaft Pulleys with each other.
4. If necessary, loosen the hardware on the Pulley Sleeve shown in the figure below and adjust the
Pulley as needed.
Apply 18 lbs.
Tension Here
For 1/2” Of
Movement
Deck Mounting
Bolts 4X
Deck Adjustment
Flange Nut 2X
Deck Adjustment
Bolt 2X
Straight Edge
Counter
Shaft
Pulley
Blade Shaft
Pulley
Loosen Hardware Here To
Adjust Pulley Height
Figure A
Figure B

16
DECK AND DRIVE BELT REMOVAL/REPLACEMENT
Use the following procedure for removal and replacement of the Drive and Deck Belts:
Removal:
1. Remove the Drive Belt Adjustment Bolt from the Rear Chassis of the machine. (Figure A)
2. Loosen the (2) Front Engine Mounting Bolts (Figure B)
3. Remove the (2) Rear Engine Mounting Bolts along with the Main Drive Take-Up Assembly (Figure B)
4. Loosen the tension on the Drive Belt by pushing the Engine forward.
5. Remove one end of the Drive Belt from the Engine Pulley (Figure C)
6. Loosen the (4) Deck Mounting Bolts (Figure D)
7. Remove the Deck Adjustment Bolts (Figure D)
8. Push the Deck back as far as possible to loosen the tension on the Deck Belt (Figure E)
9. Remove the (2) Bolts on the Pillow Block Bearing (Figure F)
10. Pivot the Counter Shaft forward (Figure G)
11. With the Counter Shaft pivoted forward, remove the Deck Belt and Drive Belt from the Pulleys
on the Counter Shaft (Figure H)
Replacement:
1. Wrap one end of the Drive Belt around the lower Pulley on the Counter Shaft and feed the Belt
towards the Engine Pulley.
2. Wrap the Deck Belt Pulley around both Blade Pulleys and the Counter Shaft Pulley.
3. Pivot the Counter Shaft backwards and replace the (2) Bolts in the Pillow Block Bearing.
4. Wrap the other end of the Drive Belt around the Engine Pulley.
5. Replace the Main Drive Take-Up and Rear Engine Mounting Bolts. Leave the Engine Mounting
Bolts loose at this time.
6. Replace the Drive Belt Tension Bolt.
7. Slide the Engine as far back as possible to increase the tension on the Belt.
8. Tension the Drive Belt (See page 14 for Drive Belt tensioning procedure)
9. Tighten the Engine Mounting Bolts after the Drive Belt has the correct tension.
10. Pull the Deck forward to increase the tension on the Deck Belt.
11. Replace the Deck Adjustment Bolts.
12. Tension the Deck Belt (See page 15 for Deck Belt Tensioning procedure)
Remove Drive Belt
Adjustment Bolt
Loosen
Bolts Remove
Bolts
Remove Main Drive
Take-Up Assembly
Figure A Figure B

17
Push Deck
Back As Far
As Possible
Remove
Hardware
Remove Belt
From Pulley
Pivot The
Counter Shaft
Forward
Remove
Adjustment
Bolts
Loosen
Deck
Mounting
Bolts
Remove
Deck Belt
Remove
Drive Belt
DECK AND DRIVE BELT REMOVAL/REPLACEMENT
Figure C Figure D
Figure E Figure F
Figure G Figure H

18
TRACK REMOVAL/REPLACEMENT
Removal:
1. Remove the tension from the Front Axle by turning the Tension Bolts counter-clockwise located
on each side of the Brush Blazer (Figure A).
2. With the Tension Bolts fully loosened, you can then push the Complete Front Axle towards the
rear of the Brush Blazer to gain enough slack in the track to remove it from the machine.
3. Remove one or both Tracks from the machine.
Replacement:
1. Remove the tension from the Front Axle by turning the Tension Bolts counter-clockwise located
on each side of the Brush Blazer (Figure A).
2. With the Tension Bolts fully loosened, you can then push the Complete Front Axle towards the
rear of the Brush Blazer.
3. Place the Track onto the Rear Sprocket first and align the Sprocket teeth to the center of the
Track allowing a greater length of slack to be in the Track.
4. Place the loose end of the Track around the Front Axle Wheel.
5. Repeat Steps 3 & 4 if installing both Tracks.
5. With a torque wrench, tension each Tension Bolt (clockwise) to a minimum of 70 foot pounds of
torque.
Note: The tread of the Track is not uni-directional. The point of the ‘V’ in the tread should point
away from the direction that requires more traction.
Front Axle
Tension Bolt - Tension
With Torque Wrench
To 70 Foot Pounds
Track Sprocket
Teeth Sprocket
Front Axle Wheel
Move Front Axle
To The Rear To
Remove/Replace
Tracks
Figure A

19
Blade Shaft Assembly
!WARNING
Stop The Engine, Remove Battery + Cable And
Support The Deck Before Working Underneath.
Failure To Do So May Result In Serious Injury
Or Death.

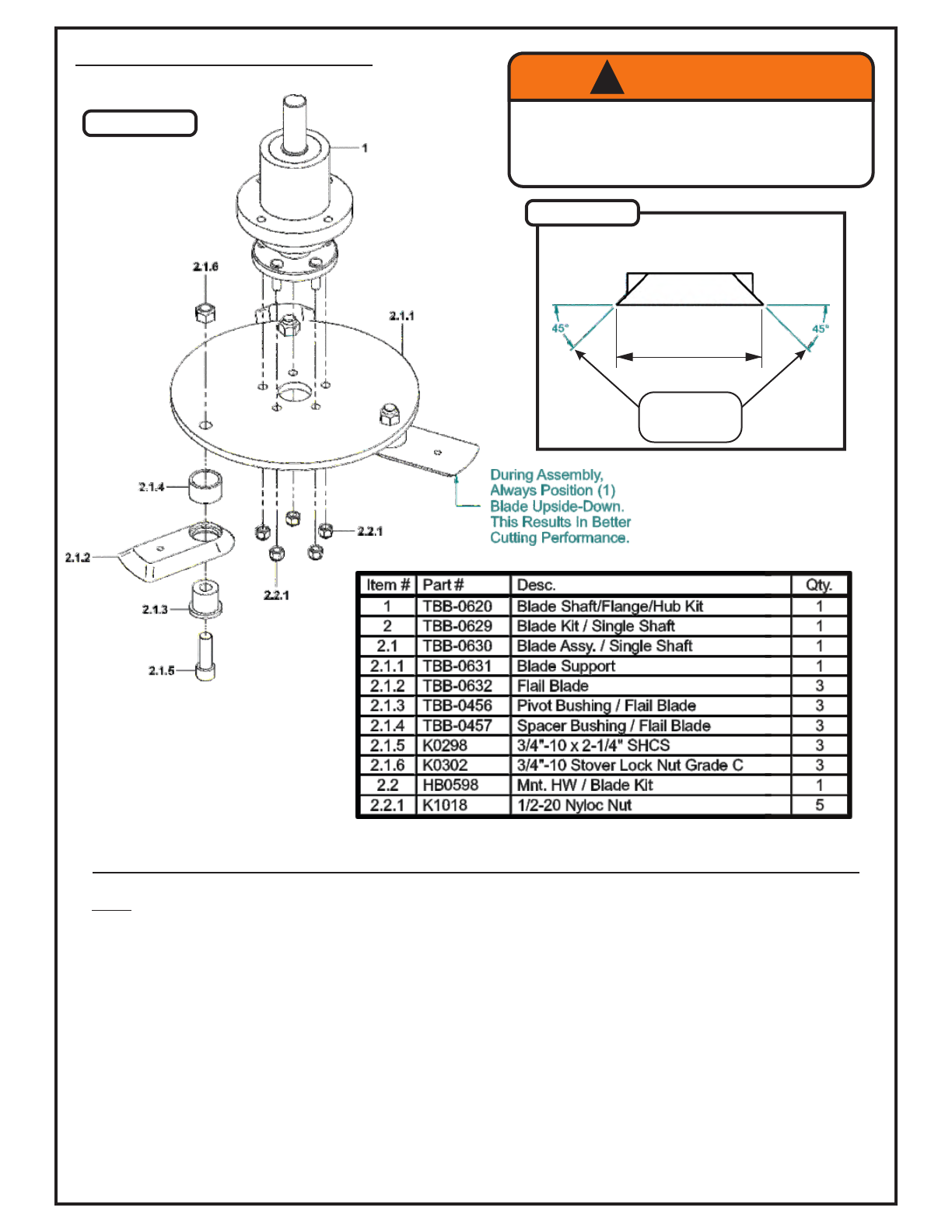

Blade - Removal / Inspection / Sharpening / Replacement
ŸNote: Please heed Warning above before attempting any repairs
ŸPreparation: With the Brush Blazer positioned securely on level ground, strap the Tree Gate Assembly in the “UP”
position to allow access to the cutting Flail Blades.
ŸRemoval: For a single Blade, remove the Socket Head Cap Screw (#2.1.5) & Stover Lock Nut (#2.1.6). Repeat for
the other Blades. See Figure A.
ŸInspection: Visually inspect each Blade for damage. Warped, bent, severely broken or chipped Blades should be
replaced.
ŸSharpening: Before sharpening, determine if the Blade’s width falls between the dimensions in Figure B. If the
Blade width is less than 3”, replace the Blade. Sharpen the edge of the Blade using a file or a grindstone,
keeping it at a roughly 45-degree angle, following the angle of the existing edge. Take care to even out rough
spots.
Ÿ Replacement: See Figure A. Insert the Cap Screw (#4) through items (#7), (#3), (#6), & (#2).
Fasten the cap screw (#4) using the previously removed stover lock nut (#5). If replacing all (3) Flail Blades,
be certain to position one blade (per shaft assembly) upside-down, see note in Figure A. Torque each bolt to
the specified torque settings in the back of this manual.
Sharpen At
45 Degrees
Cutting
Blade
3.50” New
< 3.00” Replace
Figure A
Figure B

20
LABEL REPLACEMENT PART NUMBERS
R1045 R1044
R1099
R2004
R2002
R2000
R1098
R2003
R1093
R1040
R2001
R1047
BRUSH BLAZER BRUSH BLAZERBRUSH BLAZER BRUSH BLAZER BRUSH BLAZERBRUSH BLAZER
P
PP
PECO
PECOPECO
PECO
PECOPECO
P
PP
P
PP
P
PP
P
PP
PECO
PECOPECO
PECO Inc.
Innovative Outdoor Power Equipment
100 Airport Road
Arden, NC 28704
Phone: [phone]
Fax: [phone]
e-mail: [email protected]
DECKDECKDECK
48”
P PP
PECO PECOPECO PECO PECOPECO
P PP P PP P PP P PP
PECO PECOPECO
P PP
PECO PECOPECO PECO PECOPECO
P PP P PP P PP P PP
PECO PECOPECO
LEFT TRACK RIGHT TRACK
BRUSH BLAZERBRUSH BLAZERBRUSH BLAZERBRUSH BLAZERBRUSH BLAZERBRUSH BLAZER
R1046
