Peco 51031201 User manual

ASSEMBLY OPERATION MAINTENANCEASSEMBLY OPERATION MAINTENANCE
MANUAL PART #: Q0388MANUAL PART #: Q0388
DECK DRIVE PTO
GRASS COLLECTION SYSTEM
DECK DRIVE PTO
GRASS COLLECTION SYSTEM
OPERATOR’S MANUALOPERATOR’S MANUAL
MODEL #: 51031201
WALKER SUPER B 2009
PRO BAGGER III
60” DECK MOUNT PTO
MODEL #: 51031201
WALKER SUPER B 2009
PRO BAGGER III
60” DECK MOUNT PTO
$10.00 REV: 0
P
PECOPECO
PPPP
PECOPECOPECO

RESIDENTIAL BAGGING SYSTEM
TABLE OF CONTENTS
SAFETY
1. Read the operator’s manual carefully and familiarize yourself with the proper use of your attachment. Do not allow
anyone who is not acquainted with the Safety Instructions to use your attachment.
2. Know the controls and how to stop quickly. READ THE OPERATOR’S MANUAL!
3. Do not allow children to operate the mower. Do not allow adults to operate the mower or grass collection system
without proper instruction.
4. Be especially watchful of children and pets darting into the area while operating.
5. Keep your eyes and mind on your unit while mowing or operating your attachment. Don’t let others distract you.
6. Do not attempt to operate your unit or mower when not in the driver’s seat.
7. Always stop unit when emptying the container.
8. Stop unit, shut off deck attachment, set parking brake, shut off mower engine and remove spark plug wire before
removing clogs, removing or replacing hose, boot, blower cone, or performing any maintenance.
9. If a slope must be ascended, back up the slope; drive forward when descending.
10. It is recommended that the container be kept only half full when negotiating any slopes. Start mowing on slopes
when the container is empty and never mow slopes greater than 15 degrees.
11. Inspect your lawn and remove any foreign objects before mowing. Never deliberately run the mower across any
foreign object.
12. Wear ear protection if the noise level is offensive.
13. Wear eye protection to prevent debris from damaging your eyes.
SECTION PAGE
Safety - - - - - - - - - - - - - - - - - - - - - - - - - 2
Safety Alert Symbols - - - - - - - - - - - - - - - - - 3
Warranty - - - - - - - - - - - - - - - - - - - - - - - - 4
II INSTALLATION FOR USE - - - - - - - - - - - - - - - - 5
2-1 Preparation Of Mower - - - - - - - - - - - - - - 5
2-2 Deck Blow-By Guard Installation - - - - - - - 6
2-3 Lower Mount Assembly Installation - - - - - - 6
2-4 Exhaust Deflector Installation - - - - - - - - - 6
2-5 Upper Frame Assembly Installation- - - - - - 7
2-6 TopAssembly To Upper FrameAssembly
Installation - - - - - - - - - - - - - - - - - - - - 7
2-7 Deck Pulley Installation - - - - - - - - - - - - - 7
2-8 Deck Drive Assembly Installation - - - - - - - 8
I INTRODUCTION AND DESCRIPTION
1-1 Introduction - - - - - - - - - - - - - - - - - - - - 5
1-2 Description - - - - - - - - - - - - - - - - - - - - 5
2
SECTION PAGE
2-9 Belt Installation - - - - - - - - - - - - - - - - - - 8
2-10 Deck Discharge Guard Installation - - - - - 9
2-11 Belt Installation - - - - - - - - - - - - - - - - - 9
2-12 Belt Guard Plate Installation - - - - - - - - - 9
2-13 Belt Guard Installation - - - - - - - - - - - - 9-10
2-14 Hose Installation - - - - - - - - - - - - - - - - 10
2-15 Installation/Removak Of Collection Bags- - 11
Exploded Part Views - - - - - - - - - - - - - - - 12-18
III PARTS AND SERVICE
3-1 Parts And Service Information - - - - - - - - - 19
Safety Decals - - - - - - - - - - - - - - - - - - - - - 20
Torque Specifications - - - - - - - - - - - - - - - - 21

3
SAFETY
WARNING! NEVER operate the mower unless the discharge guard and either the deflector assembly or the
vacuum collector adapter are fastened securely in place.
WARNING! Do not work around the mower deck boot or the blower area until you are certain that the mower
blades and the blower impeller have stopped rotating.
WARNING! To avoid serious injury, perform maintenance on the vacuum collector; ONLY AFTER STOPPING
THE MOWER’S ENGINE AND WAITING FOR ALL MOVING PARTS TO COME TO A COMPLETE STOP. Set the
parking brake. Always remove the ignition key before beginning maintenance.
WARNING! For your own personal safety, ALWAYS back up the face of slopes. NEVER attempt to mow
excessively steep slopes, and use caution when turning on any slope.
Safety Alert Symbol This Safety Alert Symbol means: “ATTENTION! BECOME
ALERT! YOUR SAFETY IS INVOLVED!”
This symbol is used to call attention to safety precautions that
should be followed by the operator to avoid accidents. When
you see this symbol, carefully read the message that follows
and heed its advice. Failure to comply with safety precautions
could result in death or serious bodily injury.
Safety Signs
The signal words DANGER, WARNING, and CAUTION are used on the equipment safety signs. These words are
intended to alert the viewer to the existence and the degree of hazard seriousness.
!
DANGER
!
WARNING
!
CAUTION
!
This signal word indicates a potentially hazardous situation which, if not
avoided, will result in death or serious injury.
This signal word indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
It may also be used to alert against unsafe practices.
This signal word indicates a potentially hazardous situation exist which, if
not avoided, will result in minor or moderate injury.
It may also be used to alert against unsafe practices.
White letters on RED
Black letters on ORANGE
Black letters on YELLOW

PECO LIMITED WARRANTY FOR NEW PRODUCTS
A. WHAT IS WARRANTED?
PECO extends the following warranties to the original purchaser of each new PECO consumer product subject
to the following limitations:
1. PRODUCT WARRANTY: Any part of any consumer product, which is defective in material or workmanship as
delivered to the purchaser will be repaired or replaced, as PECO elects, without charge for parts or labor, if the
defect appears within 12 months (90 days for commercial use) from the date of delivery of the product to the
original purchaser. ALL DEFECTIVE PARTS MUST BE RETURNED TO PECO FOR INSPECTION TO
DETERMINE VALIDITY OF WARRANTY CLAIMS. Freight and mailing will be borne by the customer.
2. PARTS REPLACED DURING WARRANTY: Any new PECO part which is furnished in performance of this
warranty and is defective in material or workmanship as delivered to the purchaser will be repaired or replaced,
as PECO elects, without charge if the defect appears within 90 days from the date of installation of such part or
before the expiration of the original warranty period, whichever is later.
B. SECURING WARRANTY ADJUSTMENTS.
Call PECO for Return Authorization. Damaged or broken parts, other than engines, batteries, and gearboxes
must be returned to PECO Inc., 100 Airport Road, Arden, NC 28704 before any warranty adjustment can be
authorized. At the time of requesting warranty adjustment, the purchaser must present evidence for date of
delivery of the product. The purchaser shall pay any charge for the product to and fromArden, NC.
C. ITEMS NOT COVERED BY PECO WARRANTY.
Engines, batteries and, gearboxes attached to PECO products are covered under a separate warranty by the
respective manufacturer.
D. UNAPPROVED ALTERATION OR MODIFICATION.
All obligations of PECO Inc., under this warranty, shall be terminated if products are altered or modified in ways
not approved by PECO Inc..
E. ACCIDENTS AND NORMAL MAINTENANCE.
The warranty covers only defective material and workmanship. It does not cover depreciation or damage
caused by normal wear, accident, improper use or abuse of products. The cost of normal maintenance and
normal replacement of service items such as belts, cutting blades, hoses, etc., which are not defective shall be
paid for by the purchaser.
F. NO REPRESENTATIONS ADDITIONAL WARRANTIES, DISCLAIMER.
Neither PECO Inc. nor any company affiliated with it makes any warranties, representations or promises as to
the quality of performance of its products other than those set forth herein. Except as described above, PECO
Inc. makes no other warranties AND SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED
WARRANTIES OF FITNESS AND MERCHANTABILITY.
G. ANY MACHINE USED FOR RENTAL PURPOSES ARE GUARANTEED FOR 45 DAYS FROM DATE
OF ORIGINAL SALE ONLY.
H. REMEDIED EXCLUSIVE.
The only remedies the purchaser has in connection with the breach or performance of any warranty on PECO
Inc. consumer products are set forth above. In no event will PECO be liable for special incidental or
consequential damages.
1. NO SERVICE CENTER WARRANTY.
The selling Service Center makes no warranty on his own on any item warranted by PECO Inc. unless he
delivers to purchaser a separate written warranty certificate specifically warranting the item. The dealer has no
authority to make any representation or promise on behalf of PECO or to modify the terms of this warranty in
any way.
4

5
Section I
INTRODUCTION AND
DESCRIPTION
1-1 Introduction
We are pleased to have you as a PECO customer. Your
collection system has been designed to give you a low
maintenance, simple, and effective way to collect the
grass clippings from your mower. This manual is
provided to give you the necessary instructions to
properly mount and operate the collection system on
your mower. Please read this manual thoroughly.
Understand what each control is for and how to use it.
Observe all safety decal precautions on the machine and
noted throughout the manual.
NOTE: All references made to right, left, front, rear, top
or bottom are as viewed from the normal operator’s
position on the mower.
1-2 Description
The collection system is designed for turf maintenance
where there is a need to collect the grass clippings as
the mower cuts the turf. The collection system is also
good for picking up leaves and twigs in pre-season and
post-season clean-up.
The deck drive assembly is mounted on the right side of
the mower deck. The deck drive assebly draws grass
clippings from the discharge area of the cutter deck back
to the (3) 2.9 cubic foot collection bags P#(G0004) at the
rear portion of the mower frame. Once the bags are full,
they can be released for easy dumping.
Section II
INSTALLATION FOR USE
2-1 Preparation Of Mower
Carefully dismantle wooden the shipping crate from
around the components. Cut the retaining straps and
separate the parts. The collection system will have
various parts located inside. Remove and sort all parts
for easy identification.
NOTE: Before each step of assembly it will help to study
the part drawings on pages 11 thru 18.
Grass Deflector Removal:
Remove the (2) 3/8”-16 x 1-1/4” HHCS, (2) 3/8” spring
washer, and (2) 3/8”-16 nyloc nut that secure the grass
deflector to the mower deck (Figure 2-1). Remove the
grass deflector from the mower deck. Once the grass
deflector is removed, follow the instructions included in
your Walker owners manual, and raise the mower deck.
Deck Preparation:

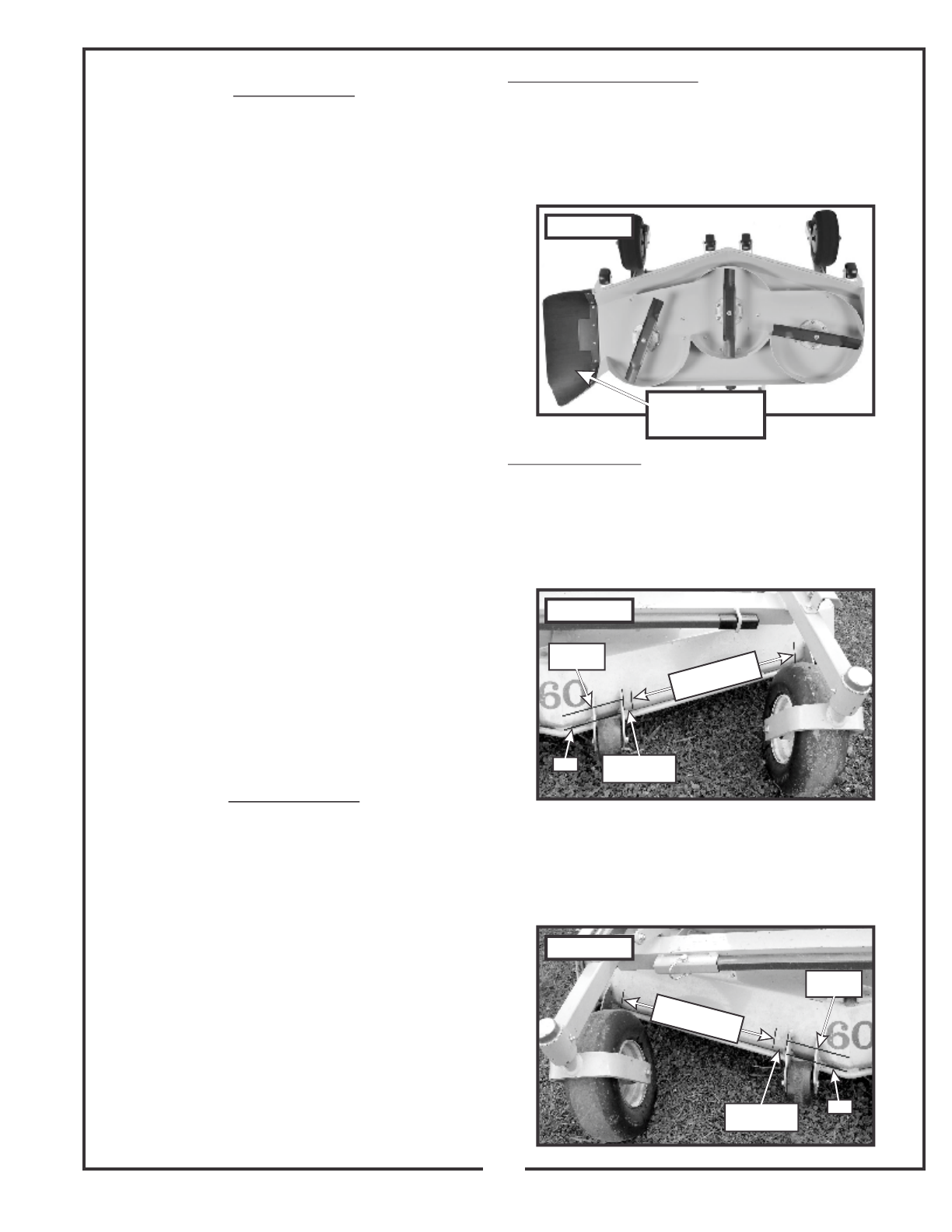

Drill (4) 5/16” holes into the front edge of the mower
deck. From the front of the mower, measure 1-1/2” up
from the deck bar, and 1-3/8” from the right caster and
mark the deck. Measure 19-1/8” to the right of your first
mark and 1-1/2” up from the deck bar and mark the
deck. Refer to Figure 2-1b.
From the front of the mower, measure 1-1/2” up from the
deck bar and 1-1/2” from the left caster and mark the
deck. Measure 18-1/8” to the left of your third mark and
1-1/2” up from the deck bar and mark the deck. Refer to
Figure 2-1c.
Remove
Grass Deflector
Figure 2-1a
Figure 2-1b
19-1/8”
Between Holes
1-3/8”
From Caster
1-1/2”
From Bar
Bar
Figure 2-1c
18-1/8”
Between Holes
1-1/2”
From Caster
1-1/2”
From Bar
Bar

6
2-2 Deck Blow-By Guard Installation
Raise and lock the mower deck (Figure 2-2a). Position
the blow-by guard P#(C0018) on the front inside edge of
the mower deck as shown in Figure 2-2b, and fasten the
guard to the mower deck using (4) 5/16”-18 x 3/4”
carriage bolt P#(K1142) and (4) 5/16”-18 nyloc nut
P#(K1180) as shown in Figure 2-2c.
2-3 Lower Mount Assembly
Installation

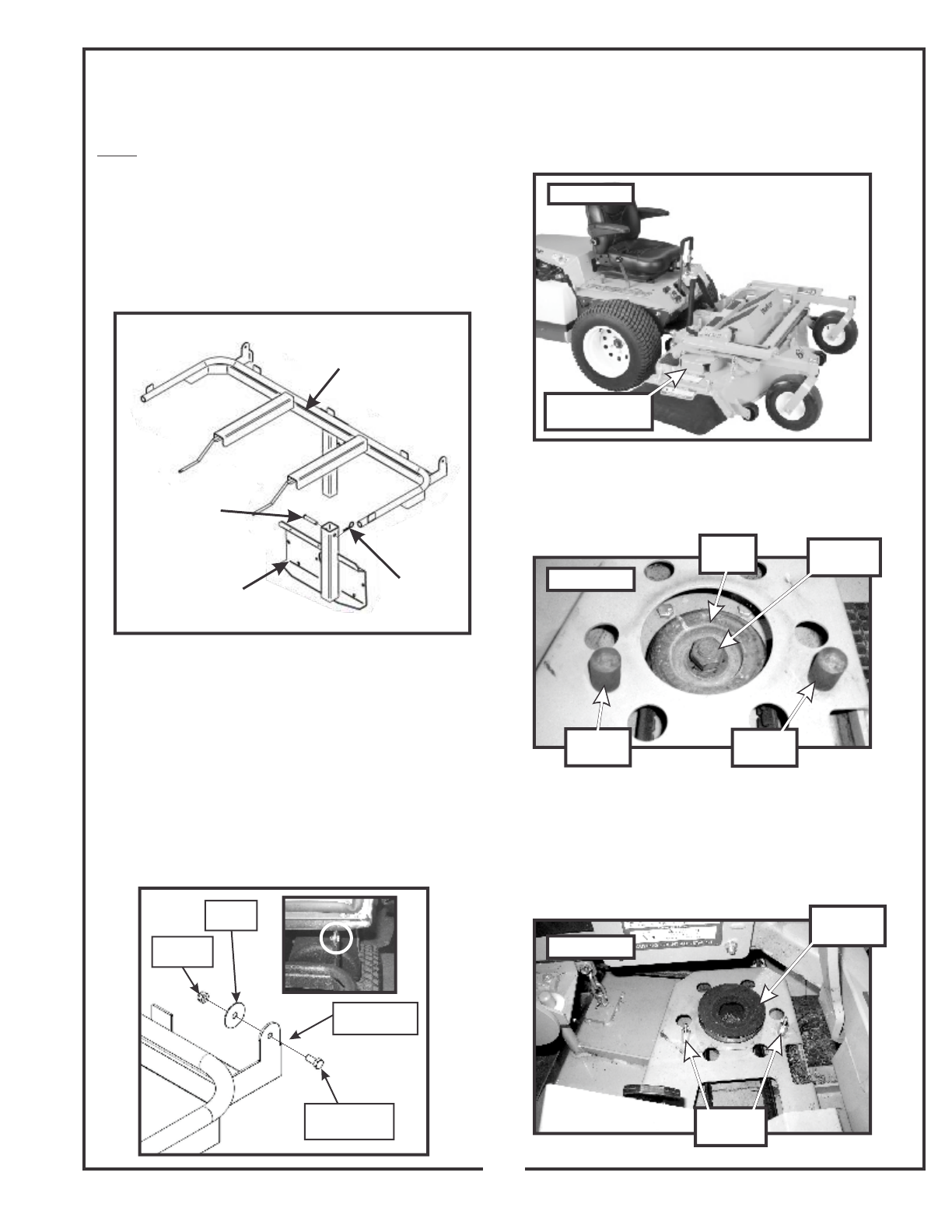

Fasten the lower mount assembly P#(A1083) to the rear
frame of the mower, using (2) 3/8”-16 x 1-3/4” HHCS
P#(K1194) with (2) 3/8”-16 nyloc nut P#(K1216) and (2)
3/8”-16 x 3-1/2” U-bolt P#(K0407) with (4) 3/8”-16 nyloc
nut P#(K1216).
2-4 Exhaust Deflector Installation
Note: Cut 2-1/2” off the existing exhaust pipe before
installing the deflector/diverter.
Insert the exhaust diverter P#(J0250) onto the exhaust
pipe and secure with (1) exhaust clamp P#(X1046) as
shown in Figure 2-4a. Fasten the exhaust deflector
P#(C0027) to the lower mount assembly using (2) 1/4”-
20 x 1/2” HHSTCS P#(K0353) as shown in Figure 2-4b.
Figure 2-2c (4) 5/16”-18 x 3/4” Carriage Bolt
(4) 5/16”-18 Nyloc Nut
Figure 2-2b Deck Blow-By
Guard
Figure 2-2a Raise and Lock
Mower Deck
Lower Mount
Assembly
(2) 3/8”-16 x 1-3/4” HHCS
(2) 3/8”-16 Nyloc Nut
(2) 3/8”-16 x 3-1/2” U-Bolt
(4) 3/8”-16 Nyloc Nut
Front
View
Figure 2-3
Side View
Figure 2-4a
Figure 2-4b
Exhaust
Diverter
Exhaust
Clamp
Exhaust
Deflector
(2) 1/4”-20 x 1/2”
HHSTCS

7
2-5 Upper Frame Assembly
Installation
Note: It is recommended that someone assist you during
the upper frame assembly installation.
Insert the upper frame assembly P#(A0585) into the
mounting tube on the lower frame assembly P#(A1083).
Align the holes on both mounting tubes and secure the
upper frame assembly with (1) clevis pin P#(K0133) and
(1) hair pin clip P#(K0088). Refer to Figure 2-5 for
reference.
2-6 Top Assembly To Upper Frame
Assembly Installation
Align the pivot brackets of the top assembly P#(A0551)
to the pivot point on either side of the upper frame
assembly. Place (1) fender washer P#(K0041) between
each pivot point (Figure 2-6) and fasten each side by
using (1) 5/16”-18 x 3/4” HHCS P#(K1153) and (1) 5/16”-
18 nyloc nut P#(K1180). When fastening, leave nut
slightly loose so that the top can pivot freely.
2-7 Deck Pulley Installation
Remove the existing spindle cover and knobs for the
deck pulley shown in Figure 2-7a.
Remove the deck pulley hardware and the spindle cover
spacers as shown in Figure 2-7b.
Place the pulley assembly included in your hardware
bag P#(A1084) on top of the existing deck pulley, and
fasten using the existing hardware removed from the
deck pulley.
Remove
Spindle Cover
Figure 2-7a
Figure 2-7c
Pulley
Assembly
Guard
Stand Off
Figure 2-5
Lower Mount
Assembly
Clevis Pin
Hair Pin
Clip
Upper Frame
Assembly
5/16”-18
Nyloc Nut
Fender
Washer
5-16”-18 x 3/4”
HHCS
Top Assembly
Goes Here
Figure 2-6
Figure 2-7b
Remove
Hardware
Remove
Spacers Remove
Spacers
Deck
Pulley

8
2-8 Deck Drive Assembly Installation
The deck drive assembly P#(A1096) will mount to the
flanges on the discharge side of the mower deck where
the grass deflector was removed in Section 2-1. The
mounting brackets on the deck drive assembly slide
down onto the flanges on the mower deck and the deck
drive assembly is secured with (1) mount rod P#(B0547)
and (1) hair pin clip P#(K0099).
Refer to the Figures 2-8a thru 2-8c for reference.
2-9 Belt Installation
Wrap (1)A65K belt P#(M0258) around the two idler
pulleys, the blade drive pulley and the deck pulley
P#(A1084) installed in Section 2-8. Refer to Figures 2-9a
and 2-9b.
2-10 Deck Discharge Guard
Installation
Raise and lock the mower deck. Mount discharge guard
P#(C0030) to lower bottom left side of the deck’s
discharge outlet. See Figure 2-10. Place guard flush
with corner and bottom edge of the deck drive system.
Mark holes for drilling. Drill (2) 1/4” holes. Attach
discharge guard using (2) 1/4”-20 x 5/8” carriage bolts
P#(K1010) and (2) 1/4”-20 nyloc nuts P#(K1128).
Discharge
Guard
Deck Drive
Assembly
Figure 2-10
(2) Carriage Bolts
(2) Nyloc Nuts
Mount Rod
Hair Pin
Clip
Figure 2-8a
Figure 2-8c
Mounting Brackets
Slide Down Onto
Flanges On Mower Deck
Figure 2-8b
Flanges
Mounting
Brackets
Flanges
Figure 2-9a
Figure 2-9b
Idler
Pulley
Idler
Pulley
Blade Drive
Pulley
Deck Pulley

2-11 Belt Tension Adjustment
To tension the drive belt, turn the tension adjustment
knob clockwise until there is 1” of deflection with 10-11lbs
of pressure between the deck pulley assembly and the
deck drive idler pulley. Refer to Figure 2-11a and 2-11b.
2-12 Belt Guard Plate Installation
Placet the belt guard plate P#(B8156) onto the mower
deck holes where spacers were previously removed. See
Section 2-7 for reference. Secure deck guard plate with
(2) guard stand-offs P#(B0563). Refer to Figures 2-12a
and 2-12b.
Figure 2-11a
Turn Tension
Knob Clockwise
Figure 2-11b Proper Tension:
1” Of Deflection
For 10-10lbs Of
Pressure Applied
To Center of belt
9
Figure 2-12a
Existing Holes
Pulley Assembly Mower Deck
Figure 2-12b
(2) Guard Stand-Offs
Belt Guard Plate
2-13 Belt Guard Installation
The belt guard P#(B0555) is used to cover the belt from
the mower deck to the PTO deck drive. To mount the belt
guard, place the end with the tabs towards the deck
mount unit and insert into slots provided on deck drive.
Align the holes in the other end with the guard stand-offs.
(Figure 2-13a). Insert tabs into slots on deck drive and
secure other end with (2) guard stand-offs P#(B0563)
inserted into the existing guard stand-offs securing the
belt guard plate P#(B0563). Refer to Figure 2-13b. The
belt guard properly secured should look like
Figures 2-13c and 2-13d.

I
2-14 Hose Installation

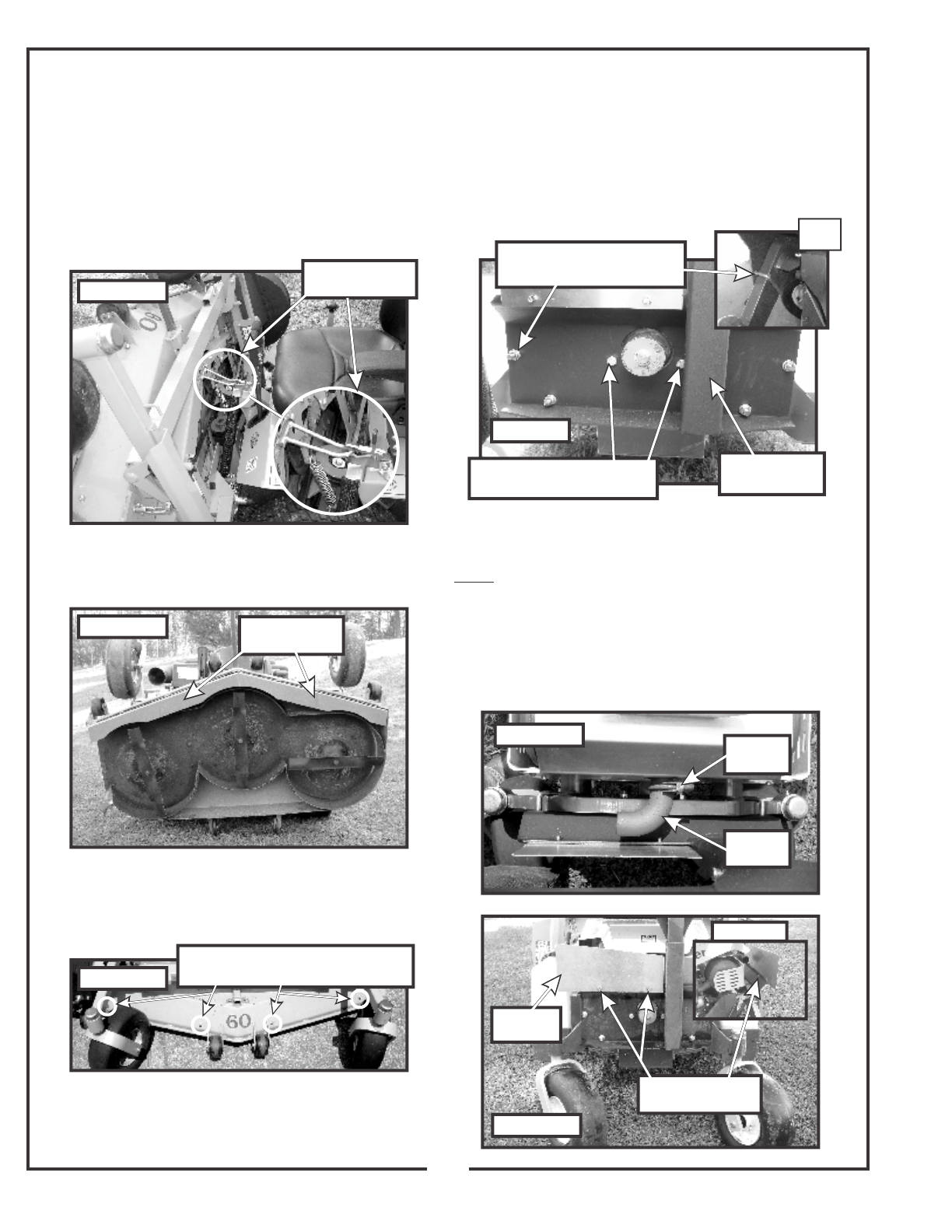

Slide one end of the hose P#(F0005) onto the inlet
P#(V1054). Secure the hose to the inlet with (1) hose
clamp P#(J1001) as shown in Figure 2-14a. Be sure to
leave at least 1” of the hose overlapping the clamp.
Slide the opposite end of the hose onto the deck drive
assembly boot P#(V1164) and secure with (1) hose
clamp P#(J1001) as shown in Figure 2-14b. Be sure to
leave at least 1” of the hose overlapping the clamp.
Figure 2-14a
Figure 2-14b
Boot
Hose
Clamp
Inlet
Hose
Clamp
10
2-13 Belt Guard Installation Cont...
Figure 2-13b
Figure 2-13a
Tabs
Belt Guard Tabs
PTO Deck Drive Slots for Tabs
Figure 2-13c
Assembled Belt Guard and PTO Deck Drive
Figure 2-13d
Belt Guard
Holes for Guard Stand-Offs
Belt Guard
Belt Guard Plate
Guard Stand-Offs

11
2-15 Installation/Removal Of
Collection Bags
To install the bag onto the bag ring, first make sure the
bag ring end caps are fastened to the bag ring. Place the
seam openings of the bag onto the bag ring openings
and turn the bag until the slot bracket in the bag ring is
protruding from the opening in the bag (Figure 2-15a).
Do this for each of three bags.
Install the completed assemblies onto the support frame
and close the plastic top. Fasten both draw latches to
hold the plastic top closed (Figure 2-15b).
To empty the bag, remove the bag and bag ring by lifting
and sliding rearward. Grasp the loop on the bottom of
the bag, turn it upside down and empty the collected
debris (Figure 2-15c). Repeat for the other bags.
Reinstall all bags, line with plastic bags if desired, close
the plastic top and reattach the draw latches.
Plastic lawn and leaf bags, 33 gallon size, may be used
inside the cloth bags. Be sure to leave enough plastic
bag hanging over the frame so the plastic bags can be
twist tied before emptying (Figure 2-15d).
Figure 2-15a
Draw Latches
Cloth Bag
Slot
Bracket
Bag Ring
Bag Ring
End Caps
Figure 2-15b
Figure 2-15c
Figure 2-15d
Plastic Top
Grasp Bag
Here
Plastic Bag
Cloth Bag

12

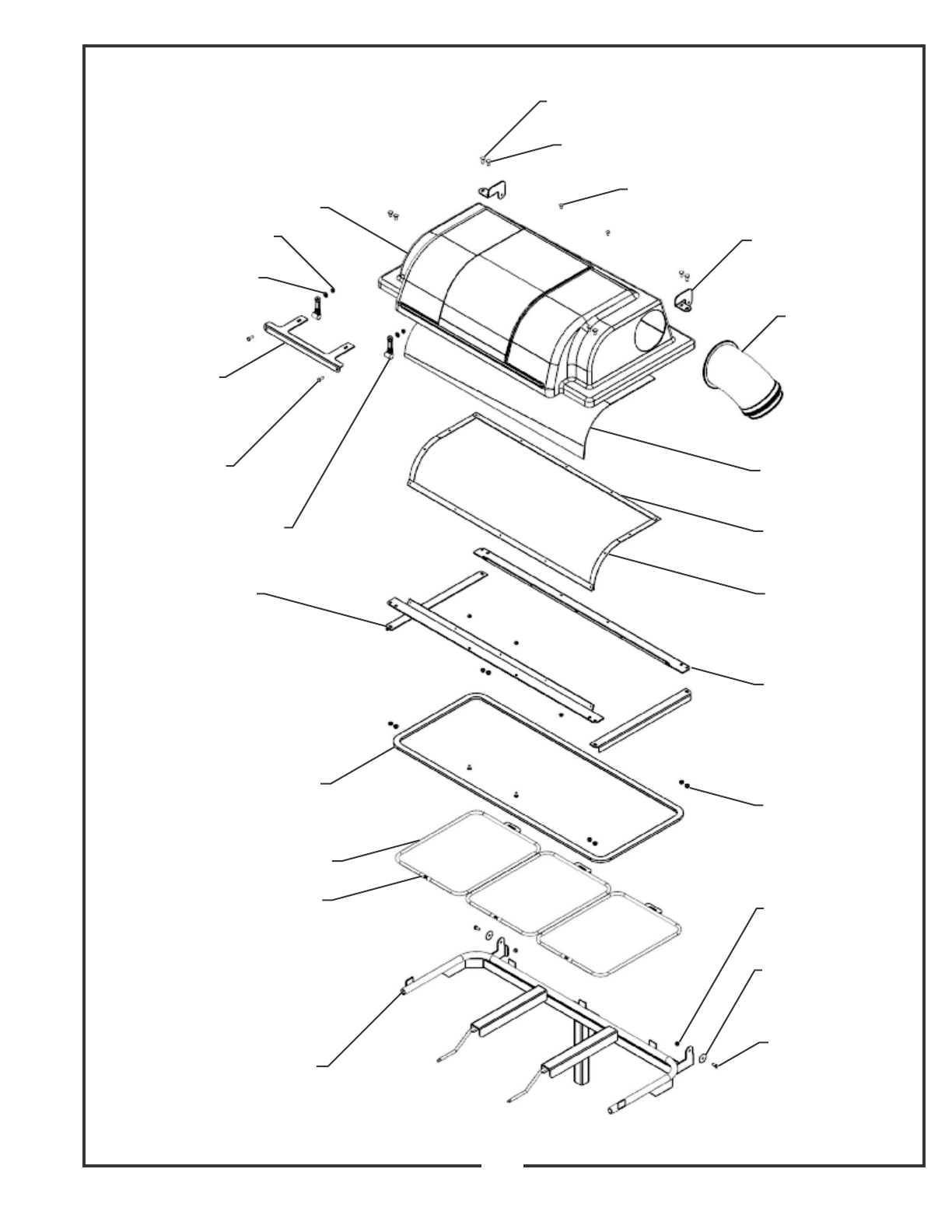

Exploded View Of The
A0551 - Bagger Assembly (2) K1144 - 5/16”-18 x 1”
CARRIAGE BOLT
(6) K1142 - 5/16”-18 x 3/4”
CARRIAGE BOLT
(4) K1010 - 1/4”-20 x 5/8”
CARRIAGE BOLT
(1 LEFT, 1 RIGHT)
B0237 - PIVOT
BRACKET
(1) V1054 - INLET
(1) B8002 - PLASTIC
SCREEN
(2) C0051 - LONG
SCREEN MOUNT
STRIP
(2) C0052 - SHORT
SCREEN MOUNT
STRIP
(1) V0002 - PLASTIC TOP
(2) K1126 - 1/4”-20
FLANGE NUT
(2) K0037 - 1/4” FLAT
WASHER
(1) C0048 -
LATCH MOUNT
BRACKET
(2) K1025 - 1/4”-20
x 1” CARRIAGE
BOLT
(2) J4005 - FLEXIBLE
DRAW LATCH
(2) C0047 - PIVOT
BRACE
(2) C0049 - SCREEN
BRACE
(8) K1178 - 5/16”-18
FLANGE NUT
(1) V0005 - BAG RING SEAL
(6) J0274 - BAG RING END CAP
(3) A0584 - BAG RING
ASSEMBLY
(2) K1180 - 5/16”-18
NYLOC NUT
(2) K0041 - 5/16”
FENDER WASHER
(2) K1153 - 5/16”-18
x 3/4” HHCS
(1) A0585 - UPPER FRAME
ASSEMBLY

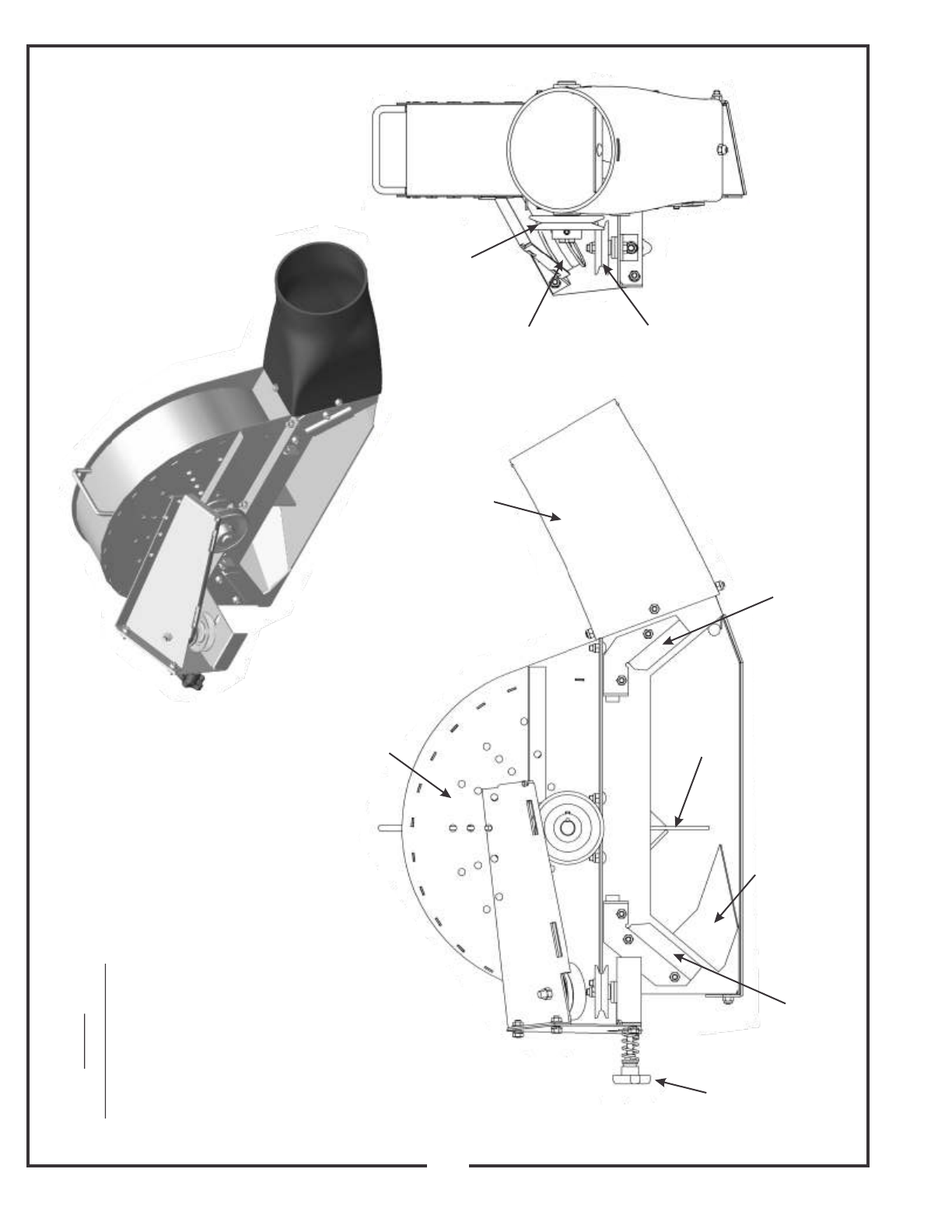

Blower
Outlet
Debris
Diverter
Blade
Assembly
Belt Tension
Adjustment Knob
Front Housing
Mount
Rear Housing
Mount
Blower
Housing
Gear Box
Pulley
Flat Idler
Pulley
Idler
Pulley
A1096
Blower Assembly
13
VIEW 1

A1096
VIEW 2
4 4
1 1 1 1
14

A1096 / A1055 / A1733
VIEW 3
15

15 (4) 4
6 (2)
6 (3) 1
11
4 (4)
7 (4)
36
10
6
5
5 (3)
6
9

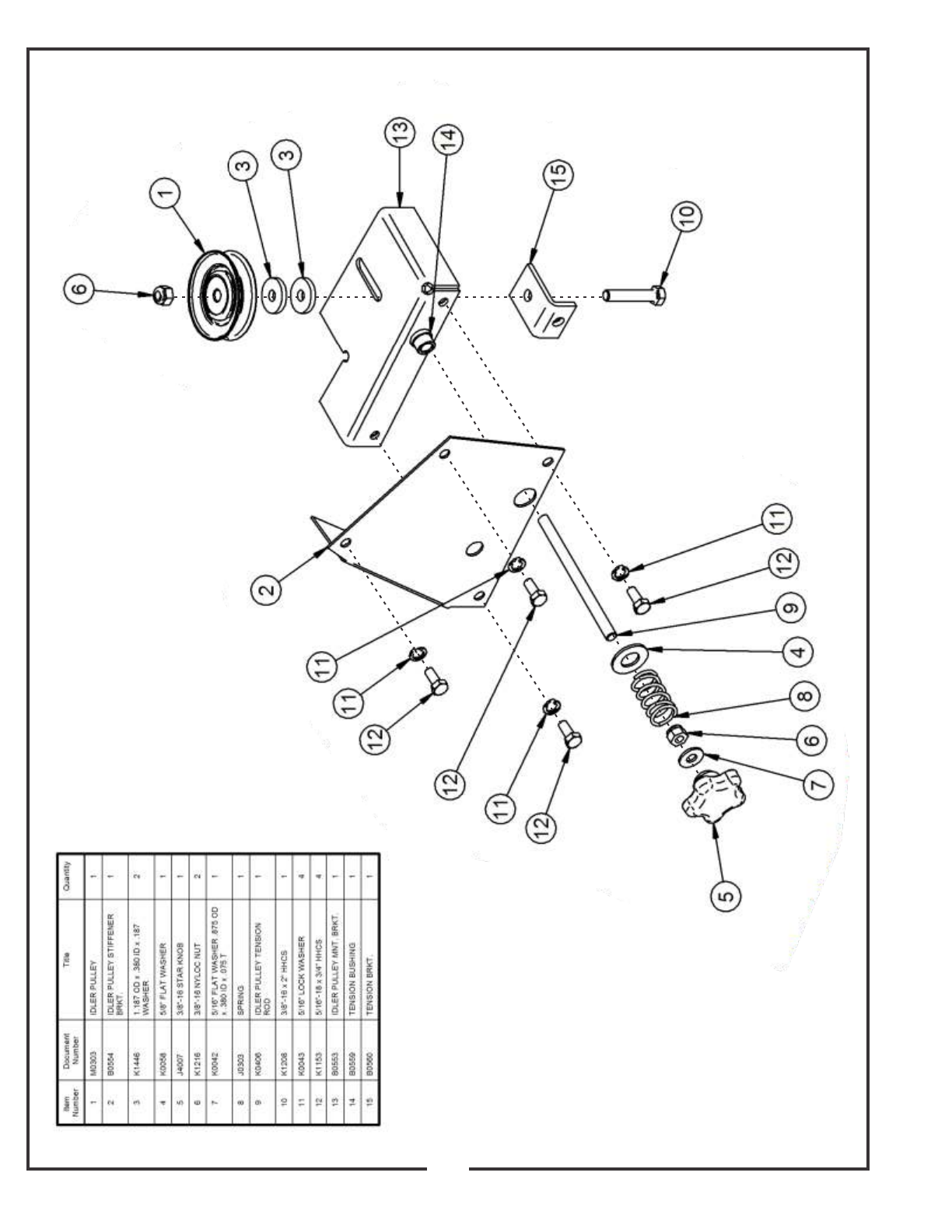

1 B0550 FRONT HSG. MNT.
2 B0551 REAR HSG. MNT.
3 B0554 IDLER PULLEY STIFFENER BRKT.
4 B0556 WEAR PLATE
5 K1142 5/16” - 18 X 3/4” CARRIAGE BOLT
6 K1180 5/16” - 18 NYLOC NUT
7 K0043 5/16” LOCK WASHER
8 K1153 5/16” - 18 X 3/4” HHCS 9 A1085 DISCHARGE MOUNT PLATE ASSY.
10 A1086 HOUSING ASSEMBLY
11 A1087 TENSION BRACKET ASSY.
1 1 1 1 10 12 12 4 12 12 12
VIEW 4 A1096
16

FAN ASSEMBLY FOR
A1055 / A1096 / A1733 PTO DECK DRIVE
5
10
4
2
56
8
7
3
1
4
7
VIEW 5
5
3
1
8
2
8
4
7
N0105
K0035
K0075
A1088
A0498
B0543
K1180
K1142
1
1
1
1
1
6
6
BROWNING MOUNTED BALL BEARING
5/16” - 18 SET SCREW
3/16” SQUARE X 1” LONG KEYWAY
FAN BLADE ASSEMBLY
GEAR BOX PULLEYASSEMBLY
RIGHT HOUSING PLATE
5/16” -18 NYLOC NUT
5/16 -18 X 3/4” CARRIAGE BOLT
6B0541 1
LEFT HOUSING PLATE
2
17

MODEL#: 51031201
MOWER NAME: WALKER
MOWER MODEL: SUPER BEE
MOWER DECK SIZE: 60” DECK
VAC NAME: PRO 3 BAGGER FOR YEAR: 2010
REVISED:
DECK DRIVEN PTO
A1095 UNIT ASSEMBLY
(1)
A0585
UPPER FRAME
ASSEMBLY
(1)
A0551
TOP
ASSEMBLY
(3)
A0584
BAG RING
ASSEMBLY
(1)
V1054
INLET
(1)
A1084
PTO
DECK PULLEY
(1)
C0026
GRASS
DEFLECTOR
(1)
B0547
HOUSING
MOUNT ROD
(1)
C0027
EXHAUST
DEFLECTOR
(1)
C0030
DISCHARGE
GUARD
(1)
F0005
7” x 65”
YELLOW HOSE (1)
HB0380
HARDWARE
BAG
(1)
M0258
A65K KEVLAR
BELT
(1)
A1096 W/V1164
PTO DECK DRIVE
ASSEMBLY
WITH BOOT
(3)
G0004
2.9 CU. FT.
COLLECTION
BAGS
(2)
J1001
9” HOSE
CLAMP
WITH KNOB
(1)
B0555
BELT GUARD
PLATE
(1)
B8156
BELT GUARD
PLATE
18
(1)
C0018
DECK GUARD (1)
C0016
DECK GUARD
MANUAL Q0388
(1)
A1083
LWR. MOUNT
ASSEMBLY
A1096 DECK DRIVE ASSEMBLY
V1164

SECTION III
OPERATING INSTRUCTIONS
3-1 General Safety
Only qualified people familiar with this operator’s manual
and the mower’s operator’s manual should operate this
machine.
3-2 Operation And Tips On Mowing
A. Perform BEFORE EACH USE the maintenance list in
paragraph 4-1.
B. Start mower.
C. With the mower at high idle speed, engage the mower
deck.
D. The PTO system will engage when mower deck is
engaged
NOTE:
To obtain the maximum effectiveness from your
collection system, the tips listed below should be
followed:
* Watch your speed- Normal conditions will allow a
speed of up to approximately 4 mph, but thick, heavy
damp conditions will require reduced ground speed.
* Mow with sharp blades- A sharp blade cuts cleaner.
* Wet grass and leaves will decrease effectiveness and
will increase horsepower requirements.
* Mow at higher cutting heights- Remove and mulch no
more than 2” of grass length with each mowing.
(Experts recommend not cutting off more than 1/3 of
the grass blade length at any given time.)
* Mow twice, at different height settings, (high, then low),
if grass is extra tall.
* Remember that horsepower requirements will vary with
the mowing conditions such as type and height of turf
grass, moisture content, amount of leaves, whether the
terrain is flat or hilly, etc.
. Proceed to operate the control levers of the
If the collection system does not appear to be
collecting the grass clippings, disengage the deck
mower as normal.
and PTO assembly (Section 3-3), then, engage the
parking brake and turn the mower off. Check upper and
lower hoses for any clogs.
3-3 Disengagement Of The PTO Assembly
A. To disengage the PTO assembly, disengage the
mowers blade.
3-4 Impeller Blade Removal/Replacement
BEFORE INSTALLING/REMOVING/REPLACING THE
IMPELLER BLADES, BE SURE THE MOWER IS
TURNED OFF, THE PTO DECK DRIVE ASSEMBLY IS
DISENGAGED AND THE NEGATIVE CABLE IS
REMOVED FROM THE BATTERY. FAILURE TO DO
SO MAY RESULT IN SEVERE INJURY OR DEATH.
WARNING: The PTO deck drive assembly blades will
continue to spin. DO NOT TOUCH the PTO deck drive
assembly, pulleys, or the belts until the tractor is turned
off and all parts have stopped moving. DO NOT adjust
the belt tension until the mower is turned off.
A. Stop the forward movement of the mower.
B. Disengage the mower deck.
C. Disengage the PTO assembly.
D. Engage the parking brake.
E. Once the parking brake has been engaged, then and
only then, walk behind the mower and check the
collection bags by first unhooking the rubber strap
with S hook that secures the plastic top, then lift the
plastic hood. Load in bags should not exceed the
height of the installed bag.
F. To remove the bags from the frame slide bags out and
turn bags over to deposit clippings.
G. Slide empty bags back onto the frame and secure
plastic top with the rubber strap with ‘S’ hook.
3-5 Unloading The Collection System
NOTE: To determine when the collection bags are full,
follow the following steps:
NOTE: Do not allow collection bags to become over-
filled as potential damage may occur to your
equipment. Also, be sure to clean the hood screen as
needed.
19
WARNING
!

20
Model Number
Serial Number
PECO
OUTDOOR POWER EQUIPMENT
Arden, North Carolina 28704
WRITE THE MODELAND
SERIAL NUMBER IN THE
BOX ABOVE FOR FUTURE
REFERENCE.
THE SERIAL NUMBER PLATE
IS LOCATED ON THE TOP OF THE
BAG ASSEMBLY P#(A0551)
Unit Model Number: _____________________________
Unit Engine Size: _____________________________
Unit Serial Number: _____________________________
Date of purchase: _____/_____/_________
Dealer/Distributor Name: ________________________________________
Dealer’s/Distributor’s: _______________________ State: __________ Zip: ___________
Phone Number: ____________________________
Address: PECO Inc.
P.O. Box 1197
Arden, NC 28704
Phone #: [phone] or Toll Free: [phone]
Email: [e-mail]
SECTION V
PARTS AND SERVICE
5-1 Parts And Service Information
PeCo collection system owners should record the name
and telephone number of their Service Center. Your
Service Center will be happy to supply replacement
parts, accessories, and do any service or repairs to your
collection system. If for any reason your Service Center
is unable to service your collection system or supply
replacement parts, contact PeCo and include the
following information on the chart below.
SECTION IV
MAINTENANCE
4-1 Maintenance Checklist
1. Check blades and spindles to be sure that no foreign
objects, such as wire or steel strapping bands, are
wrapped around them.
2. Inspect blades for wear. Replace if necessary. If it is
necessary to sharpen the blades, remove the blades
from the spindles before sharpening. DO NOT
sharpen blades while still attached to the mower.
Model Number
Serial Number
PECO
OUTDOOR POWER EQUIPMENT
Arden, North Carolina 28704
WRITE THE MODELAND
SERIAL NUMBER IN THE
BOX ABOVE FOR FUTURE
REFERENCE.
THE SERIAL NUMBER PLATE
IS LOCATED ON THE DECK
DRIVE ASSEMBLY P#(A1096)
