Pedigree Technologies OneView TTU2830 User manual

INSTALLATION MANUAL
PedigreeTechnologies.com | Support: (701)-499-0022
Mobile Equipment Manager
(TTU2830/TTU2840)
Document ID: IM-MM2830/40
Last Updated: May 02, 2019
Pedigree Technologies recommends using a professional installer for optimal
results. Please let your Pedigree Technologies representative suggest a provider if
you need help with your hardware installations.

2
Prerequisites
PedigreeTechnologies.com | Support: (701)-499-0022
Required Information
• Name of asset (ex: Loader #20)
• Detailed information about the asset (year, make, model, VIN, license plate, etc.)
• State, area, organization, or group the asset belongs to (ex: North Region, MN tankers, etc.)
• ESN of each device to be installed (ESN is found on the back of each unit with a barcode)
• Current hour meter reading on equipment
Required Equipment
Required Tools
• Drill and assorted drill bits
• Slotted and Philips Torx bits (in some cases you may need tamper resistant Torx bits)
• Small socket set
TTU 2840
Before You Begin
TURN TO THE LAST PAGE - WRITE DOWN THE REQUIRED INFORMATION!!!
• Decide where the hardware components will be located and make sure the device is secured
within the cabling distance to the power source.
• The device must have a clear view to the sky, free from metal obstructions.
• Ensure that the mounting location has enough integrity to accommodate the additional weight
and vibration of the device.
• Ensure that the trailer/equipment is connected to a power source to complete and test the install.
• Additional mounting harware may be needed.
Power Cable
Fuse Holders (2)
Fuse Taps (4)
2 Regular, 2 Mini
Mobile Equipment Manager
(TTU2830/TTU2840)
TTU 2830

PedigreeTechnologies.com | Support: (701)-499-0022
3

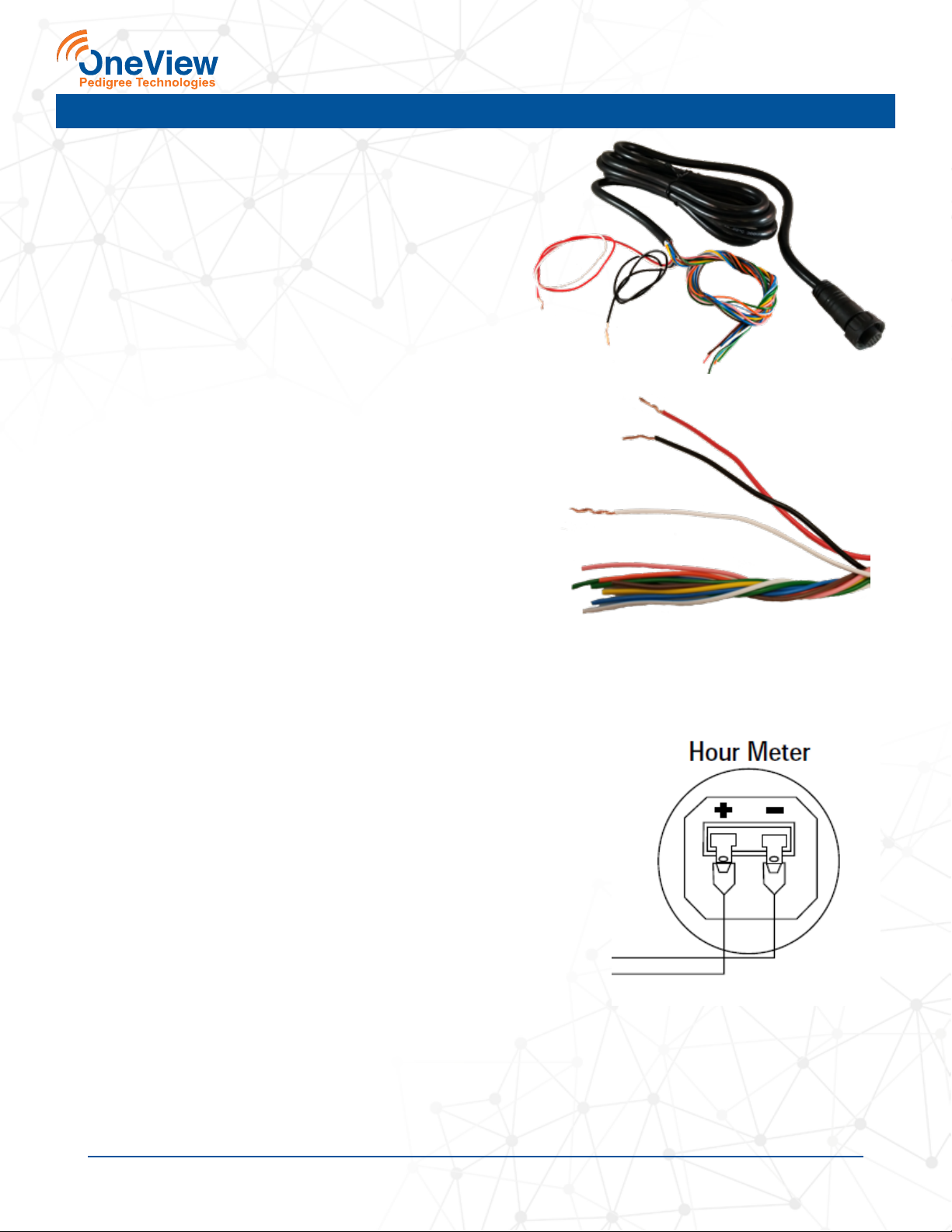

3-Wire Installation
Mobile Equipment Manager
(TTU2830/TTU2840)
Power Cable
Multicolor Wire
Bundle Not Used
Black-Ground
Red - Power
White - Ignition
STEP ONE Chassis ground-Connects to the BLACK wire
of the Power Harness.
A clean, bare-metal chassis ground point, battery ground,
or electrical grounding bus bar where the resistance
between the battery of the vehicle and this point is less
than 2 ohms.
STEP TWO Constant 12V+ (Battery)-Connects to the
RED wire of the Power Harness. Use fuse in connection.
A source of positive 12Vdc voltage that continuously
has power regardless of the status of the ignition switch
or any accessories. This source should supply between
11 and 14.5 volts of power normally and be capable of
supplying at least 3A of current.
STEP THREE Switched 12V+ (Ignition/hour-meter)-
Connects to the WHITE wire of the Power Harness.
Use fuse in connection.
A source of positive 12Vdc voltage that shows 0
volts when the engine is not running and battery
potential (usually 11-14.5 volts) when the engine IS
running.
NOTE: The recommended point of connection for the
BLACK and WHITE wires in a Mobile Equipment Manager
installation would be directly at the factory hour-meter.
This will provide the most accurate monitoring of engine
runtime. Contact Pedigree Technologies if you have
questions about alternate connection points.
This is acceptable assuming that the (+) wire for the
hour-meter is the one that transitions from ON to OFF
with the engine. If your particular hour-meter has a
switching GROUND connection, this method is NOT
acceptable!
White Wire
(Switched 12v)
Black Wire
Ground

PedigreeTechnologies.com | Support: (701)-499-0022
4
(LMU 2840 Only)
STEP FOUR Remove the protective cap from the pin
port on the telematics device.
STEP FIVE Match up the notch and pins from connector
end of the cable with the port on the telematics device
to connect the Power Cable to the telematics device. (It
is easier to match up the cable with the device before the
device is mounted or secured.)
match notches
3-Wire Installation
Mobile Equipment Manager
(TTU2830/TTU2840)
STEP SIX Secure telematics device to a flat surface on exterior of the cab or trailer/equipment
with an unobstucted view to the sky. Additional hardware may be required.
CAUTION: ROPS (ROLLOVER PROTECTION STUCTURES) FOPS (FALLING OBJECT PROTECTIVE
STRUCTURES) CANNOT BE DRILLED INTO OR CUT INTO AS IT MAY WEAKEN THE STRUCTURES
ABILITY TO PERFORM ITS INTENDED FUNCTION. THE ROPS/FOPS SYSTEM INCLUDES THE
STRUCTURE, ITS MOUNTS TO THE MAIN FRAME AND THE MAIN FRAME ITSELF.

Testing / Conrmation Steps
PedigreeTechnologies.com | Support: (701)-499-0022
OneView Mobile Equipment Manager
(TTU2830/TTU2840)
Install Conrmation: 701-499-0022
You will be prompted for the following information during the set up process
• Device ESN
• Name of Asset (ex. Loader 51)
• Year, make, and model
• VIN #
• License plate #
• Mileage Hours
STEP SEVEN Call Pedigree Technologies installation support to conrm and nalize installation.
Telematics Device Bottom Telematics Device Top
STEP SIX (continued) Double sided acrylic foam tape (not included) is a good non-invasive
method of mounting the telematics device.
