peerless-AV Neptune Partial Sun Series User manual
12021-12-22 #:180-9151-1
User Guide
ENG
www.neptuneTV.com
22021-12-22 #:180-9151-1
This page intentionally left blank.
ENG
32021-12-22 #:180-9151-1
SYSTEM INSTALLATION AND ELECTRICAL REQUIREMENTS
Electrical Code
Note: To the display system installer: This reminder is provided to call attention to Article 820-44 of
that the cable ground shall be connected to the grounding system of the facility. Outlet shall be
installed near the equipment and shall be easily accessible.
Antenna discharge unit
(NEC Section 810-20)
NEC National Electric Code
Ground clamp
Electric service
equipment
Ground clamps
Power service grounding
electrode system
(NEC Art 250 Part H)
Grounding conductors
(NEC Section 810-21)
Antenna lead-in wire
Power Source
The display must be connected to a mains socket outlet with a protective grounding connection.
The mains plug is used as the disconnect device and shall remain readily accessible.
Electrical installation shall be in accordance with the applicable parts of Chapter 8 of ANSI/NFPA70.
An outdoor antenna should not be located near overhead electrical lines or any electrical circuits.
protect against voltage surges and built up static charges. Section 810 of the National Electric Code,
ANSI/NFPA No 70-1984, provides information with respect to proper grounding for the mast and
supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding
connectors, location of antenna discharge unit, connection to grounding electrodes and requirements
for the grounding electrode.
These displays operate on 120 volt 60 Hz, AC current. Insert the power cord into a 120 volt
To prevent electric shock from the display, do not use with an extension cord, receptacle, or other
outlet unless the blades and ground terminal can be fully inserted to prevent blade exposure.
All secondary lines must be routed through grounded conduit and kept separate from AC line.
Note: Installation shall incorporate UL Listed external surge protection rated 2500 Vpk or less, for 150
to 300 Vac mains, installed in accordance with Article 285 of ANSI/NFPA 70 or applicable local codes.
42021-12-22 #:180-9151-1
Relevant Information
Record your display's model and serial number here for future reference. Keep this user manual in an
accessible location in the event service is required.
Note: Your display's serial number can be found on the box and underneath the rear cover plate.
Model Number ____________________________________
Serial Number ____________________________________
FCC CAUTION
To assure continued compliance and possible undesirable interference, ferrite cores may be used
when connecting this display to video equipment; maintain at least 400mm (15.75 inches) spacing to
other peripheral devices.
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rule. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with these instructions,
may cause harmful interference to radio communications; however, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3.
connected.
4. Consult the dealer or an experienced radio/display technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause
undesired operation.
52021-12-22 #:180-9151-1
Read before operating equipment
Thank you for purchasing our product. Before using it, please read this user guide carefully and follow
the instructions for safe operation. Please keep this manual for future reference and always include it
GENERAL SAFETY PRECAUTIONS
• In case of product malfunction or unusual events such as electrical burning smell, smoke, or
cord and contact the manufacturer.
• Do not disassemble, modify or service product in any way other than that contained in this
warranty.
• Do not touch antenna lines or wires, electrical cables or plugs when lightning or thunder is
present or with wet hands
• Do not submerge in water.
• Do not destroy, process, or place close to any heat source.
• Do not install near poisonous gas or chemically unstable atmosphere.
•
• Do not install the product in unstable locations or near moving objects, constantly vibrating
equipment, or uneven surfaces.
•
• Do not operate the product if it has been dropped or struck. Severe physical impact to the
product may cause components to fall out of place within and break.
• Do not bend or twist electrical cords, electrical plugs, cables, or wires with excessive force.
• Do not block ventilation slots or place any heavy object on the product.
• Use properly rated electrical voltage.
• Do not use any electrical sockets or power strips with many other devices jointly plugged
in. Use a single, directly dedicated and rated GFCI electrical outlet for the product for safe
operation.
• Do not move or transport with any cables (electrical, content connectivity) plugged in to the
source devices.
•
always pull on the plug and not the cord.
•
cables.
• Do not defeat the safety purpose of the polarized or grounding type electrical plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong are provided for your safety. If the
outlet.
• Protect the electrical cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
To avoid personal injury, this appliance must be grounded and wall mounted according to installation
instructions.
WARNING
62021-12-22 #:180-9151-1
WARNING
• Never apply pressure to the exterior of the LCD screen.
• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.
• Do not climb on the product.
•
• Do not use if ambient air temperature exceeds the operating limits; Maximum operating
temperature is -22°F ~ 122°F (-30°C ~ 50°C)
• The product is intended for outdoor, partial sun operation. Place the TV in an area that never
receives direct sunlight, such as under canopy or on the side of a structure. Placing the TV in
direct sunlight will decrease the panel life and void the warranty.
•
display. Air inside fully encased display must be ventilated.
• The product is to be secured to building before operation.
• Product must be carried and supported by at least two persons.
•
operation.
•
72021-12-22 #:180-9151-1
System Installation and Electrical Requirements ..................................................................................2
Electrical Code ...............................................................................................................................2
Power Source ................................................................................................................................2
FCC Caution...................................................................................................................................3
FCC Statement...............................................................................................................................3
Relevant Information .....................................................................................................................3
General Safety Precautions ...................................................................................................................4
Set Up Instructions .................................................................................................................................8
Parts List ........................................................................................................................................8
Removing I/O Terminal Cover ......................................................................................................10
Connecting Cords.........................................................................................................................11
Installing IR Repeater ..................................................................................................................11
freePath Technology ....................................................................................................................11
Replacing I/O Terminal Cover.......................................................................................................12
Cable Management......................................................................................................................13
Prepare the Display for Mounting.................................................................................................14
Connect to the Power Source ......................................................................................................15
Operating Instructions ..........................................................................................................................17
.............................................................................................................17
Onboard Controls.........................................................................................................................17
Remote Control Buttons .......................................................................................................................18
Menu Operation....................................................................................................................................19
Get Started with webOS TV .........................................................................................................19
Network Connection .....................................................................................................................20
How to Operate the TV.................................................................................................................21
Use of TV Functions through Voice .............................................................................................22
Text Language .............................................................................................................................23
Start Applications through Quick Access .....................................................................................24
Enjoy Live TV ...............................................................................................................................25
Playback of Recorded TV Shows.................................................................................................26
Connection of External Devices ...................................................................................................28
Connection of Home IoT Devices ................................................................................................29
Smart Device Connection.............................................................................................................30
Maintenance ........................................................................................................................................31
Care of the Screen ......................................................................................................................31
Mobile Telephone Caution ...........................................................................................................31
End of Life Directives ..................................................................................................................31
..............................................................................................................................................32
CONTENTS
82021-12-22 #:180-9151-1
SET UP INSTRUCTIONS
Parts List
Description Qty
Atelevision 1
Bmagic remote control 1
Cadhesive cable holder 3
DIR repeater 1
Euser guide (not shown) 1
Ftechnical support insert (not shown) 1
Gwarranty registration card (not shown) 1
A (1)
television B (1)
magic remote
control
D (1)
IR repeater
C (3)
cable tie holder
92021-12-22 #:180-9151-1
This page intentionally left blank.
ENG
10 2021-12-22 #:180-9151-1
Removing I/O Terminal Cover
Remove I/O terminal cover and eight screws to access source connection panel.
A
11 2021-12-22 #:180-9151-1
Connecting Cords
freePath Technology™
connectivity of the Smart TV.
Connect source devices to appropriate display input. Make all connections prior to powering on the
display.
Installing IR Repeater (Optional)
D
Insert the 3.5mm end of the included 5V IR
repeater into the IR Repeater port on the input
panel of the display. IR Repeater port may not be
compatible with other third party repeaters.
Connector Function Description
Optical Used for connecting digital audio output signal
HDMI Connect to a device with HDMI output.
AV Connect to a device with AV / CVBS output
USB Supports audio / video / photos / text.
Headphone Connect headphones for audio output, variable
level.
RF Antenna input for use with ATSC 2.0 OTA
signals.
LAN / RJ45 Used for internet connectivity.
12 2021-12-22 #:180-9151-1
Replacing I/O Terminal Cover
1. Run cables through bottom of I/O terminal cavity across foam gasket. All cables must exit toward
bottom of display to retain seal when I/O terminal cover is installed. Do not run cabling through
the top or sides of I/O terminal cavity. Leave approximately 1/2" (13mm) between cables to
retain seal when I/O Terminal Cover is installed.
2. Replace I/O terminal cover onto I/O terminal guides, keeping cables between the bottom
gaskets.
3. Replace and tighten eight screws until I/O terminal cover gasket is fully compressed to back of
display.
CAUTION
Failure to follow these instructions can result in the product being damaged or destroyed, voiding
the warranty.
• Ensure cord bend radius does not exceed limits set by
the manufacturer.
• Ensure cords are seated properly in the cable channels
to avoid potential damage to cords when I/O terminal
cover is installed.
• Do not run cables through the top or sides of I/O terminal
cavity. All cables must exit toward bottom of display to
retain seal when I/O terminal cover is installed.
CAUTION
Do not overtighten screws
guides
Replace
guides
13 2021-12-22 #:180-9151-1
Cable Management
Secure cables to display with adhesive cable holders.
C (3)
C
14 2021-12-22 #:180-9151-1
B
D

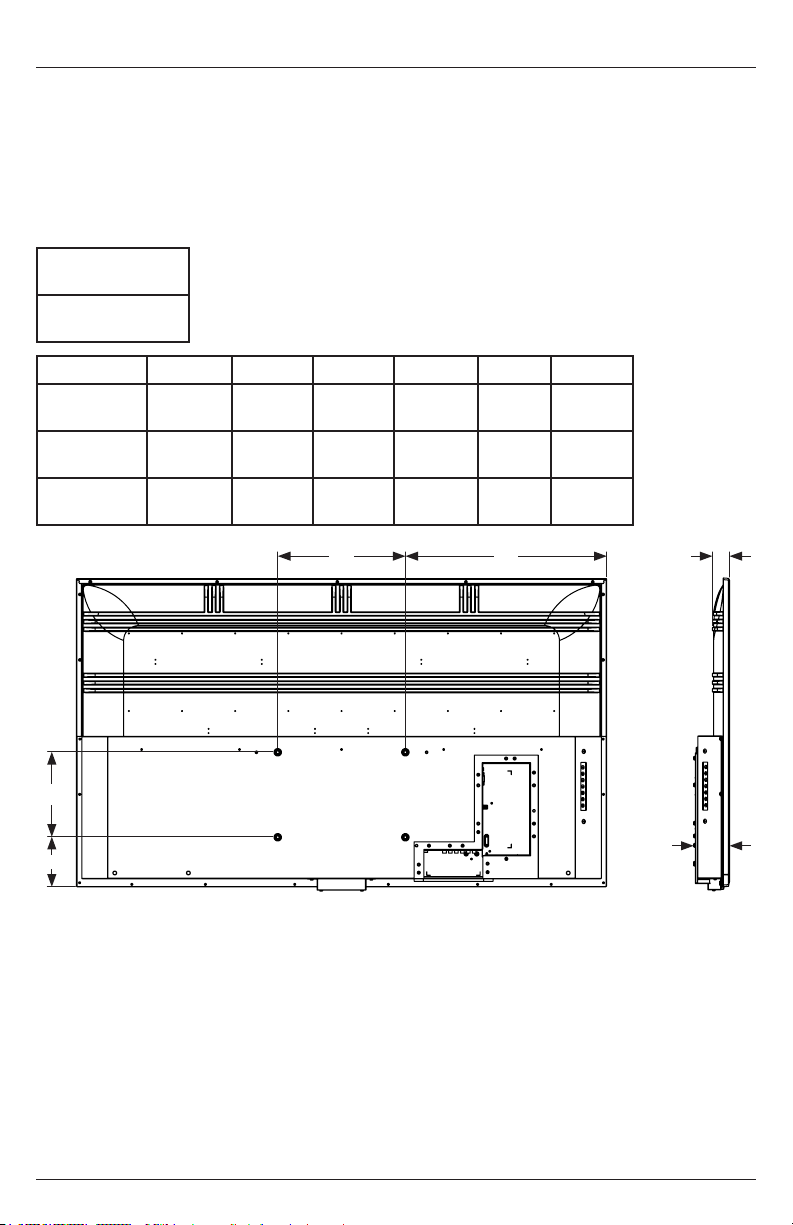

Required Mounting
Screws
Four M8 screws
(17.4mm long)
Display Size A B C D E F
55" 11.81"
(300mm)
7.87"
(200mm)
18.65"
(474mm)
4.61"
(117mm)
1.61"
(41mm)
3.11"
(79mm)
65" 11.81"
(300mm)
7.87"
(200mm)
22.89"
(582mm)
5.42"
(138mm)
1.61"
(41mm)
3.11"
(79mm)
75" 15.75"
(400mm)
7.87"
(200mm)
25.27"
(642mm)
7.45"
(189mm)
2.00"
(51mm)
4.01"
(102mm)
REAR VIEW SIDE VIEW
A
F
C E
Prepare the Display for Mounting
Install cords to your display before mounting. Input panel may be obstructed once the display is
mounted.
For your safety, only install on an outdoor-rated mount that is suitable for the application and supports
ensure longevity in harsh environments.
15 2021-12-22 #:180-9151-1
Prepare the Display for Mounting
Display Size A B C D E
55" 49.09"
(1247mm)
28.54"
(725mm)
47.69"
(1211mm)
26.85"
(682mm)
54.64"
(1388mm)
65" 57.59"
(1463mm)
33.31"
(846mm)
56.24"
(1428mm)
31.62"
(803mm)
64.53"
(1639mm)
75" 66.29"
(1684mm)
38.18"
(970mm)
65.16"
(1655mm)
36.74"
(933mm)
74.52"
(1893mm)
FRONT VIEW
C
A
B D
E
Connect to the Power Source
Connect power cord to GFCI outlet.
16 2021-12-22 #:180-9151-1
This page intentionally left blank.
ENG
17 2021-12-22 #:180-9151-1
POWER
TV
TV/SPK
SPK
1 32
4 65
7
•
9
LAST
8
0
OK
AUX1 AUX2
MUTE
VOL
MENU
GUIDE
CH
INFO
INPUT
EXIT
Power On/O the Display
Power on your display by using the remote control or the rear power button on the side of the display.
The display will power on but image may not appear for several seconds as it completes its power up
sequence.
Point the remote control at the IR sensor located
below the Peerless-AV logo at the center of the
display, and press the power button.
OPERATING INSTRUCTIONS
Menu Mode Direct Mode
OK Input Select
Menu Menu
Up Channel Up
Down Channel Down
Right Volume Up
Left Volume Down
Onboard Controls
Direct Mode: Allows for quick access to source selection, volume settings and channel selection.
Menu Mode: Press the Menu button to access Menu Mode and activate the On Screen Display
(OSD). For a description of OSD operation refer to the next section.
The keypad buttons are assigned as indicated in the table below.
VOL
M
CH
VOL
M
CH
VOL
M
CH
VOL
M
CH
VOL
M
CH
18 2021-12-22 #:180-9151-1
Remote Control Buttons
Button Description
Power
STB Power
adding the set-top box to the universal remote
control for your TV.
Search Activates Voice Recognition (network
connection required for voice recognition)
Sprocket Accesses Quick Settings / All Settings
Input Toggles between available inputs
0 ~ 9 Used for navigating television channels
-/List Inserts a dash between numbers / Displays list
of tuned channels.
"..." More actions to supplement what is on screen
Vol +/- Adjusts audio levels up and down
FAV Recalls tuned channels that have been set to
favorite.
Guide Recalls guide for channels that have been tuned
in
Mute Mutes / Unmutes audio output
Channel +/- Moves up and down the tuned channel list
Play Plays current programming
Home Accesses Home Menu / Recalls all content
options for user to choose
Pause Pauses current programming
Back Returns programming to previous screen
Exit Exits screen displayed
Arrows Used to navigate On-screen display
Select Used to select when navigating On-screen
display
AD/SAP Toggles secondary audio program if available
Movies Displays streaming movies availble through
active apps
Stop Stops current programming
Prime Video Starts Amazon Prime Video app
Red Corresponds to various color functions in menu
Green Corresponds to various color functions in menu
Yellow Corresponds to various color functions in menu
Blue Corresponds to various color functions in menu
B
19 2021-12-22 #:180-9151-1
Get Started with webOS TV
Live TV / Antenna Setup:
1. Connect the Antenna to the Television. You can also connect a device that can receive
broadcasts such as a cable box instead of an antenna.
Network Connection:
Network settings can be applied over a wired network.
1. Connect the LAN port of the TV and the router with a cable. The router must have a live internet
connection.
2. Press the ‘settings’ button on the remote control.
MENU OPERATION
that are being tuned in.
20 2021-12-22 #:180-9151-1
MENU OPERATION
Network Connection:
Network settings can be applied using Wi-Fi.
1. Turn on the router connected to the internet.
2. Press the ‘settings’ button on the remote control.
5. Select a network to connect.
CN
in the User Guide.
Network Conguration Information:
• Use a standard LAN Cable (Cat5 or higher, RJ45 connector, 10Base-T or 100Base-T TX LAN
port).
•
and then turn it on to solve the problem.
• The manufacturer is not responsible for network connection problems or failures, malfunctions or
errors caused by the network connection.
• The network connection may not work properly due to the network settings or the service of your
internet provider.
• The DSL Service must use a DSL modem; and the cable service must use a cable modem.
Since only a limited number of network connections are available, the TV network settings may
not be used depending on the contract with the Internet service provider. (If the contract does
not allow more than one device per line, you can only use the PC already connected).
•
frequency (wireless phone, Bluetooth device or microwave oven) although interference can also
occur when the 5 GHz frequency is used, but it is less likely to occur.
• The wireless environment can make the wireless network service run slowly.
•
• The Access Point device must support wireless connections and the wireless connection
function must be enabled on the device to have AP (Access Point) connection. Contact the
service provider for availability of wireless connections at the Access Point.
• Check the SSID and security settings of the AP. Consult the corresponding documentation for
SSID security settings for the AP.
•
work slowly or not work accordingly.
• The connection method may vary depending on the AP manufacturer.
• To solve a problem related to this function, refer to the
Troubleshooting
section of the User Guide.
Table of contents
Languages:
