Pelgrim GVW301L/P01 User manual

EN User instruction EN 3 - EN 28
DE Anleitung DE 3 - DE 28
Pictograms used - Benutzte Piktogramme
Important information - Wissenswertes
Tip - Tipp

Contact a registered installer to fit your appliance
(see “Installation instructions”). Do not connect the
appliance to the electrical mains until the installation is
complete.
This appliance is intended to be used in household and
similar applications such as:
▷staff kitchen areas in shops, offices and other working
environments;
▷farmhouses;
▷by clients in hotels, motels and other residential type
environments;
▷bed and breakfast type environments.
For EN60335-1:
• This appliance can be used by children aged from
8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and
user maintenance shall not be done by children without
supervision.
SAFETY INSTRUCTIONS

For IEC60335-1:
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
• Packaging material could be dangerous for children!
• This appliance is for indoor household use only.
• To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
• Please unplug before cleaning and performing
maintenance on the appliance.
• Use a soft cloth moistened with mild soap, and then
use a dry cloth to wipe it again.
Earthing Instructions
• This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the
risk of an electric shock by providing a path of least
resistance of electric current. This appliance is equipped
with an earthing conductor plug.
• The plug must be plugged into an appropriate outlet
that is installed and earthed in a ccordance with all local
codes and ordinances.
• Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.
SAFETY INSTRUCTIONS

• Check with a qualified electrician or service
representative if you are in doubt whether the appliance
is properly grounded.
• Do not modify the plug provided with the appliance, if it
does not fit the outlet.
• Have a proper outlet installed by a qualified electrician.
Use
• When loading items to be washed:
▷Locate sharp items so that they are not likely to
damage the door seal;
▷Warning: Knives and other utensils with sharp points
must be loaded in the basket with their points facing
down or placed in a horizontal position.
• Do not abuse, sit on, or stand on the door or dish rack
of the dishwasher.
• Do not operate your dishwasher unless all enclosure
panels are properly in place.
• Open the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
• Do not place any heavy objects on or stand on the door
when it is open. The appliance could tip forward.
• Some dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed.
Avoid contact with the skin and eyes and keep children
away from the dishwasher when the door is open.
• Check that the detergent powder is empty after
completion of the wash cycle.
SAFETY INSTRUCTIONS

• Do not wash plastic items unless they are marked
“dishwasher safe” or the equivalent.
• For unmarked plastic items not so marked, check the
manufacturer's recommendations.
• Use only detergent and rinse agents recommended for
use in an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
• The door should not be left open, since this could
increase the risk of tripping.
• If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
• During installation, the power supply must not be
excessively or dangerously bent or flattened.
• Do not tamper with controls.
• The appliance needs to be connected to the main water
valve using new hose sets. Old sets should not be
reused.
• To save energy, in stand by mode, the appliance will
switch Off automatically while there is no any operation
in 30 minutes.
SAFETY INSTRUCTIONS

EN 3
Your dishwasher
Introduction 4
Using your dishwasher
Description 5
Quick start 5
Control panel 6
Water softener 8
Adding salt 9
Preparing and loading dishes 9
Function of the rinse aid and dishwasher detergent 14
Filling the rinse aid reservoir 15
Filling the detergent dispenser 16
Programming the dishwasher
Wash cycle table 17
Saving energy 18
Starting a cycle wash 18
Changing the program mid-cycle 18
Forget to add a dish? 19
Maintenance
Filtering system 20
Cleaning the spray arms 21
Caring for the dishwasher 22
Cleaning the door 23
Errors
What should I do, if... 24
Error table 24
Technical data sheet 27
Your dishwasher and the environment
Disposal 28
CONTENTS

EN 4
Introduction
You have opted to purchase a Pelgrim dishwasher. Optimum user comfort and easy operation
were paramount during the development of this product.
This manual describes how you can get the most out of your dishwasher. It provides you with
information on how to operate the appliance, as well as background information about how it
works. You will furthermore also find maintenance tips.
The safety instructions that are relevant during the installation are included in the installation
guide. This is intended for the installation technician.
Read this manual before using the appliance. Keep this manual somewhere safe so that
subsequent users can also benefit from the information contained within.
You can find the most recent version of the instructions for use on our website.
YOUR DISHWASHER

EN 5
USING YOUR DISHWASHER
Description
Features and appearance of baskets and cutlery baskets may vary, depending on your
model.
1. Salt container
2. Corner spray arm
3. Detergent dispenser
4. Rainse aid reservoir
5. Lower spray arm
6. Filtering system
7. Top spray arm
8. Cutlery rack
9. Cup rack
10. Upper spray arm
11. Upper basket
12. Lower basket
Quick start
Please read the corresponding content in this manual for more details about the operation.
Inside Outside
1. Setting the water softener/loading the salt.
2. Removing larges residues on the cutlery/dishes.
3. Loading the baskets.
4. Filling the dispenser and the rinse aid reservoir.
5. Selecting a program and running the dishwasher.
12
11
910
8
3
5
6
4
2
1
7

EN 6
USING YOUR DISHWASHER
Control panel
14 52 36 107 9 118 8
AUTO ECO
Operation (push buttons)
1 On/off Press this button to turn on your dishwasher, the screen lights up.
2 Function Press this button to select a function. The corresponding indicator will be
lit.
3 Program Select the appropriate washing program, the selected program indicator
wil l be lit.
4 Delayed
start Press this button to set a delayed start (up to 24 hours). One press on this
button delays the start by one hour.
5 Alt Press this button for specifically cleaning the load in the selected basket.
You do not have to wait until the whole dishwasher is loaded completely.
The corresponding indicator will be lit.
6Auto door
open After washing, the door will open automatically to achieve better drying
effect. Press the Function and Program button together for over three
seconds to cancel the Auto open function for the current cycle.
Indicators
7 Function
indicator
AUTO
ECO
KOUD
Extra cleaning
To wash very dirty, hard to clean dishes. It can only be used with
Intensive, Universal, ECO, Glass and 90 min.
AUTO
ECO
KOUD
Turbo Speed+
Reduce the program time by up to 50%. It can only be used with
Intensive, Universal, ECO, Glass and 90 Min.
Auto open
This light will be lit every time when you switch on the dishwasher.
When you cancel the auto open function, this light will be unlit.

EN 7
USING YOUR DISHWASHER
Indicators
8 Program
indicator
AUTO
ECO
KOUD
Auto
An auto sensing wash for lightly, normally or heavily soiled crockery,
with or without dried-on food.
A sensor detects how dirty the water in the machine is and
automatically adjusts the program temperature and duration.
AUTO
ECO
KOUD
Intensive
Heavily soiled items include pots and pans. With dried on food.
AUTO
ECO
KOUD
Universal
For normally soiled loads, such as pots, plates, glasses and lightly
soiled pans.
AUTO
ECO
KOUD
ECO
This is the standard program suitable for normally soiled loads, such
as pots, plates, glasses and lightly soiled pans.
AUTO
ECO
KOUD
Glass
For lightly soiled crockery and glass.
AUTO
ECO
KOUD
90 Min
For normally soiled loads that need a quick wash.
AUTO
ECO
KOUD
Rapid
A shorter wash for lightly soiled loads that do not need drying.
Soak
To rinse dishes that you plan to wash later that day.
9 Warning
indicator
Rinse aid
If this indicator is lit, it means the dishwasher is low on dishwasher
rinse aid and requires a refill.
Salt
If this indicator is lit, it means the dishwasher is low on dishwasher
salt and needs to be refilled.
10 Alt
indicator
Upper
When you select Upper, specifically the load in the upper basket will
be cleaned.
Lower
When you select Lower, specifically the load in the lower basket will
be cleaned.
11 Display To show the remaining time, delayed start time, error codes etc.

EN 8
USING YOUR DISHWASHER
Water softener
• The hardness of the water varies from place to place. If hard water is used in the
dishwasher, deposits will form on the dishes and utensils.
• The appliance is equipped with a special softener that uses a salt container specifically
designed to eliminate lime and minerals from the water.
Adjusting salt consumption
The dishwasher is designed to allow for adjustment in the amount of salt consumed based on
the hardness of the water used. This is intended to optimise and customise the level of salt
consumption. Please follow the steps below for adjustment in salt consumption.
1. Switch on the appliance;
2. Press the program button for more than 5 seconds to open the water softener settings
mode within 60 seconds after the appliance was switched on;
3. Press the program button to select the correct setting according to your local environment.
The settings will change in the following sequence: H1->H2->H3->H4->H5->H6;
4. Press the On/Off button to confirm the setting and to end the setting mode.
Water hardness table
Adjust the salt consumption according to the table below:
Water hardness Setting in
display
Regeneration occurs
every X program
sequence*
Salt consumption
(grams/cycle)
ºClarke ºdH mmol/l
0 - 6 0 - 5 0 - 0.94 H1 No regeneration 0
7 - 14 6 - 11 1.0 - 2.0 H2 10 9
15 - 21 12 - 17 2.1 - 3.0 H3 5 12
22 - 28 18 - 22 3.1 - 4.0 H4 3 20
29 - 42 23 - 34 4.1 - 6.0 H5 2 30
43 - 69 35 - 55 6.1 - 9.8 H6 1 60
The factory setting: H3
* Every cycle with a regeneration operation consumes additional 2.0 litres of water, the energy
consumption increases by 0.02 kWh and the program extents by 4 minutes.

EN 9

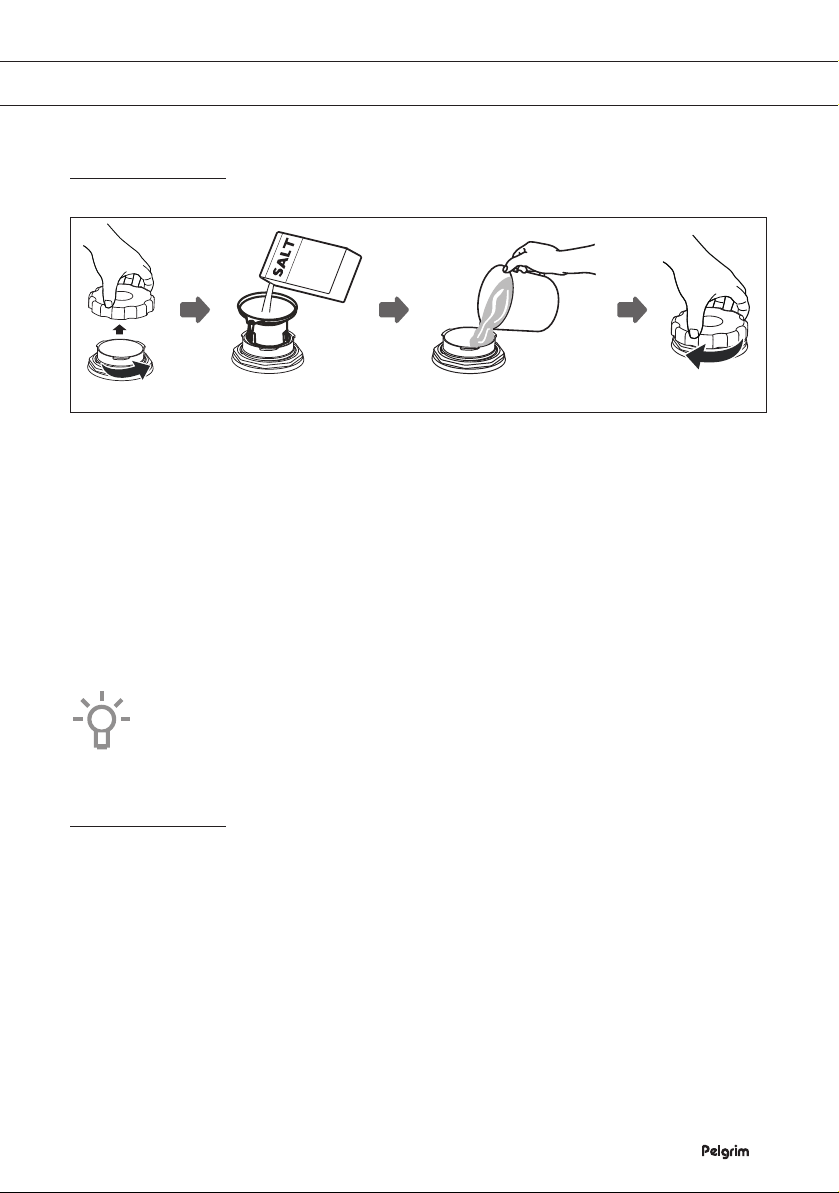

Adding salt
1. Remove the lower basket and unscrew the reservoir cap.
2. Place the end of the funnel (supplied) into the container
3. Fill the salt container to its maximum limit with dishwasher salt (about 1.5 kg). It is normal
for a small amount of water to come out of the salt container.
4. After filling the container, put back the cap (tighten firmly).
5. The salt warning light will go off after the salt container has been filled with salt.
6. Immediately after filling the salt into the salt container, a washing program should be
started (we suggest to use a short program). Otherwise the filter system, pump or other
important parts of the machine may be damaged by salty water. This is out of warranty.
Note! The salt container must only be refilled when the salt warning light in the control
panel comes on. Depending on how well the salt dissolves, the salt warning light may
still be on even though the salt container is filled. If salt has spilled, run a soak or quick
program to remove it.
Preparing and loading dishes
• Consider buying utensils which are identified as dishwasher-proof.
• For particular items, select a program with the lowest possible temperature.
• To prevent damage, do not take glass and cutlery out of the dishwasher immediately after
the program has ended.
USING YOUR DISHWASHER

EN 10
For washing the following cutlery/dishes are not suitable:
▷Cutlery with wooden, horn china or mother-of-pearl handles
▷Plastic items that are not heat resistant
▷Older cutlery with glued parts that are not temperature resistant
▷Bonded cutlery items or dishes
▷Pewter or cooper items
▷Crystal glass
▷Steel items subject to rusting
▷Wooden platters
▷Items made from synthetic fibres
For washing the following cutlery/dishes are of limited suitability:
▷Some types of glasses can become dull after a large number of washes
▷Silver and aluminum parts have a tendency to discolour during washing
▷Glazed patterns may fade if machine washed frequently
Recommendations for loading the dishwasher
Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not
necessary to rinse the dishes under running water. For best performance of the dishwasher,
follow these loading guidelines.
Features and appearance of baskets and cutlery baskets may vary, depending on
your model.
• Place objects in the dishwasher in the following way:
▷Items such as cups, glasses, pots/pans, etc. are faced downwards.
▷Curved items, or ones with recesses, should be loaded aslant so that water can run off.
▷All utensils are stacked securely and cannot tip over.
▷All utensils are placed in the way that the spray arms can rotate freely during washing.
▷Load hollow items such as cups, glasses, pans etc. with the opening facing downwards
so that water cannot collect in the container or a deep base.
▷Dishes and items of cutlery must not lie inside one another, or cover each other.
▷To avoid damage, glasses should not touch one another.
▷The upper basket is designed to hold more delicate and lighter dishware such as glasses,
coffee and tea cups.
▷Long bladed knives stored in an upright position are a potential hazard!
▷Long and / or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
▷Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
USING YOUR DISHWASHER

EN 11
Note: Very small items should not be washed in the dishwasher as they could
easily fall out of the basket.
Loading the upper basket
The upper basket is designed to hold more delicate and lighter
dishware such as glasses, coffee and tea cups and saucers, as
well as plates, small bowls and shallow pans (as long as they are
not too dirty). Position the dishes and cookware so that they will
not get moved by the spray of water.
Loading the lower basket
We suggest that you place large items and the most difficult
to clean items into the lower basket: such as pots, pans, lids,
serving dishes and bowls. It is preferable to place serving dishes
and lids on the side of the racks in order to avoid blocking the
rotation of the top spray arm. The maximum diameter advised for
plates in front of the detergent dispenser is of 19 cm, this not to
hamper the opening of it.
Loading the cutlery basket/cutlery rack
Cutlery should be placed separately from each other in the appropriate positions, and do make
sure the utensils do not nest together, this may cause bad performance.
Warning! Do not let any item extend through the bottom.
Removing the dishes
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first, followed by the upper basket.
Warning! Items will be hot! To prevent damage, do not take glass and cutlery out of the
dishwasher for around 15 minutes after the program has ended.
USING YOUR DISHWASHER

EN 12

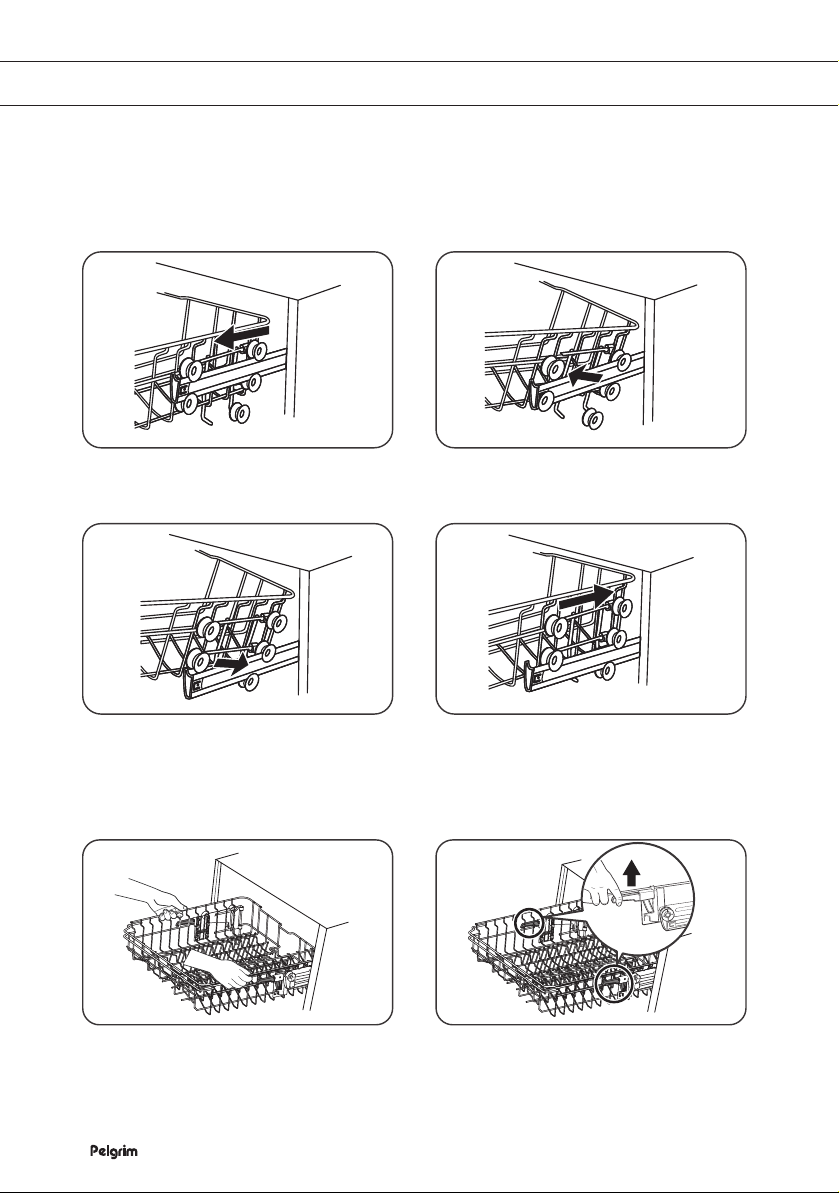

Adjusting the height of the upper basket type 1 (depending on the model)
The height of the upper basket can be easily adjusted to accommodate taller dishes in either the
upper or lower basket. To adjust the height of the upper basket, follow these steps:
lower position
upper position
1. Pull out the upper basket.
2. Remove the upper basket.
lower position
upper position
3. Re-attach the upper basket to the upper or lower rollers.
4. Push in the upper basket.
Adjusting the height of the upper basket type 2 (depending on the model)
lower position
upper position
1. To raise the basket to the upper position, lift the basket until both sides are at the same
height. The basket will secure into place.
2. To lower the basket, push down on the handle and release.
USING YOUR DISHWASHER

EN 13
Folding back the cup shelves
To make room for taller items in the dishwasher basket, raise the cup rack upwards. You can
then lean the tall glasses against it. You can also remove it when it is not required for use.
Folding back the rack shelves
The rack shelves can be lowered to make more room for large items.
USING YOUR DISHWASHER
fold backwardsraise upwards

EN 14
Function of the rinse aid and dishwasher detergent
The rinse aid is released during the final rinse to prevent water from forming droplets on your
dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off
the dishes. Your dishwasher is designed to use liquid rinse aids.
Warning! Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser
with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This
would damage the appliance.
When to refill the rinse aid dispenser
The regularity of the dispenser needing to be refilled depends on how often dishes are washed
and the rinse aid setting used.
• The Low Rinse Aid indicator ( ) will be lit when more rinse aid is needed.
• Do not overfill the rinse aid dispenser.
Function of the dishwasher detergent
The chemical ingredients that compose the detergent are necessary to remove, crush and
dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for
this purpose.
Warning! Proper use of the dishwasher detergent
- Use only detergent specifically made for dishwashers use.
- Keep your dishwasher detergent fresh and dry.
- Don't put powdered detergent into the dispenser until you are ready to wash dishes.
- Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach
of children.
USING YOUR DISHWASHER

EN 15

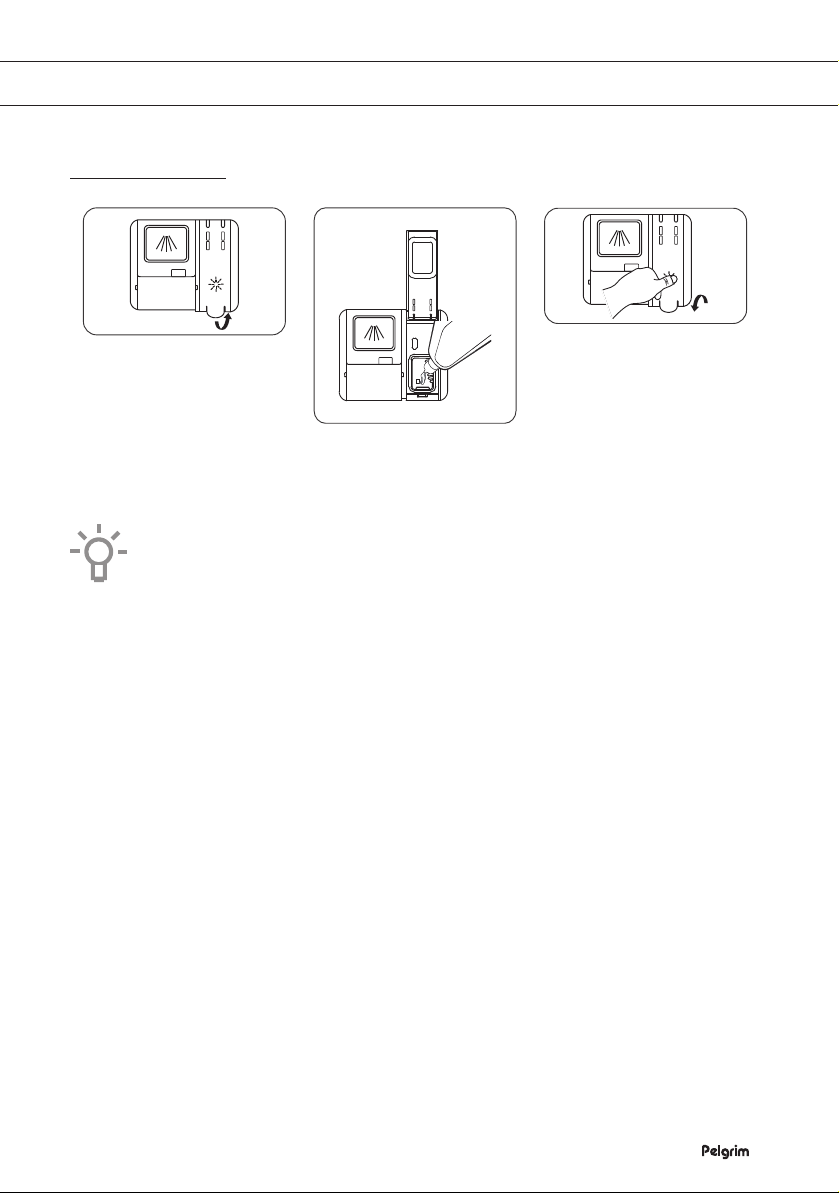

Filling the rinse aid reservoir
1. Open the reservoir cap.
2. Carefully pour in the rinse-aid into its dispenser, whilst avoiding it to overflow.
3. Close the reservoir cap.
Note: Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming
during the next wash.
Adjusting the rinse aid reservoir
To achieve a better drying performance with limited rinse aid, the dishwasher is designed to
adjust the consumption by the user. If the dishes are not drying properly or are spotted, select
a higher setting until your dishes are spot-free. Select a lower setting if there are sticky whitish
stains on your dishes or a bluish film on glassware or knife blades.
1. Switch on the appliance.
2. Within 60 seconds after step 1, press and hold the program button for more than
5 seconds.
3. Press the delayed start button to enter the setting mode. The rinse aid indicator blinks.
4. Press the program button to select the proper setting according to your using habits.
The settings will change in the following sequence: D1->D2->D3->D4->D5->D1.
The higher the number, the more rinse aid is used.
5. Press the On/Off button to confirm the setting and to end the setting mode.
USING YOUR DISHWASHER

EN 16

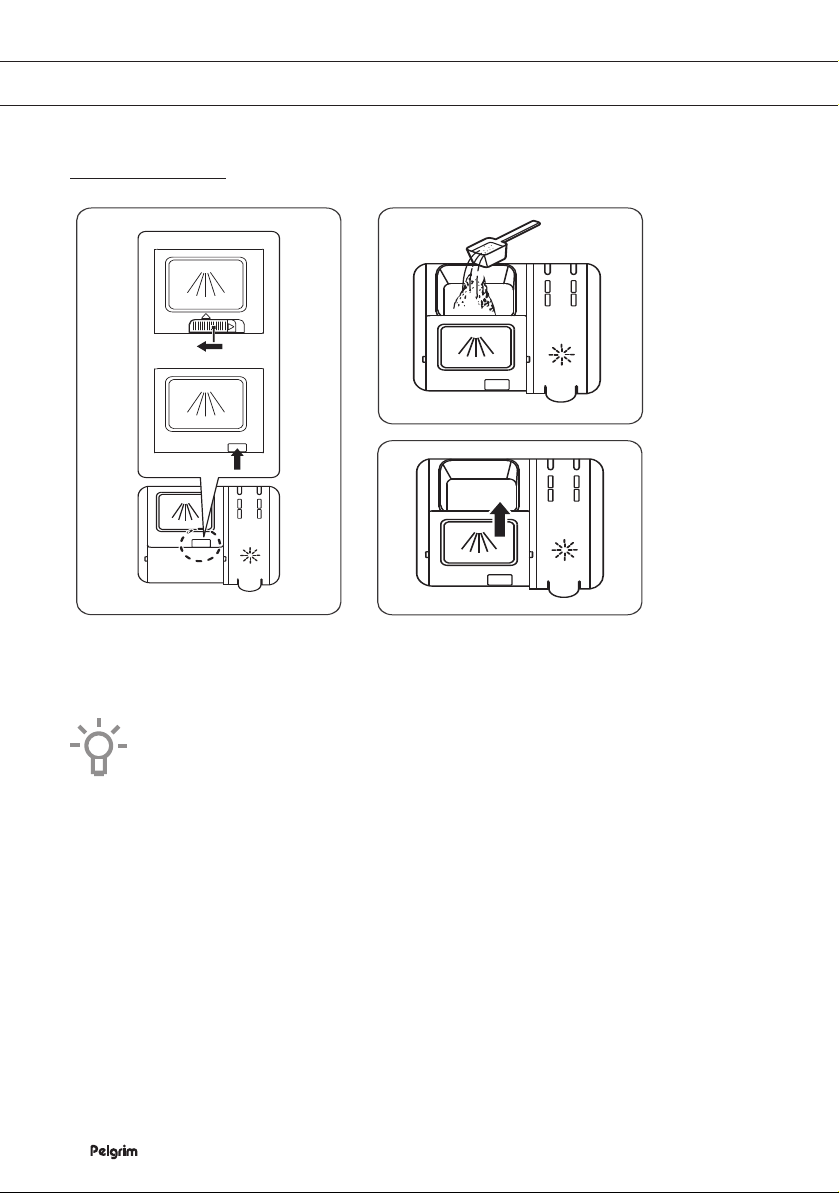

Filling the detergent dispenser
1. Open the flap (slide or press, according to the actual situation).
2. Add detergent into the cavity for the main wash cycle.
3. Close the flap by sliding it to the front and then pressing it down.
Note: Be aware that depending on the soiling of water, setting may be different.
Please observe the manufacturer's recommendations on the detergent packaging.
USING YOUR DISHWASHER
