Pelgrim PCS23178L User manual

Instructions for use
Built-in refrigerator-freezer
PCS23178L
PCS24178L
PCD23178L

2
594964
We thank you for the confidence you have shown by purchasing
our appliance which is designed to simplify your life. To make the use of the
product easier, we have supplied detailed instructions for use, and installation
instructions supplied on a separate sheet. The instructions should allow you to
learn about your new appliance as quickly as possible.
We wish you find a lot of pleasure in its use.
The appliance is intended solely for household use.
The refrigerator is intended for storing fresh food at temperatures above 0°C.
The freezer is intended for freezing fresh food and for long-term storage of
frozen food (up to one year, depending on the type of food).
Please visit our website where you can enter your appliance model number,
indicated on the rating plate or the warranty sheet, to find detailed description
of your appliance, tips on use, troubleshooting, service information, instructions
for use etc.
www.pelgrim.nl
Important safety warning
General warnings and tips
i
Protecting the environment
!
Do not wash in the dishwasher

3
CONTENTS
594964
INTRODUCTION
APPLIANCE
DESCRIPTION
DEFROSTING
AND CLEANING
THE APPLIANCE
4 IMPORTANT NOTES AND PRECAUTIONS
4 BEFORE USING THE APPLIANCE FOR THE FIRST TIME
5 IMPORTANT SAFETY INSTRUCTIONS
8 IMPORTANT INFORMATION ON THE USE OF APPLIANCE
9 ENVIRONMENT PROTECTION
10 ADVICE FOR SAVING ENERGY WITH REFRIGERATION
APPLIANCES
11 INSTALLATION AND CONNECTION
13 APPLIANCE DESCRIPTION
14 OPERATING THE APPLIANCE
16 APPLIANCE INTERIOR EQUIPMENT
20 STORING AND FREEZING FOOD
24 DEFROSTING THE APPLIANCE
25 CLEANING THE APPLIANCE
26 TROUBLESHOOTING MISCELLANEOUS
STORING AND
FREEZING FOOD

4
IMPORTANT NOTES AND
PRECAUTIONS
Before connecting the appliance to the power mains, please
read carefully the instructions for use which describe the
appliance and its correct and safe use. The instructions
apply to several appliance types/models; thus, settings or
equipment may be described herein which is not available
in your appliance. We recommend saving this instruction
manual for future reference and attach it to the appliance if
it is sold in the future.
Check for any damage or irregularities on your appliance. If
you find your appliance is damaged, notify the retailer from
which you have purchased the appliance.
Before connecting the appliance to the power mains, let
the appliance rest in a vertical position for a minimum of 2
hours. This will reduce the possibility of operation faults due
to the effect of transport on the cooling system.
594964
BEFORE USING THE APPLIANCE FOR
THE FIRST TIME
i

5
594964
IMPORTANT SAFETY INSTRUCTIONS
!
The appliance must be connected to the power mains and
grounded in compliance with the effective standards and
regulations.
WARNING! Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the appliance.
Before cleaning the appliance, unplug it from the power
mains (unplug the power cord from the wall outlet).
WARNING! If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING! When positioning the appliance, ensure the
supply cord is not trapped or damaged.
If LED lighting does not work, call a service technician. Do
not attempt a repair of the LED lighting yourself, as there is
danger of contact with high voltage!
WARNING! Do not use any electric devices inside the
appliance, except for those allowed by the manufacturer
of this refrigeration appliance.
WARNING! Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING! To avoid any hazard resulting from poor
stability of the appliance, make sure it is installed as
instructed.
!
!
!
WARNING! Risk of fire/flammable materials.

6
594964
Danger of frostbite
Never put frozen food in your mouth and avoid touching
frozen food as this may cause frostnip or frostbite.
Safety of children and vulnerable persons
The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Remove the packaging intended to protect the appliance
or particular parts during transport and keep it outside the
reach of children.
It presents danger of injury or suffocation.
When removing a used appliance, disconnect the power cord,
remove the door, and leave the shelves in the appliance. This
will prevent children from locking themselves in the appliance.
For European markets only
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
Children shall not play with the appliance.

7
594964
Cleaning and user maintenance shall not be made by
children without supervision.
Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances.
Warning regarding the refrigerant
The appliance contains a small amount of an
environmentally friendly yet flammable gas R600a. Make
sure that no parts of the cooling system are damaged. A
gas leak is not hazardous to the environment, but it could
cause eye injury or fire.
In case of a gas leak, ventilate the room thoroughly,
disconnect the appliance from the power mains, and call a
service technician.

8
594964
The appliance may not be used outdoors and it may not be
exposed to rain.
Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
If the appliance will be out of use for an extended period of
time, switch it off using the relevant button, and unplug it
from the power mains. Empty the appliance, defrost it, clean
it, and leave the door ajar.
In the event of a defect or power cut, do not open the
freezer compartment unless the appliance has been out
of operation for more than the hours indicated on the
appliance’s type plate (temperature rise time). After this
time, you must either use the frozen food or make sure
that it is properly cooled (for example, by transferring it to
another appliance).
WARNING! Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
i
IMPORTANT INFORMATION ON THE USE
OF APPLIANCE
WARNING! This appliance is intended to be used in
household and similar applications such as
– staff kitchen areas in shops, offices and other working
environments;
– farm houses and by clients in hotels, motels and other
residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.

9
594964

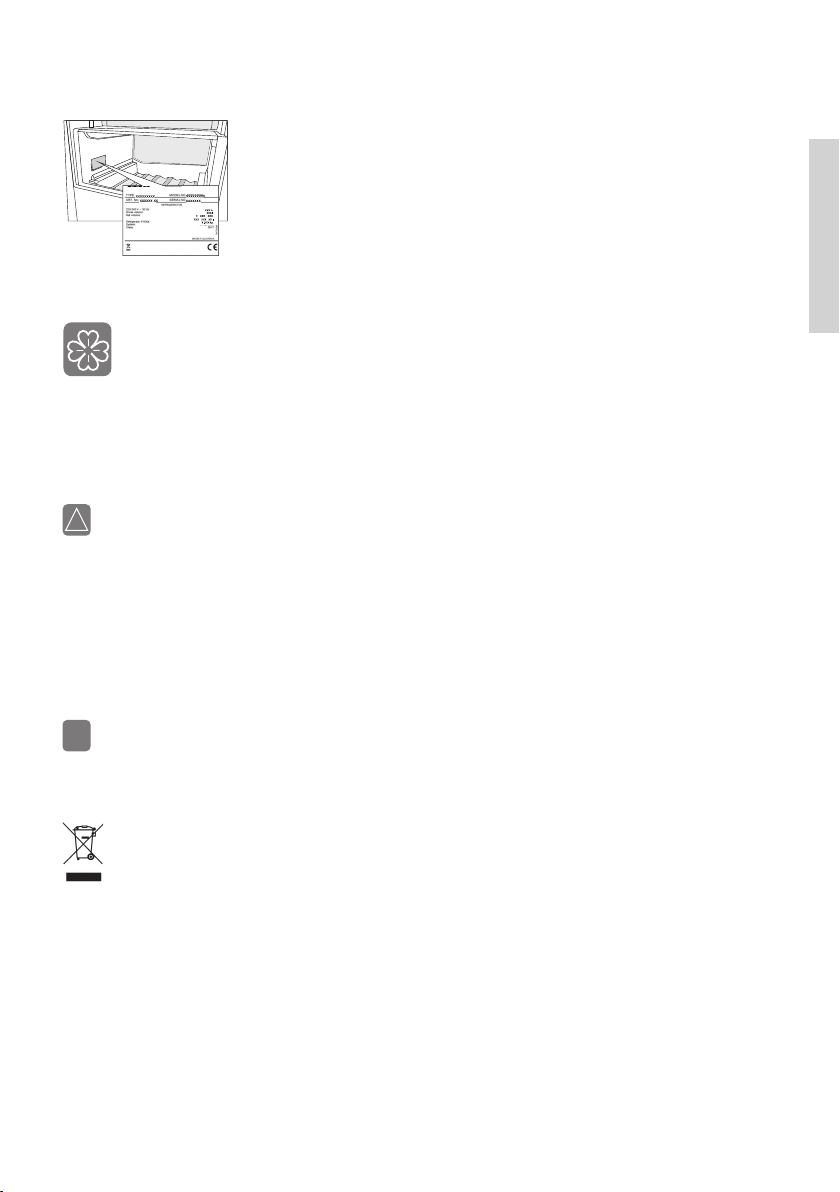

Technical information on the appliance
Rating plate can be found in the appliance
interior (see figure). It indicates data on
voltage, gross and net volume, type and
amount of refrigerant, and information on
the climate classes.
The symbol on the product or its packaging indicates that the product
should not be treated as normal household waste. The product should be
taken to an authorized collection centre for waste electric and electronic
equipment processing. Correct disposal of the product will help prevent
any negative effects on the environment and health of people which could
occur in case of incorrect product removal. For detailed information on
removal and processing of the product, please contact the relevant municipal
body in charge of waste management, your waste disposal service, or the
store where you bought the product.
Packaging is made of environmentally friendly materials
that can be recycled, disposed of, or destroyed without any
hazard to the environment.
!Removing an obsolete appliance
To protect the environment, take the obsolete appliance to
an authorized home appliance collection centre.
Before doing so, do the following:
• disconnect the appliance from the power mains;
• do not allow children to play with the appliance.
ENVIRONMENT PROTECTION
WARNING! Do not damage the refrigerant circuit.
This will also prevent pollution.
i
/
//
//

10
ADVICE FOR SAVING ENERGY
WITH REFRIGERATION
APPLIANCES
i
594964
• Install the appliance as specified in the instruction manual.
• Do not open the door more often than necessary.
• Occasionally make sure air circulation underneath the appliance is
unobstructed.
• If the gasket is damaged or does not provide a perfect seal for any reason,
have it replaced as soon as possible.
• Store the food in tightly sealed containers or appropriate packaging.
• Before placing the food in the refrigerator, allow it to cool down to room
temperature.
• Defrost frozen food in the refrigerator compartment.
• To make use of the entire freezer compartment interior volume, remove
some of the drawers as described in the instruction manual.
• Defrost your conventional freezer when an approximately 3–5 millimetre
layer of frost or ice has built up on the refrigerated surfaces.
• Make sure the layout of shelves in the compartment is uniform and that
the food is placed so that the air can freely circulate in the appliance
interior (observe the recommended placement of food as described in the
instructions).
• The lower the temperature is set the higher the energy consumption will be.

11
INSTALLATION AND
CONNECTION
594964
SELECTING THE ROOM
• Install the appliance in a dry and well ventilated room. The appliance will
operate correctly if the environment temperature is in the interval specified in
the table. The appliance class is indicated on the rating plate / label with the
basic information on the appliance.
Class Temperature Relative Humidity
SN (subnormal) from +10 °C to +32 °C
75%
N (normal) from +16 °C to +32 °C
ST (subtropical) from +16 °C to +38 °C
T (tropical) from +16 °C to +43 °C
• Do not place an appliance in a room where temperature can drop to
below 5 °C as this may cause abnormal appliance operation or failure!
i
• After the installation, the appliance mains plug should be accessible!
Note: Place the appliance in a suciently large room. There should be at least
1 m3of space per 8 grams of refrigerant. Amount of refrigerant is indicated on
the rating plate in the appliance interior.
• At the base of the kitchen unit intended for building in the integrated
appliance, there should be at least 200 cm2free space, for adequate air
circulation.
On the upper part of the appliance the air is coming out, so try not to cover
the opening for the outfl ow air. Ignoring this caution may result in damage to
the appliance.
Warning: when installing built-in appliances into a cupboard or cabinet in a
side-by-side layout, the dew prevention installation kit should also be purchased
and installed. For safety reasons, dew prevention kit may only be installed by
an authorized service technician!

12
The process of changing the appliance door opening and integrating the
appliance into a cabinet is described on the separate installation instructions
supplied in the bag with the instruction manual.
594964
CONNECTING THE APPLIANCE
• Connect the appliance to the power
mains using the power cord. The wall
outlet should be fitted with a ground
contact (safety socket). Nominal
voltage and frequency are indicated
on the rating plate/label with basic
information on the appliance.
• The appliance must be connected
to the power mains and grounded
in compliance with the eective
standards and regulations. The
appliance will withstand short-term
deviations from the nominal voltage,
but not more than +/- 6%.
CHANGING THE DOOR OPENING DIRECTION AND
INTEGRATING THE APPLIANCE INTO A CABINET

13
A
B
1
5
8
2
6
7
9
4
3
APPLIANCE DESCRIPTION
594964
A Refrigerator
1 Control unit
2 LED lighting
3 Bottle rack
4 Glass shelves
5 Fruit and vegetable
drawer with humidity
control
6 Door balconies
7 Bottle balcony
B Freezer
8 Freezer drawers
9 Glass shelves
Best location for
freezing fresh food.

14
AB

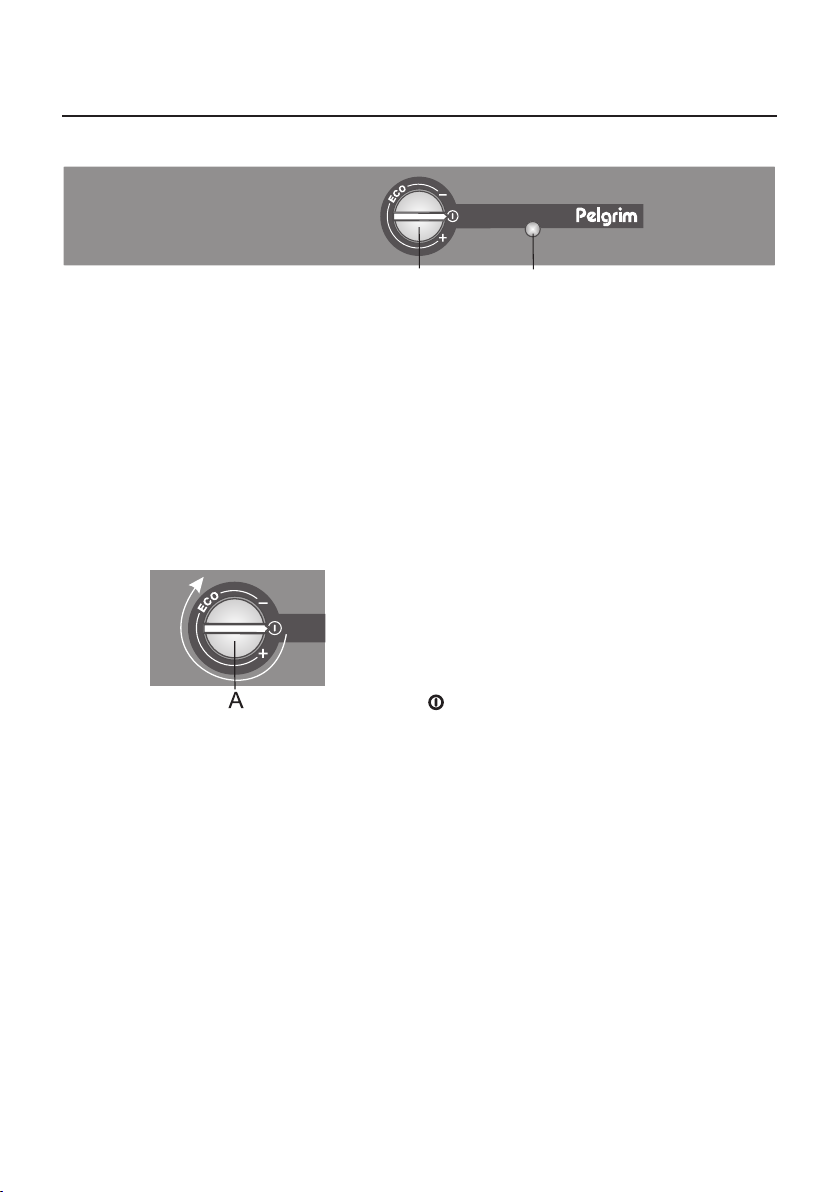

A Temperature setting and on/o knob
Use the dial to switch the appliance on or o, set the temperature, and control
the ECO function.
B Lighting on/o key
Lighting will switch on automatically when you open the refrigerator
compartment door, and it will switch o when you close it.
Switching on: Rotate the A dial
clockwise.
Switching off: Rotate the Adial in
the counter-clockwise direction until
the arrow is aligned with the symbol
(Warning: appliance will remain
powered, i.e. there will still be electric
current in the appliance.)
SWITCHING THE APPLIANCE ON/OFF
OPERATING THE APPLIANCE
594964

15
ADJUSTING THE TEMPERATURE IN THE APPLIANCE
• To set the desired temperature,
rotate the Adial in clockwise
direction.
• Recommended setting of the Adial
is on the ECO position (see figure).
• A change in the ambient temperature
will aect the temperature in the
appliance. Adjust the setting with the
Adial accordingly. Positions towards
the - mean a lower temperature in the
appliance (cooler). Settings towards
the + mean a higher temperature
(warmer).
If the ambient temperature in the room
where the appliance is installed is below
16 °C, we recommend the coldest
setting.
594964
• After the appliance is switched on, it may take several hours for the set
temperature to be reached. Do not place any food into the refrigerator
before the temperature drops to the selected setting.
i

16
APPLIANCE INTERIOR
EQUIPMENT
594964

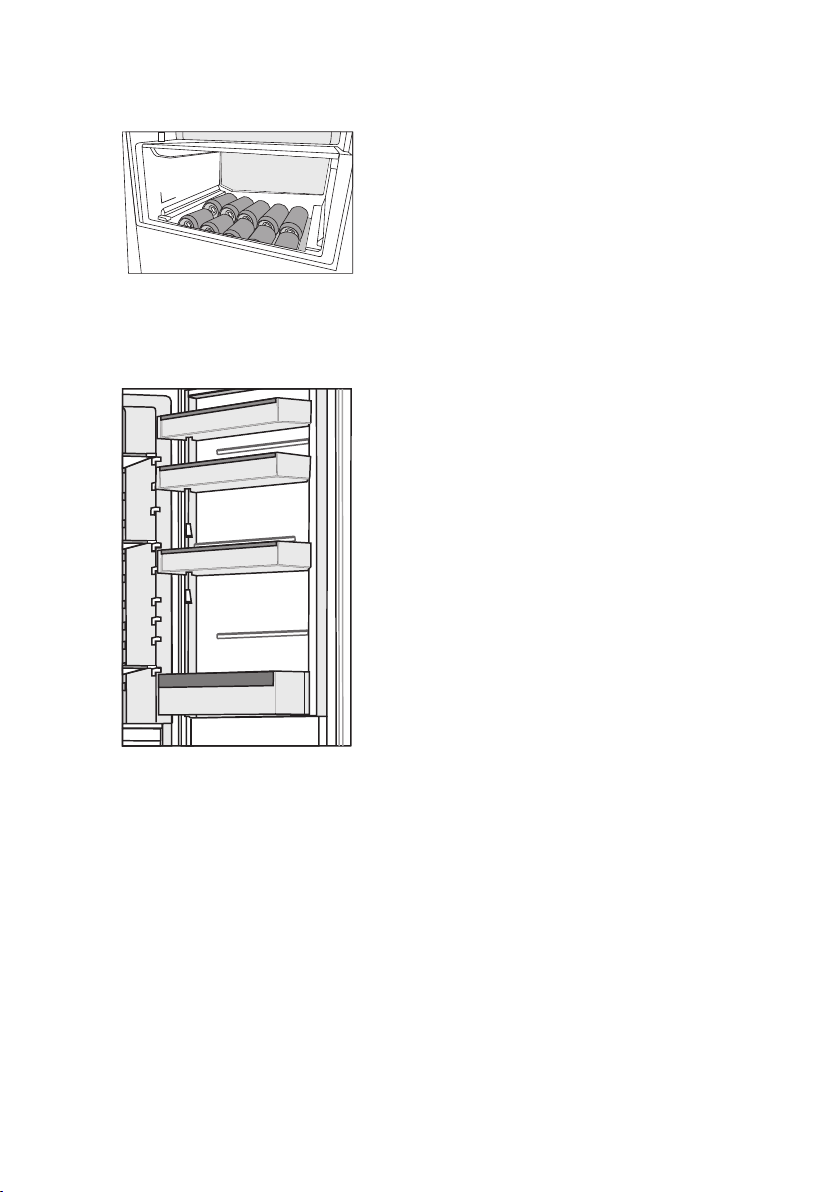

The bottle rack can contain a
maximum load of nine 0.75-litre bottles
or 13 kilograms of total weight. Also
cans can be put on the bottle rack
(lengthwise or crosswise). Make sure
that the door can close correctly if you
have put bottles or cans on the rack.
The bottle rack cannot accidentally
being pulled out. It can only be pulled
out when it is empty. To pull it out,
lift it slightly at the front (1) and pull it
towards you (2).
BOTTLE RACK
GLASS SHELVES
The shelves are made from safety
glass. To change the height of a shelf,
lift the front of the shelf (1). Take hold
of the back and pull the shelf slightly
forwards (2). Move the shelf to a
higher or lower position (3).
To remove a shelf from the
refrigerator, lift the front of the shelf
(4). Take hold of the back and pull the
shelf out of the appliance (5).

17
12
3
4
594964

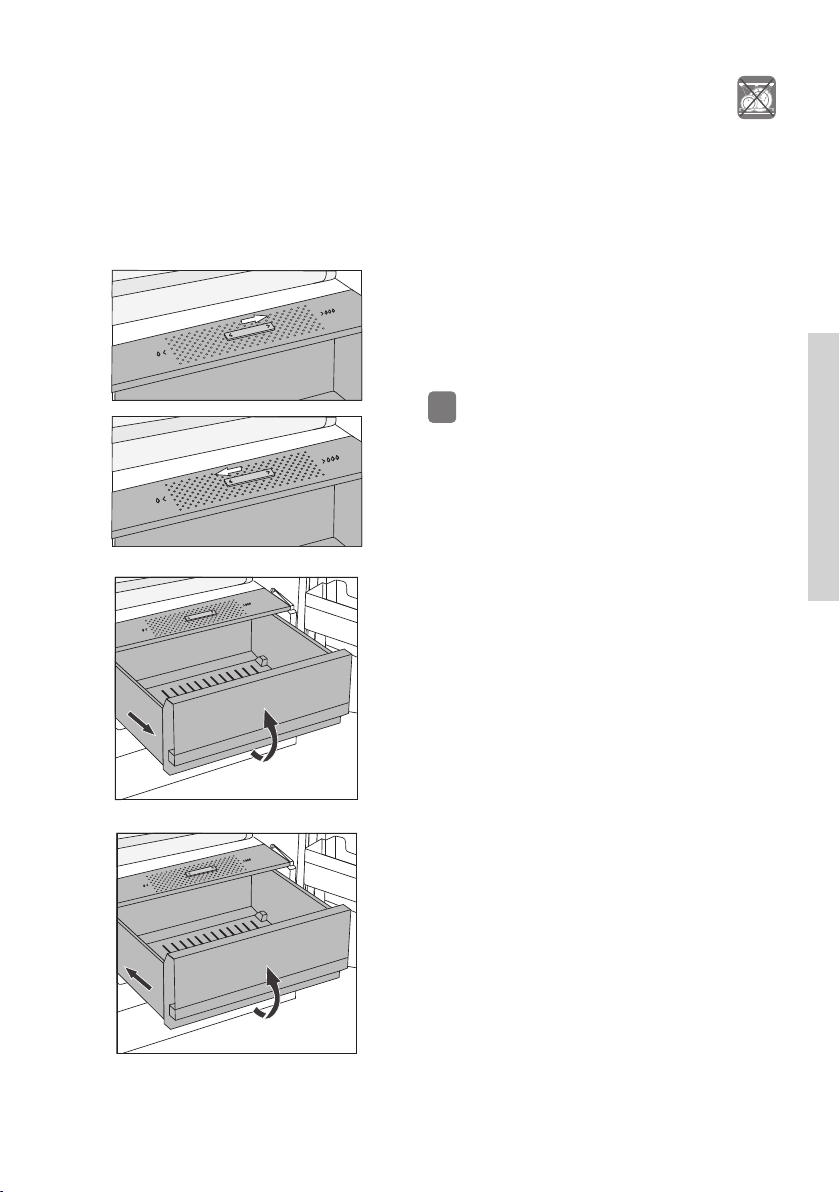

VEGETABLES DRAWER WITH MANUAL HUMIDITY
CONTROL
The drawer at the bottom of the refrigerator is intended for storing fruit and
vegetables. It provides humidity and prevents the food from drying out. The
drawer has a humidity regulator which allows setting the humidity level.
Slider position to the right: closed
vents, higher humidity in the drawer
Slider position to the left: open vents,
lower humidity in the drawer
To remove a drawer, pull out the
drawer as far as it will go (1). Then,
lift the front part (2) and pull it out
completely.
To insert a drawer, follow the reverse
order (3 and 4).
If you observe droplets
accumulating below the glass
shelf, open the vents and wipe
the shelf.
i

18
The height of the door compartments
is adjustable. Lift the compartment out
of the groove and fit it in the required
position. Each compartment can
carry a maximum weight of 5 kg. The
bottom door compartment is suitable
for bottles.
594964
DOOR COMPARTMENTS
HiddenSpace
Extra storage out of sight.
The HiddenSpace compartment
provides extra hidden storage for cans
or similar items underneath the fruit
and vegetable drawer.

19
594964
The MultiBox oers a handy option for storing foods with a strong odour, such
as ripe or blue cheese, smoked sausages and onions. The lid can also be used as
egg tray.
MultiBox

20
Sections of the door
- Top/middle door compartment: eggs, butter, cheese and sauces, etc.
- Bottom door compartment: drinks, cans and bottles, etc.

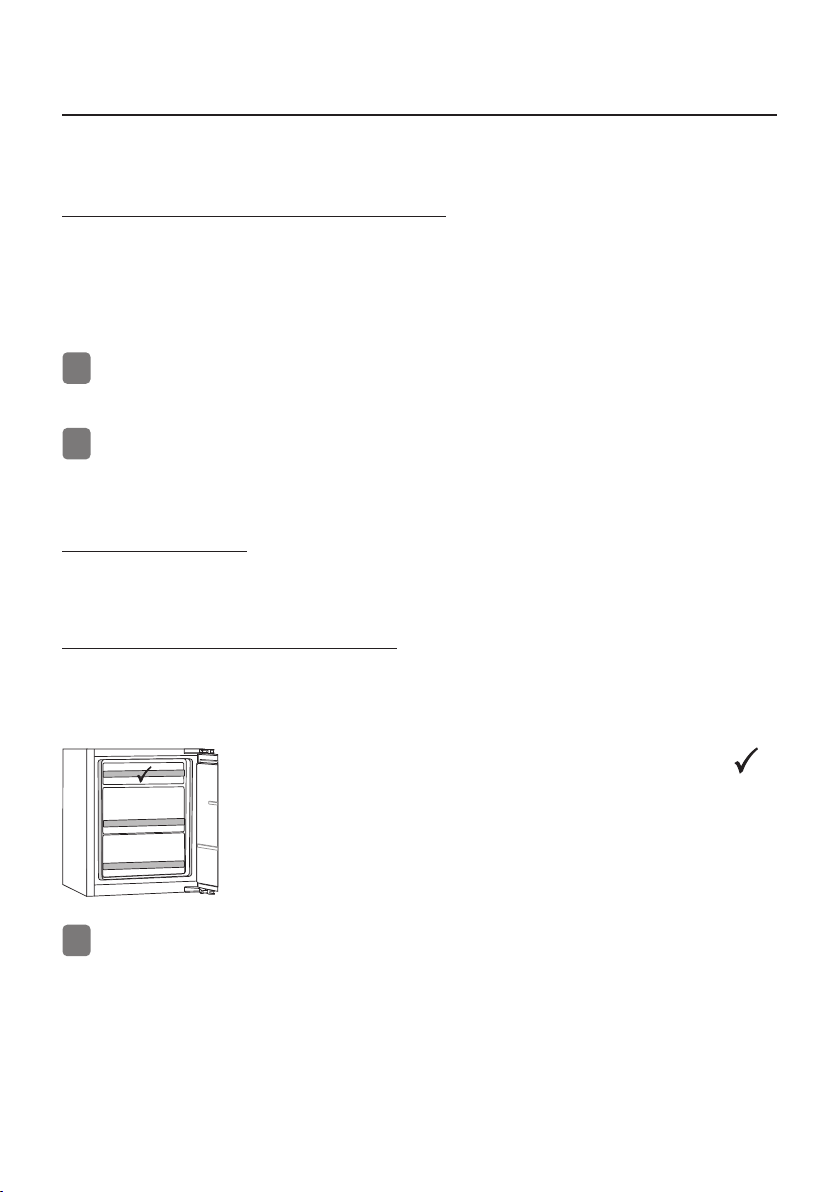

Sections of the freezer compartment
- Top section: leftovers, ice, pizza.
- Middle section: meat, fish, bread.
- Bottom section: standard freezer, vegetables and fruit.
The best location for freezing fresh food is marked with a .
STORING AND FREEZING FOOD
594964
Sections of the refrigeration compartment
- Upper section: canned food, bread, wine and pastas, etc.
- Middle section: dairy products, ready-to-cook meals, desserts, soft drinks,
beer and cooked food, etc.
- Lower section: meat, meat produce, delicatessen.
- Vegetable drawer: vegetables and fresh fruit.
Store food that spoils rapidly at the back of a shelf or at the back of the
drawer at the lowest temperature.
i
RECOMMENDED DISTRIBUTION
Do not store fruit (bananas, pineapples, papaya, citrus fruits) and
vegetables (courgettes, tomatoes, aubergines, cucumber, sweet peppers
and potatoes) that are sensitive to low temperatures in the refrigerator.
i
Do not store lettuce, eggs, apples, pears, grapes, peaches, yoghurt,
buttermilk, sour cream or mayonnaise in the freezer.
i
