We thank you for the confidence you have shown by purchasing
our appliance which is designed to simplify your life. To make the use of the
product easier, we have supplied detailed instructions for use, and installation
instructions supplied on a separate sheet. The instructions should allow you to
learn about your new appliance as quickly as possible.
We wish you find a lot of pleasure in its use.
The appliance is intended solely for household use.
The refrigerator is intended for storing fresh food at temperatures above 0°C.
Please visit our website where you can enter your appliance model number,
indicated on the rating plate or the warranty sheet, to find detailed description
of your appliance, tips on use, troubleshooting, service information, instructions
for use etc.
http://www.pelgrim.nl
Important safety warning
General information and tips
i
Protecting the environment
!
Do not wash in the dishwasher

3
CONTENTS
623953
INTRODUCTION
APPLIANCE
DESCRIPTION
DEFROSTING
AND CLEANING
THE APPLIANCE
4 IMPORTANT NOTES AND PRECAUTIONS
4 BEFORE USING THE APPLIANCE FOR THE FIRST TIME
5 IMPORTANT SAFETY INSTRUCTIONS
8 IMPORTANT INFORMATION ON THE USE OF APPLIANCE
9 ENVIRONMENT PROTECTION
10 ADVICE FOR SAVING POWER WITH REFRIGERATION
APPLIANCES
11 INSTALLATION AND CONNECTION
13 APPLIANCE DESCRIPTION
14 OPERATING THE APPLIANCE
18 APPLIANCE INTERIOR EQUIPMENT
23 STORING FOOD
25 DEFROSTING THE APPLIANCE
26 CLEANING THE APPLIANCE
27 TROUBLESHOOTING MISCELLANEOUS
STORING FOOD

4
IMPORTANT NOTES AND
PRECAUTIONS
Before connecting the appliance to the power mains, please
read carefully the instructions for use which describe the
appliance and its correct and safe use. The instructions
apply to several appliance types/models; thus, settings or
equipment may be described herein which is not available
in your appliance. We recommend saving this instruction
manual for future reference and attach it to the appliance if
it is sold in the future.
Check for any damage or irregularities on your appliance. If
you find your appliance is damaged, notify the retailer from
which you have purchased the appliance.
Before connecting the appliance to the power mains, let
the appliance rest in a vertical position for a minimum of 2
hours. This will reduce the possibility of operation faults due
to the effect of transport on the cooling system.
623953
BEFORE USING THE APPLIANCE FOR
THE FIRST TIME
i

5
623953
IMPORTANT SAFETY INSTRUCTIONS
!
The appliance must be connected to the power mains and
grounded in compliance with the effective standards and
regulations.
WARNING! Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the appliance.
Before cleaning the appliance, unplug it from the power
mains (unplug the power cord from the wall outlet).
WARNING! If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING! When positioning the appliance, ensure the
supply cord is not trapped or damaged.
If LED lighting does not work, call a service technician. Do
not attempt a repair of the LED lighting yourself, as there is
danger of contact with high voltage!
WARNING! Do not use any electric devices inside the
appliance, except for those allowed by the manufacturer
of this refrigeration appliance.
WARNING! Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING! To avoid any hazard resulting from poor
stability of the appliance, make sure it is installed as
instructed.
!
!
!
WARNING! Risk of fire/flammable materials.

6
623953
Danger of frostbite
Never put frozen food in your mouth and avoid touching
frozen food as this may cause frostnip or frostbite.
Safety of children and vulnerable persons
The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Remove the packaging intended to protect the appliance
or particular parts during transport and keep it outside the
reach of children.
It presents danger of injury or suffocation.
When removing a used appliance, disconnect the power cord,
remove the door, and leave the shelves in the appliance. This
will prevent children from locking themselves in the appliance.
For European markets only
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
Children shall not play with the appliance.

7
623953
Cleaning and user maintenance shall not be made by
children without supervision.
Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances.
Warning regarding the refrigerant
The appliance contains a small amount of an
environmentally friendly yet flammable gas R600a. Make
sure that no parts of the cooling system are damaged. A
gas leak is not hazardous to the environment, but it could
cause eye injury or fire.
In case of a gas leak, ventilate the room thoroughly,
disconnect the appliance from the power mains, and call a
service technician.

8
623953
The appliance may not be used outdoors and it may not be
exposed to rain.
Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
If the appliance will be out of use for an extended period of
time, switch it off using the relevant button, and unplug it
from the power mains. Empty the appliance, defrost it, clean
it, and leave the door ajar.
In the event of a defect or power cut, do not open the
freezer compartment unless the appliance has been out
of operation for more than the hours indicated on the
appliance’s type plate (temperature rise time). After this
time, you must either use the frozen food or make sure
that it is properly cooled (for example, by transferring it to
another appliance).
WARNING! Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
i
IMPORTANT INFORMATION ON THE USE
OF APPLIANCE
WARNING! This appliance is intended to be used in
household and similar applications such as
– staff kitchen areas in shops, offices and other working
environments;
– farm houses and by clients in hotels, motels and other
residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.

9
623953
The symbol on the product or its packaging indicates that the product
should not be treated as normal household waste. The product should be
taken to an authorized collection centre for waste electric and electronic
equipment processing. Correct disposal of the product will help prevent
any negative effects on the environment and health of people which could
occur in case of incorrect product removal. For detailed information on
removal and processing of the product, please contact the relevant municipal
body in charge of waste management, your waste disposal service, or the
store where you bought the product.
Packaging is made of environmentally friendly materials
that can be recycled, disposed of, or destroyed without any
hazard to the environment.
!Removing an obsolete appliance
To protect the environment, take the obsolete appliance to
an authorized home appliance collection centre.
Before doing so, do the following:
• disconnect the appliance from the power mains;
• do not allow children to play with the appliance.
ENVIRONMENT PROTECTION
WARNING! Do not damage the refrigerant circuit.
This will also prevent pollution.
i
Technical information on the appliance
Rating plate can be found in the appliance
interior (see figure). It indicates data on
voltage, gross and net volume, type and
amount of refrigerant, and information on
the climate classes.
/
//
//

10
ADVICE FOR SAVING POWER
WITH REFRIGERATION
APPLIANCES
i
623953
• Install the appliance as specified in the instruction manual.
• Do not open the door more often than necessary.
• Occasionally make sure air circulation underneath the appliance is
unobstructed.
• If the gasket is damaged or does not provide a perfect seal for any reason,
have it replaced as soon as possible.
• Store the food in tightly sealed containers or appropriate packaging.
• Before placing the food in the refrigerator, allow it to cool down to room
temperature.
• Defrost frozen food in the refrigerator compartment.
• Make sure the layout of shelves in the compartment is uniform and that
the food is placed so that the air can freely circulate in the appliance
interior (observe the recommended placement of food as described in the
instructions).
• Do not block the fan slots or vents.
• The lower the temperature is set the higher the energy consumption will be.

11
623953
INSTALLATION AND CONNECTION
SELECTING THE ROOM
• Install the appliance in a dry and well ventilated room. The appliance will operate
correctly if the environment temperature is in the interval specified in the table. The
appliance class is indicated on the rating plate / label with the basic information on
the appliance.
Class Temperature Relative Humidity
SN (subnormal) from +10 °C to +32 °C
75%
N (normal) from +16 °C to +32 °C
ST (subtropical) from +16 °C to +38 °C
T (tropical) from +16 °C to +43 °C
• Do not place an appliance in a room where temperature can drop to
below 5 °C as this may cause abnormal appliance operation or failure!
i
• After the installation, the appliance mains plug should be accessible!
Note: Place the appliance in a suciently large room. There should be at least
1 m3of space per 8 grams of refrigerant. Amount of refrigerant is indicated on
the rating plate in the appliance interior.
• At the base of the kitchen unit intended for building in the integrated
appliance, there should be at least 200 cm2free space, for adequate air
circulation.
On the upper part of the appliance the air is coming out, so try not to cover
the opening for the outfl ow air. Ignoring this caution may result in damage to
the appliance.
Warning: when installing built-in appliances into a cupboard or cabinet in a side-
by-side layout, the dew prevention installation kit should also be purchased and
installed. For safety reasons, dew prevention kit may only be installed by an
authorized service technician!

12
623953
The process of changing the appliance door opening and integrating the
appliance into a cabinet is described on the separate installation instructions
supplied in the bag with the instruction manual.
CONNECTING THE APPLIANCE
• Connect the appliance to the power
mains using the power cord. The wall
outlet should be fitted with a ground
contact (safety socket). Nominal
voltage and frequency are indicated
on the rating plate/label with basic
information on the appliance.
• The appliance must be connected
to the power mains and grounded
in compliance with the eective
standards and regulations. The
appliance will withstand short-term
deviations from the nominal voltage,
but not more than +/- 6%.
CHANGING THE DOOR OPENING DIRECTION AND
INTEGRATING THE APPLIANCE INTO A CABINET

13
APPLIANCE DESCRIPTION
623953
1
3
5
7
2
6
8
10
9
4
1 Control unit
2 LED lighting
3 Fan
4 Bottle rack
5Glass shelves
6FreshZone drawer
7 Fruit and vegetables
drawer with humidity
control
8 Fruit and vegetables
drawer
9 Door balconies
10 Bottle balcony

14
OPERATING THE APPLIANCE
623953

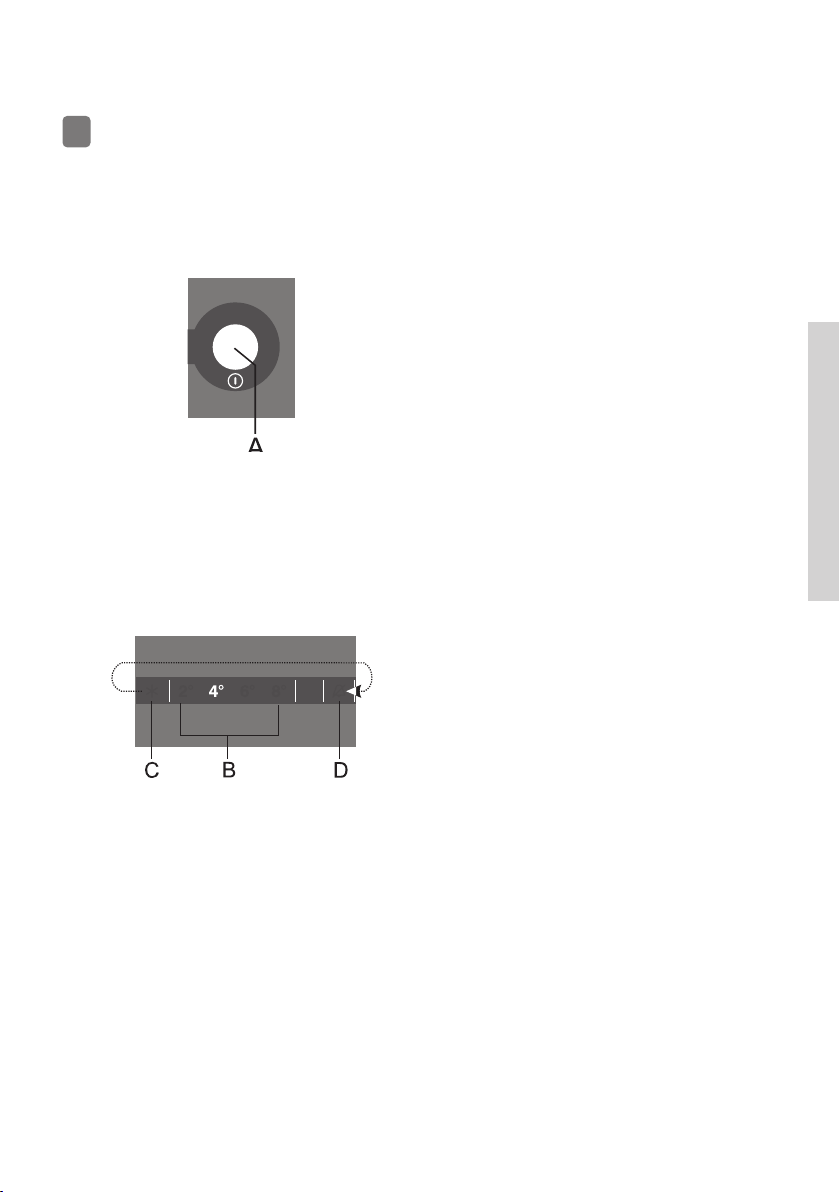

To set the appliance temperature or activate extra functions, press the A key
successively. When the key is first pressed, the currently set value or function
will start to flash. With each successive press of the key, the indicator moves to
the next setting. The indicator cycles through the settings in a circular manner,
from right to left. While the settings are being adjusted, the display will flash.
Three seconds after the key is released, the setting will be stored automatically
and the relevant symbol will be lit.
SWITCHING THE APPLIANCE ON/OFF
Switching the appliance on: Press the
Akey and hold it for 3 seconds.
Switching off the appliance: Again
press the Akey and hold it for 3
seconds. The appliance will be off, but
there is still voltage in it as it is still
connected to the power mains.
B
CDA

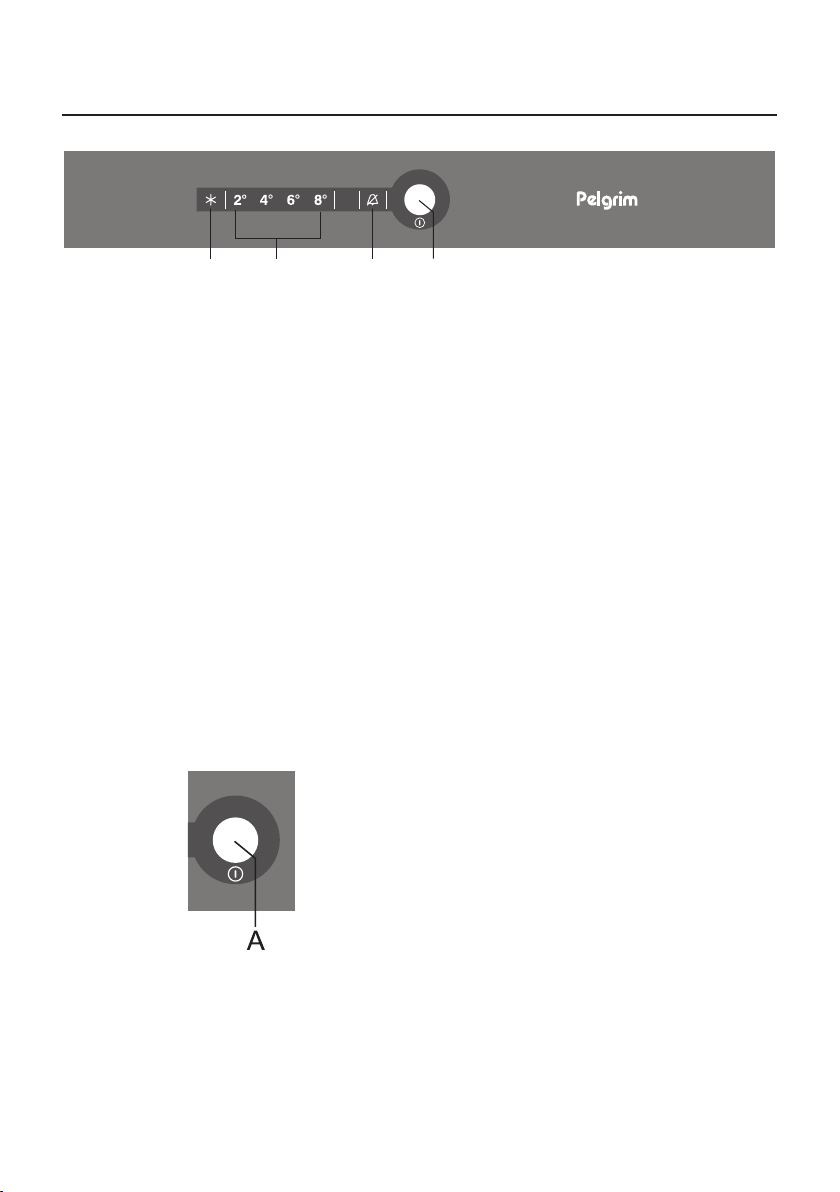

A Appliance on/o, temperature settings, and extra function key
B Refrigerator compartment temperature display
The indicator for the selected temperature will be lit.
C Intensive cooling (cooling boost) function indicator
The Csymbol will be lit when the intensive cooling function is activated.
D High temperature indicator

15
623953
ADJUSTING THE TEMPERATURE IN THE APPLIANCE
• Adjust the temperature as desired
using the Akey.
• Press the Akey (several times) until
the desired temperature indicator
lights up.
• When the Akey is pressed for the
first time, the currently set value
or function will start to flash. Every
successive time you press the Akey,
the settings indicator will move to
the next setting (from right to left, in
a circular manner).
• After three seconds, the setting
will stop flashing. Your setting will
be stored and the corresponding
indicator will be continuously lit.
The numbers 2, 4, 6 and 8 indicate the
degrees Celsius (°C) in the appliance
refrigerator compartment.
• The recommended temperature
setting is +4 °C. At this temperature,
food quality and freshness are
preserved longer.
• If the ambient temperature in the
room where the appliance is installed
is below 16 °C, we recommend setting
a temperature lower than 4 °C.
• The factory default setting is the recommended temperature of 4 °C.
• After the appliance is switched on, it may take several hours for the set
temperature to be reached. Do not place any food into the refrigerator
before the temperature drops to the selected setting.
i

16
623953
INTENSIVE COOLING
• To activate the intensive cooling
function, press the Akey several
times until symbol Clights up.
• To switch o the intensive cooling
function, press the Akey to select
the desired temperature B.
This appliance has an intensive cooling function. This function decreases the
temperatures in the refrigeration compartment as quickly as possible. This is
ideal for cooling products that have just been put into the refrigerator. Use this
function when you put a large quantity of food in the appliance.
When the intensive cooling function is selected, the appliance works at
maximum capacity. It may then make more noise for a while.
!
Adjusting the temperature of the refrigeration compartment while
the intensive cooling function is activated will immediately disable the
intensive cooling function.
!
When the intensive cooling function is not manually disabled then
the function will be automatically disabled after about six hours. The
temperature then returns to the latest set temperature.
!
Should a power failure occur while the function is activated then the
function will be activated again when the power is restored.
!

17
623953
OPEN DOOR ALARM
An alarm signal sounds when a door is
open for too long.
Stopping the alarm
1. Close the door.
- The alarm will stop sounding.
HIGH TEMPERATURE ALARM
If you only switch off the alarm by touching the Akey, the alarm will
switch on again after some time because the door is still open.
!
A signal will sound when the temperature in the appliance is too high.
Furthermore, symbol Dshown in the display will flash. A high temperature can
be caused for several reasons:
• The door has been opened for too long or too frequently.
• The door does not seal properly.
• Too much fresh food has been put in at the same time.
Every time the appliance is switched on again, it takes a while until the
correct temperature is reached. For this reason, the alarm is disabled
for the first 24 hours after the appliance is switched on to prevent the
unnecessary activation of the alarm.
!
Stopping the alarm
1. Touch the Akey to stop the alarm.
- The alarm will stop sounding.
- Symbol Dshown in the display
continues to flash while the
temperature is still too high.
When the alarm is not stopped manually and the temperature remains
too high, the signal will sound for the first minutes of every half hour and
when the door is opened.
!
When you press the Akey for the first time, the alarm will be
acknowledged and turned off. When you press the Akey again, it will
already work as a settings adjustment key.
i

18
APPLIANCE INTERIOR
EQUIPMENT
623953

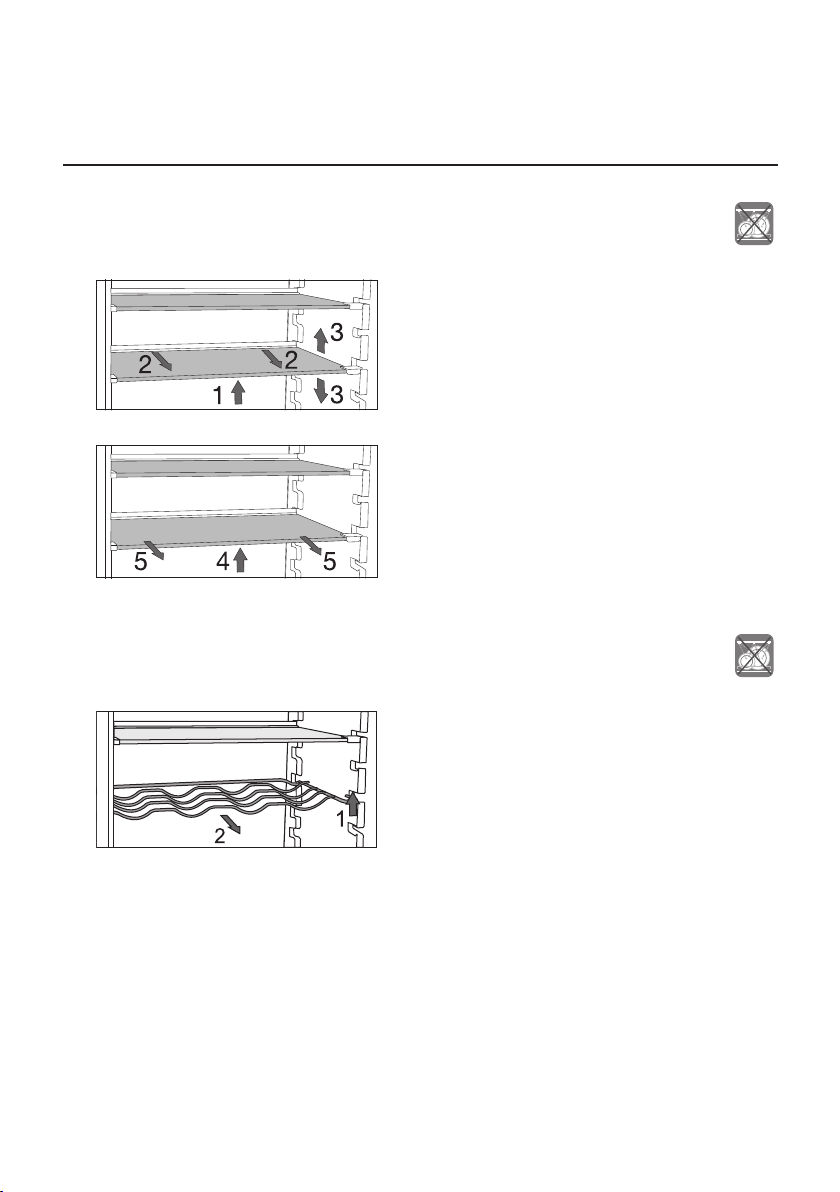

GLASS SHELVES
The shelves are made from safety
glass. To change the height of a shelf,
lift the front of the shelf (1). Take hold
of the back and pull the shelf slightly
forwards (2). Move the shelf to a
higher or lower position (3).
To remove a shelf from the
refrigerator, lift the front of the shelf
(4). Take hold of the back and pull the
shelf out of the appliance (5).
The bottle rack can contain a
maximum load of nine 0.75-litre bottles
or 13 kilograms of total weight. Also
cans can be put on the bottle rack
(lengthwise or crosswise). Make sure
that the door can close correctly if you
have put bottles or cans on the rack.
The bottle rack cannot accidentally
being pulled out. It can only be pulled
out when it is empty. To pull it out,
lift it slightly at the front (1) and pull it
towards you (2).
BOTTLE RACK

19
12
3
4
623953
FRUIT AND VEGETABLE DRAWER WITH HUMIDITY
CONTROL
The drawer at the bottom of the refrigerator is intended for storing fruit and
vegetables. It provides humidity and prevents the food from drying out. The
drawer has integrated humidity regulator which allows setting the humidity
level.
Slider position to the right: closed
vents, higher humidity in the drawer
Slider position to the left: open vents,
lower humidity in the drawer
If you observe droplets
accumulating below the glass
shelf, open the vents and wipe
the shelf.
i
To remove a drawer, pull out the
drawer as far as it will go (1). Then,
lift the front part (2) and pull it out
completely.
To insert a drawer, follow the reverse
order (3 and 4).

20
623953
FreshZone DRAWER
In the FreshZone compartment, food stays fresh longer than in a conventional
refrigerator, retaining more flavour and nutrients.
Decay and loss of mass are slowed down; therefore, fruit and vegetables remain
fresh and natural longer. For optimum performance, the drawer should be fully
closed.
• When buying food, make sure it is fresh as this will determine the quality of
the food, as well as how long it will keep in the fridge.
• Store the food in closed containers or appropriate packaging to prevent it
from emitting or receiving odours.
• Take the food from the drawer 30 to 60 minutes before use to allow the aroma
and flavour develop at ambient temperature.
• Food sensitive to low temperature and not appropriate for storage in the
FreshZone drawer includes the following: pineapples, avocado, bananas,
olives, potatoes, eggplant, cucumbers, beans, peppers (capsicum), melons,
watermelons, pumpkins, squash, zucchini, etc.
• To remove the drawer, pull out the
drawer as far as it will go (1). Then,
lift the front part (2) and pull it out
completely.
• To insert the drawer, follow the
reverse order.
