Pelican WF6 User manual

Owner’s Manual
Pelican WF6/WF10 Iron/Manganese
Filter & Salt Free Softener

Pelican WF6/WF10 Iron/Manganese Filter and Salt Free Softener
© 2013 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Rev P
Page 2
www.pelicanwater.com
[phone]
© Copyright 2013 Enviro Water Solutions Inc. All rights reserved.
All information contained herein is the property of Pelican Water Systems. Pelican Water Systems makes
no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose. Pelican Water Systems shall not be liable for technical
or editorial errors or omissions contained herein or for incidental or consequential damages in connection
with the furnishing, performance, or use of this material. The information is provided “as is” without
warranty of any kind and is subject to change without notice. This document contains proprietary
information which is protected by copyright. No part of this document may be photocopied, reproduced, or
translated into another language without the prior written consent of Pelican Water Systems. Pelican Water
Systems is an Enviro Water Solutions, Inc. company.

Pelican WF6/WF10 Iron/Manganese Filter and Salt Free Softener
© 2013 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Rev P
Page 3
www.pelicanwater.com
[phone]
Table of Contents
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Operation and Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Water Conditions for Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Complete Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Pre-Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Bypass Valve Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Carbon Tank Soak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Carbon Tank Wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Pre-Filter Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Pre-Filter Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Chemical Injector Pump and Solution Tank Installation . . . . . . . . . . . . . . . . . . . . . . . . . 12
Chemical Injector Pump Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Solution Tank Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Iron and Manganese Tank Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Whole House Water Filter Tank Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Whole House Salt Free Water Softener/Conditioner Tank Installation . . . . . . . . . . . . . . . . 16
Media Soak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Media Flush/Condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Complete the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Programming the Electronic Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Step 1: Setting the Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Step 2: Setting the Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Iron and Manganese Tank Regen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Testing Chlorine Levels in Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Clean your Hot Water Heater (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
What to Expect with your New Salt Free Water Softener/Conditioner . . . . . . . . . . . . . . . 21
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Sediment Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Replacing the Sediment Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Chemical Injector Pump: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Solution Tank Refill — Chlorine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Warranty Registration Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Product Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Pelican WF6/WF10 Iron/Manganese Filter and Salt Free Softener
© 2013 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Rev P
Page 4
www.pelicanwater.com
[phone]
Product Operation and Specifications
*Minimum Rated Service Flow must be at least 6 GPM.
Important Information
Read these instructions carefully and determine the location of all system components before
beginning installation.
Check all applicable plumbing, building, and electrical codes for installation compliance.
Install the system on the main water supply.
Systems that contain electronic components cannot be installed outside in uncovered areas.
Water Conditions for Operation
The water should be free of hydrogen sulfide, a dissolved gas with a characteristic smell of rotten
eggs. If present, it can coat the catalytic surface of the media and interfere with the process. The gas
should be removed through adequate pre-treatment.
The water should be free of hydrocarbons, oils, and lubricants. If present, they can coat the catalytic
surface of the media and interfere with the process. Remove through adequate pre-treatment.
The water should contain less than 1 mg/l of phosphates. Phosphates sequester dissolved hardness
molecules preventing them from forming crystals and may coat the catalytic media surface and
interfere with the process.
The copper level in the water supply should be below the MCL of 1.3mg/L. If copper is present above
this level, it can attach to the surface of the catalytic media and interfere with the process.
WARNING:
If this or any other system is installed in a metal (conductive) plumbing system, i.e. copper or
galvanized metal, the plastic components of the system will interrupt the continuity of the
plumbing system. As a result any errant electricity from improperly grounded appliances
downstream or potential galvanic activity in the plumbing system can no longer ground
through contiguous metal plumbing. Some homes may have been built in accordance with
building codes, which actually encouraged the grounding of electrical appliances through the
plumbing system. Consequently, the installation of a bypass consisting of the same material
as the existing plumbing, or a grounded "jumper wire" bridging the equipment and re-
establishing the contiguous conductive nature of the plumbing system must be installed prior
to your systems use.
CAUTION:
When adding a filtration/softening system to homes/buildings supplied by well water, the system should be
installed following the pressure tank. DO NOT USE this system for pneumatic or hydro pneumatic
applications. If you are using a booster pump, then install this system following the booster
pump. If you have questions, please call customer service.
Specification Description WF6 WF10
Max Flow Rate* 10 GPM 15 GPM
Minimum Working Pressure 25 PSI
Maximum Working Pressure 80 PSI
Maximum Vacuum 5 inch/127 mm Hg
Operating Temperatures 36°F – 120°F
pH Range 7 - 11

Pelican WF6/WF10 Iron/Manganese Filter and Salt Free Softener
© 2013 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Rev P
Page 5
www.pelicanwater.com
[phone]
Complete Parts List
Note: Pelican supplies the parts below to accommodate a variety of water supply lines.
Table 1: Parts List
Part Description Qty. Part Description Qty.
1" Plastic Male NPT
Assembly:
V3007-04 WS1 Fitting 1"
Plastic Male NPT Assembly
(2): O-Rings (2), Split Rings
(2), and Connectors (2)
2Bypass Valve:
In/Out Bypass Valve with Red
Arrow Handles
2
1" PVC Tail Adaptor for
Electronic Head Bypass 2Hose Bib Assembly 1
Pre-Filter System:
PP5 Big Blue Pre-Filter
Housing, Mounting Bracket,
Phillips Head Screws (4), Bolt
Head Screws (4), and Washers
(4)
1Bypass Valve for
Electronic Head 1
Sediment Filter:
PC40-1 5 Micron Poly-Spun
Sediment Filter
1Pre-Filter Wrench 1
Electronic Head 1Solution Tank 1
PVC Tubing Drain Line
(50 ft.) 1Chemical Injector Pump Tubing 1
Chlorine Test Strips 1Chemical Injector Pump 1
Non-Abrasive Auto Wax
4 oz. Bottle 1
WAX

Pelican WF6/WF10 Iron/Manganese Filter and Salt Free Softener
© 2013 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Rev P
Page 6
www.pelicanwater.com
[phone]
Note: Drawings are not to scale.
Additional fittings will be needed to adapt to your plumbing.

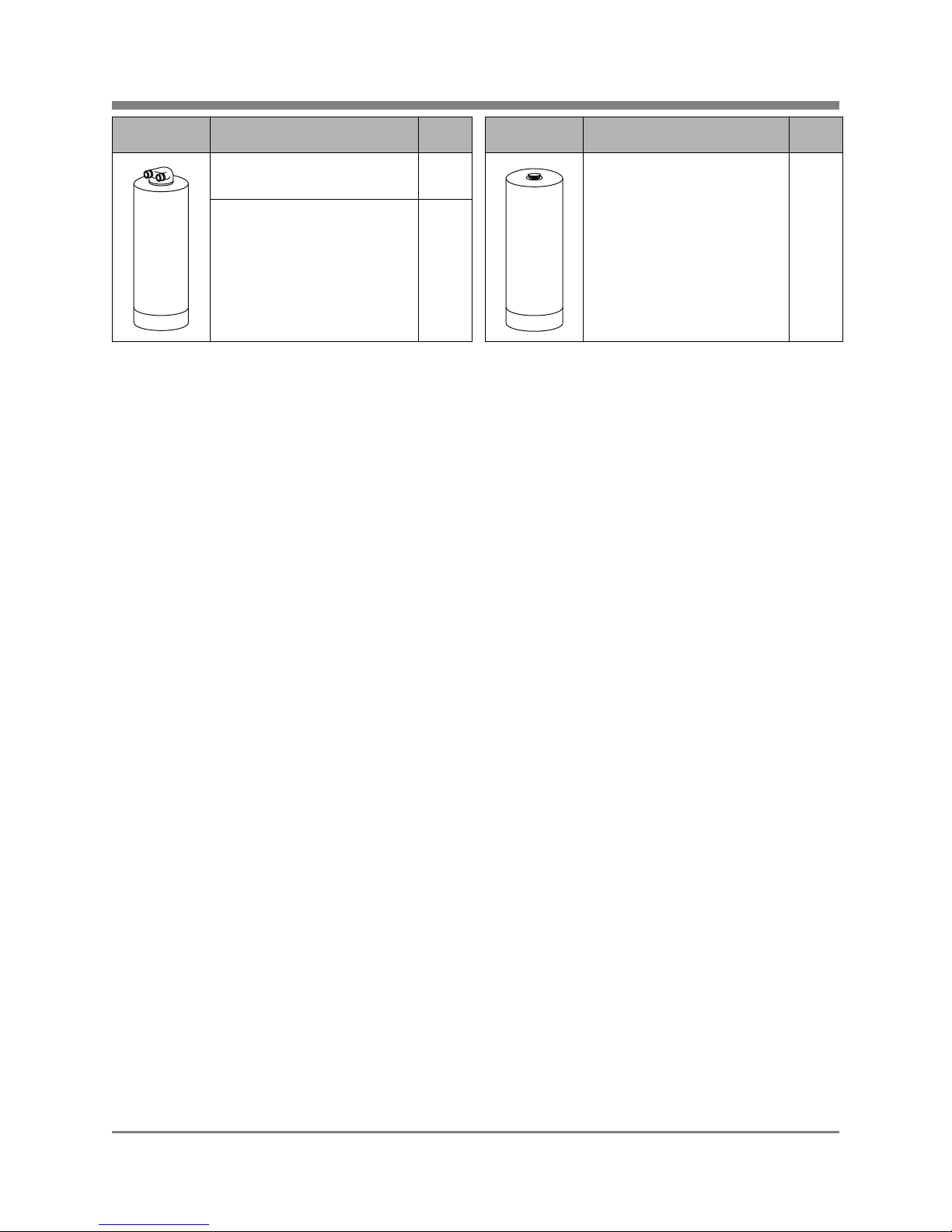

Pelican Whole House
Water Filter 1 Pelican Whole House Iron & Manganese Filter 1
Pelican Salt Free Water
Softener/Conditioner 1
Part Description Qty. Part Description Qty.

Pelican WF6/WF10 Iron/Manganese Filter and Salt Free Softener
© 2013 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Rev P
Page 7
www.pelicanwater.com
[phone]
Installation Overview

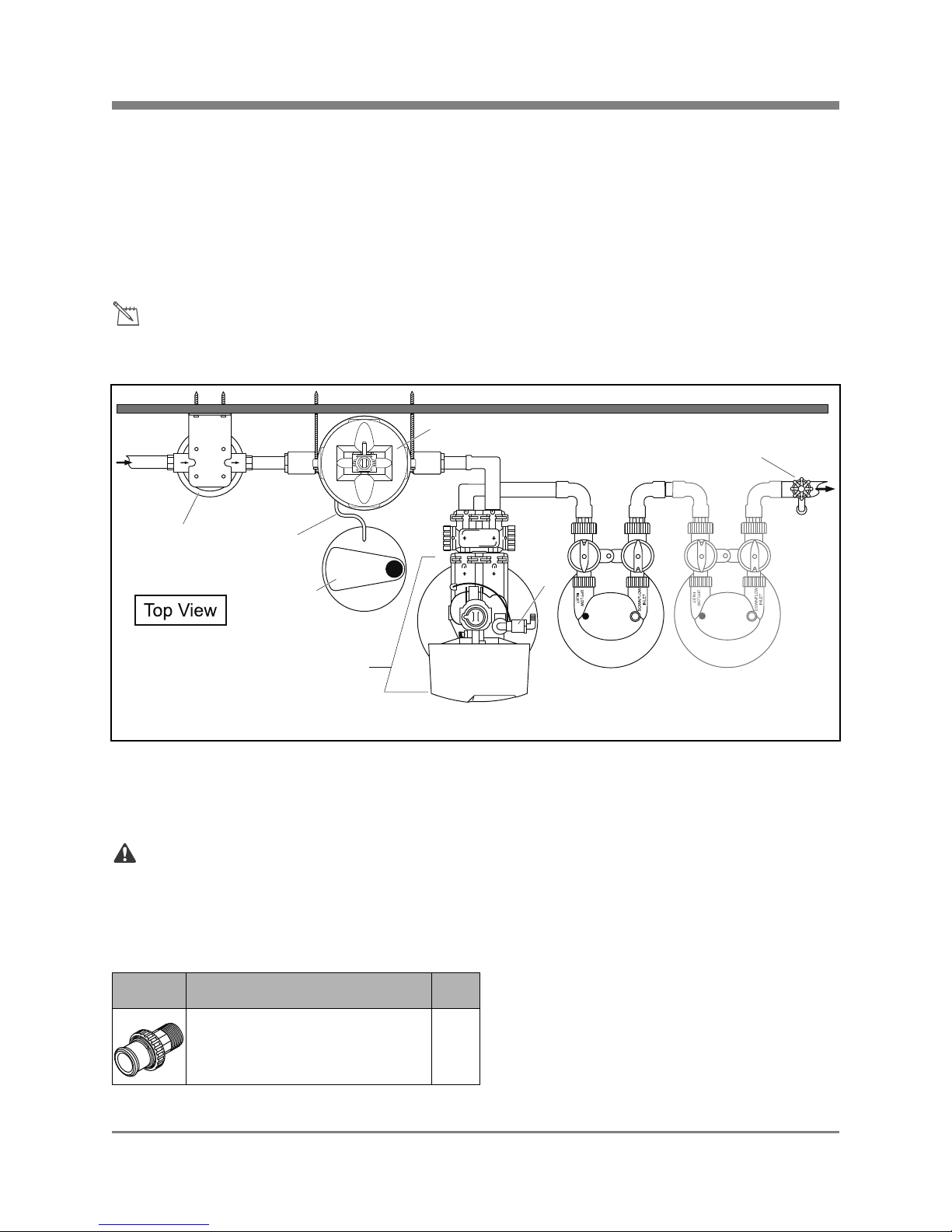

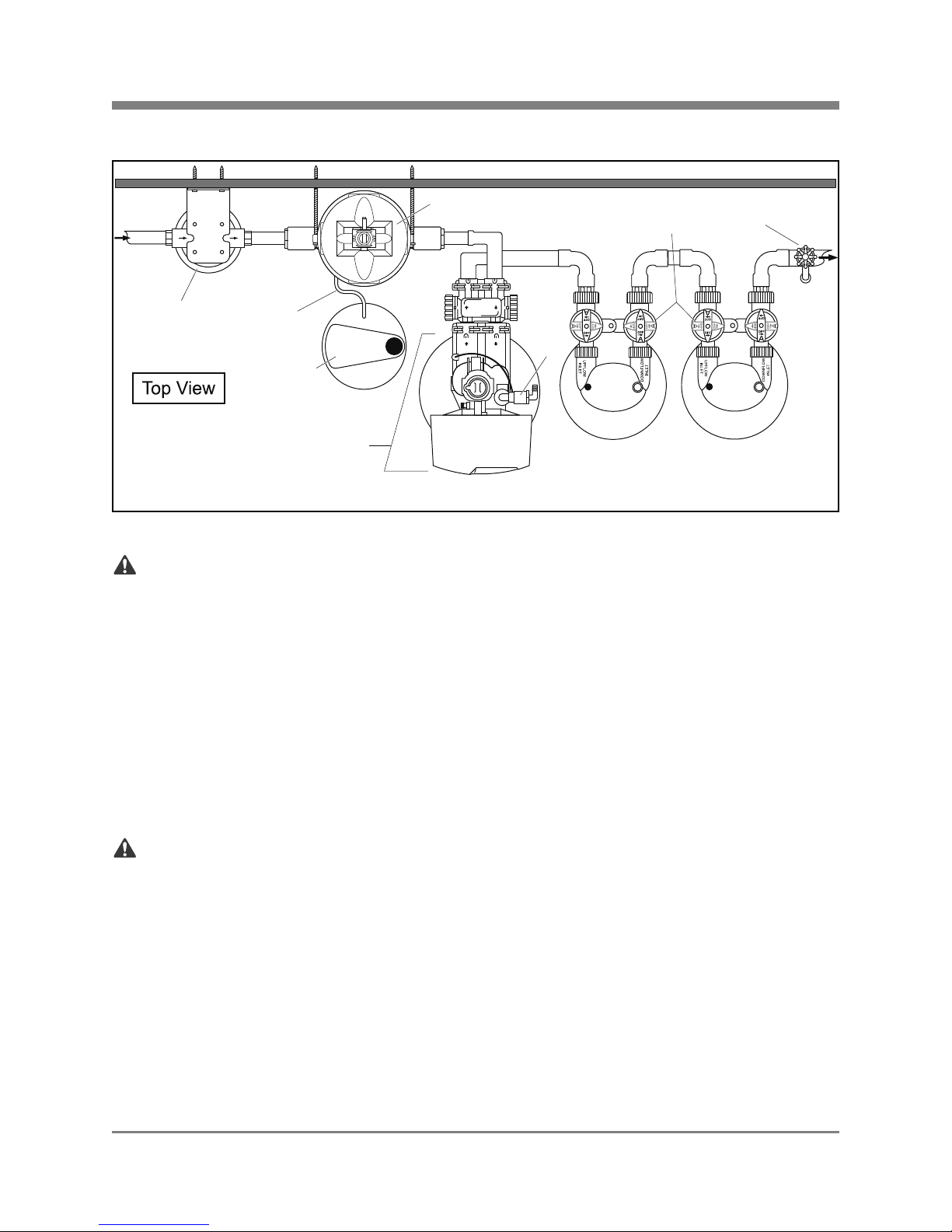

Figure 1
Pre-Installation
Bypass Valve Installation
Figure 2
Whole House Water Filter & Salt Free Water Softener/Conditioner - The Bypass Valve comes pre-
assembled and ready to install with the O-Rings, Split Rings, and Quick Connect Nuts. Push the Bypass
Valve into the head of the Pelican Whole House Water Filter or Salt Free Water Softener/Conditioner with
the unthreaded ends orientated towards the tank and hand-tighten the Quick Connect Nuts.
Salt Free Water
Softener/Conditioner
Discharge
Line
Whole House
Water Filter
Outgoing
Water to
House
Whole House
Iron & Manganese Filter
IN
OUT
Pre-Filter
Incoming
Water
Supply
Wall Wall
Solution Tank
Electronic
Head
Chemical
Injector
Pump Tubing
Chemical Injector
Pump Spigot
(optional)
UPFLOW
INLET
DOWNFLOW
INLET
Quick
Connect Nut
Red Arrow
Water Filter
Head
Whole House
Iron & Manganese Filter
Whole House Water Filter &
Salt Free Water Softener/Conditioner
Electronic
Head
Bypass
Valve
Red
Clip
Front View

Pelican WF6/WF10 Iron/Manganese Filter and Salt Free Softener
© 2013 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Rev P
Page 8
www.pelicanwater.com
[phone]
Whole House Iron & Manganese Filter - If the Red Clips are in the slots (female opening of Electronic
Head) remove them. Push the male O-Ring side of the Bypass Valve into the female opening of the
Electronic Head. Push the Red Clips back into the slots to tighten.
Notice:
The Bypass Valve on the Electronic Head can be set to Bypass or Service by turning the knobs on the side
of the valve. If the holes are up and down then the tank is in the Bypass Mode. If the holes are side to side
then the tank is in the Service Mode. Do not remove the red clips from the Bypass Valve after connecting
to main water supply.
Note: The Whole House Water Filter and the Salt Free Softener/Conditioner flow in a different direction
than the Iron Manganese Filter. The Red Arrows on the Whole House Filter and Softener/Conditioner
Bypass may be pointing in a different direction then shown in Figure 2. If this is the case, remove the Red
Arrows by pulling them straight up. Turn them around and reposition correctly onto the Bypass Valve so
they are positioned as shown in Figure 2.

Pelican WF6/WF10 Iron/Manganese Filter and Salt Free Softener
© 2013 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Rev P
Page 9
www.pelicanwater.com
[phone]
Carbon Tank Soak
!IMPORTANT!
Your system will not be ready for use for a minimum of 48 hours while the Carbon Soak process takes
place. Please plan your installation accordingly.
Notice:
Water will flow out of the downflow inlet side of the Bypass Valve during this process. Be sure you perform
this series of steps in a location suitable for water flow.
Figure 3

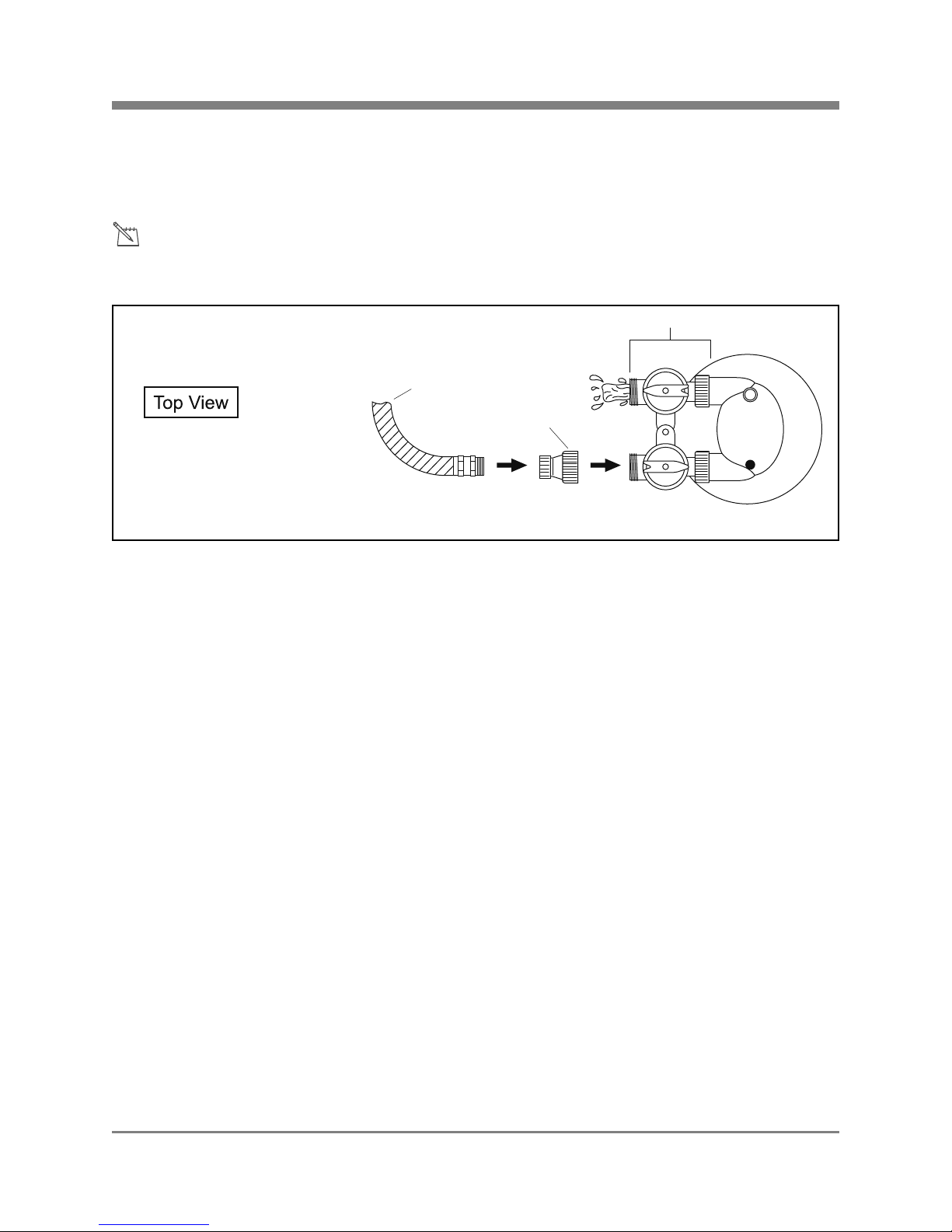

1. Attach a garden hose to the Hose Bib Assembly
2. Connect the Hose Bib Assembly to the upflow inlet side of the Bypass Valve and hand tighten
3. Fill the Pelican Whole House WaterFilter Tank full until water comes out of downflow inlet side of
the Bypass Valve
4. Turn the water off.
5. Remove the garden hose from the Hose Bib Assembly. Do not remove the fitting.
6. Allow the carbon tank to soak for at least 48 hours prior to tank installation.
Garden
Hose
Hose Bib
Assembly
UPFLOW
INLET
DOWNFLOW
INLET
Water
Bypass Valve
Whole House Water Filter

Pelican WF6/WF10 Iron/Manganese Filter and Salt Free Softener
© 2013 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Rev P
Page 10
www.pelicanwater.com
[phone]
Carbon Tank Wash
!IMPORTANT!
Do not perform the Carbon Tank Wash until the Carbon Tank Soak process is complete.
Notice:
Water will flow out of the downflow inlet side of the Bypass Valve during this process. Be sure you perform
this series of steps in a location suitable for water flow.
Figure 4
1. Reattach the garden hose to the Hose Bib Assembly.
2. Slowly turn on the water 1/4 turn for this entire process.
3. Run water through the upflow inlet side of the Bypass Valve for 15-30 minutes or until the water
discharging from the downflow inlet side of the Bypass Valve runs clear.
4. Turn off the water.
5. Remove the Hose Bib Assembly from the upflow inlet side and attach it to the downflow inlet side
of the Bypass Valve.
6. Run the water through the downflow inlet side for 1 minute or until water runs clear.
7. Turn off the water.
8. Remove the Hose Bib Assembly from the Bypass Valve and disconnect the garden hose.
Note: Please save the Hose Bib Assembly as this will be used in the future for the carbon
exchange.
UPFLOW
INLET
DOWNFLOW
INLET
Water
Bypass Valve
Whole House Water Filter
Garden
Hose
Hose Bib
Assembly

Pelican WF6/WF10 Iron/Manganese Filter and Salt Free Softener
© 2013 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Rev P
Page 11
www.pelicanwater.com
[phone]

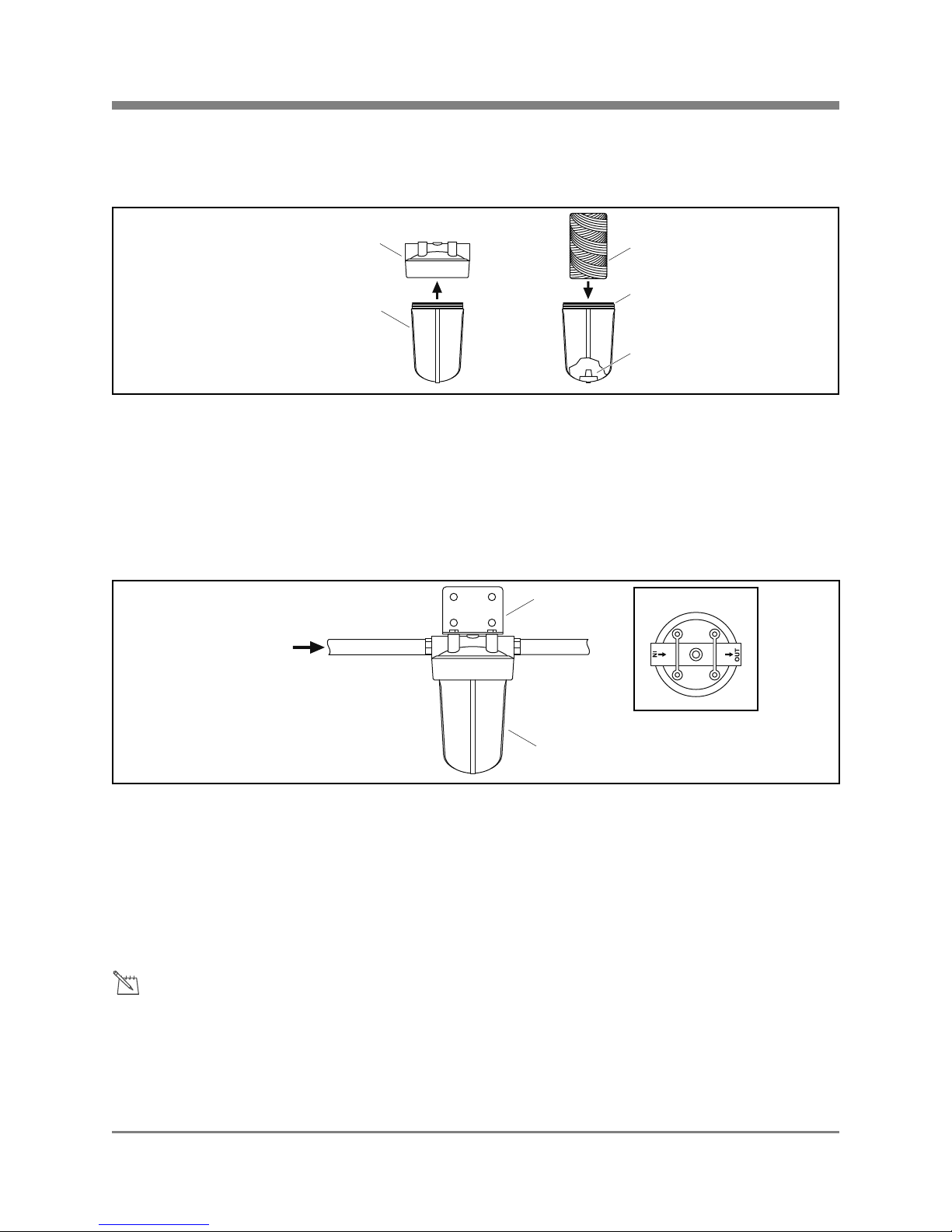

Installation
Pre-Filter Assembly
Figure 5
1. Unscrew the cover from the Blue Pre-Filter Housing.
2. Remove the plastic covering from the Sediment Filter.
3. Place the Sediment Filter onto the Stand Pipe in the Blue Pre-Filter Housing.
4. Screw the cover onto the Blue Pre-Filter Housing until hand-tight.
Pre-Filter Installation
Figure 6
1. Shut off the water.
2. Attach the Mounting Bracket to the wall using the supplied Phillips Head Screws and Washers.
3. Attach the Pre-Filter System to the Mounting Bracket using the supplied Bolt Head Screws.
4. Lube the o-ring with clean silicone grease before attaching the cover onto the housing.
5. Tighten the Blue Pre-Filter Housing using the supplied Pre-Filter Wrench (counter clockwise).
6. Determine the size of your inlet water supply line. PVC Reducers may be needed to fit the 1” Pre-
Filter System.
Notice:
The Pre-Filter Housing comes with a 1” threaded female inlet/outlet and will require additional fittings to
adapt to your plumbing. A shut-off valve is recommended prior to the Pre-Filter System.
Pre-Filter Cover Sediment Filter
O-Ring
Stand Pipe
Blue Pre-Filter Housing
Top View Pre-Filter
Blue Pre-Filter Housing
Inlet Water
Supply
Mounting
Bracket

Pelican WF6/WF10 Iron/Manganese Filter and Salt Free Softener
© 2013 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Rev P
Page 12
www.pelicanwater.com
[phone]

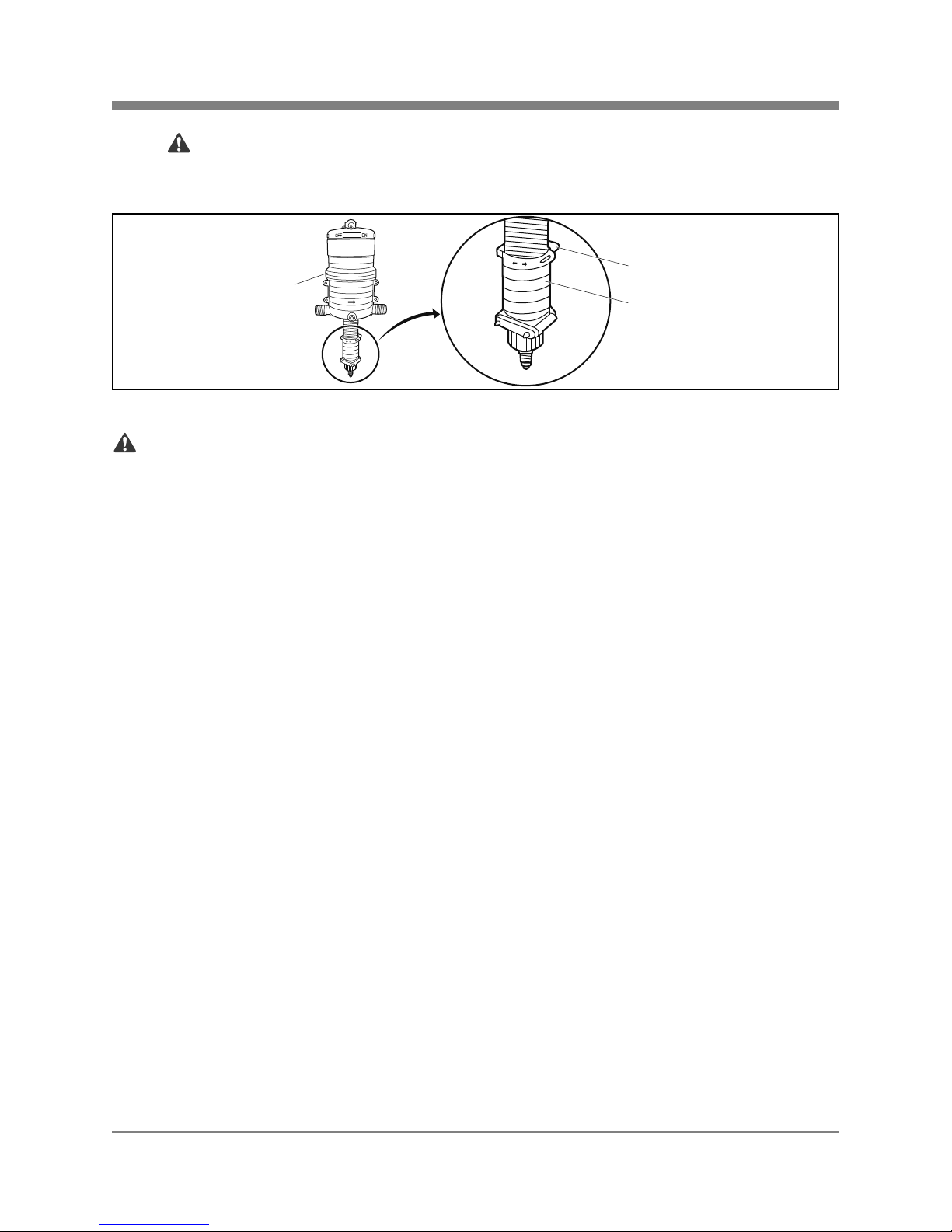

Chemical Injector Pump and Solution Tank Installation
Figure 7
Chemical Injector Pump Installation
!IMPORTANT!
Install the Chemical Injector Pump into the water supply after the Pre-Filter and before any other filtration
or softening system.
1. Determine the size and material of your incoming water supply line from the Pre-Filter System.
2. Mount the Chemical Injector Pump to the wall using the provided brackets. Line up the inflow and
outflow connections with the current water line.
3. Plumb the Chemical Injector Pump into your water line. The arrow on the body of the Chemical
Injector Pump shows the correct water flow direction. The water should enter and exit the pump
following the direction of the arrow.
Solution Tank Installation
1. Remove the black cap from the opening on the Solution Tank.
2. Drill one 3/8” hole into the top of the Solution Tank.
3. Insert the end of the Chemical Injector Pump Tubing with the pump foot valve connected, into the
hole which was covered by the black cap on the top of the Solution Tank.
4. Feed and pull the other end of the tubing through the drilled opening on the top of the Solution
Tank.
5. Fill the Solution Tank with 9 cups household bleach and 35 gallons of fresh bottled water. Replace
the cap.
6. Determine the length of Chemical Injector Pump Tubing required to reach the bottom connection
point of the Chemical Injector Pump and then cut the Chemical Injector Pump Tubing to the
appropriate length.
7. Connect the Chemical Injector Pump Tubing to the suction valve on the Chemical Injector Pump.
!IMPORTANT!
Ensure the Chemical Injector Pump Tubing is free of kinks.
!IMPORTANT!
Ensure Solution Tank is not sitting directly on a concrete floor.
Incoming
Water
Supply
Outgoing Water
to House
35 Gallon
Solution Tank
Pump Foot
Valve
Chemical Injector
Pump Tubing
Chemical Injector
Pump
Nut
Pre-Filter
Spigot
(optional)

Pelican WF6/WF10 Iron/Manganese Filter and Salt Free Softener
© 2013 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Rev P
Page 13
www.pelicanwater.com
[phone]

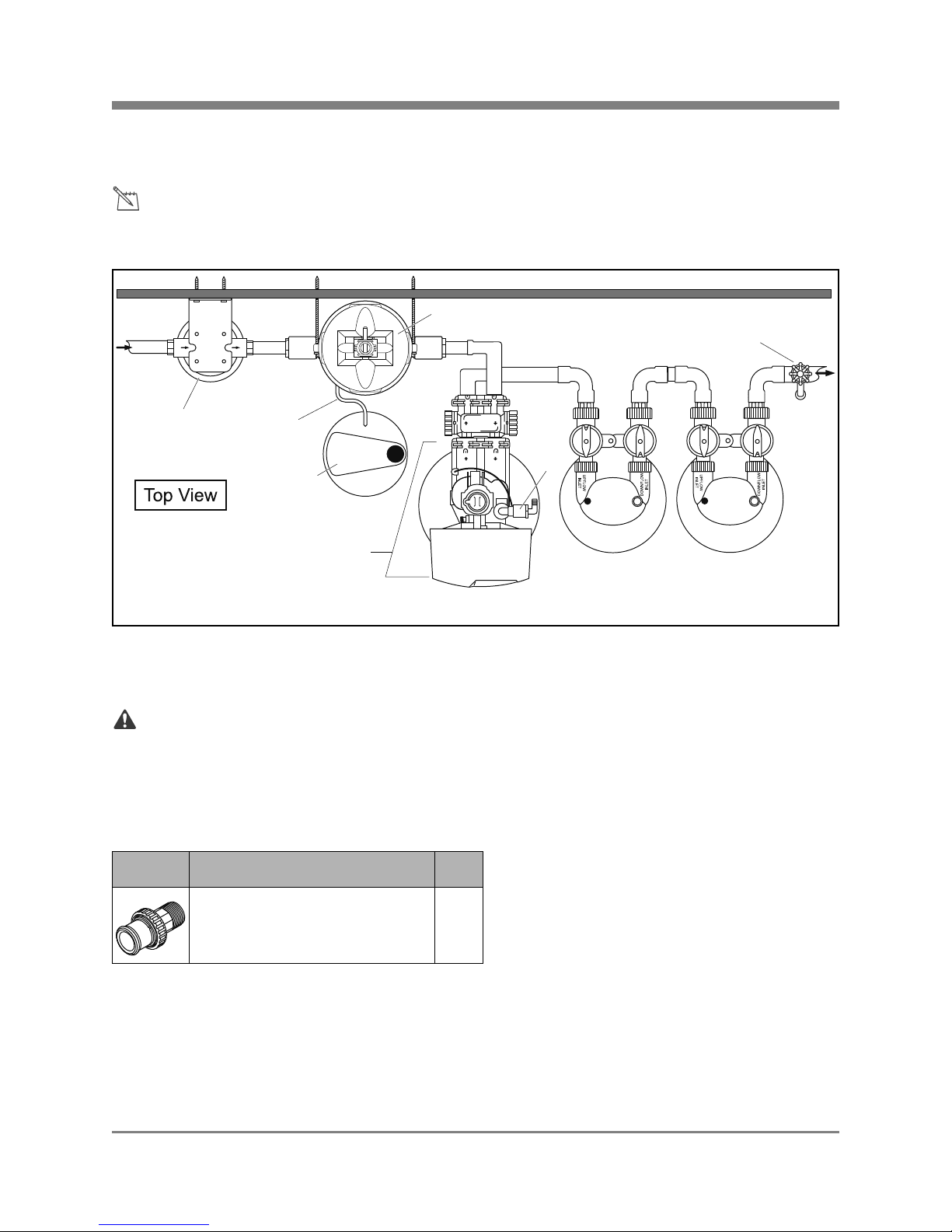

Iron and Manganese Tank Installation
Figure 8
Notice:
Follow the raised black arrows on the head of the Whole House Iron & Manganese tank.
1. Level the Pelican Whole House Iron & Manganese Filter.
Notice:
If the tank is not level, lift the tank straight up 6 inches and tap it on the ground until the tank stands
vertical. The bottom of the tank is round and the boot allows the tank to stand upright.
2. Determine the size and material of your incoming water supply line from the In-Line Injection Port
and choose the appropriate fittings required to connect it to the Bypass Valve.
CAUTION:
Do not over-tighten any of the fittings during installation.
Table 2: Bypass Valve Fittings
Note: The fitting above is designed with a ¼" give to allow for proper pipe alignment. It will not leak and
is intended to have some flexibility.
3. Remove the gray cap from the top of the Whole House Iron & Manganese tank.
4. Screw the Electronic Head onto the tank hand-tight.
5. Install the fittings onto the inlet and outlet, following the arrows on the Bypass Valve and head.
Part Description Qty.
1" PVC Tail Adaptor for
Electronic Head Bypass 2
Salt Free Water
Softener/Conditioner
Discharge
Line
Whole House
Water Filter
Outgoing
Water to
House
Whole House
Iron & Manganese Filter
IN
OUT
Pre-Filter
Incoming
Water
Supply
Wall Wall
Solution Tank
Electronic
Head
Chemical
Injector
Pump Tubing
Chemical Injector
Pump Spigot
(optional)

Pelican WF6/WF10 Iron/Manganese Filter and Salt Free Softener
© 2013 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Rev P
Page 14
www.pelicanwater.com
[phone]
6. Connect the incoming water supply to the fitting on the inlet side of the Bypass Valve.
7. Connect the outgoing water supply to the outlet side of the Bypass Valve.
8. Firmly press one end of the discharge PVC Tubing Drain Line onto the barbed nose, and secure the
other end of the line to a drain.

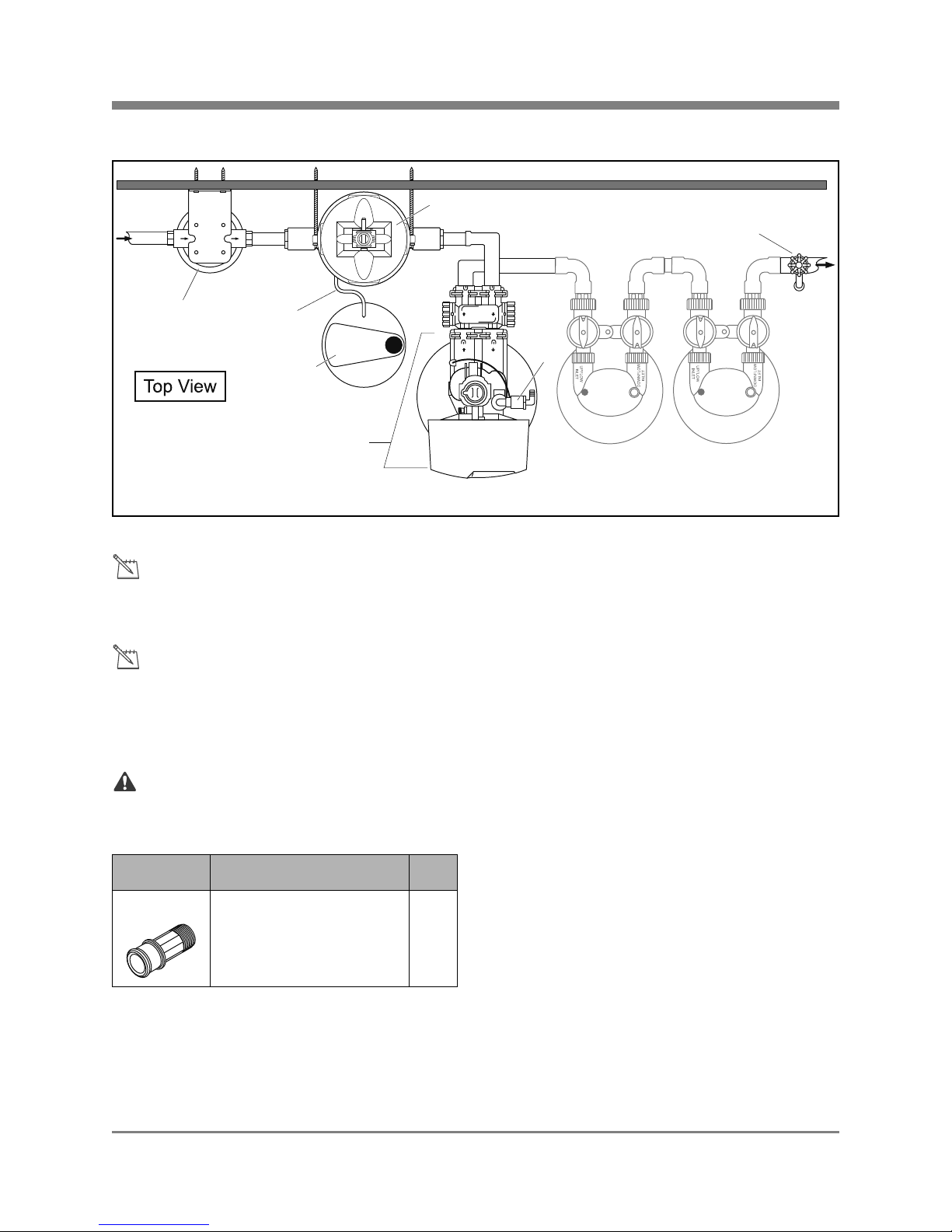

Whole House Water Filter Tank Installation
1. Level the Pelican Whole House Water Filter.
Notice:
If the tank is not level, lift the tank straight up 6 inches and tap it on the ground until the tank stands
vertical. The bottom of the tank is round and the boot allows the tank to stand upright.
Figure 9
2. Determine the size and material of your incoming water supply line from the Whole House Iron &
Manganese Filter and choose the appropriate plumbing required to adapt to the 1” Male NPT
Assembly.
CAUTION:
Do not over-tighten any of the fittings during installation.
Table 3: Bypass Valve Fittings
Note: The fitting below is designed with a ¼"give to allow for proper pipe alignment. It will not leak and
is intended to have some flexibility.
Part Description Qty.
1" Plastic Male NPT Assembly:
V3007-04 WS1 Fitting 1" Plastic Male NPT
Assembly (2): O-Rings (2), Split Rings
(2), and Connectors (2)
1
bag
Salt Free Water
Softener/Conditioner
Discharge
Line
Whole House
Water Filter
Outgoing
Water to
House
Whole House
Iron & Manganese Filter
IN
OUT
Pre-Filter
Incoming
Water
Supply
Wall Wall
Solution Tank
Electronic
Head
Chemical
Injector
Pump Tubing
Chemical Injector
Pump Spigot
(optional)

Pelican WF6/WF10 Iron/Manganese Filter and Salt Free Softener
© 2013 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Rev P
Page 15
www.pelicanwater.com
[phone]
3. Install the fitting onto the upflow and downflow inlet sides of the Bypass Valve. Follow the diagram
supplied with the fitting.
4. Connect the incoming water supply from the downflow inlet of the Pelican Whole House Water
Filter to the upflow inlet side of the Pelican Salt-free water softener/conditioner.
5. Connect the outgoing water supply to the downflow inlet side of the Bypass Valve.

Pelican WF6/WF10 Iron/Manganese Filter and Salt Free Softener
© 2013 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Rev P
Page 16
www.pelicanwater.com
[phone]
Whole House Salt Free Water Softener/Conditioner Tank Installation
1. Level the Pelican Salt Free Water Softener/Conditioner.
Notice:
If the tank is not level, lift the tank straight up 6 inches and tap it on the ground until the tank stands
vertical. The bottom of the tank is round and the boot allows the tank to stand upright.
Figure 10
2. Determine the size and material of your incoming water supply line from the Whole House Iron &
Manganese Filter and choose the appropriate fittings required to connect it to the Bypass Valve.
CAUTION:
Do not over-tighten any of the fittings during installation.
Table 4: Bypass Valve Fittings
Note: The fitting below is designed with a ¼"give to allow for proper pipe alignment. It will not leak and
is intended to have some flexibility.
3. Install the fitting onto the upflow and downflow inlet sides of the Bypass Valve. Follow the
diagrams supplied with the fitting.
4. Connect the incoming water supply from the downflow inlet of the Pelican Whole House Water
Filter to the upflow inlet side of the Pelican Salt-free water softener/conditioner.
5. Connect the outgoing water supply to the downflow inlet side of the Bypass Valve.
Part Description Qty.
1" Plastic Male NPT Assembly:
V3007-04 WS1 Fitting 1" Plastic Male
NPT Assembly (2): O-Rings (2), Split
Rings (2), and Connectors (2)
1
bag
Salt Free Water
Softener/Conditioner
Discharge
Line
Whole House
Water Filter
Outgoing
Water to
House
Whole House
Iron & Manganese Filter
IN
OUT
Pre-Filter
Incoming
Water
Supply
Wall Wall
Solution Tank
Electronic
Head
Chemical
Injector
Pump Tubing
Chemical Injector
Pump Spigot
(optional)

Pelican WF6/WF10 Iron/Manganese Filter and Salt Free Softener
© 2013 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Rev P
Page 17
www.pelicanwater.com
[phone]
Media Soak
Figure 11
CAUTION:
The Pelican Whole House Iron and Manganese Filter and the Whole House Water Filter must be in the
bypass position during this process (see Figure above). The Pelican Whole House Iron and Manganese
Filter Bypass Valves can be placed in bypass by following the instructions on page 13.
1. Open a cold water faucet or test spigot close to the downstream of the Water Softener.
2. Turn the water back on at the main shut-off valve allowing the system to fill with water. The air
being displaced will escape through the open fixture downstream.
3. Turn the arrows on the Bypass Valve into the Bypass Mode position displayed above to bypass the
tank. This will allow you to isolate the system and restore water supply to the home/building
during the media soak.
4. Allow the tank to soak for at least 60 minutes.
Media Flush/Condition
CAUTION:
The Pelican Whole House Water Filter must be in the bypass position during this process (see Figure).
1. After the tank has soaked for 60 minutes, turn the main water supply back on or turn the arrows
on the Bypass Valve back into their original position.
2. Flush the system by running water for 5 minutes at a high flow rate of 5 GPM (this can be
achieved by using a bath tub or more than 3 faucets).
Note: The flush water may have a milky look to it. This is normal as calcium carbonate fines are
flushed from the system.
3. Rinse the system by reducing the flow rate to ½ GPM and run water for 60 minutes (this can be
achieved by turning one faucet ¼ of the way on).
4. Turn the Whole House Water Filter Bypass Valve and Iron/Manganese Filter System to the on
position (out of Bypass Mode).
Bypass Mode
Salt Free Water
Softener/Conditioner
Discharge
Line
Whole House
Water Filter
Outgoing
Water to
House
Whole House
Iron & Manganese Filter
IN
OUT
Pre-Filter
Incoming
Water
Supply
Wall Wall
Solution Tank
Electronic
Head
Chemical
Injector
Pump Tubing
Chemical Injector
Pump Spigot
(optional)

Pelican WF6/WF10 Iron/Manganese Filter and Salt Free Softener
© 2013 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Rev P
Page 18
www.pelicanwater.com
[phone]
Complete the Installation
1. Turn on the main water supply.
2. Check for leaks.
3. Peel off the protective plastic wrap from the stainless steel tank jackets.
4. Add the Pelican logo sticker in the desired location on the tank.
5. Wax stainless steel tank jacket(s) with wax provided or any other non-abrasive auto wax a
minimum of 1-2 times per year or as needed based on the installed environment.
Programming the Electronic Head
Note: Power Source - For safety reasons the outlet must be protected by a Ground Fault Circuit
Interrupter (GFCI).
Note: These settings are specific to this system. Do not make changes to the settings unless instructed by
customer service. All settings have to be set by first setting the clock to 12:01 PM. To restart programming,
you must start over at step 1. Do not go to a previous step, you must start over at step 1.
Figure 12
Step 1: Setting the Valve
1. Press and hold the UP or DOWN button to change the clock to 12:01 PM.
2. Press the EXTRA CYCLE button once.
3. Press and hold the UP and DOWN buttons together, until DF is displayed in the left corner. Scroll
using the UP and DOWN arrows until "GAL" is selected. Press EXTRA CYCLE.
Extra Cycle
Button
Up
Button
Down
Button

Pelican WF6/WF10 Iron/Manganese Filter and Salt Free Softener
© 2013 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Rev P
Page 19
www.pelicanwater.com
[phone]
4. Follow the steps in the table below to finish setting the valve. When each setting is displayed, use
the UP and DOWN buttons to scroll to the appropriate data setting displayed in the table. Press
EXTRA CYCLE to select the data setting and go to the next setting.
Table 5: Setting the Valve
Step 2: Setting the Time
1. Press and hold down the UP button to change the clock.
2. Press the EXTRA CYCLE button when the time is set. The water valve displayed will stop flashing
when the time is set.
Iron and Manganese Tank Regen
!IMPORTANT!
You will not be able to use water in the house for approximately 25 minutes during the Regen process.
1. Press and hold the EXTRA CYCLE button for 3 seconds.
Note: Gears will make noise and water will start to flow.
2. Allow the system to EXTRA CYCLE for 25 minutes.
Your manual regen cycle is complete and the tank is ready for use.
Note: The days between regen may vary based on flow and Iron content. If you are unsure about the
days between regen please contact your Pelican dealer for further help.
Testing Chlorine Levels in Water
1. Put the carbon tank in bypass.
2. Turn on the nearest cold water faucet to the system.
3. Listen and watch the pump to make sure it is pumping. The pump should pulse and not run
continuously. If the water is off, the pump will stop.
4. Let the water run for 10 minutes.
5. After 10 minutes, use the chlorine test strip at the running cold water faucet to check the chlorine
level.
6. The optimum chlorine level reading is 3ppm on the test strip.
a. If the level is lower than 3ppm chlorine, remove the black clip from the ratio adjustment
slide. Turn the ratio adjustment slide 2 full revolutions in the positive direction. Replace the
black clip.
b. If it is higher than 3ppm, remove the black clip from the ratio adjustment slide. Turn the
ratio adjustment slide 2 full revolutions in the negative direction. Replace the black clip.
Parameter Display (Left Corner) Data Display Set To
VT (Valve Type) Fltr
CT (Control Type) tc
DO (Day Override) 3
RT (Regeneration Time) 2:00
BW (Backwash) 10
RR (Rapid Rinse) 10

Pelican WF6/WF10 Iron/Manganese Filter and Salt Free Softener
© 2013 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Rev P
Page 20
www.pelicanwater.com
[phone]
CAUTION:
Do not remove the silver clip from the ratio adjustment slide when the system is under pressure.
7. Continue with these steps until the system achieves a 3ppm reading on the chlorine test strip.
Figure 13
CAUTION:
Avoid high flow rates such as bathtub, utility sinks, hose bibs, multi-headed showers, body sprayers, or
anything that is considered high flow for the first 72 hours to avoid flow restrictions caused by carbon
blockage of the top basket inside the carbon tank.
Carbon dust may be released into the water lines of the house/building during the first few days of water
use after carbon tank installation. The carbon dust is harmless, but may give the water a gray appearance
that should diminish within a week or 10 days depending on water use.
Clean your Hot Water Heater (optional)
Cleaning and restoring the plumbing system is a major benefit of the NS3/NS6 NaturSoft system. In order
to minimize the time required to complete the de-scaling process, we strongly recommend cleaning your
hot water heater after a period of 3 weeks:
Turn off the heat source, attach a hose to the drain valve at the bottom of the tank and flush the
heater by opening the drain valve. After the water heater is completely filled with water, turn the heat
source back on.
Alternatively, open several fixtures in the home and let water run simultaneously for a couple of
minutes. Focus on the hot water side and high flows like the bathtubs. This method is not quite as
effective.
Chemical Injector
Pump Tubing
Black Clip
Adjustment Ratio Slide
