1. INTRODUCTION
Dear Customer,
Thank you for purchasing your Lawn mower RASION 2 EASY. Correctly used and maintained, this tool will give a
satisfactory performance for many years.
Warning
Your device contains numerous recoverable or recyclable materials. Return it to your deal-
er or, failing this, to an approved servicing centre to be treated.
Comply with the regulations in force in your country as concerns environmental protection associated with your activity.
Warning
It is imperative that you read through the ENTIRE user’s manual before using or servicing the tool.
Always comply with the instructions and illustrations in the manual.
All through this user guide you will find advisory notes and information entitled: REMARK, CAUTION / WARNING.
A REMARK provides additional information, clarifies a point or explains a step to be followed in detail.
WARNINGS or CAUTIONS call attention to a procedure which, if not performed or incorrectly performed, could cause
physical damage and/or serious injury.
This advisory: G indicates that if the procedures or instructions are not complied with, any damage will not be covered
by the warranty and the owner will be responsible for the repair costs.
Safety indications are also given on the tool; they remind you of the safety precautions to be taken. Identify and read
these indications before using the tool. Immediately replace any indications that may become partially illegible or de-
teriorated.
Refer to the "SAFETY SIGNS" section, which shows where the signs are on the tool.
No part of this manual may be reproduced without the written permission of the company PELLENC. The illustrations
provided in this manual are for information purposes and are in no way contractual. The PELLENC company reserves
the right to make any modification or improvement to its products as deemed necessary without informing customers
already in possession of a similar model. This manual forms an integral part of the tool and must accompany the tool
if it changes hands.
2. SAFETY
2.1. GENERAL SAFETY WARNINGS
Warning
Read all the safety measures, instructions, illustrations and specifications provided with this
electric power tool.{1 Failure to comply with the following instructions risks causing electric shock,
fire and/or serious injury.
5

LAWN MOWER RASION 2 EASY
59_141654-A
Note
Retain all the safety measures and instructions for later reading.
This device is not intended for use by individuals (including children) with reduced physical, sensory or mental capabili-
ties, nor by anyone lacking in experience or knowledge, except if they are supervised or have received prior instructions
from a person responsible for their safety.
• The Lawn mower RASION 2 EASY is a professional tool whose use is reserved exclusively for cleaning of green
areas (grass, dense grasses, woody weeds and brambles).
• The PELLENC SAS company accepts no responsibility for any damage caused by improper or unspecified use
different from its original intention.
• The PELLENC SAS company accepts no responsibility for any damage caused by the use of non-original parts or
accessories.
Operating rules to be respected for your safety when using lawn mowers with electric motors.
2.1.1. TRAINING
1. Read the instructions carefully. Become familiar with the controls and the proper use of equipment.
2. Never allow children or individuals who are unfamiliar with these instructions to use the machine. National regula-
tions may restrict operator age.
3. Never operate the machine while other people, especially children, or pets, are nearby.
4. Keep in mind that the operator or user is responsible for any accidents caused by them and the dangers that other
people or their property may run.
2.1.2. PREPARATION
1. During operation of the machine, always wear protective footwear and long trousers. Do not operate the machine
barefoot or in sandals. Avoid wearing loose clothing or items with loose cords, or a tie.
2. Inspect the entire area where the machine will be used and remove all objects that might be thrown by it.
3. Before use, always visually inspect the machine to ensure that its cutting elements, bolts and the assembly in
general, are not worn or damaged. Replace sets of worn or damaged components in order to maintain proper
balance. Replace damaged or difficult to read labels.
4. Before use, check the power cable to detect signs of damage or aging. Immediately disconnect the battery if the
cable becomes damaged during use. Do not touch the cable before turning off the battery. Do not use the
machine if the cable is damaged or worn.
2.1.3. OPERATION
1. Only operate the machine in daylight or in good artificial light. Use safety equipment. Always wear eye protection.
2. Avoid operating the machine on wet grass. Remove any adjusting wrenches before switching the tool on.
3. Always place your feet firmly when on slopes.
4. Walk, never run.
5. Mow transversely on slopes, never up and down.
6. Be very careful when changing direction on slopes.
7. Do not mow excessively steep slopes.
8. Use the machine with extreme caution when using it in reverse or pulling it toward you.
9. Turn off the cutting elements if the machine has to be tilted for transport through non-grassy areas and when it has
to be transported to or brought back from the location where it is to be used.
10. Never use the machine with defective guards or without safety devices in place, for example deflectors and/or
grass catchers.
11. Start the engine, drive carefully according to instructions and with your feet at a safe distance from the cutting
elements.
6

LAWN MOWER RASION 2 EASY
59_141654-A
12. Do not put hands or feet near or under rotating parts. Never allow the ejection opening to get clogged.
13. Do not transport the machine while the power source is attached.
14. To stop the machine, turn off the battery and remove the battery connector. Make sure all moving parts have
completely stopped.
15. Stop the machine and remove the power-off device. Make sure all moving parts have completely stopped
• before leaving the machine,
• before cleaning any jams, or emptying the chute,
• before checking, cleaning or repairing the machine,
• after hitting an object inspect the machine to detect any damage and carry out repairs before restarting and
using it.
If the machine begins to vibrate abnormally, it is essential at once to:
• inspect the machine to see if it is damaged,
• check if any parts have worked loose, and tighten them if necessary,
• repair or replace any damaged parts.
2.1.4. MAINTENANCE AND STORAGE
1. Make sure all nuts, bolts and screws are kept tight to be sure that the equipment is in good operating condition.
2. Check for wear or damage to the grass catcher frequently.
3. Replace worn or damaged parts so that the machine remains safe.
4. Take all precautions necessary when it comes to multi-blade machines, since the rotation of one cutting element
can cause all the others to rotate.
5. When adjusting the machine, avoid getting fingers caught between the moving blades and the fixed parts.
6. Always allow the machine to cool down before storing.
7. Pay attention during routine maintenance of the cutting elements, as they may still be moving, even if the power
source is cut off.
8. Replace worn or damaged parts so that the machine remains safe. Only use certified spare parts and accessories.
2.2. SAFETY MEASURES ASSOCIATED WITH CHARGER AND BATTERY USE
Important
Please refer to the tool battery instructions.PELLENC
2.3. PERSONAL PROTECTION EQUIPMENT
Equipment Wear
1 Safety helmet --
2 Protective visor --
3 Protective gloves Recommended
4 Safety footwear Mandatory
5 Ear protection Recommended
6 Protective goggles Mandatory
7 Jacket or over-sleeves Recommended
1
2
3
8
4
6
7
5
8 Work trousers Recommended
7

LAWN MOWER RASION 2 EASY
59_141654-A
2.4. SAFETY SIGNAGE
Use the lawn mower with caution.
Pictograms on the ejection flap of the machine indicate the main precautions to be respected to avoid injury:
1 2 3 4
1. Read the user manual
Read the instructions carefully and follow the safety precautions.
2. Risk of injury
Ensure the people in the vicinity are not at risk from matter ejected from the machine.
Keep a safe distance of at least 15 meters between the machine and people in the vicinity.
3. Caution - the cutting blades are very sharp!
Keep your feet and hands away from the blade and the cutting area.
Remove the safety locking device before performing maintenance work and before leaving the mower unattended,
regardless of the duration.
4. Noise levels
Sound power 93 dB{1
8

LAWN MOWER RASION 2 EASY
59_141654-A
3. DESCRIPTION AND FEATURES
1. Handlebar
2. Blade On/Off bar
3. Drive trigger
4. Speed selector knob
5. Forward speed indicator LEDs
6. Blade speed selector knob
7. Blade speed indicator LEDs
8. Handlebar adjusting lever
9. Ejection flap
10. Mower power cable
11. 750/1200/1500 battery support kit
12. PELLENC 750/1200/1500 battery (not included)
13. CB5030HV battery charger (not included)
14. Front wheels lock bolts
15. Cutting height adjustment handle
16. Density sensor (ICC) (not included)
17. Cutter housing
18. Security key socket
19. Security key
20. Collecting bin
21. Collection bin handle
22. ULIB 400/700/1100 support + battery tray (not includ-
ed)
23. PELLENC ULIB 400/700/1100 battery (not included)
24. ULIB 400/700/1100 battery adapter cable (not includ-
ed)
25. CB5075 battery charger (not included)
26. alpha 520 battery support
27. PELLENC alpha 520 battery (not included)
9

LAWN MOWER RASION 2 EASY
59_141654-A
3.1. TECHNICAL FEATURES
Model RASION 2 EASY
Dimensions when folded (l x w x h) 887 x 620 x 613 mm
Dimensions when unfolded (l x w x h) 1650 x 620 x 884 mm
Unladen weight (without battery or collecting bin) 28 kg
Cutting width 60 cm
Cutting height 25/35/45/55/65/75 mm
Collecting bin capacity 70 L
Weight of the empty collecting bin 2.7 kg
Cutter housing Cast aluminum
Maximum power 1600 Watts
Forward speed 2/3/4 or 5 km/h
Reverse speed 2 km/h
Safety equipment Removable security key
Sealing IPX4
Battery autonomy Depends on use and battery type
Determination of the sound levels and vibration rates is based on the operating conditions at the nominal maximum
speed.
Maximum weighted sound pressure level A (ref. 20 µPa)
at the user's position
LpA = 83.5 dB(A) K = 2.5 dB
Values determined according to the sound measurement standards EN60335-2-77.
Symbol Value Unit Reference Remark
LWAm 92 dB(A) 1 pW Measured sound power level
LWAg 93 dB(A) 1 pW Guaranteed sound power level
The recording of the measured sound power level and of the guaranteed sound power level has been performed ac-
cording to a procedure in accordance with directive 2000/14/EC.
Vibration emission value as per EN60335-2-77 ahW = 0.7m/s² and K = 0.3m/s²
3.2. NOISE LEVELS
10

LAWN MOWER RASION 2 EASY
59_141654-A
The noise generated by the mower and the battery life both
depend directly on the turning speed of the cutting blades:
The faster the blades are turning, the greater the noise and
the lower the battery life. When the AUTO mode is enabled,
the noise generated will increase as the rotational speed of
the blades increases.
4. COMMISSIONING
In the packing box, the mower is in the transport position.
The handlebar (1) is folded forward and held in place both
by the cutting height control knob (15) and the handlebar ad-
justment levers (8).
To start using the mower, the mower must be unfolded and
in the working position.
59N_18_028

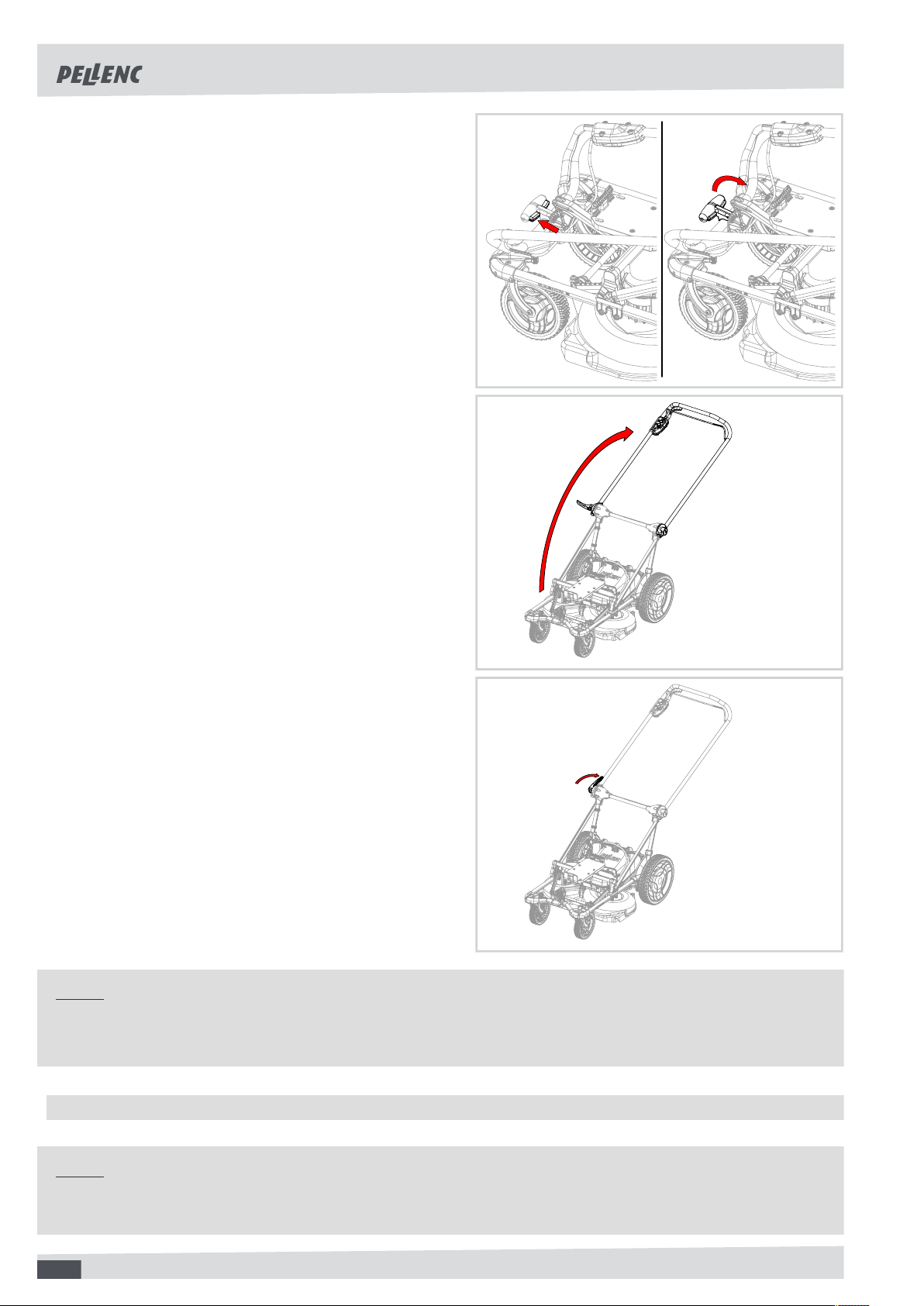

4.1. UNFOLD THE MOWER INTO THE WORKING POSITION
Unlock the adjusting lever (8) by pulling it backwards.
59N_18_029
11

LAWN MOWER RASION 2 EASY
59_141654-A
With one hand, hold the cutting height adjustment handle
(15) whilst simultaneously pressing on the two buttons to re-
lease its position.
Hold the buttons down and pull the handle backwards.
With your other hand, release the handlebar (1) and reposi-
tion the handle in the notch in which it was held.
Release the buttons and ensure that the handle is correctly
locked.
59N_18_030
Fully unfold the handlebar (1) backwards.
59N_18_031
Swing the adjusting lever (8) to the back to lock the handle-
bar.
Turn the handle back on itself if necessary, to adjust the tight-
ness of the handle.
59N_18_032
Note
To be able to maneuver your lawn mower easily, chose a comfortable and agreeable working position to suit your
body shape.
4.2. COLLECTING BIN CAPACITY
Note
The mower works like a vacuum cleaner that throws the cut grass into the collecting bin. Ensure that you always
empty the collecting bin before it is full to avoid impairing the performance.
12

LAWN MOWER RASION 2 EASY
59_141654-A
Overloading the bag may damage it. Before attaching the collecting bin to the lawn mower, always check it for
holes, tears or damage.

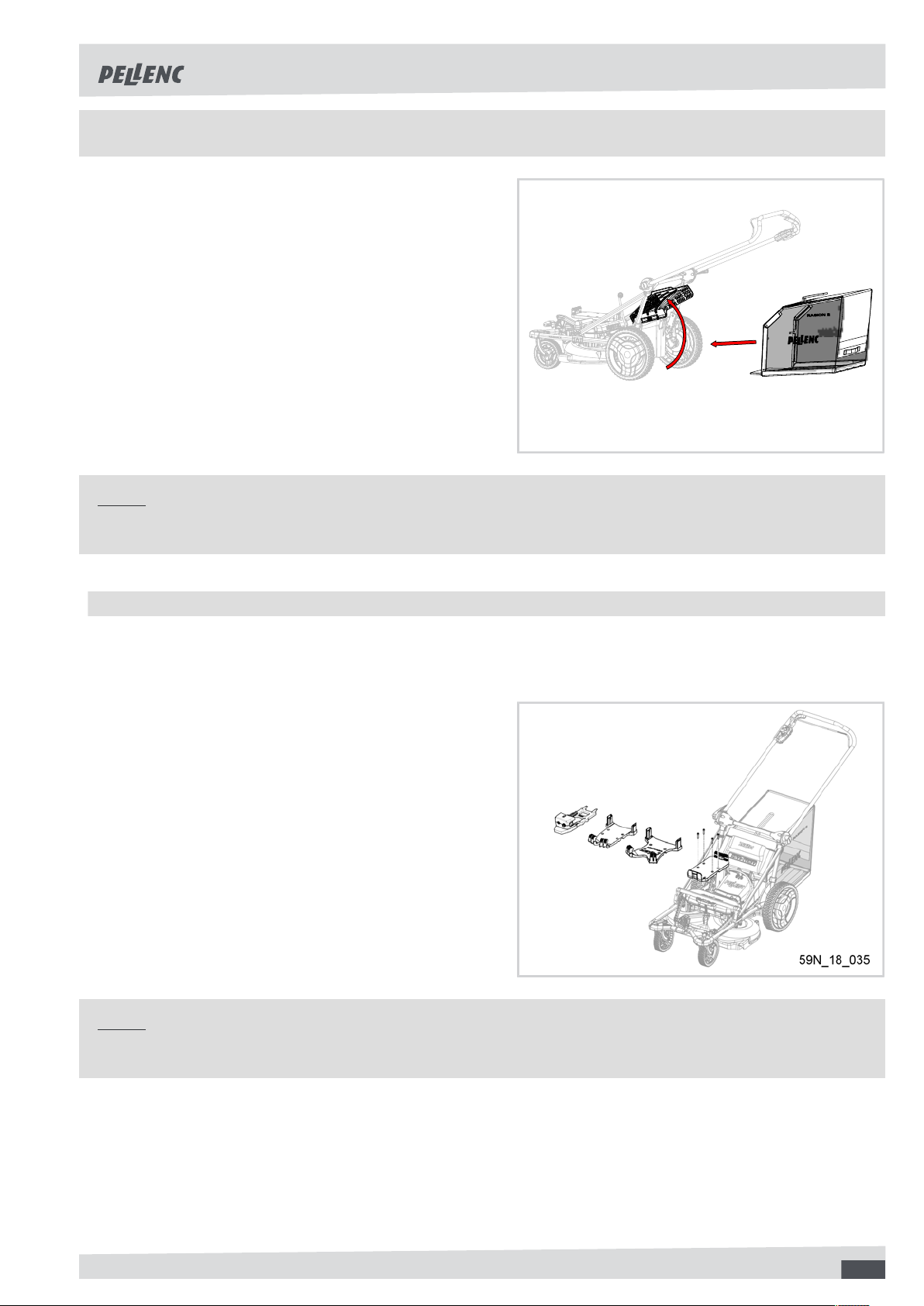

Lift the ejection flap (9) and slide the collecting bin (20) into
the notches located at the rear of the mower.
59N_18_034
Note
Always check that the collecting bin is correctly attached to the lawn mower before you begin mowing.
4.3. INSTALLATION OF A BATTERY TRAY
The basic mower is equipped with a 750/1200/1500 battery tray. To use a ULIB 400/700/1100 battery or a alpha 520,
the factory-installed bracket must be removed and replaced it with an adapted bracket (option).
Remove the 4 fixing screws of the battery tray (12) already
in place.
Place the desired battery tray (12) on the frame tube.
Install and tighten the 4 fixing screws of the battery tray (12).
Note
An optional power cable is needed for the type batteries.
13

LAWN MOWER RASION 2 EASY
59_141654-A
4.4. 750/1200/1500 BATTERY: INSTALLATION AND CONNECTION
Check battery autonomy (12) before use. If necessary,
recharge the battery using the charger (13) supplied with the
battery.
Slide the battery (12) from the rear into the upper hook of the
battery tray (11).
Clip the front of the battery (12) into the lower hook of the
battery tray (11).
Check that the battery is completely locked on the tray.
59N_18_036
To remove the battery (12) from the battery holder (11), lift it
while pressing on the release button. 59N_18_037
Before electrically connecting the battery to the mower,
check that the battery power indicator is off.
The power indicator (represented by a flash) should not be
visible on the battery display.
59N_18_041
14

LAWN MOWER RASION 2 EASY
59_141654-A
Connect the power cable (10) of the mower to the battery
connector.
Screw up tight and check that the cable is properly connect-
ed.
59N_18_042
Caution
To prolong the life of the connectors, it is advisable to protect them when they are disconnected.
Therefore, avoid leaving the connector in contact with abrasive or dirty surfaces, or subjecting it to
major impacts (falls).
4.5. ULIB 400/700/1100 BATTERY (RED CONNECTOR): INSTALLATION AND CONNECTION
After having installed the appropriate battery tray, the procedure for installing a ULIB 400/700/1100 battery identical.
Check battery autonomy (23) before use. If necessary,
recharge the battery using the charger (25) supplied with the
battery.
Slide the battery (23) from the rear into the upper hooks of
the battery tray (22).
59N_18_038
Release the back of the battery to position it horizontally on
the tray.
Push up the rear clips until they click.
Check that the battery is completely locked on the tray.
59N_18_039
15

LAWN MOWER RASION 2 EASY
59_141654-A
Check that the battery switch is turned to off (position '0').
Connect the power cord (10) of the mower to the adapter
cable (24) (not included).
59N_18_043
Then connect the end of the adapter cable to the battery (23)
taking care to align the polarizers.
Screw tight and check that the cable is properly connected.
59N_18_044
Caution
Only ULIB 400/700/1100 batteries with a red connector can be used with this mower.
To prolong the life of the connector, it is advisable to protect it when unplugged. Therefore, avoid
leaving the connector in contact with abrasive or dirty surfaces, or subjecting it to major impacts
(falls).
4.6. ALPHA 520 BATTERY: INSTALLATION AND CONNECTION
After having installed the appropriate battery tray, the procedure for installing a alpha 520 battery identical.
Check battery autonomy (27) before use. If necessary,
recharge the battery using the charger (25) supplied with the
battery.
Slide the battery (27) onto the guide of the battery tray (26).
16

LAWN MOWER RASION 2 EASY
59_141654-A
Move the battery (27) along the guide until the locking clip
holds it in place.
Check that the battery is completely locked on the tray with
the battery safety lock.
Then connect the end of the mower cable to the battery sup-
port (26) taking care to align the polarizers.
Screw up tight and check that the cable is properly connect-
ed.
Caution
To prolong the life of the connectors, it is advisable to protect them when they are disconnected.
Therefore, avoid leaving the connector in contact with abrasive or dirty surfaces, or subjecting it to
major impacts (falls).
5. USAGE
The mower is now ready for use but before starting to mow, the battery must be turned on. Proceed as indicated below:
17

LAWN MOWER RASION 2 EASY
59_141654-A
5.1. TURN ON / OFF THE BATTERY
750/1200/1500 battery: Turn on the battery by pressing the
push button (battery power icon present).
ULIB 400/700/1100 battery: Turn on the battery by pressing
the switch ('I' position).
alpha 520 battery: Turn on the battery by pressing the push
button on the alpha 520 battery support
Note
When the battery is switched on, the 8 LEDs in the control box light up one after the other. Wait for the LEDs to
stop scrolling to continue.
18

LAWN MOWER RASION 2 EASY
59_141654-A
5.2. SETTINGS
5.2.1. ADJUSTING THE TRAVEL SPEED
This is a self-propelled mower. When the forward switch is activated, the engines drive the rear wheels and the mower
moves forward on its own, leaving you to guide it. The revolutionary self-propelling motor provides significant help for
effortless mowing of garden slopes or embankments.
In forward movement, the mower travels at between 2 and 5 km/hr. The forward speed can be controlled by pressing
the forward speed movement selector button (4) several times to move from speed 1 to speed 2, then 3 and 4. The
speed can be changed at any time, before or after starting the mower’s motor. The four LEDs below the button show
the selected forward speed.
In reverse, the mower can only move at speed 1 (2 km/hr).
Press the button (5) several times, to move from speed 1 to
speed 2, then 3, 4 and back to 1:
• 1 LED on = speed 1 (2 km/h)
• 2 LEDs on = speed 2 (3 km/h)
• 3 LEDs on = speed 3 (4 km/h)
• 4 LEDs on = speed 4 (5 km/h)
1
2
3
4
59N_18_024
5.2.2. ADJUST THE ROTATION OF THE CUTTING BLADES
Depending on the density of grass to be cut, the blade speed may have to be increased in order to maintain a clean,
sharp cut.
- 5.2.2.1. MANUAL ROTATION SPEED
The four indicators above the cutting blade rotation speed selector button (6) show the blade rotation speed: 1, 2, 3 or
4. The blade rotation speed can be changed at any time, before or after starting the mower’s motor.
Press the button (6) to switch between rotation speeds 1, 2,
3, or 4:
• 1 LED on = speed 1 (3000 rpm)
• 2 LEDs on = speed 2 (3666 rpm)
• 3 LEDs on = speed 3 (4333 rpm)
• 4 LEDs on = speed 4 (5000 rpm)
19

LAWN MOWER RASION 2 EASY
59_141654-A
Note
When speed 4 is reached, a further press on the button (6) resets the blade rotation speed to speed 1.
- 5.2.2.2. AUTOMATIC ROTATION SPEED (OPTIONAL)
The density sensor (16) located at the front of the mower
regulates the rotation speed of the cutting blades, which will
automatically vary between 3000 and 5000 rpm depending
on the density and height of the grass.
59N_18_046
Press the button (6) until the green LED is on to activate au-
tomatic rotation speed.
• 1 LED on = self-regulated speed 1 (3000 to 5000 rpm)
• 2 LEDs on = speed 2 (3000 rpm)
• 3 LEDs on = speed 3 (4000 rpm)
• 4 LEDs on = speed 4 (5000 rpm)
Even if the cutting blade speed is cut because the optical
sensor is dirty, you can still carry on working by manually set-
ting one of the 3 blade rotation speeds. The density sensor
will no longer regulate the blade rotation speed automatically.
Once mowing is finished, the density sensor (16) can be
cleaned. Nonetheless, clean it fairly often so that the dirt does
not stick to the sensor.
59N_18_057
20
