Pelonis FS40-8M User manual

MODEL: FS40-8M
ITEM:809480
OWNER’S MANUAL
16"STAND FAN
READ AND SAVE THESE INSTRUCTIONS

Read Rules for Safe Operation and Instructions Carefully.
CAUTION
1. To reduce the risk of fire or electrical shock, do not use this fan with any solid-
state speed control device.
2. If the power cord is damaged, it is strongly recommended to request a specialist
to handle.
3. This appliance has a polarized plug (one blade is wider than the other). To reduce
the risk of electric shock, this plug is intended to fit in a polarized outlet only one
way. If plug does not fit fully in the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician. Do not attempt to defeat this safety feature.
4. Do not leave the fan running unattended.
WARNING
PART FIGURE
1. Never insert fingers, pencils, or any other object through the grille when fan is
running.Unplug the fan when moving it from one location to another.
2. Disconnect fan before cleaning.
3. Be sure fan is on a stable surface when operating to avoid overturning.
4. To reduce the risk of electric shock, DO NOT use fan by a window.
5. The rules about cord and plug as below:
(1) This product employs overload protection (fuse). A blown fuse indicates an
overload or short-circuit situation. If the fuse blows, unplug the product from
the outlet. Replace the fuse as per the User Servicing Instructions (follow
product marking for proper fuse rating) and check the products. If the
replacement fuse blows, a short-circuit may be present and the product
should be discarded or returned to an authorized service facility for
examination and/ or repair.
(2) Do not operate any fan with a damaged
cord or plug. Discard fan or return to
an authorized service facility for
examination and/or repair.
(3) Do not run cord under carpeting. Do not
cover cord with throw rugs, runners, or
similar coverings. Do not route cord
under furniture or appliances. Arrange
cord away from traffic area and where
it will not be tripped over.
RULES FOR SAFE OPERATION
1
External pole
Fastening bolt
6. Ensure the fan is switched off from the supply
mains before removing the grille.

2
OPERATING INSTRUCTIONS
1. Speed control
Speed is controlled by knob switch.
0--Off 1--Low 2--Medium 3--High
ROUND BASE & COLUMN UNIT ASSEMBLY
1. Take the base and pole assembly out of the box, Loosen the fastening bolt from
the bottom of the pole assembly (see Fig. 1) .
2. Put the pole assembly into the base, and lock them together by tightening
the fastening bolt (see Fig. 2) .
3. Loosen the height-adjustment ring and adjust the internal pole to desired
height. Note: If you can’t find the internal pole, it may have slid into the
external pole and can be pulled out (see Fig. 3) .
4. Loosen the thumb screw on the bottom of the head unit. Then place the
head unit on the pole and tighten the thumb screw in alignment with the
groove on the internal pole (see Fig. 4) .
Clip
GUARD & FAN BLADE ASSEMBLY
1. Take the Spinner out from the bag, then remove the plastic nut by turning it
counterclockwise.
2. Place the rear guard to the head unit make sure the handle is upward.
3. Screw on the plastic nut (clockwise) securing the fan guard on the head unit.
(Step 1,2,3 see Fig.5)
4. Install the fan blade onto the motor shaft. Make sure the fan blade slot fits into
the retaining pin of the motor shaft.
5. Attach the spinner to the motor shaft by turning it counterclockwise to secure the
fan blade. (Step 4,5,see Fig.6)
6. Mount the front guard and join both guards together using the Clips.
(Step 6 see Fig.7)
Loosen
Fig. 1 Fig. 2 Fig. 3 Fig. 4
Annulargroove
Mounting hole
Thumb screw
Fig.5 Fig.6 Fig.7
CAUTION: Height adjustment ring must be fully fastened before the assembly
of the motor section to the internal pole.

3
The fan requires little maintenance. Do not try to fix it by yourself. Refer it to
qualified service personnel if service is needed.
1. Do not leave the unit plugged in while cleaning or assembling.
2. To ensure adequate air circulation to the motor. Keep vents at the rear of the
motor housing from dust, fluff and etc. A vacuum cleaner can not be used to
clean these vents before unplugging. Do not disassemble the fan to remove fluff.
3. Please wipe the exterior parts with a soft cloth soaked in a mild detergent.
Do not use any abrasive detergent or solvents to avoid scratching the surface.
Do not use of the following as a cleaner: gasoline, thinner, bending.
4. Do not allow water or any other liquid into the motor housing or interior parts.
MAINTENANCE INSTRUCTIONS
CLEANING
1. Be sure to unplug the power cord from the outlet before cleaning.
2. Plastic parts should be cleaned with mild soap and damp cloth or sponge.
Thoroughly remove soap film with clean water.
3. Be sure not to get water or other liquid enter the inside of the motor.
2. Clutch knob
Press down on clutch knob to oscillate the fan. To stop
oscillation, pull up on the clutch knob once the fan is in the
desired position.
3. Tilt adjusting
To adjust the air flow upward or downward, slightly push
the guards.
4. Height adjusting
From the external pole loosen the height adjustment ring and
adjust the internal pole to the desired height. (See Fig.3)
3
2
1
0
1. Grasp plug and remove from the receptacle or other
outlet device. Do not unplug by pulling on cord.

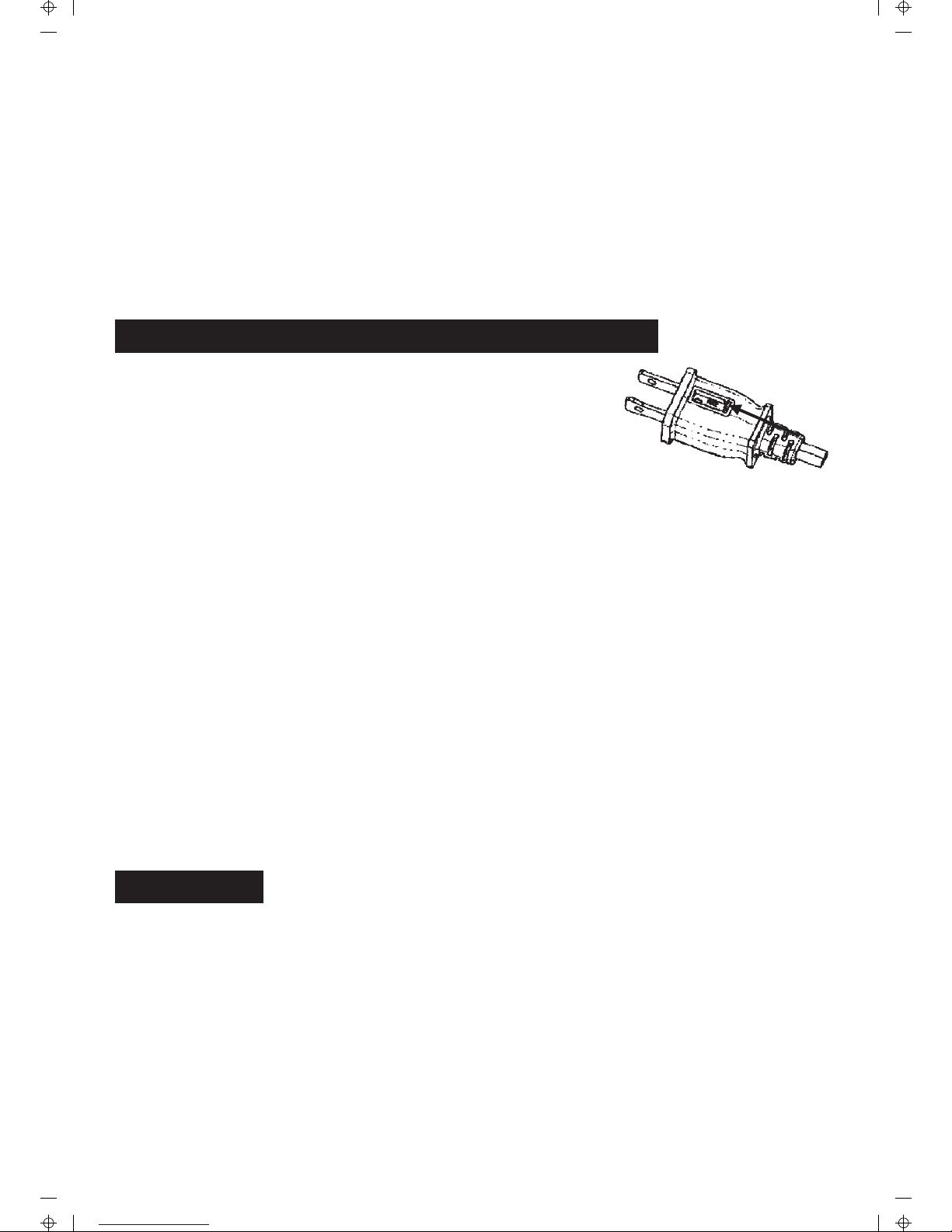

2. Open fuse cover. Slide open fuse access cover on top of
attachment plug towards blades.
3. Remove fuse carefully.Push the fuse from the other side
or turn fuseholder over to remove fuse.
4. Risk of fire. Replace fuse only with 2.5 Amp, 125 Volt fuse.
5. Close fuse cover. Slide closed the fuse access cover on top of attachment plug.
6. Risk of fire. Do not replace attachment plug. It contains safety device (fuse) that
should not be removed. Discard product if the attachment plug is damaged.
Notice:
1. When you replace fuse, please don’t operate suddenly or overexert, or else the
product will be damage or cause accident.
2. When you feel it hard to be operated, please make sure you have got the right way.
USER SERVICING INSTRUCTIONS

For questions or comments,please write to:
Midea America Corporation
Customer Care Center
11800 NW100th Rd. Suite 4
Medley, FL 33178
[email protected]
1-866-646-4332
4
product

5
ONE (1) YEAR LIMITED WARRANTY
Please read all instructions before attempting to use this product.
In the event of malfunctions or failure of your Fan, simply deliver or send the Fan,
postage prepaid along with PROOF OF PURCHASE, within the warranty period of one (1)
year, to Midea America Corporation. Midea America Corporation reserves the right to
inspect the claimed defective part or parts to determine if the defect or malfunction
complaint is covered by this warranty. Midea America Corporation shall, within sixty(60)days
after receipt of the product, at its option, repair and/or replace the defective part or parts free
of charge. This warranty shall only cover defect arising from normal usage. Midea America
Corporation assumes no responsibility whatsoever if the Fan should fail during the warranty
period by reason of:
Misuse, negligence, physical damage or accidents.
Lack of maintenance (see instructions for proper maintenance).
Repair by any unauthorized party during the warranty period.
Damage caused by connection to an improper input voltage (see specification
label on your Fan).
Midea America Corporation makes no further warranties or representations, express or
implied except those contained herein. No representative or dealer is authorized to assume
any other liability regarding the Fan. The duration of the implied warranty granted under
State law, including warranties of merchantability and fitness for particular purpose are
limited in duration should the duration of the express warranty grant it hereunder. Midea
America Corporation shall in no event be liable for direct, indirect, special or consequential
damages.
Some states do not allow limitations on how long an implied warranty lasts, and/or the above
limitations or exclusion may not apply to you. This warranty gives you specific legal rights
and you may have other rights which vary from state to state.
Midea America Corporation warrants as limited herein to the original purchaser of retail
thateach new Fan, shall be free of defects in material and workmanship for aperiod of
one (1) year from the date of original purchase. This one (1) year warranty is limited to
the Motor and Electric Element.

VENTILADOR PEDESTAL 16" (40,6cm)
MODELO: FS40-8M
ARTÍCULO:809480
MANUAL DEL USUARIO
LEAYGUARDE ESTAS INSTRUCCIONES

6
1. Para reducir el riesgo de fuego o descarga eléctrica, no use este ventilador con
ningún equipo de control de estado solidó.
2. Si el cable de poder esta dañado se recomienda pedir la ayuda de un especialista.
3. Este aparato tiene un enchufe polarizado (una clavija o borne es mas ancha
que la otra). Para reducir el riesgo de descarga eléctrica, este enchufe esta
diseñado para caber en una toma corriente polarizado con única forma. Si el
enchufe no entrara completamente, invierta el enchufe, Si aun así no cabe,
contacte a un electricista calificado. No intente obviar este procedimiento de
seguridad.
4. No deje el ventilador funcionando sin atención de alguien.
PRECAUCION
ADVERTENCIA
Lea cuidadosamente y guarde estas instrucciones.
1. Nunca inserte sus dedos, lápices o cualquier otro objeto en el compartimiento
cuando el ventilador torre esta funcionando. Desconéctelo cuando vaya a
moverlo de un lugar a otro.
2. Desconecte el ventilador al limpiar.
3. Asegúrese que el ventilador esta en una superficie estable cuando funciona.
4. Para reducir el riesgo de descarga eléctrica o lesiones a personas, No utilice
en las ventanas.
5. Las reglas sobre los cordones y enchufes son las siguientes:
(1) Este producto utiliza la protección de sobrecarga (fusibles). Un fusible
quemado indica una situación de sobrecarga o corto circuito. Si se quema el
fusible, desconecte el producto de la toma. Reemplace el fusible de acuerdo
con las instrucciones de mantenimiento del propietario (seguimiento del
producto marcado para los fusibles adecuados) y examine los productos. Si se
quema el fusible de recambio, un corto circuito puede estar presente y el
producto se debe desechar o devolver a un centro de servicio autorizado para
su revisión y/o reparación.
(2) NO opere ningún ventilador con un cordón o enchufe dañado. Deseche o
devuelva el ventilador a un centro de servicio autorizado para su revisión y/o
reparación.
(3) NO arrastre el cordón por debajo de la alfombra. No cubra el cordón con
alfombras, tapetes o cubiertas similares. No encamine el cordón debajo de los
muebles o electrodomésticos. Arregle el cordón lejos de zonas de tráfico y
donde no se tropiece con ellos.
REGLAS DE OPERACION SEGURA
6. Asegurarse de que el ventilador está desconectado de la red de suministro
antes de quitar la rejilla

7

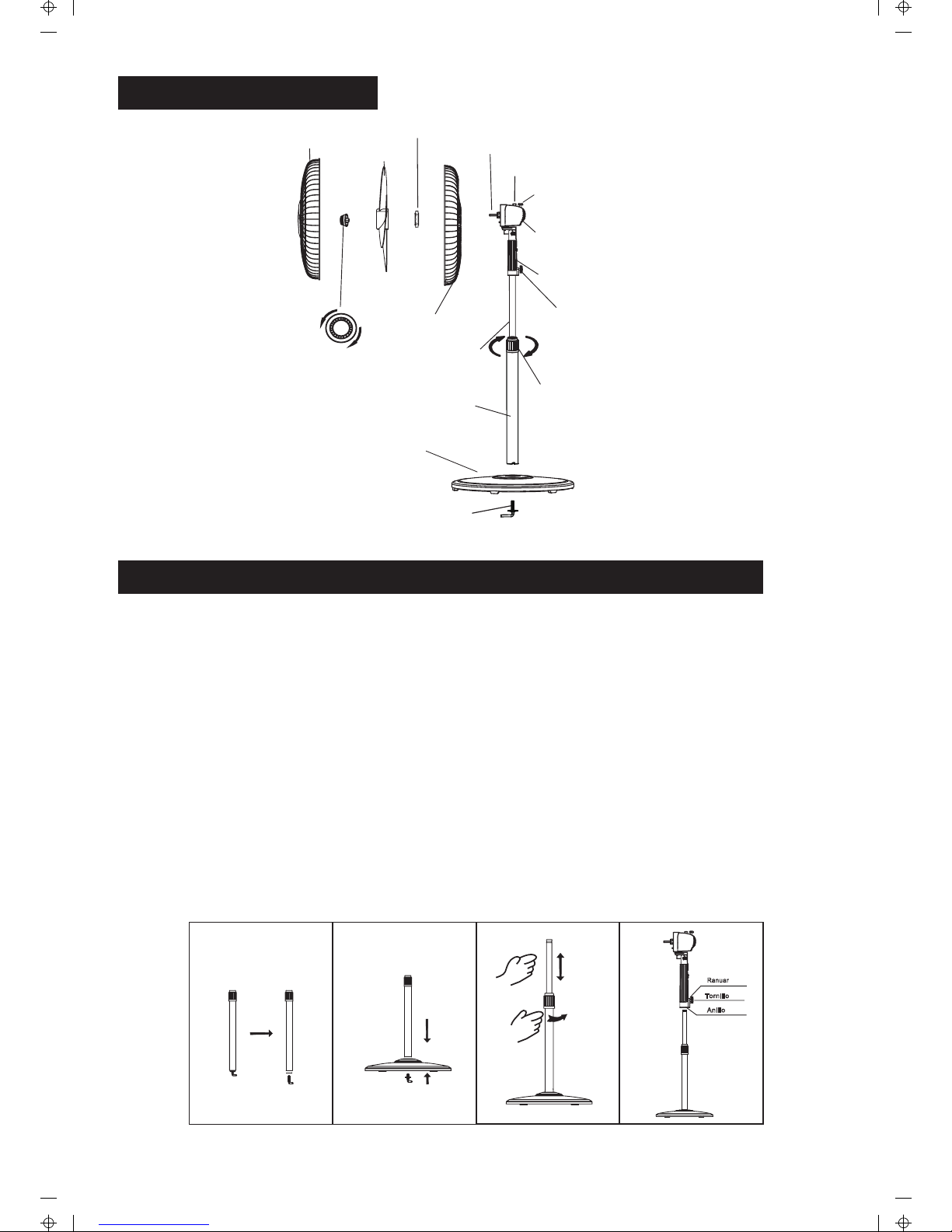

NOMBRE DE PARTES
ENSAMBLADO DE LA BASE REDONDA Y LA COLUMNA
Guarda Frontal Tuerca Plástica
Eje Del Motor
Botón De Oscilación
Interruptor
Caja Del Motor
Caja
Tornillo
Aspa De Ventilador
Apretar
Aflojar
Regilla Trasera
Aguja
Base Redonda
Tornillo
Anillo De
Adjuste
De Altura
Poste Interno
Mástil externo
Aflojar
Fig. 1 Fig. 2 Fig. 3 Fig. 4
Anillo
Ranuar
Tornillo
Perno de anclaje
1. Aflojar el perno de anclaje del tubo de extensión (Figura 1).
2. Insertar el tubo de extensión en el cahsis y ajustar el perno (Figura 2).
3. Aflojar el anillo de ajuste de altura desde el tubo de extensión y colocar el tubo
interno a la altura deseada (Nota: Si no encuentra el tubo interno, puede haberse
caído dentro del tubo de extensión) (Figura 3)
4. Para fijar la cabeza del ventilador al tubo interior, afloje el tornillo en la parte
inferior de la cabeza, colóquela en el lugar y ajuste el tornillo alinéandolo con la
ranura en el tubo interior. (Figura 4)
PRECAUCIÓN:El anillo de ajuste debe estar bien ajustado antes de instalar el
motor al tubo interior.

INSTRUCCIONES DE USO
1. Control de velocidad
La velocidad es controlada oprimiendo las teclas.
0 – Apagado, 1 – Baja, 2 – Media, 3 – Alta
2. Perilla de embrague
Presione esta perilla para que el ventilador oscile.
Para seleccionar una dirección, tire de la perilla cuando el
ventilador esté en la dirección que desea.
3. Ajuste de la inclinación
Para ajustar el flujo del aire hacia arriba o hacia abajo, empuje suavemente las
guardas en la dirección deseada.
4. Ajuste de la altura
Sujete el mástil de extensión, afloje el anillo de ajuste de la altura y ajuste el mástil
interno a la altura que desea. (Ver Fig. 3)
3
2
1
0
8
ENSAMBLADO DE LAS REJILLAS Y LAS ASPAS
1. Saca la hélice de la bolsa y retira la aguja girándola a las manecias del reloj, y
saca la hélice de la bolsa y retira la tuerca plástica girándola a las manecias del
reloj.
2. Coloque la guarda (derecha) trasera al cabezal y asegúrese de que el asa esté
hacia arriba.
3. Atornille la tuerca plástica (en el sentido del reloj) para fijar la guarda al cabezal.
(Pasos 1, 2, 3 ver Fig. 5).
4. Instale las aspas al eje del motor. Asegúrese de que las ranuras de las aspas
calcen en el pin del eje del motor.
5. Fije las aspas girando el buje en el eje del motor en sentido contrario al de las
agujas del reloj. （Pasos 4,5, ver Fig.6)
6. Asegure ambas rejillas firmemente apretándolas y cerrándolas con el clip.
(Pasos 7 ver Fig. 7)
INSTRUCCIONES DE MANTENIMIENTO
El ventilador no necesita mucho mantenimiento. No intente repararlo usted mismo.
Contacte a un centro de reparación calificado si es necesario.
1. No lo enchufe antes de limpiarlo o ensamblarlo.
clip
Aspa
Turerca
Plástica
Aflojar
Aguja
Ranura
Apretar
Aguta
Perno De
Retención
Apretar
Fig.5 Fig.6 Fig.7
