Peloton ROW User manual

COMMERCIAL ROW
OWNER’S MANUAL
AND USER INSTRUCTIONS

3
|
TABLE OF CONTENTS
WARNING: Read all precautions and instructions in this manual before using this equipment.
Improper use or maintenance can void the warranty. Keep this manual for future reference.
The information in this manual may not reect recent updates as we continue to improve our product.
Please see commercial.onepeloton.com/support. for the latest version of the manual.
WARNINGS AND SAFETY INSTRUCTIONS 4
NOTICES 8
MEMBER SUPPORT 9
GETTING TO KNOW THE PELOTON COMMERCIAL ROW 10
SETTING UP THE PELOTON COMMERCIAL ROW 12

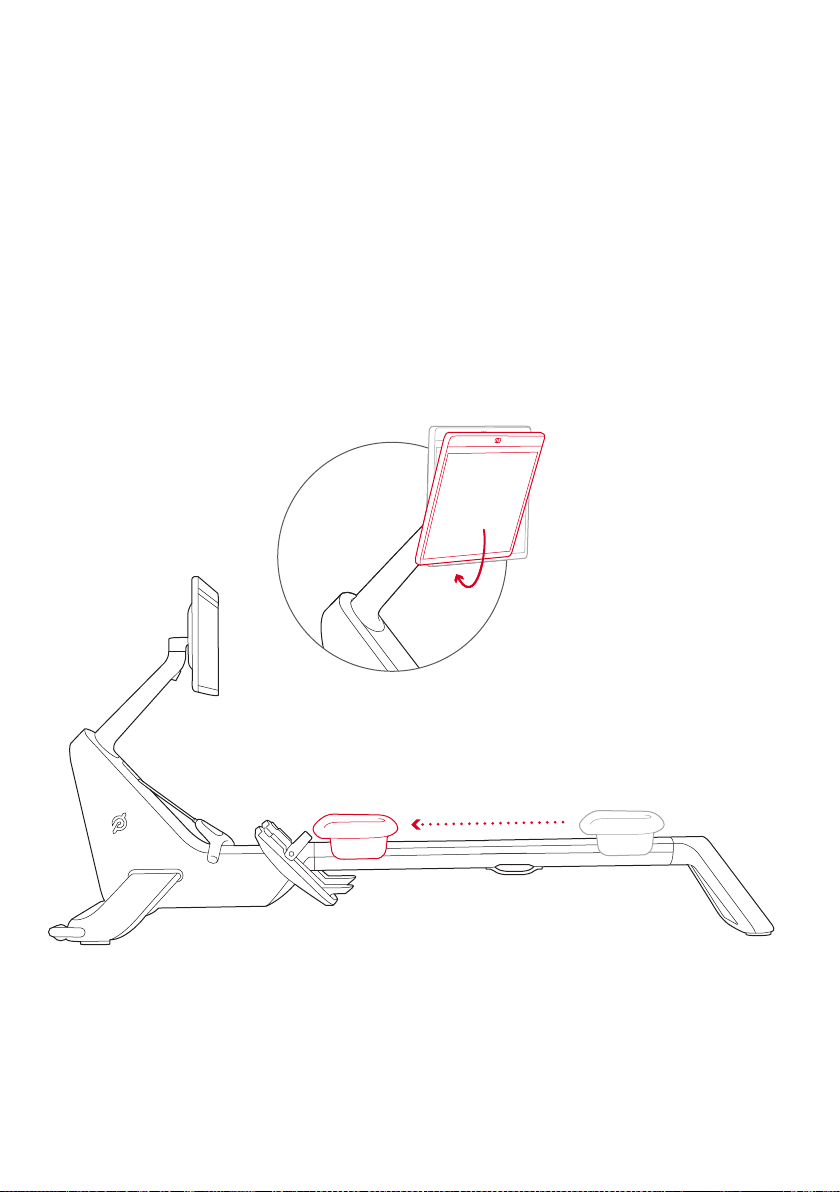

MOVING THE PELOTON COMMERCIAL ROW AND STOWING IT UPRIGHT 14
MAINTENANCE AND CARE 18
SPECIFICATIONS 20
TABLE OF CONTENTS
USER INSTRUCTIONS
WARNINGS AND SAFETY INSTRUCTIONS 22
USING THE PELOTON COMMERCIAL ROW 24
CLASS SCREEN 26
MAXIMIZING YOUR WORKOUT 28

4
WARNINGS/SAFETY INSTRUCTIONS
WARNING: For safe use, read and follow
all warnings and instructions in the Owner's
Manual, the Upright Wall Anchor Guide, and
warning labels. Read all safety information
before operating the Peloton Commercial
Row. It is the owner’s responsibility to ensure
that users are aware of all warnings and
precautions.
Use only as described. Misuse of this
equipment may result in serious injury or
death. Peloton is not responsible for damage
or injury caused by improper use not in
accordance with these instructions.
RISK OF PERSONAL INJURY—KEEP PEOPLE
UNDER THE AGE OF 16 AWAY FROM THE
PELOTON COMMERCIAL ROW.
This Peloton Commercial Row is intended for
commercial use. Use it only for its intended
purpose and in a supervised environment.
NEVER store the Peloton Commercial Row
vertically without properly installing and
using the Peloton Upright Wall Anchor
provided. To avoid risk of serious injury from
the Row tipping over, read and follow all the
instructions in the Upright Wall Anchor Guide
provided.

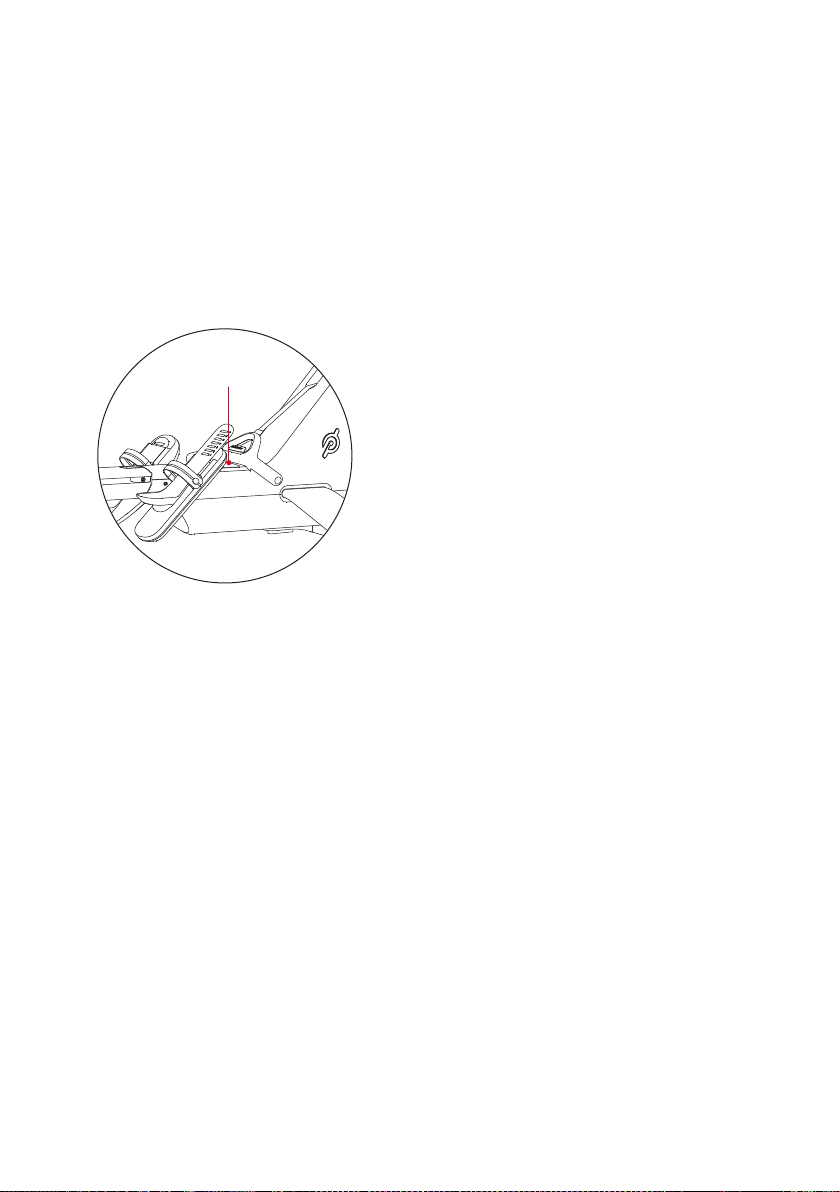

WARNING: Fully tighten rail bolt during
assembly and before stowing upright to prevent
rail separation and risk of injury
Always remain alert while using the Peloton
Commercial Row. Cease exercise if you feel faint
or dizzy.
Metrics on the screen, including heart rate
monitoring, may be inaccurate. Use values for
reference only.
Inspect the Peloton Commercial Row before
use and do not use if it appears damaged or
inoperable.
Use only Peloton original parts. Use of
unauthorized parts could damage the Peloton
Commercial Row, impair its operation and cause
serious injury. Damage caused by unauthorized
parts is not covered by the express warranty.
Do not attempt to service the Peloton
Commercial Row yourself other than performing
the basic maintenance described in this manual
or instructed by a Peloton Member Support
Representative. Service other than basic
maintenance should be performed by authorized
personnel.
The power cord must never pass under the
Peloton Commercial Row. Never operate the Row
if it isn’t working properly, or if the power cord
has been damaged. Keep power cord away from
heated surfaces, sharp edges, and water. Always
keep the power cable clean and dry. Sweat, spills,
and other damage to the power cable may result
in property damage or bodily harm.
To reduce the risk of burn, re, electric shock, or
injury to persons, connect this appliance only to
a properly grounded outlet. See the Grounding
Instructions on page 6 of this manual.
Always turn the power switch to the off position
and unplug the Peloton Commercial Row from
the electrical outlet before cleaning, assembling
or disassembling it.
Do not operate where aerosol (spray) products
are being used or where oxygen is being
administered
Do not carry this appliance by its cord or use its
cord as a handle.
If you are not able to lift more than 40 lbs/18 kg,
over your head,get assistance in stowing,
unstowing or moving the Peloton Commercial
Row.
The Peloton Commercial Row must be stored a)
at on the ground with the touchscreen upright
OR b) vertically, with the touchscreen folded
down and anchored to a wall using the Upright
Wall Anchor. Storing the Row in any other manner
could result in:

5
|
WARNINGS/SAFETY INSTRUCTIONS
yInjury to yourself and/or bystanders,
yDamage to the Peloton Commercial Row or,
yDamage to personal property
WARNING: For your safety, Peloton
recommends professional installation of the
Peloton Upright Wall Anchor, such as by a
handyman, appliance installer or local hardware
retailer.
The Upright Wall Anchor is designed to be
installed through drywall, on a load-bearing
wall into a wooden stud only. Do not install into
drywall alone, metal studs, or masonry.
Always verify that the Upright Wall Anchor is
securely mounted to the wall and check for
damage before using. DO NOT use the Upright
Wall Anchor if any damage is visible. Using a
damaged Upright Wall Anchor could result in
injury to persons, animals or personal property.
The tether and clip move freely and could
present a strangulation hazard. Always wrap
the tether securely around the mounting
bracket when the Peloton Upright Wall Anchor
is not in use.
People under the age of 16 and persons with
reduced physical, sensory, or mental capabilities
that impair the safe use of the equipment must
not use the Peloton Commercial Row. People
with a lack of experience and knowledge must
be given supervision or instruction before using
the Row. Do not allow children of any age to
perform maintenance.
The Peloton Commercial Row is intended
for users ages 16 and over weighing under
300 lbs/136 kg.
Consult a physician before beginning a new
tness plan. Incorrect or excessive training can
result in serious injury.
Never put your ngers near the seat or rail when
using or storing the Peloton Commercial Row.
Exposed moving parts can cause serious injury.
Keep clear.
To avoid serious injury, keep loose clothing,
exercise equipment, furniture and other objects as
well as animals clear of the Peloton Commercial
Row. Make sure you have 24 in/0.6 m of clearance
on either side of the Row.
Keep towels away from the seat and rail. Make
sure your shoelaces don’t extend past the soles
of your shoes. Always wear appropriate footwear
when using the Peloton Commercial Row.
You may experience chang or sores on your
hands due to repetitive friction when you rst
begin rowing. Chang and sores will usually
develop into callouses over time. Improper
handle grip can also cause persistent chang,
sores and wrist pain. Always follow instructions
for proper handle grip.
Allow time for your skin to recover between
workouts if necessary. Ensure that chang or
sores are properly cared for. See a physician if
chang, sores or other skin irritation persists
despite rest and proper care.
To avoid risk of injury, use only on a solid, level
surface.
Do not store or operate the Peloton Commercial
Row outdoors, at high humidity levels, or in
damp or wet locations.
This Peloton Row is intended for commercial
use. Use it only for its intended purpose and in a
supervised environment.
SAVE THESE INSTRUCTIONS.

6
GROUNDING INSTRUCTIONS
This product must be grounded. If it should malfunction or break down, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord that has
an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet
that is properly installed and grounded in accordance with all local codes and ordinances.
DANGER: Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualied electrician or service person if you are in doubt as to whether the product is properly
grounded – if it will not t in the outlet, have a proper outlet installed by a qualied electrician. Do not modify
the plug provided with the product.
This product is for use on a nominal 120-volt circuit in the US and a nominal 230-volt circuit in the AU/DE/UK.
Grounding plugs and sockets look like the ones pictured below.
WARNINGS/SAFETY INSTRUCTIONS
WARNING: Make sure that the product is connected to an outlet having the same conguration as the
plug. Do not use an adapter with this product.
COUNTRY GROUNDED
PLUG
GROUNDED
SOCKET
TYPE
RATING
US/CANADA
Type B
120V/60Hz
UK
Type G
230V/50Hz
AUSTRALIA
Type I
230V/50Hz

7
|
WARNINGS/SAFETY INSTRUCTIONS
LABELS
Familiarize yourself with all warnings on the Peloton Commercial Row before use. If any label is damaged or
lost, contact Member Support at: https://commercial.onepeloton.com/support for a replacement immediately.
WARNING
Fully tighten rail bolt during assembly
and before stowing upright to prevent
rail separation and risk of injury.
WARNING
NEVER store the Row in a vertical position without
using the provided Upright Wall Anchor. To avoid a risk
of serious injury from tip over, read and follow all of the
Upright Wall Anchor instructions.
WARNING
RISK OF PERSONAL INJURY - KEEP CHILDREN UNDER THE AGE OF 16 AWAY FROM THE MACHINE.
Misuse of this equipment can result in serious injury or death • For safe use, all warnings and safety instructions must be read,
and followed in the User Manual and Upright Wall Anchor Guide prior to use • NEVER store vertically without using the Upright
Wall Anchor • Incorrect or excessive training can result in serious injury • Inspect before use and do not use if it appears
damaged or inoperable • To avoid a risk of injury, only use on a solid level surface • Never put your ngers near the seat or rail
when in use. Exposed moving parts can cause serious injury. • To avoid serious injury, keep clear of loose clothing, exercise
equipment, furniture and other objects • Maximum user weight: 300 lb / 136 kg. • If you feel faint or dizzy cease exercising.
Product Label here:
The serial number on the Product Label indicates
this unit’s date of construction. For example,
‘RAIDP1200417xxxx’ would mean that the unit
was constructed on 17 April 2020.

8
NOTICES
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device must not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
NOTE: This equipment has been tested and
found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
1 Reorient or relocate the receiving antenna.
2 Increase the separation between the equipment
and receiver.
3 Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
4 Consult the dealer or an experienced radio and TV
technician for help.
CAUTION:
1 To comply with FCC RF exposure compliance
requirements, a separation distance of at least
20 cm must be maintained between the antenna
of this device and all persons.
2 This transmitter must not be co-located or
operated in conjunction with any other antenna or
transmitter.
Waste electrical products must be handed over
to a designated collection point for disposal
to be recycled in an environmentally sound
manner. Improper disposal of this product
could result in harm to the environment or to
human health. Check with your local waste
authority or the retailer where you purchased
this product for available collection facilities or
further recycling advice.
Please avoid the generation of waste from
electrical products as much as possible,
e.g. by giving preference to products with a
longer service life or by reusing used electrical
products instead of disposing of them.
You are responsible for deleting any personal
data from this product before disposing of it.
This product is ANT+™ certied and is
compatible with ANT+ sensors that support
heart rate monitoring.

9
|
MEMBER SUPPORT
MEMBER SUPPORT
Member satisfaction is a top priority for Peloton. If
you require assistance or are experiencing issues
with your Peloton Commercial Row, please contact
Peloton’s dedicated commercial client support team
by visiting:
commercial.onepeloton.com/support
When you contact Member Support, have the
following information ready:
yRow ID/serial number*
yPurchase Date
yYour order number or the email address
associated with your Row purchase
*Access the Peloton Commercial Row ID/serial
number from the touchscreen by tapping the menu
icon at the lower right, and selecting About.
DISTRIBUTED BY:
US/CANADA
Peloton Interactive, Inc.
441 9th Ave, 6th Floor
New York, NY 10001
USA
UK
Peloton Interactive UK Limited
1 Langley Street
London WC2H 9JG
United Kingdom
AUSTRALIA
Peloton Interactive Australia Pty Ltd
ACN 644 958 047
20 Martin Place
Sydney NSW 2000
Australia

10
GETTING TO KNOW
THE PELOTON COMMERCIAL ROW
A Power Button
(on back of Touchscreen)
B Volume Control
C Monitor Arm
D Base
E Power Cord
F Wheels
G Power Switch
(under the Base)
H Rowing Handle
I Foot Rest
J Rail Handle
K Rail
L Rail Foot
M Seat
N Foot Straps
O Heel Slide
P Accessory Tray
Q Touchscreen
J
K
L
M

11
|
GETTING TO KNOW THE PELOTON COMMERCIAL ROW
GETTING TO KNOW
THE PELOTON COMMERCIAL ROW
G
H
C
P
A
D
QB
E
F
I
NO

12
WARNING: Conduct a complete visual inspection of the Peloton Row and test all features and functions
prior to use.
yMake sure there is a clearance of no less than 24 in/60 cm on both sides and behind the Peloton
Commercial Row.
yKeep the dimensions of the Row in mind when determining the location (Height/length: 7 ft 10 in/2.39 m;
width: 24 in/60 cm).
yDo not store the Row near heaters.
yAdditional clearance for access and passage is the responsibility of the owner and should take into account
applicable local codes and regulations.
LO C AT I O N REQUIREMENTS
SETTING UP THE PELOTON
COMMERCIAL ROW
24 in
60 cm
24 in
60 cm
24 in
60 cm
Row required clearance
Row workout footprint: 10 ft long x 6 ft wide / 3 m long x 2 m wide
Row + bootcamp workout footprint: 10 ft long x 8 ft wide / 3 m long x 2.5 m wide

13
|
SETTING UP THE PELOTON COMMERCIAL ROW
ACTIVATE YOUR COMMERCIAL ACCOUNT
yWhen an order is placed, Peloton Commercial Customer Support sends an Account Set Up email
to the email address associated with the subscription. If you are unable to locate a password,
visit https://members.onepeloton.com/forgot-password to reset it before activating your Row(s).
yVisit https://commercial.onepeloton.com/support/commercial-subscription-activation to activate your com-
mercial account.
NOTE: To make sure users can work out using their personal account, make sure repair technicians log back
into a commercial account after any repairs to the Peloton Commercial Row.
MUTING EXTERNAL SPEAKERS
When the Row is in a public space, you may wish to mute the speakers.
• Tap Settings at the upper right of the screen. Select Device Settings and Sound, then enable
Mute Speakers.
• Users can connect wired or Bluetooth headphones for audio.
• When headphones are connected, a volume slider control appears on the screen.
BLUETOOTH DEVICE AUTO-DELETE
When a user logs out, or is logged out automatically, the Row will forget any Bluetooth device connected during
their session. This feature comes as a factory setting on the Peloton Commercial Row.

14
MOVING THE PELOTON COMMERCIAL
ROW AND STORING IT UPRIGHT
3
Move the seat all the way forward.
Be careful not to pinch your fingers,
as the seat moves freely.
1 Power off the Row and unplug it.
2 Tilt the monitor all the way down.

15
|
MOVING THE PELOTON COMMERCIAL ROW AND STORING IT UPRIGHT
4Press the monitor arm release button.
5Carefully lower the monitor arm until it stops,
and then release the button. Slowly lift the
monitor arm until you hear a click. Conrm that
the monitor arm is locked into place before
attempting to move the Peloton Row.
WARNING: To avoid instability when stowing
the Row vertically, the monitor must be stored
with the monitor arm in the lowered position
shown.
WARNING: Fully tighten rail bolt during
assembly and before stowing upright to prevent
rail separation and risk of injury.
Click

16
MOVING THE PELOTON COMMERCIAL
ROW AND STORING IT UPRIGHT
6Lift the rail foot until you can reach the rail
handle. The wheels will engage, allowing you
to roll it to the desired location.

17
|
MOVING THE PELOTON COMMERCIAL ROW AND STORING IT UPRIGHT
7Center the Peloton Commercial Row in front
of the Peloton Upright Wall Anchor. When
stowing the Row, carefully lift it until it is fully
upright. Be careful to leave enough space
between the Row and the wall so your Row
doesn't collide with the wall when you're
tipping it up. The rail foot and handle should
be facing out.
WARNING: Never store the Peloton Row
vertically on the Peloton Mat or any other mat.
Always roll the Peloton Mat up with the logo
facing out and store it where it will not be a
tripping hazard.
8
Unwind the tether and loop the tether and
carabiner around the rail and through the rail
handle. Clip the carabiner to the tether.

18
MAINTENANCE AND CARE
BEFORE EVERY CLASS
yCheck the area around and underneath
the Peloton Commercial Row for potential
obstructions.
yInspect the Peloton Row and do not use it if it
appears damaged or inoperable.
WEEKLY
yCheck the power cord for damage.
yCheck the entire Row for wear and damage,
especially the handle strap and foot straps.
yClean the area underneath the Row.
yRemove the front cover of the Upright Wall
Anchor and verify that the tether is secured to the
mounting bracket and not frayed, and that the
bolts are secured to the wall.
yClean all visible surfaces of the Row thoroughly
using a damp cloth and a mild household cleaner
diluted in water. Do not use harsh cleaning
products containing bleach or ammonia.
The safety and integrity of the Row can only be
maintained when it is regularly examined for
damage and repaired.
It is the owner’s sole responsibility to ensure that
regular maintenance is performed.
Replace worn or damaged parts immediately. Do not
use the Row until repairs are made.
WARNING: To avoid risk of injury, assembly
and service (other than the procedures described
here or specically instructed by a Member
Support representative) must be performed by
an authorized technician.
WARNING: Always unplug the Peloton
Commercial Row prior to cleaning. After cleaning,
make sure the power cord is free of any moisture
before plugging it back in.

19
|
MAINTENANCE AND CARE
BEFORE STOWING THE
PELOTON COMMERCIAL
ROW UPRIGHT:
yMake sure the Accessory Tray is cleared of any
items.
yMake sure that the Upright Wall Anchor is securely
mounted to the wall and that the cord is not frayed
or otherwise damaged. Always attach the Row to
the Upright Wall Anchor when stowing vertically,
and never stow vertically if the Upright Wall
Anchor is not securely attached to the wall.
Accessory Tray

20
SPECIFICATIONS
USER REQUIREMENTS
Height : 4 ft 11 in - 6 ft 5 in/150 - 195 cm
Weight : under 300 lb/136 kg
Age : 16 years or older
POWER REQUIREMENTS
Universal AC input:
100-240Vac, 50-60Hz, 0.65A-1.5A
POWER CONSUMPTION
Networked Standby Mode:
Power Consumption: 1.7W
Power consumption with all interfaces
connected: 1.7W
Time to enter Standby Mode: 20 mins of inactivity
Off Mode:
Power Consumption: 0.0W
Time to enter Off mode: N/A; Turn off equipment
using power switch
DIMENSIONS
Total : 7 ft 10 in L x 24 in W/2.39 m L x 61 cm W
Weight: 156.5 lb/71 kg
Foot stretcher: women’s size 5 US/3 UK/36 EU to
men’s size 13.5 US/13 UK/47.5 EU
PERFORMANCE
Screen Adjustment : 0-25 degree vertical tilt
Screen Adjustment : 0-45 degree horizontal tilt
TECHNOLOGY
Screen : 23.8 in/60.5 cm 1080p HD touchscreen
Camera : 8MP still photo/1080P video camera with
privacy cover
4 Digital Microphone Array
Sound:
Front-facing stereo speakers, 2.2 channel
with rear-facing woofers
80Hz to 20KHz frequency response
Connection:
WiFi 802.11 a/b/g/n/ac, MIMO 2x2 Antenna
ANT+™ wireless
Bluetooth® 5.0
