Penlon Prima SP2 User manual

Prima SP2
Anaesthetic Machine Range
User Manual
Partnership for Life
دﯾﯾﺎﻣرﻓ ﮫﻌﺟارﻣ.WWW.ELM-FAN.IRتﯾﺎﺳ ﮫﺑ رﺗﺷﯾﺑ دراوﻣ دوﻠﻧاد یارﺑ
To download more items, go to ELM-FAN.IR

دﯾﯾﺎﻣرﻓ ﮫﻌﺟارﻣ.WWW.ELM-FAN.IRتﯾﺎﺳ ﮫﺑ رﺗﺷﯾﺑ دراوﻣ دوﻠﻧاد یارﺑ
To download more items, go to ELM-FAN.IR

Servicing and Repairs
In order to ensure the full operational life of
this anaesthetic machine, servicing by a
Penlon-trained engineer should be
undertaken periodically.
The machine must be serviced to the
schedule detailed in section 6.4.
Details of these service operations are given
in the Prima SP2 Service Manual, available
only for Penlon trained engineers.
For any enquiry regarding the servicing or
repair of this machine, contact the nearest
accredited Penlon agent:
or communicate directly with:
Technical Support
Penlon Limited
Abingdon Science Park
Abingdon
OX14 3PH
UK
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Always give as much of the following
information as possible:
1. Type of equipment
2. Product name
3. Serial number
4. Approximate date of purchase
5. Apparent fault
IMPORTANT
(i)
دﯾﯾﺎﻣرﻓ ﮫﻌﺟارﻣ.WWW.ELM-FAN.IRتﯾﺎﺳ ﮫﺑ رﺗﺷﯾﺑ دراوﻣ دوﻠﻧاد یارﺑ
To download more items, go to ELM-FAN.IR

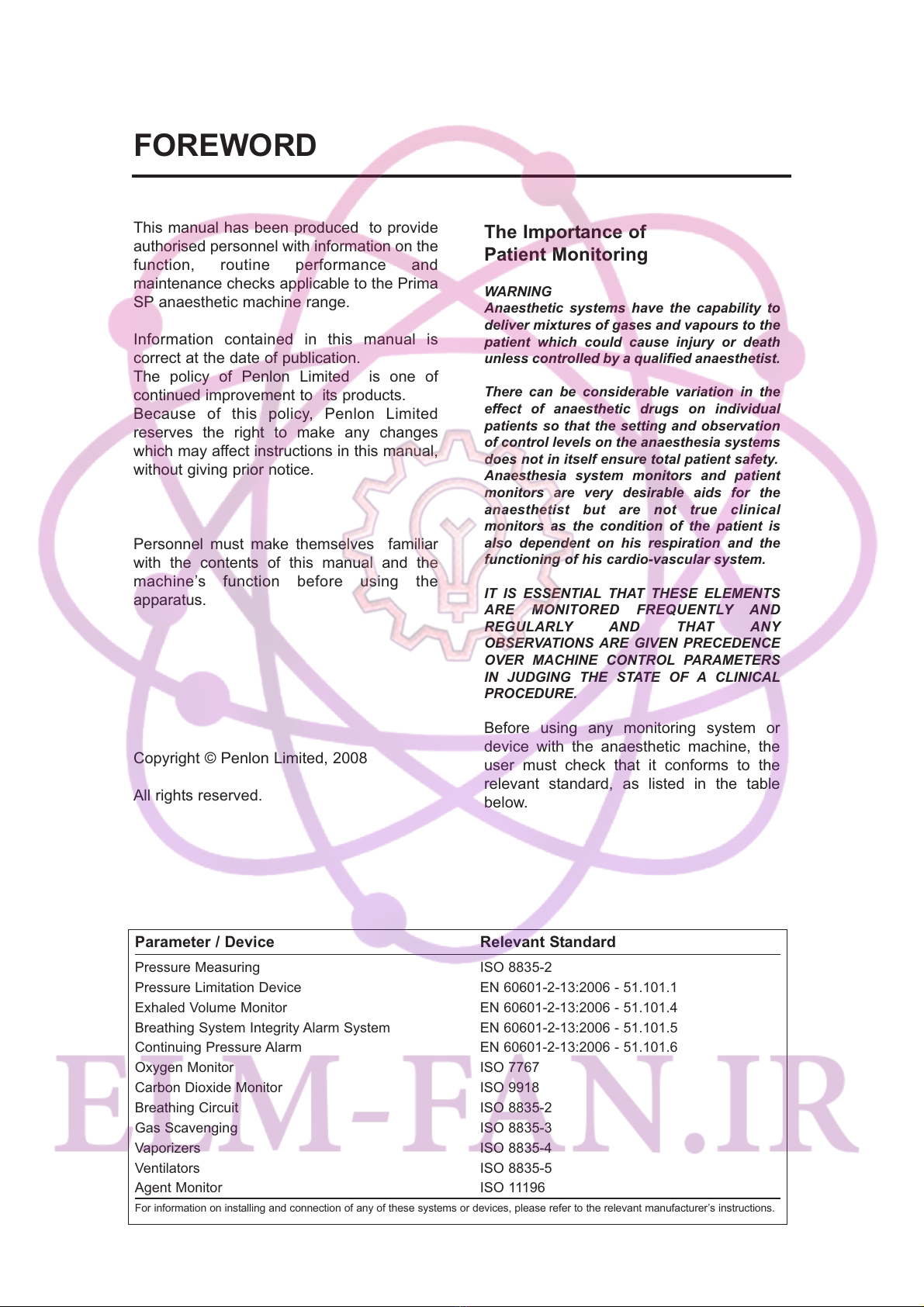

This manual has been produced to provide
authorised personnel with information on the
function, routine performance and
maintenance checks applicable to the Prima
SP anaesthetic machine range.
Information contained in this manual is
correct at the date of publication.
The policy of Penlon Limited is one of
continued improvement to its products.
Because of this policy, Penlon Limited
reserves the right to make any changes
which may affect instructions in this manual,
without giving prior notice.
Personnel must make themselves familiar
with the contents of this manual and the
machine’s function before using the
apparatus.
Copyright © Penlon Limited, 2008
All rights reserved.
FOREWORD
(ii)
The Importance of
Patient Monitoring
WARNING
Anaesthetic systems have the capability to
deliver mixtures of gases and vapours to the
patient which could cause injury or death
unless controlled by a qualified anaesthetist.
There can be considerable variation in the
effect of anaesthetic drugs on individual
patients so that the setting and observation
of control levels on the anaesthesia systems
does not in itself ensure total patient safety.
Anaesthesia system monitors and patient
monitors are very desirable aids for the
anaesthetist but are not true clinical
monitors as the condition of the patient is
also dependent on his respiration and the
functioning of his cardio-vascular system.
IT IS ESSENTIAL THAT THESE ELEMENTS
ARE MONITORED FREQUENTLY AND
REGULARLY AND THAT ANY
OBSERVATIONS ARE GIVEN PRECEDENCE
OVER MACHINE CONTROL PARAMETERS
IN JUDGING THE STATE OF A CLINICAL
PROCEDURE.
Before using any monitoring system or
device with the anaesthetic machine, the
user must check that it conforms to the
relevant standard, as listed in the table
below.
Parameter / Device Relevant Standard
Pressure Measuring ISO 8835-2
Pressure Limitation Device EN 60601-2-13:2006 - 51.101.1
Exhaled Volume Monitor EN 60601-2-13:2006 - 51.101.4
Breathing System Integrity Alarm System EN 60601-2-13:2006 - 51.101.5
Continuing Pressure Alarm EN 60601-2-13:2006 - 51.101.6
Oxygen Monitor ISO 7767
Carbon Dioxide Monitor ISO 9918
Breathing Circuit ISO 8835-2
Gas Scavenging ISO 8835-3
Vaporizers ISO 8835-4
Ventilators ISO 8835-5
Agent Monitor ISO 11196
For information on installing and connection of any of these systems or devices, please refer to the relevant manufacturer’s instructions.
دﯾﯾﺎﻣرﻓ ﮫﻌﺟارﻣ.WWW.ELM-FAN.IRتﯾﺎﺳ ﮫﺑ رﺗﺷﯾﺑ دراوﻣ دوﻠﻧاد یارﺑ
To download more items, go to ELM-FAN.IR

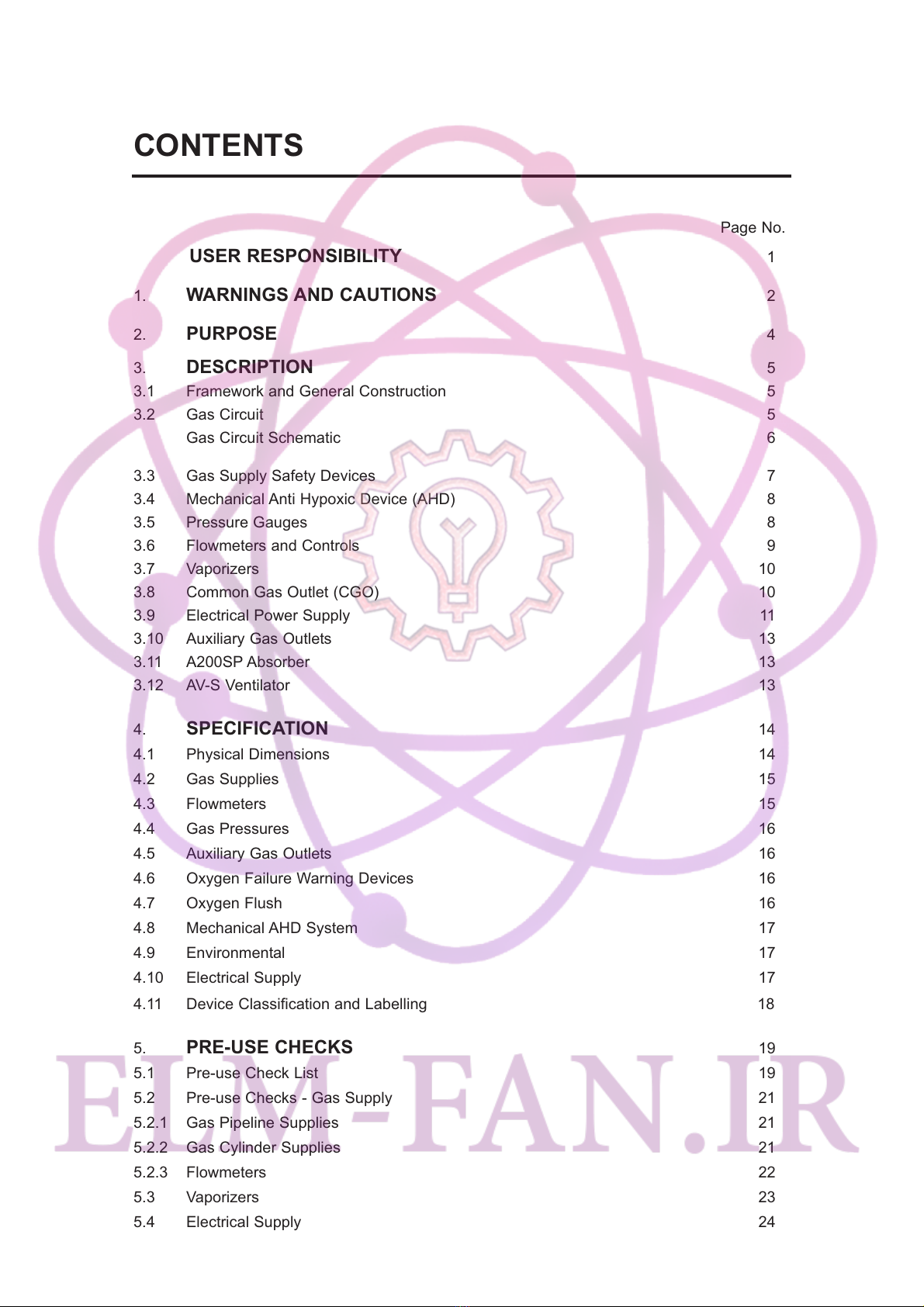

Page No.
USER RESPONSIBILITY 1
1. WARNINGS AND CAUTIONS 2
2. PURPOSE 4
3. DESCRIPTION 5
3.1 Framework and General Construction 5
3.2 Gas Circuit 5

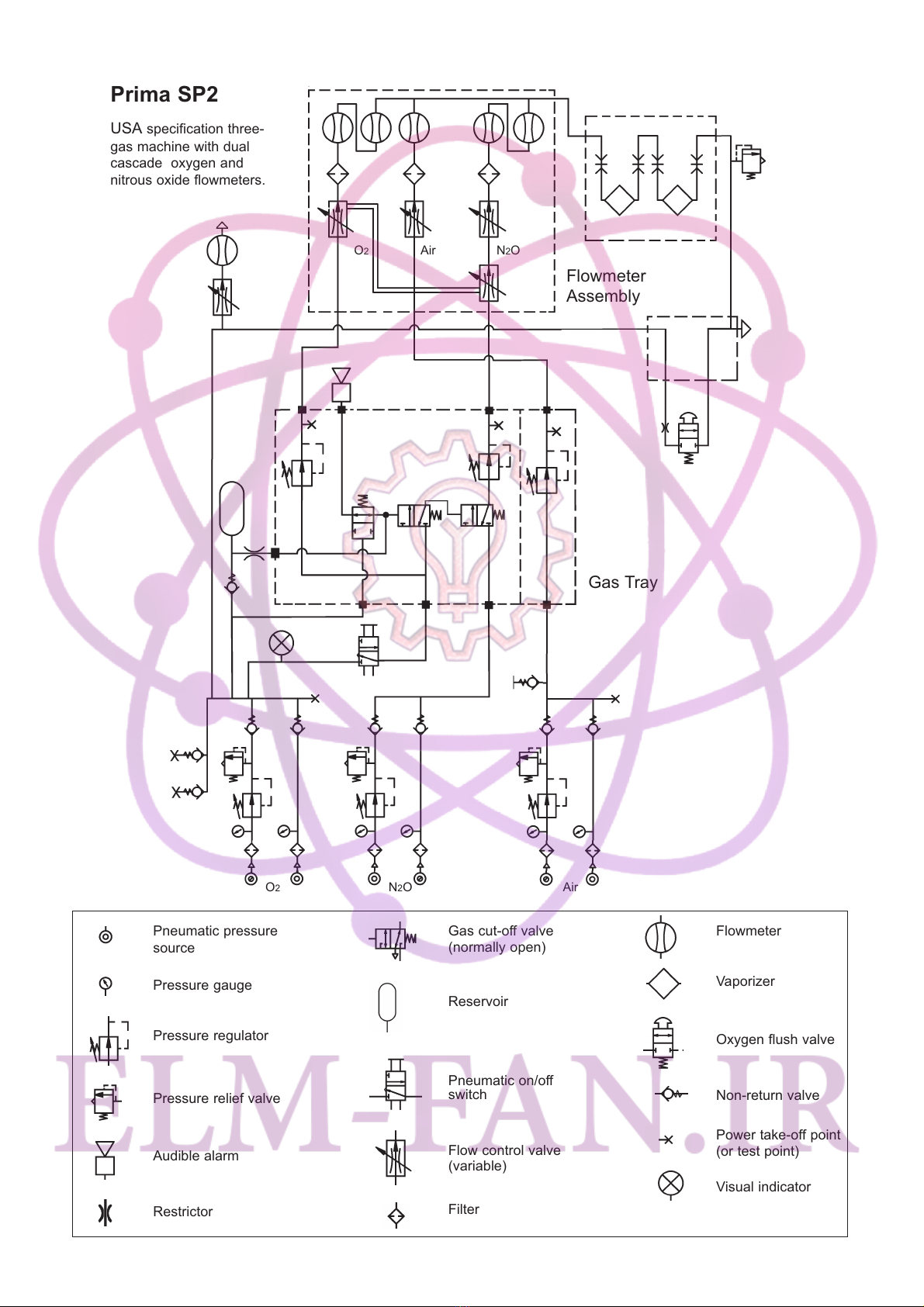

Gas Circuit Schematic 6

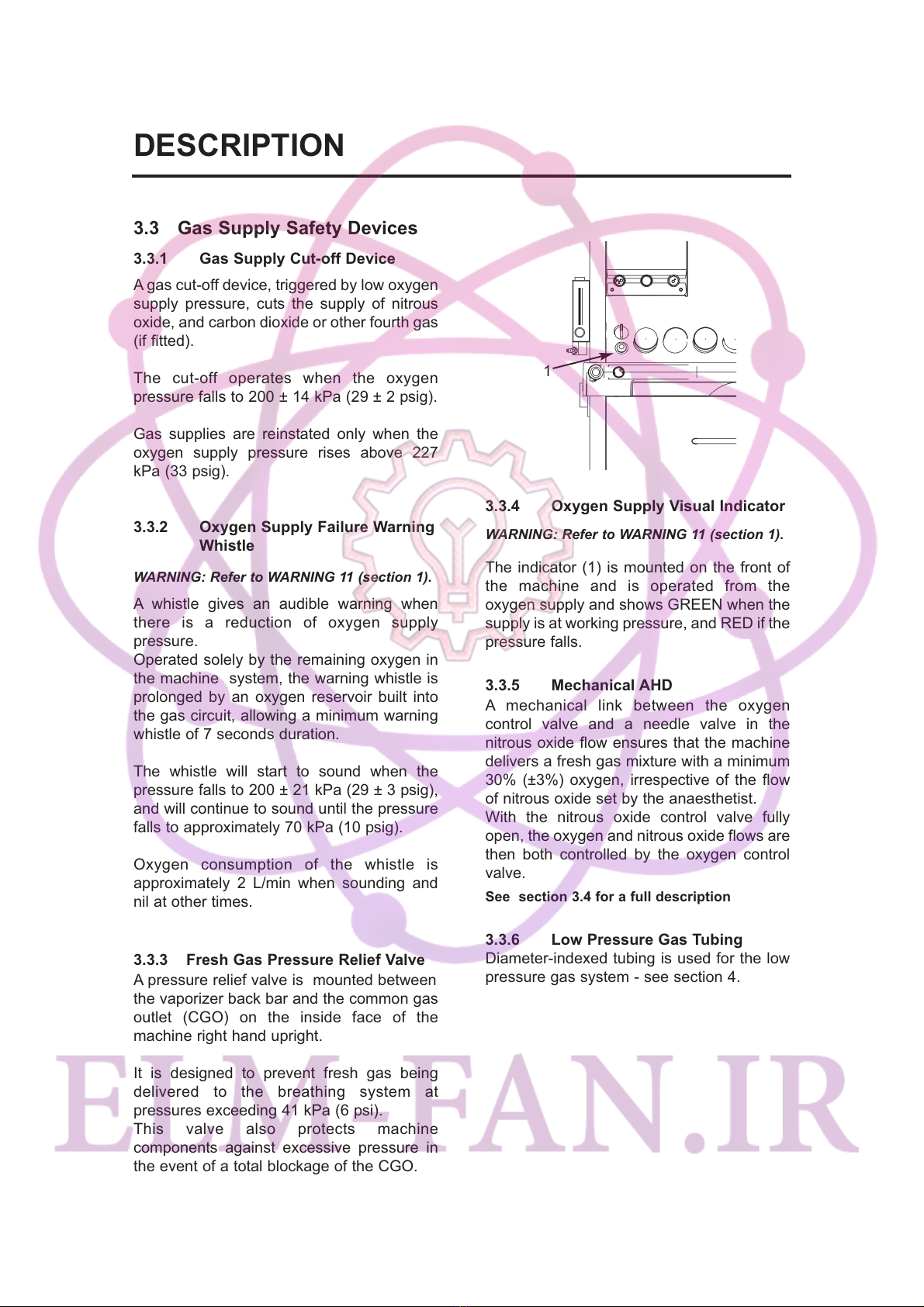

3.3 Gas Supply Safety Devices 7
3.4 Mechanical Anti Hypoxic Device (AHD) 8
3.5 Pressure Gauges 8

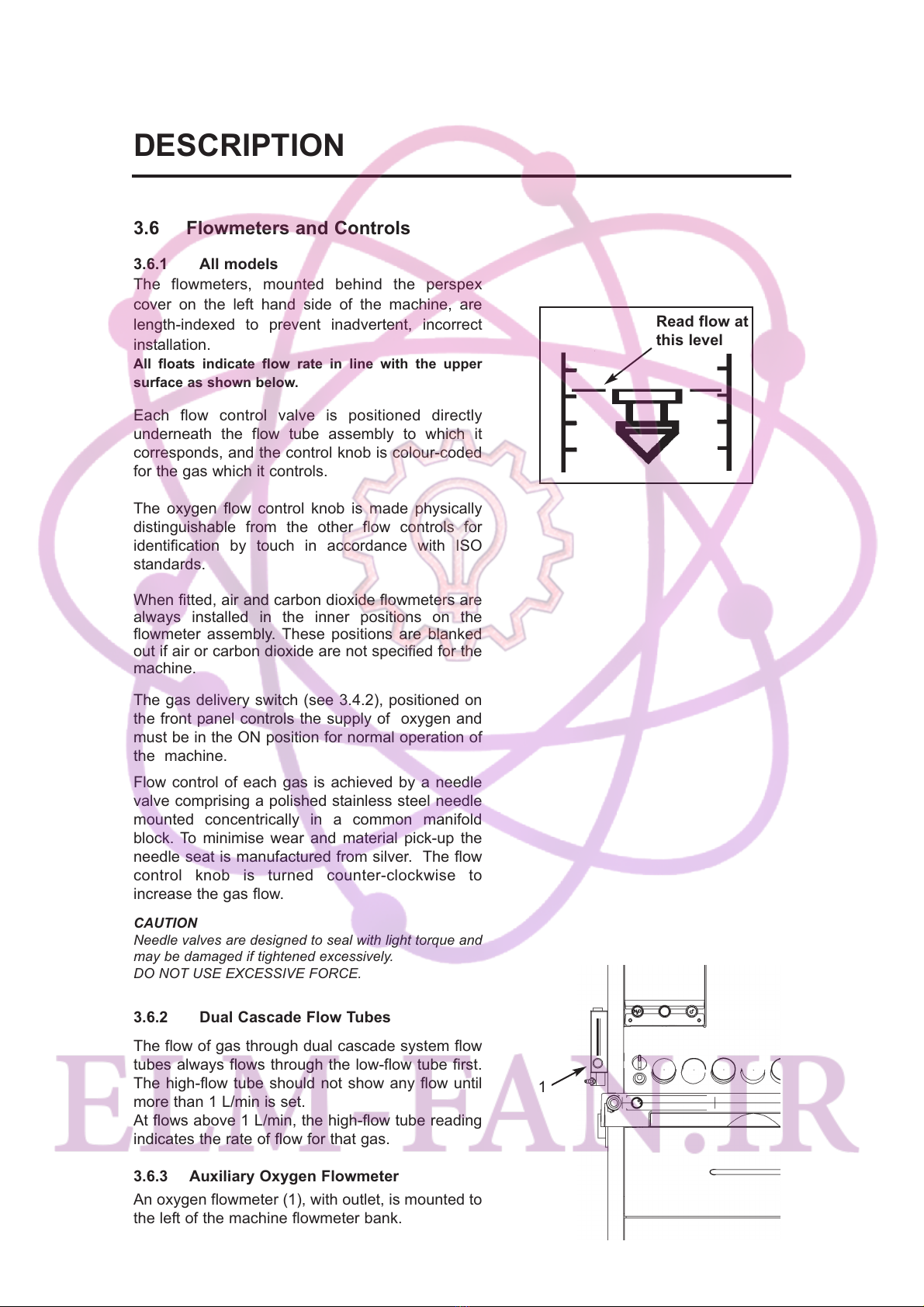

3.6 Flowmeters and Controls 9

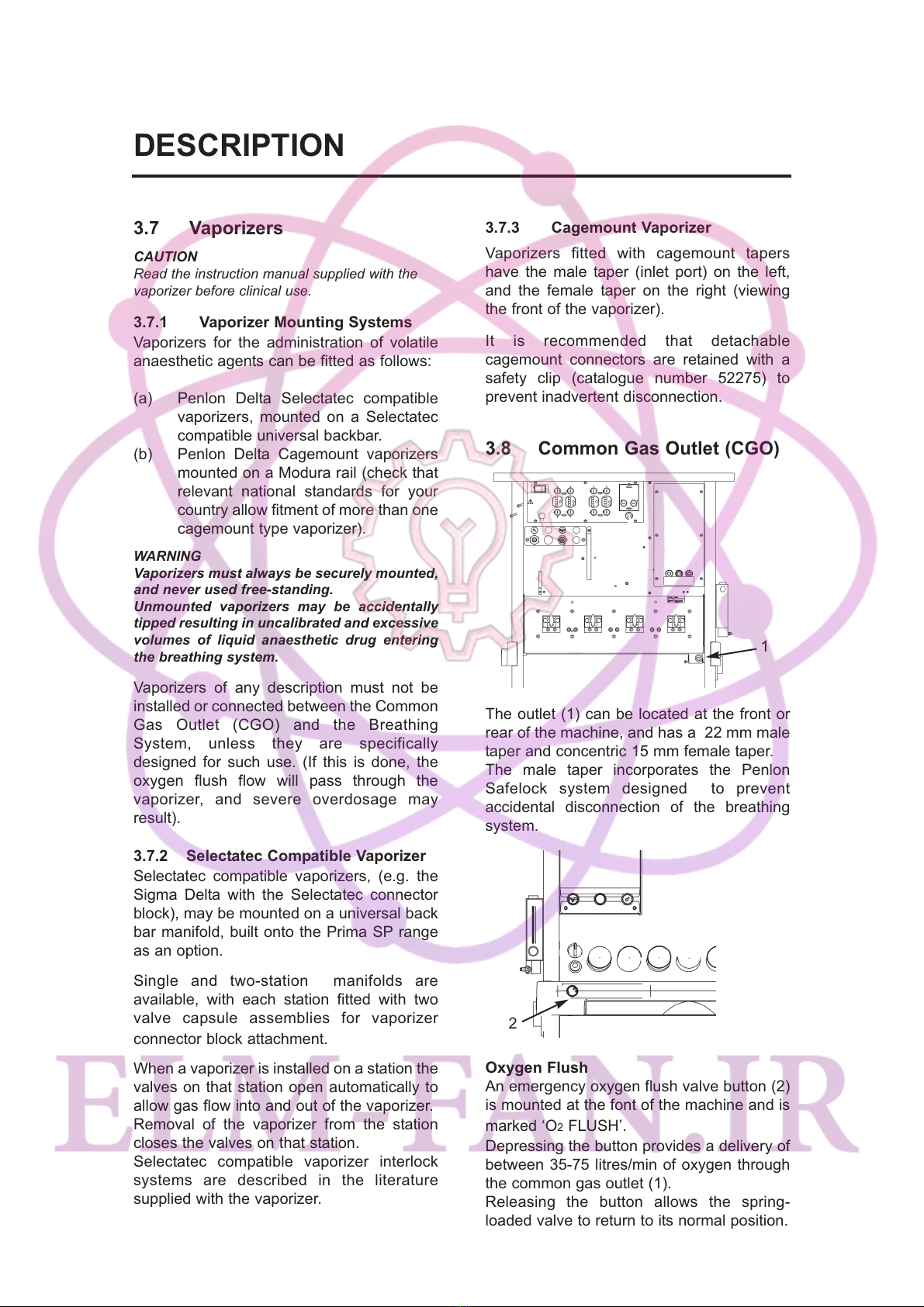

3.7 Vaporizers 10
3.8 Common Gas Outlet (CGO) 10

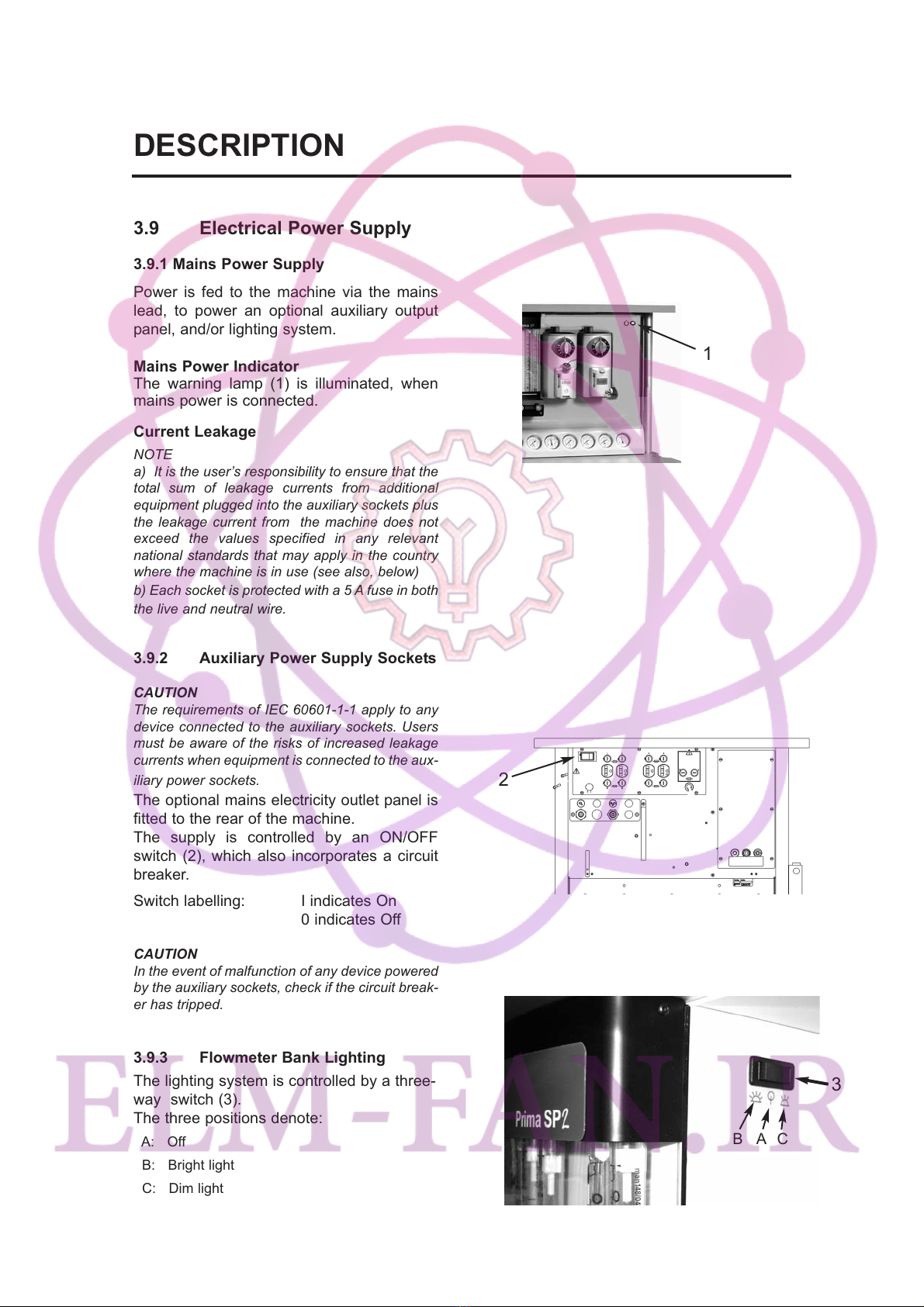

3.9 Electrical Power Supply 11
3.10 Auxiliary Gas Outlets 13
3.11 A200SP Absorber 13
3.12 AV-S Ventilator 13

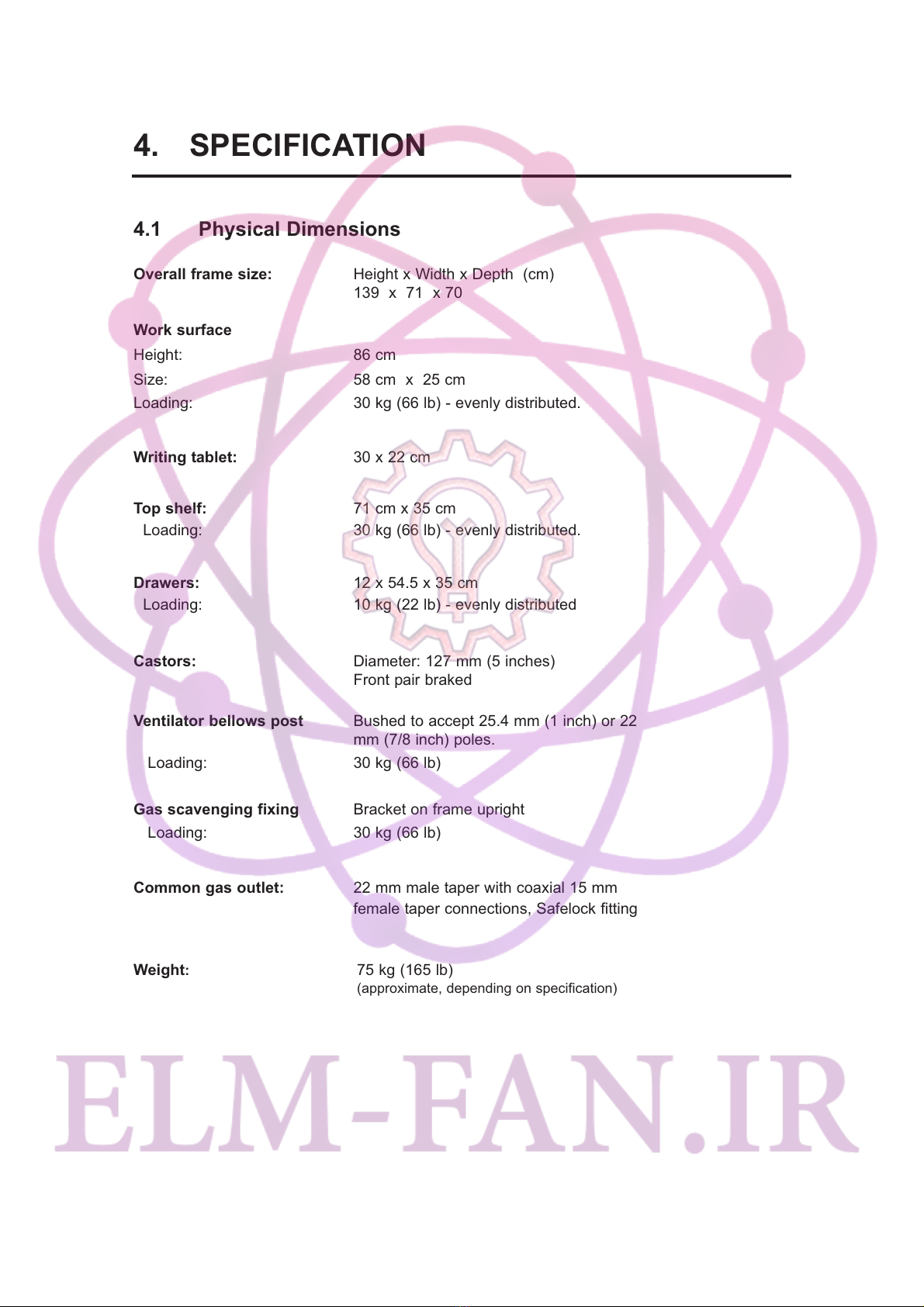

4. SPECIFICATION 14
4.1 Physical Dimensions 14
4.2 Gas Supplies 15
4.3 Flowmeters 15
4.4 Gas Pressures 16
4.5 Auxiliary Gas Outlets 16
4.6 Oxygen Failure Warning Devices 16
4.7 Oxygen Flush 16
4.8 Mechanical AHD System 17
4.9 Environmental 17
4.10 Electrical Supply 17
4.11 Device Classification and Labelling 18
5. PRE-USE CHECKS 19
5.1 Pre-use Check List 19
5.2 Pre-use Checks - Gas Supply 21
5.2.1 Gas Pipeline Supplies 21
5.2.2 Gas Cylinder Supplies 21
5.2.3 Flowmeters 22
5.3 Vaporizers 23
5.4 Electrical Supply 24
CONTENTS
(iii)
دﯾﯾﺎﻣرﻓ ﮫﻌﺟارﻣ.WWW.ELM-FAN.IRتﯾﺎﺳ ﮫﺑ رﺗﺷﯾﺑ دراوﻣ دوﻠﻧاد یارﺑ
To download more items, go to ELM-FAN.IR

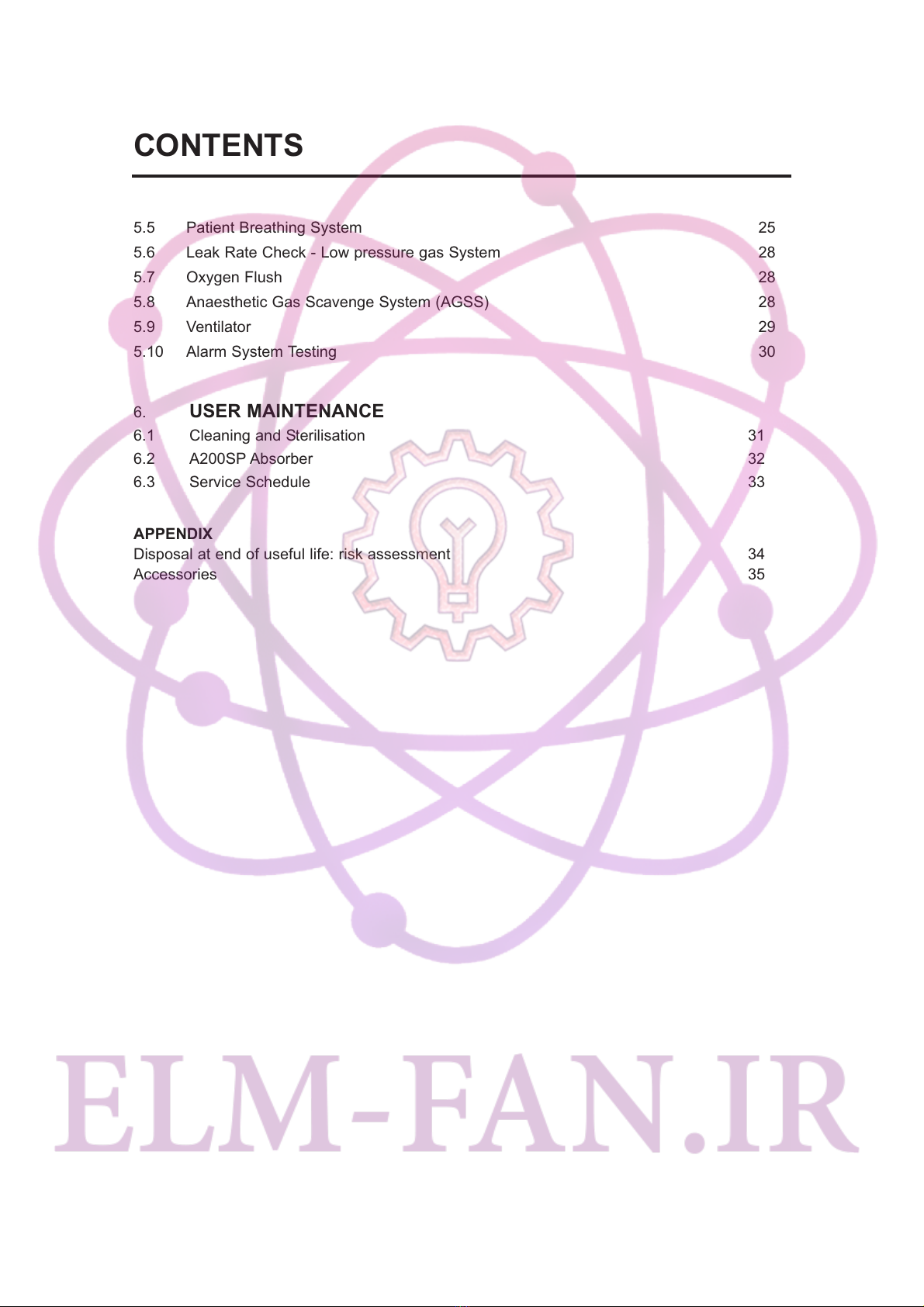

5.5 Patient Breathing System 25
5.6 Leak Rate Check - Low pressure gas System 28
5.7 Oxygen Flush 28
5.8 Anaesthetic Gas Scavenge System (AGSS) 28
5.9 Ventilator 29
5.10 Alarm System Testing 30
6. USER MAINTENANCE
6.1 Cleaning and Sterilisation 31
6.2 A200SP Absorber 32
6.3 Service Schedule 33
APPENDIX
Disposal at end of useful life: risk assessment 34
Accessories 35
CONTENTS
(iv)
دﯾﯾﺎﻣرﻓ ﮫﻌﺟارﻣ.WWW.ELM-FAN.IRتﯾﺎﺳ ﮫﺑ رﺗﺷﯾﺑ دراوﻣ دوﻠﻧاد یارﺑ
To download more items, go to ELM-FAN.IR

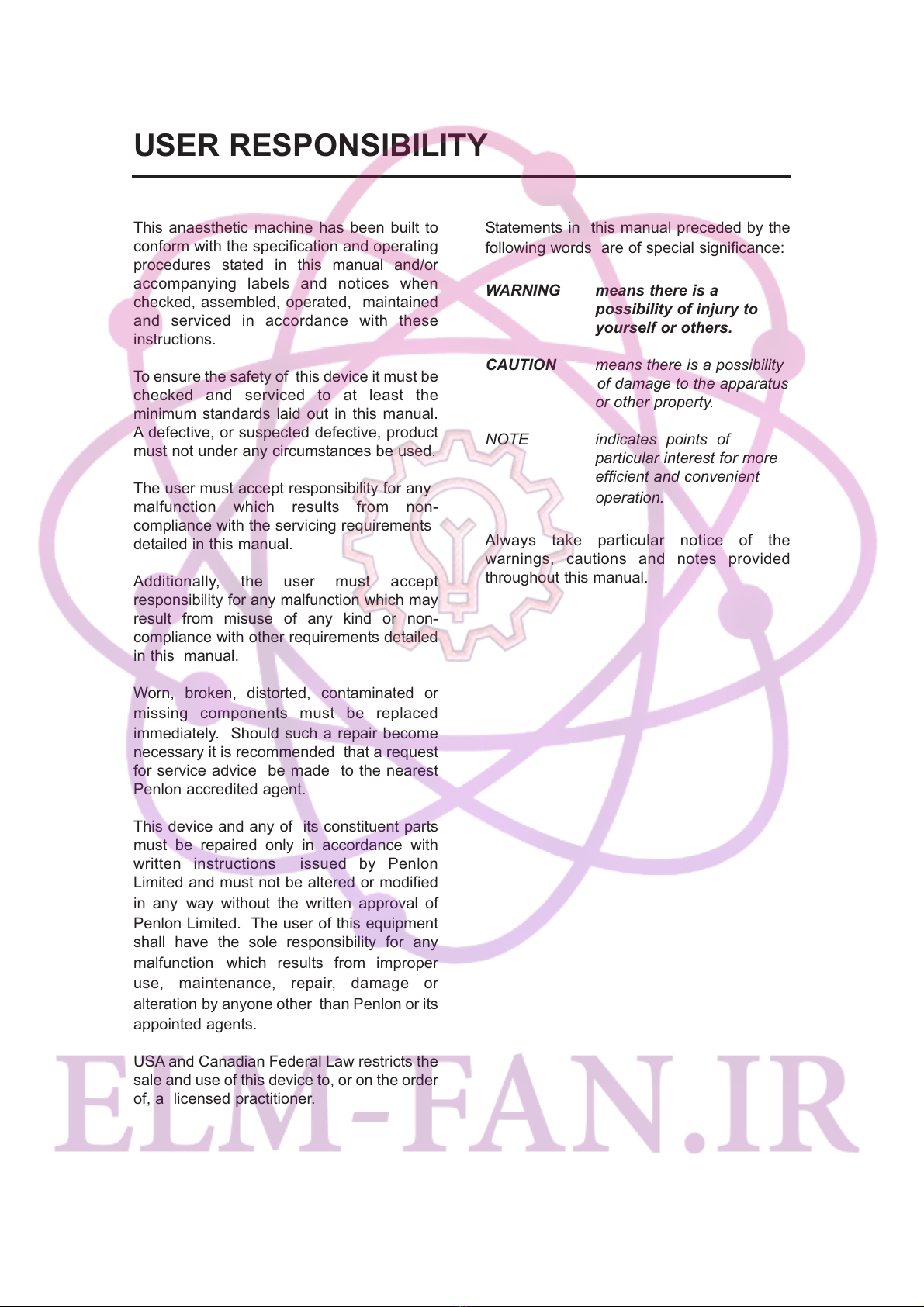

USER RESPONSIBILITY
This anaesthetic machine has been built to
conform with the specification and operating
procedures stated in this manual and/or
accompanying labels and notices when
checked, assembled, operated, maintained
and serviced in accordance with these
instructions.
To ensure the safety of this device it must be
checked and serviced to at least the
minimum standards laid out in this manual.
A defective, or suspected defective, product
must not under any circumstances be used.
The user must accept responsibility for any
malfunction which results from non-
compliance with the servicing requirements
detailed in this manual.
Additionally, the user must accept
responsibility for any malfunction which may
result from misuse of any kind or non-
compliance with other requirements detailed
in this manual.
Worn, broken, distorted, contaminated or
missing components must be replaced
immediately. Should such a repair become
necessary it is recommended that a request
for service advice be made to the nearest
Penlon accredited agent.
This device and any of its constituent parts
must be repaired only in accordance with
written instructions issued by Penlon
Limited and must not be altered or modified
in any way without the written approval of
Penlon Limited. The user of this equipment
shall have the sole responsibility for any
malfunction which results from improper
use, maintenance, repair, damage or
alteration by anyone other than Penlon or its
appointed agents.
USA and Canadian Federal Law restricts the
sale and use of this device to, or on the order
of, a licensed practitioner.
Statements in this manual preceded by the
following words are of special significance:
WARNING means there is a
possibility of injury to
yourself or others.
CAUTION means there is a possibility
of damage to the apparatus
or other property.
NOTE indicates points of
particular interest for more
efficient and convenient
operation.
Always take particular notice of the
warnings, cautions and notes provided
throughout this manual.
1
دﯾﯾﺎﻣرﻓ ﮫﻌﺟارﻣ.WWW.ELM-FAN.IRتﯾﺎﺳ ﮫﺑ رﺗﺷﯾﺑ دراوﻣ دوﻠﻧاد یارﺑ
To download more items, go to ELM-FAN.IR

The following WARNINGS and
CAUTIONS must be read and
understood before using this anaesthetic
apparatus.
WARNINGS
1. This apparatus is designed for use only
with non flammable anaesthetic agents.
It must not be used with or in close
proximity to flammable anaesthetic
agents, due to a possible fire or
explosion hazard.
2. Exterior panels must not be removed by
unauthorised personnel and the
apparatus must not be operated with
such panels missing.
On machines with an electrical power
supply, unauthorised personnel must
not attempt to access fuses or other
electrical components. There is a
possible electric shock hazard.
3. No oil, grease or other flammable
lubricant or sealant must be used on any
part of the machine in close
proximity to medical gas distribution
components.
There is a risk of fire or explosion.
4. When attaching cylinders of medical
gases ensure that the machine yoke and
cylinder faces are dust free and clean
and that the sealing washer provided is
in position between the cylinder valve
and the yoke.
Tighten the yoke securely before
opening the cylinder valve. Dust and dirt
presents a fire hazard in the presence of
high pressure gas.
Leakage of high pressure gas can
cause serious injury.
5. Anaesthesia apparatus must be
connected to an anaesthetic gas
scavenging system (AGSS) to dispose of
waste gas and prevent possible health
hazards to operating room staff.
This requirement must be observed
during test procedures as well as
during use with a patient.
6. Prima SP series machines must only be
used with Sigma Delta vaporizers (or
other vaporizers approved by Penlon
Limited) installed by means of the
Cagemount or Selectatec system.
Free-standing vaporizers may be
accidentally tipped, resulting in
excessive and uncalibrated volumes of
anaesthetic drug entering the breathing
system
Do not install or connect any vaporizers
of any description between the Common
Gas Outlet (CGO) and the breathing
system unless they are specifically
designed for such use.
(If this is done, the oxygen flush flow will
pass through the vaporizer and may
result in gross overdosage when the
flush valve is operated.)
7. The breathing system which conveys
gases from the anaesthetic machine to
the patient and disposes of expired
gases is a vital part of the anaesthetic
delivery system.
Because breathing systems require
frequent cleaning and disinfection they
are not a permanent part of the
anaesthetic machine and therefore
cannot be directly under the control of
the anaesthetic machine manufacturer.
However, we strongly recommend that
only breathing systems which have been
approved and authorised by Penlon for
use with the Prima SP range should be
employed.
This is particularly important when
mechanical ventilation is employed.
8. When mechanical ventilation is
employed the patient breathing system
must be connected directly to an over-
pressure relief valve to prevent the
possibility of barotrauma.
9. Always perform a pre-use check of the
machine, including vaporizers,
ventilator, circle absorber and monitors
before clinical use. Follow the pre-use
checklist (see section 5) as a minimum
requirement.
Many clinical incidents occur because of
a failure to check for correct function.
10. The machine must not be used if any of
the alarm, monitoring or protection
system devices are not functioning
correctly.
11. The gas supply failure systems within
the anaesthetic machine will not
necessarily operate as indicated in the
user manual during any procedures that
are outside the scope of the indications
for use of the machine:
2
1. WARNINGS AND CAUTIONS
دﯾﯾﺎﻣرﻓ ﮫﻌﺟارﻣ.WWW.ELM-FAN.IRتﯾﺎﺳ ﮫﺑ رﺗﺷﯾﺑ دراوﻣ دوﻠﻧاد یارﺑ
To download more items, go to ELM-FAN.IR

(A) Machine set to deliver Air only
When the machine is operated with an Air
flow only, note that there may still be
retained oxygen in the system, and that the
visual O2 alarm will continue to indicate
green, even though oxygen is not being
delivered.
(B) Machine set to deliver Oxygen only
through Auxiliary Outlets
The oxygen failure alarm is designed to
operate during normal use of the machine,
i.e. when providing controlled
concentrations and flows of gases to a
patient breathing system, as described in
Section 2 (Purpose).
Do not use the machine solely to provide
large flows of oxygen, via the anaesthetic
machine auxiliary outlets, to external
devices which may not be equipped with a
supply failure alarm.
12. The machine must not be fitted with
more than four operator accessible
mains socket outlets. There is a risk of
an excessive leakage current.
13. The use of antistatic or electrically
conductive breathing hoses is not
recommended when using high
frequency electrical surgery equipment
(e.g. : Diathermy). Burns may be
caused.
14. Before any electrically powered machine
is used clinically for the first time,
check that the hospital engineering
department has carried out an earth
continuity test.
15. Before using any additional electrical
equipment powered by the auxiliary
sockets on the machine, check that the
additional equipment is correctly wired
and is earthed through its plug.
A missing or defective protective earth
conductor may increase earth leakage
currents to the patient to values
exceeding the allowable limits,
resulting in ventricular fibrillation, or
interference with the pumping action of
the heart.
16. Additional equipment placed on the top
shelf must be securely attached.
Take care when moving a fully loaded
machine, particularly when negotiating
ramps.
Check that hoses or power leads are not
trailing on the floor.
3
WARNINGS AND CAUTIONS
17. Prima SP2 series anaesthetic machines
are not MRI compatible.
CAUTIONS
1. Flowmeter needle valves are designed to
seal with light torque and may be damaged
if tightened excessively.
Do not force the control knob past either the
fully open or fully closed positions.
2. Open cylinder valves slowly to avoid
damage to pressure reducing valves.
Ensure that cylinder valves are at least one
full turn open when in use.
3. Under no circumstances should anaesthetic
agents be used for cleaning purposes.
4. After use, always disconnect the machine
from the piped gas supply and/or close the
gas cylinder valves.
5. Mechanical AHD system - The oxygen flow
control is restricted to prevent the needle
valve from fully closing. This ensures a
minimum basal flow of oxygen.
DO NOT attempt to close the flow to zero.
Do not overtighten.
6. Compressed gas supplies must be clean
and dry.
7. When the auxiliary gas outlets are in use on
a machine with cylinder supply only, or if
the pipeline supply is not in use, check flow
rate requirements, and ensure that
adequate back-up cylinders are available.
8. The requirements of IEC 60601-1-1 apply to
any device connected to the auxillary
sockets. Users must be aware of the risks of
increased leakage currents when
equipment is connected to the auxillary
power sockets
9. In the event of malfunction of any device
powered by the auxiliary sockets, check if
the circuit breaker has tripped.
10. On machines with pipeline connections,
note that a malfunction of the central gas
supply within your facility may cause
immediate cessation of gas delivery and
total anaesthesia system failure.
دﯾﯾﺎﻣرﻓ ﮫﻌﺟارﻣ.WWW.ELM-FAN.IRتﯾﺎﺳ ﮫﺑ رﺗﺷﯾﺑ دراوﻣ دوﻠﻧاد یارﺑ
To download more items, go to ELM-FAN.IR

The Prima SP2 anaesthesia workstation
range is intended to provide controlled
concentrations and flows of anaesthesia
gases into a patient breathing system, from
where the anaesthesia ventilator and
breathing circuit will then deliver this fresh
gas mixture to the patient
Use the Prima SP2 in conjunction with
anaesthetic vaporizers, breathing hoses and
patient connection fittings which comply with
the relevant ISO standard or equivalent.
Depending upon the patient circuit selected,
the machines can be used in open, semi-
open, semi-closed or closed circuit
configurations.
The range has been designed to give a wide
choice of configurations and accessories,
including:
Gas supplies
Up to four gases - oxygen, nitrous oxide, and
air, with optional fourth gas (see section 4).
Pin-index cylinder yokes, and provision for
up to three pipeline supply inlets.
Vaporizer mounting systems
Backbar manifold for Selectatec Compatible,
or Cagemount type vaporizers.
Anti-hypoxic Device (AHD)
The mechanical AHD system is designed to
minimise the risk of a hypoxic mixture
reaching the patient (see section 3).
4
2. PURPOSE
دﯾﯾﺎﻣرﻓ ﮫﻌﺟارﻣ.WWW.ELM-FAN.IRتﯾﺎﺳ ﮫﺑ رﺗﺷﯾﺑ دراوﻣ دوﻠﻧاد یارﺑ
To download more items, go to ELM-FAN.IR

3.1 General Construction
Frame
The machine has a cast aluminium base,
extruded aluminium uprights, with aluminium
and plastic panels.
Mobility
Four castors are fitted, with a brake on each
of the front castors. The castors are five
inches diameter.
A footrest is built into the front of the
machine and, to aid manoeuvrability, two
handles are provided.
Mounting posts and brackets
A mounting system is built into each side
upright, to allow the use of pole-mount
brackets, V-brackets, and ventilator
mounting brackets.
The pole mount upright can be used to
mount an A200SP Absorber assembly.
Work surfaces
The work surface has raised edges to retain
instruments, vials etc.
A pull-out writing tablet is mounted under the
work surface.
3.2 Gas Circuit
Gas Circuit Schematic
A gas circuit schematic is shown on the
following page.
Gas Supplies
A variety of cylinder and pipeline
combinations can be added to the basic
specification of oxygen and nitrous oxide
cylinder and pipeline supply.
For example, two extra gas cylinders
(choose from one additional oxygen, one
additional nitrous oxide, one air), and one
extra pipeline supply - Air.
Cylinder Yokes
The yokes are rear mounted and conform
with ISO standards for pin-index fitting.
To ensure that only cylinders of the
appropriate gas may be installed the yokes
are designed so that the retaining latch
cannot be closed unless the index pins are
fully engaged.
5
3. DESCRIPTION
Pipeline Inlets (1)
Up to three, rear mounted pipeline gas inlets
can be fitted.
Pipeline supply hoses are connected by
non-interchangeable, screw threaded
unions.
CAUTION
A malfunction of the central gas supply within
your facility may cause immediate cessation of
gas delivery and total anaesthesia system failure.
Filters
To prevent dirt entering the gas system,
cylinder yokes and pipeline inlets are fitted
with filters.
Gas Inlet Block
Each individual cylinder or pipeline supply,
is routed through a separate gas block.
Each gas block has an integral high
pressure gauge tapping for direct mounting
of a pressure gauge, and a non-return valve
to prevent back flow of gas.
In addition, cylinder gas blocks have a
diaphragm pressure regulator to reduce the
pressure of the compressed gas supply, and
a pressure relief valve, factory set to 517
kPa (75 psi). This prevents pressure build up
under the diaphragm should any leakage
develop across the reducing valve seat.
Secondary Pressure Regulator
A second stage regulator reduces the
pressure supplied to each flowmeter control
(see section 4).
The fitment of a secondary regulator for
oxygen and nitrous oxide enhances the
performance of the mechanical AHD system.
Secondary regulation of the air supply aids
the stabilisation of the output at the
flowmeter.
1
دﯾﯾﺎﻣرﻓ ﮫﻌﺟارﻣ.WWW.ELM-FAN.IRتﯾﺎﺳ ﮫﺑ رﺗﺷﯾﺑ دراوﻣ دوﻠﻧاد یارﺑ
To download more items, go to ELM-FAN.IR

6
Prima SP2
USA specification three-
gas machine with dual
cascade oxygen and
nitrous oxide flowmeters.
O2N2O Air
O2Air N2O
Gas Tray
Flowmeter
Assembly
Pneumatic pressure
source
Pressure gauge
Pressure regulator
Pressure relief valve
Audible alarm
Restrictor
Gas cut-off valve
(normally open)
Reservoir
Pneumatic on/off
switch
Flow control valve
(variable)
Filter
Flowmeter
Vaporizer
Oxygen flush valve
Non-return valve
Power take-off point
(or test point)
Visual indicator
دﯾﯾﺎﻣرﻓ ﮫﻌﺟارﻣ.WWW.ELM-FAN.IRتﯾﺎﺳ ﮫﺑ رﺗﺷﯾﺑ دراوﻣ دوﻠﻧاد یارﺑ
To download more items, go to ELM-FAN.IR

3.3 Gas Supply Safety Devices
3.3.1 Gas Supply Cut-off Device
A gas cut-off device, triggered by low oxygen
supply pressure, cuts the supply of nitrous
oxide, and carbon dioxide or other fourth gas
(if fitted).
The cut-off operates when the oxygen
pressure falls to 200 ± 14 kPa (29 ± 2 psig).
Gas supplies are reinstated only when the
oxygen supply pressure rises above 227
kPa (33 psig).
3.3.2 Oxygen Supply Failure Warning
Whistle
WARNING: Refer to WARNING 11 (section 1).
A whistle gives an audible warning when
there is a reduction of oxygen supply
pressure.
Operated solely by the remaining oxygen in
the machine system, the warning whistle is
prolonged by an oxygen reservoir built into
the gas circuit, allowing a minimum warning
whistle of 7 seconds duration.
The whistle will start to sound when the
pressure falls to 200 ± 21 kPa (29 ± 3 psig),
and will continue to sound until the pressure
falls to approximately 70 kPa (10 psig).
Oxygen consumption of the whistle is
approximately 2 L/min when sounding and
nil at other times.
3.3.3 Fresh Gas Pressure Relief Valve
A pressure relief valve is mounted between
the vaporizer back bar and the common gas
outlet (CGO) on the inside face of the
machine right hand upright.
It is designed to prevent fresh gas being
delivered to the breathing system at
pressures exceeding 41 kPa (6 psi).
This valve also protects machine
components against excessive pressure in
the event of a total blockage of the CGO.
3.3.4 Oxygen Supply Visual Indicator
WARNING: Refer to WARNING 11 (section 1).
The indicator (1) is mounted on the front of
the machine and is operated from the
oxygen supply and shows GREEN when the
supply is at working pressure, and RED if the
pressure falls.
3.3.5 Mechanical AHD
A mechanical link between the oxygen
control valve and a needle valve in the
nitrous oxide flow ensures that the machine
delivers a fresh gas mixture with a minimum
30% (±3%) oxygen, irrespective of the flow
of nitrous oxide set by the anaesthetist.
With the nitrous oxide control valve fully
open, the oxygen and nitrous oxide flows are
then both controlled by the oxygen control
valve.
See section 3.4 for a full description
3.3.6 Low Pressure Gas Tubing
Diameter-indexed tubing is used for the low
pressure gas system - see section 4.
7
DESCRIPTION
1
دﯾﯾﺎﻣرﻓ ﮫﻌﺟارﻣ.WWW.ELM-FAN.IRتﯾﺎﺳ ﮫﺑ رﺗﺷﯾﺑ دراوﻣ دوﻠﻧاد یارﺑ
To download more items, go to ELM-FAN.IR

3.4 Mechanical AHD
(Anti Hypoxic Device)
3.4.1 Introduction
The Mechanical AHD is housed within the
flowmeter module and comprises a gear
linkage between the oxygen control valve
and a needle valve in the nitrous oxide flow.
The system controls the relative flow rates of
oxygen and nitrous oxide.
A predetermined minimum oxygen
concentration of 30% ±3% in the oxygen /
nitrous oxide mixture is maintained over the
flow range to prevent delivery of a hypoxic
mixture.
3.4.2 Gas Delivery Switch (1)
The Gas Delivery Switch (1) operates on the
oxygen supply and must be in the ‘On’
position for normal operation of the
anaesthetic machine.
The switch consequently controls the supply
of all gases provided with a gas cut-off
triggered by a predetermined pressure level
within the oxygen supply (see section 3.3.1).
A whistle (oxygen failure warning whistle)
will sound briefly whenever the gas delivery
switch is turned on or off. Note that the
whistle functions continuously if the oxygen
supply fails (see section 3.3.2).
NOTE
The switch also controls the electrical supply to
the optional flowmeter lighting unit.
3.4.3 Gear Linkage and Nitrous Oxide
Control Valves
A gear linkage connects the oxygen control
knob on the flowmeter module and a needle
valve in the nitrous oxide flow. This linkage
limits the flow of nitrous oxide relative to the
flow of oxygen set by the user.
Note that this needle valve acts as the
primary nitrous oxide valve, and is actuated
only by movement of the oxygen control.
The nitrous oxide control knob on the
flowmeter module operates a secondary
needle valve in the nitrous oxide flow. It is
positioned downstream of the primary valve
and therefore is used only to restrict the flow
already set by the primary valve, which itself
has been determined by the position of the
oxygen control knob.
Therefore, for any oxygen flow set by the
user, the mixture delivered will still contain a
minimum 30% ±3% oxygen even with the
nitrous oxide control knob fully open.
As the nitrous oxide knob is progressively
closed, the oxygen content of the mixture
increases to 100%.
3.4.4 Oxygen Basal Flow
To allow the system to function correctly, an
oxygen basal flow is continuously supplied.
Single Flow Tubes: 100 - 200 ml/min
Dual Cascade System Flow Tubes:
50 - 75 ml/min
This basal flow can only be turned on and off
by using the Gas Delivery Switch.
CAUTION
The oxygen control is restricted to prevent the
needle valve from fully closing. This ensures a
minimum oxygen basal flow.
DO NOT attempt to close the flow to zero. Do not
overtighten the knob.
3.5 Pressure Gauges
Pressure gauges (50 mm diameter) are
located on the front panel below the
flowmeter bank.
The gauge for Air is positioned between
oxygen and nitrous oxide. Unused gauge
positions are blanked out.
All pressure gauges are colour coded and
labelled for the gases whose pressures they
are indicating.
Cylinder gauges are marked: CYLINDER.
Pipeline gauges are marked: PIPELINE.
The gauges are calibrated in kPa x 100.
8
DESCRIPTION
1
دﯾﯾﺎﻣرﻓ ﮫﻌﺟارﻣ.WWW.ELM-FAN.IRتﯾﺎﺳ ﮫﺑ رﺗﺷﯾﺑ دراوﻣ دوﻠﻧاد یارﺑ
To download more items, go to ELM-FAN.IR

3.6 Flowmeters and Controls
3.6.1 All models
The flowmeters, mounted behind the perspex
cover on the left hand side of the machine, are
length-indexed to prevent inadvertent, incorrect
installation.
All floats indicate flow rate in line with the upper
surface as shown below.
Each flow control valve is positioned directly
underneath the flow tube assembly to which it
corresponds, and the control knob is colour-coded
for the gas which it controls.
The oxygen flow control knob is made physically
distinguishable from the other flow controls for
identification by touch in accordance with ISO
standards.
When fitted, air and carbon dioxide flowmeters are
always installed in the inner positions on the
flowmeter assembly. These positions are blanked
out if air or carbon dioxide are not specified for the
machine.
The gas delivery switch (see 3.4.2), positioned on
the front panel controls the supply of oxygen and
must be in the ON position for normal operation of
the machine.
Flow control of each gas is achieved by a needle
valve comprising a polished stainless steel needle
mounted concentrically in a common manifold
block. To minimise wear and material pick-up the
needle seat is manufactured from silver. The flow
control knob is turned counter-clockwise to
increase the gas flow.
CAUTION
Needle valves are designed to seal with light torque and
may be damaged if tightened excessively.
DO NOT USE EXCESSIVE FORCE.
3.6.2 Dual Cascade Flow Tubes
The flow of gas through dual cascade system flow
tubes always flows through the low-flow tube first.
The high-flow tube should not show any flow until
more than 1 L/min is set.
At flows above 1 L/min, the high-flow tube reading
indicates the rate of flow for that gas.
3.6.3 Auxiliary Oxygen Flowmeter
An oxygen flowmeter (1), with outlet, is mounted to
the left of the machine flowmeter bank.
9
DESCRIPTION
Read flow at
this level
1
دﯾﯾﺎﻣرﻓ ﮫﻌﺟارﻣ.WWW.ELM-FAN.IRتﯾﺎﺳ ﮫﺑ رﺗﺷﯾﺑ دراوﻣ دوﻠﻧاد یارﺑ
To download more items, go to ELM-FAN.IR

3.7 Vaporizers
CAUTION
Read the instruction manual supplied with the
vaporizer before clinical use.
3.7.1 Vaporizer Mounting Systems
Vaporizers for the administration of volatile
anaesthetic agents can be fitted as follows:
(a) Penlon Delta Selectatec compatible
vaporizers, mounted on a Selectatec
compatible universal backbar.
(b) Penlon Delta Cagemount vaporizers
mounted on a Modura rail (check that
relevant national standards for your
country allow fitment of more than one
cagemount type vaporizer).
WARNING
Vaporizers must always be securely mounted,
and never used free-standing.
Unmounted vaporizers may be accidentally
tipped resulting in uncalibrated and excessive
volumes of liquid anaesthetic drug entering
the breathing system.
Vaporizers of any description must not be
installed or connected between the Common
Gas Outlet (CGO) and the Breathing
System, unless they are specifically
designed for such use. (If this is done, the
oxygen flush flow will pass through the
vaporizer, and severe overdosage may
result).
3.7.2 Selectatec Compatible Vaporizer
Selectatec compatible vaporizers, (e.g. the
Sigma Delta with the Selectatec connector
block), may be mounted on a universal back
bar manifold, built onto the Prima SP range
as an option.
Single and two-station manifolds are
available, with each station fitted with two
valve capsule assemblies for vaporizer
connector block attachment.
When a vaporizer is installed on a station the
valves on that station open automatically to
allow gas flow into and out of the vaporizer.
Removal of the vaporizer from the station
closes the valves on that station.
Selectatec compatible vaporizer interlock
systems are described in the literature
supplied with the vaporizer.
3.7.3 Cagemount Vaporizer
Vaporizers fitted with cagemount tapers
have the male taper (inlet port) on the left,
and the female taper on the right (viewing
the front of the vaporizer).
It is recommended that detachable
cagemount connectors are retained with a
safety clip (catalogue number 52275) to
prevent inadvertent disconnection.
3.8 Common Gas Outlet (CGO)
The outlet (1) can be located at the front or
rear of the machine, and has a 22 mm male
taper and concentric 15 mm female taper.
The male taper incorporates the Penlon
Safelock system designed to prevent
accidental disconnection of the breathing
system.
Oxygen Flush
An emergency oxygen flush valve button (2)
is mounted at the font of the machine and is
marked ‘O2FLUSH’.
Depressing the button provides a delivery of
between 35-75 litres/min of oxygen through
the common gas outlet (1).
Releasing the button allows the spring-
loaded valve to return to its normal position.
10
DESCRIPTION
2
1
دﯾﯾﺎﻣرﻓ ﮫﻌﺟارﻣ.WWW.ELM-FAN.IRتﯾﺎﺳ ﮫﺑ رﺗﺷﯾﺑ دراوﻣ دوﻠﻧاد یارﺑ
To download more items, go to ELM-FAN.IR

3.9 Electrical Power Supply
3.9.1 Mains Power Supply
Power is fed to the machine via the mains
lead, to power an optional auxiliary output
panel, and/or lighting system.
Mains Power Indicator
The warning lamp (1) is illuminated, when
mains power is connected.
Current Leakage
NOTE
a) It is the user’s responsibility to ensure that the
total sum of leakage currents from additional
equipment plugged into the auxiliary sockets plus
the leakage current from the machine does not
exceed the values specified in any relevant
national standards that may apply in the country
where the machine is in use (see also, below)
b) Each socket is protected with a 5 A fuse in both
the live and neutral wire.
3.9.2 Auxiliary Power Supply Sockets
CAUTION
The requirements of IEC 60601-1-1 apply to any
device connected to the auxiliary sockets. Users
must be aware of the risks of increased leakage
currents when equipment is connected to the aux-
iliary power sockets.
The optional mains electricity outlet panel is
fitted to the rear of the machine.
The supply is controlled by an ON/OFF
switch (2), which also incorporates a circuit
breaker.
Switch labelling: I indicates On
0 indicates Off
CAUTION
In the event of malfunction of any device powered
by the auxiliary sockets, check if the circuit break-
er has tripped.
3.9.3 Flowmeter Bank Lighting
The lighting system is controlled by a three-
way switch (3).
The three positions denote:
A: Off
B: Bright light
C: Dim light
11
DESCRIPTION
2
1
3
B A C
دﯾﯾﺎﻣرﻓ ﮫﻌﺟارﻣ.WWW.ELM-FAN.IRتﯾﺎﺳ ﮫﺑ رﺗﺷﯾﺑ دراوﻣ دوﻠﻧاد یارﺑ
To download more items, go to ELM-FAN.IR

DESCRIPTION
12

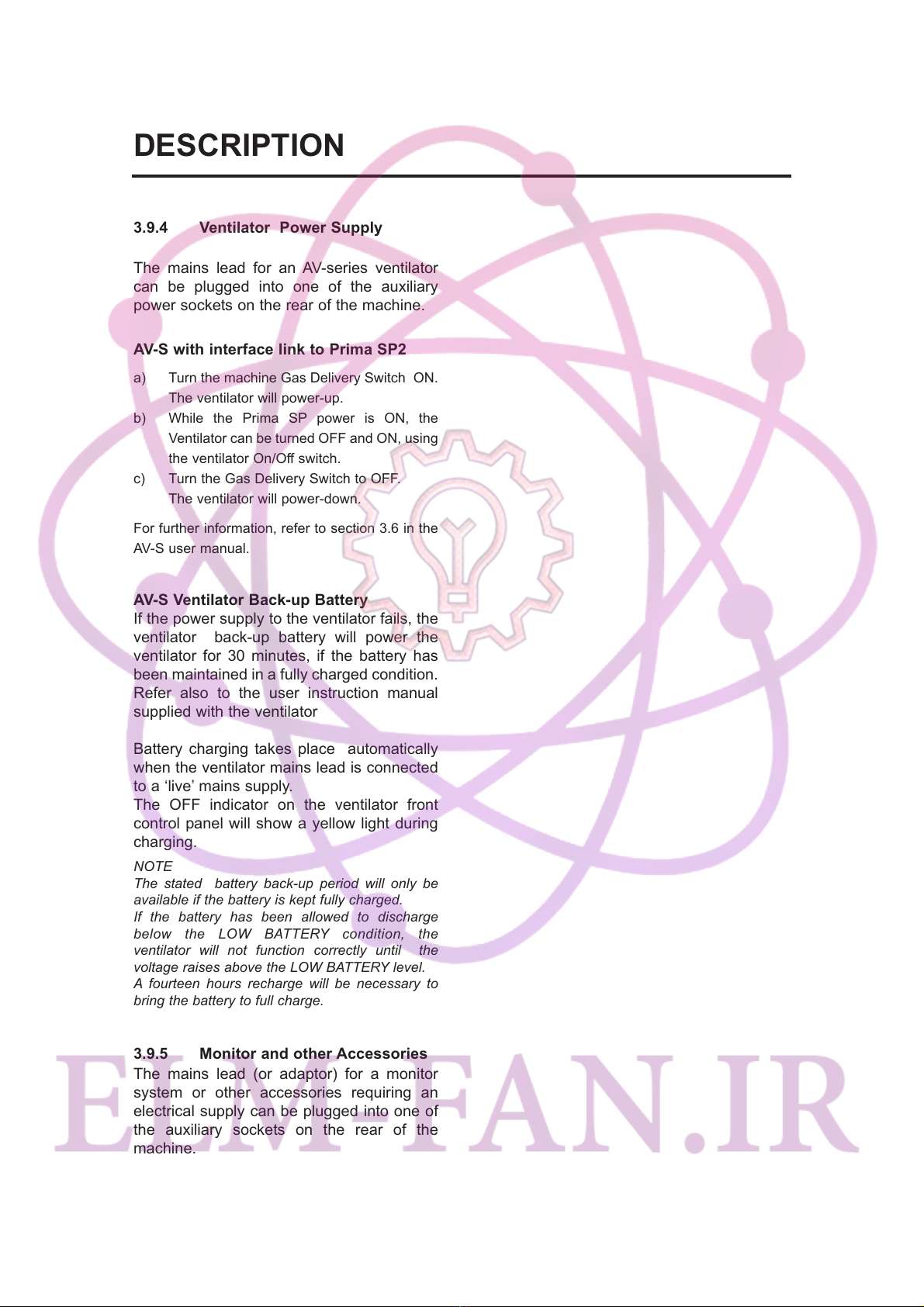

3.9.4 Ventilator Power Supply
The mains lead for an AV-series ventilator
can be plugged into one of the auxiliary
power sockets on the rear of the machine.
AV-S with interface link to Prima SP2
a) Turn the machine Gas Delivery Switch ON.
The ventilator will power-up.
b) While the Prima SP power is ON, the
Ventilator can be turned OFF and ON, using
the ventilator On/Off switch.
c) Turn the Gas Delivery Switch to OFF.
The ventilator will power-down.
For further information, refer to section 3.6 in the
AV-S user manual.
AV-S Ventilator Back-up Battery
If the power supply to the ventilator fails, the
ventilator back-up battery will power the
ventilator for 30 minutes, if the battery has
been maintained in a fully charged condition.
Refer also to the user instruction manual
supplied with the ventilator
Battery charging takes place automatically
when the ventilator mains lead is connected
to a ‘live’ mains supply.
The OFF indicator on the ventilator front
control panel will show a yellow light during
charging.
NOTE
The stated battery back-up period will only be
available if the battery is kept fully charged.
If the battery has been allowed to discharge
below the LOW BATTERY condition, the
ventilator will not function correctly until the
voltage raises above the LOW BATTERY level.
A fourteen hours recharge will be necessary to
bring the battery to full charge.
3.9.5 Monitor and other Accessories
The mains lead (or adaptor) for a monitor
system or other accessories requiring an
electrical supply can be plugged into one of
the auxiliary sockets on the rear of the
machine.
دﯾﯾﺎﻣرﻓ ﮫﻌﺟارﻣ.WWW.ELM-FAN.IRتﯾﺎﺳ ﮫﺑ رﺗﺷﯾﺑ دراوﻣ دوﻠﻧاد یارﺑ
To download more items, go to ELM-FAN.IR

3.10 Auxiliary Gas Outlets
CAUTION
When the auxiliary gas outlets are in use on a
machine with cylinder supply only, or if the
pipeline supply is not in use, check flow rate
requirements, and ensure that adequate back-up
cylinders are available.
Oxygen and Air
Auxiliary outlets (1) are mounted on the rear
of the machine.
Supply pressure
See section 4.5
3.11 A200SP Absorber
The A200SP Absorber and ventilator bellows
assembly is mounted on a polemount
bracket attached to the machine frame
upright.
Refer to the user instruction manual for
A200SP for detailed information on
installation and operation.
3.12 AV-S Ventilator
Interface to Prima SP 2
An interface cable links the gas delivery
switch on the anaesthetic machine, via a
socket (1) on the rear panel of the machine
to the socket (2) marked ‘Prima Master’ on
the rear of the ventilator control unit.
Ventilator ON/OFF function
a) Turn the machine Gas Delivery Switch (see
3.4.2) ON.
The ventilator will power-up.
b) While the Prima SP2 power is ON, the
Ventilator can be turned OFF and ON, using
the ventilator On/Off switch (refer to
ventilator user manual.
c) Turn the Gas Delivery Switch to OFF.
The ventilator will power-down.
Refer to the user instruction manual for AV-S
for detailed information on installation and
operation.
13
DESCRIPTION
1
1
2
دﯾﯾﺎﻣرﻓ ﮫﻌﺟارﻣ.WWW.ELM-FAN.IRتﯾﺎﺳ ﮫﺑ رﺗﺷﯾﺑ دراوﻣ دوﻠﻧاد یارﺑ
To download more items, go to ELM-FAN.IR

4.1 Physical Dimensions
Overall frame size: Height x Width x Depth (cm)
139 x 71 x 70
Work surface
Height: 86 cm
Size: 58 cm x 25 cm
Loading: 30 kg (66 lb) - evenly distributed.
Writing tablet: 30 x 22 cm
Top shelf: 71 cm x 35 cm
Loading: 30 kg (66 lb) - evenly distributed.
Drawers: 12 x 54.5 x 35 cm
Loading: 10 kg (22 lb) - evenly distributed
Castors: Diameter: 127 mm (5 inches)
Front pair braked
Ventilator bellows post Bushed to accept 25.4 mm (1 inch) or 22
mm (7/8 inch) poles.
Loading: 30 kg (66 lb)
Gas scavenging fixing Bracket on frame upright
Loading: 30 kg (66 lb)
Common gas outlet: 22 mm male taper with coaxial 15 mm
female taper connections, Safelock fitting
Weight:75 kg (165 lb)
(approximate, depending on specification)
14
4. SPECIFICATION
دﯾﯾﺎﻣرﻓ ﮫﻌﺟارﻣ.WWW.ELM-FAN.IRتﯾﺎﺳ ﮫﺑ رﺗﺷﯾﺑ دراوﻣ دوﻠﻧاد یارﺑ
To download more items, go to ELM-FAN.IR
