Perfect Aire AB Series User manual

HIGH WALL UNIT
AB SERIES, HEAT PUMP
USER MANUAL
MULTI-ZONE
Before using your air conditioner, please
read this manual carefully and keep it for
future reference, along with your receipt.
FOR MODELS:
2PAMSH09-MZW
2PAMSH12-MZW
2PAMSH18-MZW

CAUTION
Table of Contents
User Manual
Safety Precautions
Warning .......................................................................................................................... 1
Caution ........................................................................................................................... 2
Part Names
Indoor unit ...................................................................................................................... 3
Outdoor unit.................................................................................................................... 3
Display window............................................................................................................... 3
Operating Instructions
Operating temperature ................................................................................................... 4
Manual operation............................................................................................................ 4
Airflow direction control .................................................................................................. 5
How the air conditioner works ........................................................................................ 6
Special functions ............................................................................................................ 7
Care and Maintenance
Before maintenance ....................................................................................................... 8
Cleaning the unit ............................................................................................................ 8

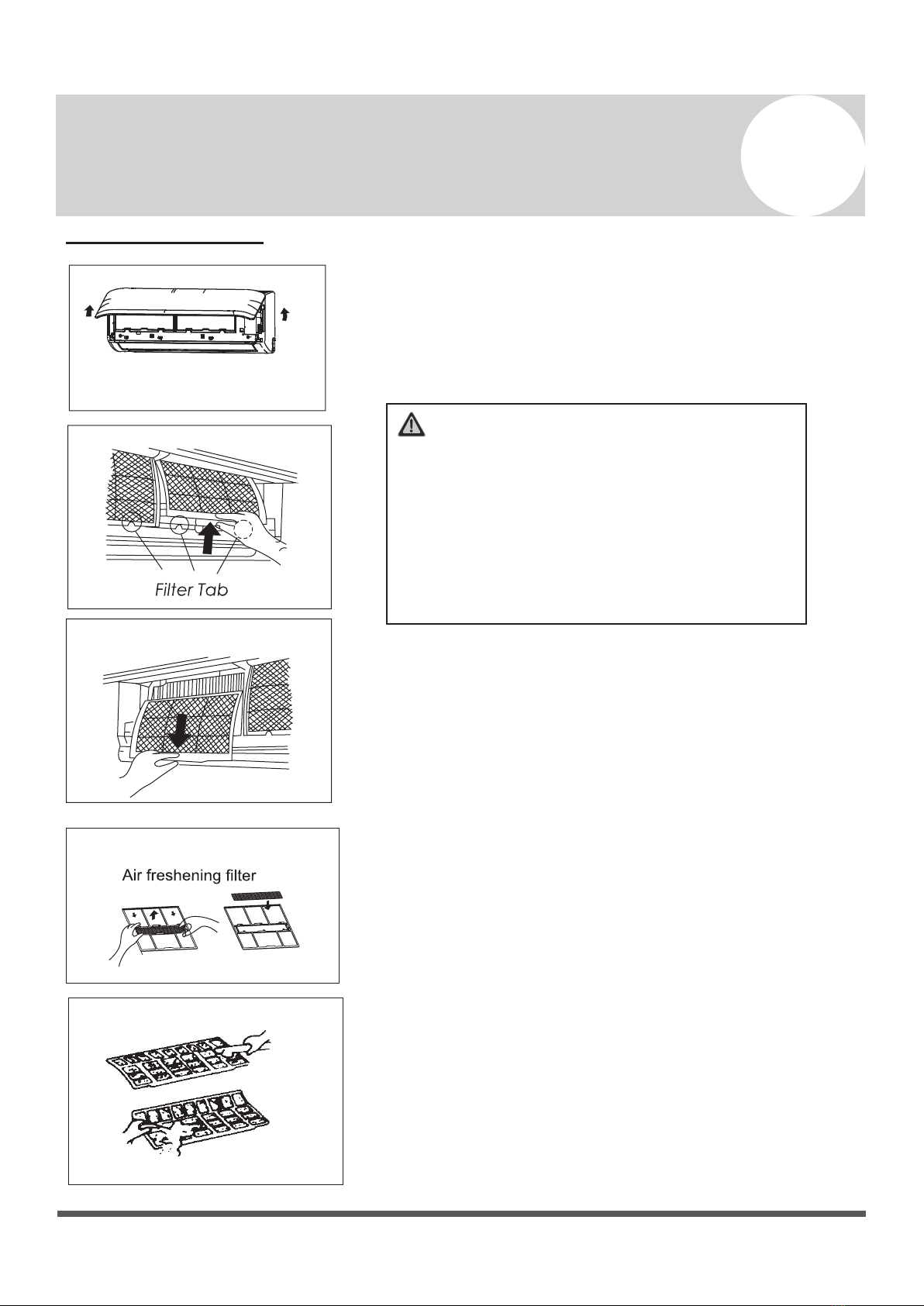

Cleaning the air filter ...................................................................................................... 8
Preparation for extended non-operation......................................................................... 9
Pre-season inspection.................................................................................................... 9
Troubleshooting Tips
Troubleshooting tips ............................................................................................... 10–11
• Contact an authorized service technician or certified HVAC contractor for installation of
this unit.
• Contact an authorized service technician or certified HVAC contractor for repair or
maintenance of this unit.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by persons responsible for
their safety.
• Young children should be supervised to ensure that they do not play with the air conditioner.
• Installation work must be performed in accordance with national or local wiring standards by
authorized personnel only.

To prevent injury to the user or other people and property damage, the following instructions must
be followed. Incorrect operation due to ignoring or not following installation and usage instructions
may cause harm or damage. The seriousness is classified by the following indications:
Page 1
Safety Precautions
This symbol indicates the possibility of death or serious injury.
Meanings of symbols used in this manual are as shown below.
Be sure to follow these instructions.
CAUTION This symbol indicates the possibility of injury or damage to property.
WARNING
Strictly prohibited.
• NEVER splice any electrical
connection. A poor electrical
connection, poor insulation or voltage
which is higher than permitted can
cause fire.
• Do not expose your body directly to the
cool air for prolonged periods of time.
• Never poke fingers, sticks or other
objects in the air inlet and outlet vents.
• Never attempt to repair, relocate, or
modify the air conditioner yourself.
Always contact your qualified service
provider if required.
• Do not operate your air conditioner in a
wet environment such as a bathroom
or laundry room.
• In the event of any abnormality such as
a burning smell, completely power off
the device. Contact your qualified
service provider.
• Completely power off the system
before attempting to clean it.
• Use specified wiring.
• Contact an authorized service
technician or certified HVAC contractor
for installation of this unit.
• Contact an authorized service
technician or certified HVAC contractor
for repair or maintenance of this unit.
• This air conditioner is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision or
instruction concerning use of the air
conditioner by a person responsible for
their safety.
• Children should be supervised to
ensure that they do not play with the
air conditioner.

Page 2
Safety Precautions
• Never operate any controls with a wet
hand. Doing so may cause an electric
shock.
• Never use the device for any other
purpose than the intended use.
• Never place food, precision instruments,
plants, animals, paint, etc. on the unit.
• Do not expose plants or animals directly
to the air flow.
• Never clean the air conditioner with
water.
• Never use combustible cleaning agents
as these could cause a fire or
deformation.
• Never place any burning objects close to
the device if they could be directly
affected by the emitted air.
• Never step onto the outdoor unit and
never place anything on it.
• Never use an unsteady or rusty base.
• Never install the air conditioner in places
where combustible gas can be emitted.
Emitted gas may collect and cause an
explosion.
• Never allow the air conditioner to run for
too long with the doors or windows open,
or if the humidity is very high.
• If the air conditioner is to be used in
conjunction with other heaters, the air
should be refreshed periodically;
otherwise there is a risk of lack of
oxygen.
• Always completely power off the unit if it
is not going to be used for an extended
period of time. Collecting dust can cause
fire.
• Always completely power off the air
conditioner during a storm. Otherwise,
electrical parts may get damaged.
• Check that the drainage line is correctly
connected. If not, water will escape.
• Check that the condensate water can run
off unhindered. It may cause water
damage if the condensate water cannot
drain away properly.
• The air conditioner must be electrically
grounded in accordance with the local
codes.
• For electrical safety purposes we
recommend that you install a
circuit-breaker.
NOTE:
A guide to using the remote control
is included in this literature package.

Digital Display:
• Displays the temperature settings when the air
conditioner is operational.
• Displays the room temperature in FAN mode.
• Displays the self-diagnostic codes.
• Displays “ ” for three seconds when any of
the following features are activated: Timer ON,
Fresh, Swing, Turbo, Silence
• Displays “ ” for three seconds when Timer
OFF is set.
• Displays “ ” for three seconds when Fresh,
Swing, Turbo or Silence feature is canceled.
• Displays “ ” under defrosting operation.
• Displays “ ” when anti-cold air feature is
activated under heating mode.
• Displays “ ” during self clean operation (if
applicable).
• Displays “ ” under 46ºF (8ºC) heating
operation (if applicable).
Page 3
1

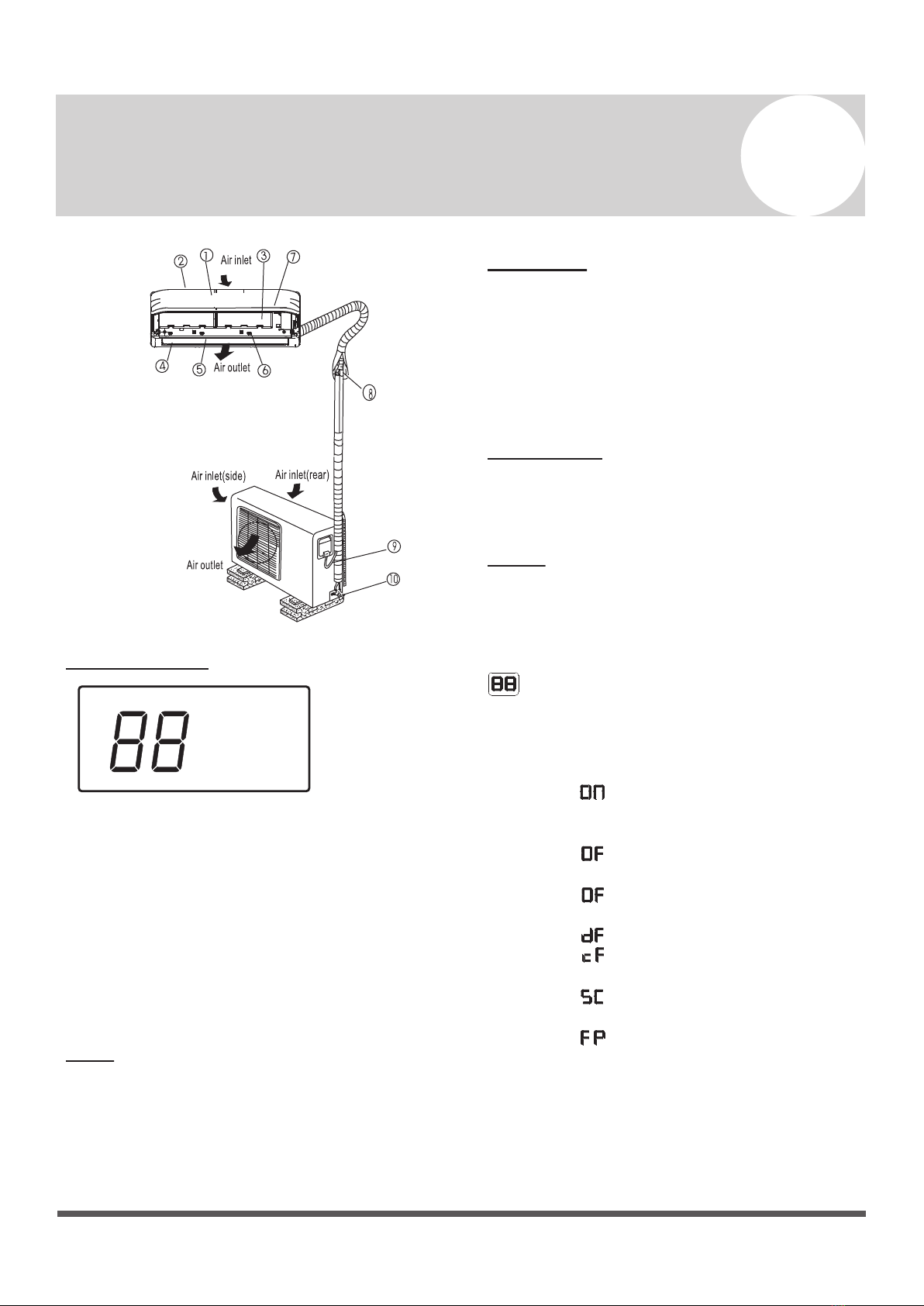

Part Names
Display Window
Indoor Unit
1. Front panel
2. Air inlet
3. Air filter
4. Air outlet
5. Horizontal air flow grille
6. Vertical air flow louver (inside)
7. Display window
Outdoor Unit
8. Connecting pipe
9. Connecting cable
10. Stop valve
NOTE:
All of the illustrations in this manual are for
explanation purposes only. Unit purchased
may be slightly different.
NOTE:
A guide to using the remote control
is included in this literature package.

Operating Temperature
NOTE:
1. Optimum performance will be achieved within these operating temperatures. If air conditioner is
used outside of the above conditions, certain safety protection features might come into operation
and cause the unit to function abnormally.
2. If the air conditioner runs for a long time in cooling mode and the humidity is high (over 80%),
condensed water may drip out of the unit. Please set the vertical air flow louver to its maximum
angle (vertically to the floor), and set HIGH fan mode.
Manual Operation:
Units are equipped with a switch to run emergency operation mode. It can be accessed by opening the
front panel. This switch is used for manual operation in case the remote control fails to work or
maintenance is necessary.
NOTE: The unit must be turned off before
operating the manual control button. If the unit is
operational, continue pressing the manual control
button until the unit is off.
1. Open and lift the front panel up to an angle until
it remains fixed with a clicking sound.
2. One press of the manual control switch will lead
to the forced AUTO operation. If the switch is
pressed twice within five seconds, the unit will
operate under forced COOL operation.
3. Close the panel firmly to its original position.
CAUTION:
• This switch is used for testing purposes only.
Please do not use it unless necessary.
• To restore the remote control operation, use the
remote control directly.
Page 4
Mode
Temperature
Room Temperature
Cooling Operation Heating Operation Drying Operation
62ºF~90ºF 32ºF~86ºF 50ºF~90ºF
(17ºC~32ºC) (32ºC~86ºC) (10ºC~32ºC)
32ºF~122ºF 5ºF~86ºF 32ºF~122ºF
(0ºC~50ºC) (-15ºC~30ºC) (0ºC~50ºC)
5ºF~122ºF/-15C~50ºC for models with low
temperature cooling system
2
Operating Instructions

Airflow Direction Control
• Adjust the air flow direction properly. Failure to do so
may cause discomfort or uneven room temperatures.
• Adjust the horizontal louver using the remote control.
• Adjust the vertical louver manually.
Adjusting vertical air flow (Up/Down)
Perform this function while the unit is in operation. Use
the remote control to adjust the vertical air flow
direction. The horizontal louver can move slightly for
each press or continuously swing up and down
automatically. Please refer to the Remote Control
Operation Manual for details.
Adjusting vertical air flow (Left/Right)
• Move the deflector rod manually to adjust the air flow
in the direction you prefer.
IMPORTANT: Do not put your fingers into the panel
of the blower and suction side. The high-speed fan
inside may cause injury.
• Do not operate the air conditioner for long periods
with the air flow direction set downward in cooling or
dehumidifying mode. Doing so may cause
condensation to occur on the surface of the horizontal
louver, resulting in moisture dropping onto the floor
and/or furnishings.
• After a quick restart, the horizontal louver may remain
static for approximately 10 seconds.
• Open angle of the horizontal louver should not be set
too small as Cooling or Heating performance may be
reduced due to an air flow area that is too restricted.
• Do not move the horizontal louver manually. Doing so
will result in the horizontal louver being out of sync.
Should this happen, please cease operating the unit,
power down the unit for a few seconds, then power
the unit back up to restart the air conditioner.
Page 5
CAUTION

How the Air Conditioner Works
Page 6

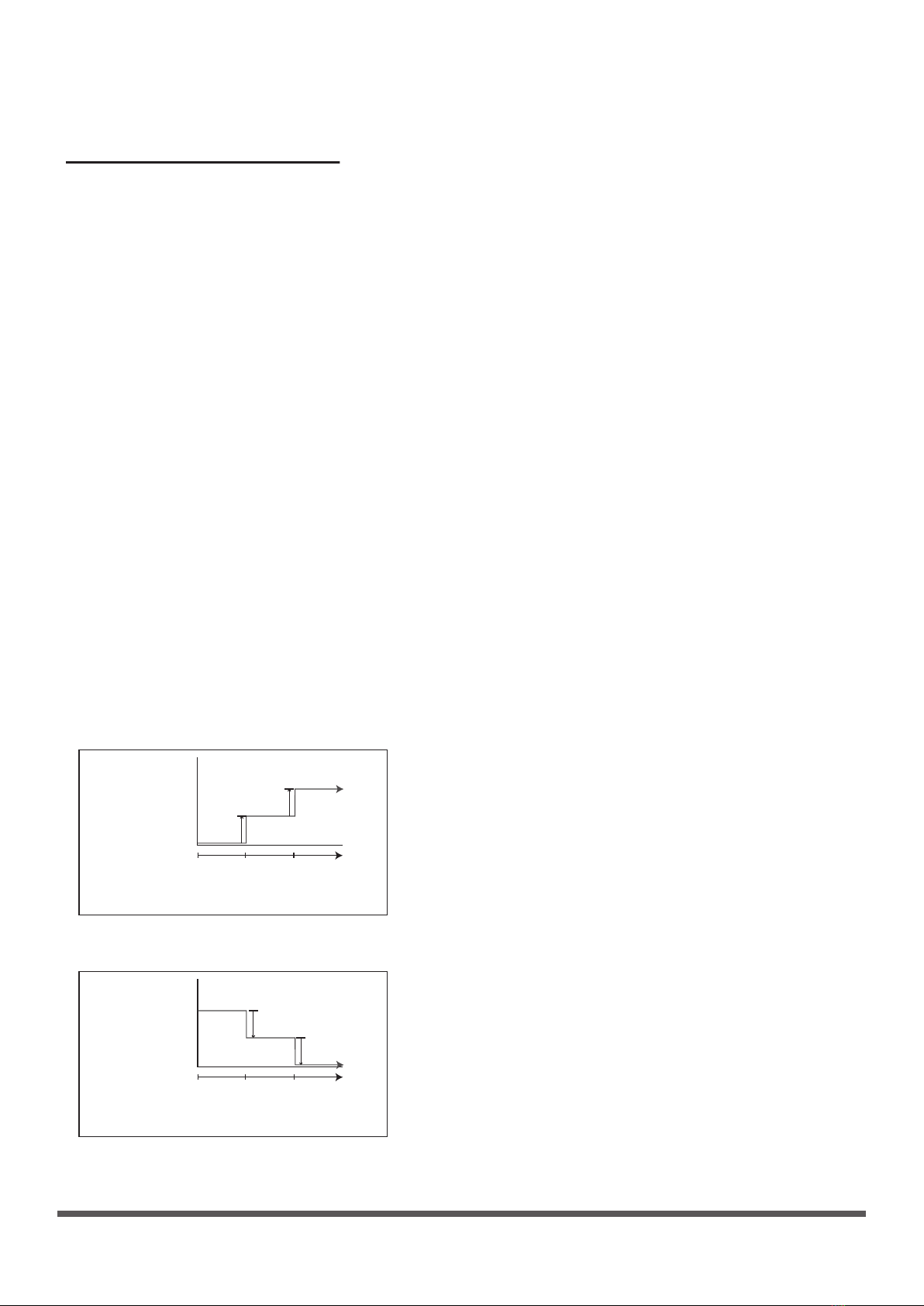

Sleep Operation - COOLING
Sleep Operation - HEATING
Set
Temperature 2ºF
2ºF
1 hr. 1 hr. 7 hrs.
Then timer
shuts off.
Set
Temperature 2ºF
2ºF
1 hr. 1 hr. 7 hrs.
Then timer
shuts off.
Basic Operation Modes:
AUTO / COOL / DRY / HEAT*
(*Model dependent)
AUTO operation
• When you set the air conditioner in AUTO
mode, it will automatically select cooling,
heating (models with heating function only), or
fan only operation depending on set
temperature and the room temperature.
• The air conditioner will control room
temperature automatically to the temperature
point you set.
• If you feel uncomfortable in the AUTO mode,
you can set your desired temperature at any
time in any mode.
SLEEP operation
• When selected, the set temperature will
increase (cooling) or decrease (models with
heating function only) by 2ºF (1ºC) per hour for
the first 2 hours. Thereafter, the new
temperature will be maintained for 5 hours
before switching off.
• This operation saves energy and improves
night-time comfort by synchronizing with the
body’s metabolism.
DRYING operation
• The temperature is regulated while
dehumidifying by cycling on and off of the
cooling operation or fan only. The fan speed in
DRYING mode is LOW.
HEATING operation - units with Heat Pump
• The air conditioning units with heat pump
operate on the heat pump principle, absorbing
heat from air outdoors and transferring that heat
to the indoor unit. As a result, the operating
performance is reduced as outdoor air
temperature drops. If you feel that the heating
performance is insufficient, we recommend that
you use this air conditioner in conjunction with
other kinds of heating appliances.
Optimal operation
To achieve optimal performance, please note the
following:
• Adjust the air flow direction correctly so that it is
not directly blowing toward people.
• Adjust the temperature to achieve moderate
comfort levels. Excessively low or high
temperature settings waste energy.
• Improve performance by keeping windows and
doors closed.
• Limit energy usage (run time) by using the timer
function.
• Do not put any object near air inlet or air outlet
as the efficiency of the air conditioner may be
reduced and may cause the air conditioner to
stop running.
• Inspect the air filters periodically and clean them
when needed.

Page 7
Special Functions
Refrigerant Leakage Detection
When refrigerant leakage is detected, the indoor
unit will display “EC” code or flash LEDs
(depending on model).
Louver Angle Memory Function
The minimum and maximum angle of the
horizontal louver is fixed. The unit has a memory
function and will return to the last position
selected. Never adjust the horizontal louver
angle manually. The louver angle memory
function does not apply when TURBO function
or manual control is selected.
Additionally, it is strongly suggested that the
opening of the horizontal louver not be set too
small in case condensation forms and drops
from the horizontal louver.
Auto-restart Function
In the event of a power interruption such as a
blackout, once power is restored, the unit will
restart automatically with all the previous
settings preserved by the memory function.
Self Clean Function
• Airborne bacteria uses the moisture on the
indoor heat exchanger to grow. Regular drying
of the exchanger prevents this growth. By simply
pressing the SELF CLEAN button, the system
will automatically manage the process. This
cleaning action may be done as frequently as
desired.
• For cooling models, only the indoor fan is active
in low speed for 30 minutes and the unit turns off
automatically once self clean session is
complete.
• For cooling and heating models, the unit will
operate in the following sequence:
Fan mode at Low fan speed Heating
operation with Low fan speed Fan operation
Stop operation Turn Off.
NOTE:
• This function can only be activated in COOLING
or DRY mode.
• It is recommended that the air conditioner be run
in the cooling operation for approximately 30
minutes before activating SELF CLEAN function.
• Pressing the SELF CLEAN or ON/OFF button
again during the cleaning cycle will cancel the
operation and turn the unit off.
Mute Operation
Pressing the LED button on the remote control
can turn off the indoor screen display and also
turn of the Air Conditioner buzzer to create a
quieter environment.

3
Care and Maintenance
Care and Maintenance
Before Maintenance
Turn the system off before cleaning. To clean, wipe with
a soft, dry cloth. Do not use bleach or abrasives.
NOTE: Power supply must be disconnected before
attempting to clean or service.
• Do not use a chemically treated cloth or duster to
clean the unit.
• Do not use benzine, thinner, polishing powder, or
similar solvents for cleaning. These may cause
the plastic surface to crack or deform.
• Never use water hotter than 104ºF (40ºC) to
clean the front panel. Doing so could cause
deformation or discoloration of the unit.
Page 8
CAUTIONS
Cleaning the Unit
Wipe the unit with a soft, dry cloth only. If the unit is
very dirty, wipe it with a cloth soaked in warm water.
Cleaning the Air Filter
A clogged air filter reduces the cooling efficiency of this
unit. Please clean the filter once every 2 weeks:
1. Open the front panel by carefully lifting both ends at
the same time. At a certain angle, a clicking sound is
heard and it becomes self-supporting. For some
models, please use the suspension bars to prop up
the panel.
2. Use the tab provided to move the filter first up a little,
then slightly towards you. Now extract the filter by
gently drawing it downwards.
3. Clean the large air filter with soapy water. Rinse with
fresh water. Shake off excess water and let it dry
COMPLETELY in a cool, dry place.

• Do not touch the metal parts of the unit when
removing the filter. Injuries can occur when
handling sharp metal edges.
• Do not use water to clean inside the air
conditioner. Exposure to water can destroy the
insulation, leading to possible electric shock.
• When cleaning the unit, first make sure that the
power and circuit breaker are turned off.
• Do not wash air filter with hot water at a
temperature greater than 104ºF (40ºC). Shake off
moisture and allow it to dry completely. Do not
expose the filter to direct sunlight. Doing so may
result in shrinking of the filter.
CAUTION
Care and Maintenance (cont.)
Page 9
Preparation for Extended Non-Operation
If you plan to idle the unit for a long time, perform the
following:
1. Clean the indoor unit and filters.
2. Operate the fan for about half a day to dry the inside
of the unit..
3. Stop the air conditioner and disconnect power.
4. Remove the batteries from the remote control.
5. The outdoor unit requires periodic maintenance and
cleaning. Do not attempt to do this yourself. Contact
your dealer or service provider.
Pre-season Inspection
• Damaged or disconnected wires.
• Clean the indoor unit and filters.
• Check for water or oil leaks.
• Check the air outlet and inlets for any blockages
after the air conditioner has not been used for a long
time. Address any blockages to aid in proper
functioning of the unit.

4
Troubleshooting
Page 10
Troubleshooting Tips
The following events may occur during normal operation and may not indicate malfunction.
Before calling for service, please review the chart below.
NOTE: A highly recommended troubleshoot for any issue in general consists of turning off unit and
powering the system off at disconnect or circuit breaker for 5 minutes.
a certified HVAC contractor.
certified HVAC contractor.

Troubleshooting Guide
Before calling for service, please review the chart below.
Page 11
certified HVAC contractor.
If the problem persist even after performing these checks or diagnostics, immediately stop operation
and contact a certified HVAC contractor. Be sure to inform them of the detailed malfunctions and unit
model number.

PA/Manual_Gen2MZMSHighWallUser/01152018
Specification and performance data is subject to change without notice.
Printed in China
Distributed by:
CLL,eriAtcefreP
5401 Dansher Rd.
Countryside, IL 60525
844-472-2473
www.perfectaire.us
