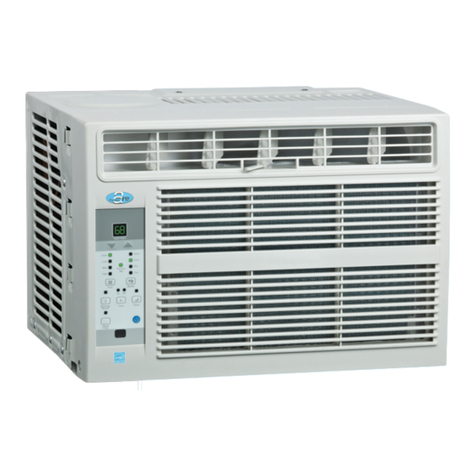

Perfect Aire 3PAC6000 User manual

6,000, 8,000, 10,000 & 12,000 BTU
Before using your window air
conditioner, please read this manual
carefully and keep it for future
reference, along with your receipt.
Your Source for Home Comfort
FOR MODELS:
3PAC6000
3PAC8000
3PAC10000
3PAC12000
3PAC12002
WINDOW
AIR CONDITIONER
USER MANUAL

1
CONTENTSCONTENTS
!CAUTION
SAFETY PRECAUTIONS ................................................................................. 2–3
IMPORTANT SAFETY INSTRUCTIONS ...............................................................4
NORMAL SOUNDS .............................................................................................. 5
AIR CONDITIONER FEATURES......................................................................5–9
INSTALLATION INSTRUCTIONS .................................................................10–13
CARE AND CLEANING.......................................................................................14
TROUBLESHOOTING TIPS ............................................................................... 15
This manual provides the information needed for proper use and maintenance of this air
conditioner. Basic preventative care can help extend the life of this unit. The “Troubleshooting
Tips” section in this manual contains a chart with solutions to the most common problems.
Referring to this section may save time and prevent the need for a service call in the event of
a problem.
● Contact an authorized service technician for repair or maintenance of this unit.
● Contact an installer for installation of this unit if necessary.
● The air conditioner is not intended for use by young children without supervision.
Young children should be supervised to ensure that they do not play with the air conditioner.
● Disabled persons may require assistance with set up.
● If the power cord is to be replaced, replacement work should be performed by authorized
personnel only.
● Installation and repair work must be performed in accordance with the national wiring
standards by authorized personnel only.
● Do not operate your air conditioner in a wet room such as a bathroom or laundry room.
NOTE: All the illustrations in this manual are for explanation purposes only. Unit purchased
may be slightly different.
The design and specifications are subject to change without prior notice for product
improvement. Contact customer service for details.

To prevent injury to the user or other people and property damage, the following instructions
must be followed. Incorrect operation due to ignoring of instructions may cause harm or
damage. The seriousness is classified by the following indications.
SAFETY PRECAUTIONS
This symbol indicates the possibility of death or serious injury.
Meanings of symbols used in this manual are as shown below.
!
Always do this.
Never do this.
CAUTION
This symbol indicates the possibility of injury or damage to property.
Plug in power plug properly.
Do not modify power cord
length or share the outlet with
other appliances.
Always ensure effective
grounding.
Always unplug the unit if
strange sounds, smell or
smoke comes from the unit.
Do not use firearms near unit.
Ventilate room before operating air conditioner
if there is a gas leak from another appliance
such as a stove.
Failure to do so may cause
electric shock or fire due to
excess heat generation.
Doing so may cause electric
shock or fire due to heat
generation.
Incorrect grounding may cause
electric shock.
Failure to do so may cause fire
and electric shock.
Doing so may cause fire.
Failure to do so may cause explosion,
fire and burns.
Doing so may cause electric
shock or fire due to heat generation.
Doing so may cause electric shock.
Doing so may cause failure of
machine or electric shock.
Doing so may cause fire and
electric shock.
Doing so may cause fire and
electric shock.
Doing so may cause electric shock
or fire. If the power cord is
damaged, it must be replaced by the
manufacturer or an authorized
service center or a similarly qualified
person in order to avoid a hazard.
This could cause health issues.
Incorrect installation may cause fire
and electric shock.
Doing so may cause electric shock.
Doing so may cause an explosion or fire.
Doing so may cause failure and
electric shock.
Do not operate or stop the unit
by inserting or pulling out the
power plug directly from the wall.
Do not operate with wet hands
or in damp environment.
Do not allow water to run into
electric parts.
Do not use the socket if it is
loose or damaged.
Do not use the power cord close
to heating appliances.
Do not use a damaged power
Do not direct airflow directly at
room occupants.
Always install circuit breaker
and a dedicated power circuit.
Do not open the unit during
operation.
Do not disassemble, modify,
or drill holes into the air
conditioner.
!
!
!
!
!
WARNING
! !
!
! !
!
cord.
Do not use the power cord near flammable gas
or combustibles, such as gasoline, benzene,
thinner, etc.
!
!!
!
!
WARNING
2

3
When removing air filter, do not
touch metal parts of the unit.
Doing so may cause an injury..
Cleaning unit when power is ON
may cause fire and electric shock
and may cause an injury.
Operation with windows open may
cause moisture to enter the room.
Stop operation and close the
window in severe storms or
hurricanes.
Do not clean with water.
Water may enter the unit and
degrade the insulation causing an
electric shock.
This could injure the pet or plant.
Failure to do so may cause electric
shock and damage.
Do not put a pet or house plant
where it will be exposed to
direct air flow.
Hold the plug by the head of the
power plug when taking it out.
Ensure proper ventilation
especially in rooms with a stove
or other appliances.
Failure to do so may result in an
oxygen shortage.
This unit is NOT intended to
preserve precision devices, food,
pets, plants, and art objects. It may
cause deterioration of quality, etc.
Leaving power on may cause unit
failure or fire.
Use only as intended.
If unit will not be used for a long
period of time, turn OFF main
power switch.
If water enters the unit, turn the unit off at the power
outlet and switch off the circuit breaker. Isolate supply
by taking the power-plug out and contact a qualified
serviced technician.
Obstacles may cause appliance
failure or accident.
Cleaners or detergents may change
the color or scratch the surface of
the unit.
Do not place obstacles around
air-inlets or inside of air-outlet.
Use only a soft cloth to clean
the unit.
Prolonged exposure to outdoor
elements may cause damage to
installation bracket causing unit to fall.
There is danger of electric shock.
Periodically check installation
bracket for damage.
.
Operation without secured filters
may cause failure. A dirty filter
can cause the unit to not run efficiently.
Water from unit contains
contaminants and could cause
illness.
Always insert the filters securely.
Clean filter AT LEAST once
every two weeks.
NEVER drink water drained from
air conditioner.
Unit and circuit breaker/fuse
must be switched OFF when
cleaning.
Do not place heavy objects on the power cord
and always ensure that the cord is not
compressed.
Use caution when unpacking
and installing.
Sharp edges could cause injury.
!!
!! !
!
!
!!
!
!
There is danger of fire or electric shock.
!
CAUTION
SAFETY PRECAUTIONS (CONTINUED)

r.
4
To reduce the risk of fire, electrical shock, or injury to persons when using your air conditioner, follow basic precautions,
including the following:
If the air conditioner is to be installed in a window, you will probably want to clean both sides of the glass first. If the window
is a triple-track type with a screen panel included, remove the screen completely before installation.
Be sure the air conditioner has been securely and correctly installed according to the installation instructions in this manual.
Save this manual for possible future use in removing or installing this unit.
When handling the air conditioner, be careful to avoid cuts from sharp metal fins on front and rear coils.
IMPORTANT SAFETY INSTRUCTIONS
Be sure the electrical service is adequate for the model you have chosen.
This information can be found on the serial plate, which is located on the
side of the cabinet and behind the grille.
Be sure the air conditioner is properly grounded. To minimize shock and fire
hazards, proper grounding is important. The power cord is equipped with a
three-prong grounding plug for protection against shock hazards.
Your air conditioner must be used in a properly grounded wall receptacle. If
the wall receptacle you intend to use is not adequately grounded or
protected by a time delay fuse or circuit breaker, have a qualified electrician
install the proper receptacle.
Ensure the receptacle is accessible after the unit installation.
Do not run air conditioner without side protective cover in place. This could
result in mechanical damage within the air conditioner.
WARNING!
DO NOT store or use gasoline or other flammable vapors or liquids in
the vicinity of this or any other appliance.
Avoid fire hazard or electric shock. DO NOT use an extension cord or
an adaptor plug. DO NOT remove any prong from the power cord.
WARNING!
NOTE The power supply cord with
this air conditioner contains a current
detection device designed to reduce
the risk of fire.
Please refer to the section "Operation
of Current Device" (below) for details.
In the event that the power supply cord
is damaged, it MUST be replaced by
an authorized repairman.

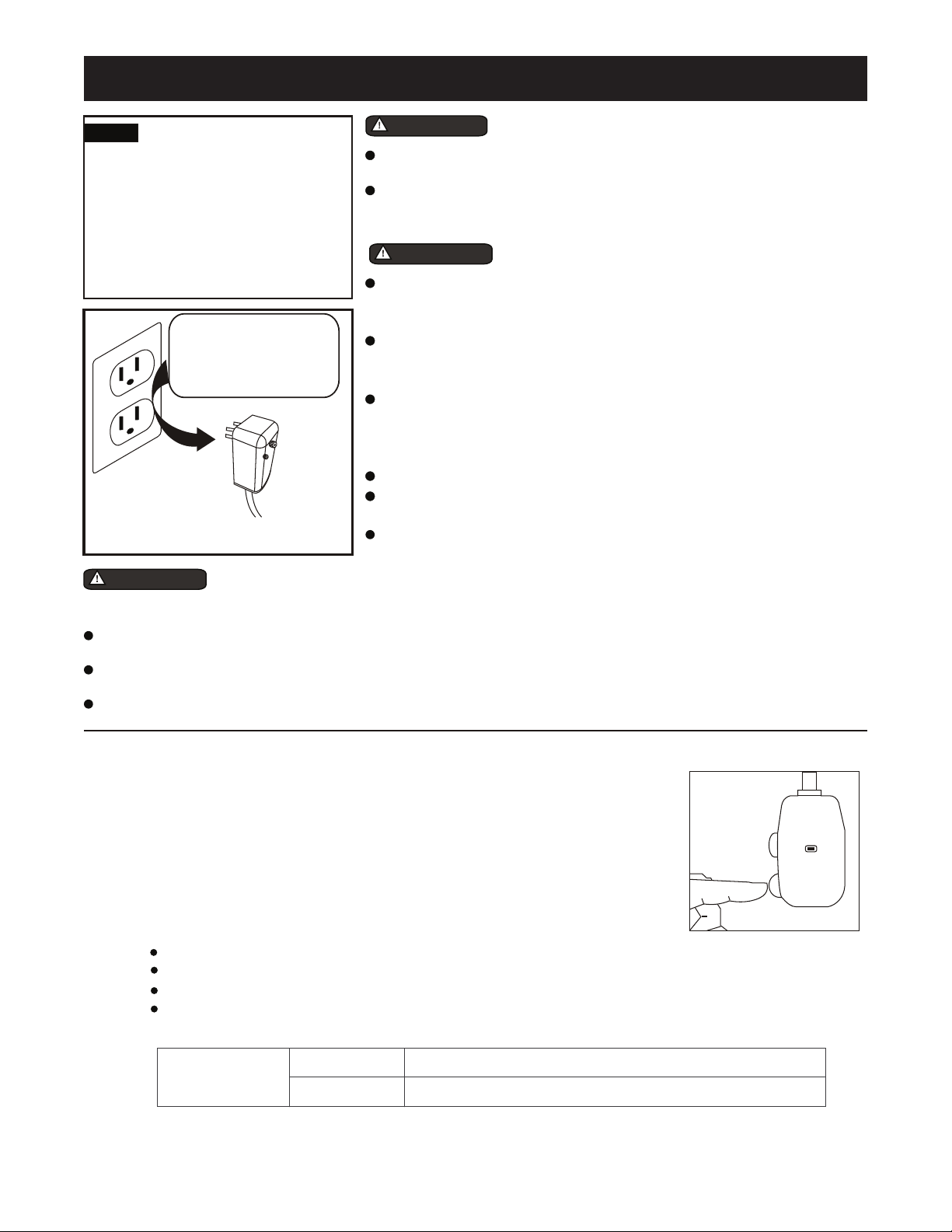

Operation of Current Device
1. Plug in the air conditioner.
2. The power supply cord will have TWO buttons on the plug head. Press the TEST
button. The RESET button will click as it pops out.
3. Press the RESET button; again you will notice a click as the button engages.
4. The power supply cord is now supplying electricity to the unit.
(On some products this is also indicated by a light on the plug head.)
NOTES:
Do not use this device to turn the unit on or off.
Always make sure the RESET button is pushed in for correct operation.
The power supply must be replaced if it fails to reset when either the TEST button is pushed or it cannot be reset.
If power supply cord is damaged, it cannot be repaired. Please call customer service to assist with replacement.
TEST
RESET
Plug in &
press RESET
NOTE: Some plugs have
buttons on the top.
DO NOT, under any
circumstances, cut,
remove, or bypass
grounding prong.
Power supply cord
with 3-prong grounding plug
and current detection device
The power supply cord contains a current device that senses damage to the power
cord. To test your power supply cord do the following:
NOTE: This air conditioner is designed to be operated under conditions as follows:
Performance may be reduced outside of these operating temperatures.
Cooling operation Outdoor temp: 18-43°C/64-109°F (18-52°C/64-125°F for special tropical models)
Indoor temp: 17-32°C/62-90°F
For Your Safety
Electrical Information
WARNING! Prevent Accidents
Do not use an extension cord or an adaptor plug.

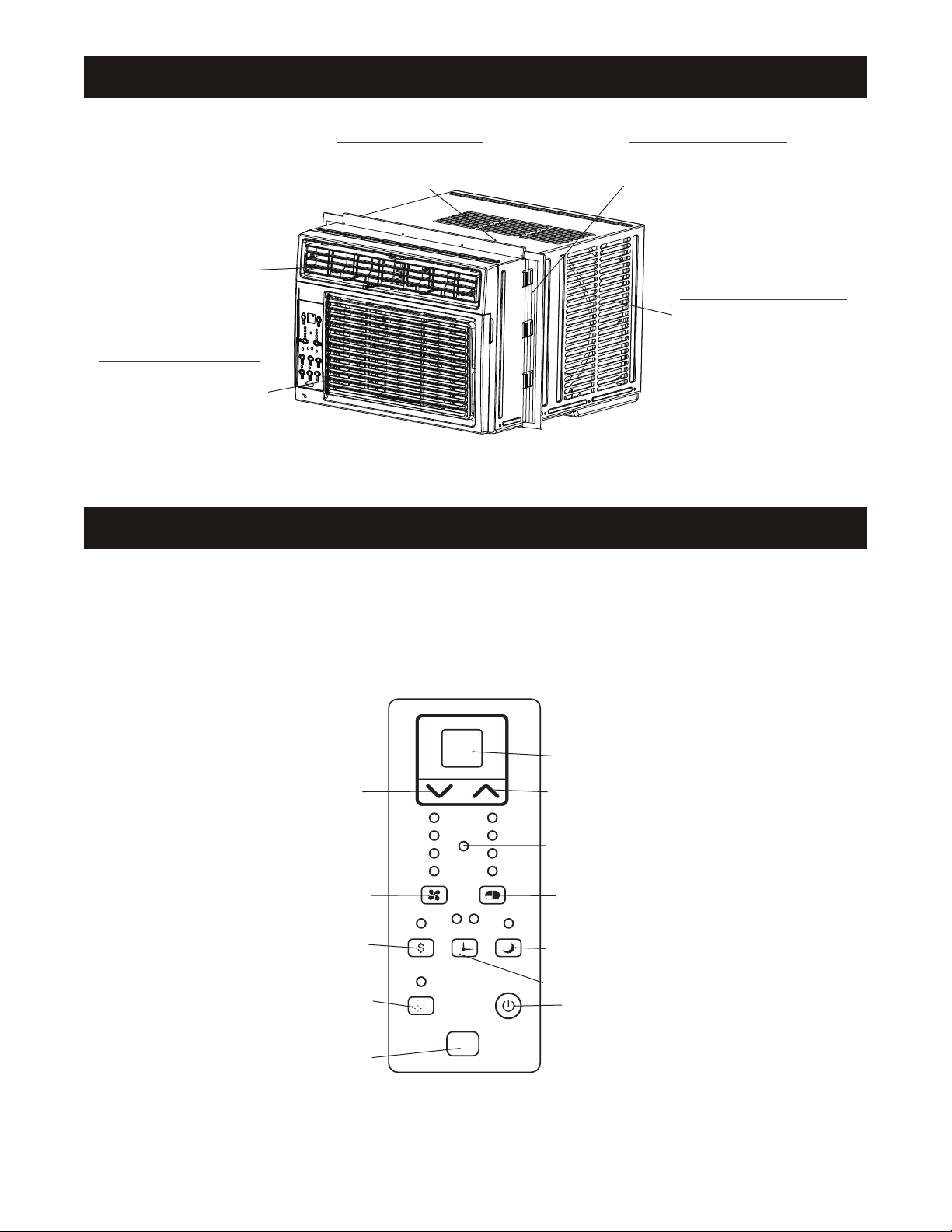

Thoroughly familiarize yourself with the control panel as shown below and all of its functions. Afterwards,
follow the symbol for the functions you desire BEFORE operating the unit. This unit can be controlled by
the unit control or with the remote control.
ELECTRONIC CONTROL OPERATING INSTRUCTIONS
5
NOTE: All of the pictures in this manual are for explanatory purposes only. The actual shape/look of the
air conditioner purchased may be slightly different, but the operations and functions are similar.
Sound of Rushing Air
At the front of the unit, the sound of
rushing air being moved by the fan
may be heard.
Gurgle/Hiss
“Gurgling” or “hissing” noise may
be heard due to refrigerant
passing through evaporator
during normal operation.
High Pitched Chatter
High efficiency compressors
may have a high pitched chatter
during the cooling cycle.
Vibration
Unit may vibrate and make noise
because of poor wall or window
construction or incorrect installation.
This DOES NOT indicate a
defective unit.
Pinging or Switching
Droplets of water hitting condenser
during normal operation may cause
“pinging” or “switching” sounds.
NORMAL SOUNDS
AIR CONDITIONER FEATURES
UNIT CONTROL
TURNS UNIT
ON OR OFF
SETS MODE
ADJUSTS
TEMPERATURE
OR TIME
SLEEP MODE
ACTIVATES
TIMER
ADJUSTS
TEMPERATURE
OR TIME
Low
Auto
Med
High
TEMP/TIMER
Auto
Cool
Dry
Fan
Fan Mode
On O
Sleep
Timer
Check
Filter
Energy
Saver
SETS FAN SPEED
CHECK FILTER
RESET BUTTON
ENERGY
SAVER MODE
REMOTE SIGNAL
RECEPTOR
Follow Me
DISPLAYS
TEMPERATURE
OR TIME OR ERROR CODES
FOLLOW ME INDICATOR

Low
Auto
Med
High
Auto
Cool
Dry
Fan
Fan Mode
On
O
Follow Me
Low
Auto
Med
High
TEMP/TIMER
Auto
Cool
Dry
Fan
Fan Mode
On O
Sleep
Timer
Check
Filter
Energy
Saver
Follow Me
NOTE: The following instructions represent the Unit Controls,the same instructions can be used
for the Remote Control.
6
TO TURN UNIT ON:
TO CHANGE TEMPERATURE SETTING:
Press the
On/Off button.
DO THIS:
Press to raise
DO THIS:
Press to lower
Press or hold either Up ( ) or Down ( ) button
until the desired temperature is seen on the
display. This temperature will be automatically
maintained anywhere between 62ºF (17ºC) and
86ºF (30ºC). If you want the display to read
the actual room temperature, see “To Operate
on Fan Only” section.
NOTE: (UP/DOWN button)
TO ADJUST FAN SPEEDS:
Press “Fan” to
select fan speed
DO THIS:
NOTE: (FAN button)
There are four (4) fan speeds: “Auto,” “Low,”
“Med” or “High.” Each time the button is pressed,
the fan speed mode is shifted. On “Dry” mode
the fan speed is controlled at low automatically.
NOTE: The unit will automatically initiate the
Energy Saver function under “Cool,” “Dry” and
“Auto” (only Auto-Cooling and Auto-Fan) modes.
AIR CONDITIONER FEATURES (CONTINUED)

Fan Mode
On O
Sleep
Timer
Check
Filter
Energy
Saver
7
TO SELECT THE
OPERATING MODE:
Press the
“Mode” button.
DO THIS:
TO USE THE ENERGY
SAVER FEATURE:
Press the
“Energy Saver”
button
DO THIS:
SLEEP FEATURE:
Press “Sleep”
button
DO THIS:
In this mode the selected temperature will increase by
2OF/1(or 2)OC 30 minutes after the mode is selected. The
temperature will then increase by another 2OF/1(or 2)OC
after an additional 30 minutes. This new temperature
will be maintained for 6 hours before it returns to the
originally selected temperature. This ends the Sleep
mode and the unit will continue to operate as originally
programmed. The Sleep mode program can be
cancelled at any time during operation by again
pressing the “Sleep” button.
NOTE: SLEEP button
To choose operating mode, press the “Mode” button.
Each time you press the button, a mode is selected
in a sequence that goes from “Auto,” “Cool,” “Dry,”
and “Fan.” The indicator light will be illuminated and
remain on once the mode is selected. The unit will
automatically initiate the Energy Saver function
under “Cool,” “Dry,” and “Auto” (only Auto-Cooling
and Auto-Fan) modes.
NOTE: MODE button
To operate on “Auto” feature:
To operate on “Fan” only (not available on all models):
Use this function only when cooling is not desired,
such as for room air circulation or to exhaust stale
air. (Remember to open the vent during this function,
but keep it closed during cooling for maximum cooling
efficiency.) You can choose any fan speed you prefer.
During this function, the display will show the actual
room temperature, not the set temperature as in the
cooling mode.
NOTE: ENERGY SAVER button
To operate on “Dry” mode:
In this mode, the air conditioner will reduce air humidity.
If the space is a closed or sealed area, some degree of
cooling will continue.
When you set the air conditioner in “Auto” mode, it will
automatically select cooling, heating (on models with heating
capabilities), or fan only operation depending on what
temperature you have selected and the room temperature.
The air conditioner will control room temperature
automatically around the temperature you set.
In this mode, the fan speed cannot be adjusted.
It starts automatically at a speed according to the
room temperature. If the room does not get too warm,
it will stay at “Low” speed.
This function is available on “Cool,” “Dry,” and “Auto”
(only Auto-Cooling and Auto-Fan) modes. In this
mode,the fan will continue to run for 3 minutes after the
compressor shuts off.The fan then cycles on for 2
minutes,at 10 minute intervals, until the room
temperature is above the set temperature, at which
time the compressor turns back on and cooling starts.
AIR CONDITIONER FEATURES (CONTINUED)
Fan Mode
On O
Sleep
Timer
Check
Filter
Energy
Saver
Low
Auto
Med
High
Auto
Cool
Dry
Fan
Fan Mode
On O
Follow Me

On O
Sleep
Timer
Check
Filter
Energy
Saver
Fan Mode
On O
Sleep
Timer
Check
Filter
Energy
Saver
8
TIMER: AUTO START/
STOP FEATURE:
Press “Timer”
button
DO THIS:
CHECK FILTER FEATURE:
Press “Check
Filter” button
DO THIS:
FOLLOW ME FEATURE:
NOTE: TIMER button
First press the “Timer” button. The indicator light
beside the word “On” will illuminate indicating the Auto
Start program is on.
Press or hold the Up or Down Temp/Timer arrows to
change the Auto time by 0.5 hour increments, up to 10 hours,
then at 1 hour increments up to 24 hours.
The control will count down the time remaining until start.
The selected time will register for 5 seconds and the
system will automatically revert back to display the previous
temperature setting.
When the “Timer On” is displayed, press the “Timer” button
again and the “Timer Off” indicator light illuminates. It indicates
the Auto Stop program is initiated.
Turning the unit on or off at any time or adjusting the timer setting
to 0.0 will cancel the Auto Start/Stop function.
This feature is a reminder to clean the Air Filter for
more efficient operation. The LED (light) will illuminate after
250 hours of operation. To reset after cleaning the filter, press
the “Check Filter” button and the light will go off.
NOTE: CHECK FILTER button
NOTE: FOLLOW ME indicator light
To activate the Follow Me feature, point the remote control
towards the unit and press the “Follow Me” button. The remote
displays the actual temperature at its location. The remote control
will send this signal to the air conditioner every 3 minutes
until the “Follow Me” button is pressed again. If the unit does
not receive the “Follow Me” signal during any 7 minute interval,
the unit will beep to indicate the Follow Me mode has ended.
The actual temperature can be displayed at the unit by
pressing the “Fan” only mode. When in the “Cool” mode, the
unit display indicates the set temperature.
This feature can ONLY be activated from the remote control.
The remote control serves as a remote thermostat allowing for
precise temperature control at its location.
AIR CONDITIONER FEATURES (CONTINUED)
Low
Auto
Med
High
Auto
Cool
Dry
Fan
Fan Mode
On
O
Follow Me
Light flashing

TEMP/TIMER
On
Off
Sleep
Timer
Check
Filter
9

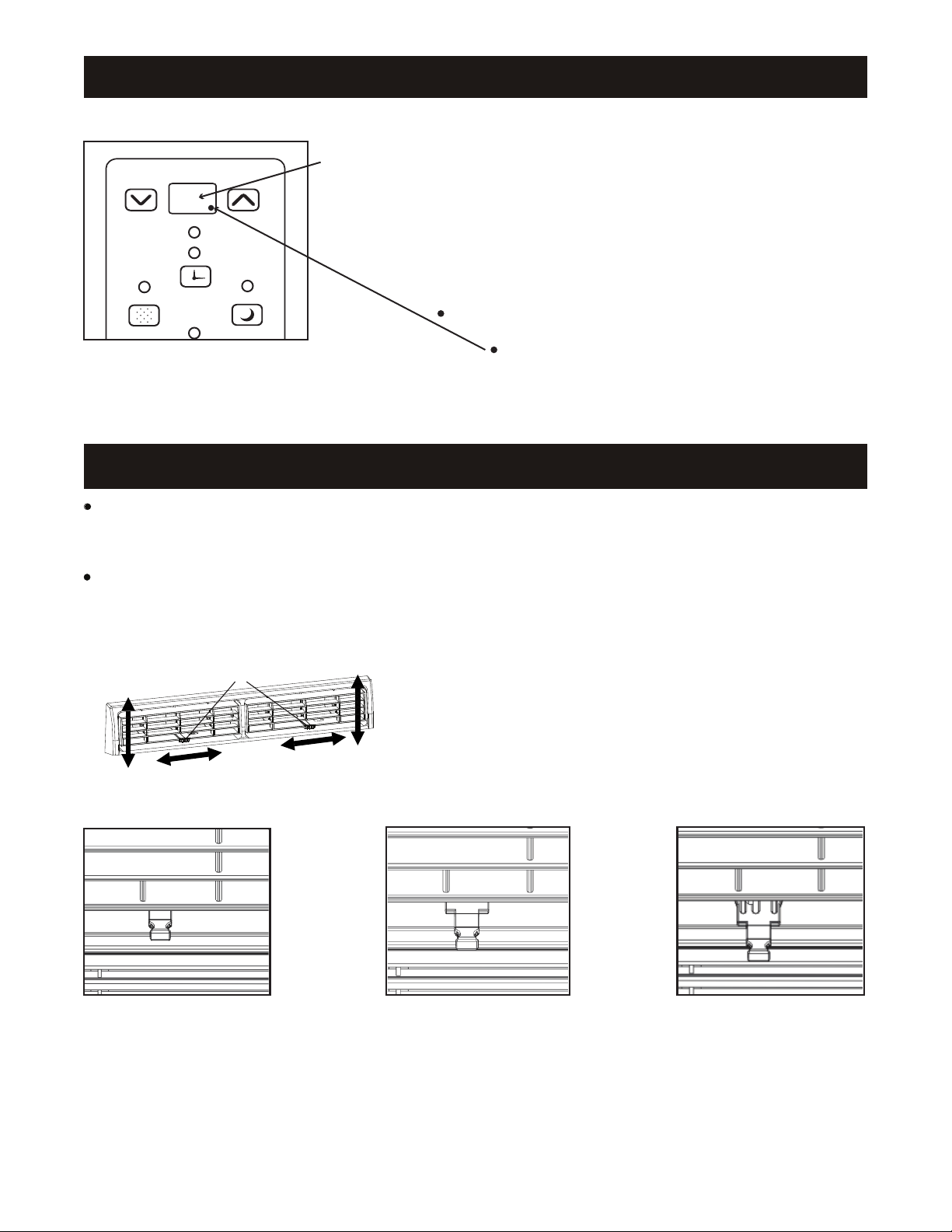

DISPLAYS:
Displays
3. Exchange air from the room and draw fresh air into
the room - Vent and Exhaust Open (see Fig. C)
AIR CONDITIONER FEATURES (CONTINUED)
NOTE: If the unit breaks off unexpectedly due to power being cut, it will restart with the previous function setting
automatically when the power resumes.
Error Codes:
AS - Room temperature sensor error - Unplug the unit and
plug it back in. If error repeats, call customer service.
NOTE: If an error code occurs in “Fan” only mode, unit will
display “LO” (loose connection) or “HI” (short circuit).
- Evaporator temperature sensor error - Unplug the unit
and plug it back in. If error repeats, call customer service.
(“ ” is displayed as shown in left picture.)
HS - Electric heating sensor error -Unplug the unit and
plug it back in. If error repeats, call customer service.
NOTE: DISPLAYS
The display shows the set temperature in “°C” or “°F” and
the Auto-timer settings. While on “Fan” only mode, it shows
the room temperature.
ADDITIONAL THINGS YOU SHOULD KNOW
The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius.
To convert from one to the other,press and hold the Up and Down Temp/Timer buttons at the
same time,for 3 seconds.
The Cool circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly.
After unit is turned off, leave unit off for a minimum of 3 minutes before attempting to turn back on. This prevents
overheating of the compressor and possible circuit breaker tripping. The fan will continue to run during this time.
Fresh Air Vent Control (on 10,000 - 12,000 BTU models):
Air Directional Louvers
The Fresh Air Vent allows the air conditioner to:
1. Recirculate inside air - Vent Closed (See Fig.A)
2. Draw fresh air intothe room - Vent Open (see Fig.B)
3. Exchange air from the room and draw fresh air into
the room - Vent and Exhaust Open (see Fig. C)
HOW TO USE:
Use the 4-way directional louvers to direct the air flow
up or down and left or right throughout the room as
needed. Pivot horizontal louvers until the desired up/
down direction is obtained.
Move the levers from side to side until the desired
left/right direction is obtained.
Figure A
(VENT CLOSED)
Figure B
(VENT OPEN)
Figure C
(VENT & EXHAUST OPEN)
Levers
Air
Direction

10
INSTALLATION INSTRUCTIONS
Read these instructions completely
and carefully.
IMPORTANT- Save these instructions.
IMPORTANT- Observe all
governing codes and ordinances.
Note to Consumer- Keep these
instructions for future reference.
Note to Installer- Be sure to leave these
instructions with the Consumer.
Completion time- Approximately 1 hour.
Skill level- Installation of this appliance
requires basic mechanical skills.
We recommend that two people install
this product.
Proper installation is the responsibility
of the installer.
Product failure due to improper installation
is not covered under the Warranty.
You MUST use all supplied parts and use
proper installation procedures as described
in these instructions when installing this air
conditioner.
BEFORE YOU BEGIN
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
CAUTION
Do not change the plug on the power cord
of the air conditioner.
Aluminum house wiring may present special
problems- consult a qualified electrician.
When handling unit, be careful to avoid cuts from
sharp metal edges and aluminum fins on front and
rear coils.
TOOLS YOU WILL NEED
Phillips
Screwdriver
Level
TOOLS YOU MAY USE
Screwdriver
Pencil
Ruler or tape measure
Scissors or knife
NOTE: Save carton and these Installation Instructions for future reference.
The carton is the best way to store unit during winter or when not in use.

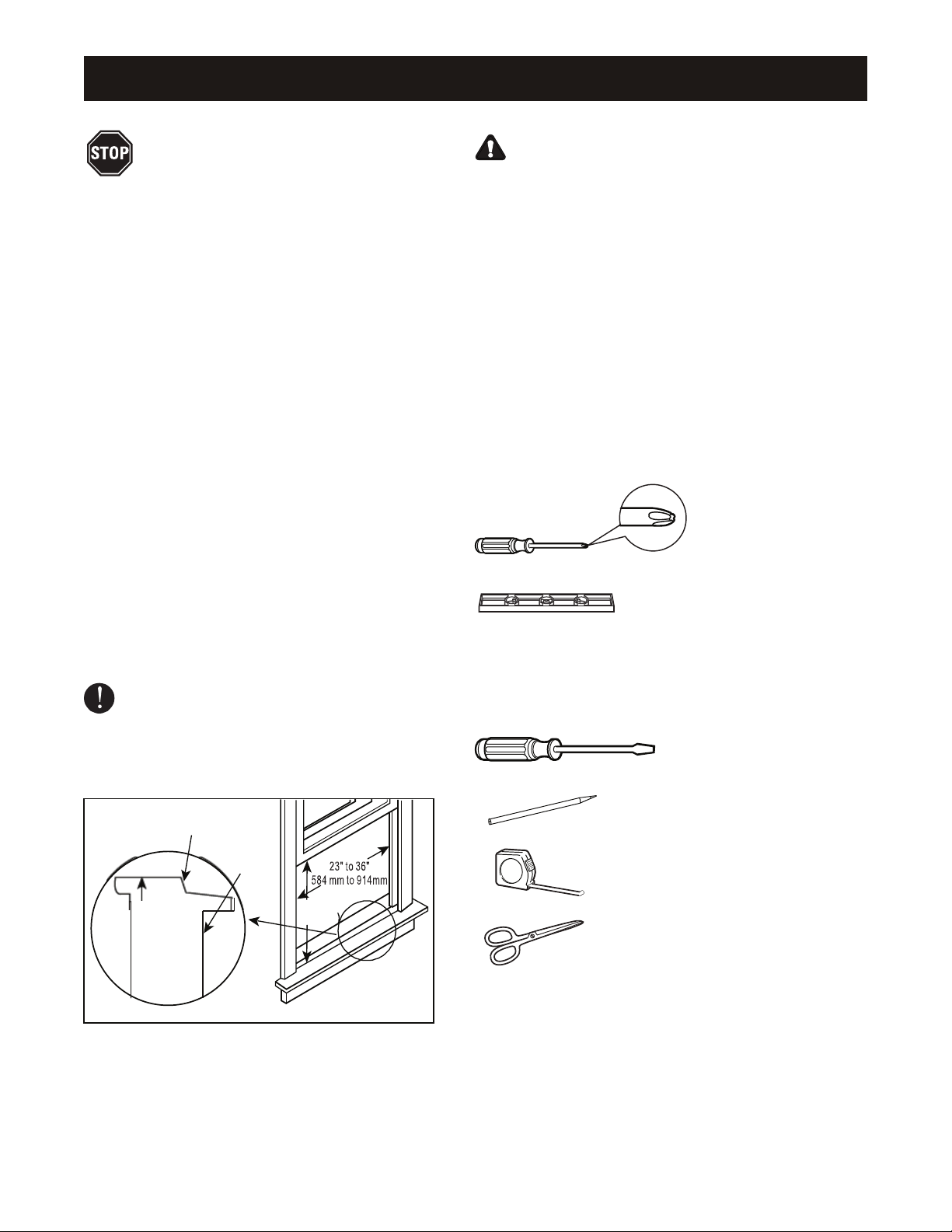

WINDOW REQUIREMENTS
Your air conditioner is designed to install in
standard double hung windows with opening
widths of 23 to 36 inches (584 mm to 914 mm).
NOTE: H = vertical opening. See Table 1 on next page.
INNER
Wooden Windows
OFFSET
H
INTERIOR
WALL
EXTERIOR
WALL
INNER
WINDOW
SILL

11
INSTALLATION INSTRUCTIONS (CONTINUED)
PREPARE THE WINDOW
1
3/4 (or 1/2 )
Screws
(7)
Lock Frame
(2)
Sash Lock
(1)
Mounting Hardware
Window sash
seal foam
(1)
PREPARE AIR CONDITIONER
2
C: Align the hole in the top rail with those in the
top of the unit as shown in Fig.B
D: Secure the top rail to the unit with the 3/8"
screws as shown in Fig.C.
NOTE: For safety reasons, all four(4) screws
MUST be securely fastened.

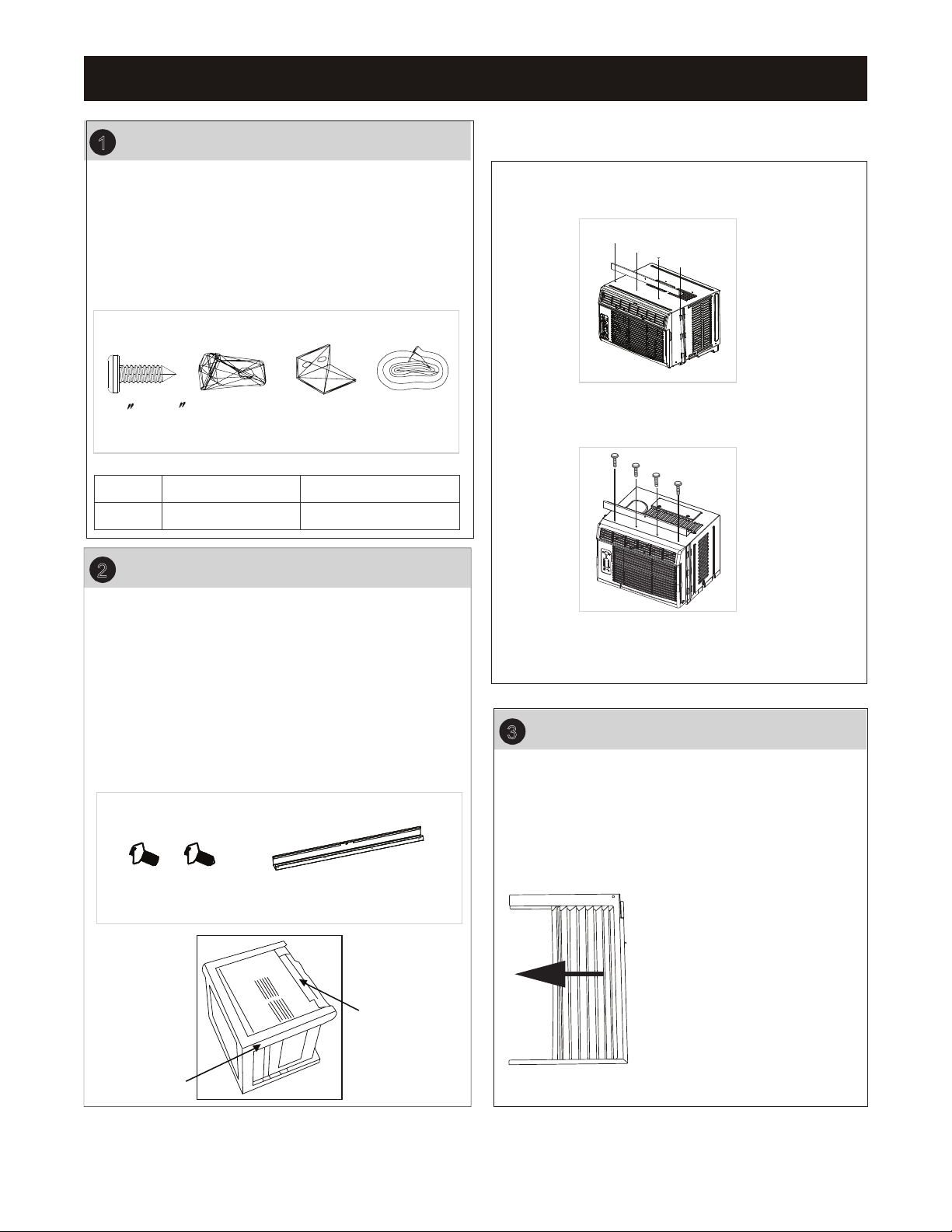

INSTALL THE ACCORDION PANELS
3
NOTE: Top rail and sliding panels on each side
are offset to provide the proper pitch of 5/16" to
the rear. This is necessary for proper condensed
water utilization and drainage. If you are not
using the side panels for any reason, this pitch to
the rear must be maintained.
A.Place unit on floor, a bench
or a table. Hold the
accordion panel in one
hand and gently pull back
the center to fill the
open end. See Fig.1.
Fig.1
Lower sash must open sufficiently to allow a clear
vertical opening (H) of the following size. (See
Table 1 below.) Side louvers and the rear of the AC
must have clear air space to allow enough airflow
through the condenser for heat removal. The rear
of the unit must be outdoors, not inside a building
or garage.
A: Remove the air conditioner from the carton and
place on a flat surface.
NOTE: The top rail hardware and Fig. A, Fig. B,
and Fig. C are not applicable to the units
10,000 BTU/h or greater. For models less than
10,000 BTU/h, the top rail must be assembled.
B: Remove top rail from the rear of the packaging
material as shown in Fig. A.
Packaging
Fig. A
Top Rail
Fig.C
Top Rail Hardware
3/8"Screws
(4)
Top Rail
(1)
oror
Model
Size (H)
5000~8000 Btu/h 10000~12000 Btu/h
14” (356 mm) 15-1/2” (394 mm)
Table 1
Fig.B

12

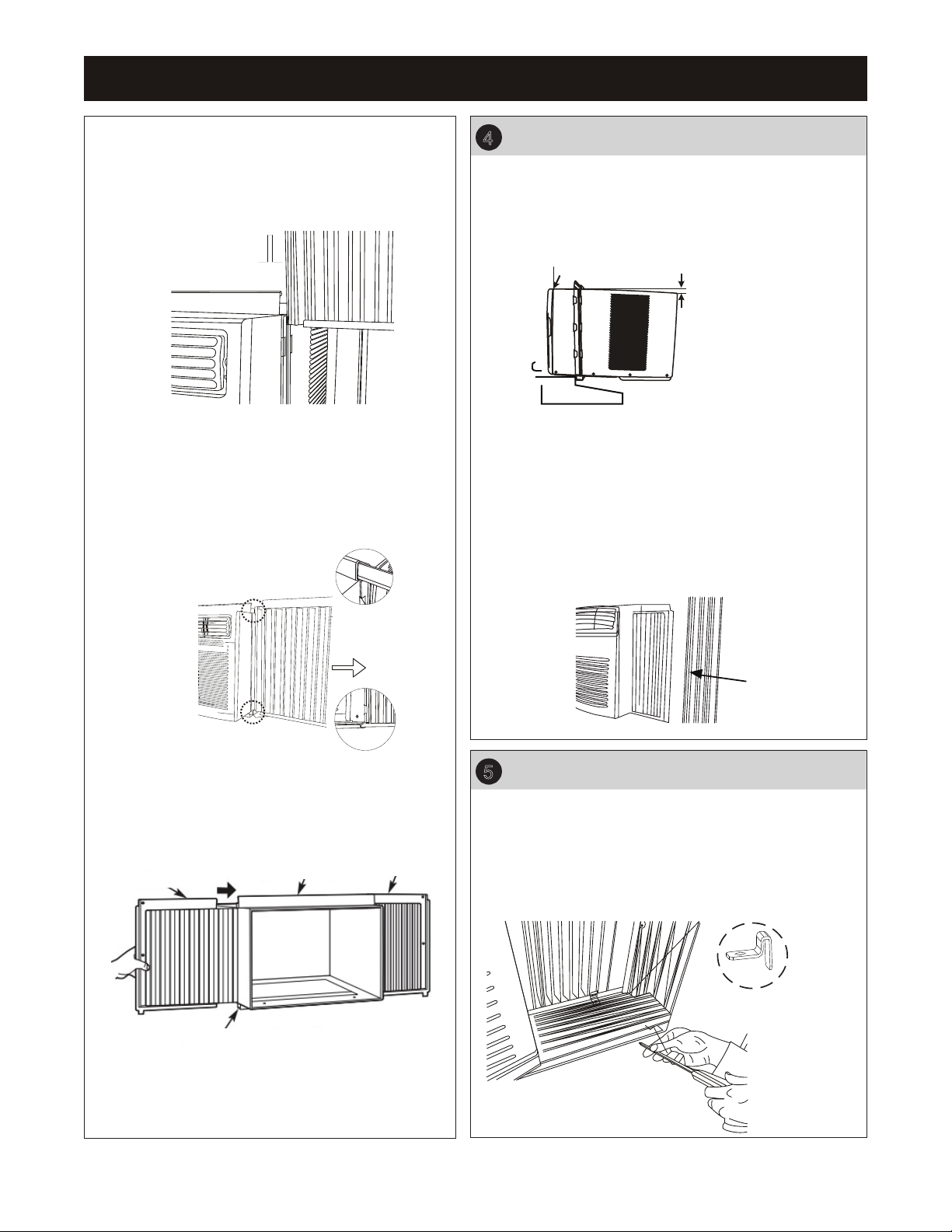

SECURE THE ACCORDION PANELS
4
B. Slide the free end "｢" section of the panel
directly into the cabinet as shown in Fig. 2.
Slide the panel down. Be sure to leave
enough space to slip the top and bottom of
the frame into the rails on the cabinet.
Fig. 2
"｢"section
C. Once the panel has been installed on the
side of the cabinet, make sure it sits securely
inside the frame channel by making slight
adjustments. Slide the top and bottom ends
of the frame into the top and bottom rails of
the cabinet. Fig. 3.
D. Slide the panel all the way in and repeat
on the other side.
Top Rail
Bottom Rail
Fig. 3
A. Keeping a firm grip on the air conditioner,
carefully place the unit into the window opening so
the bottom of the air conditioner frame is against
the window sill (Fig. 5). Carefully close the window
behind the top rail of the unit.
Fig. 5
NOTE: Check that air conditioner is tilted back
approximately H (Fig. 5 above) (tilted about 3
O
to 4
O
downward to the the outside). If, after proper
installation, condensation does not drain from the
overflow drain hole during normal use, adjust slope.
B. Extend the side panels out against the window
frame (Fig. 6).
window
frame
Fig. 6
INSTALL SUPPORT BRACKET
5
A. Place the frame lock between the frame
extensions and the window sill as shown in Fig. 7.
Drive 3 / 4" (19 mm) or 1/2 " (12.7 mm) locking
screws through the frame lock and into the sill.
NOTE: To prevent window sill from splitting,drill
1/8" (3 mm) pilot holes before driving screws.
Fig. 7
NOTE: If storm window blocks AC, see Fig. 11.
Top Rail
Bottom Rail
Top left
Top right
Fig. 4
Wooden Windows
INSIDE
OUTSIDE
H: Approx. 3/4” to 1” for
5,000-8,000 BTU units
H: Approx. 1” to 1 3/8” for
10,000-12,000 BTU units
H
Measure from the cabinet edge
INSTALLATION INSTRUCTIONS (CONTINUED)

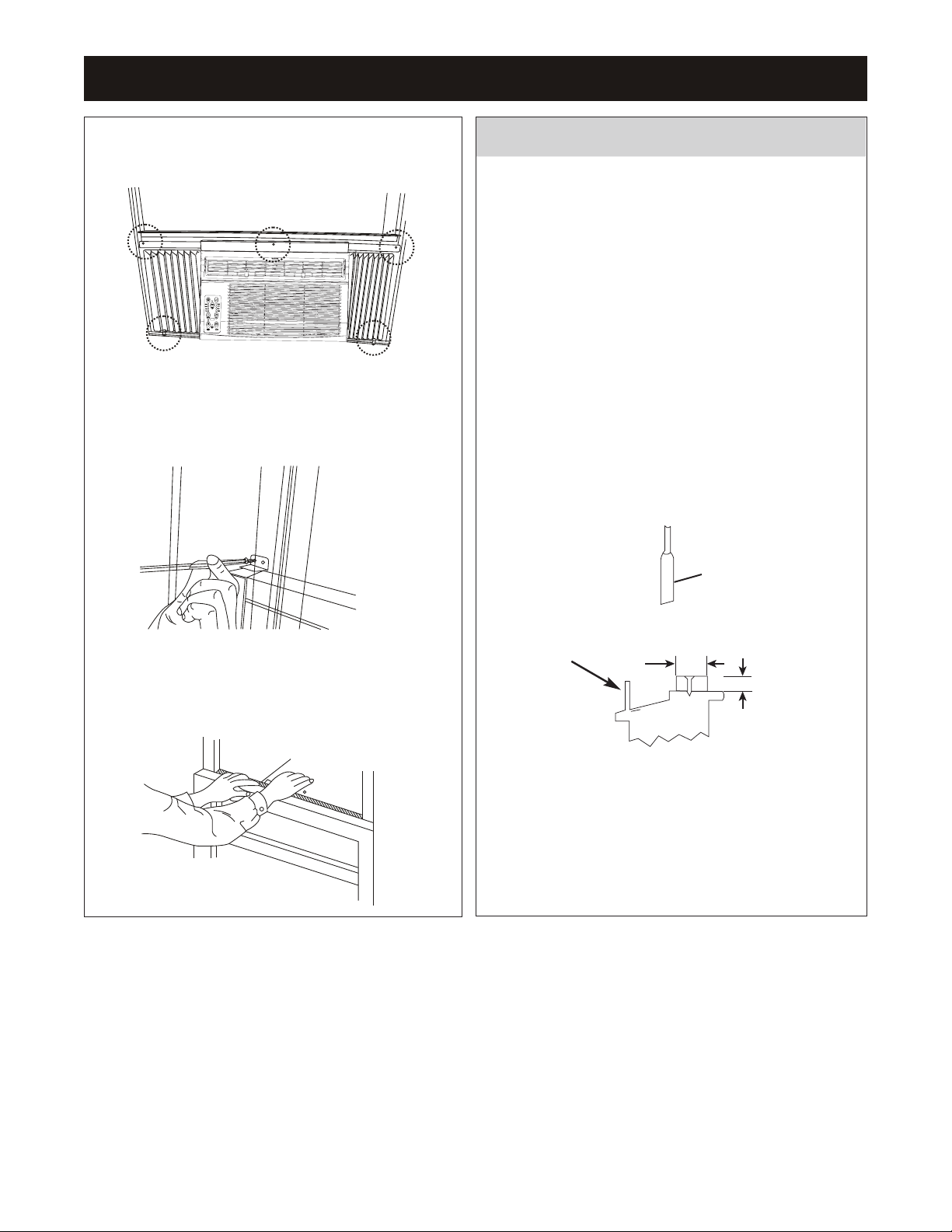

B. Drive 3/4" (19 mm) or 1/2" (12.7 mm)
locking screws through frame holes into window
sash (Fig. 8).
Fig. 8
C. To secure lower sash in place, attach right
angle sash lock with 3/4" (19 mm) or 1/2"
(12.7 mm) screw as shown (Fig. 9).
Fig. 9
D. Cut Window sash seal foam and insert it in the
space between the upper and lower sashes
(Fig. 10).
Fig. 10
FOAM SEAL
If AC is Blocked by Storm Window
Add wood as shown in Fig.11, or remove storm
window before air conditioner is installed.
If storm window frame must remain, be sure the
drain holes or slots are not caulked or painted shut.
Accumulated rain water or condensation must be
allowed to drain out.
Removing AC From Window
● Turn AC off, and disconnect power cord.
● Remove sash seal from between windows, and
unscrew safety sash lock.
●Remove screws installed through frame and
frame-lock.
● Close (slide) side panels into frame.
● Keeping a firm grip on air conditioner, raise sash
and carefully remove.
●Be careful not to spill any remaining water
while lifting unit from window. Store parts WITH
air conditioner.
Board
thickness
as required,
for proper
pitch to rear,
along entire
sill. Fasten
with nails or
screws.
Fig. 11
Storm window
frame or other
obstruction.
SASH
1-1/2" min
(38 mm)
INSTALLATION INSTRUCTIONS (CONTINUED)
13

CARE AND CLEANING

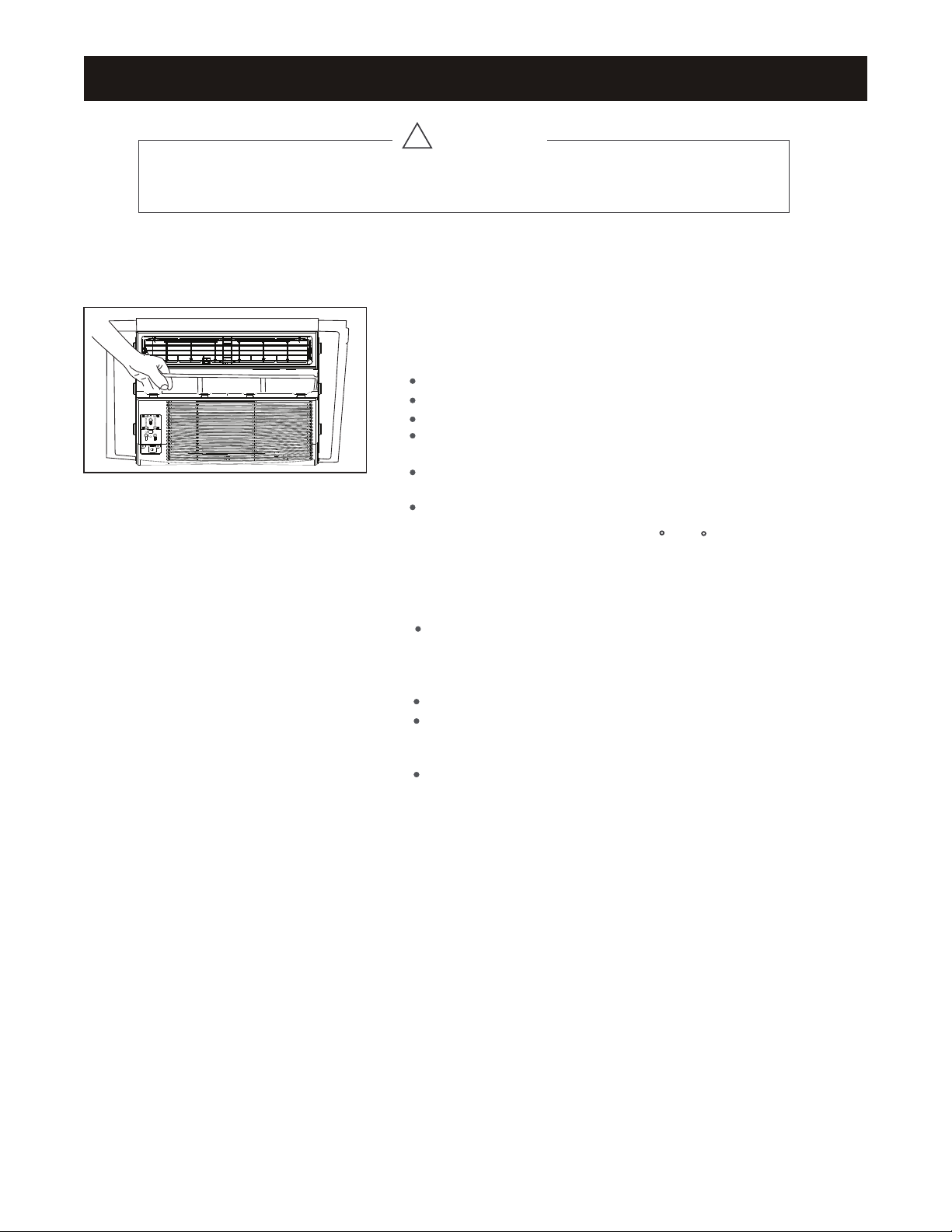

Air Filter Cleaning
The air filter should be cleaned at least every two weeks or as
necessary. Trapped particles in the filter can build up and cause an
accumulation of frost on the cooling coils.
Push the vent handle to the Vent Closed position (where applicable).
Open the front panel.
Grasp the filter by the center and pull up and out.
Wash the filter using liquid dishwashing detergent and warm water.
Rinse filter thoroughly.
Gently shake excess water from the filter. Be sure the filter is
thoroughly dry before replacing.
As an alternative to washing the filter, vacuum the filter clean.
NOTE: Never use hot water over 104 F (40 C) to clean the air filter.
Never attempt to operate the unit without the air filter.
Be sure to unplug the air conditioner to prevent shock or fire
hazard. The cabinet and front may be dusted with an oil-free
cloth or with a cloth dampened in a solution of warm water and
mild liquid dishwashing detergent. Rinse thoroughly and wipe dry.
Never use harsh cleaners, wax or polish on the cabinet front.
Be sure to wring excess water from the cloth before wiping the
controls. Excess water in or around the controls may cause
damage to the air conditioner.
Plug in air conditioner after unit has dried completely.
If air conditioner will be stored during the winter, remove it
carefully from the window according to the installation
instructions. Cover it with plastic or return it to the original
carton. Always store unit in upright position.
Winter Storage
Cabinet Cleaning
!
CAUTION
N
Clean air conditioner occasionally to keep it looking and operating like new. Be sure to
unplug the unit before cleaning to prevent shock or fire hazards.
14

AIR
CONDITIONER NOT
COOLING ROOM, OR NOT
BLOWING COLD AIR
• Be sure unit is not too large or too small for the area of the room.
• Verify that all doors, windows, curtains and any other openings are closed off. Verify nothing is obstructing the
front grille of unit, such as curtains, etc.
• Allow enough time for room to cool, especially if outside temp is very high.
• Check that the filter is not dirty and louvers are open all the way and blowing in the direction desired.
• Check that unit is set to Cool Mode and that temperature is down enough (but not too low).
• If unit is near a heat source, such as a stove, etc., then relocate unit.
• If air coming from unit is cool to the touch, then unit is working properly; please double check the first three
bullet points above.
• If using Follow Me remote feature, move remote away from unit.
• Temperature sensor behind air filter touching cold coil. These two elements should not be touching.
Carefully straighten tube away from coil.
• Unplug unit for at least 5 minutes. Follow Reset instructions on plug.
AIR CONDITIONER
CYCLING ON AND OFF TOO
FREQUENTLY OR NOT ENOUGH
• Be sure unit is not too large or too small for the area of the room.
• Remove grille and make sure the temperature sensor is not too close to the coils. These two elements should
not be touching. Carefully straighten tube away from coil.
• Make sure nothing is blocking the grille or side vents.
• Make sure there is no dirt or debris inside the unit or on the filter.
AIR CONDITIONER COOLING BUT
ROOM IS TOO WARM - ICE
FORMING ON COOLING COIL
BEHIND DECORATIVE FRONT
• Outdoor temperature is below 64ºF (18ºC). To defrost the coil, set to Fan Only mode.
• Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost, set to Fan Only mode.
• Thermostat is set too cold for night-time cooling. To defrost the coil, set to Fan Only mode. Then, set
temperature to a higher setting.
UNIT WILL NOT TURN ON
• Reset circuit breaker. Make sure there are not too many items (ie lamps, TV’s, etc.) working off the
same breaker.
• Check plug connection.
• If plug is operating on an on/off switch, be sure that the switch is ‘on’.
• Try plugging unit into another outlet.
• Unplug unit for at least 5 minutes. Follow Reset instructions on plug.
UNIT BLOWS FUSES OR POPS
CIRCUIT BREAKER
• Make sure there are enough available amps on the circuit for the air conditioner.
• Large units which run on a 230v will require a dedicated 20 or 30 amp circuit.
WATER DRIPPING OUTSIDE • Unit is removing a large quantity of moisture from a humid room. This is normal during excessively humid days.
WATER PUDDLES INSIDE UNIT
OR IS COMING INTO ROOM
• Adjust the slope of the unit so that it drains downward toward the exterior of the home.
(See Installation Instructions.)
• Make sure that there is no debris blocking the drainage area of the unit.
REMOTE SENSING / FOLLOW ME
DEACTIVATING PREMATURELY
• Remote control not located within range. Place remote control within 20 ft and 180º radius of the front
of the unit.
• Remote control signal obstructed. Remove obstruction.
Issue Possible Solutions
AIR CONDITIONER IS
MAKING NOISES
• Check to be sure the unit is free from debris such as leaves, sticks, etc. Verify nothing is obstructing the unit.
• Check the fan blade for cracks or chips.
• Make sure the unit is properly and securely mounted inside the window or wall.
• Clean the air filter.
TROUBLESHOOTING TIPS
Before calling for service, please review the chart below.
NOTE: A highly recommended troubleshoot for any issue in general consists of turning off unit and unplugging for 5 minutes.
It is also recommended to try another wall outlet.
15

Your Source for Home Comfort
Distributed by:
Perfect Aire, LLC
5151 Belt Line Rd.
Suite 878
Dallas, TX 75254
Specification and performance data is subject to change without notice.
Printed in China
877-365-6274
www.perfectaire.us
