Perfect Aire 2PAMSH18-MZ02 User manual

CAUTION
Table of Contents
User Manual
Safety Precautions
Warning .......................................................................................................................... 1
Caution ........................................................................................................................... 2
Identification of Parts
Indoor unit ................................................................................................................ 3–13
Outdoor unit.............................................................................................................. 3–13
Display window......................................................................................................... 3–13
Operating Instructions

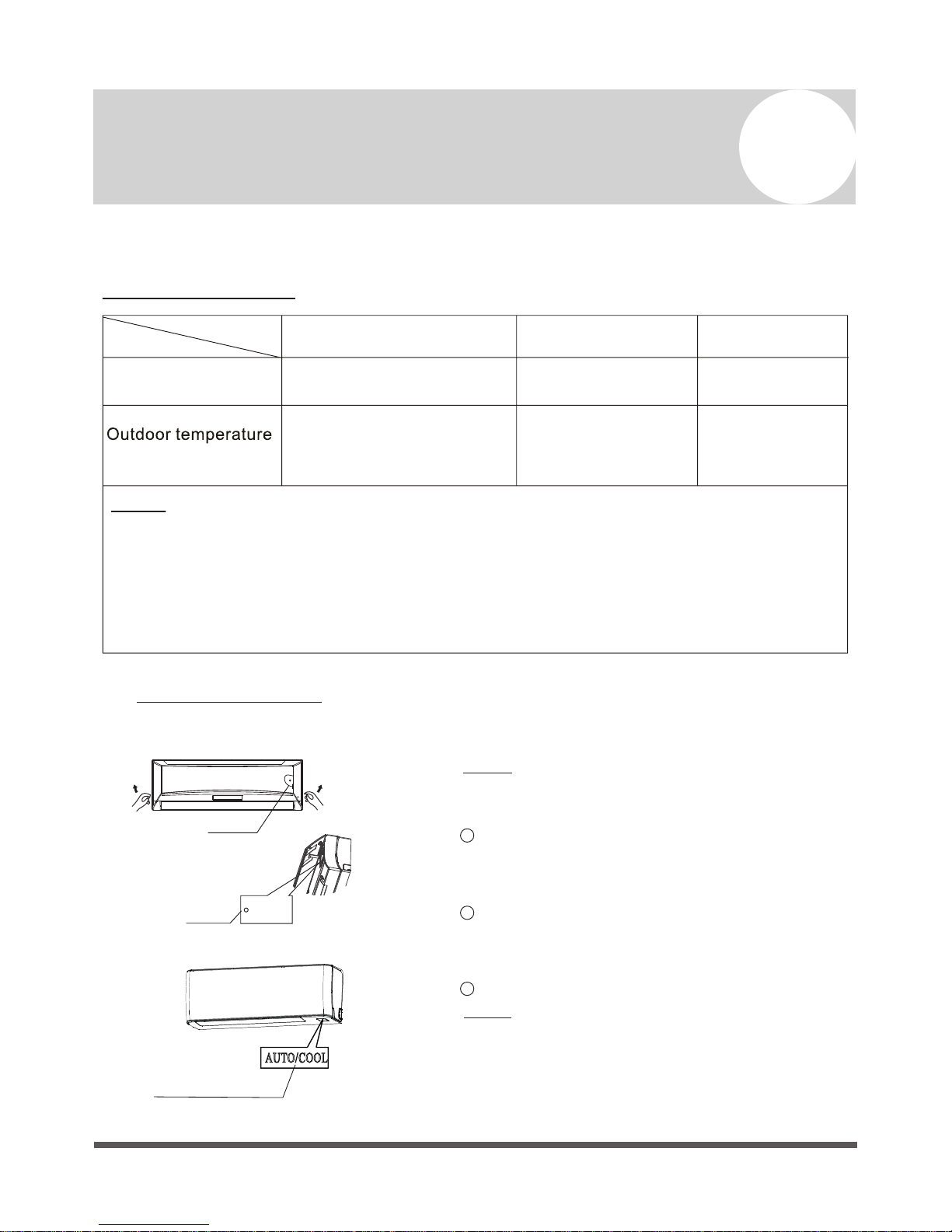

Operating temperature ................................................................................................. 14
Manual operation.......................................................................................................... 14

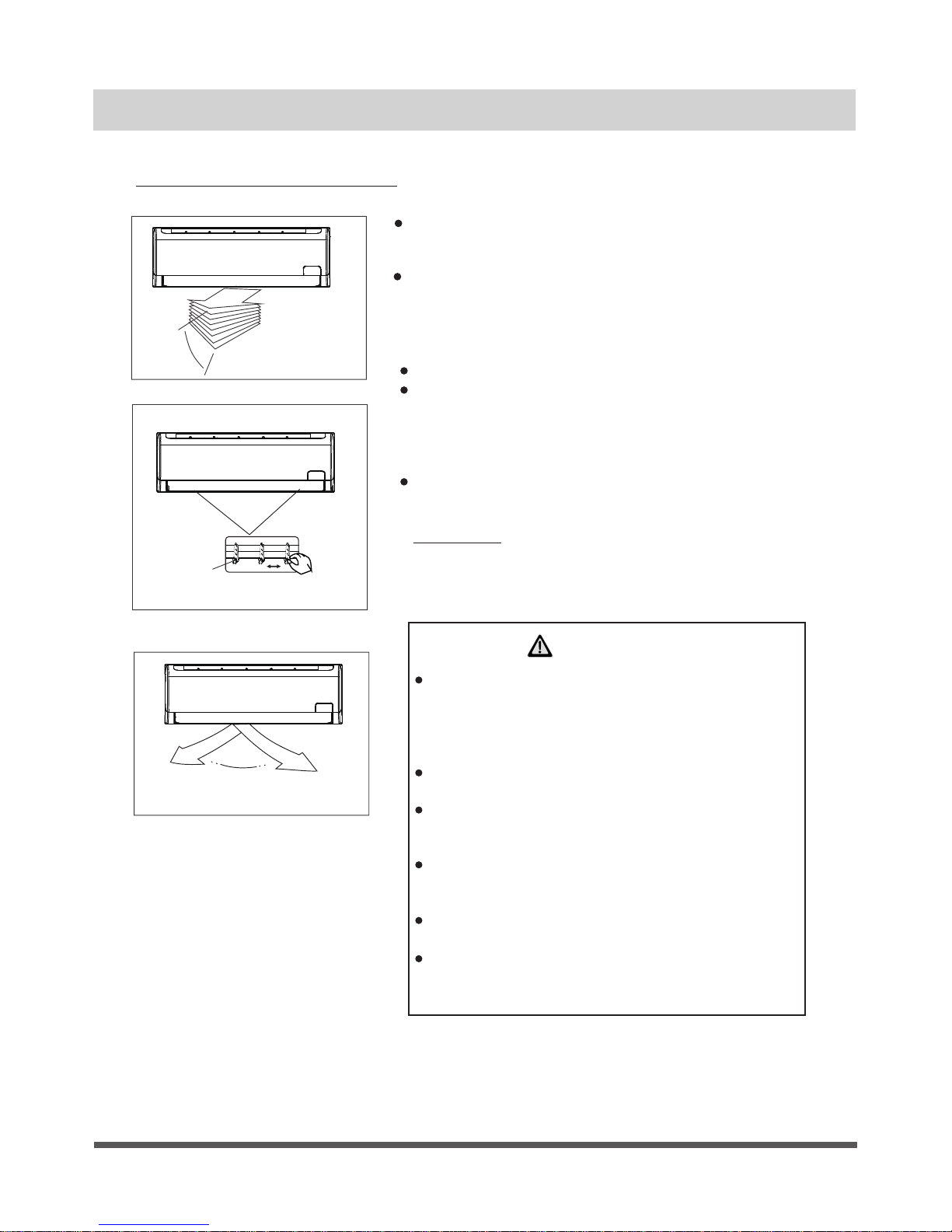

Airflow direction control .......................................................................................... 15–16

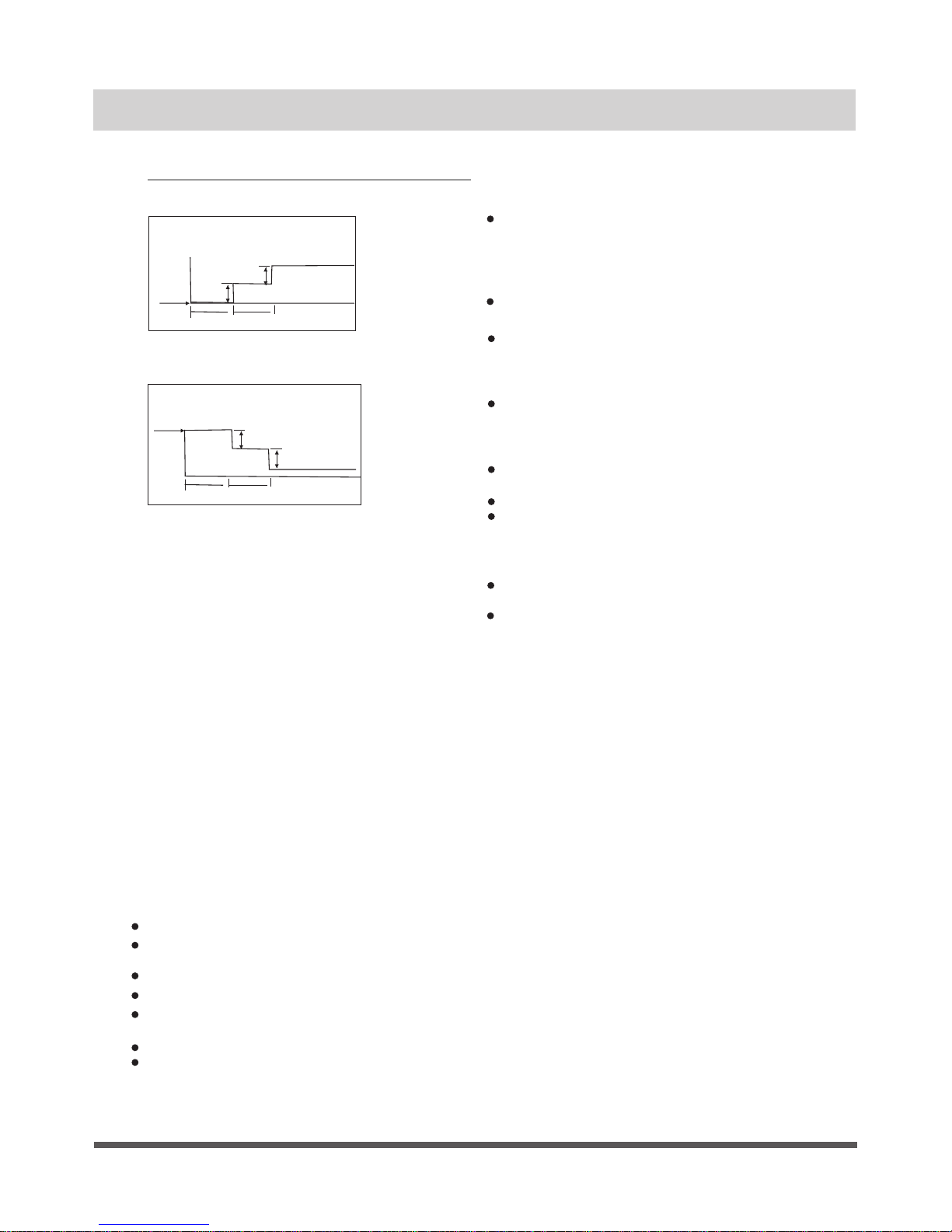

How the air conditioner works ...................................................................................... 17
Care and Maintenance
Wall-mounted units................................................................................................. 18–19
Cassette type ............................................................................................................... 20
Ducted types .......................................................................................................... 20–21
Maintenance................................................................................................................. 22
Operation tips ......................................................................................................... 22–23
Troubleshooting Tips
Troubleshooting tips ..................................................................................................... 24
• Contact an authorized service technician or certified HVAC contractor for installation of
this unit.
• Contact an authorized service technician or certified HVAC contractor for repair or
maintenance of this unit.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by persons responsible for
their safety.
• Young children should be supervised to ensure that they do not play with the air conditioner.
• Installation work must be performed in accordance with national or local wiring standards by
authorized personnel only.

To prevent injury to the user or other people and property damage, the following instructions must
be followed. Incorrect operation due to ignoring or not following installation and usage instructions
may cause harm or damage. The seriousness is classified by the following indications:
Page 1
Safety Precautions
This symbol indicates the possibility of death or serious injury.
Meanings of symbols used in this manual are as shown below.
Be sure to follow these instructions.
CAUTION This symbol indicates the possibility of injury or damage to property.
WARNING
Strictly prohibited.
• NEVER splice any electrical
connection. A poor electrical
connection, poor insulation or voltage
which is higher than permitted can
cause fire.
• Do not expose your body directly to the
cool air for prolonged periods of time.
• Never poke fingers, sticks or other
objects in the air inlet and outlet vents.
• Never attempt to repair, relocate, or
modify the air conditioner yourself.
Always contact your qualified service
provider if required.
• Do not operate your air conditioner in a
wet environment such as a bathroom
or laundry room.
• Contact an authorized service
technician or certified HVAC contractor
for installation of this unit.
• Contact an authorized service
technician or certified HVAC contractor
for repair or maintenance of this unit.
• In the event of any abnormality such as
a burning smell, completely power off
the device. Contact your qualified
service provider.
• Completely power off the system
before attempting to clean it.
• Use specified wiring.
• This air conditioner is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision or
instruction concerning use of the air
conditioner by a person responsible for
their safety.
• Children should be supervised to
ensure that they do not play with the
air conditioner.

Page 2
Safety Precautions
• Never operate any controls with wet
hands. Doing so may cause an electric
shock.
• Never use the device for any other
purpose than the intended use.
• Never place food, precision instruments,
plants, animals, paint, etc. on the unit.
• Do not expose plants or animals directly
to the air flow of the unit.
• Never clean the air conditioner with
water.
• Never use combustible cleaning agents
as these could cause a fire or
deformation.
• Never place any burning objects close to
the device if they could be directly
affected by the emitted air.
• Never step onto the outdoor unit and
never place anything on it.
• Never use an unsteady or rusty base to
support outdoor unit.
• Never install the air conditioner in places
where combustible gas can be emitted.
Emitted gas may collect and cause an
explosion.
• Never allow the air conditioner to run for
too long with the doors or windows open,
or if the humidity is very high.
• If the air conditioner is to be used in
conjunction with other heaters, the air
should be refreshed perioically; otherwise
there is a risk of lack of oxygen.
• Always completely power off the unit if it
is not going to be used for an extended
period of time. Collecting dust can cause
fire.
• Always completely power off the air
conditioner during a storm. Otherwise,
electrical parts may get damaged.
• Check that the drainage line is correctly
connected. If not, water will escape.
• Check that the condensate water can run
off unhindered. It may cause water
damage if the condensate water cannot
drain away properly.
• The air conditioner must be electrically
grounded in accordance with the local
codes.
• For electrical safety & maintenance
purposes we recommend that you install
a seperate circuit-breaker/disconnect
switch and surge protection.
NOTE:
A guide to using the remote control
is included in this literature package.

Page 3
1

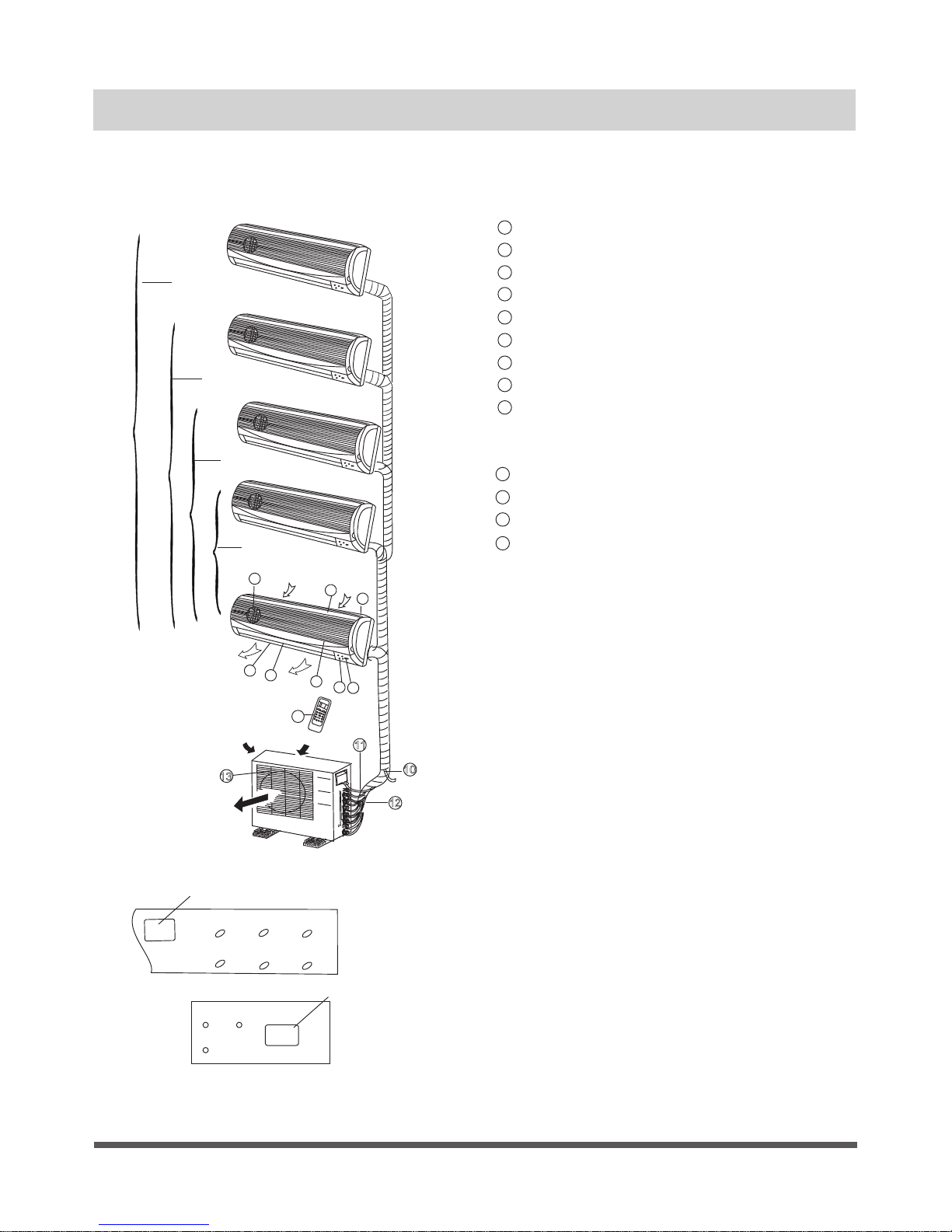

Identification of Parts

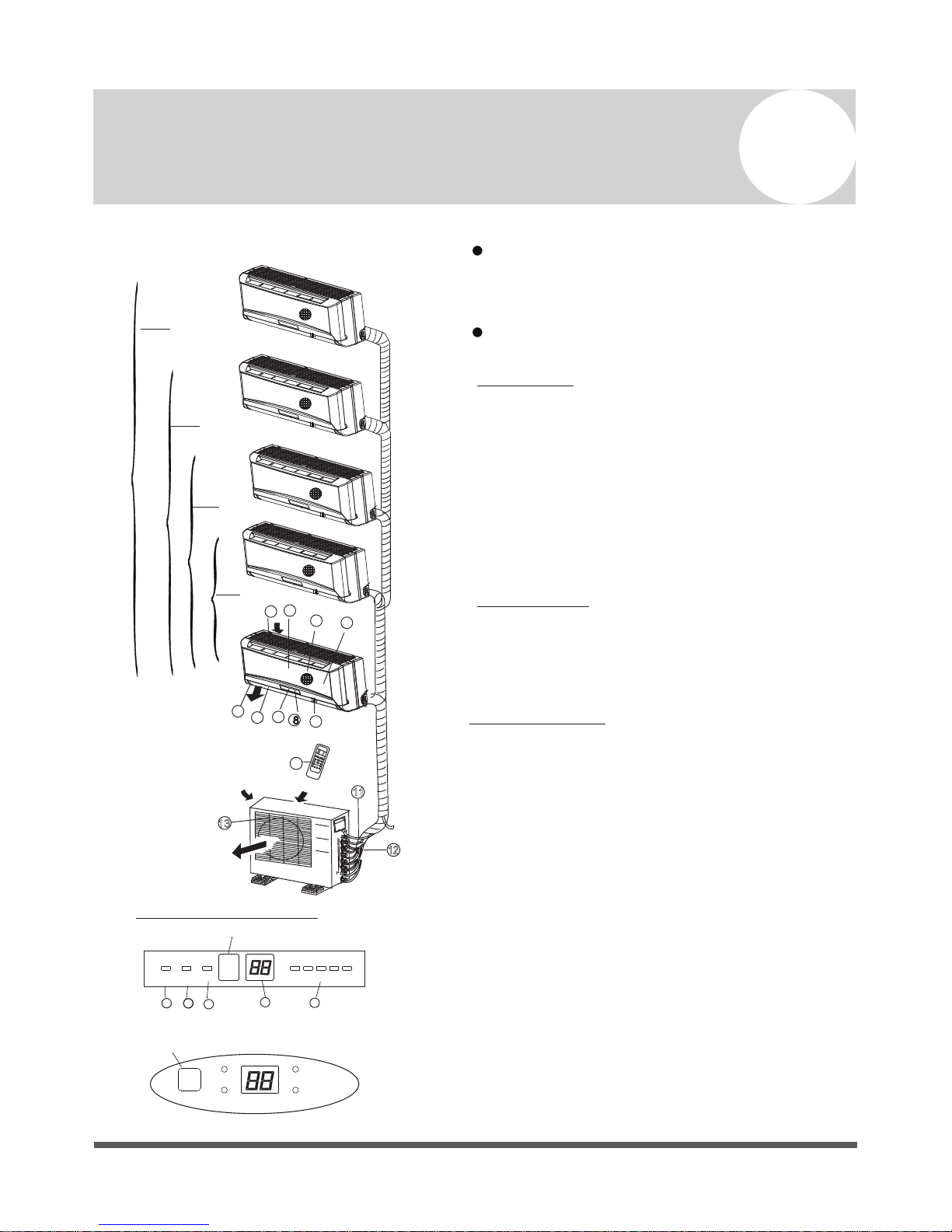

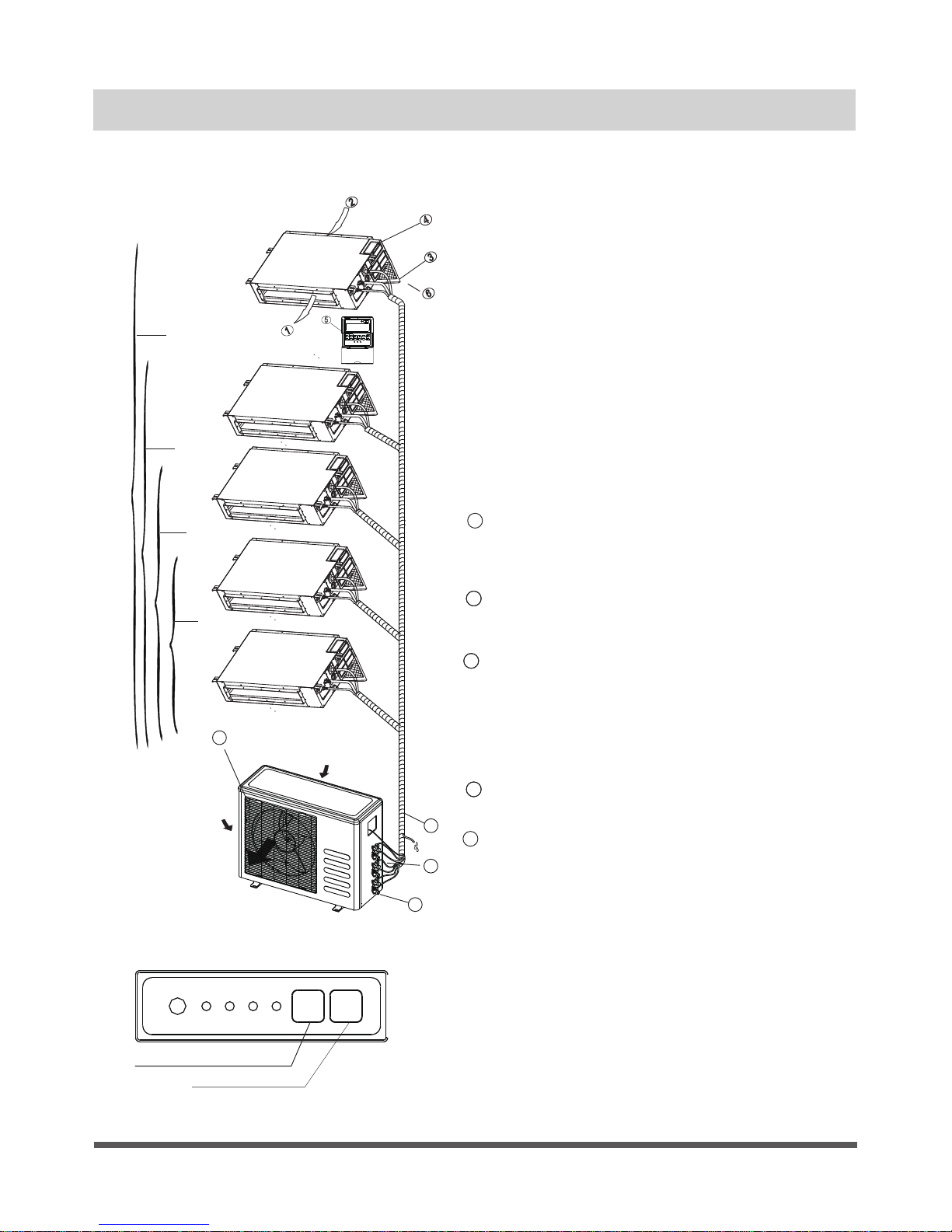

Indoor unit
Outdoor unit
Indoor unit
IMPORTANT:
For multi-split type air conditioners, one outdoor
unit can match different types of indoor units.
All of the pictures in this manual are for explan-
ation purposes only. Your air conditioner may be
slightly different. The actual shape shall prevail.
The following pages introduce several kinds of
indoor units matching with the outdoor units.
LED Display panel
AUTO indication lamp
Lights up during the Auto operation.
OPERATION indication lamp
This indicator appears only when the compressor
is in operation and indicates the current operating
frequency.
TIMER indication lamp
Lights up during Timer operation.
DEFROST indication lamp
(For Cooling & Heating models only):
Lights up when the air conditioner starts
defrosting automatically or when the warm air
control feature is activated in heating operation.
1. Front panel
2. Top air intake
3. Air filter (Inside)
4. Air outlet
5. Horizontal air flow louver
6. Vertical air flow louver (Internal)
7. Display panel
8. LED display window
9. Remote control
10. Manual control button (Behind the front panel)
11. Refrigerant connecting pipe, drain hose and
electric wiring
12. Stop valve
13. Air outlet

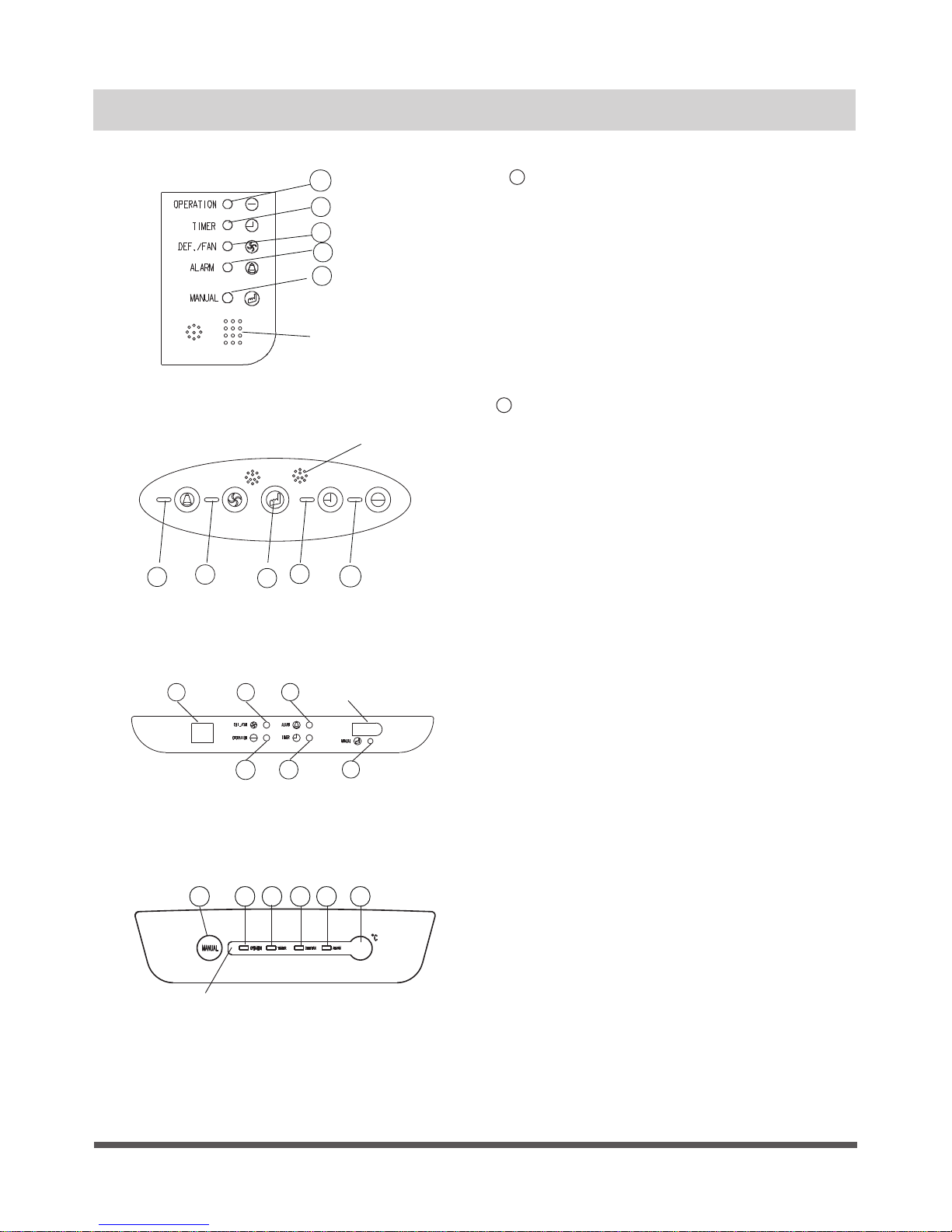

DIGITAL DISPLAY indication lamp
Displays the current setting temperature. When
the air conditioner is in FAN operation, it displays
the actual room temperature. It also will display
mulfunction and protection codes.
Display panel
Signal receptor
AUTO DEFROST
OPERATION
TIMER
Signal receptor
122 345
AUTO TIMER DEF. FREQUENCY
(1)
(2)
Outdoor unit
One-twin
One-three
One-four
One-five
9
11
12
13
4
3
5
2
6
1
10
78

Page 4
Indoor unit
Outdoor unit
10
Indoor unit
Display Panel
Outdoor unit
Air outlet
Air inlet
3
8
7
456
21
One-twin
One-three
One-four
One-five
9
11
12
13
Front panel frame
Front panel
Air filter
Horizontal air flow grille
Vertical air flow louver
Room temperature sensor
Display panel
Infrared signal receiver
Remote control
Drain hose, refrigerant connecting pipe
Connective cable
Stop valve
Fan hood
1
3
4
5
6
7
8
9
10
11
12
2
13
DISPLAY PANEL
OPERATION indicator:
The indicator flashes once every second
after power is on and illuminates when the
air conditioner is in operation.
TIMER indicator:
The indicator illuminates when TIMER is set
ON.
PRE-DEF. Indicator (For cooling& heating
model only):
This indicator illuminates when the air
conditioner starts defrosting automatically or
when the Anti-cold air function is activated in
heating operation.
AUTO indicator:
This indicator flashes when the air
conditioner is in AUTO operation.
TIMER OPERATION
PRE-DEF
Infrared signal receptor
Infrared signal receptor
OPERATION TIMER
PRE-DEF
AUTO
(1)
(2)
Identification of Parts (continued)

Page 5

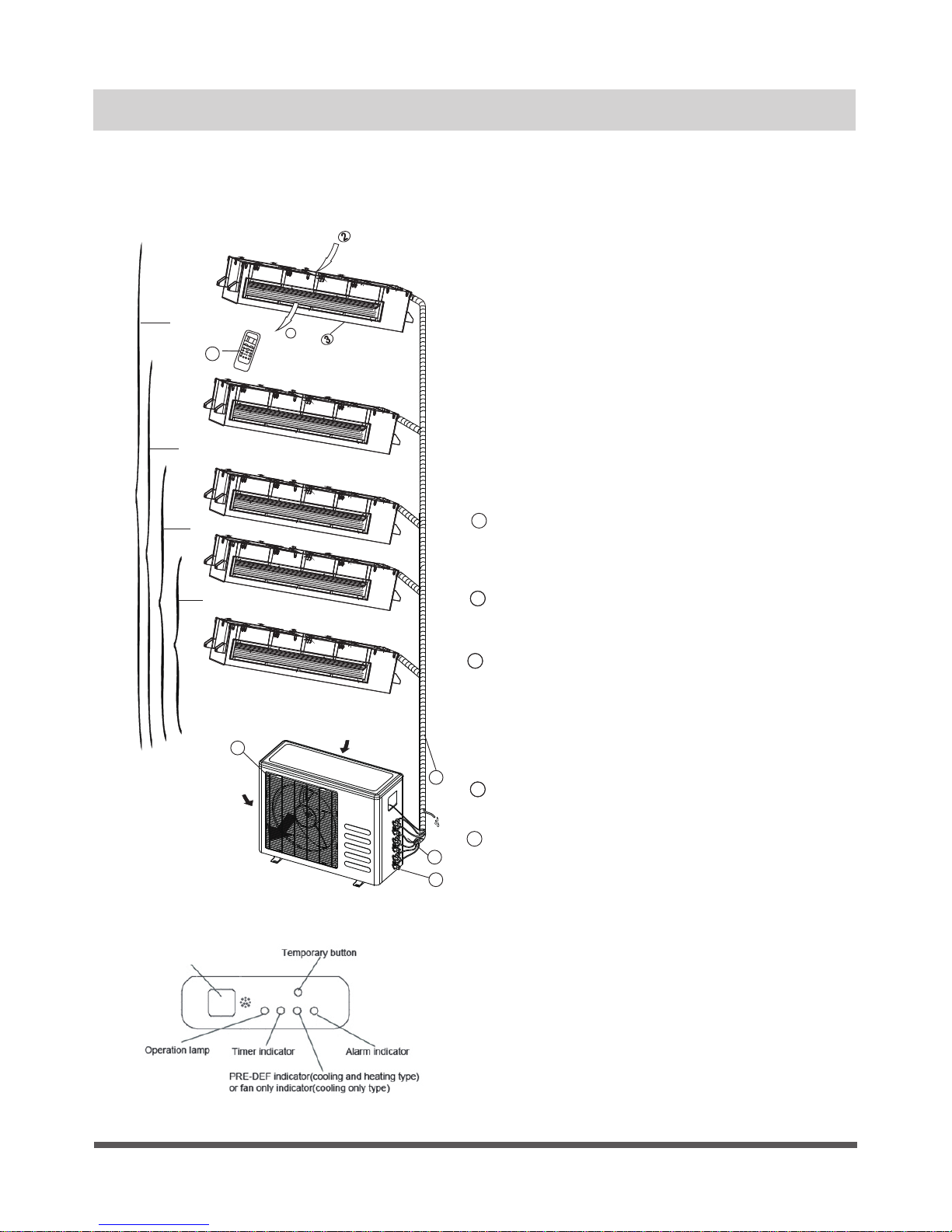

Identification of Parts (continued)
Indoor unit
Outdoor unit
LED Display window
Identification of parts
Indoor unit
Front panel frame
Front panel
Air filter
Horizontal air flow grille
Vertical air flow louver
Room temperature sensor
Display panel
Remote control
Drain hose, refrigerant connecting pipe
Connective cable
Stop valve
Fan hood
1
3
4
5
6
7
8
9
10
11
12
2
LED DISPLAY WINDOW
a u t o
1
22
3
4
5
122 345
AUTO indication lamp
Lights up during the Auto operation.
OPERATION indication lamp
This indicator appears only when the
compressor is in operation and indicates the
current operating frequency.
TIMER indication lamp
Lights up during Timer operation.
DEFROST indication lamp
(For Cooling & Heating models only):
Lights up when the air conditioner starts
defrosting automatically or when the warm air
control feature is activated in heating operation.
DIGITAL DISPLAY indication lamp
Displays the current setting temperature. Only
when the air conditioner is in FAN operation, it
displays the actual room temperature. And
displays the malfunction code or protection code.
(1)
(2)
9
Outdoor unit
One-twin
One-three
One-four
One-five
10
11
12
Air outlet
Air inlet
8
4
3
5
2
6
1
7

Page 6
Indoor unit
Outdoor unit
Indoor unit
Outdoor unit
Air outlet
One-twin
One-three
One-four
One-five
9
10. Drain hose, refrigerant connecting pipe
11. Connective cable
12. Stop valve
13. Fan hood
10
11
12
13
Indoor unit
6
5
7
8
12
34
Air outlet
Air inlet
1. Panel frame
2. Rear air intake grille
3. Front panel
4. Air filter (behind)
5. Horizontal louver
6. LCD display window
7. Vertical louver
8. Manual control button (behind)
9. Remote control holder
Identification of Parts (continued)

Page 7

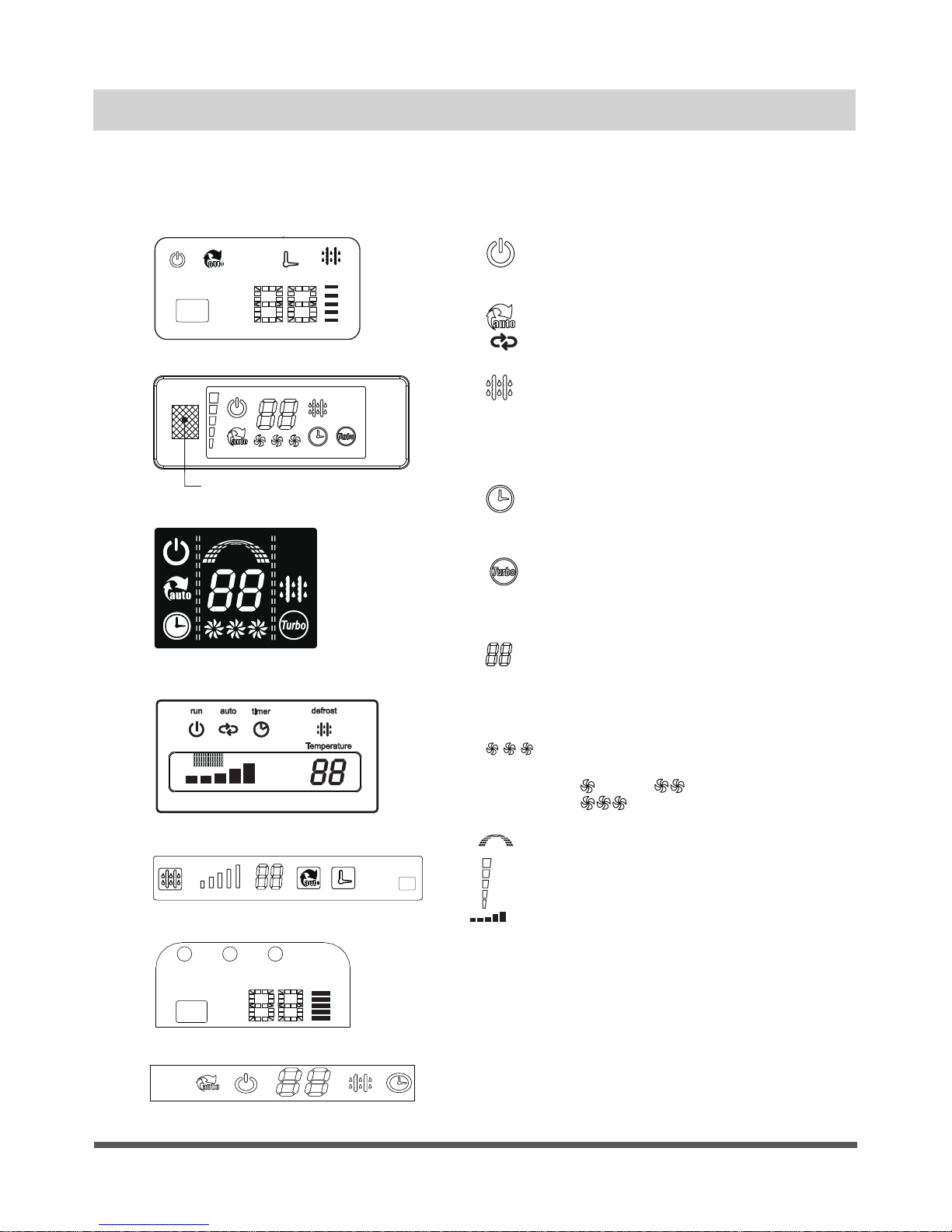

run timer def.
Display window
NOTE: The display window on the air
conditioner you purchased may look like
one of the following:
(1)
Identification of Parts (continued)
AUTO operation display
Displayed during Auto operation.
OPERATION display
Displayed when the air conditioner is in
operation.
DEFROST operation display
(For Heating & Cooling model only):
Displayed when the air conditioner starts
defrosting automatically or when the warm
air control feature is activated in heating
operation.
TIMER display
Displayed during Timer operation.
TURBO operation display
Displayed when select TURBO function
on cooling operation or on heating
operation.
DIGITAL DISPLAY
Displays the current setting temper-
ature when the air conditioner is in
operation.
FAN SPEED display
Displayed the selected fan speed:
LOW( ), MED( ) and
HIGH( ).
Signal receptor
(2)
(3)
(4)
(5)
(6)
(7)
This display is separated into five zones.
The zones illuminate based on the
compressor current frequency. For example,
higher frequency will illuminate more zones.
Frequency indication lamp
defrostauto timer

Page 8
Indoor unit
Outdoor unit
Indoor unit
9. Drain hose, refrigerant connecting pipe
10. Connective cable
11. Stop valve
12. Fan hood
Air outlet
Air inlet
1. Front panel
2. Air inlet
3. Air filter
4. Air outlet
5. Horizontal air flow grille
6. Vertical air flow louver (inside)
7. Display panel
8. Remote control
4
3
5
2
6
1
7
Signal receiver
A
B
C
Signal receiver
Signal receiver
LED Display window
NOTE: The actual shape of the indoor unit
you purchased may may be slight different
on front panel and display window.
NOTE:
All the pictures in this manual are for
explanation purposes only. Your air conditioner
may be slightly different. The actual shape
shall prevail.
Indication lamp on LED Display window
OPERATION indication lamp
This lamp illuminates when the air
conditioner is in operation.
TIMER indication lamp
Lights up during Timer operation.
DEFROST indication lamp
(Enabled on cooling & heating models only):
Lights up when the air conditioner starts
defrosting automatically or when the warm
air control feature is activated in heating
operation.
Temperature indicator
Displays the temperature settings when the
air conditioner is operational.
Displays the malfunction code.
Outdoor unit
Air outlet
One-twin
One-three
One-four
One-five
8
9
10
11
12
Identification of Parts (continued)

Page 9
Indoor unit
Outdoor unit
Indoor unit
11. Drain hose, refrigerant connecting pipe
12. Connective cable
13. Stop valve
14. Fan hood
LED Display window
NOTE:
All the pictures in this manual are for
explanation purposes only. Your air conditioner
may be slightly different. The actual shape
shall prevail.
Indication lamp on LED Display window
DEFROST indication lamp
(Enabled on cooling & heating models only):
Lights up when the air conditioner starts
defrosting automatically or when the warm
air control feature is activated in heating
operation.
1. Front panel
2. Air inlet
3. Air filter(inside)
4. Air outlet
5. Horizontal air flow grille(outside)
6. Horizontal air flow grille(inside)
7. Vertical air flow louver
8. Display panel
9. Manual control button and receiver
10. Intelligent eye detector(on some models)
TIMER indication lamp
Lights up during Timer operation.
TEMPERATURE indication lamp
Displays the temperature settings when the
air conditioner is operational.
Displays the malfunction code.
Displays the actual room temperature on
Fan only mode.
ION indication lamp(optional)
Lights up when Clean Air feature is
activated.
.
Outdoor unit
One-twin
One-three
One-four
One-five
11
12
13
14
Air outlet
Air inlet
9
10
2
13
4
56
7
8
Identification of Parts (continued)

Page 10
Identification of Parts (continued)
4
4
2
2
5
5
1
1
3
3
Remote Control
Signal Receiver
Remote Control
Signal Receiver
Remote Control
Signal Receiver
Remote Control
Signal Receiver
(2)
(3)
(4)
(5)
4
25
1
36
512346
MANUAL
OPERATION
TIMER
DEF./FAN
ALARM
5
6
Temporary button
This button is used to operate the unit
temporarily in case you misplace the
remote controlor its batteries are
exhausted. One press of the manual
control button will lead to the forced
AUTO operation. If press the button
twice within five seconds, the unit will
operate under forced COOL operation.
The forced COOL operation is used for
testing purposes only, please do not
choose it unless it is necessary.
Temperature Display
Displays the current setting temperature
while the unit is operating.

Page 11
Identification of Parts (continued)
Remote Control Signal Receiver
Display panel
Indoor unit
DISPLAY PANEL
Duct / Ceiling type
Indoor unit
Outdoor unit
7. Drain hose, refrigerant connecting pipe
8. Connective cable
9. Stop valve
10. Fan hood
1. Air outlet
2. Air inlet
3. Air filter
4. Electric control cabinet
5. Wired controller
6. Drain pipe
1
22
4
3
OPERATION indication lamp
This indicator illuminates when the unit is
operational.
TIMER indication lamp
Lights up during Timer operation.
ALARM indication lamp
Flashes when malfunction occurs.
DEF./FAN indication lamp
Lights up when the air conditioner starts
defrosting automatically in heating operation
(applicable to cooling & heating models only)
or fan only mode is selected (applicable to
cooling only models).
7
8
9
10
Digital display window
MANUAL OPERATION TIMER DEF./FAN ALARM
5
MANUAL button
This button is used to operate the unit
temporarily in case you misplace the remote
controller or its batteries are exhausted. One
press of the manual control button will lead to
the forced AUTO operation. If press the button
twice within five seconds, the unit will operate
under forced COOL operation. The forced
COOL operation is used for testing purposes
only, please do not choose it unless it is
necessary.
One-twin
One-three
One-four
One-five

Page 12
Display panel
Indoor unit
DISPLAY PANEL
Duct type
Indoor unit
Outdoor unit
5. Drain hose, refrigerant connecting pipe
6. Connective cable
7. Stop valve
8. Fan hood
1. Air outlet
2. Air inlet
3. Air filter
4. Remote control
1
22
4
3
OPERATION lamp
This indicator illuminates when the unit is
operational.
TIMER indication lamp
Lights up during Timer operation.
ALARM indication lamp
Flashes when malfunction occurs.
PRE-DEF./FAN indication lamp
Lights up when the air conditioner starts
defrosting automatically in heating operation
(applicable to cooling & heating models only)
or fan only mode is selected (applicable to
cooling only models).
5
6
7
8
5
TEMPORARY button
This button is used to operate the unit
temporarily in case you misplace the remote
control or its batteries are exhausted. One
press of the manual control button will lead to
the forced AUTO operation. If press the button
twice within five seconds, the unit will operate
under forced COOL operation. The forced
COOL operation is used for testing purposes
only. Please do not choose it unless it is
necessary.
1
4
One-twin
One-three
One-four
One-five
Identification of Parts (continued)
Remote control
signal receiver

Page 13
CANCEL
LOCK
SETTEMPERATURE(°C)
AUTO
COOL
DRY
HEAT FAN
HIGH
MED
LOW
TEMP
MODE
SWING
TIMER
RESET
ON/OFF FAN
SPEED
VENT
ECONOMIC
RUNNING
Indoor unit
Compact four-way cassette type
1
2
3
4
5
678
9
10
11
11
12
Indoor unit
Outdoor unit
11. Air inlet
12. Air outlet
1. Air flow louver (at air outlet)
2. Drain pump (drain water from indoor unit)
3. Drain pipe
4. Air outlet
5. Air filter (inside air-in grille)
6. Air inlet
7. Air-in grill
8. Display panel
9. Remote control
10. Refrigerant pipe
Display panel
PRE-DEF indicator (cooling and heating type)
or fan only indicator (cooling only type)
Remote control signal receiver
Operation lamp Timer indicator Alarm indicator
Temporary button
DISPLAY PANEL
1
22
4
3
OPERATION lamp
This indicator illuminates when the unit is
operational.
TIMER indication lamp
Lights up during Timer operation.
ALARM indication lamp
Flashes when malfunction occurs.
PRE-DEF./FAN indication lamp
Lights up when the air conditioner starts
defrosting automatically in heating operation
(applicable to cooling & heating models only)
or fan only mode is selected (applicable to
cooling only models).
5
TEMPORARY button
This button is used to operate the unit
temporarily in case you misplace the remote
controller or its batteries are exhausted. One
press of the manual control button will lead to
the forced AUTO operation. If press the button
twice within five seconds, the unit will operate
under forced COOL operation. The forced
COOL operation is used for testing purposes
only, please do not choose it unless it is
necessary.
One-twin
One-three
One-four
One-five
Identification of Parts (continued)

Page 14
2
Operating Instructions
Manual operation can be used temporarily in case you can not find the remote control or
test running purposes or maintenance is necessary.
Manual operation
NOTE: This manual does not include Remote Control Operation Instructions. See Remote
Control User Manual included with the unit for those instructions.
Manual
control button
AUTO/COOL
Model A
Model B
Manual
control button
NOTE: For DUCT and CEILING type, CASSETTE
type, CEILING and FLOOR type and FLOOR and
STANDING type, please refer to the previous pages
to operate the Manual button.
Open and lift the front panel up will see the
manual control button (see Model A)
For some models, the manual control button is
located at the bottom of the unit (see Model B).
One press of the manual control button will
lead to the forced AUTO operation. If you press
the button twice within five seconds, the unit
will operate under forced COOL operation.
Close the panel firmly to its original position.
1
3
2
NOTE: The unit must be turned off before
operating the manual control button. If the
unit is operational, continue pressing the
manual control button until the unit is off.
Manual control button
Operating Temperature
NOTE:
1. Optimum performance will be achieved within these operating temperatures. If air conditioner is
used outside of the above conditions, certain safety protection features might come into operation
and cause the unit to function abnormally.
2. If the air conditioner runs for a long time in cooling mode and the humidity is high (over 80%),
condensed water may drip out of the unit. Please set the vertical air flow louver to its maximum
angle (vertically to the floor), and set HIGH fan mode.
Mode
Temperature
Room Temperature
Cooling Operation Heating Operation Drying Operation
62ºF~90ºF 32ºF~86ºF 62ºF~90ºF
(17ºC~32ºC) (32ºC~86ºC) (17ºC~32ºC)
32ºF~122ºF 5ºF~76ºF 32ºF~122ºF
(0ºC~50ºC) (-15ºC~24ºC) (0ºC~50ºC)
5ºF~122ºF/-15C~50ºC for models with low
temperature cooling system

Page 15
Operating Instructions (continued)
Airflow direction control
Do not operate the air conditioner for long periods with
the air flow direction set downward in cooling or
dehumidifying mode. Otherwise, condensation may
occur on the surface of the horizontal louver causing
moisture to drop on to the floor or on furnishings.
Do not move the horizontal louver manually unless it is
necessary. Always use the remote control.
When the air conditioner is started immediately after it
was stopped, the horizontal louver might not move for
approximately 10 seconds.
Open angle of the horizontal louver should not be set
too small, as COOLING or HEATING performance may
be impaired due to too restricted air flow area.
Do not operate unit with horizontal louver in closed
position.
When the air conditioner is connected to power (initial
power), the horizontal louver may generate a sound for
10 seconds, this is a normal operation.
CAUTION
Range
Range
Vertical
louver
Adjust the air flow direction properly otherwise it
might cause discomfort or cause uneven room
temperatures.
Adjust the horizontal/vertical louver using the remote
control. For some models, the vertical louver can
only be adjusted manually.
To set the horizontal/vertical air flow direction
Perform this function while the unit is in operation.
Use the remote control to adjust the air flow direction.
The vertical/horizontal louver changes 6 degree in angle
for each press, or swing up and down automatically.
Please refer to the “REMOTE CONTROL USER
MANUAL” for details.
For some models, the vertical louver can only be adjusted
manually. Move the deflector rod manually to adjust the air
flow in the direction you prefer.
IMPORTANT:Do not put your fingers into the panel of
blower and suction side.The high-speed fan inside may
cause danger.

Page 16
The following is how to adjust the air flow direction when the air outlet parts (sold separately) are
used with the indoor unit.
Heating
To effectively heat the bottom of the room
please set the louver downwards.
Cooling
To effectively cool the whole room, please
adjust the louver horizontally.
Duct-Ceiling Type
Operating Instructions (continued)

Page 17
AUTO operation
When you set the air conditioner in AUTO mode,
it will automatically select cooling, heating (cooling/
heating models only), or fan only operation
depending on what temperature you have selected
and the room temperature.
The air conditioner will control room temperature
automatically round the temperature point you set.
If the AUTO mode is uncomfortable, you can
select desired conditions manually.
SLEEP operation
When you push SLEEP button on remote control
during cooling, heating or AUTO operation, the air
conditioner will automatically increase (cooling)
or decrease (heating) 2°F (1°C) per hour.
The set temperature will be steady 2 hours later.
And the air conditioner will be timer off in 7 hours.
The fan speed will be automatically controlled.
This feature can maintain the most comfortable
temperature and saves more energy.
DRYING operation
The fan speed is automatically controlled under
dry operation.
During the dry operation, if the room temperature
is lower than 50ºF (10ºC) the compressor stops
operation and restarts until the room temperature
is above 54ºF (12ºC).
How the air conditioner works
1 hour
1 hour
Set
Temperature
Cooling
o
1 (2 F)
o
1 (2 F)
Heating
SLEEP operation
o
1(2 F)
o
1(2 F)
1 hour 1 hour
Set
Temperature
SLEEP operation
7 hours timer off
7 hours timer off
To achieve optimal performance, please note the following:
Adjust the air flow direction correctly so that it is not directed at occupants.
Adjust the temperature to achieve the highest comfort level. Do not adjust the unit to excessive
temperature levels.
Close doors and windows on COOL or HEAT modes, performance will be reduced.
Use TIMER ON button on the remote control to select a specific time you want to start your air conditioner.
Do not put any object near air inlet or air outlet, as the efficiency of the air conditioner will be reduced
and the air conditioner may stop running.
Clean the air filter periodically,; otherwise cooling or heating performance will be reduced.
Do not operate unit with horizontal louver in closed position.
Optimal operation
Operation Mode Selection
While simultaneously operating two or more indoor units, make sure the operation modes do not conflict
with each other. The heat mode takes precedence over all other modes. If the unit initally started operating
in heat mode, all other units can operate under heat mode only. For example: If the unit initially starts
opearting under cool (or fan) mode, the other units can operate under any mode except heat. If one of the
units selects heat mode, the other opearting units will stop opeartion and display PF (units with display
window only) or the Auto and Operation indicator lights flash rapidly.
Operating Instructions (continued)
