Perstel DMR132vlm User manual

User's Manual
T-DMB Receiver
Thanks for purchase of Perstel DMB Receiver.
Please read User’s Manual before use.

Please hold the product firm-
ly with mounting bracket,
and have lower part of
mounting bracket placed on
dashboard.
Before use
Safety precautions 02
Before use
Safety precautions
01
For safety, please have
speed detector cable
engaged with tachometer
at all times.
dashboard Please do not
operate the product while
driving, or it may cause
serious accident.
Please do not use the prod-
uct while engine is not work-
ing, or vehicle battery may
be discharged.
Please do not too much
raise volume level, or it
may take your attention
away while driving.
Please keep the remote
controller handy.
Power On!
Manual
PUSH
Front
glass
dashboard
Stop the engine for installation.
Please do not block eyesight
and/or airbag with the product.
Do not turn on the product
before turning on the engine. Install the antenna at the
center of loop for best
reception.
Do proper connection of
cables, or it may cause
damage to the product.
The product is designed to
best work at 5 ~ 25C.
Please maintain the temper-
ature for best use in deep
summer and winter.
Please clear the product
with dry clothes. Do not
apply chemical or deter-
gent.
Do not dismantle the prod-
uct without proper knowl-
edge, or warranty will be
void.
The product is packaged with
12V cigar lighter charger.
Please prepare 24V cigar
lighter charger to use in buses
and/or trucks.

Package contents
Before use 04
Before use
Intellectual Property Rights
03
Intellectual Property Rights
PERSTEL holds intellectual property rights for those material used in this user's manual.
Any content or image is not allowed for copying, transforming without prior consent by
PERSTEL.
2005 PERSTEL INC. All Rights reserved.
Legal disclaimer
- Manufacturer, importer, or distributor is not liable for any contingent damage caused by
misuse of the product.
- Color, specification and contents are subject to change without prior notice.
Optional accessories
These accessories are sold separately.
DMR132VLM Remote
controller User's manual
12V cigar lighter
charger Mounting bracket Antenna set
Wall adapter
(indoor 12V)
Car pack audio
connector I indoor antenna
cable & connector Headrest
mounter
On-dash mounter Rod anteanna 24V cigar lighter
charger
Speed detector
cable

Before use 06
Before use
Intellectual Property Rights
05

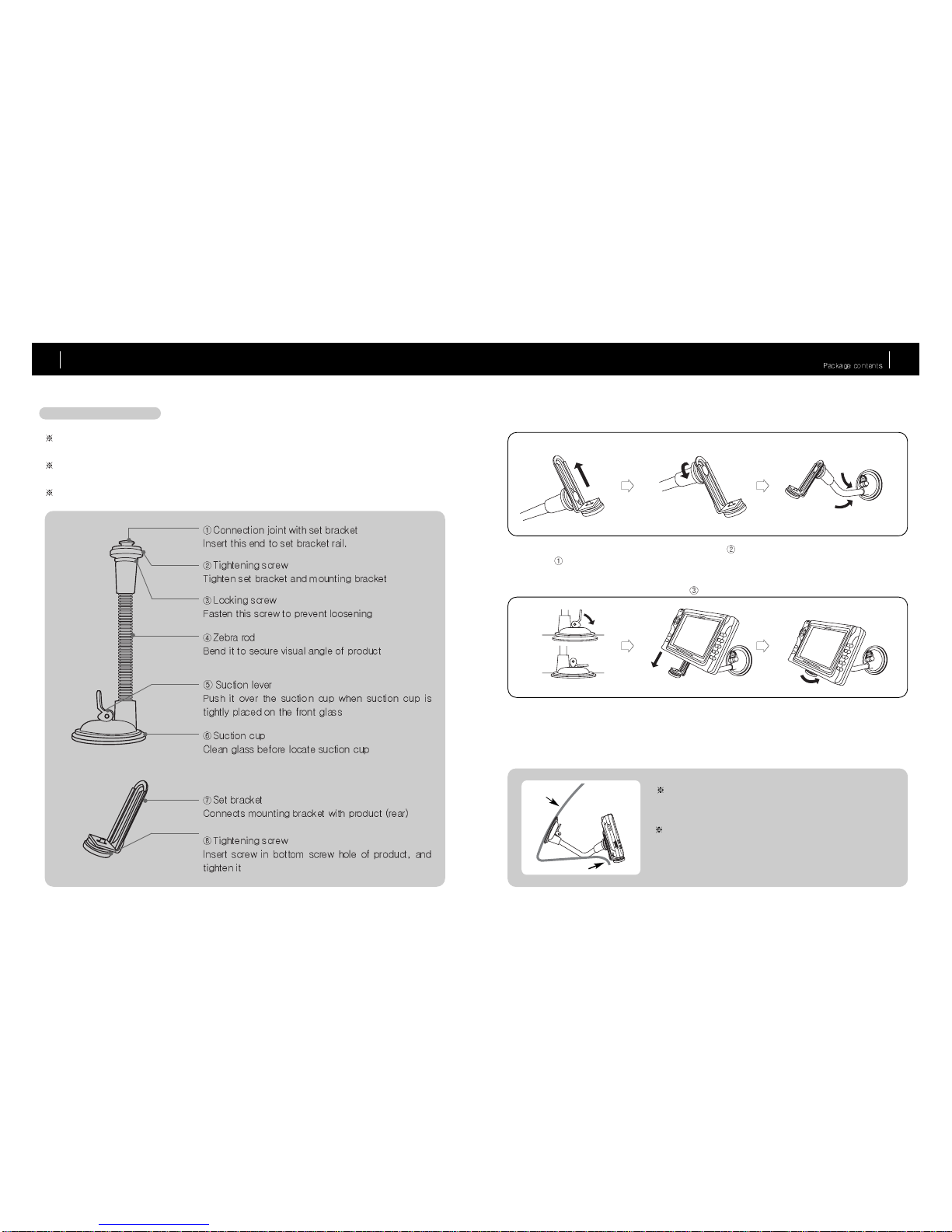

1. Product installation
Insert connection
joint ( ) in the set
bracket rail.
Tighten screw ( ) till
two brackets are
firmly fixed. And
tighten locking
screw ( ).
Secure proper space on
front glass. Place suction
cup on the glass and
push the suction lever
over the suction cup.
Bend zebra rod to
secure best visual
angle.
Place DMR132 on set bracket. Insert screw in the
screw hole at bottom of DMR132, and screw it tight.
For installation in deep winter, the suction cup
may become too hard to use. Place it under hot
air blow to make it soft before installation.
DMR132 may too much shake while driving if it
hangs high in the air. Adjust height of suction
cup, and bend zebra rod to have lower part sup-
ported with vehicle dash board.
Product installation
For safety reasons, it is highly recommended to consult installation work with local
installation shops or dealers. Installation work may be different by car type.
For safety reasons, please have speed detector cable engaged with tachometer at all
times.
Far safety reasons, please turn off the engine for the entire installation procedure.
Front
glass
dashboard
(Mounting bracket)
(Set bracket)

Before use
Intellectual Property Rights 08
Before use
Intellectual Property Rights
07
2. Antenna mounting
Insert antenna in magnet base
and screw it tight.
4. Speed detector connection
Speed detector is a mandatory device to secure drivers’ safety while driving. Speed
detector detects vehicle speed and automatically shut off display screen when vehicle
is moving (audio remains alive). Connection may vary depending on vehicle type, so
please consult with mechanic for speed detector connection.
3. Power connection
PUSH
123456
D D
FF RPT
Plug in power cable to the DC IN port, and plug in cigar lighter charger to the socket.
For best reception, place antenna on the loop using magnet base.
For best performance, fasten antenna connector tight.
It is recommended to wrap cables with waterproof tapes.
Organize excessive cables with cable holders. Plug in one end of speed detector cable to SPEED DET port. And, connect another end of speed
detector cable to vehicle’s speed pulse signal line. Display screen will be shut off when vehicle is
moving.
Please consult with local mechanic since vehicles’ pulse signal position varies by vehicle type.
In case speed detector is not properly connected as stated, display screen remains active while
driving, and it may cause serious incidents.
Any incident caused by absence of speed detector will be responsibility of users or drivers.
Manufacturer will not be responsible for the consequences at any degree.
Please consult with mechanic when connecting power directly from vehicle.
Please be sure to clean dusty from cigar lighter charger socket.
Screw in antenna cable with
antenna connector.

Before use
Intellectual Property Rights
09
Installation of optional items
1. Rod antenna
Screw in the rod antenna to
antenna port firmly. Turn on the unit, and simulate antenna
position till best reception is obtained.
When using on table, unfold the sup-
port bar from the rear, and stretch it to
convenient angle.
2. Indoor wall adapter
When using the product at home,
please replace cigar lighter charger with
indoor wall adapter like above diagram.
Before use
Intellectual Property Rights 10
3. Support bar
Insert connection joint
in the set bracket rail,
and screw it tight.
Before placing the whole set of unit,
please clean up mounting floor. Peel
off protection vinyl from adhesive
tape when ready.
Place the whole set on the floor (on
dash board or else), and make sure
adhesive tape hold the set firmly.
Unscrew rear screw to
adjust angle. Fasten the
rear screw when the
adjust is done.
Place the DMR132 on
the set bracket and fas-
ten locking screw.
On-dash mounting bracket works more stable than on-glass mounting bracket.
It is matter of choice and matter of convenience.
4. On-dash mounting bracket

Before use
Controls diagram 12
Controls diagram
Remote control I/F
Power LED (Red)
Tune LED (Green)
Favorite memories
LCD
Navigation
MENU
Display
Antenna port
Speaker
USB
port
Power
switch
Support bar
screw
mounting
hole
DC
In
Speed detector port
Audio out
USB port is only for upgrading system software in the future. Please consult
with local dealer or manufacturer for upgrade.
Indoor antenna & adapter is designed for those who use normal TV antenna
system. Please check TV system before purchase of this accessory.
Before use
Intellectual Property Rights
11
Plug in antenna adapter to one end of
antenna cable. Plug in and screw the antenna
adapter to DMR132 ANT port.
Another end of antenna cable is
for wall TV antenna socket. Plug it
gently to the socket like connect-
ing cable TV antenna.
Depending on country and broadcast system, indoor antenna cable & adapter set
enables users to watch DMB using TV antenna.
5. Indoor antenna cable & adapter
Top
Rear Side

Operation
Functionality of remote controller 14
Operation
Functionality of remote controller
13
Functionality of remote controller
Open the battery compartment by
using tiny pin, and replace battery
following polarity indication. Slide
battery compartment back to origi-
nal position.
Battery replacement (Remote controller)
Power
Turn on and off of DMR132
Menu
Enter the menu or escape the menu.
List
Shows preset list or hides the list.
Display
Shows information of current service.
OK/ Mute
Menu mode- For confirming Selection.
Long key when receiving - Current service will be saved in preset list.
(Press it for more than 3 seconds.)
Short key when receiving -Audio will be muted.
Navigation
Up/Down - For volume control, or scroll up and down the menu in menu
mode.
Left/Right - For service change while receiving signal, or entering or
escaping menu in menu mode.
Favorites
Press to instantly access to saved favorite memories.
While receiving services, press it (1 ~ 5) and hold to store or overwrite
favorite memory.
List
Enter/ Mute
Menu
Display
Favorite
Navigation

Operation
Power on 16
Operation
Functionality of remote controller
15
Turn the power on using slide switch
on the left side of the product.
Press POWER button to activate/
deactivate the DMR132.
To use remote controller, please keep main power switch (slide switch on the left side of
DMR132) “ON” at all times.
Left side
Remote controller
LCD indicator Power on
DMB mode
DAB mode
Signal strength
Information window
Ensemble
Service name
Tune mode
Current time
Current time
Ensemble name
Service name
DLS info
Signal strength
Tune mode
Volume level
Volume level

Operation
Mute/ Unmute 18
Operation
Volume control
17
Press Mute button shortly to mute
audio.To unmute audio, press
mute button again, or adjust vol-
ume button.
Volume control Mute/ Unmute
Press down button to lower
volume level.
Press up button to raise vol-
ume level.
Press up button to
raise volume level. Press down button to
lower volume level.
DMB mode DAB mode

Operation
Preset tune mode 20
Operation
Service scan
19
When service scan completes, tune mode automatically turns to Preset.
Service scan takes a while. Please be patient till it completes.
Services found from service scan are automatically stored in service list.
Service list will not be generated when no DMB service is available.
Press any key to stop service scan while in process.
To change tuning mode, press MENU, and move to [Tune mode] [Preset] and press OK to confirm
selection.
Preset tune mode
Preset mode enables users to tune to DMB services out of service list generated from service scan.
Preset list
Preset list
Tune Mode
Search
Setting Preset Mode
Preset list
Tune Mode Manual Mode
Preset Mode
Service scan
For the first time use, it is highly recommended to run a "Service Scan". Service scan finds and saves
entire DMB services available at the location. To get better signal reception, run "Service Scan" at wide
open area.
Press menu button, and use up/down button to move to [Service scan].
Press OK button to enter sub-menu, and select "Yes" to start service scan.
Preset list
Tune Mode
Search
Setting Search Yes
Preset list
Tune Mode
Search
Setting Search Yes
Search Search Yes
No

Operation
Preset tune mode 22
Operation
Service scan
21
Deleting service from service list
1. Bring up service list and move to the service that you wish to delete.
2. Press and hold [OK] button for more than 1 second.
3. Selected service will be deleted from service list.
Adding service to service list
Tune to a certain service that you wish to add to ser-
vice list.
Press and hold [OK/MUTE] button for more than 1
second.
Current service is added to service list.
This function is available when tune mode
is set to Manual.
Press [LIST] button to bring up service list. Scroll the list using up/ down button and press [OK] button to
confirm selection of desired service.
DMR132 tunes to other services if left or right button is pressed while a service is being broadcasted.

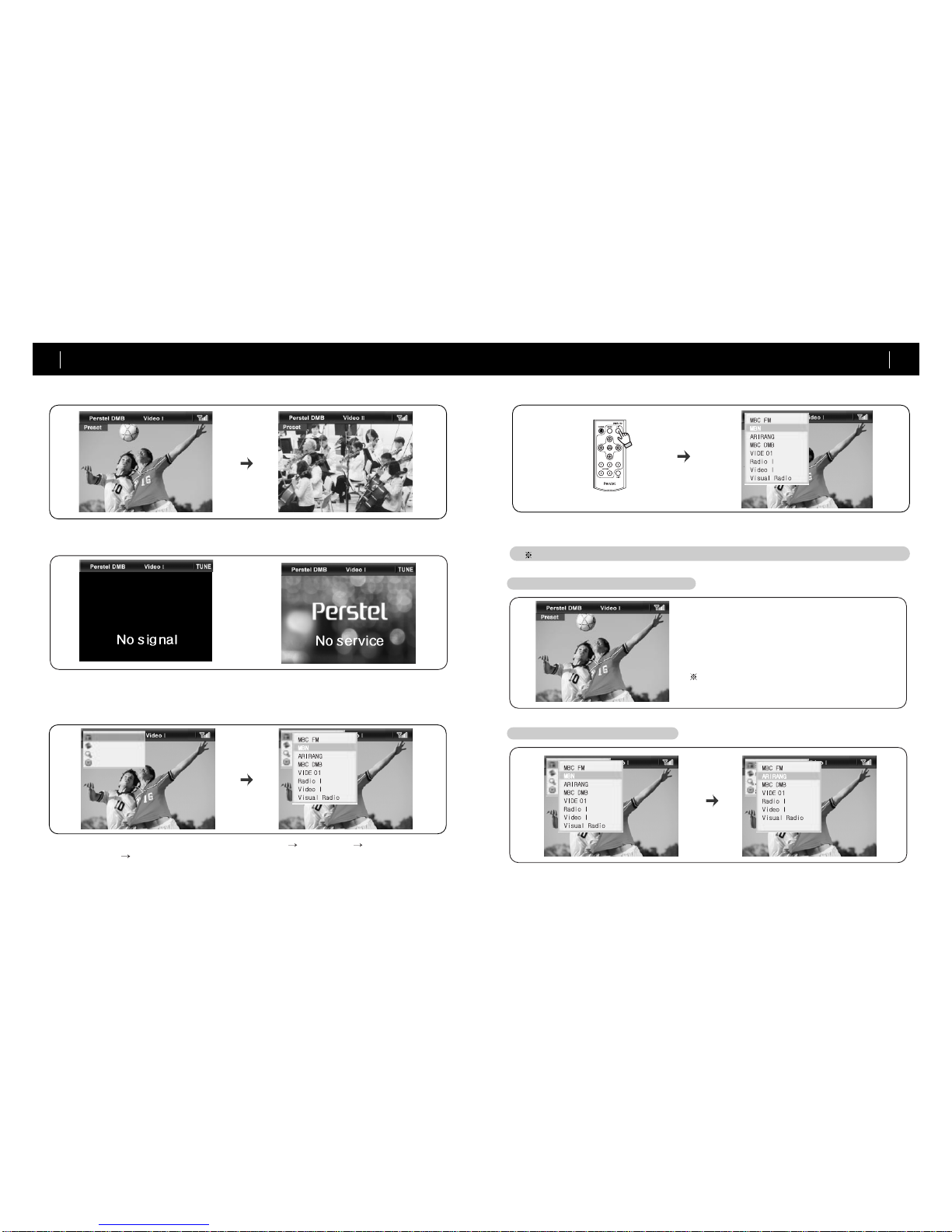

If selected service is at very weak signal
area and therefore no reception is made,
"No signal" message will be displayed.
If selected service is at strong signal area
but service is temporarily out, "No service"
message will be displayed.
This function works only when tune mode is set at Preset.
Add To Preset!
If you wish to select a service from service list, press MENU [Service List] up and down to select
desired service Press OK to confirm selection
Preset list
Tune Mode
Search
Setting
Tune Mode Preset Mode

Operation
Display 24
Operation
Manual tune mode
23
DISP (Display) button enables to show service information – ensemble, service name, signal strength,
current time and volume level.
DISP shuts off screen when pressed and held for more than 1 second. To bring the screen back,
press and hold DISP button again. Audio remains whether of not the screen shuts off.
DISP also enables to switch brightness between “Daylight” and “Night” when service information is
active.
Ensemble chart appears when
right button is pressed. Scroll
up and down by up/ down but-
ton and press [OK] button to
confirm selection.
When DAB/ DMB signal
exists, tune LED stays green
and service window is active.
When service list is displayed,
press left button to return to
ensemble list.
Scroll up/down to a desired
service and press [OK] button
to tune to it.
Service window closes when
service is tuned.
To move to other service,
press right button, then ser-
vice window will be active.
Scroll up/down to a desired
service and press [OK] button
to select new service.
Daylight
Night
Manual tune mode Display
When a certain ensemble frequency is known, it would be convenient to move to that ensemble and tune
to its services at Manual tune mode. To direct to that ensemble, please firstly change tune mode to
[Manual].

Operation
Favorite services
25 Operation
MENU TREE 26
MENU TREE
Favorite services
Favorite services can be stored at and restored from (1) (2) (3) (4) (5) for instant access.
To store current service to favorite service memory, press and hold favorite number until “Favorite (1)
saved” message is displayed.
To restore favorite service, press favorite number.
Menu
1. Press [MENU] button to enter menu.
2. Scroll the menu using up/down buttons and press [OK] button to enter sub-menu.
3. For sub-menu to set values, use up/down to set value and press [OK] button to finish setting.
4. To exit menu by step by step, press [MENU] at any time in menu mode.
Preset list
MENU
Tune Mode
Search
Setting
Manual
Preset
Brightness
Audio Out
Contrast
Country
0~100
0~100
Korean
English
Yes
No
Yes
No
Speaker
FM...Mhz
Sub-menu
Main-menu
Values
OSD Language
System Reset
Korean
EU
Favorite 1 saved

Operation
Car pack audio connector 28
Operation
Audio output with FM transmitter
27
Audio output with FM transmitter

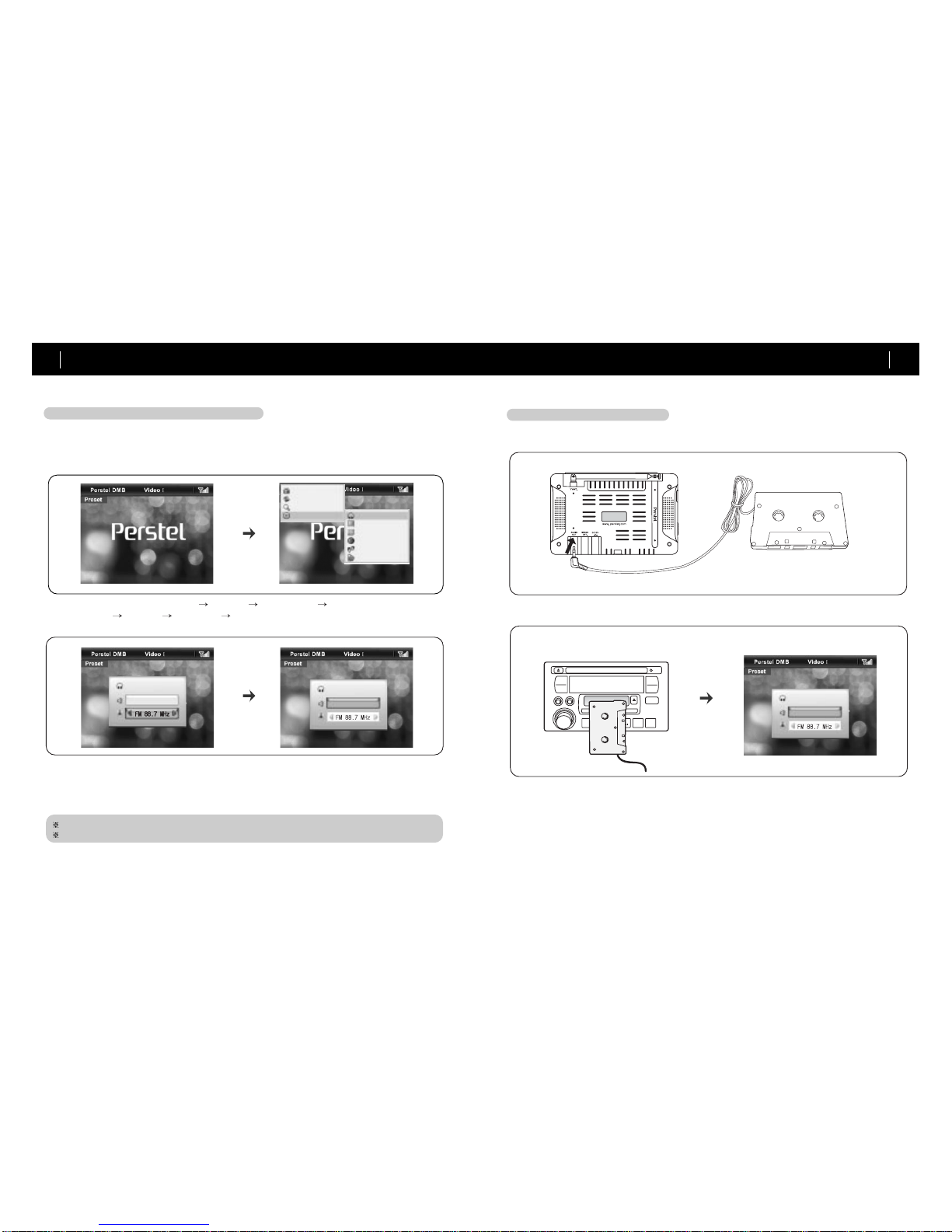

DMR132 is designed to transmit audio output to vehicle audio system using FM transmitter. One of the
following FM frequencies carries DMB audio to vehicle audio system. Be sure to keep the FM radio on,
and choose unoccupied frequency.
To use FM transmitter, press [MENU] [Setting] [Audio output] and press [OK].
- Press [MENU] [Setting] [Language] select language, and press [OK] to set the change.
Scroll down to [FM], and simulate FM fre-
quencies using left/ right button.
When the frequency is set, press [OK] to
confirm setting.
To switch back audio output to built-in
stereo speaker, choose [Speaker] and
press [OK] to confirm change.
Preset list
Tune Mode
Search
Setting Audio Out
Brightness
Contrast
Country
OSD Language
System Reset
Setting Brightness
Setting
Setting
Setting
Contrast
Country
OSD Language
Setting
System Reset
Speaker
Yes
Korea
Korea
Setting Audio Out
Setting Brightness
Setting
Setting
Setting
Contrast
Country
OSD Language
Setting
System Reset
Audio Out
Speaker Speaker
Yes
Korea
Korea
Setting Audio Out
Setting Brightness
Setting
Setting
Setting
Contrast
Country
OSD Language
Setting
System Reset
Speaker
Audio Out
Yes
Korea
Korea
Setting Audio Out
Setting Brightness
Setting
Setting
Setting
Contrast
Country
OSD Language
Setting
System Reset
Speaker
Audio Out
Yes
Korea
Korea
Factory default setting is “Speaker” as audio output.
Depending on terrain, FM transmitter may carry large amount of noise. Please try other frequency.
Car pack audio connector
Car pack audio connector delivers better quality of audio to vehicle audio system. Make sure that your
vehicle has built-in cassette tape deck before purchase this accessory.
Insert 3.5mm audio jack to Audio OUT port positioned rear of the product.
Audio output has to be set “Speaker”.
Insert car pack in the cassette tape deck.
Turn on the vehicle audio system, and adjust
volume level like using cassette tape.
TUNE
DISC
BSM
CDCHG
+
-
CD IN
EQ
VOL
123456
D D
FF RPT

Operation
Country setting 30
Operation
Brightness & Contrast control
29
Brightness & Contrast control
If you wish to adjust entire brightness of the screen, please do followings.
Press [MENU] [Setting] [Brightness],
and press [OK] to enter value setting menu.
Press [MENU] [Setting] [Contrast],
and press [OK] to enter value setting menu.
Country setting
DAB/DMB frequency is not all the same per country. When country setting changes, frequency band and
reception area changes accordingly. Check region before running “Service scan”.
To change country setting, press [MENU] [Setting] [Country] select country, and press [OK].
Press left/ right button to adjust brightness.
Brightness can be set any value between 0
to 100. Press [OK] when value setting is
done.
Press left/ right button to adjust contrast
level. Contrast can be set any value
between 0 to 100. Press [OK] when value
setting is done.
Setting Audio Out
Preset list
Tune Mode
Search
Setting Audio Out
Brightness
Contrast
Country
OSD Language
System Reset
Setting
Setting
Setting
Contrast
Country
OSD Language
Setting
System Reset
Speaker
Yes
Korea
Korea
Setting Audio Out
Setting Brightness
Preset list
Tune Mode
Search
Setting
Setting
Setting
Audio Out
Brightness
Contrast
Country
OSD Language
System Reset
Country
OSD Language
Setting
System Reset
Speaker
Yes
Korea
Korea
Setting Audio Out
Contrast
Setting Brightness
Setting
Setting
Setting
Contrast
Country
OSD Language
Setting
System Reset
Speaker
Yes
Korea
Korea
Setting Audio Out
Brightness
Setting Brightness
Setting
Setting
Setting
Contrast
Country
OSD Language
Setting
System Reset
Speaker
Yes
Korea
Korea
Setting Audio Out
Setting Brightness
Setting
Preset list
Tune Mode
Search
Setting
Setting
Contrast
Audio Out
Brightness
Contrast
Country
OSD Language
System Reset
OSD Language
Setting
System Reset
Speaker
Yes
Korea
Korea
Setting Audio Out
Country
Setting Brightness
Setting
Setting
Setting
Contrast
Country
OSD Language
Setting
System Reset
Speaker
Yes
Korea
Korea
EU

Product specifications
Operation
Language setting
31
System reset
“System reset” clears the entire user settings, and brings back factory default setting.
For system reset, press [MENU] [Setting] [System reset] [Yes], and press [OK].
System reset takes a while. Please wait till it completes.
32
Language setting
Do the followings to set message and menu language.
Press [MENU] [Setting] [Language] select language, and press [OK] to set the
change.
Product specifications
Model
Frequency
Technical standards
Sensitivity
Video decoding
Audio decoding
Video output
Audio output
Interface
Power source
Dimension (WHD)
Weight
DMR132VM ( L- Band Option )
BAND-III : 174MHz ~ 240MHz
Better than -96dBm @ BER = 1 x 10-4
MPEG-4 / H.264
MUSICAM & MPEG4/BSAC
5" TFT LCD ( CCFL Back Light )
12VDC (Adapter or cigar lighter charger)
175 x 110 x 29 (mm)
430 (g)
Setting Audio Out
Setting Brightness
Setting
Setting
Preset list
Tune Mode
Search
Setting
Contrast
Country
Audio Out
Brightness
Contrast
Country
OSD Language
System Reset
Setting
System Reset
Speaker
Yes
Korea
Korea
Setting Audio Out
Setting Brightness
Setting
Setting
Setting
Contrast
Country
OSD Language
OSD Language
Setting
System Reset
Speaker
Yes
Korea
English
Korea
Setting Audio Out
Setting Brightness
Setting
Setting
Setting
Contrast
Country
OSD Language
Preset list
Tune Mode
Search
Setting Audio Out
Brightness
Contrast
Country
OSD Language
System Reset
Speaker
Yes
Korea
Korea
Setting Audio Out
Setting Brightness
Setting
Setting
Setting
Contrast
Country
OSD Language
System Reset
Setting
System Reset
Speaker
Yes
No
Korea
Korea
