Pfeiffer Vacuum MVP 010-3 DC User manual

OPERATING INSTRUCTIONS
EN
Translation of the Original
MVP 010-3 DC
Diaphragm Pump

Dear Customer,
Thank you for choosing a Pfeiffer Vacuum product. Your new diaphragm pump is designed to
support you with its performance, perfect operation and without impacting your individual
application. The name Pfeiffer Vacuum stands for high-quality vacuum technology, a
comprehensive and complete range of top-quality products and first-class service. From this
extensive, practical experience we have gained a large volume of information that can
contribute to efficient deployment and to your personal safety.
In the knowledge that our product must avoid consuming work output, we trust that our
product can offer you a solution that supports you in the effective and trouble-free
implementation of your individual application.
Please read these operating instructions before putting your product into operation for the
first time. If you have any questions or suggestions, please feel free to contact info@pfeiffer-
vacuum.de.
Further operating instructions from Pfeiffer Vacuum can be found in the Download Center on
our website.
Disclaimer of liability
These operating instructions describe all models and variants of your product. Note that your
product may not be equipped with all features described in this document. Pfeiffer Vacuum
constantly adapts its products to the latest state of the art without prior notice. Please take
into account that online operating instructions can deviate from the printed operating
instructions supplied with your product.
Furthermore, Pfeiffer Vacuum assumes no responsibility or liability for damage resulting from
the use of the product that contradicts its proper use or is explicitly defined as foreseeable
misuse.
Copyright
This document is the intellectual property of Pfeiffer Vacuum and all contents of this
document are protected by copyright. They may not be copied, altered, reproduced or
published without the prior written permission of Pfeiffer Vacuum.
We reserve the right to make changes to the technical data and information in this document.
2/54

Table of contents
1 About this manual 7
1.1 Validity 7
1.1.1 Applicable documents 7
1.1.2 Variants 7
1.2 Target group 7
1.3 Conventions 7
1.3.1 Instructions in the text 7
1.3.2 Pictographs 7
1.3.3 Stickers on the product 8
1.3.4 Abbreviations 8
2 Safety 10
2.1 General safety information 10
2.2 Safety instructions 10
2.3 Safety precautions 12
2.4 Limits of use of the product 13
2.5 Proper use 13
2.6 Foreseeable improper use 13
2.7 Personnel qualification 14
2.7.1 Ensuring personnel qualification 14
2.7.2 Personnel qualification for maintenance and repair 15
2.7.3 Advanced training with Pfeiffer Vacuum 15
3 Product description 16
3.1 Function 16
3.1.1 Actuator 16
3.1.2 Pumping system 16
3.1.3 Cooling 16
3.2 Connections 17
3.3 Identifying product 17
3.4 Scope of delivery 17
4 Transportation and Storage 18
4.1 Transporting the vacuum pump 18
4.2 Storing vacuum pump 18
5 Installation 19
5.1 Installing the vacuum pump 19
5.2 Connecting the vacuum side 19
5.3 Connect exhaust side 19
5.4 Establishing the electric connection 20
5.4.1 Grounding the vacuum pump 20
5.4.2 Establishing electric connection 21
6 Interfaces 23
6.1 "Remote" interface 23
6.1.1 Voltage supply 24
6.1.2 Inputs 24
6.1.3 Outputs 24
6.1.4 RS-485 25
6.2 Interface RS-485 25
6.3 Cross-linking via RS-485 connection 25
6.4 Connection options via interface RS-485 26
6.5 Pfeiffer Vacuum protocol for RS-485 interface 27
6.5.1 Telegram frame 27
6.5.2 Telegram description 27
6.5.3 Telegram example 1 27
Table of contents
3/54

6.5.4 Telegram example 2 28
6.5.5 Data types 28
7 Parameter set 29
7.1 General 29
7.2 Control commands 29
7.3 Status requests 30
7.4 Reference value inputs 31
8 Operation 32
8.1 Putting the vacuum pump into operation 32
8.2 Switching on the vacuum pump 32
8.3 Configuring connections with Pfeiffer Vacuum parameter set 33
8.3.1 Configuring the digital outputs 33
8.3.2 Selecting the interfaces 33
8.4 Operating modes 34
8.4.1 Normal operation 34
8.4.2 Stand-by operation 34
8.4.3 Speed actuator operation 35
8.5 Operation monitoring 35
8.5.1 Operating mode display via LED 35
8.5.2 Temperature monitoring 35
8.6 Switching off the vacuum pump 36
9 Maintenance 37
9.1 Maintenance instructions 37
9.2 Checklist for inspection and maintenance 38
9.3 Change the diaphragms and valves 39
9.3.1 Dismantle the diaphragm head and valves 39
9.3.2 Cleaning and replacing the diaphragms and valves 40
9.3.3 Mount the diaphragm head and valves 40
10 Decommissioning 41
11 Recycling and disposal 42
11.1 General disposal information 42
11.2 Dispose of diaphragm pumps 42
12 Malfunctions 43
12.1 General 43
12.2 Error codes 44
13 Service solutions by Pfeiffer Vacuum 45
14 Spare parts packs 47
15 Accessories 48
15.1 Accessory information 48
15.2 Ordering accessories 48
16 Technical data and dimensions 49
16.1 General 49
16.2 Technical data 49
16.3 Substances in contact with the media 50
16.4 Dimensions 50
EC Declaration of Conformity 51
UK Declaration of Conformity 52
Table of contents
4/54

List of tables
Tbl. 1: Stickers on the product 8
Tbl. 2: Abbreviations used in this document 9
Tbl. 3: Permissible ambient conditions 13
Tbl. 4: Connection description of the electronic drive unit 17
Tbl. 5: Pin assignment of the D-Sub socket, 15-pin 24
Tbl. 6: Output DO1/pin 8 24
Tbl. 7: Output DO2/pin 9 25
Tbl. 8: Features of the RS-485 interface 25
Tbl. 9: Explanation and meaning of the parameters 29
Tbl. 10: Parameter set | Control commands 30
Tbl. 11: Parameter set | Status requests 30
Tbl. 12: Parameter set | Reference value inputs 31
Tbl. 13: Factory setting of the electronic drive unit for diaphragm pumps when deliv-
ered
32
Tbl. 14: Configure parameters [P:019] and [P:024] 33
Tbl. 15: Parameters [P:060] and [P:061] 33
Tbl. 16: Behavior and meaning of the LED of the electronic drive unit 35
Tbl. 17: Typical service life with normal use 37
Tbl. 18: Maintenance intervals 38
Tbl. 19: Troubleshooting on diaphragm pumps 44
Tbl. 20: Error messages for vacuum pump 44
Tbl. 21: Warning messages for vacuum pump 44
Tbl. 22: Spare parts 47
Tbl. 23: Accessories MVP 010-3 DC 48
Tbl. 24: Conversion table: Pressure units 49
Tbl. 25: Conversion table: Units for gas throughput 49
Tbl. 26: Technical data, MVP 010-3 DC 50
Tbl. 27: Materials that make contact with the process media 50
List of tables
5/54

List of figures
Fig. 1: Position of the stickers on the product 8
Fig. 2: Diaphragm pump design 16
Fig. 3: Connect grounding cable 20
Fig. 4: Connection with turbopump, power supply pack and controller 21
Fig. 5: Connection to control unit with integrated power supply pack 22
Fig. 6: Pins of the D-Sub socket, 15-pin 23
Fig. 7: Cross-linking via RS-485 interface 26
Fig. 8: Connection options via interface RS-485 26
Fig. 9: Diaphragm head and valves 39
Fig. 10: Spare parts of the inspection sets 47
Fig. 11: Dimensions MVP 010-3 DC 50
List of figures
6/54

1 About this manual
IMPORTANT
Read carefully before use.
Keep the manual for future consultation.
1.1 Validity
These operating instructions are a customer document of Pfeiffer Vacuum. The operating instructions
describe the functions of the named product and provide the most important information for the safe use
of the device. The description is written in accordance with the valid directives. The information in these
operating instructions refers to the product's current development status. The document shall remain
valid provided that the customer does not make any changes to the product.
1.1.1 Applicable documents
Designation Document
Declaration of conformity A component of these operating instructions
1.1.2 Variants
These instructions apply to diaphragm pumps of the DC series:
●MVP 010-3 DC as standard version
1.2 Target group
These operating instructions are aimed at all persons performing the following activities on the product:
●Transportation
●Setup (Installation)
●Usage and operation
●Decommissioning
●Maintenance and cleaning
●Storage or disposal
The work described in this document is only permitted to be performed by persons with the appropriate
technical qualifications (expert personnel) or who have received the relevant training from Pfeiffer Vac-
uum.
1.3 Conventions
1.3.1 Instructions in the text
Usage instructions in the document follow a general structure that is complete in itself. The required ac-
tion is indicated by an individual step or multi-part action steps.
Individual action step
A horizontal, solid triangle indicates the only step in an action.
►This is an individual action step.
Sequence of multi-part action steps
The numerical list indicates an action with multiple necessary steps.
1. Step 1
2. Step 2
3. ...
1.3.2 Pictographs
Pictographs used in the document indicate useful information.
About this manual
7/54

Note
Tip

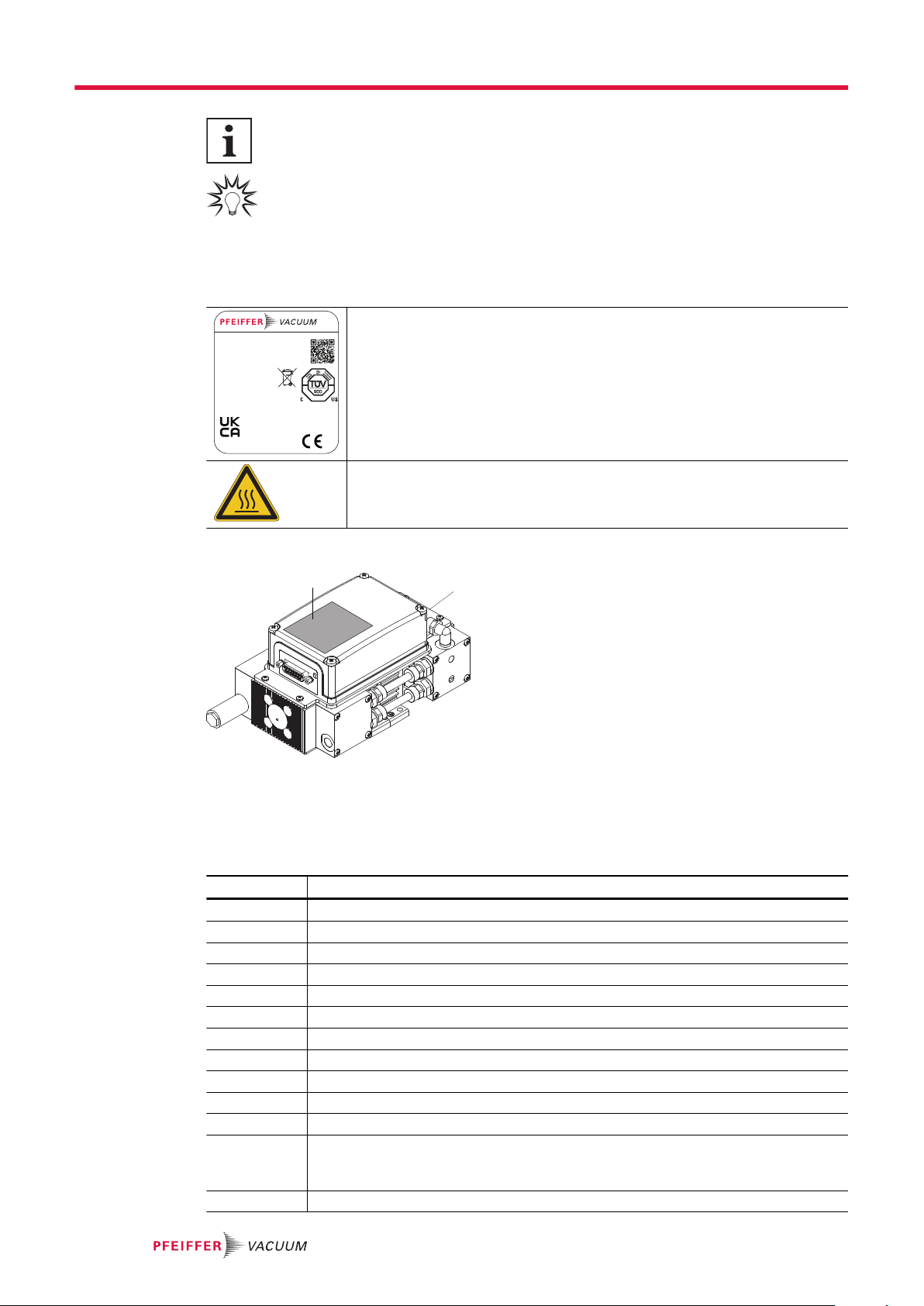

1.3.3 Stickers on the product
This section describes all the stickers on the product along with their meaning.
D-35614 Asslar
Mod.
P/N
S/N
MVP 010-3 DC
PK T05 072
xxxxxxxxx
Made in Germany 2023/05
S (N )
n
Mass
20.6m /h
max. 1800 1/min
1.8 kg
3
Berliner Strasse 43
24 V DC (± 10%) 2.5 A UL/CSA 61010-1
Type 1 / IP20
NRTL
UK Authorized Representative:
Pfeiffer Vacuum Ltd.
16 Plover Close,
Newport Pagnell
MK 169 PS
Rating plate
Rating plate of the diaphragm pump
Warning hot surface
This sticker warns of injuries caused by high temperatures in case of touching
without protection during operation.
Tbl. 1: Stickers on the product
1
2
Fig. 1: Position of the stickers on the product
1 Rating plate 2 Hot surface warning sign
1.3.4 Abbreviations
Abbreviation Meaning in this document
DC Direct current
DI Digital input
DN Nominal diameter (diamètre nominal)
DO Digital output
EPDM Ethylenepropylene diene-monomer rubber
fRotation speed value of a vacuum pump (frequency, in rpm or Hz)
GND Ground
LED Light emitting diode
MVP Diaphragm vacuum pump
n.c. not connected
MSL Mean sea level
[P:xxx] Electronic drive unit control parameters. Printed in bold as a three-digit number in
square brackets. Frequently displayed in conjunction with a short description.
Example: [P:312] software version
PA Polyamide
About this manual
8/54

Abbreviation Meaning in this document
PE Protective earth (earthed conductor)
WAF Width Across Flats
TTemperature (in °C), property abbreviation of the vacuum pump
TC Turbopump electronic drive unit (turbo controller)
TPS Voltage supply (turbo power supply)
USB Universal Serial Bus
Tbl. 2: Abbreviations used in this document
About this manual
9/54

2 Safety
2.1 General safety information
The following 4 risk levels and 1 information level are taken into account in this document.
DANGER
Immediately pending danger
Indicates an immediately pending danger that will result in death or serious injury if not observed.
►Instructions to avoid the danger situation
WARNING
Potential pending danger
Indicates a pending danger that could result in death or serious injury if not observed.
►Instructions to avoid the danger situation
CAUTION
Potential pending danger
Indicates a pending danger that could result in minor injuries if not observed.
►Instructions to avoid the danger situation
NOTICE
Danger of damage to property
Is used to highlight actions that are not associated with personal injury.
►Instructions to avoid damage to property
Notes, tips or examples indicate important information about the product or about this docu-
ment.
2.2 Safety instructions
All safety instructions in this document are based on the results of the risk assessment carried out in
accordance with Machinery Directive 2006/42/EC Annex I and EN ISO 12100 Section 5. As far as appli-
cable, all unit life cycle phases have been considered.
Risks during transport
WARNING
Danger of serious injury due to falling objects
Due to falling objects there is a risk of injuries to limbs through to broken bones.
►Take particular care and pay special attention when transporting products manually.
►Do not stack the products.
►Wear protective equipment, e.g. safety shoes.
Safety
10/54

Risks during installation
DANGER
Danger to life from electric shock
Power supply packs that are not specified or are not approved will lead to severe injury to death.
►Make sure that the power supply pack meets the requirements for double isolation between
mains input voltage and output voltage, in accordance with IEC 61010-1 IEC 60950-1 and
IEC 62368-1.
►Make sure that the power supply pack meets the requirements in accordance with IEC 61010-1
IEC 60950-1 and IEC 62368-1.
►Where possible, use original power supply packs or only power supply packs that correspond
with the applicable safety regulations.
DANGER
Danger to life from electric shock
When establishing the voltages that exceed the specified safety extra-low voltage (according to IEC
60449 and VDE 0100), the insulating measures will be destroyed. There is a danger to life from elec-
tric shock at the communication interfaces.
►Connect only suitable devices to the bus system.
WARNING
Risk of injury due to incorrect installation
Dangerous situations may arise from unsafe or incorrect installation.
►Do not carry out your own conversions or modifications on the unit.
►Ensure the integration into an Emergency Off safety circuit.
WARNING
Danger to life from poisoning where toxic process gases leak with no exhaust line
During normal operation, the vacuum pump expels exhaust gases and vapors freely into the air. In
processes involving toxic media, there is a risk of injury and danger to life due to poisoning.
►Observe the relevant regulations for handling toxic substances.
►Safely purge toxic process gases via an exhaust line.
CAUTION
Danger of injury from bursting as a result of high pressure in the exhaust line
Faulty or inadequate exhaust pipes lead to dangerous situations, e.g. increased exhaust pressure.
There is a danger of bursting. Injuries caused by flying fragments, the escaping of high pressure, and
damage to the unit cannot be excluded.
►Route the exhaust line without shut-off units.
►Observe the permissible pressures and pressure differentials for the product.
►Check the function of the exhaust line on a regular basis.
Risks during operation
WARNING
Danger of poisoning due to toxic process media escaping from the exhaust pipe
During operation with no exhaust line, the vacuum pump allows exhaust gases and vapors to escape
freely into the air. There is a risk of injury and fatality due to poisoning in processes with toxic process
media.
►Observe the pertinent regulations for handling toxic process media.
►Safely purge toxic process media via an exhaust line.
►Use appropriate filter equipment to separate toxic process media.
Safety
11/54

CAUTION
Danger of burns on hot surfaces
Depending on the operating and ambient conditions, the surface temperature of the vacuum pump
can increase to above 70 °C.
►Provide suitable touch protection.
Risks during maintenance, decommissioning and in the event of malfunctions
WARNING
Health hazard through poisoning from toxic contaminated components or devices
Toxic process media result in contamination of devices or parts of them. During maintenance work,
there is a risk to health from contact with these poisonous substances. Illegal disposal of toxic sub-
stances causes environmental damage.
►Take suitable safety precautions and prevent health hazards or environmental pollution by toxic
process media.
►Decontaminate affected parts before carrying out maintenance work.
►Wear protective equipment.
CAUTION
Danger of burns on hot surfaces
In the event of a fault, the surface temperature of the vacuum pump can increase to above 70 °C.
►Allow the vacuum pump to cool down before carrying out any work.
►Wear personal protective equipment if necessary.
Risks during disposal
WARNING
Health hazard through poisoning from toxic contaminated components or devices
Toxic process media result in contamination of devices or parts of them. During maintenance work,
there is a risk to health from contact with these poisonous substances. Illegal disposal of toxic sub-
stances causes environmental damage.
►Take suitable safety precautions and prevent health hazards or environmental pollution by toxic
process media.
►Decontaminate affected parts before carrying out maintenance work.
►Wear protective equipment.
2.3 Safety precautions
DANGER
Danger to life from electric shock
Power supply packs that are not specified or are not approved will lead to severe injury to death.
►Make sure that the power supply pack meets the requirements for double isolation between
mains input voltage and output voltage, in accordance with IEC 61010-1 IEC 60950-1 and
IEC 62368-1.
►Make sure that the power supply pack meets the requirements in accordance with IEC 61010-1
IEC 60950-1 and IEC 62368-1.
►Where possible, use original power supply packs or only power supply packs that correspond
with the applicable safety regulations.
Duty to provide information on potential dangers
The product holder or user is obliged to make all operating personnel aware of dangers
posed by this product.
Every person who is involved in the installation, operation or maintenance of the product
must read, understand and adhere to the safety-related parts of this document.
Safety
12/54

Infringement of conformity due to modifications to the product
The Declaration of Conformity from the manufacturer is no longer valid if the operator
changes the original product or installs additional equipment.
●Following the installation into a system, the operator is required to check and re-evalu-
ate the conformity of the overall system in the context of the relevant European Direc-
tives, before commissioning that system.
General safety precautions
►Prevent process gases and their reaction and ancillary products that are harmful to health and the
environmental from escaping, or dispose of these according to the applicable regulations.
►Avoid contact with process gases that are harmful to health and if required, wear personal protec-
tive clothing.
►Check the media compatibility of parts carrying media.
►Observe all applicable safety and accident prevention regulations.
►Check that all safety measures are observed at regular intervals.
►Do not expose body parts to the vacuum.
►Never disconnect plug connections during operation.
►Never fill or operate the unit with cleaning agents or cleaning agent residues.
►Do not carry out your own conversions or modifications on the unit.
►Observe the unit protection degree prior to installation or operation in other environments.
►Provide suitable touch protection, if the surface temperature exceeds 70°C.
►Keep lines and cables away from hot surfaces.
►Before returning the vacuum pump, observe the notes in the chapter Service solutions.
2.4 Limits of use of the product
Installation location Interiors, protected against the accumulation of dust and weather in-
fluences, in a non-explosive, dry environment
Installation altitude max. 2000 m above sea level 1)
Relative humidity of air 80% at T ≤ 31 °C, to max. 50% at T ≤ 40 °C
Protection degree IEC 60529 IP 20
Protection degree UL 50E NEMA type 1
Degree of pollution 2
Ambient temperature +5 ℃ to +40 ℃
Tbl. 3: Permissible ambient conditions
2.5 Proper use
►Use the vacuum pump for vacuum generation only.
►Adhere to the installation, commissioning, operating, and maintenance instructions.
►Use only accessory parts recommended by Pfeiffer Vacuum.
2.6 Foreseeable improper use
Improper use of the product invalidates all warranty and liability claims. Any use that is counter to the
purpose of the product, whether intentional or unintentional, is regarded as improper use; in particular:
●Pumping of corrosive media
●Pumping explosive media
●Pumping radioactive or volatile media
●Pumping of gases that contain contamination such as particles, dust, or condensate
●Pumping of fluids
●Pumping FKM-solubilizing media
●Pumping vapors from combustible liquids
1) at an installation location above 1000 meters above sea level, there is a risk of insufficient cooling. If necessa-
ry, take measures according to Directive DIN EN 61010.
Safety
13/54

●Pumping pressurized media (> atmospheric pressure)
●Pumping media that can condense or cause adhering deposits to form in the suction chamber
●Using the vacuum pump outside the specified range of application
●Using the vacuum pump below ground
●Using the vacuum pump to generate pressure
●Use of the vacuum pump in systems in which sporadic loads and vibrations or periodic forces act
on the unit
●Using the vacuum pump in strong electrical, magnetic, or electromagnetic fields
●Connecting to vacuum pumps and units that are not designed for this purpose according to their
operating instructions
●Connecting to units with exposed live parts
●Connecting to sockets without earthing contact
●Use of pipes to lift the vacuum pump
●Use of accessories or spare parts not listed in these instructions
●Using the vacuum pump as a climbing aid
●Using the connection lines between the diaphragm heads as carrying handles
●Using the pump in ambient conditions that do not meet the specified IP protection degree limits
2.7 Personnel qualification
The work described in this document may only be carried out by persons who have appropriate profes-
sional qualifications and the necessary experience or who have completed the necessary training as
provided by Pfeiffer Vacuum.
Training people
1. Train the technical personnel on the product.
2. Only let personnel to be trained work with and on the product when under the supervision of
trained personnel.
3. Only allow trained technical personnel to work with the product.
4. Before starting work, make sure that the commissioned personnel have read and understood
these operating instructions and all applicable documents, in particular the safety, maintenance
and repair information.
2.7.1 Ensuring personnel qualification
Specialist for mechanical work
Only a trained specialist may carry out mechanical work. Within the meaning of this document, special-
ists are people responsible for construction, mechanical installation, troubleshooting and maintenance
of the product, and who have the following qualifications:
●Qualification in the mechanical field in accordance with nationally applicable regulations
●Knowledge of this documentation
Specialist for electrotechnical work
Only a trained electrician may carry out electrical engineering work. Within the meaning of this docu-
ment, electricians are people responsible for electrical installation, commissioning, troubleshooting, and
maintenance of the product, and who have the following qualifications:
●Qualification in the electrical engineering field in accordance with nationally applicable regulations
●Knowledge of this documentation
In addition, these individuals must be familiar with applicable safety regulations and laws, as well as the
other standards, guidelines, and laws referred to in this documentation. The above individuals must
have an explicitly granted operational authorization to commission, program, configure, mark, and earth
devices, systems, and circuits in accordance with safety technology standards.
Trained individuals
Only adequately trained individuals may carry out all works in other transport, storage, operation and
disposal fields. Such training must ensure that individuals are capable of carrying out the required activi-
ties and work steps safely and properly.
Safety
14/54

2.7.2 Personnel qualification for maintenance and repair
Advanced training courses
Pfeiffer Vacuum offers advanced training courses to maintenance levels 2 and 3.
Adequately trained individuals are:
●Maintenance level 1
─Customer (trained specialist)
●Maintenance level 2
─Customer with technical education
─Pfeiffer Vacuum service technician
●Maintenance level 3
─Customer with Pfeiffer Vacuum service training
─Pfeiffer Vacuum service technician
2.7.3 Advanced training with Pfeiffer Vacuum
For optimal and trouble-free use of this product, Pfeiffer Vacuum offers a comprehensive range of
courses and technical trainings.
For more information, please contact Pfeiffer Vacuum technical training.
Safety
15/54

3 Product description
3.1 Function
Diaphragm pumps are dry compressing positive displacement pumps. The movement of diaphragms
generates a periodic change of the suction chamber volume. The gas flow causes the valves to open
and close automatically. The pump unit is directly connected to the drive motor.
10
1
4
5
8
2
6
9
7
3
11
Fig. 2: Diaphragm pump design
1 Diaphragm head 4 7 Hose connection with banjo bolts
2 Cover, lid 8 Fixing plate
3 Connecting socket 9 Diaphragm head 1
4 LED 10 Vacuum connection, G 1/8"
5 Diaphragm head 3 11 Exhaust with silencer, G 1/8"
6 Diaphragm head 2
3.1.1 Actuator
The diaphragm pump forms a compact unit with the electronic drive unit. The integrated electronic drive
unit permits the control and monitoring of pumping functions via the “remote” interface using a Pfeiff-
er Vacuum control unit.
3.1.2 Pumping system
The diaphragm pump has 4 diaphragm heads and 3 pumping stages.
3.1.3 Cooling
The diaphragm pump is convection-cooled and does not have its own fan.
Product description
16/54

3.2 Connections
Connection Description
remote
D-sub socket with 15 pins for connection and configuration of a remote control.
Tbl. 4: Connection description of the electronic drive unit
3.3 Identifying product
►To ensure clear identification of the product when communicating with Pfeiffer Vacuum, always
keep all of the information on the rating plate to hand.
►Learn about certifications through test seals on the product or at www.tuev-sued.de.
3.4 Scope of delivery
●Vacuum pump with integrated electronic drive unit
●Silencer
●Operating instructions
●Blind plug on the vacuum connection
Product description
17/54

4 Transportation and Storage
4.1 Transporting the vacuum pump
WARNING
Danger of serious injury due to falling objects
Due to falling objects there is a risk of injuries to limbs through to broken bones.
►Take particular care and pay special attention when transporting products manually.
►Do not stack the products.
►Wear protective equipment, e.g. safety shoes.
Packing
We recommend keeping the transport packaging and original protective cover.
Safe transport of the product
►Observe the weight specified on the packaging.
►Where possible, always transport or ship the product in the original packaging.
►Always place the product on an adequately sized, level surface.
Transporting the vacuum pump without its packaging
1. Unpack the vacuum pump.
2. To protect the inside of the pump, leave the blind plugs on the vacuum connection during trans-
port.
3. Lift the vacuum pump on both front sides.
4. Lift the vacuum pump out of the transport packaging.
5. Make sure that no forces are acting on the piping system.
6. Always place the vacuum pump on an adequately sized, level surface.
4.2 Storing vacuum pump
Packing
We recommend storing the product in its original packaging.
Safe storing vacuum pump
►Seal the vacuum connection with the blind plug.
►Store the vacuum pump only in dry, dust-free rooms, within the specified ambient conditions.
►In rooms with humid or aggressive atmospheres: Hermetically seal the vacuum pump together
with a drying agent in a plastic bag.
Transportation and Storage
18/54

5 Installation
5.1 Installing the vacuum pump
Procedure
►Place the vacuum pump on a flat, horizontal surface.
►For stationary installation, screw the vacuum pump direct to the mounting surface.
►When installing the pump in a closed housing, ensure adequate air circulation.
►Keep the specifications on the motor rating plate visible and freely accessible.
5.2 Connecting the vacuum side
NOTICE
Property damage from contaminated gases
Pumping gases that contain contamination damages the vacuum pump.
►Use suitable filters or separators from the Pfeiffer Vacuum range of accessories, to protect the
vacuum pump.
Installation and operation of accessories
Pfeiffer Vacuum offers a series of special, compatible accessories for its diaphragm pumps.
●Information and ordering options for approved accessories can be found online.
●Described accessories are not included in the shipment.
Preventing throttling losses
Using the shortest possible vacuum connection lines with large nominal diameter prevents
pressure losses.
Condensate separator
Pfeiffer Vacuum recommends the installation of a condensate separator in case vapors are
formed from moisture during evacuation.
Procedure
1. Remove the blind plug from the vacuum connection.
2. Establish the shortest possible connection between vacuum pump and vacuum chamber.
3. Choose a minimum vacuum line diameter equal to the nominal diameter of the vacuum connec-
tion.
4. Depending on the pump type, use PVC or metallic hoses with flange connections from the Pfeiff-
er Vacuum component shop.
5. Connect the vacuum pump to the vacuum system using the vacuum connection.
5.3 Connect exhaust side
WARNING
Danger to life from poisoning where toxic process gases leak with no exhaust line
During normal operation, the vacuum pump expels exhaust gases and vapors freely into the air. In
processes involving toxic media, there is a risk of injury and danger to life due to poisoning.
►Observe the relevant regulations for handling toxic substances.
►Safely purge toxic process gases via an exhaust line.
Installation
19/54

CAUTION
Danger of injury from bursting as a result of high pressure in the exhaust line
Faulty or inadequate exhaust pipes lead to dangerous situations, e.g. increased exhaust pressure.
There is a danger of bursting. Injuries caused by flying fragments, the escaping of high pressure, and
damage to the unit cannot be excluded.
►Route the exhaust line without shut-off units.
►Observe the permissible pressures and pressure differentials for the product.
►Check the function of the exhaust line on a regular basis.
CAUTION
Health hazard from increased noise emission
Operation without silencer leads to higher noise emissions. Remaining in the close proximity of the
vacuum pump for a sustained period of time may cause hearing damage.
►Install a suitable exhaust line.
►Wear hearing protection.
Condensate separator
Pfeiffer Vacuum recommends installing a condensate separator, with condensate drain at
the lowest point of the exhaust line.
Procedure
1. Check the installed silencer for free passage.
2. Choose a minimum exhaust line diameter equal to the nominal diameter of the connection flange.
3. Depending on the pump type, use PVC or metallic hoses with flange connections from the Pfeiff-
er Vacuum component shop.
4. Option: In case of higher gas throughputs, mount an exhaust line.
5. Route the piping downwards from the vacuum pump, to prevent condensate return.
6. Support or suspend the piping to the vacuum pump so that no piping system forces act on the
vacuum pump.
5.4 Establishing the electric connection
WARNING
Risk of injury due to incorrect installation
Dangerous situations may arise from unsafe or incorrect installation.
►Do not carry out your own conversions or modifications on the unit.
►Ensure the integration into an Emergency Off safety circuit.
5.4.1 Grounding the vacuum pump
Fig. 3: Connect grounding cable
Installation
20/54
