Phantomgogo R1 User manual
R1 ELECTRIC
sCOOTER
RIDING GUIDE
Made in China
Table of Contents
R1 Specications 2
Product Conguration 3
Controller Set-Up 4
Packaging 5
Assembly 6
Charging 7
Charging & Battery Safety Tips 8
Care & Maintenance 12
Usage of the R1 Scooter 9
Safety Information 10
Warranty 13
114
warranty
One Year Limited Warranty Bicycle Components
Phantomgogo warrants that all new Electric Bikes/Scooters that are oered for sale by Phantomgogo directly or authorized dealers
and distributors are warranted to the original retail purchaser/customer against manufacturing defects in materials and/or workman-
ship for a period of one (1) year from the date of original retail purchase. If a part fails under normal operating
conditions, then Phantomgogo will replace the part. However, the warranty is void should a bike part fail due to damage caused by rid-
er error, abuse, or negligence or if the bike has been modied or customized.
One Year Limited Warranty Bicycle Components
Phantomgogo warrants to the original purchaser/customer that the battery is free of defects in material and workmanship for one
year. The defective product will be replaced or repaired if met under certain pre-conditions. The original receipt of purchase is required
to establish proof of purchase and warranty date and must be provided to Phantomgogo for all warranty claims. Shipping costs are an
additional charge - the customer shall be responsible for the shipping or transportation costs incurred in returning the battery to
Phantomgogo for evaluation. Shipping charges for the replacement battery that is mailed back to the customer may be waived under
certain circumstances. Please contact Phantomgogo directly to determine battery replacement.
Damage During Shipping
Although damage to the bike during shipping is not covered by this limited warranty, Phantomgogo will oer to x or replace the item
damaged to the best of our ability. Damage claims are very time sensitive and it is your responsibility to notify us immediately when
delivery is made and the bike/scooter is discovered damaged. The following is required to certify the delivery damage:
Please inspect the bike/scooter and packaging when received. If damage is discovered, please contact us immediately.
13
R1 specications
2
• Max Supported Weight: 265 lbs
• Min. Supported Weight: 70 lbs
• Max Speed: 15.5 mph
• Max Range: 20 miles
• Motor Power: 450W
• Battery Voltage: 36V DC Lithium Battery
• Battery Capacity: 8Ah
• Twist Throttle: Yes
• Power Requirement: AC 100-240V, 50/60hz
• Front Fork: Rigid Steel Fork
• Tire Size: 12” Front & Rear
• Brake Type: Front & Rear Disc
The following instructions are applicable to the basic user manual. Please pay special attention to Warnings or Notes as
published in this manual. For your cycling safety, please read this manual carefully before using your R1 electric scooter
to make sure you can ride comfortably and correctly.
Care & Maintenance
Storage
• Avoid storing the scooter in direct sunlight. Hot temperatures can cause damage to the battery and function of the scooter.
• Avoid storing electric scooter in wet conditions.
• When the scooter is not being used, the battery can lose power. You should test the battery at least once a month, to ensure the
battery maintains full charging capabilities.
• Avoid leaving the scooter [and battery] idle for long periods of time, as this can cause battery failure.
• In winter, the batteries may lose power faster because of low temperatures.
• Inappropriate storage can shorten the life of the lithium battery life or cause other mechanical problems. Please store the electric
scooter indoors in a cool and dry place.
Cleaning
Before cleaning, make sure the scooter is turned o, unplug the charging line and cover the charging port. During the cleaning
process, be careful keep the water and moisture out of charging port. Use a dry cloth or a damp cloth to clean the cables - do not
spray water on the scooter or battery. During the cleaning process, be careful to keep water out of the charging port. Do not immerse
the electric scooter in water as it will cause permanent damage.
Battery Recycling
Help keep the environment free of litter and harmful pollution by recycling the battery correctly - do not throw batteries in the trash
- please recycle your battery responsibly. Please consult your local sanitation department guidelines for safe disposal of batteries
and parts.
Tire Maintenance
Make sure the pressure of the two tires inated correctly - do not overinate tires and try to keep the two tires at the same pressure.
The default tire pressure both tires is 36/PSI. It is recommended that any at tries be changed by an
experienced bicycle shop mechanic.
123

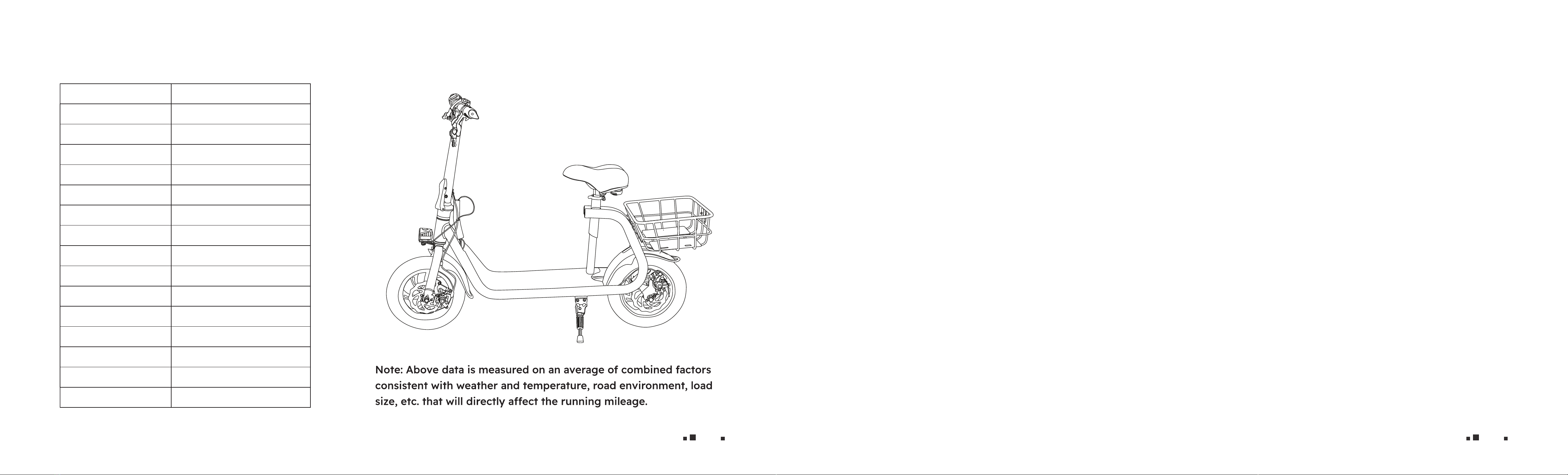

Product Conguration
Item Description
Frame Aluminum Alloy
Battery voltage 8Ah
Max range 20 miles
Max speed 15.5 mph
Net weight 35.5lbs
Max load 265 lbs
Climbing angle 7.2 degrees
Screen LCD Battery Indicator
Tire size 12” Front & Rear
Brakes Front & Rear Discs
Unit unfolded size: 48.5” x 23” x 37.5”
Unit folded size: 48.5” x 10” x 23”
Charger: AC100-240V/50-60hz
Motor Power: 450W
Battery 36V 8Ah Li Battery
4
Controller Set Up
11
Do not use your mobile phone when riding – this can cause you to be distracted – stay alert!
Make Sure Your Scooter is Well-Maintained
Follow the inspection and maintenance guidelines. Check critical safety equipment before every ride.
Know the Law
Cyclists are required to follow the rules of the road. Additionally, some communities regulate the use of motorized vehicles with
minimum age, requirements and necessary equipment. Check with your local police department for specic details.
O-road Riding
O-road riding is not recommended as the scooter tires are for street-use only. Dust and extreme impacts from o-road riding can
cause electrical system problems.
Ride Within Your Limits!
Take it slow until you are familiar with your local riding conditions. Be especially careful in wet conditions as traction can be greatly
reduced and brakes become less eective. Never ride faster than conditions warrant or beyond your riding abilities. Remember that
alcohol, drugs, fatigue, and distractions can signicantly reduce your ability to make good judgments and ride safely.

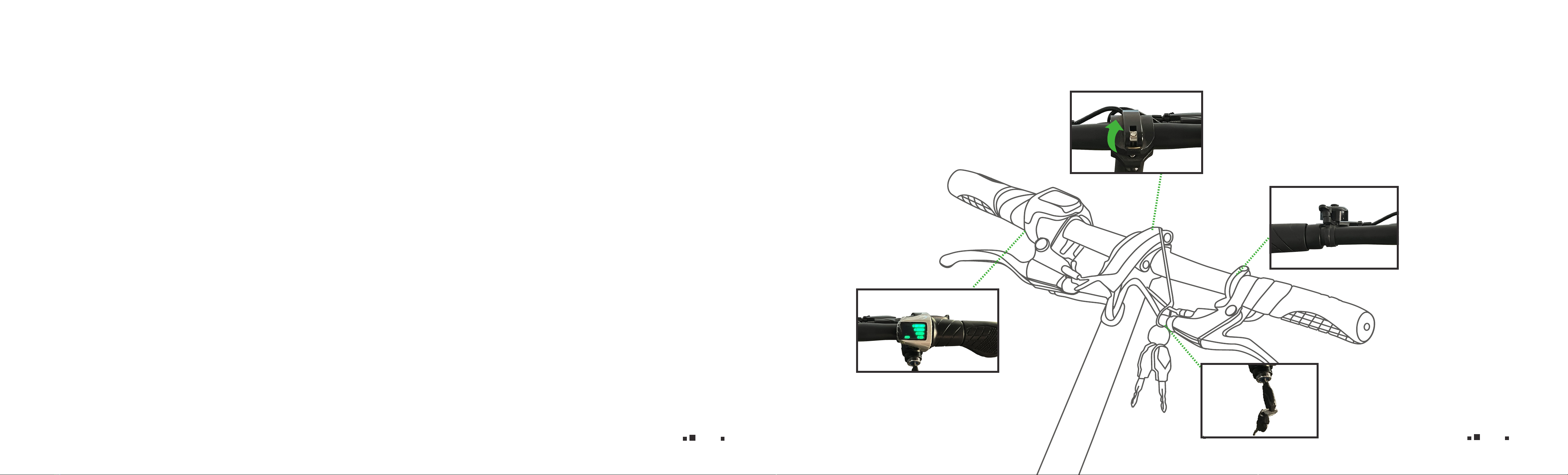

Analog Bell
Battery Display
Shows the battery strength
illuminated by green colored
bars.
Key Port
Turn right to power
onscooter.
Clamp
Pull up the clamp, then loos-
en the screw to twist/adjust
the handlebar.
5
packaging
1. Controller
2. Headlight
3. Seat
4. Basket
5. Air Pump
6. Charger Cable
7. Charger
8. Tools
10
Safety information
Your electric scooter can provide many years of service and fun – if you are safe and responsible when riding.
Always Wear a Helmet
Helmets signicantly reduce the number and severity of head injuries. Always wear a helmet that complies with your local and state
laws when riding the R1 or any electric bicycle for that matter. Check with your local police department for requirements in your com-
munity. DO NOT wear loose tting clothing as they can get tangled in the moving parts of the electric scooter. Wear close-toed shoes.
Always wear a helmet and appropriate apparel when riding. If you are usure, check with your local state laws concerning other protec-
tive gear that may be required when riding the electric scooter.
Know Your R1 ELECTRIC Scooter
Your new R1 Scooter incorporates many features and functions that you may not be familiar with. Read this manual thoroughly to
understand how its features can enhance your riding experience.
Ride Defensively!
One of the most frequent cycling accidents occurs when the driver of a parked car opens his door into a rider’s path. Another
common occurrence is when a car or another cyclist moves suddenly into your path. Always be aware of vehicles around you. Do not
assume that surrounding drivers or pedestrians see you. Be prepared to take evasive action or stop suddenly.
Make Sure You Are Visible to Others!
Make yourself more visible by wearing bright reective clothing. Keep your reectors clean and properly aligned. Use your headlight
in reduced lighting conditions. Signal your intentions so that drivers and other cyclists can anticipate your actions. Use your bell when
needed to make your presence known.
6

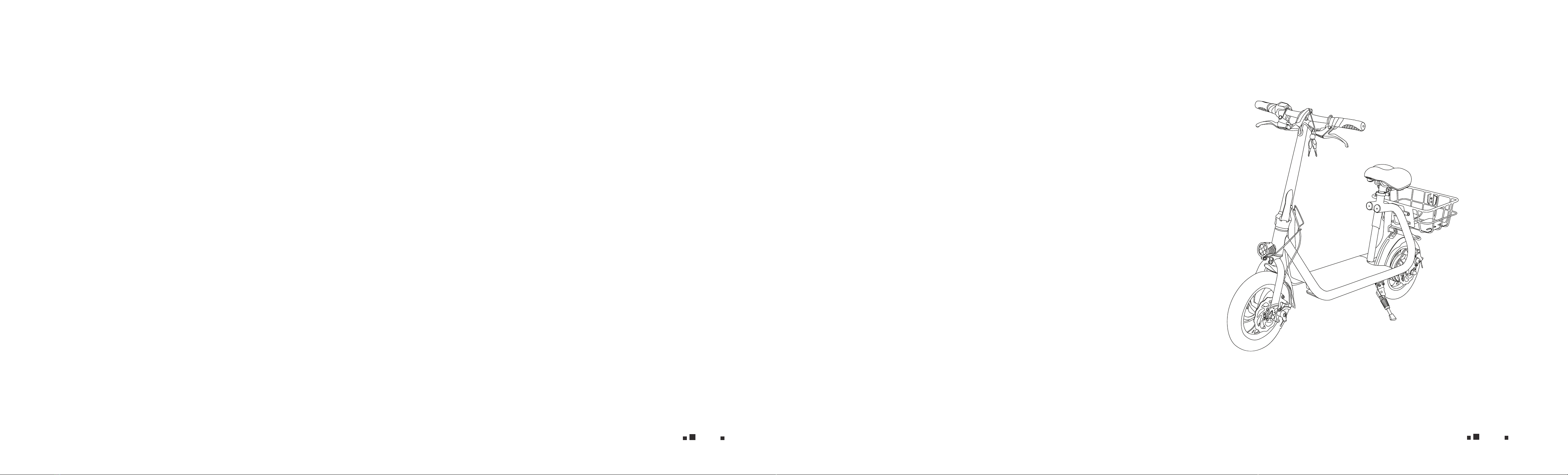

Assembly
9
Usage of the r1 scooter
• The R1 is a one-person mobility product – anyone who is under 12 years old needs to be assisted when riding.
• The R1 is only for daily recreational use and is not designed for extreme sports.
• Check that the parts of the scooter are installed correctly and not damaged.
• Check that folding mechanism is locked.
• Check the battery – is the battery charged?
• Check the brakes – do they function for both front and rear wheels?
• Check the tires – make sure there are no punctures or bubbles.
• Ride with caution and always wear a helmet.
• Make sure to follow maintenance protocols. Lack of proper maintenance may void warranty.
Handbrakes
Squeeze each brake slowly to avoid stopping
abruptly and losing control.
Hold the folding handle
tightly, swing the bar upward
until the downtube connects
with the frame tube, then
squeeze the quick release
handle towards the tube un-
til it is locked in place.
7
Charging

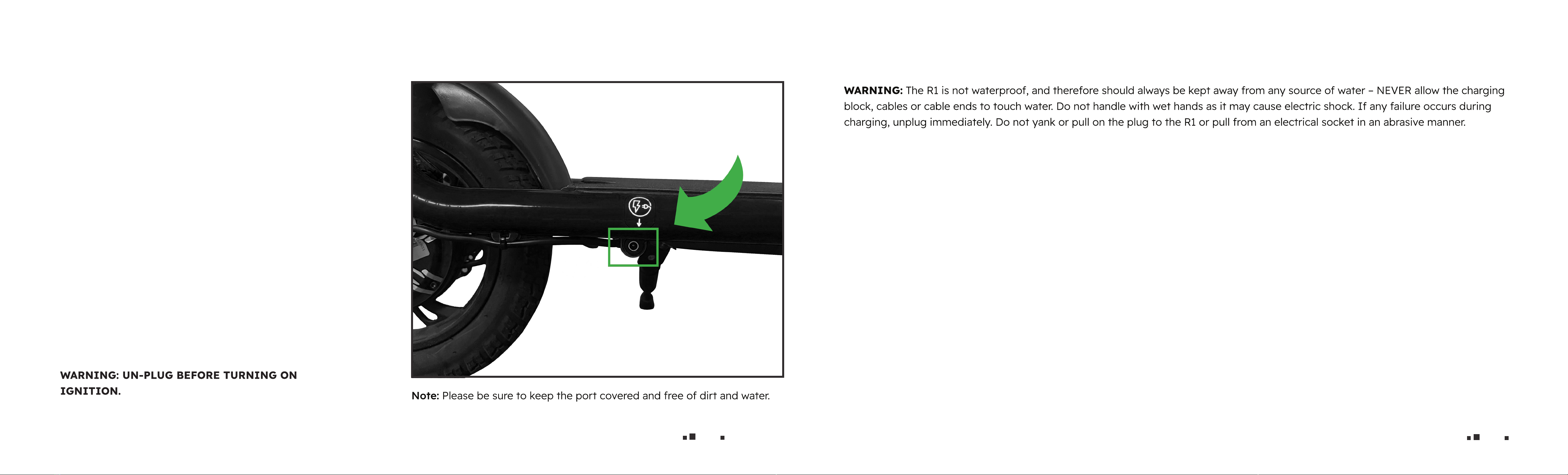

• The charging port is located under the R1 baseboard.
• Plug the charging cable into the charging port.
(Make sure the connection is dry)
• The indicator LED of the charging adapter turns red
when charging and turns green when the battery is
full. Please stop charging when it is full to prevent
battery life from deteriorating. Please use the
batteries, chargers and cables supplied by the
original manufacturer to prevent the battery from
being overcharged.
• When nished charging, close the charging ap to
prevent any damage to the port.
8
Charging & Battery Safety tips
• Check battery level before the rst use.
• It is recommended that the battery be recharged after each use.
• To maximize the battery life, please charge once per month or after at least 2 days of operation.
• Recharge the battery pack at least once per month as all batteries of every type will slowly discharge energy when left idle for extend
ed periods of time.
Try to keep the battery from being exposed to excessive heat or very hot temperatures.
• Please use the batteries, chargers and cables supplied by the original manufacturer to prevent the battery from being overcharged.
• Do not allow the charger or cable to contact sharp or hot items.
• Perform a visual inspection of the charger and charging cables regularly.
• If the charging cable has obvious damage – do not use the charger to avoid injury or electrical damage.
• Please do not repair the battery, the charger, or the cable independently.
• Please ensure that the charger and charging cables are connected correctly and are free of dust, dirt, and water.
• Prolonged exposure to UV rays, rain and elements may damage the encloseure materials, store indoors when not in use.
• The charging range and use range are 0º - 40ºC.
• Please do not disassemble parts by yourself.
Please contact us if you experience any problems or issues.
