PhDsolutions AUD-HDMI-INS-4K User manual

CPRO-11SI
HDMI 4Kx2K Audio Inserter
Operation Manual
Operation Manual
AUD-HDMI-INS-4K

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fi re,
electrical shock and injury to persons.
• To prevent fi re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
suffi cient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 11/06/13 Preliminary release
RDV2 13/09/13 Optical Sampling Rate

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fi re,
electrical shock and injury to persons.
• To prevent fi re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
suffi cient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 11/06/13 Preliminary release
RDV2 13/09/13 Optical Sampling Rate

CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Top Panel ..........................................3
6.2 Right Panel........................................4
6.3 Left Panel ..........................................4
6.4 Front Panel ........................................5
7. Connection Diagram ............................ 6
8. Specifi cations ........................................ 7
9. Acronyms ............................................... 8
1
1. INTRODUCTION
The HDMI™ 4K x 2K Audio Inserter lets you insert an external audio
signal into your HDMI or DVI (with HDMI to DVI adaptor) signal path.
The unit allows you to insert stereo or multi-channel surround sound
signals to give users the capability to select audio formats while
extending your HDMI signal. Further, both input and output HDMI
support HD resolution up to 3D and 4K x 2K allowing a full enjoyment
over synchronize video and audio.
2. APPLICATIONS
• Embeds external audio into HDMI signal
• Integrates audio and DVI(with HDMI to DVI adaptor) video to HDMI
signal output
• Replaces audio in the original HDMI signal by other audio input
sources
3. PACKAGE CONTENTS
• HDMI 4Kx2K Audio Inserter
• 5V Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
Input source equipment such as PC/Laptop or Blu-ray/DVD player and
output display TV/monitor or amplifi er with connection cables.

1
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Top Panel ..........................................3
6.2 Right Panel........................................4
6.3 Left Panel ..........................................4
6.4 Front Panel ........................................5
7. Connection Diagram ............................ 6
8. Specifi cations ........................................ 7
9. Acronyms ............................................... 8
1
1. INTRODUCTION
The HDMI™ 4K x 2K Audio Inserter lets you insert an external audio
signal into your HDMI or DVI (with HDMI to DVI adaptor) signal path.
The unit allows you to insert stereo or multi-channel surround sound
signals to give users the capability to select audio formats while
extending your HDMI signal. Further, both input and output HDMI
support HD resolution up to 3D and 4K x 2K allowing a full enjoyment
over synchronize video and audio.
2. APPLICATIONS
• Embeds external audio into HDMI signal
• Integrates audio and DVI(with HDMI to DVI adaptor) video to HDMI
signal output
• Replaces audio in the original HDMI signal by other audio input
sources
3. PACKAGE CONTENTS
• HDMI 4Kx2K Audio Inserter
• 5V Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
Input source equipment such as PC/Laptop or Blu-ray/DVD player and
output display TV/monitor or amplifi er with connection cables.

2
2
5. FEATURES
• Compliant with HDMI, HDCP 1.2 and DVI 1.0
• Supports HDMI audio sampling rate up to 192 kHz
• Supports Optical S/PDIF audio sampling rate up to 192 kHz
• Supports L/R audio sampling rate up to 48 kHz
• Supports external HDMI, Digital or Analog audio signal embeds into
HDMI
• HDMI supports high-bit-rate (HBR) audio
• Maximum input and output HDMI cable length can run up to 15
meters at 1080p at 8-bit resolution or 10 meters at 1080p at 12-bit
resolution
• Supports DVI conversion with HDMI to DVI adaptor
• Supports CEC bypass
• Supports 4Kx2K resolution and 3D signal
Note: When displaying HDMI 4Kx2K signal, equivalent source signal,
output display and HDMI cables are required in order to secure the
best image display.
3
6. OPERATION CONTROLS AND FUNCTIONS

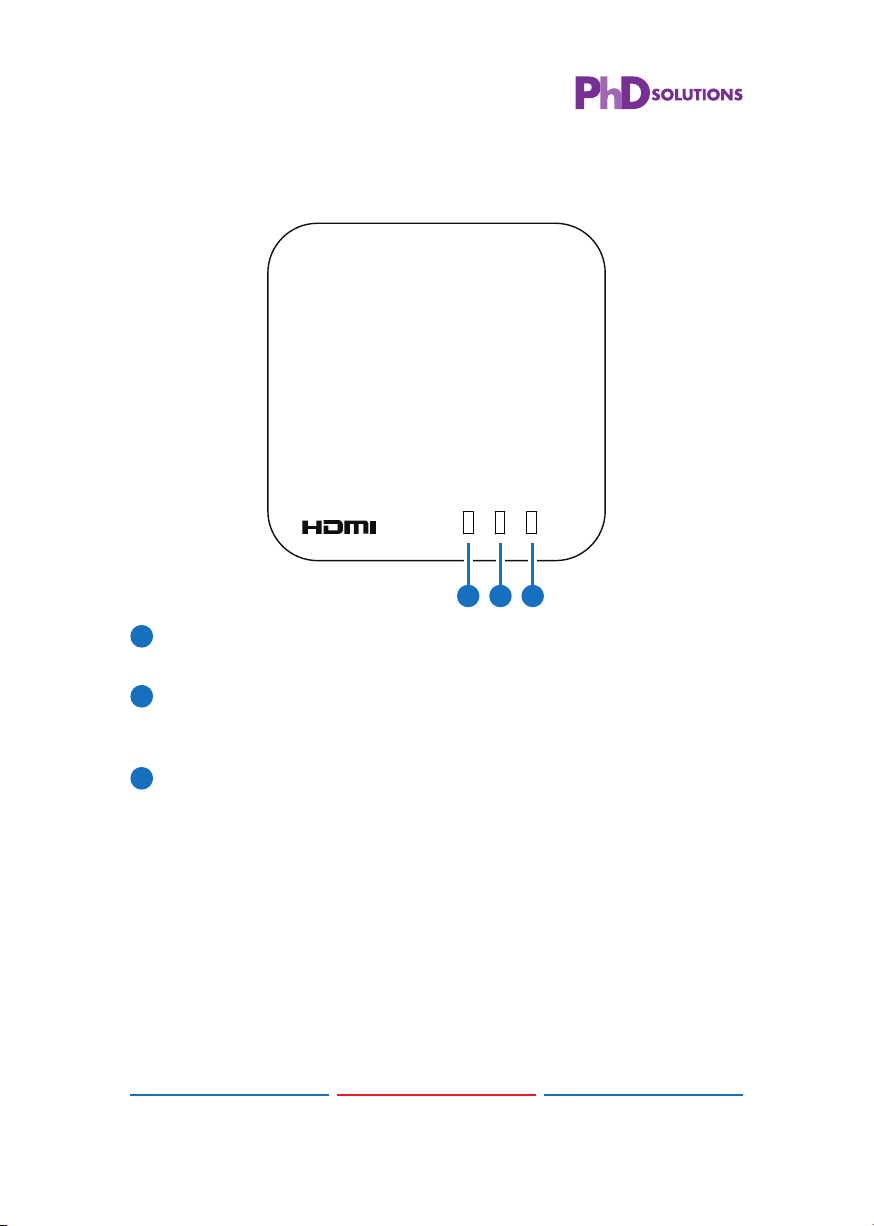

6.1 Top Panel
LinkBypass Power
HDMI 4Kx2K
Audio Inserter
31 2
1Bypass:
This LED will illuminate when the input audio is switch to HDMI.
2Link:
This LED will illuminate when input source is connected with HDMI
signal.
3Power:
This LED will illuminate when the unit is connected with power
supply and switched ON.

3
2
5. FEATURES
• Compliant with HDMI, HDCP 1.2 and DVI 1.0
• Supports HDMI audio sampling rate up to 192 kHz
• Supports Optical S/PDIF audio sampling rate up to 192 kHz
• Supports L/R audio sampling rate up to 48 kHz
• Supports external HDMI, Digital or Analog audio signal embeds into
HDMI
• HDMI supports high-bit-rate (HBR) audio
• Maximum input and output HDMI cable length can run up to 15
meters at 1080p at 8-bit resolution or 10 meters at 1080p at 12-bit
resolution
• Supports DVI conversion with HDMI to DVI adaptor
• Supports CEC bypass
• Supports 4Kx2K resolution and 3D signal
Note: When displaying HDMI 4Kx2K signal, equivalent source signal,
output display and HDMI cables are required in order to secure the
best image display.
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Top Panel
LinkBypass Power
HDMI 4Kx2K
Audio Inserter
31 2
1Bypass:
This LED will illuminate when the input audio is switch to HDMI.
2Link:
This LED will illuminate when input source is connected with HDMI
signal.
3Power:
This LED will illuminate when the unit is connected with power
supply and switched ON.

4
4

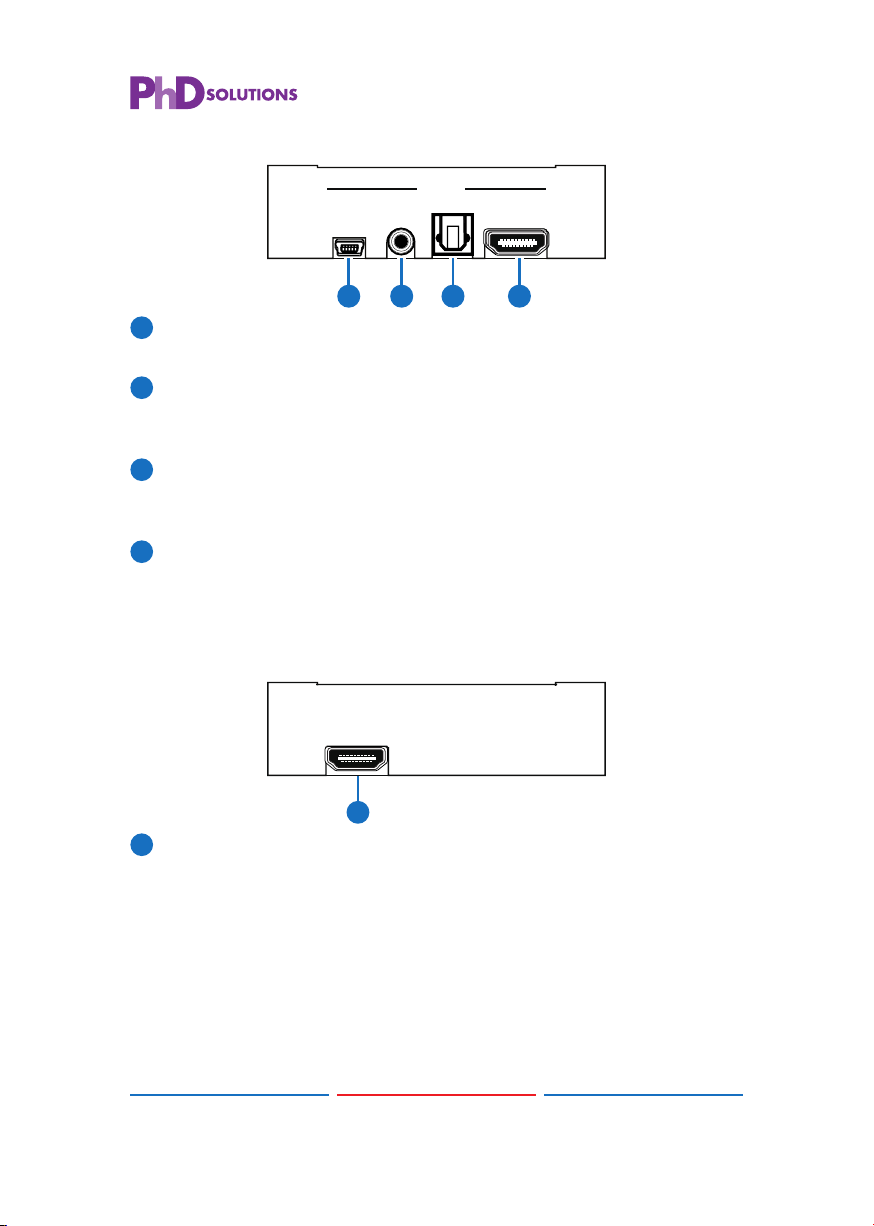

6.2 Right Panel
HDMIOpticalService L/R
In
1 42 3
1Service:
This port is reserved for fi rmware update only.
2L/R In:
Connect from audio source equipment such as PC/Laptop or
DVD/Blu-ray player with L/R audio signal output.
3Optical In:
Connect from audio source equipment such as AV receiver or
DVD player with optical signal output.
4HDMI In:
This slot is to connect with source equipment such as Blu-ray/PS3
player or PC/laptop with HDMI signal sending.
6.3 Left Panel
1
HDMI Out
1HDMI OUT:
Connect to the display (TV/monitor) with an HDMI cable for
video and audio signal output. For 4Kx2K or 3D image display, an
equivalent standard display is required.
5
6.4 Front Panel
DC 5V
Optical
HDMI L/R
Power
1 2 3
1HDMI/Optical/L/R:
Audio in selection allows users to select among 3 of different audio
input options. Switch among the original HDMI audio, Digital audio
(Optical) and Analog stereo (L/R).
2Power:
Press this button to switch on the device or to set it into standby
mode.
3DC 5V:
Plug with 5V DC power adaptor from the AC wall outlet for power
supply.

5
4
6.2 Right Panel
HDMIOpticalService L/R
In
1 42 3
1Service:
This port is reserved for fi rmware update only.
2L/R In:
Connect from audio source equipment such as PC/Laptop or
DVD/Blu-ray player with L/R audio signal output.
3Optical In:
Connect from audio source equipment such as AV receiver or
DVD player with optical signal output.
4HDMI In:
This slot is to connect with source equipment such as Blu-ray/PS3
player or PC/laptop with HDMI signal sending.
6.3 Left Panel
1
HDMI Out
1HDMI OUT:
Connect to the display (TV/monitor) with an HDMI cable for
video and audio signal output. For 4Kx2K or 3D image display, an
equivalent standard display is required.
5
6.4 Front Panel
DC 5V
Optical
HDMI L/R
Power
1 2 3
1HDMI/Optical/L/R:
Audio in selection allows users to select among 3 of different audio
input options. Switch among the original HDMI audio, Digital audio
(Optical) and Analog stereo (L/R).
2Power:
Press this button to switch on the device or to set it into standby
mode.
3DC 5V:
Plug with 5V DC power adaptor from the AC wall outlet for power
supply.

6
6

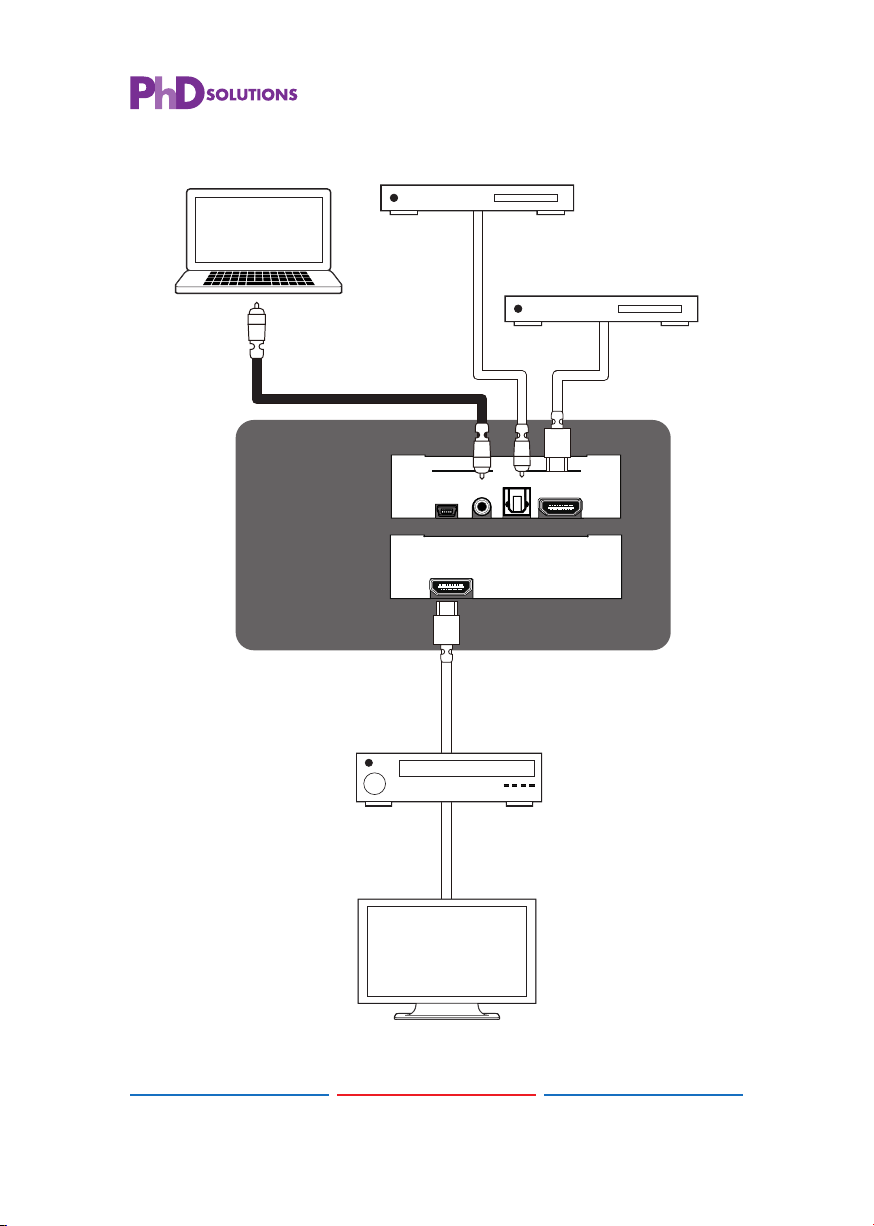

7. CONNECTION DIAGRAM
HDMI Out
HDMIOpticalService L/R
In
DVD PlayerPC/Laptop
Digital Audio Input
Optical
Blu-ray Player
Blu-ray Player
HDMI Input
HDMI Output
AV Receiver
HDTV or Monitor
HDMI Audio
Inserter
7
8. SPECIFICATIONS
Video Bandwidth 300Mbps / 10.2Gbps
Input Ports 1 x HDMI,
1 x Optical (Digital Audio),
1 × 3.5mm Phone Jack (L/R),
1 x Mini-USB (service only)
Output Port 1 x HDMI
HDMI Audio Sampling Rate Up to 192 kHz
Optical S/PDIF Audio Sampling Rate Up to 192 kHz
L/R Audio Sampling Rate Up to 48 kHz
HDMI Cable I/O Distance 10 meters, 1080p@12-bit
15 meters, 1080p@8-bit
HDMI Audio Format LPCM 2/5.1/7.1CH, Dolby Digital
2~5.1CH, DTS 2~5.1CH, Dolby
Digital Plus, Dolby TrueHD, and
DTS-HD Master Audio
Optical Audio Format LPCM 2CH, Dolby Digital 2~5.1CH,
and DTS 2~5.1CH
L/R Audio Format Analog Stereo 2 CH
HDMI I/O Cable Distance 4Kx2K 10m/10m
Power Supply 5V / 1.2A DC ( US/EU standards,
CE/FCC/UL certifi ed)
ESD Protection Human body model:
±8kV (air-gap discharge)
±6kV (contact discharge)
Dimensions (mm) 85 (W) x 87.5 (D) x 34(H)
Weight (g) 102
Chassis Material Plastic
Silkscreen Color White
Operating Temperature 0˚C~40˚C / 32˚F~104˚F
Storage Temperature -20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F

7
6
7. CONNECTION DIAGRAM
HDMI Out
HDMIOpticalService L/R
In
DVD PlayerPC/Laptop
Digital Audio Input
Optical
Blu-ray Player
Blu-ray Player
HDMI Input
HDMI Output
AV Receiver
HDTV or Monitor
HDMI Audio
Inserter
7
8. SPECIFICATIONS
Video Bandwidth 300Mbps / 10.2Gbps
Input Ports 1 x HDMI,
1 x Optical (Digital Audio),
1 × 3.5mm Phone Jack (L/R),
1 x Mini-USB (service only)
Output Port 1 x HDMI
HDMI Audio Sampling Rate Up to 192 kHz
Optical S/PDIF Audio Sampling Rate Up to 192 kHz
L/R Audio Sampling Rate Up to 48 kHz
HDMI Cable I/O Distance 10 meters, 1080p@12-bit
15 meters, 1080p@8-bit
HDMI Audio Format LPCM 2/5.1/7.1CH, Dolby Digital
2~5.1CH, DTS 2~5.1CH, Dolby
Digital Plus, Dolby TrueHD, and
DTS-HD Master Audio
Optical Audio Format LPCM 2CH, Dolby Digital 2~5.1CH,
and DTS 2~5.1CH
L/R Audio Format Analog Stereo 2 CH
HDMI I/O Cable Distance 4Kx2K 10m/10m
Power Supply 5V / 1.2A DC ( US/EU standards,
CE/FCC/UL certifi ed)
ESD Protection Human body model:
±8kV (air-gap discharge)
±6kV (contact discharge)
Dimensions (mm) 85 (W) x 87.5 (D) x 34(H)
Weight (g) 102
Chassis Material Plastic
Silkscreen Color White
Operating Temperature 0˚C~40˚C / 32˚F~104˚F
Storage Temperature -20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F

8
8
Relative Humidity 20 ~ 90% RH (non-condensing)
Power Consumption 2.37W
9. ACRONYMS
ACRONYM COMPLETE TERM
4Kx2K 3840 x 2160 / 4096 x 2160
DTS Digital Theater System
EDID Extended Display Identification Data
HDCP High-bandwidth Digital Content Protection
HDMI High-Definition Multimedia Interface
HDTV High-Definition Television
Warranty
Limited Warranty
Premium High Definition Solutions warrants that (a) its products will perform substantially in
accordance with the accompanying written materials for a period of 1 year from the date of receipt
and (b) that the product will be free from defects in materials and workmanship under normal use
and service for a period of 1 year. In the event applicable law imposes any implied warranties, the
implied warranty period is limited to 1 year from the date of receipt.
Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above
limitation may not apply to customers that fall within those areas.
Customer Remedies
Premium High Definition Solutions ’ and its suppliers’ entire liability and Customer’s exclusive
remedy shall be, at Premium High Definition Solutions ’ decision, either return of the price paid for
the product, repair, or replacement of the product that does not meet this Limited Warranty and
which is returned to Premium High Definition Solutions with a copy of the Customer’s receipt.
This Limited Warranty is void if failure of the product has resulted from accident, abuse,
misapplication, or natural occurrence. In example but not limited to: power surges (electrical
storms, local power outage, Electro Static Discharge (ESD), dropping the product (or items on the
product), contact with fluids, and physical misconduct (i.e. kicking or punching). Any replacement
product will be warranted for the remainder of the original warranty period.
No other warranties
To the maximum extent permitted by applicable law, Premium High Definition Solutions and its
suppliers disclaim all other warranties, expressed or implied, including, but not limited to, implied
warranties of merchantability and fitness for a particular purpose, with regard to the product and
any related written materials. This Limited Warranty gives customer specific legal rights.
Customers may have other rights depending on the jurisdiction.
No liability for damages
To the maximum extent permitted by applicable law, in no event shall Premium High Definition
Solutions or its suppliers be liable for any damages arising out of the use of or inability to use this
product, even if Premium High Definition Solutions has been advised of the possibility of such
damages. Such damages include but are not limited to: special, incidental, consequential, or
indirect damages for personal injury, loss of business profits, business interruption, loss of
business information, or any other pecuniary loss. Premium High Definition Solutions’ and its
suppliers’ entire liability under any provision of this agreement shall be limited to the amount
actually paid by you for the product. Some Jurisdictions do not allow may not apply to you in such
jurisdictional cases.

PhD Solutions Product Warranty
Should you feel your product does not function adequately due to defects in materials or
workmanship, PhD Solutions (hereby referred to as “the warrantor”) will, for the length of the
period
indicated below:
a) Repair the product with new or
refurbished parts.
or
b) Replace it with a new or refurbished product.
Limited Warranty Period
Commencing from the original date of purchase, all PhD Solutions products are covered by a
one
year PARTS and LABOUR warranty depending on the product.
Please contact your PhD Solutions dealer for details.
During this period there will be no charge for unit repair, replacement of parts, unit
components or
replacement of product if necessary. The decision to repair or replace will be
made by the warrantor.
The purchaser must mail-in or return the product to PhD Solutions
during the warranty period.
This limited warranty only covers the product purchased as new and is extended to the
original
purchaser only. It is non-transferable to subsequent owners, even during the
warranty period.
A purchase receipt or other proof of original purchase date is required for the limited warranty
service.
IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD THE PURCHASER
WILL BE
REQUIRED TO PRODUCE A SALES RECEIPT/PROOF OF PURCHASE
INDICATING DATE OF
PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE.
Please note: THE CUSTOMER WILL BE CHARGED FOR PARTS OR REPAIR
OF
ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.
Premium high Definition Solutions
09

Product Service Provided
1. Damage requiring service
All units should be serviced by a PhD Solutions qualified service person.:
2. Servicing Personnel
Do not attempt to service the unit beyond that described in these operating instructions.
Refer all
other servicing to authorised PhD Solutions servicing personnel.
Return to Supplier
When shipping the unit, carefully pack and send it prepaid (preferably in the original packaging)
with a
tracking number and adequate insurance. Please include a document or letter detailing
the reason for
return and include a daytime telephone number and/or email address where you
can be contacted.
If repair is required during the limited warranty period, the purchaser will be required to
provide a
sales receipt or other proof of purchase, indicating date and location of purchase as
well as the price
paid for the product. The customer will be charged for the repair or
replacement of any unit received
unless such information is provided.
Warranty Limits and Exclusions
1. This Limited Warranty ONLY COVERS failures due to defects in materials or
workmanship and
DOES NOT COVER normal wear and tear or cosmetic damage.
The limited warranty also DOES NOT COVER damage that occurs in shipment or failures
caused by
products not supplied by the warrantor.
Failures resulting from accident, misuse, abuse, neglect, mishandling, misapplication,
alteration,
incorrect installation, set-up adjustment, implementation of/to consumer controls,
improper
maintenance, power line surge, lightening damage, Electro static discharge (ESD)
,modification,
service by anyone other than a manufacturer-approved service center or
factory-authorised
personnel, or damage attributable to acts of God.
Premium high Definition Solutions
10

2. There are no express warranties except as listed under “limited warranty coverage.” The
warrantor
is not liable for incidental or consequential damage resulting from the use of this
product or arising out
of any breach of this warranty.
• For example: damage for lost time, the cost of having a person/persons remove or re-
install
previously installed equipment, travel to and from service location, loss of or
damage to
media, images, data or other recorded/stored content.
ANY PARTS AND SERVICE NOT COVERED BY THIS LIMITED WARRANTY ARE
THE RESPONSIBILITY OF THE CUSTOMER.
Premium high Definition Solutions
Website http://www.phdsolutions.co
11

Premium High Definition Solutions
Home page: http://www.phdsolutions.co
