PHI VILLA E02GF-042-BU User manual

Questions, problems, missing parts? Before returning to the store,
please contact our Customer Service
[email protected]
We appreciate the trust and condence you have placed in PHI VILLA through the purchase of our product. We strive to continually create quality
products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing PHI VILLA!
THANK YOU
E02GF-041-BU
Life Gets Better With
USE AND CARE GUIDE

Table of Contents
Table of Contents
Safety Information
Warranty
What is Covered
What is Not Covered
Pre-assembly
Assembly
Care and Maintenance
Safety Information
DANGER : Do not allow children to play with plastic wraps
or small parts to prevent potential chocking hazard.
CAUTION: Read all the instructions before assembly.
Failure to do so may result in faulty assembly and potential injury!
This warranty does not cover commercial use, hardware, acts of nature, re, freezing and abusive.
In addition, purchased parts are not covered under this warranty.
We reserve the right to make substitutions with similar merchandise, if the model in question is no longer in production.
For a copy of our full limited warranty, please contact our customer service team.
W
LIMITED WARRANTY
HAT IS COVERED
We warrant the frame to be free of Manufacturing defects to the original purchaser for one year.
This warranty is a limited warranty, and applies to the original purchase is required. This is a residential warranty and does not apply
to commercial use. This collection carries a (1) year limited warranty and is valid from original date of purchase to the original owner
(proof of purchase required).
Warranty
WHAT IS NOT COVERED
2 3
2
2 4-7
8
2
2
2
• Tighten each bolt rmly and properly. Do not completely tighten screws until all screws are started.
• Some parts may contain sharp edges. Wear protective gloves as necessary.
• Children under the age of 16 should not be engaged in the assembly, removal or disassembly of the product. Children under the age
of 10 should be supervised by a competent adult while using this furniture.
• Please keep children out of the assembly area during assembly.
• This set is heavy, and may require two adults for safe assembly.
• Never use this product as a support. Do not shake, lean, or climb on the product at any time.
LIFE GETS BETTER WITH PHI VILLA

Assemble the item on a soft, non-abrasive surface, such as carpet or cardboard to avoid damaging the item. Seek assistance to assemble
bulky or heavy items.
NOTE:
Identify all parts packed in the carton against the parts list.
Remove all the protective material carefully and DO NOT use a knife to prevent scratching the furniture.
Pre-assembly (continued)
3
LIFE GETS BETTER WITH PHI VILLA
NOTE: Hardware not shown to actual size.
PACKAGE CONTENTS
A
X1
C
X1
E
X1
I
X2
T
X1
L
X18
G
X1
K
X2
V
X4
D
X1
B
X1
N
X1
M6*35
Q
X18
ΦΦΦØ6*1.0
Ø

1
2
Assembly
4
T
E
D
D
D
Q
L
G
G
E
L
Q
E
D
LIFE GETS BETTER WITH PHI VILLA

Assembly
5
3
4
D
E
G
K
I
LIFE GETS BETTER WITH PHI VILLA

1
2
Assembly
6
T
C
AA
T
L
Q
CA
B
C
L
Q
LIFE GETS BETTER WITH PHI VILLA

Assembly
7
3
4
B
A
C
LIFE GETS BETTER WITH PHI VILLA
K
N
I

8
●Clean the furniture with damp cloth, rinse thoroughly. Dry frame parts completely. Do not use bleach, acid or
other solvents on the wicker or metal parts.
●Inspect and tighten all SCREW on a regular basis to ensure proper performance and safety.
●In order to prolong the life and beauty of your product, we highly recommend storing it in a dry area and
protecting it with a furniture cover from the rain and sun directly when not in use.
Cleaning and Maintenance
Questions, problems, missing parts? Before returning to the store
please contact our Customer Service
[email protected]

LIFE GETS BETTER WITH PHI VILLA

Questions, problems, missing parts? Before returning to the store,
please contact our Customer Service
[email protected]
We appreciate the trust and condence you have placed in PHI VILLA through the purchase of our product. We strive to continually create quality
products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing PHI VILLA!
THANK YOU
E02GF-042-BU
Life Gets Better With
USE AND CARE GUIDE

Table of Contents
Table of Contents
Safety Information
Warranty
What is Covered
What is Not Covered
Pre-assembly
Assembly
Care and Maintenance
Safety Information
DANGER : Do not allow children to play with plastic wraps
or small parts to prevent potential chocking hazard.
CAUTION: Read all the instructions before assembly.
Failure to do so may result in faulty assembly and potential injury!
This warranty does not cover commercial use, hardware, acts of nature, re, freezing and abusive.
In addition, purchased parts are not covered under this warranty.
We reserve the right to make substitutions with similar merchandise, if the model in question is no longer in production.
For a copy of our full limited warranty, please contact our customer service team.
W
LIMITED WARRANTY
HAT IS COVERED
We warrant the frame to be free of Manufacturing defects to the original purchaser for one year.
This warranty is a limited warranty, and applies to the original purchase is required. This is a residential warranty and does not apply
to commercial use. This collection carries a (1) year limited warranty and is valid from original date of purchase to the original owner
(proof of purchase required).
Warranty
WHAT IS NOT COVERED
2 3
2
2 4-6
7
2
2
2
• Tighten each bolt rmly and properly. Do not completely tighten screws until all screws are started.
• Some parts may contain sharp edges. Wear protective gloves as necessary.
• Children under the age of 16 should not be engaged in the assembly, removal or disassembly of the product. Children under the age
of 10 should be supervised by a competent adult while using this furniture.
• Please keep children out of the assembly area during assembly.
• This set is heavy, and may require two adults for safe assembly.
• Never use this product as a support. Do not shake, lean, or climb on the product at any time.
LIFE GETS BETTER WITH PHI VILLA

Assemble the item on a soft, non-abrasive surface, such as carpet or cardboard to avoid damaging the item. Seek assistance to assemble
bulky or heavy items.
NOTE:
Identify all parts packed in the carton against the parts list.
Remove all the protective material carefully and DO NOT use a knife to prevent scratching the furniture.
NOTE: Hardware not shown to actual size.
PACKAGE CONTENTS
Pre-assembly (continued)
3
D E
X2 X2
G I
X2 X2
K
X2
J
X1
O P
X2 X2
S T
X1 X1
L
X24
M6*35
Q
X24
ΦΦΦØ6*1.0
Ø
V
X4
LIFE GETS BETTER WITH PHI VILLA

1
2
Assembly
4
T
E
D
L
Q
E
D
D
D
Q
L
G
G
E
LIFE GETS BETTER WITH PHI VILLA

Assembly
5
3
4
D
E
G
K
I
LIFE GETS BETTER WITH PHI VILLA

5 6
7 8
Assembly
6
O
O
O
O
O
J
J
S
OP
S
J
J
T
P
P
T
LL
Q
Q
LIFE GETS BETTER WITH PHI VILLA

7
●Clean the furniture with damp cloth, rinse thoroughly. Dry frame parts completely. Do not use bleach, acid or
other solvents on the wicker or metal parts.
●Inspect and tighten all SCREW on a regular basis to ensure proper performance and safety.
●In order to prolong the life and beauty of your product, we highly recommend storing it in a dry area and
protecting it with a furniture cover from the rain and sun directly when not in use.
Cleaning and Maintenance
Questions, problems, missing parts? Before returning to the store
please contact our Customer Service
[email protected]

LIFE GETS BETTER WITH PHI VILLA

E02GS008/ E02GS009
ANS Z21.97 CSA 2.41-2017
Outdoor Decorative Gas Appliances
MODEL#: F210004-A1
F210004-B2
Life Gets Better With
Questions, problems, missing parts? Before returning to the store,
please contact our Customer Service
[email protected]
We appreciate the trust and condence you have placed in PHI VILLA through the purchase of our product. We strive to continually create quality
products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing PHI VILLA!
THANK YOU
USE AND CARE GUIDE

WARNING
Do not store or use gasoline, or other ammable vapors and liquids,in the vicinity of this or any
other appliance.
An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
WARNING:
For Outdoor Use Only.
Installation and service must be performed
by a qualied installer, service agency, or
the gas supplier.
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper,
tent, car or home.
WARNING:
If the information in this manual is not followed exactly, a re or explosion may result
causing property damage, personal injury, or loss of life.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
Extinguish any open ame.
If odor continues, leave the area immediately.
After leaving the area, call your gas supplier or re department.
Failure to follow these instructions could result in re or explosion, which could cause property
damage, personal injury, or death.
Table of Contents
Warnings & Important Safety Information
Table of Contents
Specication & Package Contents
Assembly instructions
Operation Instructions
Care and Maintenance
Warranty
LIFE GETS BETTER WITH PHI VILLA
2-4
4-5
6-9
2 9-11
12
13
2

The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1
NFPA 54; National Fuel Gas Code; Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code,
CSA B149.2, as applicable.
The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure
testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).
The maximum inlet gas supply pressure is 250 psi.
The appliance area must be kept clear and free from combustible materials, gasoline, and other ammable vapors and liquids.
Do not use this appliance if any part has been under water. Immediately call a qualied service technician to inspect the appliance
and to replace any part of the control system and any gas control that has been under water.

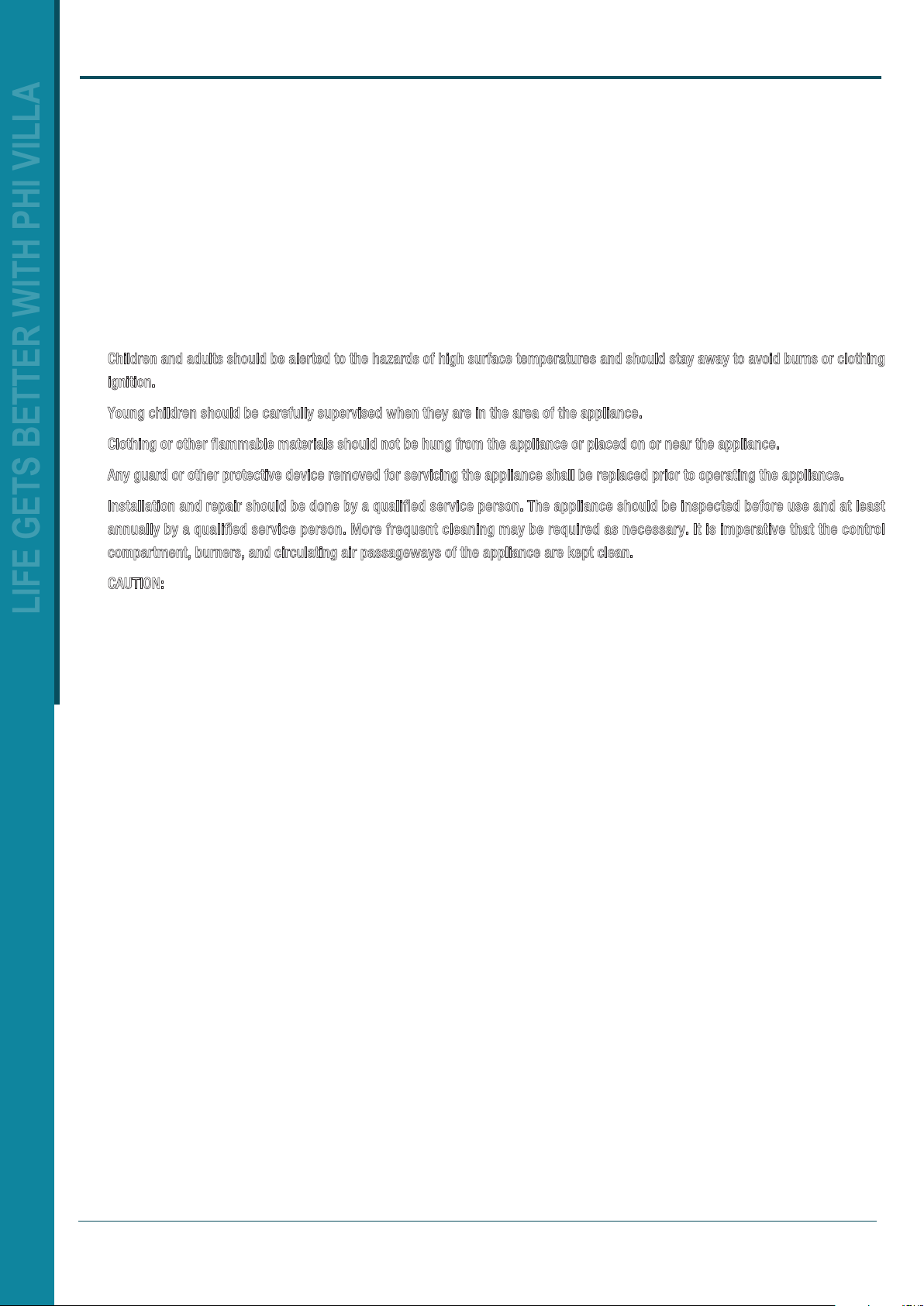

Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns or clothing
ignition.
Young children should be carefully supervised when they are in the area of the appliance.
Clothing or other ammable materials should not be hung from the appliance or placed on or near the appliance.
Any guard or other protective device removed for servicing the appliance shall be replaced prior to operating the appliance.
Installation and repair should be done by a qualied service person. The appliance should be inspected before use and at least
annually by a qualied service person. More frequent cleaning may be required as necessary. It is imperative that the control
compartment, burners, and circulating air passageways of the appliance are kept clean.
CAUTION: The propane gas pressure regulator provided with this appliance must be used. This regulator is set for an outlet pressure
of 11 inches water column.
DO NOT burn solid fuels in this appliance.
This outdoor gas appliance is for Outdoor Use ONLY.
This outdoor gas appliance is not intended to be installed in or on recreational vehicles and/or boats.
This outdoor appliance is not for use on wood decks or other ammable surface.
Before each use of this gas appliance, open the door and/or the LP (Liquid Propane) Tank Drawer and inspect the hose. If there is
evidence of excessive abrasion or wear or if the hose is damaged, the hose assembly must be replaced prior to the appliance being
put into operation. Use only the replacement hose assembly specied in this manual. Make sure to leak test.
Before each use of this gas appliance, inspect the burner. The burner must be replaced prior to the appliance being put into
operation if it is evident that the burner is damaged. Use only the replacement burner specied in this manual.
Make sure to properly locate the gas hose including locating the hose out of pathways where people may trip over it or in areas
where the hose may be subject to accidental damage.
Keep the fuel supply hose away from any heated surface.
Never use this appliance closer than 10 feet from anything ammable, including houses or overhead tree branches.
Never use gasoline, kerosene, or any other liquid fuel to start a re.
Always maintain a safe distance from the re.
Always supervise children around the re.
Never leave a re unattended.
The appliance is hot during and after use, always allow ample cooling time before touching or moving.
IMPORTANT SAFETY INFORMATION
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
3
LIFE GETS BETTER WITH PHI VILLA

The propane gas supply cylinder to be used must be constructed and marked in accordance with the U.S. Deparment of
Transportation
(D.O.T.) Specications for propane gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for Transportation
of Dangerous Goods and Commission, CAN/CSA-B339, as applicable.
The propane gas supply cylinder to be used must have a listed overlling prevention device (See Figure 1).
The propane gas supply cylinder to be used must have a cylinder connection device compatible with the connection for the
appliance.
A self-contained propane gas cylinder for use with this appliance must have a capacity of 20 Ibs cylinder (Height approximately 18
in., Tank Body approximately 12 in. diameter, Base approximately 8 in. diameter).
The cylinder supply system must be arranged for vapor withdrawl.
The cylinder used must include a collar to protect the cylinder valve.
This appliance shall be used only outdoors in a well-ventilated space and shall not be used in a building, garage or any other
enclosed space.
When this appliance is not in use, the gas must be turned off at the supply cylinder.
Storage of this appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance.
Cylinders must be stored outdoors in a well-ventilated area out of the reach of children. Disconnected cylinders must have
threaded valve plugs tightly installed and must not be stored in a building, garage or anyother enclosed areas.
This appliance is certied by CSA (Canadian Standards Association) to ANS Z21.97 CSA 2.41-2017, Outdoor Decorative Gas
Appliances.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
SPECIFICATIONS
Rated Heat Input (Liquid Propane)
Propane Regulator Pressure
Clearance to combustible surfaces
40,000 BTU/hr
11 inches water column
Sides: 24in. (610mm), Top: 72in. (1829mm)
WARNING: This product can expose you to chemicals
including chromium (hexavalent compounds) AND BENZENE,
which are known to the State of California to cause cancer
and birth defects or other reproductive harm.
For more information go to:
www.P65warnings.ca.gov/furniture.
Standard 20 Ib.tank
Figure 1
IMPORTANT SAFETY INFORMATION (About Propane Gas)
LIFE GETS BETTER WITH PHI VILLA
4

1.
2.
PACKAGE CONTENTS
5
A
G
I
C
B
H
N
E
F
M
L
J
D
K
PART DESCRIPTION QUANTITY
A 1 pc
B1 pc
C
1 pc
Back panel
D1 pc
Left panel
E1 pc Door panel
F1 pc
Front panel
G1 pc
Back-left leg
H1 pc
Back-right leg
I1 pc
Front-right leg
J1 pc
Front-left leg
K1 pc
Gas cylinder support
Lid
Table top assembly
PART DESCRIPTION QUANTITY
L 1 pack
M1 pc
AA 16 pcs
Bolt (M6 x 12)
BB 4 pcs
Bolt (M6 x 15)
CC 20 pcs
Washer (M6)
DD 1 pc
Hex screw driver
EE 1 pc
Bolt (M4 x 10)
Lava rock (6.6 lbs / pack)
Weather cover
N1 pc
Door handle
AA
BB
EE
CC
DD
LIFE GETS BETTER WITH PHI VILLA
