PHI VILLA E02GF143 User manual

USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store,
please contact our Customer Service
h
[email protected]
We appreciate the trust and condence you have placed in PHI VILLA through the purchase of our product. We strive to continually create quality
products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing PHI VILLA!
THANK YOU
Life Gets Better With
E02GF143

LIFE GETS BETTER WITH PHI VILLA
Table of Contents
Table of Contents
Safety Information
Warranty
What is Covered
What is Not Covered
Pre-assembly
Assembly
Care And Maintenance
Safety Information
DANGER : Do not allow children to play with plastic wraps
or small parts to prevent potential chocking hazard.
CAUTION: Read all the instructions before assembly.
Failure to do so may result in faulty assembly and potential injury!
This warranty does not cover commercial use, hardware, acts of nature, re, freezing and abusive.
In addition, purchased parts are not covered under this warranty.
We reserve the right to make substitutions with similar merchandise, if the model in question is no longer in production.
For a copy of our full limited warranty, please contact our customer service team.
W
LIMITED WARRANTY
HAT IS COVERED
We warrant the frame to be free of Manufacturing defects to the original purchaser for one year.
This warranty is a limited warranty, and applies to the original purchase is required. This is a residential warranty and does not apply
to commercial use. This collection carries a (1) year limited warranty and is valid from original date of purchase to the original owner
(proof of purchase required).
Warranty
WHAT IS NOT COVERED
2 3-4
2
2 5-7
8
2
2
2
• Do not completely tighten screws until all screws are started.Tighten each bolt rmly and properly.
• Some parts may contain sharp edges. Wear protective gloves as necessary.
• Children under the age of 16 should not be engaged in the assembly, removal or disassembly of the product. Children under the age
of 10 should be supervised by a competent adult while using this furniture.
• Please keep children out of the assembly area during assembly.
• This set is heavy, and may require two adults for safe assembly.
• Never use this product as a support. Do not shake, lean, or climb on the product at any time.

LIFE GETS BETTER WITH PHI VILLA
Assemble the item on a soft, non-abrasive surface, such as carpet or cardboard to avoid damaging the item. Seek assistance to assemble
bulky or heavy items.
NOTE:
Screwdriver
TOOLS REQUIRED
Identify all parts packed in the carton against the parts list.
Remove all the protective material carefully and DO NOT use a knife to prevent scratching the furniture.
NOTE: Hardware not shown to actual size.

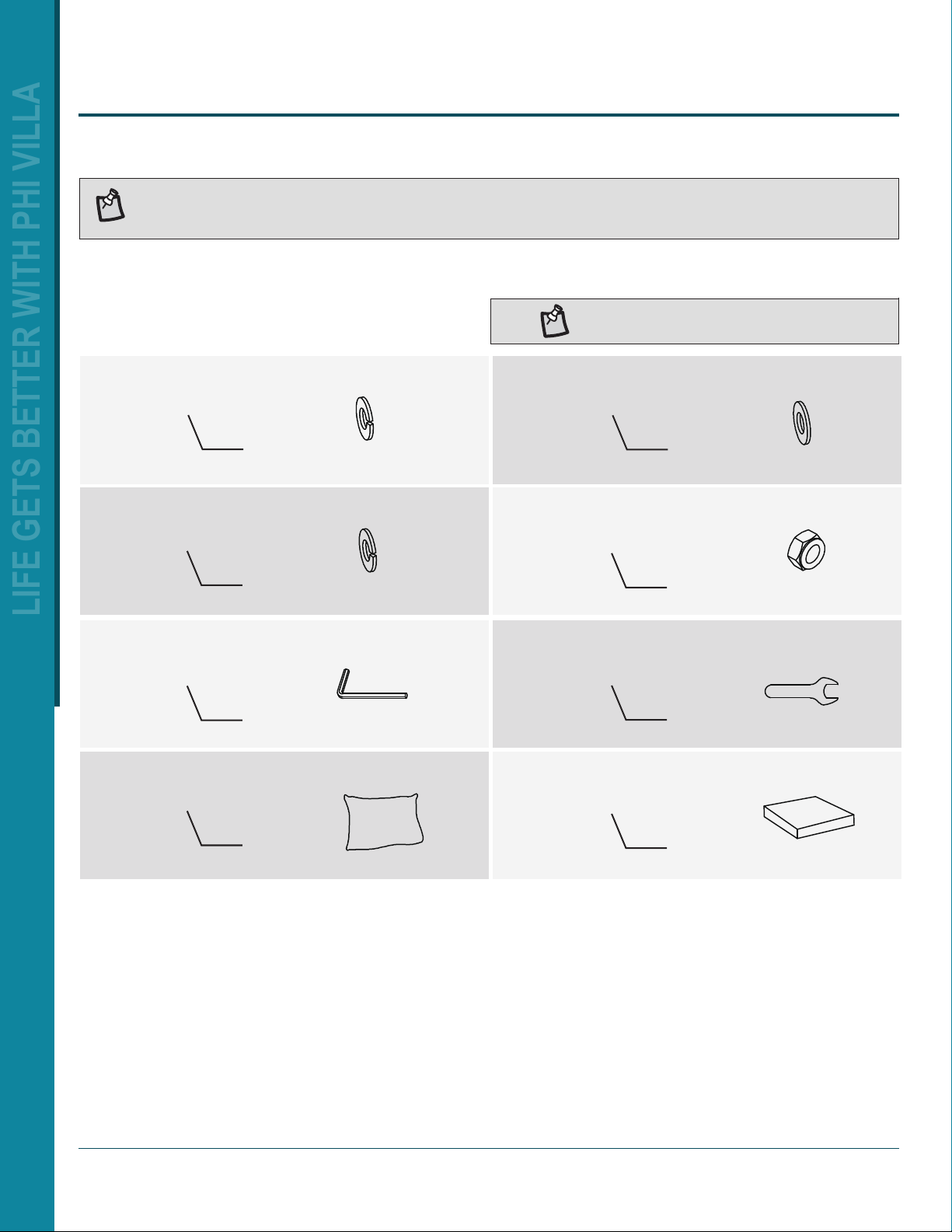

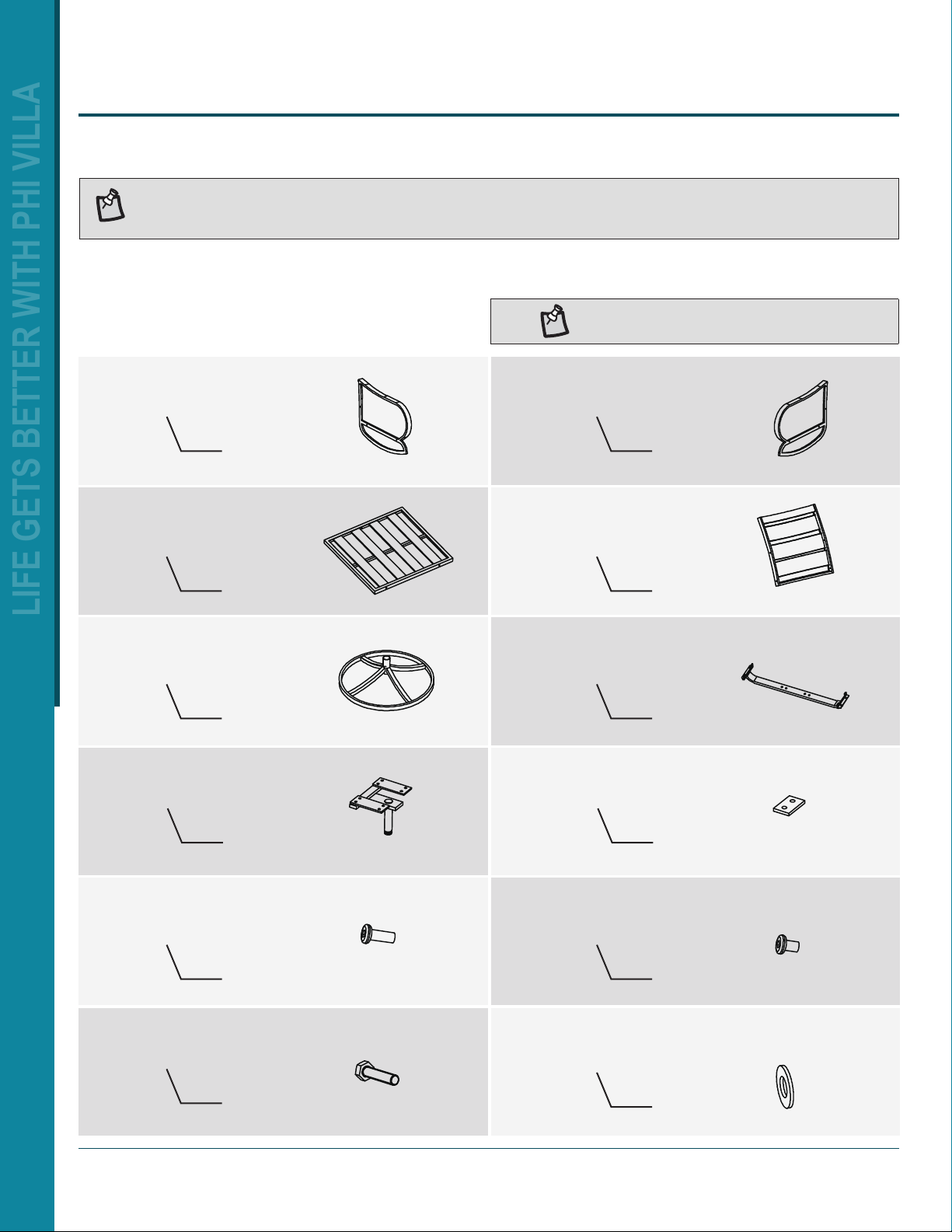

PACKAGE CONTENTS
A
X1
B
X1
C
X1
D
X1
E
X1
F
X1
G
X1
H
X2
J
X8
M6*25
K
X8
M6*18
L
X4
M
X16
M8*35 M6
Pre-assembly (continued)
3

LIFE GETS BETTER WITH PHI VILLA
Assemble the item on a soft, non-abrasive surface, such as carpet or cardboard to avoid damaging the item. Seek assistance to assemble
bulky or heavy items.
NOTE:
Screwdriver
TOOLS REQUIRED
Identify all parts packed in the carton against the parts list.
Remove all the protective material carefully and DO NOT use a knife to prevent scratching the furniture.
NOTE: Hardware not shown to actual size.
PACKAGE CONTENTS
1
N
X16
M6
O
X4
M8
Q
X4
M8
R
X1
M6
S
X2
M8
T
X1
U
X1
P
X4
M8
Pre-assembly (continued)
4

LIFE GETS BETTER WITH PHI VILLA
1
2

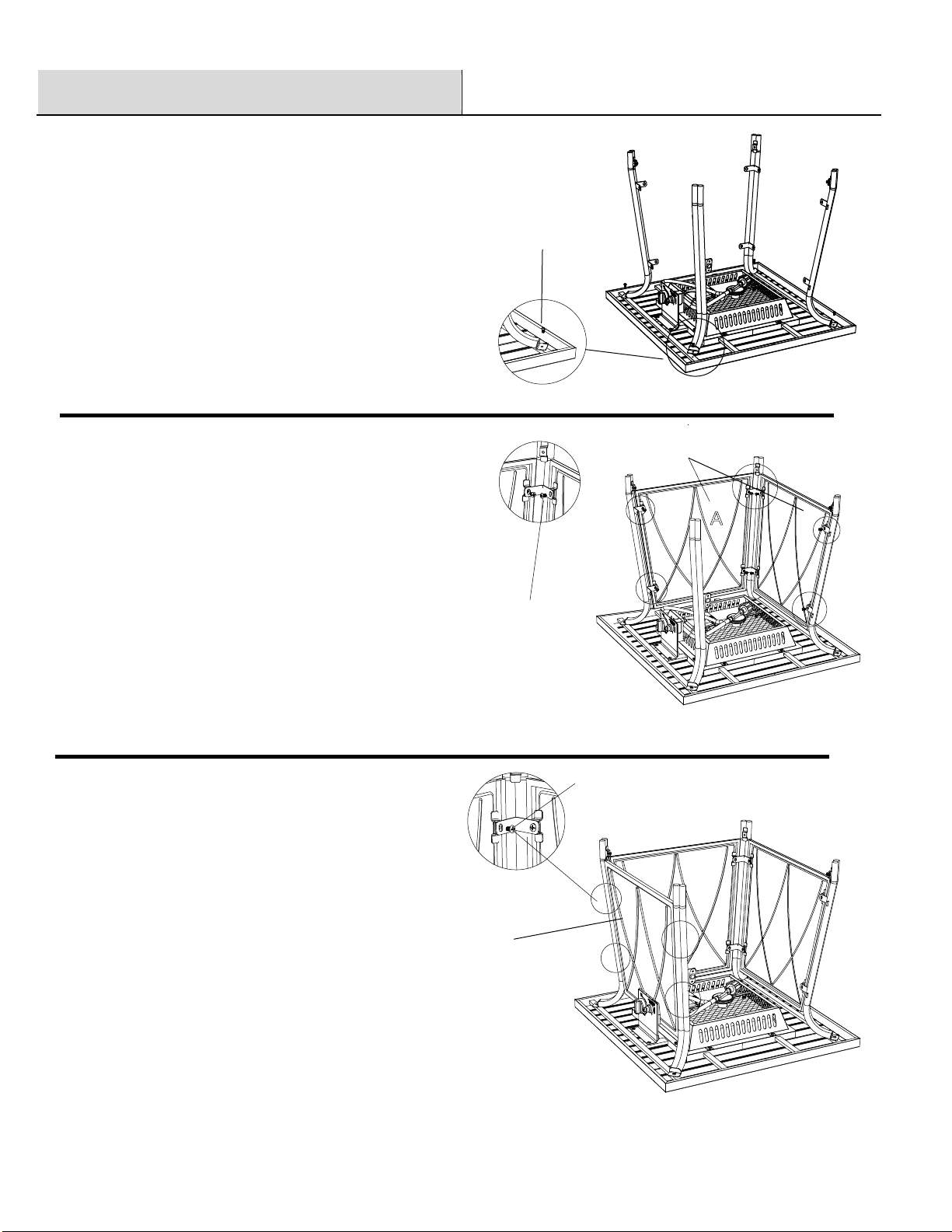

Assembly
5
F
G
Q
O
P
L
H
C
K
N
M
KNM

LIFE GETS BETTER WITH PHI VILLA
3
4
Assembly
6
A
C
J
N
M
D
B
J
N
M

LIFE GETS BETTER WITH PHI VILLA
5
6
Assembly
7
E
T
U

Cleaning and Maintenance
LIFE GETS BETTER WITH PHI VILLA
Questions, problems, missing parts? Before returning to the store
please contact our Customer Service
[email protected]

●Clean the furniture with damp cloth, rinse thoroughly. Dry frame parts completely. Do not use bleach, acid or
other solvents on the textile or metal parts.
●We recommend the use of furniture covers to protect the product when not in use.
●Inspect and tighten all screws on a regular basis to ensure proper performance and safety.
●In order to prolong the life and beauty of your product, we recommend storing it in a dry and protected area
during off season periods.
8

ASSEMBLY INSTRUCTIONS
USER’S MANUAL
Before starting assembly:
Read all instructions throughly.
Open and check boxes for parts list.
If any parts are broken or missing call or email customer service.
Keep all packaging until you are satisfied with your product.
Returns are not accepted without original packaging.
Make sure you have ample space for assembly.




WARNING:
DO NOT FULLY TIGHTEN ALL SCREWS UNTIL ASSEMBLY
IS COMPLETE.
DO NOT strain yourself. Some items are easier to assemble with
the help of another person.
DO NOT force bolts or nuts. If a nut becomes stick, unscrew it
and start again.
DO NOT assemble on an uneven surface to prevent any damage
and to ensure proper assembly.



Customer Service:
1-877-606-2818
Open Monday through Sunday
9am-6pm PST
[e-mail]

DANGER ·FLAMMABLE GAS UNDER PRESSURE.
LEAKING LP-GAS MAY CAUSE A FIRE OR EXPLOSION IF IGNITED
CAUSING SERIOUS BODILY INJURY OR DEATH.
CONTACT LP GAS SUPPLIER FOR REPAIRS, OR DISPOSAL OF THIS
CYLINDER OR UNUSED LP-GAS.
WARNING ·FOR OUTDOOR USE ONLY.*
DO NOT USE OR STORE CYLINDER IN A BUILDING,
GARAGE OR ENCLOSED AREA.
WARNING:
Know the odor of LP-gas. If you hear, see or smell
leaking LP-gas, immediately get everyone away
from the cylinder and call the Fire Department.
Do not attempt repairs.
Caution your LP-gas supplier to:
Be certain cylinder is purged of trapped air prior
to first filling.
Be certain not to over fill the cylinder.
Be certain cylinder requalification date is checked.
LP-gas is heavier than air and may settle in low
places when dissipating.
Contact with the liquid contents of cylinder will
cause freeze burns to the skin.
Do not allow children to tamper or play with cylinder.
When not connected for use, keep cylinder valve
turned off. Self contained appliances shall be limited
to a cylinder of 30 lb capacity or less.
Do not use, store or transport cylinder where it would
be exposed to high temperatures. Relief valve may
open allowing a large amount of flammable gas to
escape.
When transporting, keep cylinder secured in
an upright position which cylinder valve turned off.
DO NOT REMOVE, DEFACE, OR OBLITERATE THIS LABEL
*EXCEPT AS AUTHORIZED BY ANSI/NFPA 58.
DANGER. Do not store a spare LP cylinder under or near a barbecue grill, or other
heat sources. NEVER fill an LP cylinder beyond 80% full: a fire causing death or
serious injury may occour.
WHEN CONNECTING FOR USE:
Use only in compliance with appliable codes.
Read and follow manufacturer’s instructions.
Consult manufacturer’s instructions
concerning the cylinder connection provided
with your appliance.
Be sure regulator vent is not pointing up.
Turn off all valves on the appliance.
Do not check for gas leaks with a match or
open flame. Apply soapy water at areas
marked ”X”. Open cylinder valve. If bubble
appears, close valve and have LP-gas
service person make needed repairs. Also,
check appliance valves and connections to
make sure they do not leak before lighting
appliance.
Light appliance(s) following manufacturer’s
instructions.
When appliance is not is use, keep the
cylinder valve closed.
X
X
X
X
X
Cylinder
Pressure relief valve
Cylinder valve hand wheel
Point of connection
Liquid level indicator
(optional)
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
Please keep this instruction manual for future reference
CUS
R

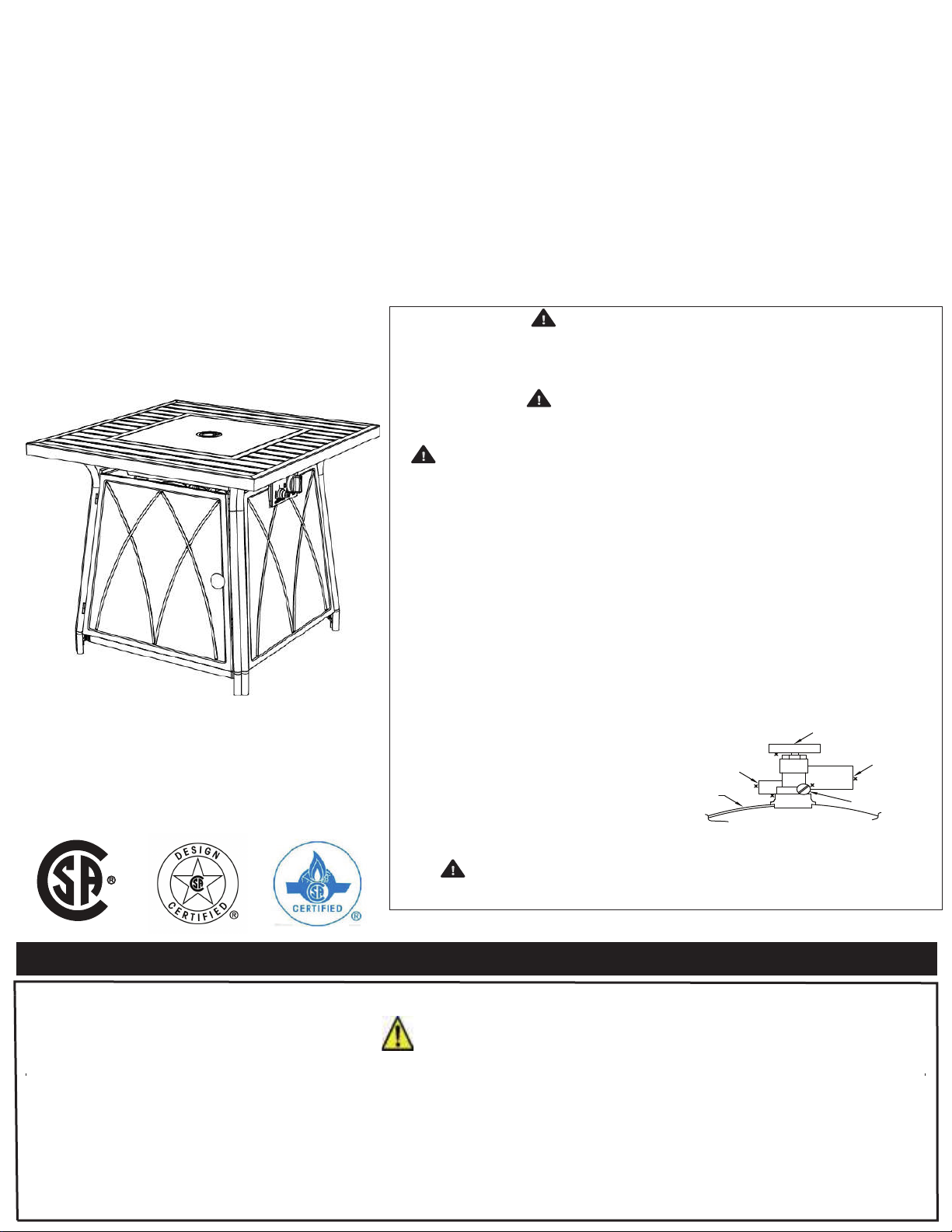

Assembly Instructions
28 Inch Gas Fire Pit Table
WARNING
READ INSTRUCTION MANUAL BEFORE ATTEMPTING ASSEMBLE OR
OPERATE THIS PRODUCT.
Keep the screws and parts out of reach of children.
(Made in China)

DANGER:
•Shut off gas to the appliance.
•Extinguish any open flame.
•If odor continues, leave the area immediately
After leaving the area, call your gas supplier
or fire department.
WARNING: For Outdoor Use Only!
WARNING:
FOR YOUR SAFETY:
If the information in this manual is not
followed
exactly, a fire or explosion may
Do not store or use gasoline, or other flammable
vapors and liquids, in the vicinity of this or any
An LP-cylinder not connected for
shall not be stored in the vicinity of this or
any other appliance.
2
FIRE OR EXPLOSION HAZARD
If you smell gas:
•
Failure to follow these instructions could result in
fire or explosion, which could cause property
damage, personal injury, or death.
Safety Information
DANGER CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has no
odor.
Using it in an enclosed space
can kill you.
Never use this appliance in an
enclosed space such as a
camper, tent, car or home.
Installation and service must be
performed by a qualified installer,
service agency, or the gas supplier
INSTALLER: leave this manual with the appliance.
CONSUMER: Retain this manual for future
reference.
WARNING:
result causing property damage,
personal injury or loss of life.
WHAT TO DO IF YOU SMELL GAS:
Do not try lighting any appliance.
Do not touch any electrical switch; do
NOT use any phone in your building.
Immediately call your gas supplier from
a neighbor’s phone.
Fllow the gas supplier’s instructions.
If you cannot reach your gas supplier.
Call the fire department.
Installation and service must be
performed by a qualified installer, service
agency or gas supplier. Save these
instructions for future reference. If you
are assembling this unit for someone
else, give this manual to him or her to
read and save for future reference.
other appliance.
use
Read the instruction before use. This appliance must be installed in accordance
with such regulations as are enforced.
Safety Information.. .........................................................2-4
Pre-Assembly...……………………...…………………….
5
Operating Instructions .........................................1
Maintenance...........................................................
Care and Cleaning ................................................14
Troubleshooting
....................................................
Table of Contents
..………………...……………………. 6
Package Contents
Assembly..……………………………… ………....…8-1
Table of Contents ................................
..........................2
WARNING:
Improper installation, adjustment,
alteration, service or maintenance can
cause property damage, personal injury
Read this installation, operating, and
maintenance instructions thoroughly
before installing or servicing this
equipment.
or loss of life.
15
14
3
0

3
Safety Information (continued)
WARNING:
You must provide propane gas and propane cylinder. Use a standard 20 lb. propane cylinder only.
Use this heater only with a propane vapor withdrawal supply system. See Chapter 5 of the Standard for Storage and
Handling of Liquefied Petroleum Gas, ANS/NFPA 58. Your local library or fire department should have this book.
The pressure regulator and hose assembly supplied with the appliance must be used.
The installation must conform with local codes, or in absence of local codes, with National Fuel Gas Code, ANSI Z223.1.
A dented, rusted, or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier.
Never use a propane cylinder with a damaged valve connection.
The LP-gas supply cylinder must be constructed and marked in accordance with the U.S. Department of Transportation
(D.O.T) Specifications for LP-Gas Cylinders, or the standard for Cylinders, Spheres and Tubes for Transportation of
Dangerous Good and Commission, CAN/CSA-B339, as applicable.
The LP-gas supply cylinder must be provided with a cylinder connection device compatible with the connection for the
appliance.
The cylinder used must include a collar to protect the cylinder valve.
The LP-gas supply cylinder must be provided with a listed overfill protection device (OPD).
Do not store a spare LP gas cylinder under or near this appliance.
Never fill the cylinder beyond 80 percent full.
For appliances designed to use a CGA No. 791IQCC connection.
Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use.
Note: Gas supply pressure: 25 PSI to 250 PSI.
Standard 20 lbs. tank
WARNING: FUELS USED IN LIQUIFIED PROPANE GAS APPLIANCES, AND THE PRODUCTS OF
COMBUSTION OF SUCH FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING BENZENE, WHICH IS
KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND CAUSE BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM. For more information go to: www.P65Warnings.ca.gov.

4
Safety Information (continued)
WARNING:
Solid fuels shall not be burned in this appliance.
The installation must conform with local codes or, in the absence of local codes, ANSIZ223. 1/NFPA54, NFPA58 Natural
Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2.
Prior to use, check for damaged parts such as hoses, regulators, pilots, or burners.
Inspect the fuel supply connection for signs of leakage (including the hose for the LP models) before each use of the
appliance.
All leak tests should be done with a soapy solution. NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away from the
appliance to avoid burns or clothing ignition. This appliance comes with a heat shield which is an important safety
component preventing contact with the fire bowl when adjusting the propane valve.
Young children should be carefully supervised when they are in the area of the heater.
Clothing or other flammable materials should be not be hung from the heater, or placed on or near the heater.
Any guard or other protective device removed for servicing the heater, must be replaced prior to operating the heater.
Installation and repair should be done by a qualified service person. The heater should be inspected before use and at
least annually by a qualified service person.
More frequent cleaning may be required as necessary. It is imperative that the control compartment, burners, and
circulating air passageways of the heater be kept clean.
Keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.
DO NOT OBSTRUCT the combustion process or air ventilation flow.
Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.
The appliance should be used in a well-ventilated space and not in a building, garage or any other enclosed area.
An appliance may be installed within a shelter if the shelter meets one of the following conditions:
The shelter has walls on all sides, but with no overhead cover.
The shelter is within a partial enclosure which includes side walls. These side walls may be parallel, as in a breezeway,
or at right angles to each other.
This appliace must be isolated from the gas supply piping system by closing its individual manual shutoff valve during
any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).
Max. gas supply 6791.3 in wc (1725 kPa). Manifold pressure 11 in wc (2.74 kPa).

5

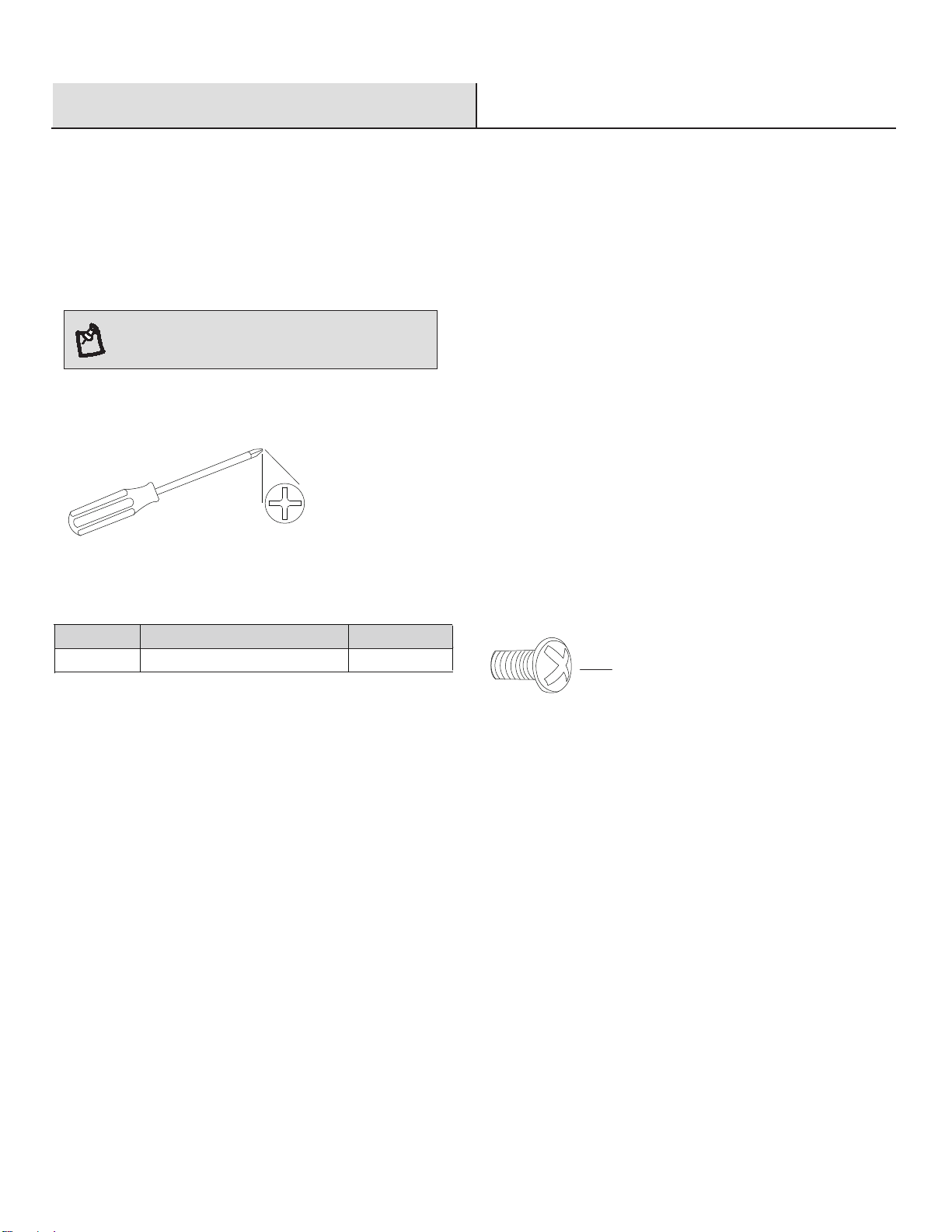

Pre-Assembly
PLANNING ASSEMBLY
Carefully remove all pieces from the carton and make sure that you have all parts (refer to the hardware and package contents list).
If you are missing parts, please contact 855-600-9294 for further assistance.
NOTE: Please read and understand the entire
llatsniro,etarepo,elbmessauoyerofeblaunam
the fire pit.
YOUR OWNER’S MANUAL
Keep and store this Owner’s Manual for future reference. It contains important instructions and procedures for safety and
maintenance.
TOOLS REQUIRED
Phillips
screwdriver
(NOT INCLUDED)
Part Description Quantity
M6 x 10mm Bolt
AA
HARDWARE INCLUDED
AA
20

Package Contents
6
E
A
B
B
C
F
G
H
I
J
K
I

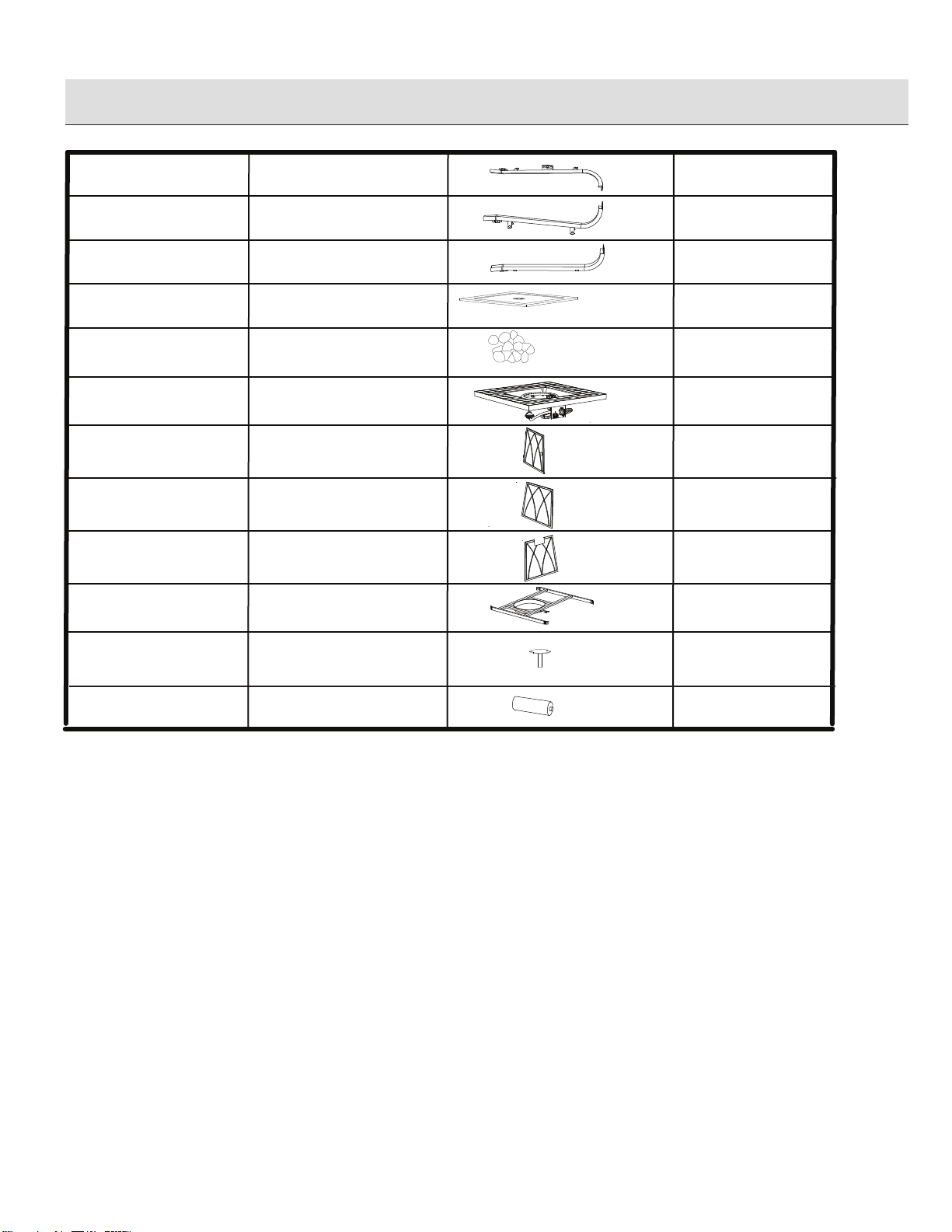

Package Contents
7
1
A
B
E
G
I
K
Lid
Fire Glass
Door
Gas Tank Support
1
C
F
H
J
L
Table Top With Burner
2
1
1
1
1
1
1
1
2
Front Leg
Back Leg
Front Leg
Side Panel
Side Panel With Window
Handle
AAA Battery
EE 1

8
Assembly
Step 3:
AA
Step 1:
Connect all four Legs (A,B,C,) to the Table
Top with Burner (G) by using four M6 x10
Bolts (AA).
NOTE: PLACE TABLE TOP TO
NON-ABRASIVE SURFACE.
PLEASE DON’T TIGHTEN THE
HARDWARE AT THIS TIME.
Don’t tighten the hardware.
AA
Step 2:
Connect Side Panel (I) to Back Leg (B)
by using
four M6
x 10 Bolts (AA).
Connect Side Panel (I) to Front Leg (C)
and the other Back Leg (B) by using four
M6 x10 Bolts (AA).
A
I
C
B
B
AA
Connect Side Panel With Window (J) to
Front Leg (A) and one Back Leg (B) by
using
four M6
x 10 Bolts (AA).
J
A
B
A
BB
C

Step 5:
9
Assembly (continued)
Step 5:
AA
Step 4:
Connect Gas Tank Support (K) to the
semi-assembled body by using four M6x10 bolts(AA) .
Please tighten all the screws for step 1-4.
Slide the hinge of Door (H) to Front Leg
(C).
H
E
Burner
Step 6:
Place the fire glass into fire bowl.
Note: Ensure no fire glass is placed on
the ignition portion of the burner.
Then place the Lid (E) on.
Note: The cover must be removed when
the burner is in operation. Wait until the
unit cools before installing the cover.

Assembly (continued)
10

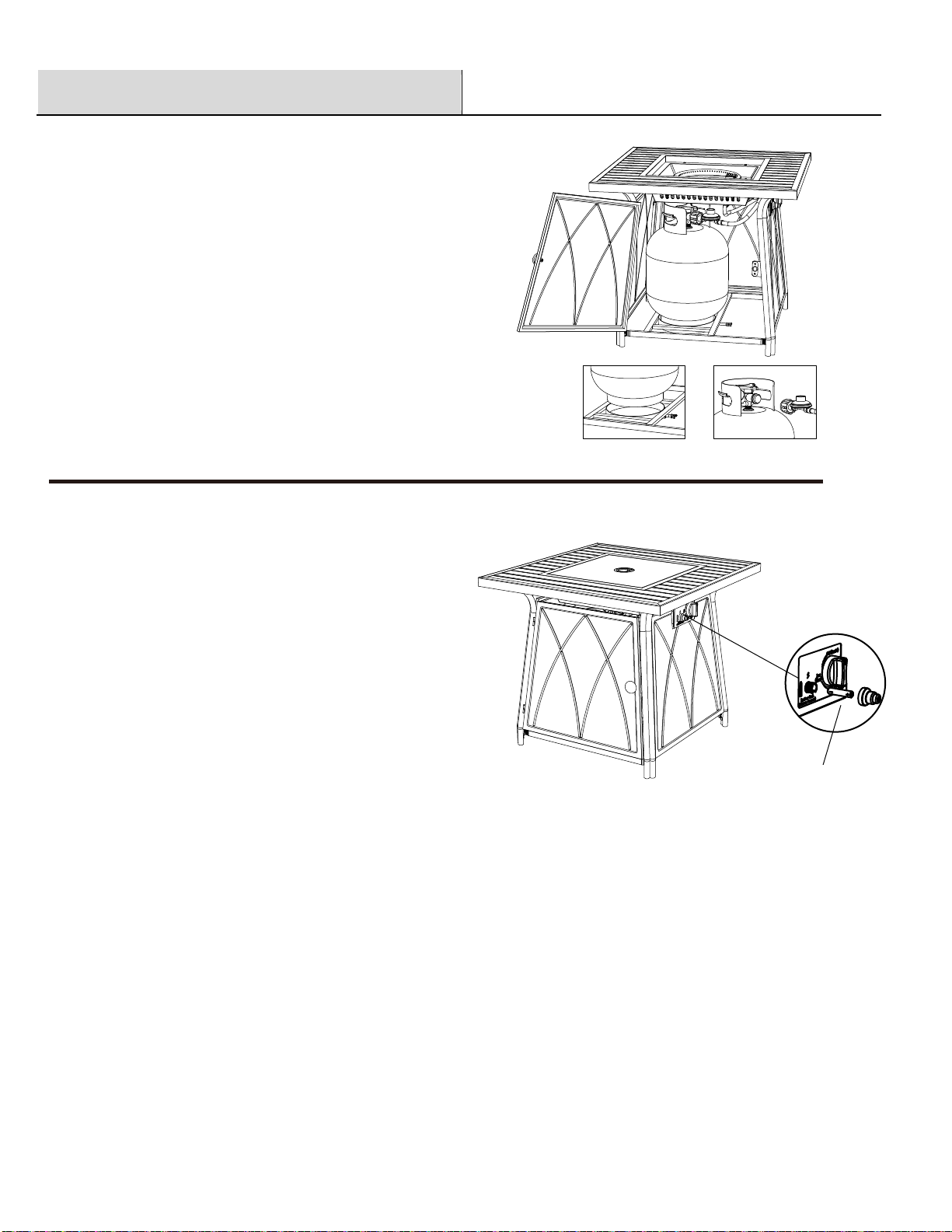

Step 7:
AAA Battery
Put the cylinder into the Gas Tank Support
(K), and secure the cylinder by tightening
the screw in the gas tank support.
Connect the hose and regulator to cylinder
The propane cylinder is sold separately.
Use a standard 20 lbs propane cylinder
only.
Step 8:
Open the ingniter cover and place the AAA battery
into it. Then tighten the ingniter cover completely.
Finish and enjoy your fire pit!

Operating
WARNING: Never use this appliance for other than the intended use. DO NOT use this appliance to prepare
food.
WARNING:
Initial Lighting: When lit for the first time, the appliance emits a slight odor. This is a normal temporary condition caused
by the “burn-in ” of internal paints and lubricants used in the manufacturing process and does not occur again. Simply run
the main burner on high for approximately one-half hour.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away from the
appliance to avoid burns or clothing ignition. The appliance comes with a heat shield which is an important safety
component preventing contact with the fire bowl when adjusting the propane valve.
Children should be carefully supervised when they are in the area of the appliance.
Clothing or other flammable materials should not be hung from the appliance, or placed on or near the appliance. The
area above the fire pit may be extremely hot. Direct contact with these surfaces should be avoided in order to prevent
burns or clothing ignition.
Any guard or protective device removed for servicing the appliance must be replaced prior to operating the appliance.
Installation and repair should be done by a qualified service person.
The appliance should be inspected before each use and at least annually by a qualified service person. More frequent
cleaning may be required necessary. It is imperative that the control compartment, burners and circulating air
passageways of the appliance be kept clean.
WARNING:
Never use the appliance while it is raining. Always turn the appliance off when raining.
Never use the appliance if the burner is damaged. Inspect the burner before each use. Ensure that no debris such as
leaves; grass or other objects have entered or are on the appliance. If the burner is damaged it must be replaced prior
to using this appliance with a replacement burner specified by your dealer.
Inspect the hose assembly before each use. If there is evidence of excessive abrasion or wear, or if the hose is
damaged it must be replaced prior to using the appliance with a replacement hose assembly specified by your dealer.
WARNING: Any modification to the appliance may compromise the safety of this appliance.
Special concern is as follows:
Do not bypass the thermocouple safety.
Do not operate the appliance if any parts have been under water. Immediately call a qualified service technician to
inspect the appliance and replace any part of the control system, and any gas control, which has been under water.
11
