Philips CSP652/93 User manual

Register your product and get support at
www.philips.com/welcome
EN User manual
CSP550
CSP650
CSP652

1. Important
Safety
Read and understand all instructions before you use the apparatus.•
If damage is caused by failure to follow instructions, the warranty
does not apply.
Use only the supplied mounting hardware for a safe and secure•
installation.
Do not continuously use the speaker system beyond the peak power•
handling capacity.
Keep credit cards, watches, recorded tapes etc. with magnetic coding•
away from the speaker system to prevent damage caused by the
magnets in the speakers.
Clean the apparatus with soft, damp cloth. Never use substances•
such as alcohol, chemicals or household cleaners on the apparatus.
Notice
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
Any changes or modications made to this device that are not expressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
2009 © Koninklijke Philips Electronics N.V. All rights reserved.
Specications are subject to change without notice. Trademarks are the property of Koninklijke
Philips Electronics N.V. or their respective owners. Philips reserves the right to change products at
any time without being obliged to adjust earlier supplies accordingly.

2.Your car stereo speakers
Congratulations on your purchase, and welcome to Philips! To fully
benet from the support that Philips offers, register your product at
www.philips.com/welcome.
Introduction
With the woofers and tweeters, you can enjoy high power music with
vivid sound.
What’s in the box
Check and identify the contents of your package:
aWoofer (x2)
bGrille assembly (x2)
c Tweeter (with wire) (x2)
dNetwork (x2)
eSpeaker wire (x2)
fAngle adapter (x2)
gFix frame (x2)
hMounting bracket (x4)
iScrew (x2)
j Screw nut (x2)
k Shrapnel (x16)
b
e
d
ac
f
2-WAYCROSSOVER NETWORK
12dB/Oct.
WOOFER
INPUT TWEETER
gh
jk
i

3. Installation
A depth of at least 49mm is required to mount the woofer and a depth
of at least 19mm is required to mount the tweeter. Measure the depth
of the area where you are to mount the woofer/tweeter, and ensure that
the woofer/tweeter does not obstruct any other components of the car.
Note
Make sure that nothing obstructs around the mounting location of the door.
•
A hole for mounting may already be cut out of the inner panel of the door
•
(front or rear). In this case, you need to modify the board only.
Ensure that the speaker terminals, frame or magnet do not interfere with any
•
inner parts, such as the window mechanism in the door (when you open or
close the window), etc. Also ensure that the speaker grille does not touch any
inner ttings, such as the window cranks, door handles, arm rests etc.
Mount the woofer

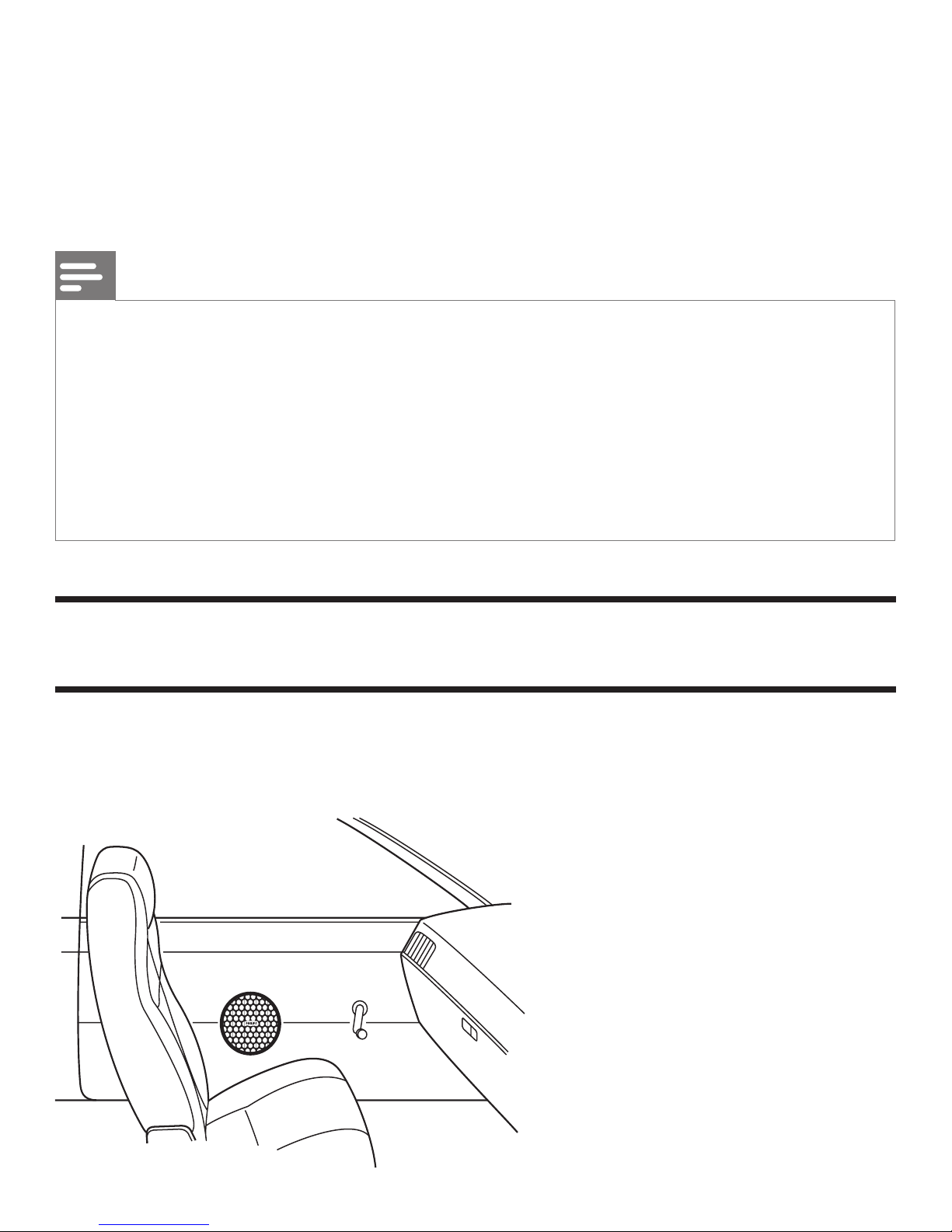

Option 1: Mount on door (front or rear)
You can mount the wooferss on the front/rear door of your car.

1 Turn off the car ignition key.
If the power is on, the click noise generated by the connection
•may damage the speakers.
2Cut out the mounting template from the packing box and
paste it on the location selected for mounting the woofer.
3Mark the cut-off hole and the 4 bolt holes.
4Cut out the marked area and drill the bolt holes.
5Remove the grille net.
6Connect the woofers to the network or car audio (see ‘Connect
the woofer/tweeter to the network’).

7Mount on the speaker as shown below.
8Press and insert the edges of the grille net.
Tip
The speaker grille can be mounted without the grille
•
net, if you like.
Option 2: Mount on dashboard or
rear tray
You can also mount the woofers into the surface
of the dashboard or rear tray.
Follow the steps in section
“Option 1: Mount in door” to
mount the speakers into the
dashboard or rear tray.

Mount the Tweeter
Follow steps mentioned in “Mount the woofer” section to mount the
tweeters.
Option 1:
Flush mounting
Option 2:
Flush mounting
Option 3:
Surface mounting
Option 4:
Surface mounting
Option 5:
Angle mounting

Mount the network
1Find a proper location to mount the networks.
2Mount the networks onto the car with the supplied screws.
2-WA
Y CROSSOVER NETWORK
12dB/Oct.
WOOFER
INPUT TWEETER
Connect the woofer/tweeter to the network
Note
Match the “left”, “right”, “+” and “-” terminals correctly. Revised polarity may
•
degrade sound quality.
Two 4-ohm speakers, wired in stereo, present a 4 ohm load to each channel
•
of the amplier. Most two channel ampliers work well in this conguration.
However, if two 4-ohm speakers, wired in parallel to a bridged two -channel
amplier, present a 2-ohm mono load to the amplier. Most 2-channel
ampliers do not support 2-ohm mono operation! Amplier damage may
result!
1Connect the woofers and the tweeters to the 2-way crossover
network rst, then connect the network to your amplier or
car audio directly.

White lined
White lined
White lined
GSA_WGK
Amplifier
Network
Woofer
Tweeter
Amplifier
Midwoofer Tweeter
WOOFERINPUT TWEETER
Black
Black
Black
4. Product information
Model CSP550 CSP650 CSP652
Speaker type 13cm, 2-way
component
speaker
16.5cm, 2-way
component
speaker
16.5cm, 2-way
component
speaker
RMS power (Watts) 40W 50W 60W
Peak music power (Watts) 210W 240W 300W
Sensitivity (dB/W/m) 90dB 90dB 91dB
Frequency response (Hz) 40-35kHz 36-35kHz 34-35kHz
Impedance (ohms) 4 ohms 4 ohms 4 ohms
Magnet mass (Oz) 11Oz 12.6Oz 18.8Oz

Note
Product information is subject to change without prior notice.
•
5.Troubleshooting
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, go to the
Philips web site (www.philips.com/welcome). When you contact
Philips, ensure that the apparatus is nearby and the model number
and serial number are available.
Name of the Parts
Hazardous/toxic Substance
Pb, Lead Hg, Mercury Cd, cadmium Chromium 6+ PBB PBDE
Housing O O O O O O
Loudspeakers O O O O O O
PWBs X O O O O O
Accessories (Remote
control & cables) X O O O O O
O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is
below the limit requirement in SJ/T11363 - 2006.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used
for this part is above the limit requirement in SJ/T11363 - 2006.
Environmental Protection Use Period
This logo refers to the period ( 10 years ) during which the toxic or hazardous substances or elements contained in electronic
information products will not leak or mutate so that the use of these [substances or elements] will not result in any severe
environmental pollution, any bodily injury or damage to any assets.
