Philips ACT7585/00 User manual

Portable CD player ACT 7585
CD REWRITABLE
COMPATIBLE
DIGITAL AUDIO
COMPACT
MODE
PROG
CD REWRITABLE
COMPATIBLE
DIGITAL AUDIO
COMPACT
MODE
PROG
DBB
CD REWRITABLE
COMPATIBLE
DIGITAL AUDIO
COMPACT
DBB
ACT7585/01 eng 14/2/01 11:04 Page 1

Es necesario que lea cuidadosamente su instructivo de manejo.
Descripción: Tocadiscos de CD portatil
Modelo: ACT7585/01,
ACT7585/11,
ACT7585/16
Alimentación: 110–127/220–240 V~ 50–60 Hz
Consumo: 4 W (AY 3170)
Importador: Philips Mexicana, S.A. de C.V.
Domicilio: Norte 45, # 669, Col. Industrial Vallejo
Localidad y Telefono: C.P. 02300 México D.F., Tel. [phone]
Exportador: Philips Electronics Hong Kong, Ltd.
País de Origen: China
Nº de Serie: ______________________________
LEA CUIDADOSAMENTE ESTE INSTRUCTIVO
ANTES DE USAR SU APARATO.
No abrir, riesgo de choque eléctrico
Verifique que el voltaje de alimentación
sea el requerido para su aparato
ATENCIÓN
Para evitar el riesgo de choque eléctrico, no quite la tapa.
En caso de requerir servicio, dirijase al personal calificado.
PRECAUCIÓN - ADVERTENCIA
México
ACT7585/01 eng 14/2/01 11:04 Page 2

3
VOL
PROG
MODE
DBB
ESP
P
/ LINE OUT
3
4
5
2
@
7
6
8
9
0
!
$
#
1
%
^
ACT7585/01 eng 14/2/01 11:25 Page 3

4
ACT7585/01 eng 14/2/01 11:04 Page 4

5
English
English
Controls .................................................6
Quick start .............................................7
Power supply...................................8–10
General information......................10–11
CD play..........................................12–13
Features.........................................14–18
In-car connection.................................19
Troubleshooting.............................20–21
General information ............................22
Français
Informations générales .......................23
Commandes.........................................24
Mise en service rapide........................25
Alimentation électrique ................26–27
Informations générales.................28–29
Lecture CD.....................................30–31
Caractéristiques ............................32–36
Raccordement en voiture ....................37
Pannes et remèdes .......................38–39
Español
Controles .............................................40
Encendido rápido.................................41
Alimentación eléctrica..................42–43
Información general......................44–45
Reproducción de un CD.................46–47
Características ..............................48–52
Conexión al automóvil.........................53
Localización de averías.................54–55
Información general ............................56
Français
Español
∑
Guarantees
Polizia de garantía
Mexico.........................................74–75
Philips product warranty for
Australia......................................76–77
Guarantee and service for
New Zealand ....................................78
Garantia e Assistência Técnica
Brasil..................................................79
∑
General information ............................57
Controls ...............................................58
Quick start ...........................................59
Power supply.................................60–61
General information......................62–63
CD play..........................................64–65
Features.........................................66–70
In-car connection.................................71
Troubleshooting.............................72–73
ACT7585/01 eng 14/2/01 11:04 Page 5

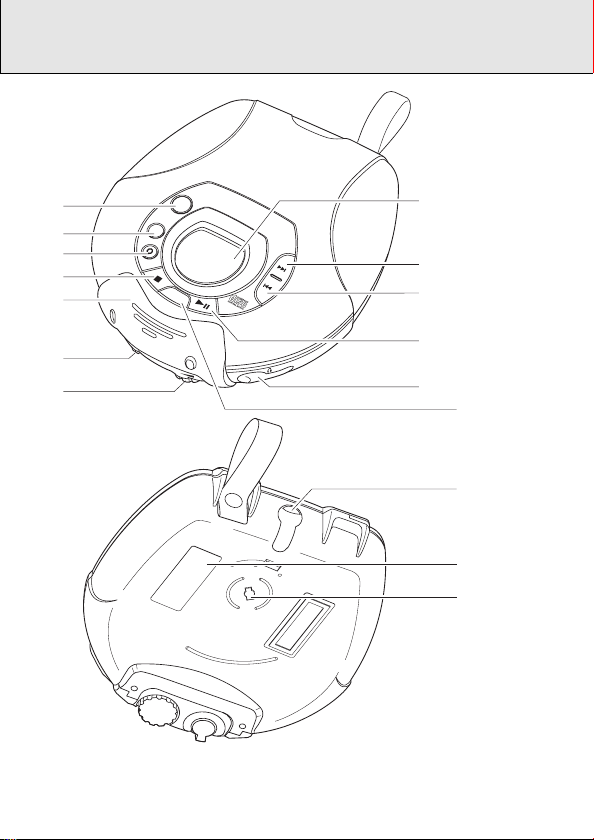

CONTROLS, refer to the illustration on page 3
6
1p/LINE OUT .3.5mm headphone socket
22;.................switches the set on, starts and interrupts CD play
3∞..................skips and searches backward
4§..................skips and searches forward
5.......................display

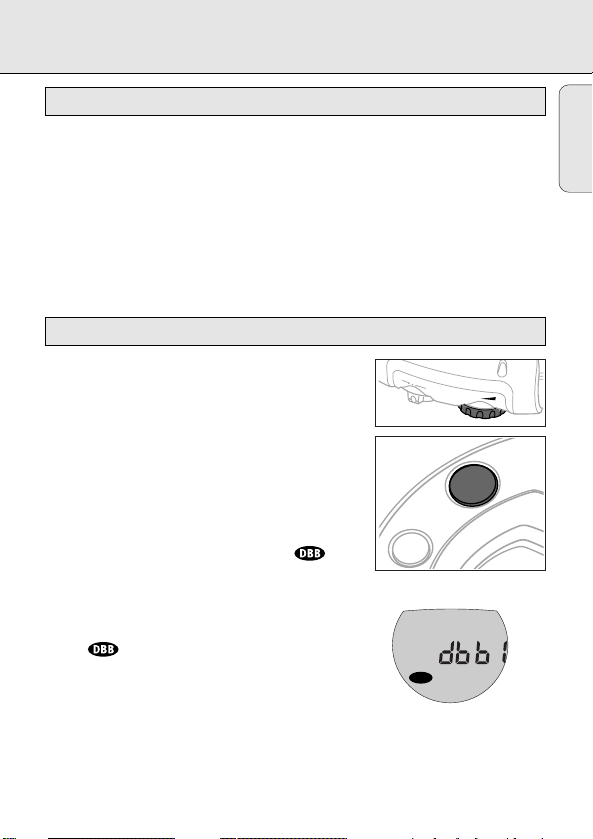

6DBB................DIGITAL DYNAMIC BASS BOOST: switches the bass enhancement
on and off This button also switches acoustic feedback (the beep)
on/off when it is pressed for more than 2 seconds
7PROG P ..........programs tracks and reviews the program
8MODE............selects the different playing possibilities: SHUFFLE,
SHUFFLE REPEAT ALL, REPEAT, REPEAT ALL and SCAN
99....................stops CD play, erases a program, activates charging and switches
the set off
0.......................open the CD lid here

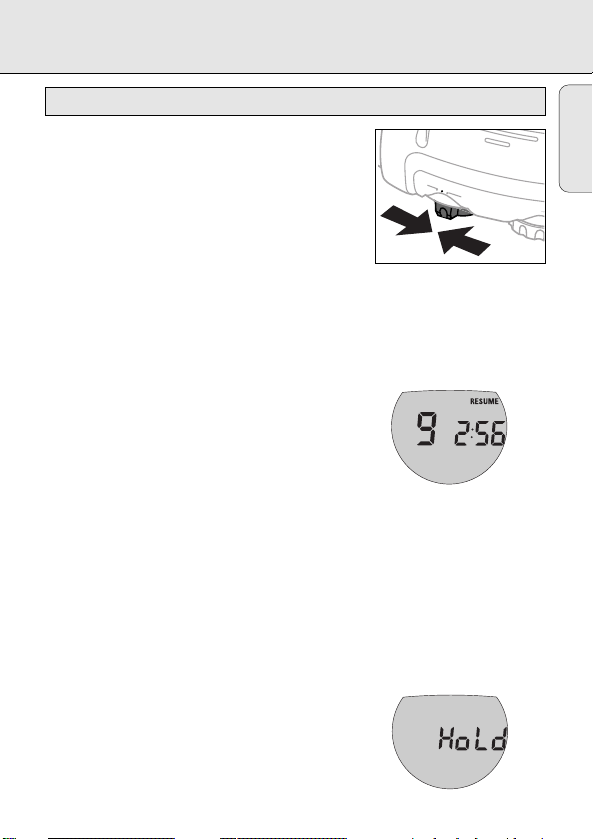

!RESUME........stores the last position played
HOLD ............locks all buttons
OFF.................switches RESUME and HOLD off
@VOL E.......adjusts the volume
#ESP ................ELECTRONIC SKIP PROTECTION ensures continuous CD playback
regardless of vibrations and shocks
$4.5V DC..........socket for external power supply
%........................typeplate
^........................belt clip holder
English
This set complies with the radio interference requirements of the
European Community.
ACT7585/01 eng 14/2/01 11:04 Page 6

7
English
1OPEN 2
3CD 4 5 HOLD➟OFF
6 7 VOLUME
!!!
AA
LR6
UM3
1.
2.
2.
1.
ESP
OFF
RESUME
HOLD
ESP
/ LINE OUT
VOL
OFF
RESUME
HOLD
/ LINE OUT
PLAY
VOL
PROG
MODE
DBB
ESP
P
/LINEOUT
VOL
PROG
MODE
DBB
ESP
P
/LINEOUT
VOL
PROG
MODE
DBB
ESP
P
/LINEOUT
PROG
MODE
DBB
ESP
P
/ LINE OUT
VOL
OFF
RESUME
HOLD
/LINE OUT

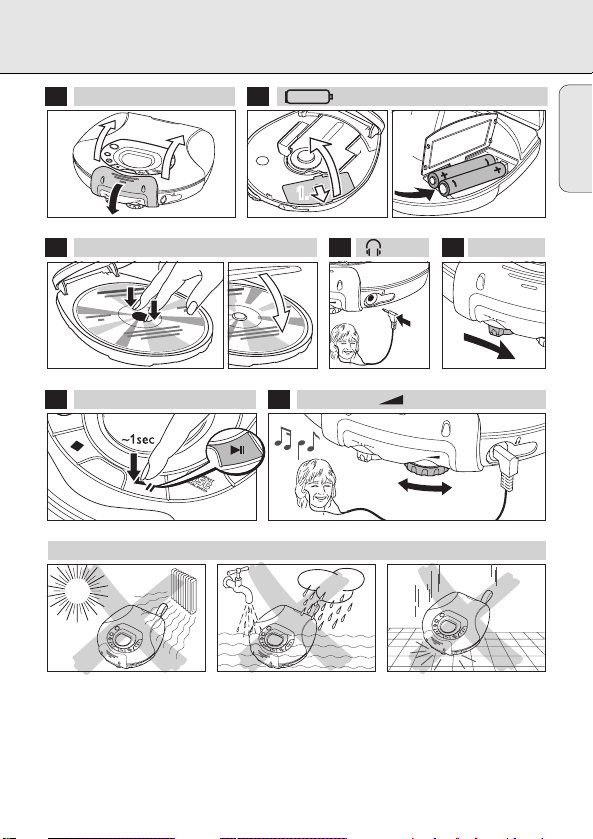

QUICK START
ACT7585/01 eng 14/2/01 11:04 Page 7

English

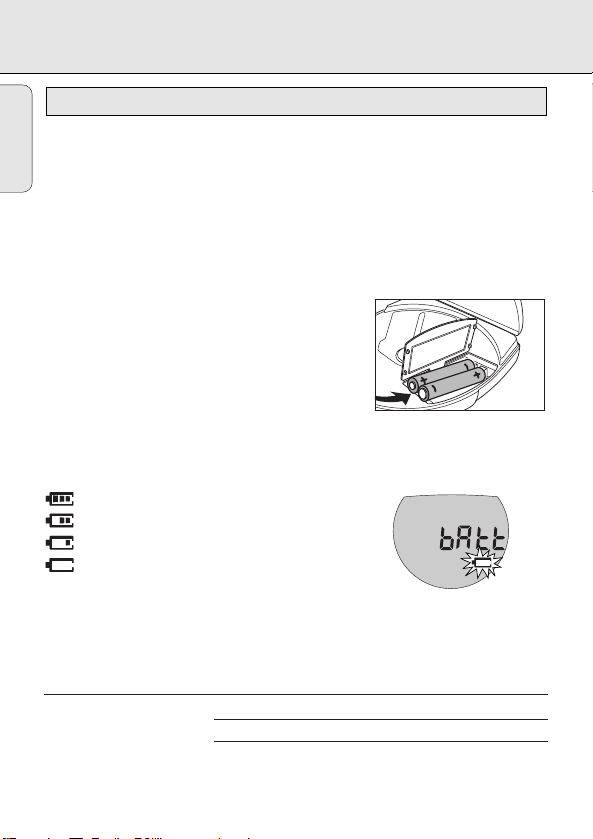

POWER SUPPLY
8
You can use the following batteries with this CD-player:
• normal batteries type LR6, UM3 or AA (preferably Philips), or
• alkaline batteries type LR6, UM3 or AA (preferably Philips).
Note: – Old and new or different types of batteries should not be used in
combination. Remove batteries if they are empty or if the player is
not going to be used for a long time.
Inserting batteries
1Unfasten the buckle.
2Open the CD lid.
3Open the battery compartment and insert either
2 alkaline batteries, or the rechargeable NiMH
battery AY 3362 (if supplied).
Batteries contain chemical substances, so they
should be disposed of properly.
Battery indication
The approximate power level of your batteries is shown in the display.
Battery full
Battery two-thirds full
Battery one-third full
Battery dead or empty. When the batteries are
dead or empty, the symbol A flashes,
bAtt is displayed, and the beep tone sounds repeatedly.
Average playing time of batteries under normal conditions
Battery type ESP on ESP off
Normal 7 hours 6 hours
Alkaline 22 hours 19 hours
Rechargeable ECO-PLUS NiMH battery 10 hours 9 hours
Batteries (supplied or optionally available)
ACT7585/01 eng 14/2/01 11:04 Page 8

POWER SUPPLY
9
Recharging works only on players supplied with the rechargeable ECO-PLUS NiMH
battery AY 3362.
Recharging the ECO-PLUS NiMH battery on board
1Insert the rechargeable ECO-PLUS NiMH battery AY 3362.
2Connect the mains adapter to the 4.5V DC socket of
the player and then to the wall socket.
yAis shown and ChArGE is displayed for 5
seconds.
• Recharging stops after a maximum of 7 hours, or
when you start playback.
3When the battery is fully recharged, and
FULL appear briefly in the display,
before the display switches off.
Notes: – It is normal for the batteries to become warm
during recharging.
– If the batteries become too warm, recharging will be interrupted for
approximately 30 minutes and Hot is displayed.
– To ensure proper recharging on board, take care that contacts are clean.
– Use only the ECO-PLUS NiMH battery AY 3362.
Handling instructions
• Recharging already charged or half-charged batteries will shorten their lifetime.
We therefore recommend that you let the rechargeable ECO-PLUS NiMH battery
run till it is completely empty before you recharge it.
• To avoid a short circuit, do not let the battery touch any metal object.
• If the battery becomes empty soon after recharging, then either its contacts are
dirty or it has reached the end of its lifetime.
ECO-PLUS NiMH battery information (for versions supplied with
the rechargeable ECO-PLUS NiMH battery AY 3362)
English
ACT7585/01 eng 14/2/01 11:04 Page 9

POWER SUPPLY / GENERAL INFORMATION
10
Use only the AY 3170 adapter (4.5 V/300 mA direct
current, positive pole to the centre pin). Any other
product may damage the player.
1Make sure that the adapter’s voltage
corresponds to the local voltage.
2Connect the adapter to the 4.5V DC socket of
the player and to the wall socket.
Note: Always disconnect the adapter when you are not using it.
• Connect the supplied headphones to the p/LINE OUT
socket of the player.
Note: p/LINE OUT can also be used for connecting the
player to your HiFi system (with a signal lead) or to
your car radio (with a cassette adapter or signal
lead). In both cases, the volume of the player must
be set to position 8.
ESP
/ LINE OUT
VOL
F
RESUME
HOLD
Headphones AY 3678
Mains adapter (supplied or optionally available)
English
Use your head when using headphones
Hearing safety: Do not play your headphones at a high volume. Hearing experts
advise that continuous use at high volume can permanently damage your hearing.
Traffic safety: Do not use headphones while driving a vehicle. It may create a hazard
and it is illegal in many countries. Even if your headphones are an open-air type
designed to let you hear outside sounds, do not turn up the volume so high that you
cannot hear what is going on around you.
ACT7585/01 eng 14/2/01 11:04 Page 10

GENERAL INFORMATION
11

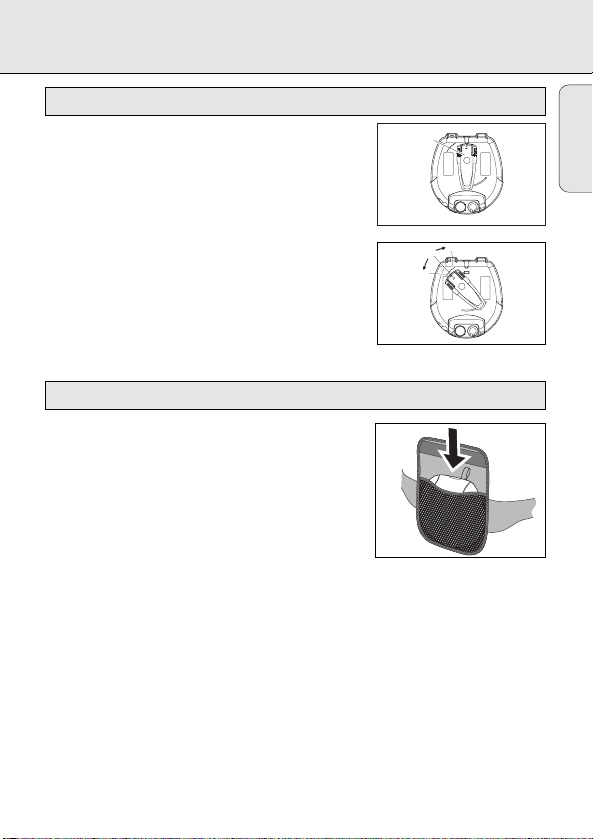

1To attach the belt clip to the CD-player, position the
shaped grip (found on the back of the belt clip) so
that it fits into the belt clip hole of the CD-player.
2Turn the clip to LOCK as indicated on the set.
3To detach, gently lift the belt clip and turn
to RELEASE as indicated on the set.
The pouch enables you to conveniently carry the
CD-player so you can listen to music while exercising.
1 Make sure ESP is activated.
2 Fasten the pouch belt tightly around your waist.
3 Put the CD-player into the pouch with the keys facing away from your body, and
close the flap.
Notes: – While exercising, take care that the CD-player is not hit by a limb or other
object, such as a branch or post.
– Do not use the pouch if you are suffering from a skin irritation.
– Do not machine-wash the pouch as it could lose shape or colour.
Pouch AY 3266 (supplied or optionally available)
LIFT LOCK
RELEASE
BELT CLIP
Belt Clip (not on all versions)
English
ACT7585/01 eng 14/2/01 11:04 Page 11

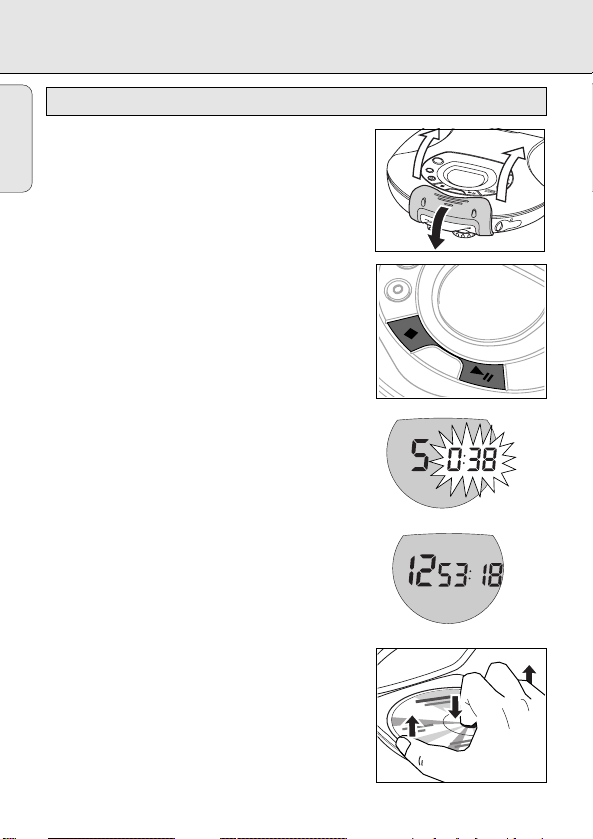

CD PLAY
12
This CD-player can play all kinds of Audio Discs such
as CD-Recordables and CD-Rewritables. Do not try to
play a CD-ROM, CDi, VCD, DVD or computer CD.
1Unfasten the buckle.
2Open the CD lid.
3Insert an audio CD, printed side up, by pressing the
CD onto the hub.
4Close the lid by pressing it down on the left side.
5Press 2; to switch the player on and start playback.
yThe current track number and elapsed playing
time are displayed.
• You can pause playback by pressing 2;.
yThe time at which playback was paused starts
flashing.
• You can continue playback by pressing 2; again.
6Press 9 to stop playback.
yThe total number of tracks and the total playing
time of the CD are displayed.
7Press 9 again to switch the player off.
• To remove the CD, hold it by its edge and press the
hub gently while lifting the CD.
Note: If there is no activity, the set will automatically
switch off after a while to save energy.
0
MODE
ESP
PROG
MODE
DBB
ESP
P
/ LINE OUT
VOL
OFF
RESUME
HOLD
Playing a CD
English
ACT7585/01 eng 14/2/01 11:04 Page 12

CD PLAY
13
•If a CD-Recordable (CD-R) or a CD-Rewritable (CD-RW) is not recorded properly,
nF dISC is displayed, indicating that the CD has not been finalized. In that
case, use FINALIZE on your CD recorder to complete the recording.
•When playing a CD-Rewritable (CD-RW), please note that it takes 3–15 seconds
after pressing 2; for sound reproduction to start.
•Playback will stop if you open the CD lid.
•While the CD is read, 1 -:- flashes in the display.
Volume adjustment
• Adjust the volume by using VOL E.
Bass adjustment
You can choose between the bass enhancement levels
dbb1 and dbb2.
1Press BASS once for dbb1 and twice
for dbb2.
ydbb1 or dbb2 is displayed and
is shown.
2To switch dbb1 or dbb2 off, press BASS
twice or once, respectively.
ygoes off.
DBB
PROG
M
DBB
P
VOL
OFF
RESUME
HOLD
Volume and bass
Playback information
English
ACT7585/01 eng 14/2/01 11:04 Page 13

FEATURES
14
Selecting a track during playback
Briefly press ∞ or §once or several times to skip to
the current, previous or next track.
yPlayback continues with the selected track, and
the track’s number is displayed.
Selecting a track when playback is stopped
1Briefly press ∞ or §once or several times to select
the desired track. The track number is displayed.
2Press 2; to start CD play.
yPlayback starts with the selected track.
Searching for a passage during playback
1Keep ∞ or §pressed to find a particular passage in
a backward or forward direction.
ySearching starts while playback continues at low
volume. After 2 seconds the search speeds up.
2Release the button when you reach the desired passage.
yPlayback continues from this position.
Notes: – If the player is in SCAN mode (see MODE chapter), searching is not possible.
– In SHUFFLE, SHUFFLE REPEAT ALL or REPEAT mode (see MODE chapter), or
while playing a program, searching is only possible within the particular
track.
Selecting a track and searching
English
ACT7585/01 eng 14/2/01 11:04 Page 14

FEATURES
15
You can store up to 30 tracks to play in a program.
A single track may be stored more than once in the
program.
1While playback is stopped, select a track with
∞or §.
2Press PROG P to store the track.
yPROGRAM lights up; the track number
programmed and Pwith the total number of
stored tracks are displayed.
3Select and store all desired tracks in this way.
4Press 2; to start playback of your selected tracks.
yPROGRAM is shown and playback starts.
• You can review the program by pressing PROG P for
more than 2 seconds.
yThe display shows all the stored tracks in sequence.
Notes: – If you press PROG P and there is no track selected,
SELECt is displayed.
– If you try to store more than 30 tracks, FULL is displayed.
Clearing the program
• While playback is stopped, press 9 to clear program.
yCLEAr is displayed once, PROGRAM goes off,
and the program is cleared.
Note: The program will also be cleared if the power
supply is interrupted, or if the CD-player lid is opened, or if the set switches
off automatically.
PROG
MODE
DBB
P
Programming track numbers
English
ACT7585/01 eng 14/2/01 11:04 Page 15

FEATURES
16
It is possible to play tracks in random order, to repeat a single track or the entire CD,
and to play the first few seconds of each track.
1Press MODE during playback as often as required in
order to activate one of the following ‘modes’. The
active mode is shown in the display.
ySHUFFLE: All tracks of the CD are played in
random order until all of them have been played
once.
ySHUFFLE REPEAT ALL: All tracks of the CD are
played repeatedly in random order.
yREPEAT: The current track is played repeatedly.
yREPEAT ALL: The entire CD is played repeatedly.
ySCAN: The first 10 seconds of each of the
remaining tracks are played in sequence.
2Playback starts in the chosen mode after 2 seconds.
• To return to normal playback, press MODE repeatedly
until the display shows no active modes.
OG
MODE
P
Selecting different playing possibilities – MODE
English
ACT7585/01 eng 14/2/01 11:04 Page 16

FEATURES
17
You can interrupt playback and continue (even after an
extended period of time) from the position where
playback stopped (RESUME) and you can lock all buttons
of the set so that no action will be executed (HOLD).
Use the RESUME–HOLD–OFF slider for these functions.
RESUME – continuing from where you have
stopped
1Switch the slider to RESUME during playback to activate RESUME.
yRESUME is shown.
2Press 9whenever you want to stop playback.
3Press 2; whenever you want to resume playback.
yRESUME is shown and playback continues from
where you have stopped.
• To deactivate RESUME, switch the slider to OFF.
yRESUME goes off.
HOLD – locking all buttons
You can lock the buttons of the set by switching the slider to HOLD. Now, when a key
is pressed, no action will be executed. This is of use, for example, when transporting
the player in a bag. With HOLD activated, you can avoid accidental activation of other
functions.
1Switch the slider to HOLD to activate HOLD.
yAll buttons are locked. HOLD is shown when you press any button. If the set is
switched off, HOLD will be shown only when 2; is pressed.
2To deactivate HOLD, switch the slider to OFF.
Note: If you deactivate HOLD by switching the slider to
RESUME, you will be activating the RESUME
function.
HOLD
VOL
OFF
RESUME
HOLD
RESUME and HOLD
English
ACT7585/01 eng 14/2/01 11:04 Page 17

FEATURES
18
Conventional portable CD-players subjected to a shock
or vibration during playback often skip parts of the CD. The
ELECTRONIC SKIP PROTECTION (ESP) feature, with which
your set is equipped, however, prevents such loss of
continuity when your player is subjected to light vibrations.
But ESP does not prevent playback interruptions caused by
vigorous exercise. Nor does it protect against damage
resulting from the player being dropped!
• Press ESP during playback to activate the skip
protection.
yESP is shown and the protection is activated.
• To deactivate the skip protection, press ESP again.
yESP goes off and the protection is deactivated.
ESP
ESP
ESP
English
ACT7585/01 eng 14/2/01 11:04 Page 18

IN-CAR CONNECTION
19
Only use the AY 3545 car
voltage converter (4.5V, DC,
positive pole to the centre pin)
and the AY 3501 car cassette
adapter. Any other product may
damage the set.
1Put the CD-player on a
horizontal, vibration-free and
stable surface. Make sure it
is in a safe place, where the
player is neither a danger nor obstacle to either driver or passenger.
2Connect the DC plug of the voltage converter to the 4.5V DC socket of the CD-
player (only for a 12 V car battery, negative grounding) .
3Insert the voltage converter into the cigarette lighter socket. If necessary, clean the
cigarette lighter socket to obtain a good electrical contact.
4Turn down the volume and connect the cassette adapter plug to the p/LINE OUT
socket of the CD player.
5Carefully insert the cassette adapter into the car radio’s cassette compartment.
6Make sure the cord does not hinder your driving.
7Start the CD-player, set VOL Eto position 8 and adjust the sound with the car
radio controls.
• Always remove the voltage converter from the cigarette lighter socket when the
CD-player is not in use.
Note: – Avoid excessive heat from the car heating or from direct sunlight (e.g. in a
parked car in the summer).
– If your car radio has a LINE IN socket, it is better to use this instead of the
cassette adapter. Simply connect a signal lead from the p/LINE OUT socket
of the CD-player to this LINE IN socket.
4,5 V DC
DIGITAL
DIGITAL
DIGITAL
PROG
MODE
DBB
ESP
P
/ LINE OUT
VOL
OFF
RESUME
HOLD
In-car use (connections supplied or optionally available)
English
ACT7585/01 eng 14/2/01 11:04 Page 19

TROUBLESHOOTING
20
Problem Possible cause Solution
No power, Batteries
playback does Batteries inserted incorrectly Insert the batteries
not start correctly.
Batteries are empty. Change the batteries.
Contact pins are dirty. Clean them with a cloth.
Mains adapter
Loose connection Connect the adapter
securely.
In-car use
Cigarette lighter is not powered Switch on ignition or insert
when ignition is off. batteries.
nF dISC CD-RW (CD-R) is not recorded Use FINALIZE on the
indication properly. CD recorder to complete
the recording.
no dISC The CD is badly Replace or clean the CD.
indication scratched or dirty.
CD is not or incorrectly inserted. Insert a CD, label upwards.
The laser lens is steamed up. Wait until the lens has
cleared.
HOLD indication HOLD is activated. Deactivate HOLD.
and/or no reaction Electrostatic discharge Disconnect the set from
to controls power supply or take out
the batteries for
a few seconds.
English
WARNING
Under no circumstances should you try to repair the set yourself as this
will invalidate the guarantee.
ACT7585/01 eng 14/2/01 11:04 Page 20
