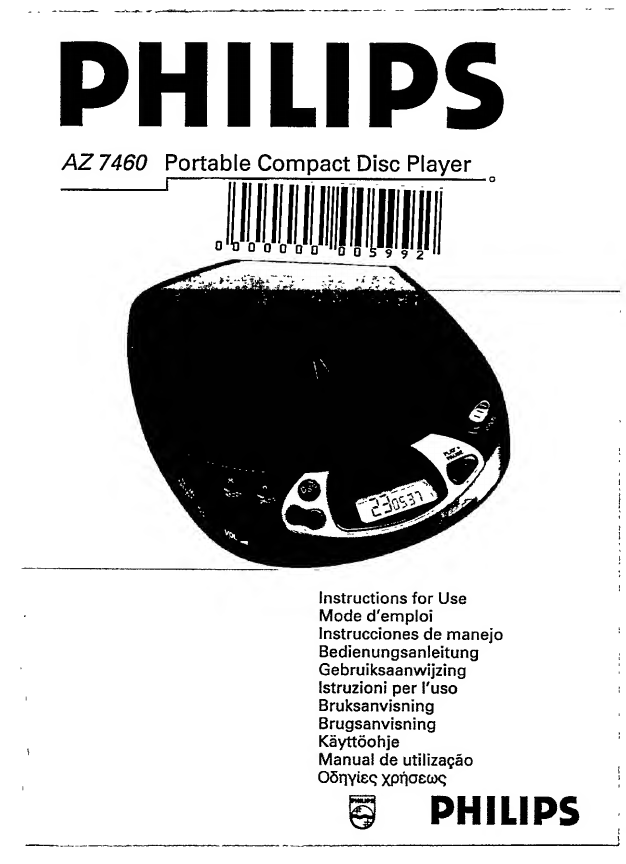

AZ 7460 Portable Compact Disc Player
Instructions for Use
Mode d'emploi
Instrucciones de manejo
Bedienungsanleitung
Gebruiksaanwijzing
Istruzioni per Tuso
Bruksanvisning
Brugsanvisning
Kayttoohje
Manual de utiliza^ao
06 T\yieq xPH^eox;
PHILIPS

Deutsch
Espariol

Deutschland
Hiermit wird bescheinigt, daS dieses Gerat in Ubereinstimmung mit den Be-
stimmungen der Amtsblattverfiigung 1046/1984 funkentstort ist
Der Deutschen Bundespost wurde das Inverkehrbringen dieses Gerates angezeigt und
die Berechtigung zur Uberprufung der Serie auf Einhaltung der Bestimmungen einge-
raumt.
Norge
Typeskilt finnes p§ apparatens underside.

Svenska Reglage.78-79
Tillbehor.80
Stromforsorjning.81
Bruksanvisning.82-86
Allmanna
upplysningar.87
Felsokning.88-89
Portugues Comandos.114-115 Funcionamento.118-122
Acessorios.116 Informagoes gerais.123
Alimentagao.117 Avarias....124-125
'EAAnviKd Xeipianipia.126-127 reviK^<;
E^apnipaia.128 nAnpo?opfe<;.
TpotpoSooia.129 AidpBtoor]
AeiToupYia.130-134 pXaptov.
Portugues
Suomi
Dansk
Svenska

This set complies with the radio interference requirements of the
European Community,

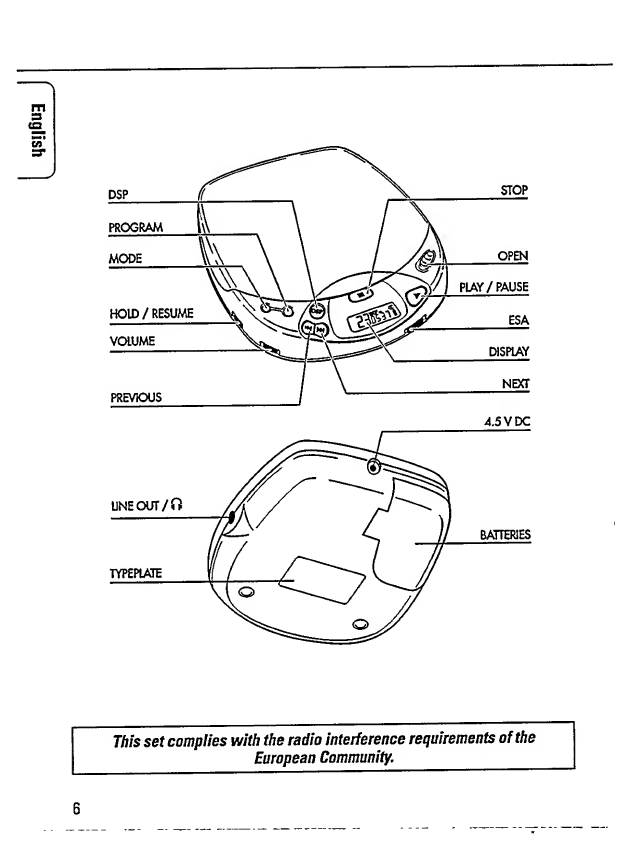

_ CONTROLS
DISPLAY ..Window for showing the different playing modes, tracks and
times
► w.Button for selecting the next music track or, if held down, for
searching forward for a particular passage on the CD
.Button for selecting the previous music track or, if held down,
for searching-backward for a particular passage on the CD
VOLUME . Control for adjusting the volume at the headphone output
RESUME/HOLD . Switch for activating the RESUME function (resuming CD play)
and/or HOLD (blocking all buttons) function
MODE O.Button for selecting the different playing modes:
SHUFRMHUFFLE REPEAT ALL-^REPEAT 1-REPEAT ALL
-SCAN-off
PROG P.Button for storing tracks in a program and for reviewing the
program
OSP.Digital Sound Processing: Button for selecting the different
sound settings at the headphone output
ROCK-POP-CAR-INCREDlBLESURROUND-off
STOP ■ . Button for stopping CD play, deleting various settings,
switching off the CD player.
OPEN . Slide control for opening the lid of the CD player
► II . Button for starting and pausing CD play
PSA.Electronic Shock Absorption: Switch for activating the
electronic buffer memory for an undisturbed sound
LINE OUT/ri . Headphone socket (3.5 mm)
4.5 V DC . Socket for external power supply
Battery compartment for inserting batteries
Note: In case of power supply via the DC jack (mains adapter or cigarette lighter in
your car) the display is backlighted. In battery mode, the illumination is
activated for 10 seconds after key operations.
7
English

English
ACCESSORIES
Connecting headphones (supplied)
Connect the supplied headphones (16 ohms/
3.5mm jack plug) with the LINE OUT / O jack.
Note: Use this jack also for connecting your Hifi system
(signal lead) or your car radio (adapter cassette or
signal lead). In both cases, the volume of the CD
player has to be set to maximum position (10).
Use your head when using headphones
Hearing safety: Do not play your headphones at a high volume. Hearing experts
advise that continuous use at high volume can permanently damage hearing.
Traffic safety: Do not use headphones while driving a vehicle. It may create a
hazard and it is illegal in many countries. Even if your headphones are an open-air
type designed to let you hear outside sounds, do not turn up the volume so high
that you cannot hear what is going on around you._
.20 - 20000 Hz
..typ. 95 dBA
.typ. 70 dBA
..typ. 0.05 %
..Bitstream D/A Converter
..2xl.5V.typeAA/LR6/UM3
.134 x 30.5x154 mm
.approx. 250/290 gms
TECHNICAL DATA
Frequency range.
Signal-to-noise ratio..
Channel separation..
Total harmonic distortion.
Conversion.
Batteries.
Dimensions (wxhxd).
Weight (without/with batteries).
8

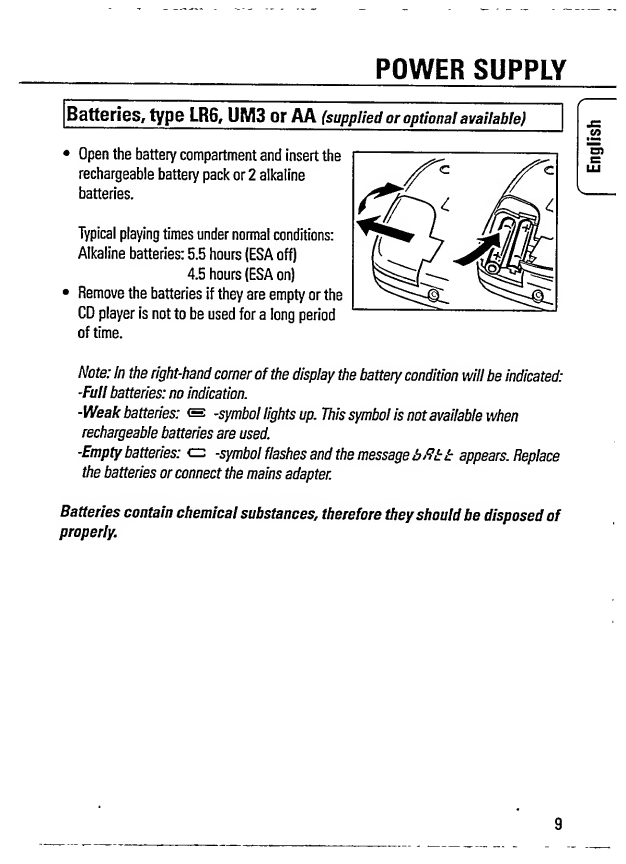

POWER SUPPLY
Batteries, type LR6, UM3 or AA (supplied or optional available)
• Open the battery compartment and insert the
rechargeable battery pack or 2 alkaline
batteries.
Typical playing times under normal conditions:
Alkaline batteries: 5.5 hours (ESA off)
4.5 hours (ESA on)
• Remove the batteries if they are empty or the
CD player is not to be used for a long period
of time.
Note: In the right-hand corner of the display the battery condition will be Indicated:
-Full batteries: no Indication.
-Weak batteries: ^ -symbol lights up. This symbol is not available when
rechargeable batteries are used.
-Empty batteries: ci: -symbol flashes and the message appears. Replace
the batteries or connect the mains adapter.
Batteries contain chemical substances, therefore they should be disposed of
properly
English

English
1 Open the lid by pushing the OPEN slide control to the side.
2 Insert an audio CD, printed side up.
3 Close the lid by pushing down on the right-hand side.
- ► Display indication of: (example)
17 = total number of tracks / 51:06 = total playing time
4 Press the ► !! button to start CD play.
- ► Display indication of: (example)
4 = current track / 2:56 = elapsed time of current track
5 Adjust the sound using the controls VOLUME and DSP.
6 You can interrupt CD play by pressing the ► !! button. Continue CD play by pressing
the >11 button again.
- ► Display indication of: time of the current position (flashing).
7 Press the STOP ■ button to stop CD play.
- ► Display indication of: total number of tracks / the total playing time.
• If you press the STOP ■ button again, you will switch off the set
Note: If no button is pressed for 90 seconds, the set will switch off automatically.
10

OPERATION

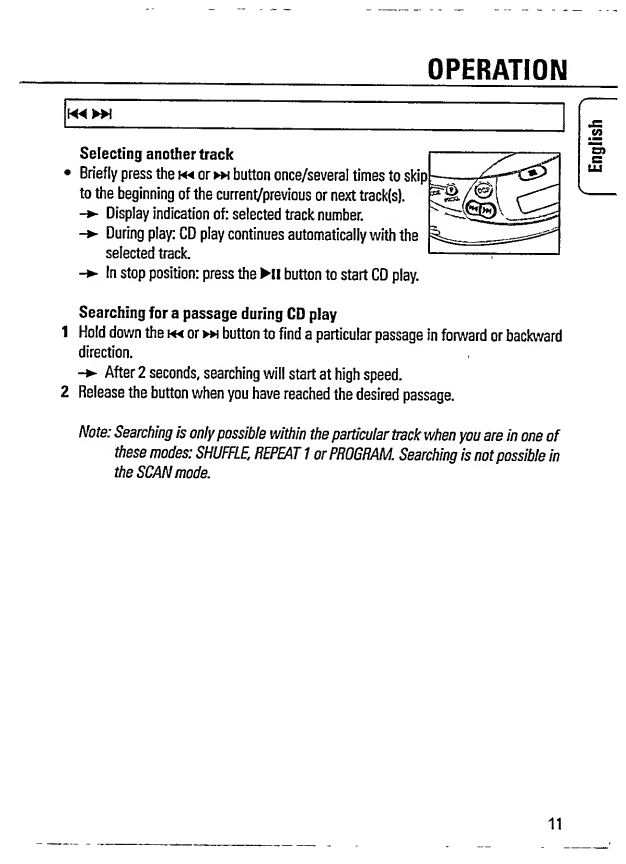

Selecting another track
Briefly press the or button once/several times to skip
to the beginning of the current/previous or next track(s).
Display indication of: selected track number,
- ► During play: CD play continues automatically with the
selected track.
- ► In stop position: press the Hi button to start CD play.
Searching for a passage during CD play
1 Hold down the or ► « button to find a particular passage in forward or backward
direction.
- ► After 2 seconds, searching will start at high speed.
2 Release the button when you have reached the desired passage.
Note: Searching is only possible within the particular track when you are in one of
these modes: SHUFFLE, REPEAT 1 or PROGRAM. Searching is not possible in
the SCAN mode.
11
English

English
OPERATION
MODE o - different playing modes _
• By pressing the MODE O button, you can
successively activate the playing modes:
SHUFFLE: The tracks are played in random orderunW\ all
of them have been played once.
SHUFFLE REPEAT ALL: All tracks are played repeatedly in
random orrfer until you leave this mode.
REPEAT 1: The track is played repeater///until you leave this mode.
REPEAT ALL: The CD is played repeater///until you leave this mode.
SCAN: Each track is scanned for 10 seconds until you leave this mode or all tracks
have been played once.
The selected playing mode is indicated in the display.
- ► During play: CD play continues automatically with the selected playing mode.
- ► In stop position: press the ► !! button to start CD play.
Notes:
- You can choose from 12 different playing modes when you combine all the
above-mentioned modes with PROGHAM.
- Deactivate all modes with the MODE O button.
12

OPERATION
PROG - programming of tracks (max. 25 tracks)
1 Select the desired track with PREV or NEXT
2 As soon as the desired track is displayed, press the PROG button to store the track
in the memory.
- ► Display indication of: track number
/P / total number of stored tracks, e.g,
Notes:
- When you try to store more than 25 tracks,
the display indicates Put L.
- When you press PROG and there is no track selected,
the display indicates 5EL ECh.
Playing the program:
• If you have selected the tracks in STOP mode, press the PLAY/PAUSE ► !! button.
• If you have selected the tracks during CD play, first press STOP ■ and then the
PLAY/PAUSE HI button.
- ► Display indication: PROGRAM.
- ► Your program will be played in the selected playing mode (e.g. shuffle).
Reviewing the settings:
• Press the PROG button for more than 2 seconds.
Display indication: each stored track successively flashes for a short moment.
Erasing the program in STOP mode:
• Press the STOP ■ button to erase the program.
PROGRAM disappears on the display and your program is erased.
CL ERC lights up briefly on the display.
Note: Interrupting the power supply or opening the lid will also erase the program.
8 PD3
Cl I,
I uLi
SEiEct
13
English

English
OPERATION

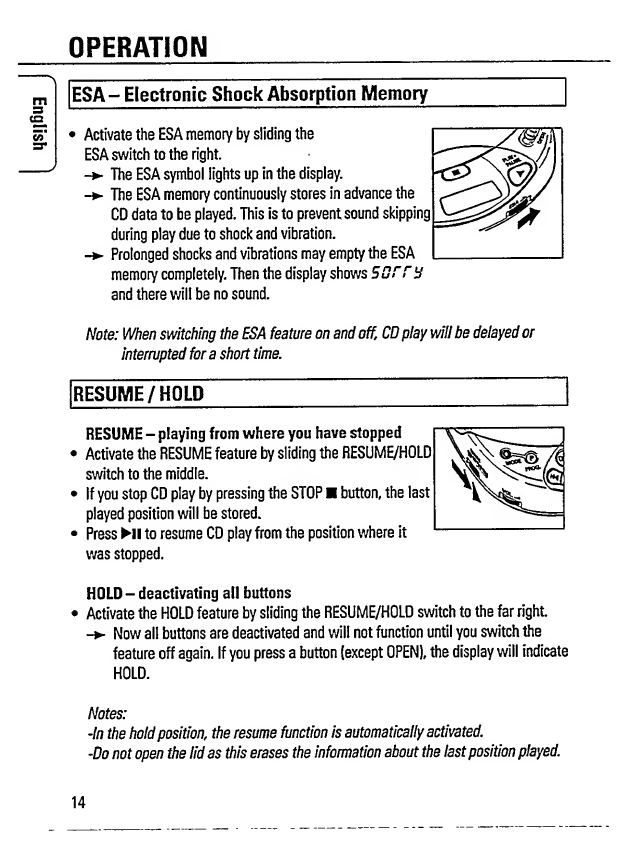

ESA - Electronic Shock Absorption Memory
• Activate the ESA memory by sliding the
ESA switch to the right.
- ► The ESA symbol lights up in the display.
- ► The ESA memory continuously stores in advance the
CD data to be played. This is to prevent sound skipping
during play due to shock and vibration.
- ► Prolonged shocks and vibrations may empty the ESA
memory completely. Then the display shows SOTr i /
and there will be no sound.
Note: When switching the ESA feature on and off, CD play will be delayed or
interrupted for a short time.
RESUME/HOLD
RESUME - playing from where you have stopped
• Activate the RESUME feature by sliding the RESUME/HOLD
switch to the middle.
• If you stop CD play by pressing the STOP ■ button, the last
played position will be stored.
• Press ► !! to resume CD play from the position where it
was stopped.
HOLD - deactivating all buttons
• Activate the HOLD feature by sliding the RESUME/HOLD switch to the far right.
- ► Now all buttons are deactivated and will not function until you switch the
feature off again. If you press a button (except OPEN), the display will indicate
HOLD.
14
Notes:
’In the hold position, the resume function is automatically activated.
’Do not open the lid as this erases the information about the last position played.

GENERAL INFORMATION
Maintenance
» The lens® of the CD player should never be touched!
► Do not expose the CD player, batteries or CDs to rain and
dampness, sand and dust or to excessive heat caused by
heating equipment, or to direct sunlight
► The lens may cloud over when the set is suddenly moved
from cold to warm surroundings. Playing a CD is not possible then.
Leave the CD player in a warm environment until the moisture evaporates.
• You can clean the CD player with a soft and slightly dampened
chamois leather. Do not use any cleaning agents
as they may have a corrosive effect
' Always pick up the CD by the edge and put it back in its
box after use.
^ To clean the CD, wipe it off in a straight line from the
center towards the edge using a soft, lint-free cloth.
A cleaning agent may damage the disci
When a new CD does not stay on the hub, this
is caused by small burrs around the center hole of the CD.
Remove the burrs by rubbing the edge of the center hole
with a pen or similar instrument.
Environmental information
Please observe the local regulations regarding the disposal of packing materials,
exhausted batteries and obsolete equipment.
• All redundant packaging material has been omitted. We have done our utmost to
make the packaging easyly separable into three mono-materials: cardboard (box),
expandable polystyrene (buffer), and polyethylene (bags, protective foam sheet).
• Your set consists of materials which can be recycled if disassembled by a
specialized company.
• Do not dispose of exhausted batteries with your household waste.
15
English

English

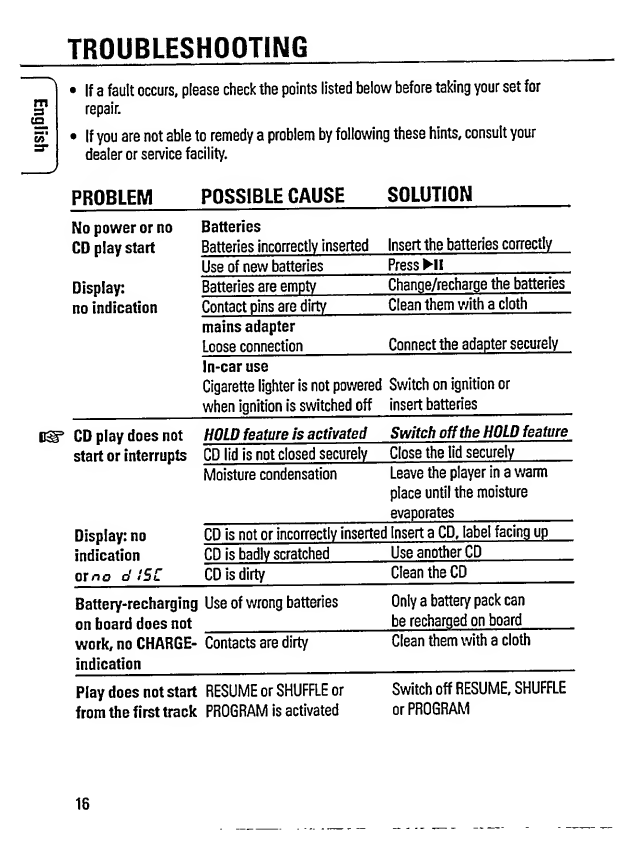

TROUBLESHOOTING
• If a fault occurs, please check the points listed below before taking your set for
repair.
• If you are not able to remedy a problem by following these hints, consult your
dealer or service facility.
PROBLEM
POSSIBLE CAUSE
SOLUTION
No power or no
CD play start
Batteries
Batteries incorrectly inserted
Insert the batteries correctly
Use of new batteries
Press Ml
Display:
Batteries are empty
Change/recharpe the batteries
no indication
Contact pins are dirty
Clean them v/ith a cloth
mains adapter
Loose connection
Connect the adapter securely
In-car use
Cigarette lighter is not powered Switch on ignition or
when ignition is switched off insert batteries
CD play does not
HOLD feature is activated
Switch off the HOLD feature
start or interrupts
CD lid is not closed securely
Close the lid securely
Moisture condensation
Leave the player in a warm
place until the moisture
evaporates
Display: no
CD is not or incorrectly inserted Insert a CD, label facing up
indication
CD is badly scratched
Use another CD
orno d I5C
CD is dirty
Clean the CD
Battery-recharging Use of wrong batteries
on board does not
Only a battery pack can
be recharged on board
work, no CHARGE-
indication
Contacts are dirty
Clean them with a cloth
Play does not start RESUME or SHUFFLE or Switch off RESUME, SHUFFLE
from the first track PROGRAM is activated or PROGRAM
16

TROUBLESHOOTING
Under no circumstances should you try to repair the unit yourself, as this
will invalidate the warranty.
PROBLEM
POSSIBLE CAUSE
-—-1
SOLUTION
No sound or bad
PAUSE is activated
Press HI
sound quality
Loose or wrong connections
Check connections
Volume Is not turned up
Adjust the volume
Headphones worn the wrong
way
Pay attention to the L (left)
and R (right) indications
Headphone plug is dirty
Clean the headphone plug
Strong magnetic fields near
the CD player
Change the player's position
or connections
Electrostatic discharge from
the user via the CD player
Press or once or
press HI twice
In-car use
Strong vibrations
Find another place for the set
Adapter cassette is
incorrectly inserted
Insert the adapter cassette
correctly
Temperature inside car is too
high/low
Let the CD player adjust to
the temperature
Cigarette lighter/socket is too
dirty
Clean the cigarette
lighter/socket
Wrong playback direction of
the autoreverse feature of the
car cassette player
Change the autoreverse
direction
Hum or noise in-carUnfit car radio input socket Use the adapter cassette
17
English

138

139

Meet Philips at the Internet
http://www. philips-com
3140115 2435.1
VieCHC9714
