English
Contents
General information
Supplied Accessories.....................................8
Environmental information.........................8
Safety information...........................................8
Controls
Top and front panels.....................................9
Bottom panel ................................................10
Power Supply
Power Supply...........................................11-12
Basic operation / Radio
Basic operation..............................................13
Radio reception.............................................13
CD/MP3 player
About MP3.......................................................14
Playing a disc....................................................14
Selecting a different track........................15
Finding a passage within a track..........15
Different play modes: REPEAT
and SHUFFLE..................................................15
Programming track numbers..........16-17
Cassette Recorder
Cassette playback.................................18-19
Maintenance
CD player and CD handling..................20
Troubleshooting.......................21-22
Specifications .............................23
P001-023_AZ1037_Eng 5/12/08 16:00 Page 7

8
English
General information
Congratulations on your
purchase and welcome
to Philips!
To fully benefit from the
support that Philips
offers, register your
product at www.philips.
com/welcome.
Supplied Accessories
– AC power cord
Environmental informa-
tion
All unnecessary packaging
material has been omitted.
The packaging can be easily
separated into three materi-
als: cardboard, polystyrene
and plastic.
Your set consists of
materials which can be
recycled if disassembled
by a specialized compa-
ny. Please observe the
local regulations regard-
ing the disposal of pack-
aging, dead batteries
and old equipment.
Safety information
•Place the set on a flat, hard
and stable surface so that the
system does not tilt.
•Where the MAINS plug is
used as the disconnect
device, the disconnet device
shall remain readily operable.
•Do not expose the set, bat-
teries, CDs to humidity, rain,
sand or excessive heat
caused by heating equipment
or direct sunlight.
•The apparatus shall not be
exposed to dripping or
splashing.
•Adequate ventilation with a
minimum gap of 15cm (6
inches) between the ventila-
tion holes and surrounding
surfaces is necessary to pre-
vent heat build-up.
•Do not cover the ventilation
openings with items such as
newspapers, table-cloths, cur-
tains, etc.
•No objects filled with liquids,
such as vases, shall be placed
on the apparatus.
P001-023_AZ1037_Eng 5/12/08 16:00 Page 8

9
English
General information / Controls
•No naked flame sources,
such as lighted candles,
should be placed on the
apparatus.
•The mechanical parts of the
set contain self-lubricating
bearings and must not be
oiled or lubricated.
•To clean the set, use a dry
cloth. Do not use any clean-
ing agents containing alcohol,
ammonia, benzene or abra-
sives as these may harm the
housing.
•Battery shall not be exposed
to excessive heat such as sun-
shine, fire or the like.

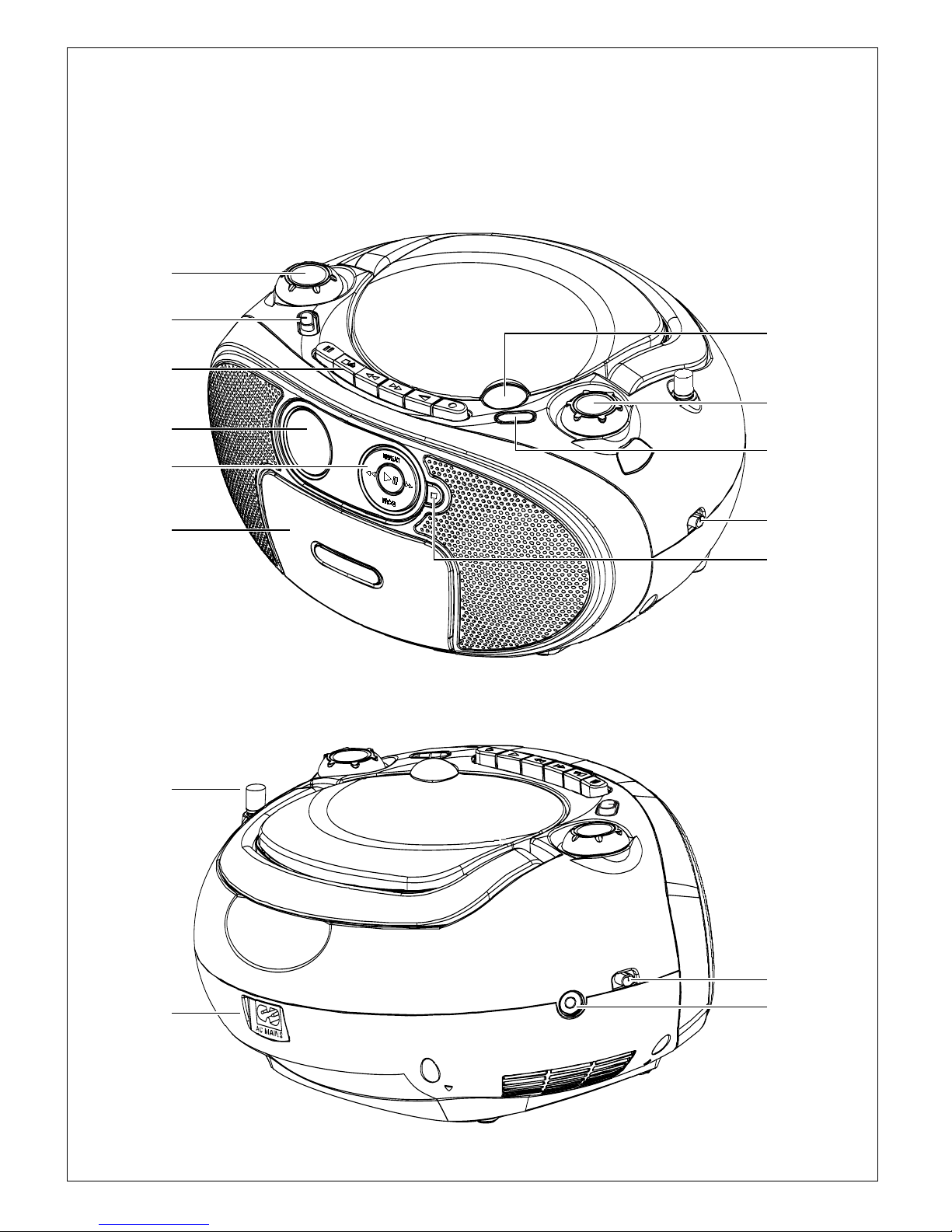

Top and front panels
(see 1)
1
VOLUME – adjusts volume
level.
2 Source selector:CD/MP3,
TUNER,TAPE/OFF
– selects CD/MP3, tape or
radio source of sound
– power off switch
3 Cassette recorder keys:
PAUSE ;
– pauses playback
or recording
STOP•OPEN 9 /
–
stops playback or recording.
– opens the cassette holder.
F.FWD/REW 5 or 6
– fast winds/rewinds the tape
PLAY 1
– starts playback
REC 0
– starts recording
4Display –shows disc functi-
ons
5 2; – starts or pauses
CD/MP3 playback
§, ∞
C
D/MP3:
– fast searches back and for-
ward
– skips to the beginning of a
current track/ previous/
later track
P001-023_AZ1037_Eng 5/12/08 16:00 Page 9

10
English
Controls
ALBUM+
MP3 only: selects albums
(up)
PROG
– programs tracks and
reviews the program
6Cassette door
7LIFT TO OPEN
– lift here to open the CD
door.
8
TUNING – tunes to radio
stations
9 MODE
– selects different play
modes: for example,
REPEAT or SHUFFLE
(random order)
0BAND –
selects wavebands
(FM or MW)
!9
– stops CD/MP3 playback;
– erases a program.
Back panel (see 2)
@ Telescopic antenna
– improves FM reception.
#AC MAINS~ – inlet for
power cord.
$
DBB – turns the bass enhan-
cement on/off.
%p– 3.5 mm stereo head-
phone socket
Helpful hints: The speakers
will be muted when headpho-
nes are connected to the set.

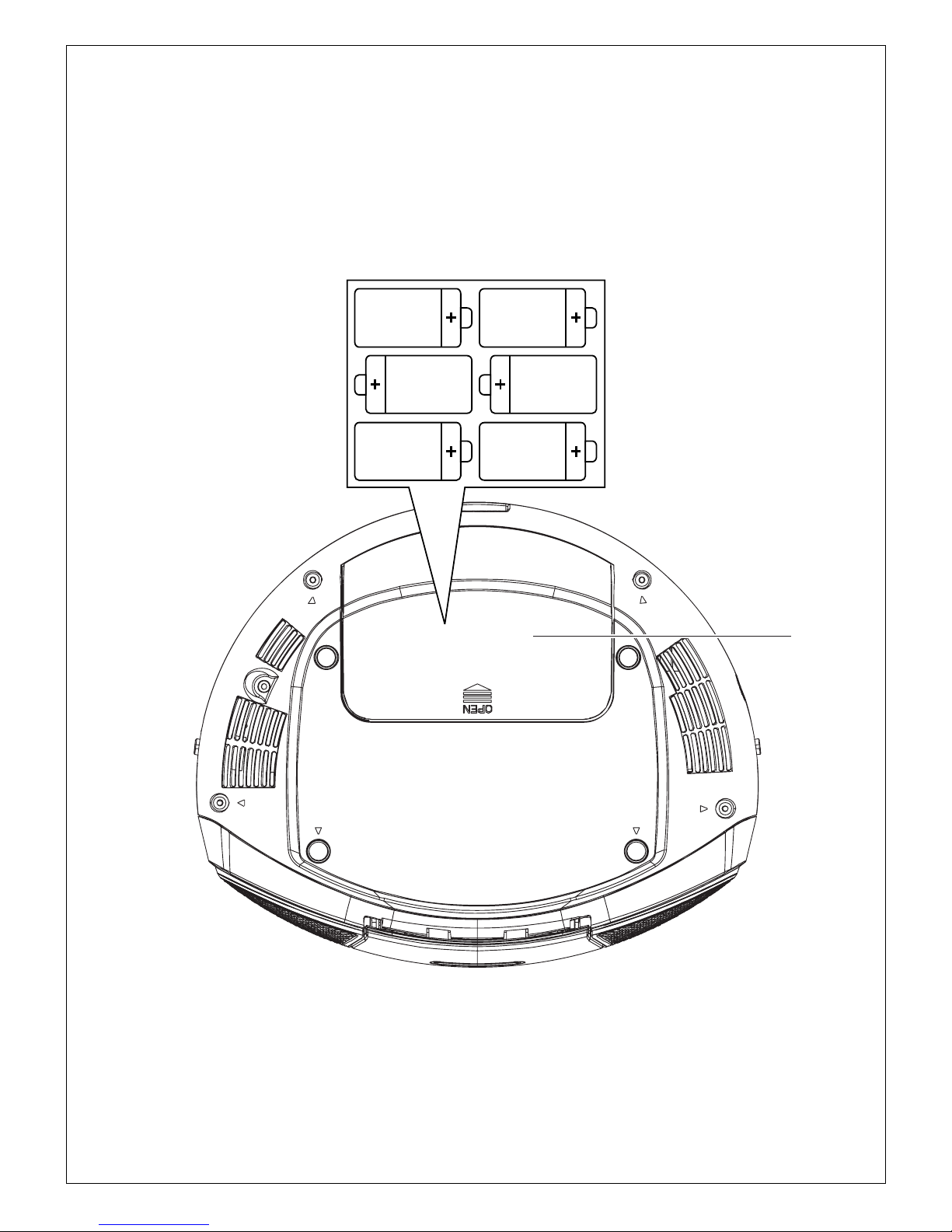

^Battery door – open to
insert 6 x 1.5V R-14/ UM2/
C-cells.
CAUTION
Use of controls or adjust-
ments or performance of
procedures other than here-
in may result in unsafe
operation.
This set complies with the
radio interference
requirements of the
European Union.
P001-023_AZ1037_Eng 5/12/08 16:00 Page 10

11
English
Power Supply
Power supply
Whenever convenient, use
the power cord if you want
to conserve battery life.
Make sure you remove the
plug from the set and wall
outlet before inserting bat-
teries.
Batteries (not included)
Main set (see 2)
• Insert 6 batteries, type R-14,
UM2 or C-cells (not includ-
ed, preferably alkaline) with
the correct polarity.
• Incorrect use of batteries can
cause electrolyte leakage and
will corrode the compart-
ment or cause the batteries
to burst:
• Do not mix battery types:
e.g. alkaline with carbon zinc.
Only use batteries of the
same type for the set.
• When inserting new batter-
ies, do not try to mix old
batteries with the new ones.
• Remove the batteries if the
set is not to be used for a
long time.
Batteries contain chemical
substances, so they should
be disposed of properly.
Using AC Mains
1 Check if the mains voltage,
as shown on the type
plate located on the
bottom of the set, corre-
sponds to your local mains
supply. If it does not, consult
your dealer or service center.
2 Connect the mains lead to
the AC MAINS ~ inlet and
the wall socket.The mains
lead is now connected and
ready for use.
3 To switch the set off com-
pletely, withdraw the mains
lead from the wall socket.
4 Install the unit near the AC
outlet and where the AC
power plug can be easily
reached.
• Disconnect the mains lead
from the wall socket to pro-
tect your set during heavy
thunderstorms.
All markings are located
on the bottom of the set.
P001-023_AZ1037_Eng 5/12/08 16:00 Page 11

12
English
Power Supply
Helpful hints:
–To avoid unnecessary energy
consumption, always adjust
the Source selector to
TAPE/OFF after using the
set. Also check that the tape
deck keys are released.
CAUTION
–Visible and invisible laser
radiation. If the cover is
open, do not look at the
beam.
–High voltage! Do not
open.You run the risk of
getting an electric
shock.The machine does
not contain any user-
serviceable parts.
–Modification of the prod-
uct could result in haz-
ardous radiation of EMC
or other unsafe opera-
tion.
P001-023_AZ1037_Eng 5/12/08 16:00 Page 12

13
English
Basic operation
Switching on and off and
selecting functions
1 To switch on, push the
Source selector slider to
CD/MP3,TUNER,or
TAPE/OFF as desired.
2 To switch off, push the
Source selector slider to
TAPE/OFF and check the
cassette keys are released.
Helpful hints:
–To change from TAPE to
TUNER or CD function, or
when you are switching off the
set: first, make sure you press
the tape
STOP•OPEN 9
/key to end playback and all
the cassette keys are released.
Adjusting volume and
sound
Adjust the sound with the
VOLUME and DBB con-
trols.
Radio reception
1 Adjust the Source selec-
tor to
TUNER .
2 Adjust BAND to select
your desired
waveband, MW or FM.
3Tu r n TUNING to tune to
a station.
To improve radio recep-
tion:
• For FM,extend and turn the
telescopic antenna for best
reception. Reduce its length if
the signal is too strong.
• For MW,the set uses a built-
in antenna. Direct this anten-
na for best reception by
turning the whole set.
Basic operation / Radio
P001-023_AZ1037_Eng 5/12/08 16:00 Page 13

14
English
About MP3
The music compression
technology MP3 (MPEG1
Audio Layer 3) significantly
reduce the digital data of an
audio CD while maintaining
CD quality sound.
•Getting MP3 files: you
can either download legal
music files from the internet
to your computer hard disc,
or create such files by con-
verting audio CD files in
your computer through
appropriate encoder soft-
ware. (128kbps bit rate or
higher is recommended for
MP3 files.)
•Creating a MP3 CD:
burn the music files from
your computer hard disc on
a CDR or CDRW using
your CD burner.
Helpful hints:
– Make sure that the file
names of the MP3 files end
with .mp3.
– Total number of music files
and albums: around 350
(with a typical file name
length of 20 characters)
– The length of file names
affects the number of tracks
for playback. With shorter file
names, more files can be
burned on a disc.
Playing a disc
This player plays Audio
Discs including CD-R/ CD-
RW, and MP3 CD. Do not
try to play a CD-ROM, CD-
I, CDV,VCD, DVD or com-
puter CD.
IMPORTANT!
•For a disc with CD Audio
tracks and MP3 files, only
the CD Audio tracks will
be played.
•This player does not sup-
port UDF format CD.
1Lift the CD door at LIFT
TO OPEN.Insert a CD
with the printed facing up
and press the CD door gen-
tly.
CD/MP3 player
P001-023_AZ1037_Eng 5/12/08 16:00 Page 14

15
English
CD/MP3 player
2Push the Source selector
slider to CD/MP3.
➜Display shows --- and
later, the total number of
tracks.
3Press 2
; to start playback.
➜Audio CD: current track
number appears MP3:
“MP3” is displayed, and dis-
play shows current track
number. (See 3)
4To pause playback, press 2
;
(See 4). Press 2 ; again to
resume play.
5To stop playback, press 9.
Helpful hints:
CD play will also stop when:
– the CD door is opened
– the CD has reached the
end
– you select tuner or tape
source.
Selecting a different
track
•Press
§, ∞ once or
repeatedly until the desired
track number appears in the
display.
For MP3: first press
ALBUM+ once or more
to find your album.
➜‘’ALBUM” and current album
number flash briefly. (See 5)
•In the pause/stop position,
press 2
; to start playback.
Finding a passage with-
in a track
1During playback, press and
hold
§or ∞ .
➜The CD is played at high
speed and reduced volume.
2When you recognize the
passage you want, release
§
or ∞
to resume normal
playback.
Different play modes:
REPEAT and SHUFFLE
(See 6-7)
REPEAT – plays the cur-
rent track continuously
For MP3:
REPEAPT ALBUM
– plays all tracks of
current album repeatedly.
P001-023_AZ1037_Eng 5/12/08 16:00 Page 15

16
English
CD/MP3 player
REPEAPT ALL – repeats
the entire disc/program
SHUFFLE – tracks of the
entire disc are played in ran-
dom order
Note:
– Shuffle play is not available
for program playback.
1To select play mode, press
MODE once or more.
➜Display shows the select-
ed mode.
2Press 2
; to start playback. if in
the stop position.
3To return to normal play-
back, press MODE repeat-
edly until the various modes
are no longer displayed.
– You can also press 9to
cancel your play modes.
Programming track
numbers
You may store up to 20
tracks in the desired
sequence. If you like, store
any track more than once.
For Audio CD:
1In the stop position, press
PROG to activate pro-
gramming.
➜ Display: PROGRAM
and P01 flash, indicating
the start of the program.
(See 8)
2Press
§ or ∞ to select
your desired track number.
➜Display: PROGRAM
and your desired track
number flash.
3Press PROG to store the
desired track number.
➜ Display: PROGRAM
and P02 flash, indicating
the next program location
available.
4Repeat steps 2 to 3to
select and store all desired
tracks in this way.
➜ ‘’PROGRAM” and ---
flash after 20 tracks are
stored.
5To play your programme,
press 2
; .
For MP3:
1In the stop position, press
PROG to activate pro-
gramming.
➜ Display: PROGRAM and
P01 flash, indicating the
start of the program.
P001-023_AZ1037_Eng 5/12/08 16:00 Page 16

17
English
CD/MP3 player
2If necessary, press
ALBUM+ to select anoth-
er album.
➜ Display: ALBUM and
selected album number
(See 9)
3Press
§ or ∞ to select
your desired track
number.
➜Display: the selected
track number in current
album.
4Press PROG to store the
desired track number.
➜ Display: PROGRAM
and P02 flash, indicating
the next program location
available.
5Repeat steps 2 to 4to
select and store all desired
tracks in this way.
➜‘’PROGRAM” and ---
flash after 20 tracks are
stored.
6To play your programme,
press 2
; .
Helpful hints:
–
When playback of PRO-
GRAM
or SHUFFLE is
active, use of the
ALBUM+ keys are void .
Reviewing the program
In the stop position, press
and hold PROGRAM to
see your store track num-
bers.
➜ The stored track num-
bers are displayed in the
sequence.
MP3 only: ALBUM and
an album number appear,
then a stored track number
in the album is displayed.
Helpful hints:
– Display shows flashing
P01 if no track is pro-
grammed.
Erasing the program
You can erase the contents of
the memory by:
– pressing STOP
9 (twice
during playback or once in
the stop position);
– selecting
TUNER or
TAPE sound source;
– opening the disc door.
➜ Display: PROGRAM
disappears.
P001-023_AZ1037_Eng 5/12/08 16:00 Page 17

18
English
Cassette Recorder
Cassette playback
1Push the Source selector
slider to TAPE
2Press
STOP•OPEN 9 /to
open the cassette holder and
insert a cassette and close
the deck.
3Press
PLAY 1 to start
playback.
4To pause playback press
PAUSE ; .To resume, press
the key again.
5To stop the tape, press
STOP•OPEN 9 /.
Fast forwarding/
rewinding
1Press
F.FWD/REW 5 or
6
unti you reach your
desired passage.
2Press
9 / to stop fast for-
warding/rewinding.
Helpful hints:
–During playback, the keys are
automatically released at the
end of a tape and the set is
switched off (unless
PAUSE
;
mode has been activated.)
–During fast forwarding/rewind-
ing, the keys will not be
released at the end of a tape.
To switch off the set, make
sure the cassette keys are
also released.
General information on
recording
•Recording is permissible
insofar as copyright or. other
rights of third parties are
not infringed.
•For recording, use only
NORMAL type cassettes
(IEC type I) on which the
tabs have not yet been bro-
ken.This deck is not suited
for recording on CHROME
(IEC II) or METAL (IEC IV)
type cassettes.
•The best recording level is
set automatically. Altering
the VOLUME or DBB
will not affect the recording.
•To protect a tape from acciden-
tal erasure, break out the tabs. If
you wish to record again, cover
the tabs with a piece of adhe-
sive tape.
P001-023_AZ1037_Eng 5/12/08 16:00 Page 18

19
English
Cassette Recorder
Recording from the CD
Player
1Select CD/MP3 source.
2Insert a CD and if desired,
program track numbers.
3Press
9 /to open the cas-
sette holder. Insert a blank
tape and close the deck.
4Press
REC 0 to start
recording.
5Press
2; to start CD play-
back.
6For brief interruptions
press
PAUSE ; .To resume
recording, press
; again.
7To stop recording, press
9 /.
Recording from the
Radio
1Select TUNER source.
2Tune to the desired radio
station (see Radio recep-
tion).
3Follows steps 3, 4, 6,7 under
Recording from the CD
Player.
The making of unauthorized copies of copy-protected
material, including computer programmes, files, broad-
casts and sound recordings, may be an infringement of
copyrights and constitute a criminal offence.This equip-
ment should not be used for such purposes.
P001-023_AZ1037_Eng 5/12/08 16:00 Page 19

20
English
Maintenance (see 0)
CD player and CD han-
dling
•If the CD player cannot
read CDs correctly, use a
cleaning CD to clean the
lens before taking the set to
repair.
•The lens of the CD player
should never be touched!
•Sudden changes in the sur-
rounding temperature can
cause condensation on the
lens of your CD player.
Playing a CD is then not
possible. Do not attempt to
clean the lens but leave the
set in a warm environment
until the moisture evapo-
rates.
•Always close the CD-tape
door to avoid dust on the
lens.
•To clean the CD, wipe in a
straight line from the center
towards the edge using a
soft, lint-free cloth. Do not
use cleaning agents as they
may damage the disc.
•Never write on a CD or
attach any stickers to it.
Ta pe deck maintenance
To ensure quality recording
and playback of the tape
deck, clean parts A,Band
Cas shown, once a month.
Use a cotton bud slightly
moistened with alcohol or a
special head cleaning fluid to
clean the deck.
1Open the cassette holder
by pressing
9 /.
2Press 1and clean the roller
C.
3Press
; and clean the heads
A,and the capstan B.
4After cleaning, press
9 /.
➜Cleaning of the heads
can also be done by playing
a cleaning cassette through
once.
P001-023_AZ1037_Eng 5/12/08 16:00 Page 20
