Philips AZ1627/96 User manual

Register your product and get support at
www.philips.com/welcome
EN User manual
ZH-TW 使用手冊
AZ1627/96

3
1 Important
Safety
Important Safety Instructions
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings.Install in accordance with
the manufacturer’s instructions.
hDo not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that
produce heat.
iProtect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
j Only use attachments/accessories specied by the
manufacturer.
kUse only with the cart, stand, tripod, bracket, or table
specied by the
manufacturer or sold with the apparatus.When a cart is used,
use caution
when moving the cart/apparatus combination to avoid injury
from tip-over.
lUnplug this apparatus during lightning storms or when unused
for long periods of time.
mRefer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way,
English
EN

4
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate
normally, or has been dropped.
nBattery usage CAUTION – To prevent battery leakage which
may result in bodily injury, property damage, or damage to the
unit:
Install all batteries correctly, + and - as marked on the unit.•
Do not mix batteries (old and new or carbon and alkaline,•
etc.).
Remove batteries when the unit is not used for a long•
time.
The batteries shall not be exposed to excessive heat such•
assunshine,reorthelike.
oApparatus shall not be exposed to dripping or splashing.
pDo not place any sources of danger on the apparatus
(e.g. liquid lled objects, lighted candles).
qThis product may contain lead and mercury. Disposal of
these materials may be regulated due to environmental
considerations. For disposal or recycling information, please
contact your local authorities or the Electronic Industries
Alliance: www.eiae.org.
Warning
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical equipment.•
Keepthisapparatusawayfromdirectsunlight,nakedamesorheat.•
Never look into the laser beam inside this apparatus.•
Ensure that you always have easy access to the power cord, plug or•
adaptor to disconnect this apparatus from the power.
Where the MAINS plug or an appliance coupler is used as the•
disconnect device, the disconnect device shall remain readily
operable.
EN

5
Caution
Use of controls or adjustments or performance of procedures other•
than herein may result in hazardous radiation exposure or other unsafe
operation.
Notice
Anychangesormodicationsmadetothisdevicethatarenot
expressly approved by Philips
Consumer Lifestyle may void the user’s authority to operate the
equipment.
Recycling
Your product is designed and manufactured with high quality
materials and components, which can be recycled and reused.
When you see the crossed-out wheel bin symbol attached to a
product, it means the product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other household waste. Please
inform yourself about the local rules on the separate collection of
electrical and electronic products.The correct disposal of your old
product helps prevent potentially negative consequences on the
environment and human health.
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed of with normal household waste.
When you see the crossed-out wheel bin symbol with the chemical
symbol ‘Pb’, it means that the batteries comply with the requirement
set by the directive for lead:
English
EN

6
Please inform yourself about the local rules on separate collection of
batteries.The correct disposal of batteries helps prevent potentially
negative consequences on the environment and human health.
Recording and playback of material might require consent. See
Copyright Act 1956 and The Performer’s Protection Acts 1958 to
1972.
Environmental information
All unnecessary packaging has been omitted.We have tried to make the
packaging easy to separate into three materials: cardboard (box), paper
pulp (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
The making of unauthorized copies of copy-
protectedmaterial,includingcomputerprograms,les,broadcasts
and sound recordings, may be an infringement of copyrights and
constitute a criminal offence.This equipment should not be used for
such purposes.
This apparatus includes this label:
Windows Media and the Windows logo are trademarks,
or registered trademarks of Microsoft Corporation in the United
States and/or other countries.
Note
The type plate is located on the bottom of the apparatus.•
EN

7
Please inform yourself about the local rules on separate collection of
batteries.The correct disposal of batteries helps prevent potentially
negative consequences on the environment and human health.
Recording and playback of material might require consent. See
Copyright Act 1956 and The Performer’s Protection Acts 1958 to
1972.
Environmental information
All unnecessary packaging has been omitted.We have tried to make the
packaging easy to separate into three materials: cardboard (box), paper
pulp (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
The making of unauthorized copies of copy-
protectedmaterial,includingcomputerprograms,les,broadcasts
and sound recordings, may be an infringement of copyrights and
constitute a criminal offence.This equipment should not be used for
such purposes.
This apparatus includes this label:
Windows Media and the Windows logo are trademarks,
or registered trademarks of Microsoft Corporation in the United
States and/or other countries.
Note
The type plate is located on the bottom of the apparatus.•
2 Your CD Soundmachine
Introduction
With the CD Soundmachine, you can:
play CDs, MP3/wma discs•
playmp3/wmalesonUSBdevices•
listen to FM/MW radio•
program the play sequence of tracks.•
What’s in the box
Check and identify the contents of the package:
Main unit•
AC power cord•
User Manual•
Overview of the main unit
MP3-LINK
n
English
EN

8
aSource selector: CD,TUNER, USB, OFF.
SelectCD,tuner,orUSBsourceorturnofftheunit•
b
USBsocket.•
cVOL+/-
Adjust volume level•
d
Start or pause play•
eALBUM+/-
For MP3-CDs: skip to the next/previous album in an MP3-•
CD
fLIFT TO OPEN
Open the CD compartment•
gMODE
Select a play mode: REPEAT or SHUFFLE•
hPROG
Program tracks and browse the program•
FM
MW
MHz
KHzx10
CDSOUNDMACHINEAZ1627
ALBUM
PROG MODE
TUNING
LIFTTO OPEN
VOL
CD
TUNERUSB
OFF
m
EN

9
i
Stop play•
Erase a program•
j/
Select the previous/next track•
Search backward/forward•
kTUNING+/-
Tune to radio stations•
lFM/MW selector
Select the FM or MW source.•
mTelescopic antenna
Adjust FM reception•
nMP3 LINK
Jack for an external audio device.•
English
EN

10
3 Get started
Caution
Use of controls or adjustments or performance of procedures other•
than herein may result in hazardous radiation exposure or other unsafe
operation.
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial
number of your apparatus.The model number and serial number are
on the bottom of your apparatus.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Install batteries
Note
You can use both batteries and AC power as power supply of this•
apparatus.
Batteriesarenotsuppliedwiththeaccessories.
•

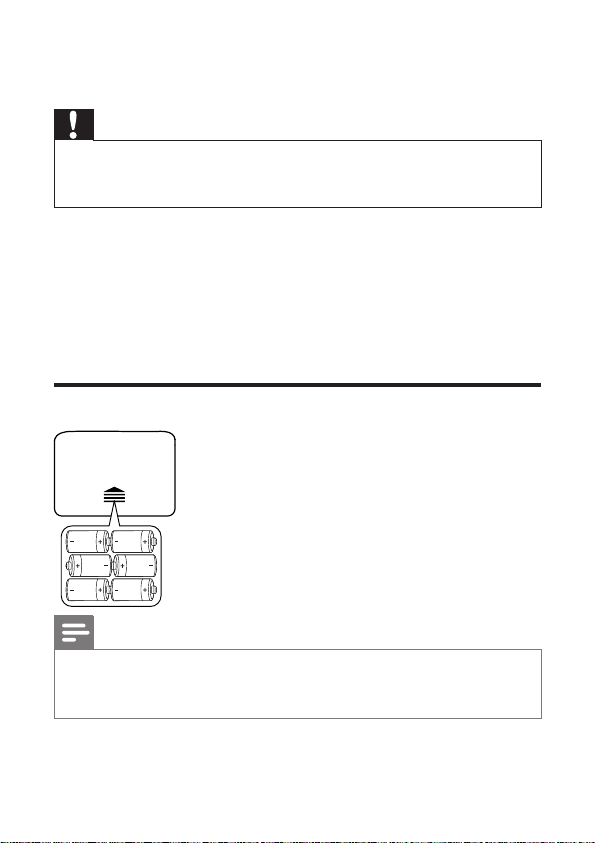

1Open the battery compartment.
EN

11
2Insert 6 x 1.5V R14/UM-2/C-cell batteries with correct polarity
(+/-) as indicated.
3Close the battery compartment.
Connect AC power
Warning
Risk of product damage! Ensure that the power supply voltage•
corresponds to the voltage printed on the back or the underside of the
apparatus.
Risk of electric shock! When you disconnect the AC power, always pull
•
the plug from the socket. Never pull the cord.
Note
Install the apparatus near the power supply socket and where the AC•
power plug can be easily reached.
1Connect the power cord to the AC~ MAINS socket on the
apparatus and to the power supply socket.
To switch the apparatus off completely, disconnect the•
power cord from the power supply socket.
Note
To save energy: after use, set the switch to•OFF.
English
EN

12
4 Use your CD
Soundmachine
Play a CD
Note
You cannot play CDs encoded with copyright protection technologies.•
You can play commercially available audio CDs:
CD-Recordables (CD-R)•
CD-Rewritables (CD-RW)•
MP3-CDs•
WMA-CDs•
1Switch the source selector to CD.
2Lift the lid of the CD compartment.
3Insert a CD with the printed side facing up.
4Close the CD lid gently.
The total number of tracks is displayed.»
5Press to start play.
»[]is displayed.
To stop play, press».
To pause or resume play, press».
EN

13
Play from USB devices
Note
•EnsurethattheUSBdevicecontainsplayableaudiocontentsfor
supported formats.(see‘USBplayabilityinformation’onpage20)
1 InserttheUSBconnectoronthedeviceintothe socket.
2Select USB source.
3Press ALBUM+/- to select a folder.
4Press / toselectale.
5Press to start play.
To stop play, press• .
To pause or resume play, press• .
Select a track
1Press / to select a track.
Select an album
For MP3-CDs only.
1Press ALBUM+/- to select an album.
Find a passage within a track
1Press and hold / .
The CD is played at high speed and with reduced volume.»
English
EN

14
2Release / to resume normal play.
Tip
When search reaches the end of the last track, the CD stops.•
Select play modes
1Press MODE repeatedly to select a play mode:
• [](repeat) – repeat a track
• [ALL] (repeat all) - repeat an entire CD/program
• [] (shufe)-playtracksrandomly
• [](shuferepeatall)-repeatalltracksrandomly.
2To return to normal play, press MODE repeatedly until play mode
icons are no longer displayed.
Tip
Shufeplaycannotbeselectedwhenyouplayprogrammedtracks.•
Program play sequence
You can program up to 20 tracks in the desired sequence.
1In stop mode, press PROG to start to program play sequence.
»[PROG] and [P01] are displayed.
For MP3-CDs: press»ALBUM+/- to select an album.
2Press / to select a track.
3Press PROG to program the track.
»[PROG] and [P02] are displayed.
EN

15
4Repeat steps 2 to 4 to select and program all tracks.
When all 20 tracks are stored, no more tracks can be selected»
and the display shows [FUL].
5To play program, press .
In stop mode, press and hold• PROG to browse
programmed tracks.
6To delete program, press in stop mode.
»[CLr]is displayed.
Listen to an external device
You can listen to an MP3 player through this apparatus.
Note
When you connect an external device to•MP3 LINK jack, the apparatus
switches to MP3 LINK source automatically.
1Use a cable with 3.5mm plugs on both ends (not supplied) to
connect MP3 LINK jack (3.5mm) on this apparatus and the
headphone jack on an MP3 player.
Listen to radio
1Select TUNER source.
2Switch the FM/MW selector to FM or MW.
3Turn TUNING+/-untilyoundoptimalreception.
Tip
To improve FM reception, you can extend, incline or turn the telescopic•
antenna for best reception.
To improve MW reception, turn the apparatus to face a different•
direction.
English
EN

16
5 Product information
Note
Product information is subject to change without prior notice.•
Dimensions
(W x H x D)
348 x 127 x 238 mm
Weight 1.7 kg
3.75 pound
Power supply DC 9V 1.5 A
AC 110V
Power consumption Active <12 W
Power output 2 x 1 W RMS
Operating temperature
range
-10 °C - 50 °C
14 °F -122 °F
USB playability information
Compatible USB devices:
USBashmemory(USB2.0orUSB1.1)•
USBashplayers(USB2.0orUSB1.1)•
memory cards (requires an additional card reader to work•
with this apparatus)
Supported formats:
USBormemoryleformatFAT12,FAT16,FAT32(sector•
size: 512 bytes)
MP3 bit rate (data rate): 32-320 Kbps and variable bit rate•
EN

17
WMA v9 or earlier•
Directory nesting up to a maximum of 8 levels•
Number of albums/ folders: maximum 99•
Number of tracks/titles: maximum 999•
ID3 tag v2.0 or later•
File name in Unicode UTF8 (maximum length: 128 bytes)•
Unsupported formats:
Empty albums: an empty album is an album that does not•
containMP3/WMAles,andisnotbeshowninthedisplay.
Unsupportedleformatsareskipped.Forexample,Word•
documents(.doc)orMP3leswithextension.dlfare
ignored and not played.
AAC,WAV,PCMaudioles•
DRMprotectedWMAles(.wav,.m4a,.m4p,.mp4,.aac)•
WMAlesinLosslessformat•
English
EN

18
6 Troubleshooting
Caution
Never remove the casing of this apparatus.•
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, check the
following points before requesting service. If the problem remains
unsolved, go to the Philips web site (www.philips.com/support).
When you contact Philips, ensure that your apparatus is nearby and
the model number and serial number are available.
No power
Ensure that the Mains cord is connected securely.•
Ensure that there is power at the AC Mains.•
Ensure that the batteries are inserted correctly.•
No sound
Adjust the volume.•
Ensure that the track played is of a compatible format.•
Display does not function properly./No reaction to operation of
any of the controls.
1Disconnect the AC power cord.
2Connect the AC power cord after a few seconds.
Cannot play disc
Ensure that the disc label is inserted with the printed side•
facing up.
Wipethediscwithbrecleaningclothfromthecentretothe•
edge in a straight line.
EN

19
This disc may be defective. Play another disc.•
EnsurethattheCDisanalisedCD/CD-R/CD-RW.•
Ensure that the laser lens is clean.•
Ensure that the CD is not encoded with copyright protection•
technologies.
The CD skips tracks
Ensure that the CD is not damaged or dirty.•
Ensurethatprogram/shufemodeisdeactivated.•
USB device or SD/MMC card not supported
TheUSBdeviceorSD/MMCcardisincompatiblewiththe•
apparatus.Try another one.
English
EN

PDCC-PENG-0911
© 2009 Koninklijke Philips Electronics N.V.
All rights reserved.
