Philips AZ7680/00 User manual

Portable CD player AZ7680
AZ7681
AZ7682
AZ7688

2
Es necesario que lea cuidadosamente su instructivo de manejo.
Descripción: Tocadiscos de CD portatil
Modelo: AZ 7680, AZ 7681, AZ 7682, AZ 7688
Alimentación: 110–127/220–240 V; ~50–60 Hz
Consumo: 4 W (AY 3170)
8 W (AY 3160)
Importador: Philips Mexicana, S.A. de C.V.
Domicilio: Norte 45, # 669, Col. Industrial Vallejo
Localidad y Telefono: C.P. 02300 México D.F., Tel. [phone]
Exportador: Philips Hong Kong, Ltd.
País de Origen: China
Nº de Serie: ______________________________
LEA CUIDADOSAMENTE ESTE INSTRUCTIVO
ANTES DE USAR SU APARATO.
No abrir, riesgo de choque eléctrico
Verifique que el voltaje de alimentación
sea el requerido para su aparato
ATENCIÓN
Para evitar el riesgo de choque eléctrico, no quite la tapa.
En caso de requerir servicio, dirijase al personal calificado.
PRECAUCIÓN - ADVERTENCIA
México n

3
English
English
Controls .............................................4–5
Quick start .............................................6
Power supply.....................................7–8
Battery pack/Headphones.....................9
CD play..........................................10–11
Features.........................................12–15
In-car connection.................................16
General information ............................17
Troubleshooting.............................18–19
Français
Français
Commandes...................................20–21
Mise en service rapide........................22
Alimentation électrique ................23–24
Bloc accumulateur/Ecouteurs .............25
Lecture CD.....................................26–27
Fonctions spéciales.......................28–31
Raccordement en voiture ....................32
Informations générales .......................33
Pannes et remèdes .......................34–35
Español
Español
Controles .......................................36–37
Descripción rápida...............................38
Suministro eléctrico......................39–40
Unidad de baterías/Auriculares..........41
Reproducción de CD......................42–43
Características ..............................44–47
Conexión para el automóvil ................48
Información general ............................49
Localización de averías.................50–51
∑
Guarantees
Polizia de garantia
Mexico.........................................68–69
Philips product warranty for
Australia......................................70–71
Guarantee and service for
New Zealand ....................................72

English
4
0
DBB
MODE
PROG
13
14
1
2
3
4
5
6
7
8
9
10
11
12

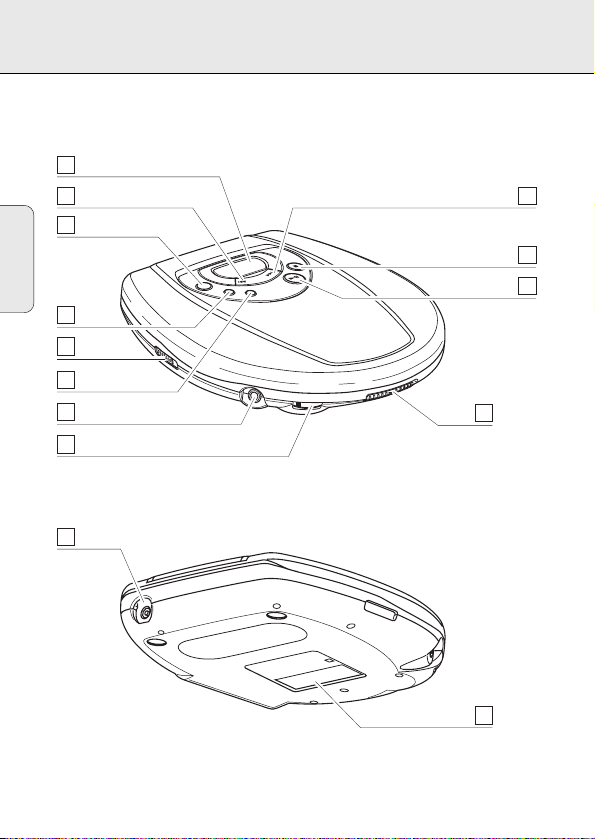

CONTROLS

CONTROLS
5
12;.................switches the set on, starts and interrupts CD play
29....................stops CD play, erases a program, activates charging and switches
the set off
3§..................skips and searches forward
4.......................display
5∞..................skips and searches backward
6DBB................DYNAMIC BASS BOOST switches the bass enhancement on/off
7MODE............selects the different playing possibilities: SHUFFLE,
SHUFFLE REPEAT ALL, REPEAT, REPEAT ALL and SCAN
8RESUME........stores the last position played
HOLD ............locks all buttons
OFF.................switches RESUME and HOLD off
9PROG .............programs tracks and reviews the program
0p....................3.5 mm headphone socket
!VOL E.......adjusts the volume
@4.5V DC..........socket for external power supply
#.......................typeplate
$OPEN 2.........opens the CD lid
English
This set complies with the radio interference requirements of the
European Community

QUICK START
6
English
1OPEN
0
DBB
MODE
PROG.
2.
2
AA
LR6
UM3
0
3CD 4
0
0
P
5
DBB
MODE
HOLD➟OFF
D
BB
MODE
PROG
6PLAY 7VOLUME
1. 2.
!!!
6
1.
~1sec

POWER SUPPLY
7
With this set you can use either:
• alkaline batteries (type LR6, UM3 or AA), or
• the rechargeable Ni-Cd battery pack AY 3361. Make sure you purchase this special
battery pack, as any pack other cannot be recharged.
Inserting batteries
1Push OPEN 2to open the CD lid.
2Open the battery compartment and insert either
2 alkaline batteries or the rechargeable battery pack.
Notes: – Old and new or different types of batteries
should not be used in combination.
– Remove batteries if they are empty or if the
set will not be used for a long time.
Batteries contain chemical substances, so they should be disposed of properly.
Indication of empty batteries
• Replace the batteries or connect the mains adapter
as soon as Ais shown and bAtt is displayed.
Note: The average playing time under normal conditions is 14 hours for alkaline
batteries and 4 hours for the rechargeable battery pack.
Batteries (supplied or optionally available)
English

POWER SUPPLY
8
Only use the AY 3170 or AY 3160 mains adapter
(4.5 V direct current, positive pole to the center
pin). Any other product may damage the set.
1Make sure the local voltage corresponds to the
adapter’s voltage.
2Connect the mains adapter to the 4.5V DC
socket of the player and to the wall socket.
Note: Always disconnect the adapter when you are not using it.
1Make sure you insert the rechargeable Ni-Cd battery pack AY 3361.
2Connect the mains adapter to the 4.5V DC socket of the player and to the wall socket.
3If necessary press 9once or twice until the set is
switched off.
yais shown and ChArGE is displayed.
• Recharging stops when you switch on the set or when
8 hours have passed by.
4When the battery pack is recharged fully, ais
shown and FULL is displayed.
Note: It is normal for the battery pack to become warm
during recharging.
Recharging the battery pack
Mains adapter (supplied or optionally available)
English

BATTERY PACK/HEADPHONES
9
• Recharging already charged or half-charged batteries will shorten their lifetime.
Therefore, after using the battery pack a few times, discharge it completely before
recharging.
• To avoid a short circuit, the battery pack should not touch any metal objects.
• When the battery pack quickly becomes empty after recharging, the end of its
lifetime has been reached.

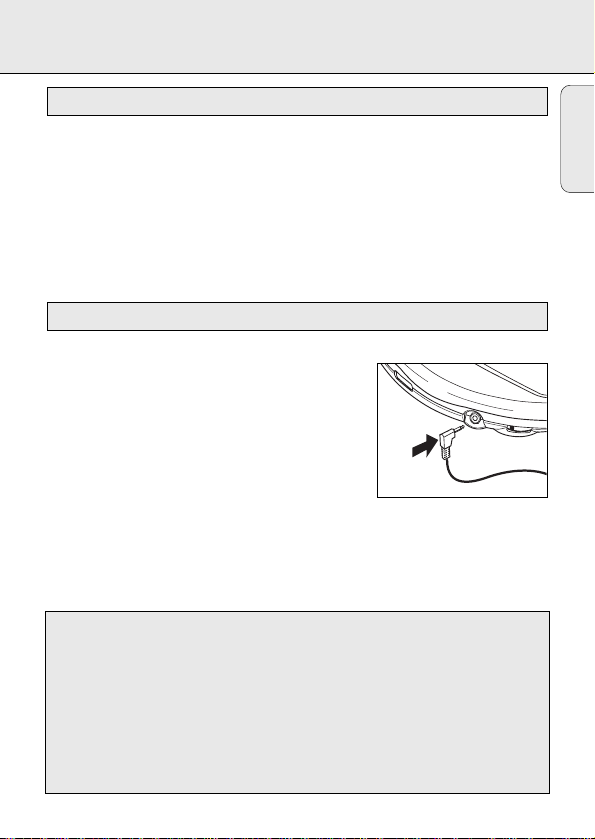

Connecting the headphones
• Connect the supplied headphones to p.
Note: p can also be used for connecting your HiFi
system (signal lead) or your car radio (adapter
cassette or signal lead). In both cases, the volume
of the CD player must be set to position 8.
0
Headphones (AY 3677, AY 3674)
Battery pack handling
English
Use your head when using headphones
• Hearing safety: Do not play your headset at a high volume. Hearing experts advise
against continuous extended play. If you experience a ringing in your ears, reduce
the volume or discontinue use.
• Traffic safety: Do not use while operating a motorized vehicle. It may create a traffic
hazard and it’s illegal in many areas. You should use extreme caution or temporarily
discontinue use in potentially hazardous situations. Even if your headset is an
open-air type designed to let you hear outside sounds, don’t turn up the volume so
high that you can’t hear what’s around you.

CD PLAY
10
This CD player can play all kinds of Audio Discs such
as CD Recordables and CD Rewritables. Do not try to
play a CD ROM, CDi, CDV or computer CD.
1Push the OPEN 2slider.
yThe lid opens.
2Insert an audio CD, printed side up, by pressing
gently on the CD center so that it fits onto the hub.
Close the lid by pressing it down on the left side.
3Press 2; for approximately 1 second to switch the
set on and start playback.
yThe current track number and the elapsed
playing time are displayed.
• You can interrupt playback by pressing 2;.
yThe time where playback was interrupted is
flashing.
• Continue playback by pressing 2; again.
4Press 9 to stop playback.
yThe total number of tracks and the total playing
time of the CD are displayed.
5Press 9 again to switch off the set.
6To remove the CD, hold it by its edge and press
the hub gently while lifting the CD.
0
PROG
Playing a CD
English

CD PLAY
11
• If a CD Rewritable (CD Recordable) is not recorded properly, nF dISC is
displayed. In that case, use FINALIZE on your CD recorder to complete the
recording.
• If you play a CD Rewritable, it takes 5–25 seconds after pressing 2; until
sound reproduction starts.
• Playback will stop if you open the CD lid.
• While the CD is read, dISC is flashing.
• If there is no activity for 90 seconds, the set will switch off automatically to save
energy. In that case, settings like DBB and Program will be lost.

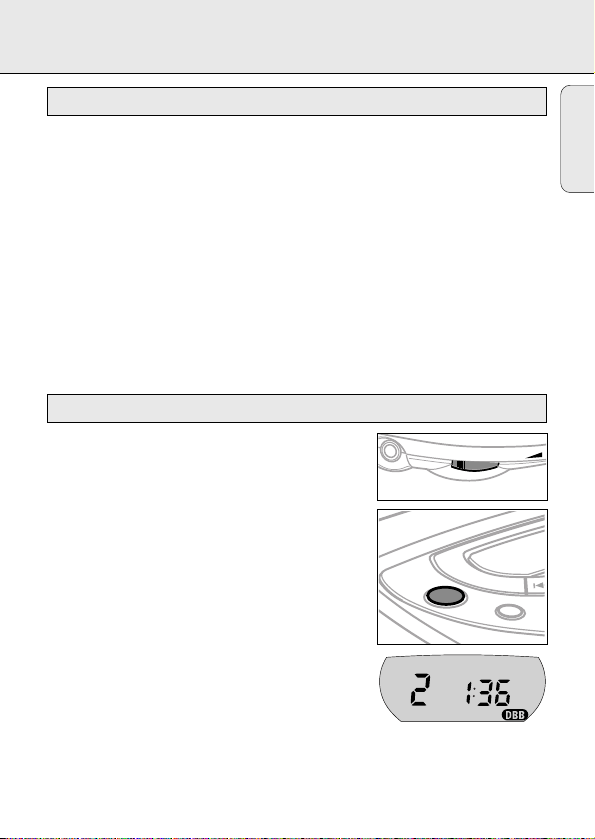

• Adjust the volume by using VOL E.
• Press DBB to switch the bass enhancement on or off.
y∂is shown if the bass enhancement is
activated.
DBB
MODE
0
VOL
Volume and sound adjustment
Playback information
English

FEATURES
12
Selecting a track during playback
• Briefly press ∞ or §once or several times to skip
to the current, previous or subsequent track start.
yPlayback continues with the selected track and
its number is displayed.
Selecting a track when playback is stopped
1Briefly press ∞ or §once or several times.
yThe selected track number is displayed.
2Press 2; to start CD play.
yPlayback starts with the selected track.
Searching for a passage during playback
1Keep ∞ or §depressed to find a particular passage in a backward or forward
direction.
ySearching is started and playback continues at a low volume. After 2 seconds
the search speeds up.
2Release the button when you reach the desired passage.
yNormal playback continues from this very position.
Notes: – During SCAN, searching is not possible.
– During SHUFFLE, SHUFFLE REPEAT ALL, REPEAT or while playing a program
searching is possible only within the particular track.
B
MODE
PROG
Selecting a track and searching
English

FEATURES
13

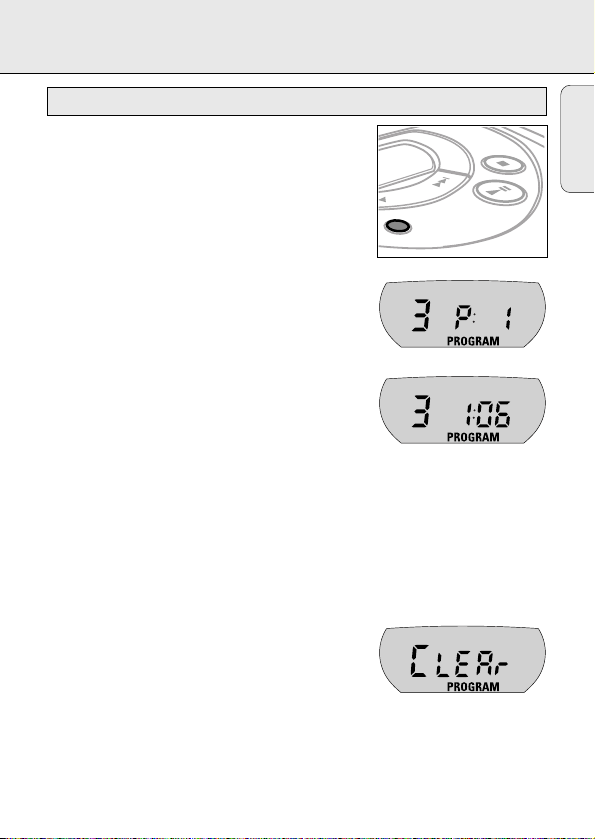

You can select up to 15 tracks and store them in the
memory in a desired sequence. You can store any track
more than once.
1While playback is stopped, select a track with
∞or §.
2Press PROG to store the track.
yPROGRAM lights up, the track number
programmed and Pwith the total number of
stored tracks are displayed.
3Select and store all desired tracks in this way.
4Press 2; to start playback of your selected tracks.
yPROGRAM is shown and playback starts.
• You can review the program by pressing PROG for more than 2 seconds.
yThe display shows all stored tracks in sequence.
Notes: – If you press PROG and there is no track selected, SELECt is displayed.
– If you try to store more than 15 tracks, FULL is displayed.
Erasing the program
1If necessary, press 9 to stop playback.
2Press 9 to erase the program.
yCLEAr is displayed once, PROGRAM goes off
and the program is erased.
Notes: The program will also be erased if you
– interrupt the power supply,
– open the CD lid, or
– the set is switched off automatically.
PROG
Programming track numbers
English

FEATURES
14

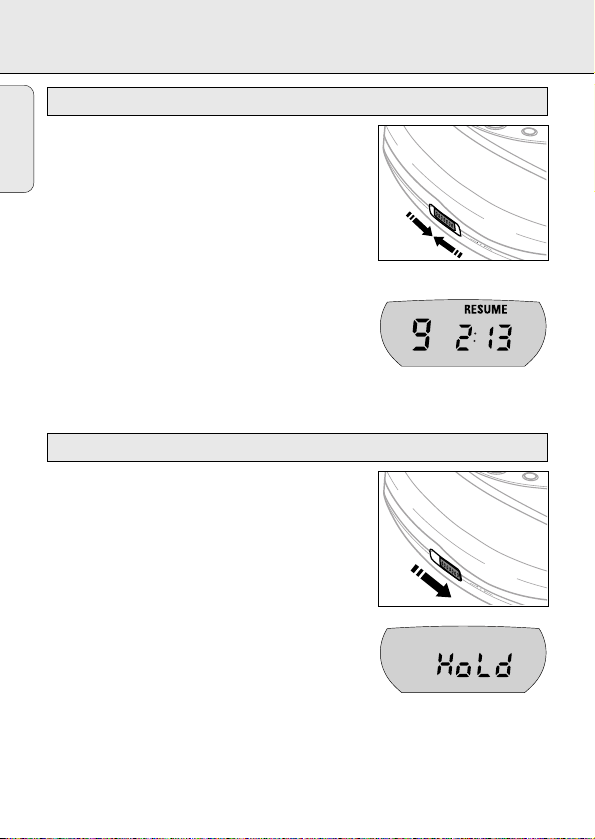

You can store the last position played. When restarting,
playback continues from where you have stopped.
1Switch the slider to RESUME during playback to
activate RESUME.
yRESUME is shown.
2Press 9whenever you want to stop playback.
3Press 2; whenever you want to resume playback.
yRESUME is shown and playback continues from
where you have stopped.
• To deactivate RESUME, switch the slider to OFF.
yRESUME goes off.
You can lock the buttons of the set. When a key is
pressed, no action will be executed then.
1Switch the slider to HOLD to activate HOLD.
yAll buttons are locked. HoLd is displayed by
pressing any key. If the set is switched off,
HoLd is displayed only by pressing 2; and 9.
2To deactivate HOLD, switch the slider to OFF.
Note: When you deactivate HOLD by switching the
slider to RESUME and restart, playback continues
from where you have stopped.
MODE
OFFRESUMEHOLD
Locking all buttons – HOLD
MODE
OFF RESUME HOLD
Storing the last position played – RESUME
English

FEATURES
15
It is possible to play tracks in random order, to repeat a track or the CD and to play the
first few seconds of each track.
1Press MODE during playback as often as necessary
until the display shows either:
ySHUFFLE: All tracks of the CD are played in random
order until all of them have been played once.
ySHUFFLE REPEAT ALL: All tracks of the CD are
played repeatedly in random order.
yREPEAT: The current track is played repeatedly.
yREPEAT ALL: The entire CD is played repeatedly.
ySCAN: The first 10 seconds of each of the
remaining tracks are played in sequence.
2Playback starts in the chosen mode after 2 seconds.
3To return to normal playback, press MODE until the display indication disappears.
The set is equipped with a feature that accompanies various key operations with an
acoustic signal.
• Keep DBB pressed for more than 3 seconds.
If the acoustic signal was deactivated:
ybEEP is displayed and the acoustic signal is
activated.
If the acoustic signal was activated:
yno bEEP is displayed and the acoustic signal
is deactivated.
Acoustic feedback
MODE
PROG
Selecting different playing possibilities – MODE
English

IN-CAR CONNECTION
16
Only use the AY 3545 car
voltage converter (4.5 V, DC,
positive pole to the center pin)
and the AY 3501 car adapter
cassette. Any other product may
damage the set.
1Put the CD player on a
horizontal, vibration-free and
stable surface. Make sure it
is a safe place, where the
player is no danger or
obstacle to the driver and passengers.
2Connect the DC plug of the voltage converter to the 4.5V DC socket of the CD
player
(only for a 12 V car battery, negative grounding) .
3Insert the voltage converter into the cigarette lighter socket. If necessary, clean the
cigarette lighter socket to obtain a good electrical contact.
4Turn down the volume and connect the adapter cassette plug to the psocket of the
CD player.
5Carefully insert the adapter cassette into the car radio’s cassette compartment.
6Make sure the cord does not hinder your driving.
7Start the CD player, set VOL Eto position 8 and adjust the sound with the car
radio controls.
• Always remove the voltage converter from the cigarette lighter socket when the CD
player is not in use.
Notes: – Avoid excessive heat from the car heating or from direct sunlight (e.g. in a
parked car in the summer).
– If your car radio has a LINE IN jack, it is the best to use it for the car radio
connection instead of the adapter cassette. Connect the signal lead to this
LINE IN jack and the p jack of the CD player.
0
DBB
MODE
PROG
4,5 V DC
DIGITAL
DIGITAL
DIGITAL
In-car use (connections supplied or optionally available)
English

GENERAL INFORMATION
17

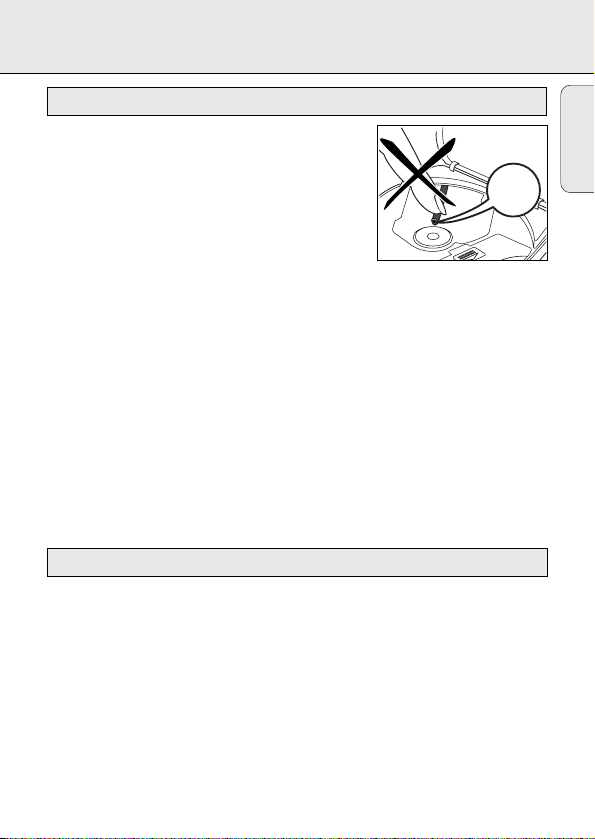

• Do not touch the lens Aof the CD player.
• Do not expose the set, batteries or CDs to humidity,
rain, sand or excessive heat (caused by heating
equipment or direct sunlight).
• You can clean the CD player with a soft, slightly
dampened lint-free cloth. Do not use any cleaning
agents as they may have a corrosive effect.
• To clean the CD, wipe it in a straight line from the centre toward the edge using a
soft, lint-free cloth. A cleaning agent may damage the disc! Never write on a CD or
attach a sticker to it.
• The lens may cloud over when the set is moved suddenly from cold to warm
surroundings. Playing a CD is not possible then. Leave the CD player in a warm
environment until the moisture evaporates.
• Active mobile phones in the vicinity of the CD player may cause malfunctions.
• Avoid dropping the set as this may cause damage.
• All redundant packing material has been omitted. We have done our utmost to
make the packaging easily separable into three mono materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).
• Your set consists of materials which can be recycled if disassembled by a
specialized company. Please observe the local regulations regarding the disposal of
packing materials, exhausted batteries and old equipment.
Environmental information
A
CD player and CD handling
English

TROUBLESHOOTING
18
Problem Possible cause Solution
No power, Batteries
playback does Batteries inserted incorrectly Insert the batteries
not start correctly
Batteries are empty Change the batteries
Contact pins are dirty Clean them with a cloth
Mains adapter
Loose connection Connect the adapter
securely
In-car use
Cigarette lighter is not powered Switch on ignition or insert
when ignition is off batteries
nF dISC CD-RW (CD-R) is not recorded Use FINALIZE on the
indication properly CD Recorder to complete
the recording
no dISC The CD is scratched badly Replace or clean the CD
indication or dirty
CD is not or incorrectly inserted Insert a CD, label upwards
The laser lens is steamed up Wait until the lens has
cleared
HoLd HOLD is activated Deactivate HOLD
indication and/or Electrostatic discharge Disconnect the set from
no reaction to power supply or take out
controls the batteries for
a few seconds
English
WARNING
Under no circumstances should you try to repair the set yourself as this
will invalidate the guarantee.

TROUBLESHOOTING
19
Problem Possible cause Solution
The CD skips tracks The CD is damaged or dirty Replace or clean the CD
RESUME, SHUFFLE or PROGRAM is Switch off RESUME, SHUFFLE
active or PROGRAM
No sound or PAUSE is activated Press 2;
bad sound quality Loose, wrong or dirty Check and clean
connections connections
Volume is not adjusted Adjust the volume
Headphones worn the Pay attention to the L(left)
wrong way and R(right) indications
Strong magnetic fields near Change the player’s position
the CD player or connections
In-car use
Adapter cassette is Insert the adapter cassette
inserted incorrectly correctly
Temperature inside the car Let the CD player adjust to
is too high/low the temperature
Cigarette lighter socket Clean the cigarette
is dirty lighter socket
Wrong playback direction of the Change the autoreverse
car cassette player’s direction
autoreverse feature
Battery recharging Use of wrong batteries Only use the Ni-Cd battery
on board does pack AY 3361
not work Contacts are dirty Clean them with a cloth
English
If a fault occurs, first check the points listed, before taking the set for repair.
If you are unable to solve a problem by following these hints, consult your dealer or
service center.

20
0
DBB
MODE
PROG
13
14
1
2
3
4
5
6
7
8
9
10
11
12
Français
COMMANDES
