Philips AZ7901/05 User manual

Portable CD Player AZ7900
AZ7901
AZ7902
AZ7911

2
Es necesario que lea cuidadosamente su instructivo de manejo.
Descripción: Tocadiscos de CD portatil
Modelo: AZ 7900/01, /11, /16, AZ 7901/01, /11, /16,
AZ 7902/01, /11, /16
Alimentación: 110–127/220–240 V~ 50–60 Hz
Consumo: 4 W (AY 3170)
Importador: Philips Mexicana, S.A. de C.V.
Domicilio: Norte 45, # 669, Col. Industrial Vallejo
Localidad y Telefono: C.P. 02300 México D.F., Tel. [phone]
Exportador: Philips Hong Kong, Ltd.
País de Origen: China
Nº de Serie: ______________________________
LEA CUIDADOSAMENTE ESTE INSTRUCTIVO
ANTES DE USAR SU APARATO.
No abrir, riesgo de choque eléctrico
Verifique que el voltaje de alimentación
sea el requerido para su aparato
ATENCIÓN
Para evitar el riesgo de choque eléctrico, no quite la tapa.
En caso de requerir servicio, dirijase al personal calificado.
PRECAUCIÓN - ADVERTENCIA
México

3
4
,5
VD
C
0
OPEN
OF
F
•R
E
SU
M
E
•H
OL
D
LIN
EO
U
T/
VO
L.
PROGRAMMODE
DIGITAL DBB
1
2
3
45
6
7
8
9
0
!
@
#
$

4

5
English
English
Controls .................................................6
Quick start .............................................7
Power supply...................................8–10
Headphones.........................................10
CD play..........................................11–12
Features.........................................13–16
In-car connection.................................17
Troubleshooting.............................18–19
General information ............................20
Français
Informations générales .......................21
Commandes.........................................22
Mise en service rapide........................23
Alimentation électrique ................24–26
Ecouteurs.............................................26
Lecture CD.....................................27–28
Caractéristiques ............................29–32
Raccordement en voiture ....................33
Pannes et remèdes .......................34–35
Español
Controles .............................................36
Encendido rápido.................................37
Alimentación eléctrica..................38–40
Auriculares ..........................................40
Reproducción de un CD.................41–42
Características ..............................43–46
Conexión al automóvil.........................47
Localización de averías.................48–49
Información general ............................50
Guarantees
Polizia de garantía
Mexico.........................................66–67
Philips product warranty for
Australia......................................68–69
Guarantee and service for
New Zealand ....................................70
∑FrançaisEspañol

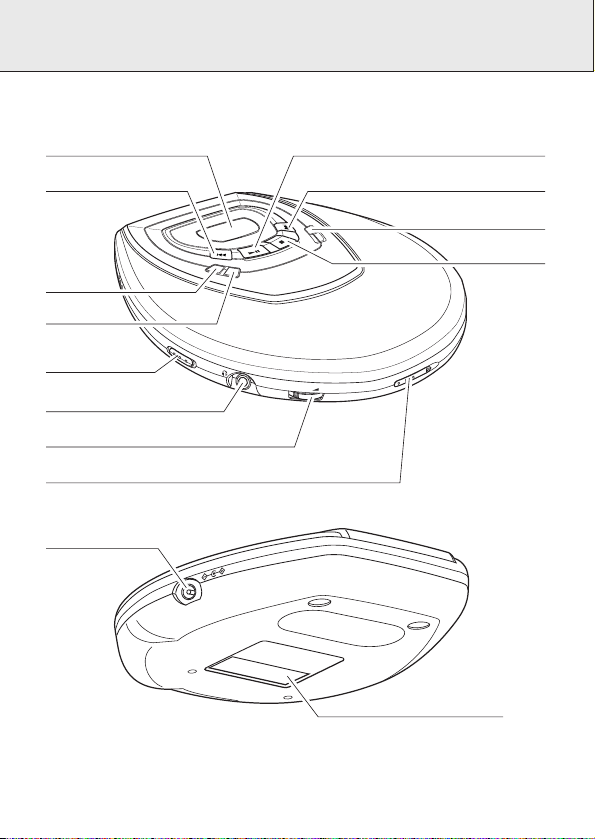

CONTROLS, refer to the illustration on page 3
6
19.....................stops CD play, clears a program or switches the player off
2DIGITAL DBB...DIGITAL DYNAMIC BASS BOOST switches the bass enhancement
on and off
3§....................skips and searches CD tracks forwards
42;...................switches the player on, starts or pauses CD play
5........................display
6∞....................skips and searches CD tracks backwards

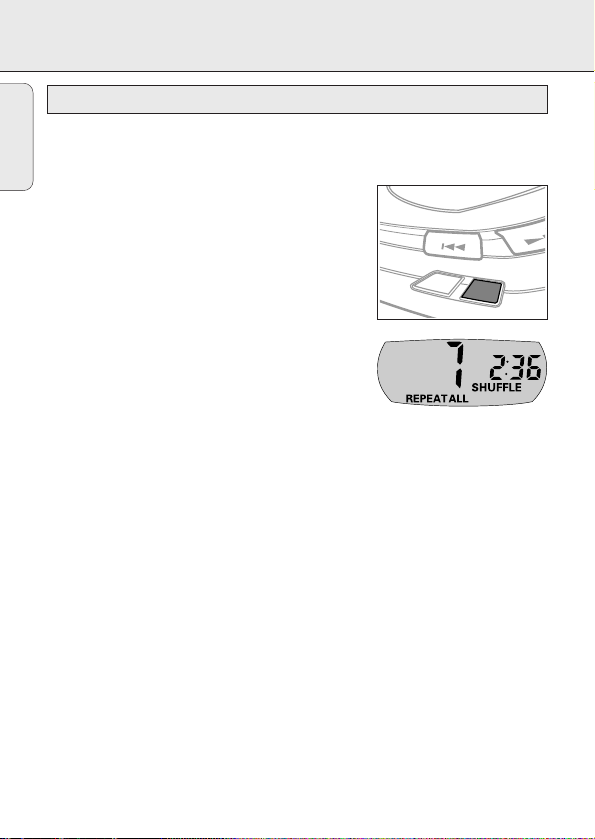

7PROGRAM.......programs tracks and reviews the program
8MODE..............selects the different playing possibilities: SHUFFLE,
SHUFFLE REPEAT ALL, REPEAT, REPEAT ALL and SCAN

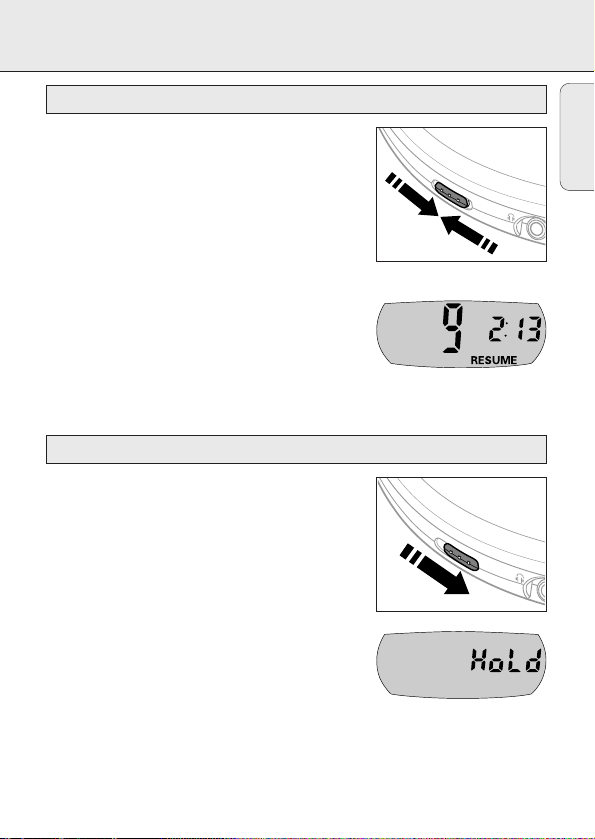

9RESUME..........stores the last position of a CD track played
HOLD..............locks all buttons
OFF ..................switches RESUME and HOLD off
0LINE OUT/p....3.5 mm headphone socket, socket to connect the player to another
analogue audio input of an additional appliance, remote control
socket (not on all versions)
!VOL E.........adjusts the volume
@OPEN 2...........opens the CD lid
#4.5V DC...........socket for external power supply
$........................typeplate
English
This set complies with the radio interference requirements of the
European Community.

7
English
0
OPEN
OF
F
•R
E
SU
M
E
•H
OL
D
VO
L.
PROGRAMMODE
DIGITALDBB
0
OPEN
OF
F
•R
E
SU
M
E
•H
OL
D
VO
L.
PROGRAMMODE
DIGITALDBB
0
OPEN
VO
L.
0
OPEN
VO
L.
1OPEN 2
3CD 4 5 HOLD➟OFF
6PLAY 7VOLUME
!!!
0
OPEN
OF
F
•R
E
SU
M
E
•H
OL
D
VO
L.
PROGRAMMODE
DIGITALDBB
AA
LR6
UM3
0
OPEN
OF
F
•R
E
SU
M
E
•H
OL
D
LIN
EO
U
T/
VO
L.
0
LIN
EO
U
T/
VO
L.
OF
F
•R
E
SU
M
E
•H
OL
D
PROGRAMMODE
PROGRAMMODE
DIGITALDBB
1.
2. 2.
1.
0
OPEN
OF
F
•R
E
SU
M
E
•H
OL
D
LIN
EO
U
T
VO
L.
PROGRAMMODE
DIGITALDBB
LIN
EO
U
T/
LIN
EO
U
T/
LIN
EO
U
T/
N
EO
U
T/
LIN
EO
U
T/
QUICK START

English
POWER SUPPLY
8
With this player you can use either:
• normal batteries type LR6, UM3 or AA (preferably Philips), or
• alkaline batteries type LR6, UM3 or AA (preferably Philips).
Notes: – Old and new or different types of batteries
should not be used in combination.
– Remove batteries if they are empty or if the
player is not going to be used for a long time.

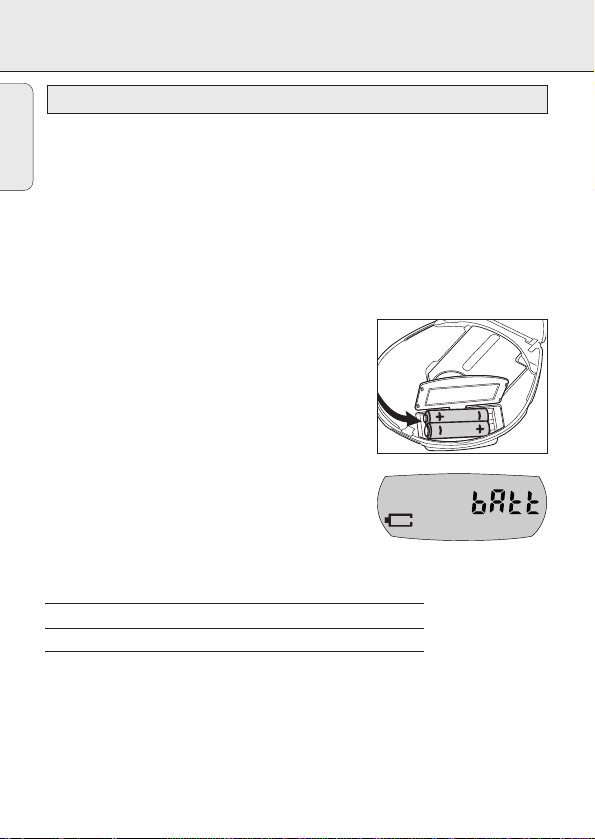

Inserting batteries
1Push OPEN 2to open the CD lid.
2Open the battery compartment and insert either
2 normal or alkaline batteries.
Battery indication
• If Ais shown or flashing (depending on
the version) and bAtt is displayed, the batteries
are empty.
Average playing time of batteries under normal conditions
Battery type Playing time
Normal 6 hours
Alkaline 18 hours
ECO-PLUS NiMH batteries (not on all versions) 9 hours
Batteries contain chemical substances, so they should be disposed of
properly.
Batteries (supplied or optionally available)

POWER SUPPLY
9
Recharging works only on players with supplied rechargeable
ECO-PLUS NiMH batteries AY 3362.

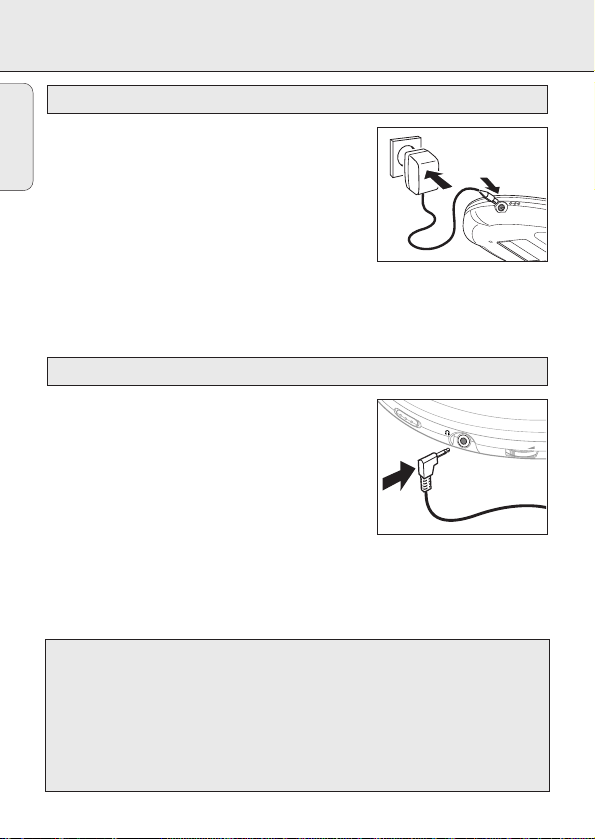

Recharging the ECO-PLUS NiMH batteries on board
1Make sure you insert the rechargeable ECO-PLUS NiMH
batteries AY 3362.
2Connect the mains adapter to the 4.5V DC socket of
the player and to the wall socket.
yAfilled with 0–3 sections (depending on the
level of charge) is shown and ChArGE is
displayed.
• Recharging stops when you start playback or when
approximately 7 hours have passed by.
3When the batteries are fully recharged, is
shown and FULL is displayed.
Notes: – It is normal for the batteries to become warm
during recharging.
– If the batteries become too warm, recharging will be interrupted for
approximately 30 minutes and Hot is displayed.
– To ensure proper recharging on board, take care that contacts are clean, and
you are using only the ECO-PLUS NiMH batteries AY 3362.
Rechargeable ECO-PLUS NiMH battery handling
• Recharging already charged or half-charged batteries will shorten their lifetime.
Therefore, after using the rechargeable ECO-PLUS NiMH batteries a few times,
discharge them completely before recharging.
• To avoid a short circuit, the batteries should not touch any metal objects.
• When the batteries quickly become empty after recharging, the contacts are dirty
or the end of their lifetime has been reached.
ECO-PLUS NiMH battery information (for versions supplied with
rechargeable ECO-PLUS NiMH batteries AY 3362 only)
English

POWER SUPPLY/HEADPHONES
10
Use only the AY 3170 adapter (4.5 V/300 mA direct
current, positive pole to the centre pin). Any other
product may damage the player.
1Make sure that the local voltage corresponds to the
mains adapter´s voltage.
2Connect the mains adapter to the 4.5V DC socket
of the player and to the wall socket.
Note: Always disconnect the adapter when you are not using it.
• Connect the supplied headphones to the LINE OUT/p
socket.
Note: LINE OUT/pcan also be used for connecting your
HiFi system (signal lead) or your car radio
(cassette adapter or signal lead). In both cases,
the volume of the player must be set to position 8.
0
H
OL
D
LIN
EO
U
T/
VO
L.
Headphones AY 3677
4
,5
VD
C
Mains adapter (supplied or optionally available)
English
Use your head when using headphones
Hearing safety: Do not play your headphones at a high volume. Hearing experts
advise that continuous use at high volume can permanently damage your hearing.
Traffic safety: Do not use headphones while driving a vehicle. It may create a hazard
and it is illegal in many countries. Even if your headphones are an open-air type
designed to let you hear outside sounds, do not turn up the volume so high that you
cannot hear what is going on around you.

CD PLAY
11
This CD player can play all kinds of Audio Discs such
as CD-Recordables and CD-Rewritables. Do not try to
play a CD-ROM, CDi, VCD, DVD or computer CD.
1Push the OPEN 2slider.
yThe lid opens.
2Insert an audio CD, printed side up, by pressing
gently on the CD centre so that it fits onto the hub.
Close the lid by pressing it down.
3Press 2; for approximately 1 second to switch the
player on and start CD playback.
yThe current track number and the elapsed
playing time are displayed.
• You can pause playback by pressing 2;.
yThe time where playback was paused is flashing.
• Continue playback by pressing 2; again.
4Press 9 to stop playback.
yThe total number of tracks and the total playing
time of the CD are displayed.
5Press 9 again to switch the player off.
• To remove the CD, hold it by its edge and press the
hub gently while lifting the CD.
Note: If there is no activity, the set will automatically
switch off after a while to save energy.
0
RA
MMODE
D
IGITAL DBB
0
OPEN
VO
L.
Playing a CD
English

CD PLAY
12
•If a recordable CD (CD-R) or a rewritable CD (CD-RW) is not recorded
properly, nF dISC is displayed. In that case use FINALIZE on your
CD recorder to complete the recording.
•If you want to play a rewritable CD (CD-RW), it takes 3–15 seconds for
sound reproduction to start once you have pressed 2;.
• Playback will stop if you open the CD lid.
• While the CD is read, 1 -:- is flashing.

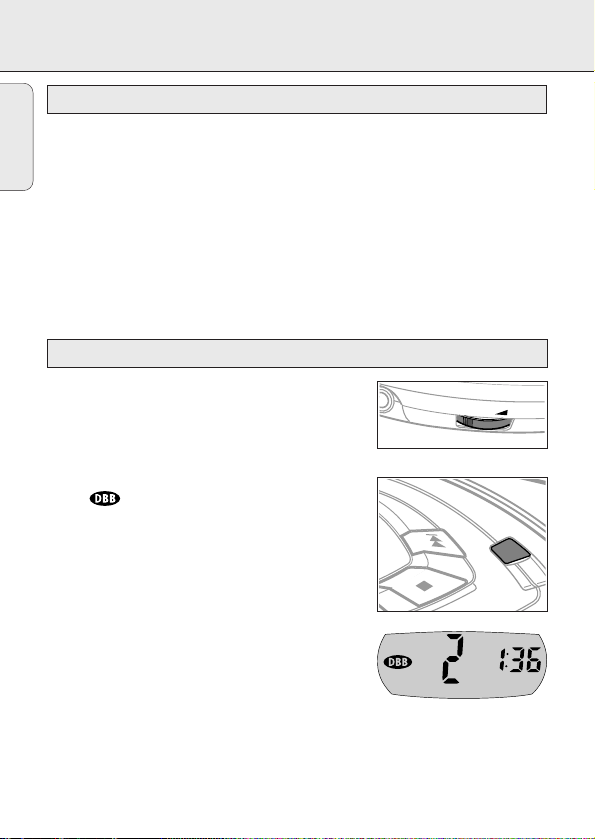

Volume adjustment
• Adjust the volume by using VOL E.
Bass adjustment
• Press DBB to switch the bass enhancement on or off.
yis shown if the bass enhancement is
activated.
DIGITALDBB
0
VO
L.
Volume and bass
Playback information
English

FEATURES
13
Selecting a track during playback
• Briefly press ∞ or §once or several times to skip
to the current, previous or next track.
yPlayback continues with the selected track and
its number is displayed.
Selecting a track when playback is stopped
1Briefly press ∞ or §once or several times.
yThe selected track number is displayed.
2Press 2; to start CD play.
yPlayback starts with the selected track.
Searching for a passage during playback
1Keep ∞ or §pressed to find a particular passage in
a backward or forward direction.
ySearching is started and playback continues at
low volume. After 2 seconds the search speeds up.
2Release the button when you reach the desired passage.
yNormal playback continues from this very position.
Notes: – During SCAN searching is not possible.
– During SHUFFLE, SHUFFLE REPEAT ALL, REPEAT
or while playing a program, searching is only
possible within the particular track.
PROGRAMMODE
Selecting a track and searching
English

FEATURES
14
You can select up to 15 tracks and store them in
memory in a desired sequence. Any track can be stored
more than once.
1While playback is stopped, select a track with
∞or §.
2Press PROGRAM to store the track.
yPROGRAM lights up; the track number
programmed and Pwith the total number of
stored tracks are displayed.
3Select and store all desired tracks in this way.
4Press 2; to start playback of your selected tracks.
yPROGRAM is shown and playback starts.
• You can review the program by pressing PROGRAM for more than 2 seconds.
yThe display shows all stored tracks in sequence.
Notes: – If you press PROGRAM and there is no track selected,
SELECt is displayed.
– If you try to store more than 15 tracks, FULL is displayed.
Clearing the program
1If necessary, press 9 to stop playback.
2Press 9 to clear the program.
yCLEAr is displayed once, PROGRAM goes off
and the program is cleared.
Notes: The program will also be cleared if you
– interrupt the power supply or
– open the CD lid,
– or if the set switches off automatically.
PROGRAMMODE
Programming track numbers
English

FEATURES
15
You can store the last position played. When restarting,
playback continues from where you have stopped.
1Switch the slider to RESUME during playback to
activate RESUME.
yRESUME is shown.
2Press 9whenever you want to stop playback.
3Press 2; whenever you want to resume playback.
yRESUME is shown and playback continues from
where you have stopped.
• To deactivate RESUME, switch the slider to OFF.
yRESUME goes off.
You can lock the buttons of the set. When a key is
pressed, no action will be executed then.
1Switch the slider to HOLD to activate HOLD.
yAll buttons are locked. HoLd is displayed by
pressing any key. If the set is switched off,
HoLd is displayed only by pressing 2;.
2To deactivate HOLD, switch the slider to OFF.
Note: When you deactivate HOLD by switching the
slider to RESUME and restart, playback continues
from where you have stopped.
OF
F
•R
E
SU
M
E
•H
OL
D
LI
NE
O
UT
/
Locking all buttons –HOLD
OF
F
•R
E
SU
M
E
•H
OL
D
LIN
EO
U
T/
Storing the last position played –RESUME
English

FEATURES
16
It is possible to play tracks in random order, to repeat a track
or the CD and to play the first few seconds of each track.
1Press MODE during playback as often as necessary
until the display shows either:
ySHUFFLE: All tracks of the CD are played in
random order until all of them have been played
once.
ySHUFFLE REPEAT ALL: All tracks of the CD are
played repeatedly in random order.
yREPEAT: The current track is played repeatedly.
yREPEAT ALL: The entire CD is played repeatedly.
ySCAN: The first 10 seconds of each of the
remaining tracks are played in sequence.
2Playback starts in the chosen mode after 2 seconds.
• To return to normal playback, press MODE repeatedly
until the display indicator goes off.
PROGRAMMODE
Selecting different playing possibilities –MODE
English

IN-CAR CONNECTION
17
Only use the AY 3545 car
voltage converter (4.5 V, DC,
positive pole to the centre pin)
and the AY 3501 car cassette
adapter. Any other product may
damage the set.
1Put the CD player on a
horizontal, vibration-free and
stable surface. Make sure it
is in a safe place, where the
player is neither a danger
nor obstacle to the driver and passengers.
2Connect the DC plug of the voltage converter to the 4.5V DC socket of the
CD player (only for a 12 V car battery, negative grounding).
3Insert the voltage converter into the cigarette lighter socket. If necessary, clean the
cigarette lighter socket to obtain a good electrical contact.
4Turn down the volume and connect the cassette adapter plug to the LINE OUT/p
socket of the CD player.
5Carefully insert the cassette adapter into the car radio’s cassette compartment.
6Make sure the cord does not hinder your driving.
7Start the CD player, set VOL Eto position 8 and adjust the sound with the car
radio controls.
• Always remove the voltage converter from the cigarette lighter socket when the
CD player is not in use.
Notes: – Avoid excessive heat from the car heating or from direct sunlight (e.g. in a
parked car in the summer).
– If your car radio has a LINE IN socket, it is better to use it for the car radio
connection instead of the cassette adapter. Connect the signal lead to this
LINE IN socket and the LINE OUT/psocket of the CD player.
4,5 V DC
DIGITAL
DIGITAL
DIGITAL
0
OPEN
OF
F
•R
E
SU
M
E
•H
OL
D
VO
L.
PROGRAMMODE
DIGITALDBB
LIN
EO
U
T/
In-car use (connections supplied or optionally available)
English

TROUBLESHOOTING
18
Problem Possible cause Solution
No power, Batteries
playback does Batteries inserted incorrectly Insert the batteries
not start correctly.
Batteries are empty. Change the batteries.
Contact pins are dirty. Clean them with a cloth.
Mains adapter
Loose connection Connect the adapter
securely.
In-car use
Cigarette lighter is not powered Switch on ignition or insert
when ignition is off. batteries.
nF dISC CD-RW (CD-R) is not recorded Use FINALIZE on the
indication properly. CD recorder to complete
the recording.
no dISC The CD is badly Replace or clean the CD.
indication scratched or dirty.
CD is not or incorrectly inserted. Insert a CD, label upwards.
The laser lens is steamed up. Wait until the lens has
cleared.
HoLd indication HOLD is activated. Deactivate HOLD.
and/or no reaction Electrostatic discharge Disconnect the set from
to controls power supply or take out
the batteries for
a few seconds.
English
WARNING
Under no circumstances should you try to repair the set yourself as this
will invalidate the guarantee.

TROUBLESHOOTING
19
Problem Possible cause Solution
The CD skips tracks. The CD is damaged or dirty. Replace or clean the CD.
RESUME, SHUFFLE or PROGRAM is Switch RESUME, SHUFFLE
active. or PROGRAM off.
No sound or PAUSE is activated. Press 2;.
bad sound quality Loose, wrong or dirty Check and clean
connections connections.
Volume is not adjusted. Adjust the volume.
Malfunctions due to vicinity Keep the player away from
of active mobile phones active mobile phones.
Strong magnetic fields near Change the player’s position
the player or connections.
In-car use
cassette adapter is Insert the cassette adapter
inserted incorrectly. correctly.
Temperature inside the car Let the player adjust to the
is too high/low. temperature.
Cigarette lighter socket Clean the cigarette
is dirty. lighter socket.
Wrong playback direction of the Change the autoreverse
car cassette player’s direction.
autoreverse feature
English
If a fault occurs, first check the points listed, before taking the set for repair.
If you are unable to solve a problem by following these hints, consult your dealer or
service centre.

GENERAL INFORMATION
20

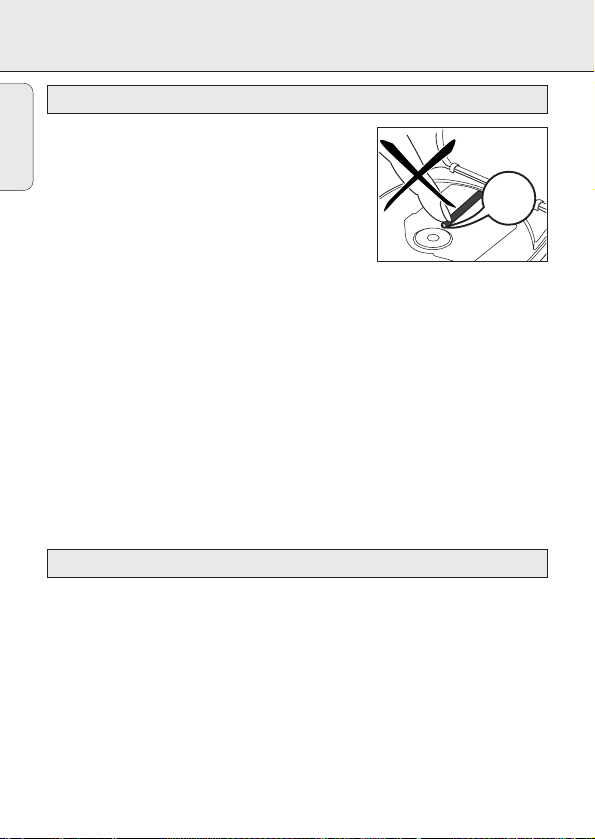

• Do not touch the lens Aof the CD player.
• Do not expose the set, batteries or CDs to humidity,
rain, sand or excessive heat (caused by heating
equipment or direct sunlight).
• You can clean the CD player with a soft, slightly
dampened, lint-free cloth. Do not use any cleaning
agents as they may have a corrosive effect.
• To clean the CD, wipe it in a straight line from the centre towards the edge using a
soft, lint-free cloth. A cleaning agent may damage the disc! Never write on a CD or
attach a sticker to it.
• The lens may cloud over when the set is moved suddenly from cold to warm
surroundings. Playing a CD is not possible then. Leave the CD player in a warm
environment until the moisture has evaporated.
• Active mobile phones in the vicinity of the CD player may cause malfunctions.
• Avoid dropping the set as this may cause damage.
• All redundant packing material has been omitted. We have done our utmost to
make the packaging easily separable into two mono materials: cardboard (box) and
polyethylene (bags, protective foam sheet).
• Your set consists of materials which can be recycled if disassembled by a
specialized company. Please observe the local regulations regarding the disposal of
packing materials, exhausted batteries and old equipment.
Environmental information
A
CD player and CD handling
English
