Philips AZ1061/17 User manual

CD Radio Cassette Recorder AZ 1060
DBB
DBB
POWER
TUNER
DYNAMICBASSBOOST
CD
TAPE
TUNER
DYNAMIC BASSBOOST
CD
TAPE
OFF
RECORD
PLAY
SEARCH
STOP-OPEN
PAUSE
RECORD
PLAY
SEARCH
STOP-OPEN
PAUSE
SHUFFLEALL
AZ1060
CDRADIOCASSETTERECORDER
PROG.
BAND
PRESET
BATT
LOW
MODE
TAPE
TUNER
CD
STOP
PLAY•PAUSE
SEARCH • • •
• • • SEARCH
DIGITALTUNER
BASSREFLEXSPEAKERSYSTEM
AZ1060
CDRADIOCASSETTERECORDER
PROG.
BAND
PRESET
BATT
LOW
MODE
TAPE
TUNER
CD
STOP
PLAY•PAUSE
SEARCH • • •
• • • SEARCH
DIGITALTUNER
BASS REFLEX SPEAKER SYSTEM
-
V
O
L
U
M
E
+
-
V
O
L
U
M
E
+
AZ1060001 15-11-2000 17:24 Pagina 1

3
AZ 1060 /00 page 3
SHUFFLEALL
RECORD
PLAY
SEARCH
STOP-OPEN
PAUSE
DBB
POWER
TUNER
DYNAMICBASSBOOST
CD
TAPE
OFF
AZ1060
CD RADIO CASSETTE RECORDER
AZ1060
CD RADIO CASSETTE RECORDER
PROG.
BAND
PRESET
BATT
LOW
MODE
TAPE
TUNER
CD
STOP
PLAY•PAUSE
SEARCH •••
•••SEARCH
DIGITALTUNER
BASSREFLEXSPEAKERSYSTEM
-
V
O
L
U
M
E
+
1
!0 &^%@@ $#
2 3 4 65 978
*
(
)
AZ1060001 15-11-2000 17:24 Pagina 3

CONTROLS
4
AZ 1060 /00 page 4
TOP AND FRONT PANELS
1VOLUME -
adjusts the volume level
2DBB (Dynamic Bass Boost) -
enhances the bass
3POWER slider -
selects the sound source for CD/ TUNER/
TAPE/OFF and also switches the set off
4Function indicators - lights up if the
respective CD, tape or tuner function is in use
5Display - shows the status of the set
6p- 3.5 mm stereo headphone socket
Note: Connecting headphones will switch off
the speakers.
7CASSETTE RECORDER keys:
PAUSE ;- interrupts recording or playback
STOP•OPEN 9/
- stops the tape;
- opens the cassette compartment
SEARCH 5/ 6- fast winds/rewinds the
tape
PLAY 1- starts playback
RECORD 0- starts recording
8BATT LOW - indicates when battery power
is running low
9OPEN•CLOSE - opens/ closes the CD door
0MODE - selects a different play mode for CD
playback e.g. repeats tracks or
SHUFFLE, plays tracks in random order
!Cassette door
@SEARCH ∞/ §-
Radio: - (down/up) tunes to radio stations;
CD: - searches back and forward within a
track;
- skips to the beginning of a current
track/ previous/ subsequent track
#PLAY•PAUSE 2; -
starts or interrupts CD playback
$STOP 9- stops CD playback or erase a
CD programme
%PROG -
Radio: programmes preset radio stations;
CD: programmes tracks and reviews the
programme
^PRESET 3,4(up, down) -
selects a tuner preset station
&BAND - selects waveband
BACK PANEL
*Telescopic aerial - improves FM reception
(AC MAINS - inlet for mains lead
)Battery compartment -
for 6 x R-20, UM-1 or D-cells
English
CAUTION
Use of controls or adjustments or performance of procedures other than herein
may result in hazardous radiation exposure or other unsafe operation.
AZ1060001 15-11-2000 17:24 Pagina 4

POWER SUPPLY
5
English
Whenever convenient, use the AC mains supply if you want to
conserve battery life. Make sure you remove the plug from the
set and wall socket before inserting batteries.

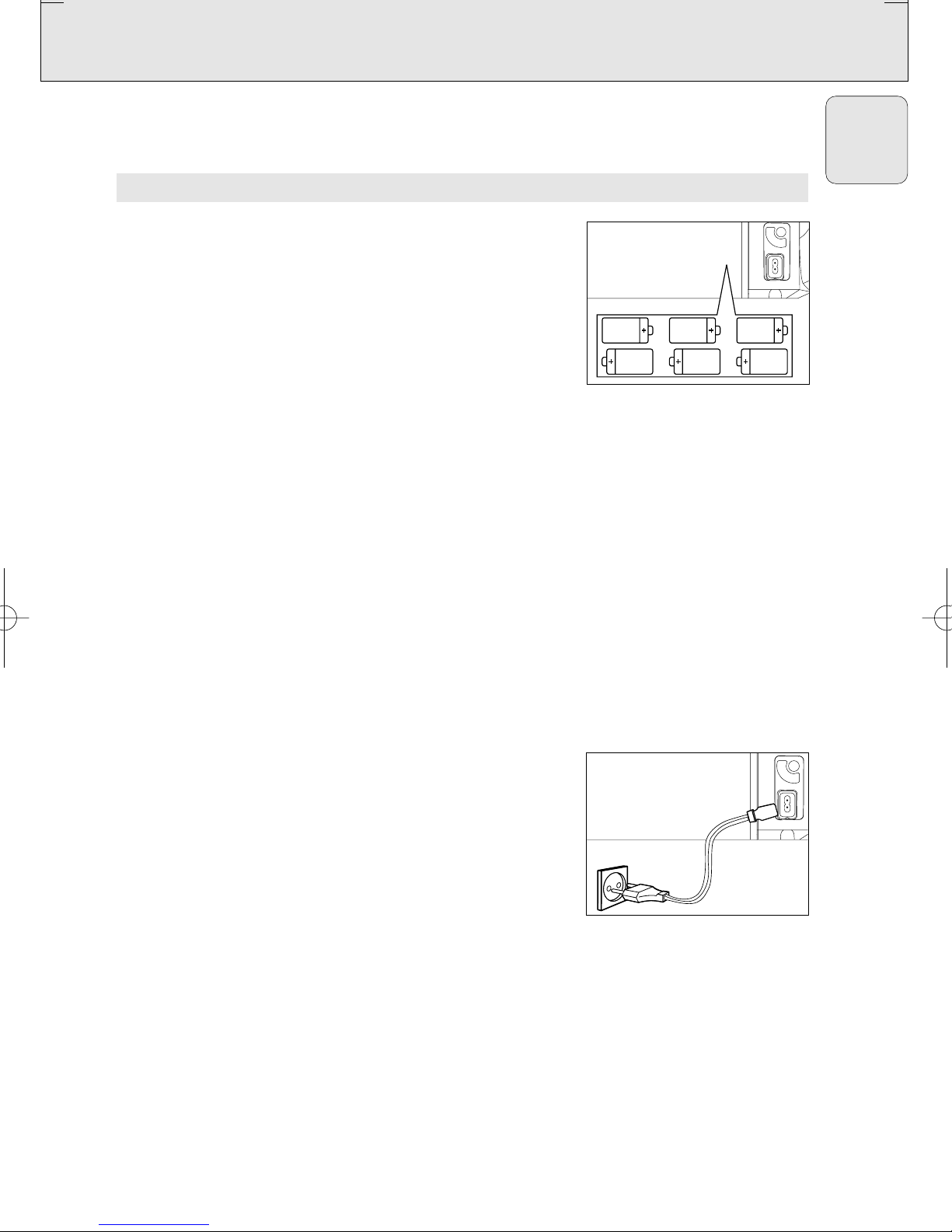

BATTERIES (OPTIONAL)
1. Open the battery compartment and insert six batteries, type
R-20, UM-1 or D-cells, (preferably alkaline) with the correct
polarity as indicated by the "+" and "-" symbols inside the
compartment.
2. Replace the compartment door, making sure the batteries are
firmly and correctly in place. The set is now ready to operate.
–If BATT LOW lights up, battery power is running low.
– The BATT LOW indicator eventually goes out if the
batteries are too weak.
Incorrect use of batteries can cause electrolyte leakage and will
corrode the compartment or cause the batteries to burst.
Therefore:
•Do not mix battery types: e.g. alkaline with carbon zinc.
Only use batteries of the same type for the set.
• When inserting new batteries, do not try to mix old batteries
with the new ones.
• Remove the batteries if the set is not to be used for a long
time.
Batteries contain chemical substances, so they should
be disposed of properly.
For users in the U.K.: please follow the instructions on page 2.
Using Mains
1. Check if the mains voltage as shown on the type plate on
the bottom of the set, corresponds to your local mains
supply. If it does not, consult your dealer or service centre.
2. If your set is equipped with a voltage selector, adjust the
selector so to match with the local mains supply.
3. Connect the mains lead to the wall socket and the set is now
ready for use.
4. To disconnect the set from the mains supply completely,
remove the plug from the wall socket.
AZ 1060/00 page 5
6 x R20 • UM-1 • D-CELLS
AZ1060001 15-11-2000 17:24 Pagina 5

BASIC FUNCTIONS GENERAL INFORMATION
6
English

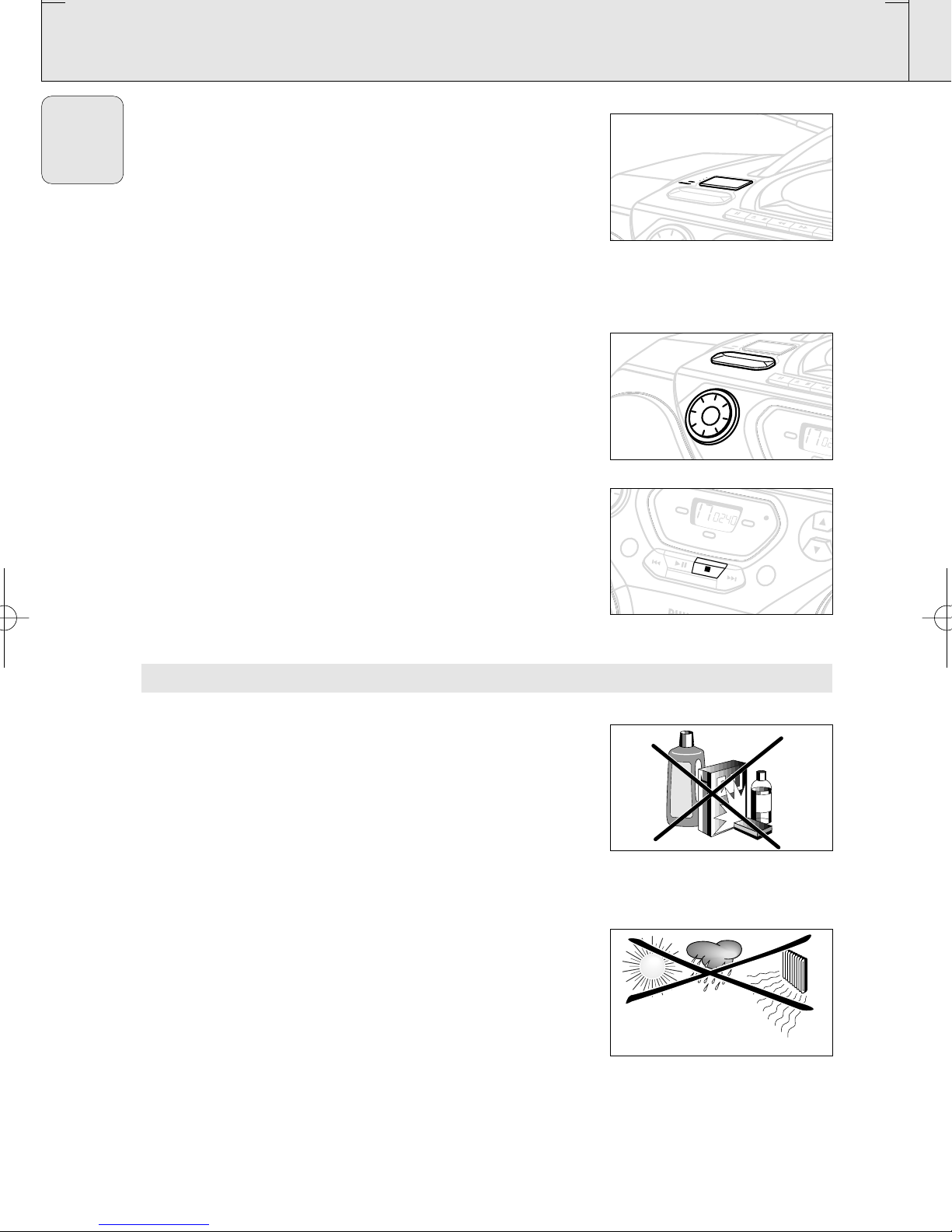

Switching on and off
1. Adjust the POWER slider to the desired sound source: CD,
TUNER or TAPE/OFF.
™The respective function indicator: CD, TUNER or TAPE lights up.
2. To switch off, adjust the POWER slider to TAPE/OFF position
with the keys on the tape deck released.
™The respective function indicator: CD, TUNER or TAPE goes out.
™The volume and tuner presets will be retained in the set's
memory.
Adjusting volume and sound
1. Turn VOLUME to the desired level.
2. Adjust the DBB control to select dynamic bass boost on or off.
PHILIPS demo mode
1. Press the CD STOP 9button for 5 seconds.
™After about 30 seconds, PH..IL ..IPS scrolls across the display.
2. To return to the current display you can either:
• press any function button on the front panel. This interrupts
the demo mode for 30 seconds;
• press the CD STOP 9button for 5 seconds. PH..IL ..IPS
scrolls once before the demo mode is cancelled.
GENERAL INFORMATION
General maintenance
• Do not expose the set, batteries, CDs or cassettes to humidity,
rain, sand or excessive heat caused by heating equipment or
direct sunlight.
• To clean the set, use a soft, slightly dampened chamois
leather. Do not use any cleaning agents containing alcohol,
ammonia, benzene or abrasives as these may harm the
housing.
Safety information
• Place the set on a hard and flat surface so that the system
does not tilt. Make sure there is adequate ventilation to
prevent the system from overheating.
• The mechanical parts of the set contain self-lubricating
bearings and must not be oiled or lubricated.
AZ 1060 /00 page 6
SEARCH
STOP-OPEN
PAUSE
DBB
POWER
TUNER
DYNAMICBASSBOOST
CD
TAPE
OFF
C
D
-
V
O
L
U
M
E
+
SHUFF
LE
STOP-OPEN
PAUSE
DBB
POWER
TUNER
DYNAMICBASSBOOST
CD
TAPE
OFF
CD
-
V
O
L
U
M
E
+
SHUFFLE ALL
PROG.
PRESET
BATT
LOW
M
ODE
TAPE
TUNER
CD
STOP
PLAY•PAUSE
SEARCH•••
•••SEARCH
AZ1060001 15-11-2000 17:24 Pagina 6

DIGITAL TUNER
7
English

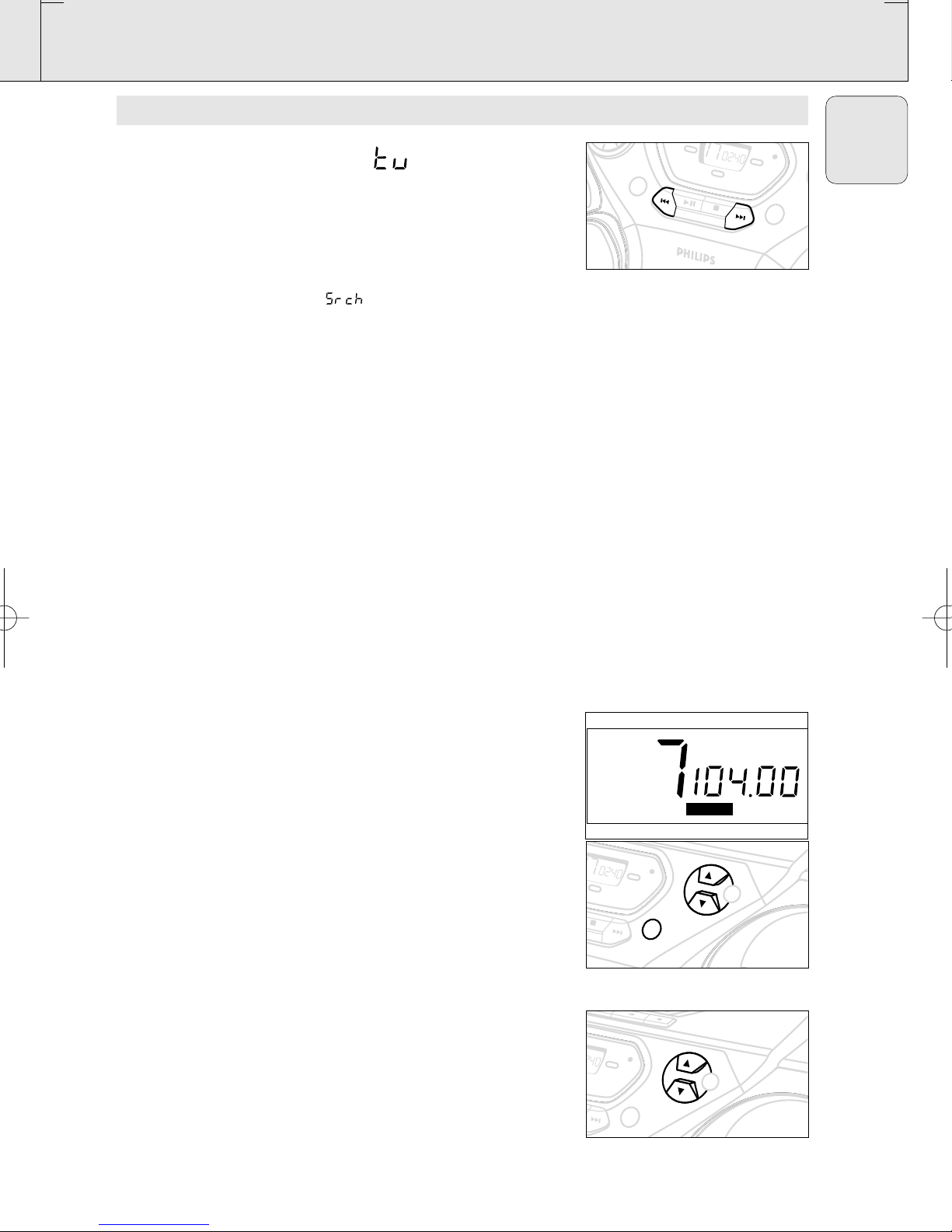

TUNING TO RADIO STATIONS
1. Select TUNER source.
™The function indication lights up. is displayed briefly
and then the radio station frequency is shown.
2. Press BAND once or more to select your waveband.
3. Press SEARCH ∞or §and release when the frequency in
the display starts running.
™The radio automatically tunes to a station of sufficient
reception. Display shows during automatic tuning.
™If a FM station is received in stereo, STEREO is shown.
4. Repeat step 3if necessary until you find the desired station.
• To tune to a weak station, press SEARCH ∞or §briefly and
repeatedly until you have found optimal reception.
To improve radio reception
– For FM, pull out the telescopic aerial. Incline and turn the
aerial. Reduce its length if the signal is too strong (very close
to a transmitter).
– For MW/AM/LW, the set is provided with a built-in antenna
so the telescopic aerial is not needed. Direct the aerial by
turning the whole set.
5. To switch off, adjust the POWER slider to TAPE/OFF position
with the keys on the tape deck released.
™The function indicator goes out.
Programming radio stations
You can store up to a total of 30 radio stations in the memory.
1. Tune to your desired station (see Tuning to radio stations).
2. Press PROG to activate programming.
– Display: PROGRAM flashes.
3. Press PRESET 4or 3once or more to allocate a number from
1 to 30 to this station.
4. Press PROG again to confirm the setting.
– Display: PROGRAM disappears, the preset number and the
frequency of the preset station are shown.
5. Repeat the above four steps to store other stations.
– You can erase a preset station by storing another frequency in
its place.
Tuning to preset stations
Press PRESET 4or 3until the desired preset station is
displayed.
AZ 1060/00 page 7
FM
STEREO
SHUFFLE ALL
PROG.
BATT
LOW
MODE
TAPE
TUNER
CD
STOP
PLAY•PAUSE
SEARCH•••
•••SEARCH
DIGI
SHUFFLE ALL
PROG.
BAND
PRESET
BATT
LOW
TAPE
TUNER
STOP
SEARCH•••
F
LE ALL
RECORD
AY
PROG.
BAND
PRESET
BATT
LOW
TUNER
AZ1060001 15-11-2000 17:24 Pagina 7

CD PLAYER
8
English

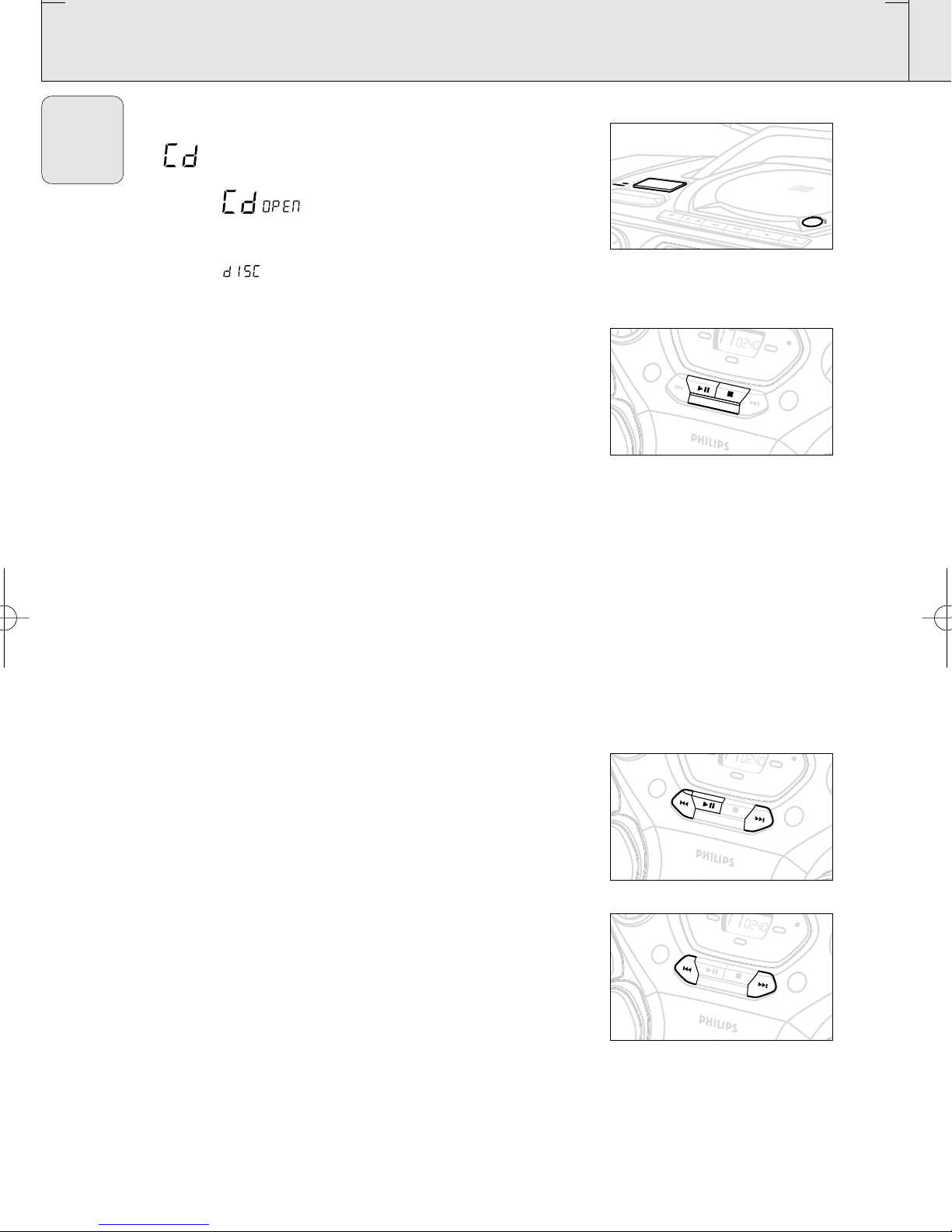

Playing a CD
1. Select CD source.
™is displayed briefly and the function indication lights up.
2. Press OPEN•CLOSE to open the CD door.
™Display: when you open the CD door.
3. Insert a CD or CD-R(W) with the printed side facing up and
close the CD door.
™Display: flashes as the CD player scans the contents of
a CD. The total number of tracks and playing time are then
shown.
4. Press PLAY•PAUSE 2; to start playback.
™Display: Current track number and elapsed playing time of the
track during CD playback.
5. To interrupt playback press PLAY•PAUSE 2;.
Press PLAY•PAUSE 2; again to resume play.
™The display freezes and the elapsed playing time flashes when
playback is interrupted.
6. To stop CD playback, press STOP 9
7. To switch off, adjust the POWER slider to TAPE/OFF position
with the keys on the tape deck released.
™The function indicator goes out.
Note: CD play will also stop when:
– the CD door is opened;
– the CD has reached the end
(unless you have selected REPEAT or REPEAT ALL);
– you select another source: TAPE / TUNER.
Selecting a different track
• Press SEARCH ∞or §once or repeatedly until the desired
track number appears in the display.
• If you have selected a track number shortly after loading a CD or
in the PAUSE position, you will need to press
PLAY•PAUSE 2; to start playback.
Finding a passage within a track
1. Press and hold down on SEARCH ∞or §.
™The CD is played at high speed and low volume.
2. When you recognize the passage you want,
release SEARCH ∞or §.
– Normal playback continues.
Note:
During a CD programme or if SHUFFLE/ REPEAT active, searching is
only possible within a track.
AZ 1060 /00 page 8
RECORD
PLAY
SEARCH
STOP-OPEN
PAUSE
DBB
POWER
TUNER
NAMICBASSBOOST
CD
TAPE
OFF
AZ1060
CDRADIOCASSETTERECORDER
SHUFFLE ALL
PROG.
BATT
LOW
MODE
TAPE
TUNER
CD
STOP
PLAY•PAUSE
SEARCH•••
•••SEARCH
DIGI
ALL
PROG.
BATT
LOW
MODE
TAPE
TUNER
CD
STOP
PLAY•PAUSE
SEARCH•••
•••SEARCH
DIGITAL
TUNE
BASS
REFLE
SHUFFLE ALL
PROG.
BATT
LOW
MODE
TAPE
TUNER
CD
STOP
PLAY•PAUSE
SEARCH•••
•••SEARCH
D
IGITAL
BA
AZ1060001 15-11-2000 17:24 Pagina 8

CD PLAYER
9
English
Different play modes: SHUFFLE and REPEAT
You can select and change the various play modes before or during
playback. The play modes can also be combined with PROGRAM.
SHUFFLE - tracks of the entire CD/ programme are played in
random order
SHUFFLE and REPEAT ALL - to repeat the entire CD/ programme
continuously in random order
REPEAT ALL - repeats the entire CD/ programme
REPEAT - plays the current track continuously
1. To select your play mode, press the MODE button before or
during playback until the display shows the desired function.
2. Press PLAY•PAUSE 2; to start playback if in the STOP
position.
3. To return to normal playback, press the respective MODE
button until the various SHUFFLE/ REPEAT modes are no longer
displayed.
– You can also press STOP 9to cancel your play mode.
Programming track numbers
Programme in the STOP position to select and store your CD tracks
in the desired sequence. If you like, store any track more than
once. Up to 20 tracks can be stored in the memory.
1. Use the SEARCH ∞or §to select your desired track number.
2. Press PROG.
™Display: PROGRAM and the selected track number
appears briefly.
™If you attempt to programme without first selecting a track
number, is shown.
3. Repeat steps 1-2 to select and store all desired tracks.
™is displayed if you attempt to programme more than
20 tracks.
4. To start playback of your CD programme, press PLAY•PAUSE
2;.
Reviewing the programme
In the stop position, press and hold down PROG for a while until
the display shows all your stored track numbers in sequence.
AZ 1060/00 page 9
PROGRAM
SHUFFLE ALL
BATT
LOW
MODE
TAPE
TUNER
CD
STOP
PLAY•PAUSE
SEARCH•••
•••SEARCH
SHUFFLE ALL
PROG.
P
BATT
LOW
MODE
TAPE
TUNER
CD
STOP
PLAY•PAUSE
SEARCH•••
•••SEARCH
DI
GITALT
BAS
AZ1060001 15-11-2000 17:25 Pagina 9

Erasing a programme
You can erase the programme by:
– pressing STOP 9once in the STOP position;
– pressing STOP 9twice during playback;
– pressing the CD door open;
– switching to another source: TAPE/TUNER.
• The display shows ' ' briefly.
CD player and CD handling
• The lens of the CD player should never be touched!
• If the CD player cannot read CDs correctly, use a commonly
available cleaning CD to clean the lens before taking the set to
repair. Other cleaning methods may destroy the lens.
• Sudden changes in the surrounding temperature can cause
condensation to cloud over on the lens of your CD player.
Playing a CD is then not possible. Do not attempt to clean the
lens but leave the set in a warm environment until the
moisture evaporates.
• Always keep the CD compartment closed to avoid dust on the
lens.
• To take a CD out of its box, press the centre spindle while
lifting the CD. Always pick up the CD by the edge and return
the CD to its box after use to avoid scratching and dust.
• To clean the CD, wipe in a straight line from the centre
towards the edge using a soft, lint-free cloth. Do not use
cleaning agents as they may damage the disc.
•Never write on a CD or attach any stickers to it.
CASSETTE PLAYBACK
1. Select TAPE source.
™The display shows throughout tape operation, and the
function indication lights up.
2. Press STOP•OPEN 9/ to open the cassette door.
3. Insert a recorded cassette and close the cassette door.
4. Press PLAY 1to start playback.
5. To pause playback, press PAUSE ;. To resume, press the key
again.
6. By pressing SEARCH 5or 6fast winding of the tape is
possible in both directions.
7. To stop the tape, press STOP•OPEN 9/.
–The keys are automatically released at the end of the tape and
the indication and function light go out, except if
PAUSE ;has been activated.
CD PLAYER CASSETTE RECORDER
10
English
AZ 1060 /00 page 10
X
RECORD
PLAY
SEARCH
STOP-OPEN
PAUSE
DBB
POWER
TUNER
DYNAMICBASSBOOST
CD
TAPE
OFF
AZ1060
CDRADIOCASSETTERECORDER
AZ1060001 15-11-2000 17:25 Pagina 10

RECORDING
11
English
GENERAL INFORMATION ON RECORDING
• Recording is permissible insofar as copyright or other rights of
third parties are not infringed.
• This deck is not suitable for recording on CHROME (IEC II) or
METAL (IEC IV) type cassettes. For recording, use only
NORMAL type cassettes (IEC I) on which the tabs have not
been broken.
• The best recording level is set automatically. Altering the
VOLUME and DBB controls will not affect the recording in
progress.
• At the very beginning and end of the tape, no recording will
take place during the 7 seconds, when the leader tape passes
the recorder heads.
• To protect a tape from accidental erasure, have the tape in
front of you and break out the left tab.
Recording on this side is no longer possible. To record over this
side again, cover the tabs with a piece of adhesive tape.
SYNCHRO START CD RECORDING
1. Select CD source.
2. Insert a CD and if desired, programme track numbers.
3. Press STOP•OPEN 9/ to open the cassette door.
4. Insert a suitable cassette into the cassette deck and close the
cassette door.
5. Press RECORD 0to start recording.
– Playing of the CD programme starts automatically from the
beginning of the programme. It is not necessary to start the CD
player separately.
To select and record a particular passage
• Press and hold down on SEARCH ∞or §.
• When you recognize the passage you want,
release SEARCH ∞or §.
• To pause CD playback press PLAY/PAUSE 2;.
– Recording will begin from this exact point in the track when
you press RECORD 0.
6. For brief interruptions during recording, press PAUSE ;. To
resume recording, press PAUSE ;again.
7. To stop recording, press STOP•OPEN 9/.
AZ 1060/00 page 11
1
RECORD
PLAY
SEARCH
STOP-OPEN
PAUSE
DBB
POWER
TUNER
DYNAMICBASSBOOST
CD
TAPE
OFF
AZ1060
CDRADIOCASSETTERECORDER
SHUFFLE ALL
PROG.
BATT
LOW
MODE
TAPE
TUNER
CD
STOP
PLAY•PAUSE
SEARCH•••
•••SEARCH
D
IGITAL
BA
AZ1060001 15-11-2000 17:25 Pagina 11

RECORDING MAINTENANCE
12
English
Recording from the radio
1. Tune to the desired radio station (see Tuning to radio
stations).
2. Press STOP•OPEN 9/ to open the cassette door.
3. Insert a suitable cassette into the cassette deck and close the
cassette door.
4. Press RECORD 0to start recording.
5. For brief interruptions, press PAUSE ;. To resume recording,
press PAUSE ;again.
6. To stop recording, press STOP•OPEN 9/.
Tape deck maintenance
To ensure quality recording and playback of the tape deck, clean
parts A,Band Cshown in the diagram below, after approx.
50 hours of operation, or on average once a month. Use a cotton
bud slightly moistened with alcohol or a special head cleaning
fluid to clean the deck.
1. Open the cassette holder by pressing STOP•OPEN 9/.
2. Press PLAY 1and clean the rubber pressure rollers C.
3. Press PAUSE ;and clean the magnetic heads Aand also the
capstan B.
4. After cleaning, press STOP•OPEN 9/.
Note: Cleaning of the heads can also be done by playing a
cleaning cassette through once.
AZ 1060 /00 page 12
A A B C
Environmental information
All unnecessary packaging material has been omitted. We have done our utmost to make the
packaging easy to separate into three materials: cardboard (box), expandable polystyrene (buffer),
polyethylene (bags, protective foam).
Your set consists of materials which can be recycled if disassembled by a specialized
company. Please observe the local regulations regarding the disposal of packing
materials, exhausted batteries and old equipment.
SHUFFLE ALL
RECORD
PLAY
SEARCH
STOP-OPEN
PAUSE
DBB
WER
TUNER
BASSBOOST
CD
TAPE
OFF
AZ1060
CDRADIOCASSETTERECORDER
CD
AZ1060001 15-11-2000 17:25 Pagina 12

13
English
AZ 1060/00 page 13
TROUBLESHOOTING
If a fault occurs, first check the points listed below before taking the set for repair.
If you are unable to remedy a problem by following these hints, consult your dealer or service centre.
WARNING: Do not open the set as there is a risk of electric shock. Under no
circumstances should you try to repair the set yourself, as this will
invalidate the guarantee.
PROBLEM
– POSSIBLE CAUSE
• REMEDY
No sound/power
– VOLUME not adjusted
• Adjust the VOLUME
– Headphones connected
• Disconnect headphones
– Power cord not securely connected
• Connect the power cord properly
– Batteries exhausted/ incorrectly inserted
• Insert (fresh) batteries correctly
Severe radio hum or noise
–Electrical interference: set too close to TV,
VCR or computer
• Increase the distance
Poor radio reception
–Weak radio signal
• FM: Direct the FM telescopic aerial for
optimum reception
• MW (AM) or LW: Direct the aerial by turning
the whole set.
or indication
–No CD inserted
• Insert a CD
–CD badly scratched or dirty
• Replace/ clean CD, see Maintenance
–Laser lens steamed up,
• Wait until lens has cleared
indication
–CD-R(W) is blank or the disc is not finalised
• Use a finalised CD-R(W)
–CD badly scratched or dirty
• Replace/ clean CD, see Maintenance
The CD skips tracks
– CD is damaged or dirty
• Replace or clean the CD
– SHUFFLE or PROGRAM is active
• Quit SHUFFLE/PROGRAM mode(s)
Poor cassette sound quality
– Dust and dirt on the heads, etc.
• Clean deck parts etc., see Maintenance
– Use of incompatible cassette types (METAL
or CHROME).
• Only use NORMAL (IEC I) for recording.
Recording does not work
– Cassette tab(s) may be broken
• Apply a piece of adhesive tape over the
missing tab space.
This product complies with the radio interference requirements of the European Union.
The type plate is located on the bottom of the set.
AZ1060001 15-11-2000 17:25 Pagina 13
