Philips DS8500/12 User manual

Register your product and get support at
www.philips.com/welcome
DS8500
EN User manual
DA Brugervejledning
DE Benutzerhandbuch
ES Manual del usuario
FR Mode d’emploi
IT Manuale utente
NL Gebruiksaanwijzing
SV Användarhandbok

3
English
EN
Contents
1 Important 4
Safety 4
Notice 6
2 Your Docking Speaker 8
Introduction 8
What’s in the box 8
Overview of the main unit 8
Overview of the remote control 10
3 Get started 12
Prepare the remote control 12
Connect power 13
Turn on 14
4 Play 16
Play from iPod/iPhone 16
Play from an external device 17
Adjust volume level 18
Mute sound 18
5 Product information 19
6SHFLÀFDWLRQV 19
6 Troubleshooting 20

4
1 Important
Safety
Important Safety Instructions
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
hDo not install near any heat sources such as radiators, heat
UHJLVWHUVVWRYHVRURWKHUDSSDUDWXVLQFOXGLQJDPSOLÀHUVWKDW
produce heat.
iProtect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
j 2QO\XVHDWWDFKPHQWVDFFHVVRULHVVSHFLÀHGE\WKHPDQXIDFWXUHU
k 8VHRQO\ZLWKWKHFDUWVWDQGWULSRGEUDFNHWRUWDEOHVSHFLÀHGE\
the manufacturer or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
EN

5
lUnplug this apparatus during lightning storms or when unused for
long periods of time.
m 5HIHUDOOVHUYLFLQJWRTXDOLÀHGVHUYLFHSHUVRQQHO6HUYLFLQJLV
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
nBattery usage CAUTION – To prevent battery leakage which may
result in bodily injury, property damage, or damage to the unit:
Install all batteries correctly, + and - as marked on the unit.

Do not mix batteries (old and new or carbon and alkaline, etc.).
Remove batteries when the unit is not used for a long time.
The batteries shall not be exposed to excessive heat such as
VXQVKLQHÀUHRUWKHOLNH
oApparatus shall not be exposed to dripping or splashing.
pDo not place any sources of danger on the apparatus (e.g. liquid
ÀOOHGREMHFWVOLJKWHGFDQGOHV
qThis product may contain lead and mercury. Disposal of these
materials may be regulated due to environmental considerations.
For disposal or recycling information, please contact your local
authorities or the Electronic Industries Alliance: www.eiae.org.
rWhere the MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily
operable.
English
EN

6
Warning
Never remove the casing of this apparatus.
Never lubricate any part of this apparatus.
Never place this apparatus on other electrical equipment.
.HHSWKLVDSSDUDWXVDZD\IURPGLUHFWVXQOLJKWQDNHGÁDPHVRUKHDW
Ensure that you always have easy access to the power cord, plug or adaptor to
disconnect the apparatus from the power.
Notice
$Q\FKDQJHVRUPRGLÀFDWLRQVPDGHWRWKLVGHYLFHWKDWDUHQRWH[SUHVVO\
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
This product complies with the radio interference requirements of the
European Community.
Recycling
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When you see the crossed-out wheel bin symbol attached to a product,
it means the product is covered by the European Directive 2002/96/EC:
Never dispose of your product with other household waste. Please inform
yourself about the local rules on the separate collection of electrical and
electronic products. The correct disposal of your old product helps prevent
potentially negative consequences on the environment and human health.
EN

7
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed of with normal household waste.
Please inform yourself about the local rules on separate collection of
batteries. The correct disposal of batteries helps prevent potentially
negative consequences on the environment and human health.
Norge
7\SHVNLOWÀQQHVSnDSSDUDWHQVXQGHUVLGH
Observer: Nettbryteren er sekundert innkoplet. Den innebygde netdelen er
GHUIRULNNHIUDNRSOHWQHWWHWVnOHQJHDSSDUDWHWHUWLOVOXWWHWQHWWNRQWDNWHQ
)RUnUHGXVHUHIDUHQIRUEUDQQHOOHUHOHNWULVNVW¡WVNDODSSDUDWHWLNNHXWVHWWHV
for regn eller fuktighet.
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
Note
The type plate is located on the bottom of the apparatus.
English
EN

8
2 Your Docking Speaker
&RQJUDWXODWLRQVRQ\RXUSXUFKDVHDQGZHOFRPHWR3KLOLSV7RIXOO\EHQHÀW
from the support that Philips offers, register your product at www.philips.
com/welcome.
Introduction
With this unit, you can enjoy audio from the iPod/iPhone and other audio
devices.
What’s in the box
Check and identify the contents of your package:
Main unit

Remote control
1 x AC adaptor
1 x AC power cord
1 x Aux-in cable
User manual
Overview of the main unit
EN

9
Front View
a- VOLUME +
Adjust volume.

biPod/iPhone dock
BackView
a b
d c
English
EN

10
cPower supply socket
dAUX IN
Jack for an external audio device.


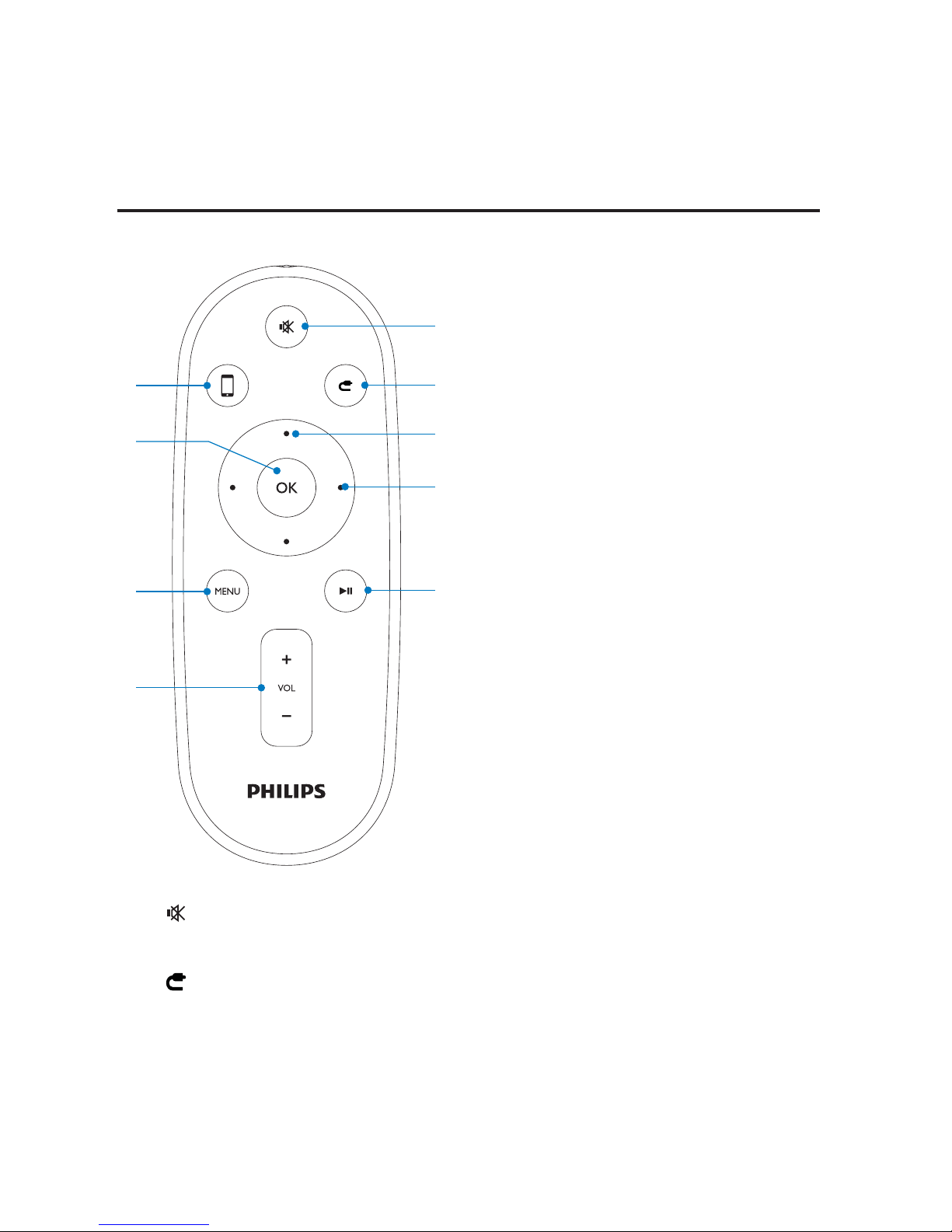

Overview of the remote control
1Mute volume.
2Select Aux-in mode.
3Up/down keys
Navigate through the iPod/iPhone menu.

i
g
f
h
a
e
b
c
d
EN

11
4Fast forward/backward keys
Fast reverse or fast forward within a track or iPhone/iPod.

Skip to the previous/next track.
5Start or pause play.
6VOL +/-
Adjust volume.

7MENU
Access the iPod menu.

8OK
&RQÀUPDVHOHFWLRQ

9Select iPod/iPhone dock mode.
English
EN

12
3 Get started
Caution
Use of controls or adjustments or performance of procedures other than
herein may result in hazardous radiation exposure or other unsafe operation.
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number of
this apparatus.The model number and serial number are on the bottom of
the apparatus.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Prepare the remote control
Caution
5LVNRIH[SORVLRQ.HHSEDWWHULHVDZD\IURPKHDWVXQVKLQHRUÀUH1HYHU
GLVFDUGEDWWHULHVLQÀUH
)RUÀUVWWLPHXVH
1Remove the protective tab to activate the remote control battery.
To replace the remote control battery:
1Open the battery compartment.
2Insert one CR2032 battery with correct polarity (+/-) as indicated.
3Close the battery compartment.
EN

13
Note
%HIRUHSUHVVLQJDQ\IXQFWLRQEXWWRQRQWKHUHPRWHFRQWUROÀUVWVHOHFWWKH
correct source with the remote control instead of the main unit.
If you are not going to use the remote control for a long time, remove the

battery.
Connect power
Caution
Risk of product damage! Ensure that the power supply voltage corresponds to
the voltage printed on the bottom of the unit.
Risk of electric shock! When you unplug the AC adaptor, always pull the plug

from the socket. Never pull the cord.
Before connecting the AC adaptor, ensure you have completed all other

connections.
English
EN

14
1Insert the plug from the AC adaptor to the DC IN socket on the
back of the main unit.
2Connect one end of the AC power cord to the AC adaptor.
3Connect the other end of the AC power cord to the wall outlet.
Turn on
The unit turns on automatically when connected to power.
When user approaches the unit, light LED under volume button on»
the main unit turns on automatically.
EN

15
Switch to standby
In DOCK mode: disconnect the iPod/iPhone from the unit over 15
minutes.
The unit switches to Standby mode automatically.»
In Aux-in mode: the device no longer play music over 15 minutes.

The unit switches to Standby mode automatically.»
English
EN

16
4 Play
Play from iPod/iPhone
You can enjoy audio from iPod/iPhone through this unit.
Compatible iPod/iPhone
Apple iPod and iPhone models with a 30-pin dock connector. Made for :
iPod nano (2nd generation)

iPod nano (3rd generation)
iPod nano (4th generation)
iPod nano (5th generation)
iPod classic
iPod touch (1st generation)
iPod touch (2nd generation)
iPod touch (3rd generation)
iPhone
iPhone 3G
iPhone 3GS.
Load the iPod/iPhone

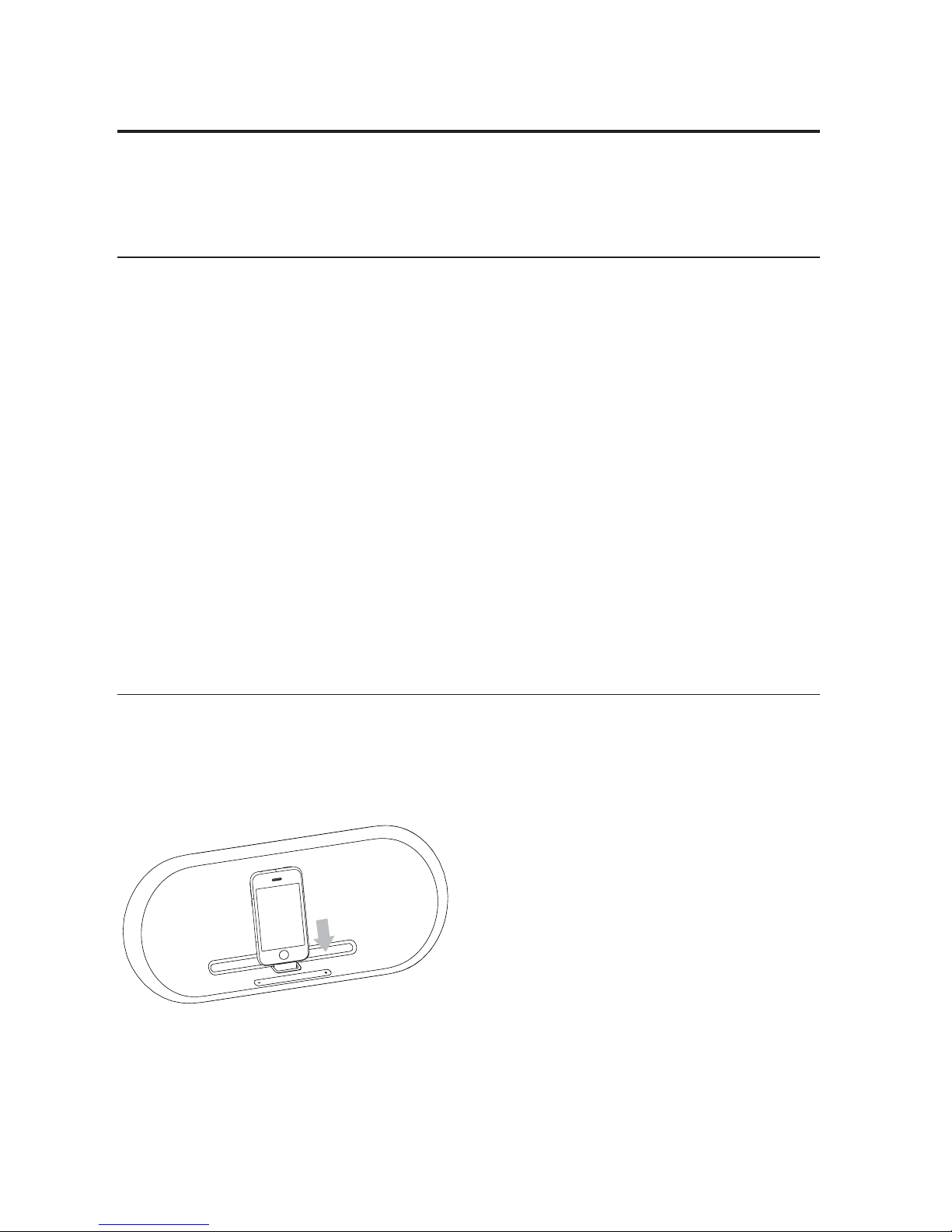

1Place the iPod/iPhone in the dock.
EN

17
Remove the iPod/iPhone
1Pull the iPod out of the dock.
Listen to the iPod/iPhone
1Ensure that the iPod/iPhone is loaded correctly.
2Press to select DOCK mode.
3Press .
The connected iPod/iPhone starts play.»
To pause/resume play, press
 .
To skip to a track, press fast forward/backward keys.

To search during play, press and hold fast forward/backward
keys, then release to resume normal play.
To navigate the menu, press
 MENU, then press up/down keysto
select, and press OKWRFRQÀUP
Charge the iPod/iPhone
When the unit is connected to power, the docked iPod/iPhone begins to charge.
Play from an external device
You can also listen to an external audio device through this unit.
1Press to select Aux-in mode.
2Connect the supplied Aux-in cable to:
the
 AUX IN jack (3.5mm) on the back of the unit.
the headphone jack on an external device.

3Start to play the device (see the device user manual).
English
EN

18
Adjust volume level
1During play, press VOL +/- to increase/decrease the volume level.
Mute sound
1During play, press MUTE to mute/unmute sound.
EN

19
5 Product information
Note
Product information is subject to change without prior notice.
6SHFLÀFDWLRQV
$PSOLÀHU
Rated Output Power 2X15 W RMS
Signal to Noise Ratio 85 dB
AUX IN 0.6 V RMS 10 kohm
General information
AC power (power adaptor) OH-1048A1802500U-u
Input: 100-240V~, 50/60Hz,
1.5A MAX;
Output: 18V 2.5A;
Operation Power Consumption 40W
Standby Power Consumption <1W
Dimensions
- Main Unit (W x H x D) 158 x 420 x 139 mm
Weight
- Main Unit 3.32 kg
English
EN

20
6 Troubleshooting
Warning
Never remove the casing of this apparatus.
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, check the following
points before requesting service. If the problem remains unsolved, go to
the Philips web site (www.philips.com/welcome).When you contact Philips,
ensure that the apparatus is nearby and the model number and serial number
are available.
No power
Ensure that the AC power plug of the unit is connected properly.
Ensure that there is power at the AC outlet.
No sound
Adjust the volume.
No response from the unit
Disconnect and reconnect the AC power plug, then turn on the unit
again.
EN

© 2010 Koninklijke Philips Electronics N.V.
All rights reserved.
Document order number:DS8500_12_UM_V1.2
