Philips MVL5598 User manual

MVL5598

1
2
3
4
5
6
14
13
12
10
8
7
9
11
15
16

empty page before TOC

English 6
简体中文 27

English

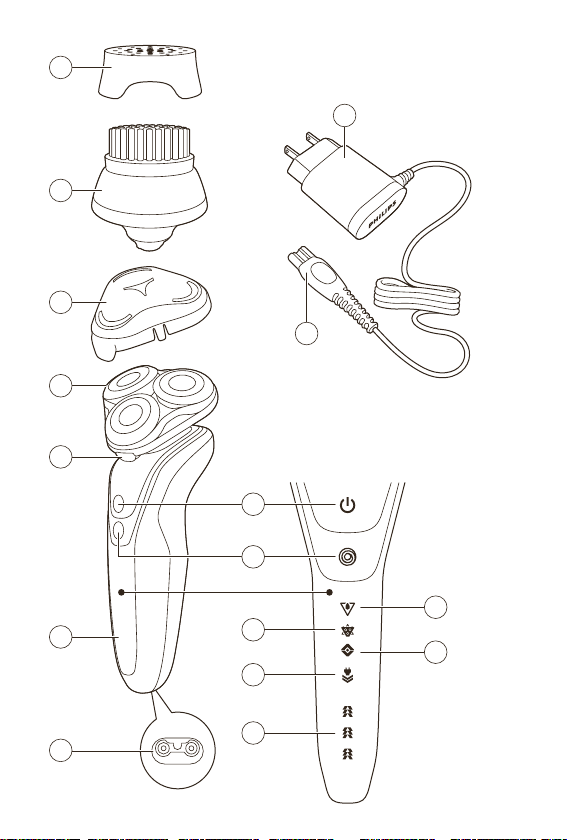

General description (Fig. 1)
1 Protection cap for cleansing brush attachment
2 Click-on cleansing brush attachment
3 Protection cap for shaving unit
4 Click-on shaving unit
5 Shaving unit release button
6 Handle
7 On/off button
8 Turbo+ button
9 Cleaning reminder
10 Replacement reminder
11 Travel lock symbol
12 Unplug for use symbol
13 Battery charge indicator with 3 lights
14 Socket for small plug
15 Small plug
16 Supply unit
The accessories supplied may vary for different
products. The box shows the accessories that have
been supplied with your product.
Introduction
Congratulations on your purchase and welcome to
Philips! To fully benefit from the support that
Philips offers, register your product at
www.philips.com/welcome.
Important safety information
Read this important information carefully before
you use the appliance and its accessories and save
it for future reference. The accessories supplied
may vary for different products.
6English

Danger
- Keep the supply unit dry.
Warning
- To charge the battery, only use the detachable
supply unit (HQ8505) provided with the
appliance.
- The supply unit contains a transformer. Do not
cut off the supply unit to replace it with another
plug, as this causes a hazardous situation.
- This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. Cleaning and
user maintenance shall not be made by
children without supervision.
- Always unplug the shaver before you clean it
under the tap.
- Always check the appliance before you use it.
Do not use the appliance if it is damaged, as
this may cause injury. Always replace a
damaged part with one of the original type.
- This appliance contains batteries that are non-
replaceable.
- Do not open the appliance to replace the
rechargeable battery.
7
English

Caution
- Never use water hotter than 60°C to rinse the
shaver.
- Only use this appliance for its intended purpose
as shown in the user manual.
- For hygienic reasons, the appliance should only
be used by one person.
- Never use compressed air, scouring pads,
abrasive cleaning agents or aggressive liquids
such as petrol or acetone to clean the
appliance.
- Water may drip from the socket at the bottom
of the shaver when you rinse it. This is normal
and not dangerous because all electronics are
enclosed in a sealed power unit inside the
shaver.
- Do not use the supply unit in or near wall
sockets that contain an electric air freshener to
prevent irreparable damage to the supply unit.
Electromagnetic fields (EMF)
This Philips appliance complies with all applicable
standards and regulations regarding exposure to
electromagnetic fields.
General
- This shaver is waterproof. It is suitable for use in
the bath or shower and for cleaning under the
tap. For safety reasons, the shaver can
therefore only be used without cord.
- The supply unit is suitable for mains voltages
ranging from 100 to 240 volts.
- The supply unit transforms 100-240 volts to a
safe low voltage of less than 24 volts.
8English

The display
Battery charge indicator
Note: If you press the on/off button during
charging, the 'unplug for use' symbol flashes white
to remind you that you have to disconnect the
appliance from the wall socket.
Quick charge: When the battery is empty and you
connect the appliance to the wall socket, the lights
of the battery charge indicator light up one after
the other repeatedly. When the appliance contains
enough energy for one shave, the bottom light of
the battery charge indicator starts flashing slowly.
While the appliance continues to charge, first the
bottom light of the battery charge indicator flashes
and then lights up continuously. Then the second
light flashes and then lights up continuously, and
so on until the appliance is fully charged.
Battery fully charged
Note: When the battery is full, the display switches
off automatically after 30 minutes.
Note: This appliance can only be used without
cord.
When the battery is fully charged, all lights of the
battery charge indicator light up white
continuously.
9
English

Battery low
When the battery is almost empty, the bottom light
of the battery charge indicator flashes orange. At
this point there is enough energy left for one
shave.
Remaining battery charge
The remaining battery charge is shown by the
lights of the battery charge indicator that light up
continuously.
’Unplug for use’ reminder
The ‘unplug for use’ symbol flashes to remind you
that you have to disconnect the appliance from
the wall socket before you can switch it on.
Cleaning reminder
Clean the shaver after every use for optimal
performance. When you switch off the appliance,
the cleaning reminder flashes to remind you to
clean the appliance.
Travel lock
When you are going to travel, you can lock the
shaver to prevent it from accidentally switching on.
Activating the travel lock
10 English

3 sec.
1Press the on/off button for 3 seconds to use
the travel lock mode.
2While you activate the travel lock, the travel lock
symbol lights up continuously. When the travel
lock is activated, the travel lock symbol flashes.
If you try to switch on the shaver while the
travel lock is active, the travel lock symbol
flashes.
Deactivating the travel lock
1Press the on/off button for 3 seconds.
While you deactivate the travel lock, the travel
lock symbol lights up briefly and the shaver
produces a short sound. The shaver switches on
and is now ready for use again.
Replacement reminder
For maximum shaving performance, we advise you
to replace the shaving heads every two years. The
appliance is equipped with a replacement
reminder which reminds you to replace the
shaving heads. The shaving unit symbol and
arrows light up to indicate that you have to replace
the shaving heads.
Note: After replacing the shaving heads, you can
reset the replacement reminder by pressing the
on/off button for 7 seconds. If you do not reset the
replacement reminder, the shaver resets
automatically after 9 shaves.
11
English

Turbo+ setting
The appliance is equipped with a Turbo+ setting.
This setting is intended for quicker and more
intense shaving and makes hard-to-reach areas
easier to shave.
Activating the Turbo+ setting
To activate the Turbo+ setting, press the Turbo+
button once when the appliance is switched on.
Deactivating the Turbo+ setting
To deactivate the Turbo+ setting, press the Turbo+
button once.
Charging
Charge the shaver before you use it for the first
time and when the display indicates that the
battery is almost empty.
Charging takes approx. 1 hour.
Note:You cannot use the appliance while it is
charging.
Charging with the supply unit
1Make sure the appliance is switched off.
2Put the small plug in the appliance and put the
supply unit in the wall socket.
3After charging, remove the supply unit from the
wall socket and pull the small plug out of the
appliance.
Note: When the battery is full, the display
switches off automatically after 30 minutes.
Using the appliance
Note: This appliance can only be used without
cord.
12 English

Switching the appliance on and off
1To switch on the appliance, press the on/off
button once.
2To switch off the appliance, press the on/off
button once.
The display lights up for a few seconds to show the
remaining battery status.
Shaving
Skin adaptation period
Your first shaves may not bring you the result you
expect and your skin may even become slightly
irritated. This is normal. Your skin and beard need
time to adapt to any new shaving system. To allow
your skin to adapt to this new appliance, we advise
you to shave regularly (at least 3 times a week) and
exclusively with this appliance for a period of 3
weeks.
Dry shaving
1Switch on the appliance.
2Move the shaving heads over your skin in
circular movements to catch all hairs growing in
different directions. Make sure each shaving
head is fully in contact with the skin. Exert
gentle pressure for a close, comfortable shave.
Note: Do not press too hard, as this can cause
skin irritation.
3Clean the appliance after use.
Wet shaving
For a more comfortable shave, you can also use
this appliance on a wet face with shaving foam or
shaving gel.
To shave with shaving foam or shaving gel, follow
the steps below:
13
English

1Apply some water to your skin.
2Apply shaving foam or shaving gel to your skin.
3Rinse the shaving unit under the tap to ensure
that the shaving unit glides smoothly over your
skin.
4Switch on the appliance.
5Move the shaving heads over your skin in
circular movements to catch all hairs growing in
different directions. Make sure each shaving
head is fully in contact with the skin. Exert
gentle pressure for a close, comfortable shave.
Note: Do not press too hard, this can cause skin
irritation.
Note: Rinse the shaving unit regularly to ensure
that it continues to glide smoothly over your
skin.
6Dry your face.
7Clean the appliance after use.
Note: Make sure you rinse all foam or shaving
gel off the appliance.
Turbo+ setting
The appliance is equipped with a Turbo+ setting.
This setting is intended for quicker and more
14 English

intense shaving and makes hard-to-reach areas
easier to shave.
1Switch on the appliance.
2To activate the Turbo+ setting, press the
Turbo+ button once when the appliance is
switched on.
3Move the shaving heads over your skin in
circular movements to catch all hairs growing in
different directions. Make sure each shaving
head is fully in contact with the skin. Exert
gentle pressure for a close, comfortable shave.
Note: Circular movements provide better
shaving results than straight movements.
4To deactivate the Turbo+ setting, press the
Turbo+ button once.
Using the click-on attachments
Note: The accessories supplied may vary for
different products. The box shows the accessories
that have been supplied with your product.
Removing or attaching click-on attachments
1Make sure the appliance is switched off.
2Pull the attachment straight off the appliance.
Note: Do not twist the attachment while you
pull it off the appliance.
15
English

3Insert the lug of the attachment into the slot in
the top of the appliance. Then press down the
attachment to attach it to the appliance (‘click’).
Using the cleansing brush attachment
Note: For better shaving results, use the click-on
cleansing brush attachment before shaving.
Use the rotating cleansing brush with your daily
cleansing cream. The cleansing brush removes oil
and dirt, contributing to a healthy and oil-free skin.
We advise you to use it no more than twice a day.
Do not use the appliance on damaged or irritated
skin or on wounds.
1Place the attachment on the attachment
holder.
2Attach the attachment to the appliance ('click').
3Moisten the attachment with water.
Note: Do not use the appliance with a dry
cleansing brush attachment, as this can irritate
the skin.
4Moisten your face with water and apply a
cleanser to your face.
5Place the attachment on your cheek.
6Switch on the appliance.
16 English

20 sec.
7Gently move the brush across your skin from
the nose towards the ear. Do not push the
brush too hard onto the skin to make sure that
the treatment remains comfortable.
Note: Do not cleanse the sensitive area around
your eyes.
20 sec.
8After approx. 20 seconds, move the appliance
to your other cheek and start cleansing this part
of your face.
20 sec.
9After approx. 20 seconds, move the appliance
to your forehead and start cleansing this part of
your face. Gently move the brush head from left
to right.
Note: We advise you to not overdo the
cleansing and to not cleanse any zone longer
than 20 seconds.
10 Switch off the appliance and clean the
attachment after use.
11 After the treatment, rinse and dry your
face.Your face is now ready for the next step of
your daily skincare routine.
Cleaning and maintenance
Note: The accessories supplied may vary for
different products. The box shows the accessories
that have been supplied with your product.
Cleaning the shaver under the tap
Clean the shaver after every use for optimal
performance.
17
English

Be careful with hot water. Always check if the
water is not too hot, to prevent burning your
hands.
Never dry the shaving unit with a towel or tissue,
as this may damage the shaving heads.
While rinsing the shaving unit, water may drip out
of the base of the shaver. This is a normal
occurrence.
1Switch on the appliance.
2Rinse the shaving unit under a warm tap.
3Switch off the appliance. Press the release
button to open the shaving unit.
4Rinse the hair chamber under the tap.
5Rinse the shaving head holder under a warm
tap.
6Carefully shake off excess water and let the
shaving head holder air-dry completely.
18 English

7Close the shaving head holder ('click').
Cleaning the cleansing brush attachment
Clean the cleansing brush attachment after each
use.
1Switch off the appliance.
2Detach the brush head from the attachment
holder.
3Clean the parts thoroughly with warm water
and soap.
4Dry the cleansing brush attachment with a
towel.
Storage
Note: We advise you to let the appliance and its
attachments dry before you store them for the
next use.
Put the protection cap on the shaver to protect it
from any dirt accumulation.
Put the protection cap on the cleansing brush
attachment to protect it from dirt accumulation.
19
English

Replacement
Replacing the shaving heads
2yrs
For maximum shaving performance, we advise you
to replace the shaving heads every two years.
Replace damaged shaving heads immediately.
Always replace the shaving heads with original
Philips shaving heads (see 'Ordering accessories').
Replacement reminder
The replacement reminder indicates that the
shaving heads need to be replaced.The shaving
unit symbol and arrows light up when you switch
off the appliance.
1Switch off the appliance.
2Press the release button to open the shaving
unit.
3Pull the shaving head holder off the bottom
part of the shaving unit.
1
2
4Turn the retaining rings counterclockwise and
remove them. Place them aside in a safe place.
20 English
