IMPORTANT SAFETY
INSTRUCTIONS
When using an electric razor, basic precautions should always be
followed, including the following:
Read all instructions before using this appliance.
DANGER
To reduce the risk of electric shock:
1. Do not reach for a corded razor/charging stand that has fallen
into water. Unplug immediately.
2. Do not use a razor/charging stand corded while bathing or in a
shower.
3. Do not place or store a razor or charging stand while plugged in
where it can fall or be pulled into a tub or sink. Do not place or
drop a razor or charging stand into water or other liquid while
plugged in.
4. Always unplug this razor/charging stand from the electrical
outlet immediately after use, except when razor is (re)charging.
5. Unplug this razor/charging stand before cleaning.
WARNING
To reduce the risk of burns, fire, electric shock, or injury
to persons:
1. Close supervision is necessary when this razor is used by, on,
or near children or invalids.
2. Use this razor for its intended household use as described in
this manual. Do not use attachments not recommended by
Philips Electronics North America Corporation.
3. Never operate this razor/charging stand if it has a damaged
cord or charging plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water while
plugged in. Return the razor/charging stand to an Authorized
Norelco Service Location for examination and repair.
4
8160XLCDFU021_16_05Norelco.qxd 3/4/05 3:49 PM Page 4 (Zwart plate)

ENGLISH 55
4. Keep the razor, charging stand, cord and charging plug away
from heated surfaces.
5. Never drop or insert any object into any opening.
6. Do not charge or plug in razor/charging stand outdoors or
operate where aerosol (spray) products are being used or
where oxygen is being administered.
7. Do not use this razor with a damaged or broken comb, as facial
injury may occur.
8. For corded use, always attach plug to razor first, then to outlet.
Be certain that plug is inserted firmly into razor, up to mark
indicated on plug. For stand use, always put razor in stand first,
attach cord to stand, then plug into outlet.To disconnect, turn
razor off then remove charging plug from outlet.
9. Never put the razor in direct sunlight or store in a pouch at a
temperature above 140°F.
10. Razor can be rinsed under running tap water. Do not submerge
razor in water.
11.To prevent possible damage to the cord, do not wrap cord
around the razor or charging stand.
SAVE THESE
INSTRUCTIONS
IMPORTANT: The power plug contains a transformer. Do not
cut off the power plug to replace it with another plug, as this will
cause a hazardous condition.
8160XLCDFU021_16_05Norelco.qxd 3/4/05 3:49 PM Page 5 (Zwart plate)

ENGLISH66
60 - DAY MONEY-BACK GUARANTEE
To enjoy the closest and most comfortable shave from your new Norelco Men’s
Razor, the razor should be used exclusivelyfor 3 weeks.This allows your hair
and skin enough time to adapt to the Norelco Shaving System. If, after that
period of time, you are not fully satisfied with your Norelco Men’s Razor, send
the product back and we’ll refund you the full purchase price.
The razor must be shipped prepaid by insured mail, insurance prepaid,
and have the sales slip, indicating purchase price and the date of
purchase, enclosed. The razor must be postmarked no later than 60 days
after the date of purchase. Norelco reserves the right to verify the purchase
price of the razor and limit refunds not to exceed suggested retail price.
Send dated sales slip, your complete name and address as indicated
below, and the razor, prepaid to:
Philips Domestic Appliances and Personal Care Company
A Division of Philips Electronics North America Corporation
450 North Medinah Rd, Dock 16
Roselle, IL 60172-2329
Please allow 4-6 weeks for delivery of check. (Please Print)
Name_________________________________________________________
Address________________________________________________________
City___________________________________________________________
State_____Zip__________________________________________________
Daytime Telephone No. (____)______________________________________
E-mail Address__________________________________________________
REASON FOR RETURNING:______________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
Area Code
8160XLCDFU021_16_05Norelco.qxd 3/4/05 3:49 PM Page 6 (Zwart plate)

ENGLISH 7
Table of Contents
Features.........................................................8-9
5 LED Battery Level Indicators ..........10-11
Before First Use............................................11
Charging ...................................................11-13
Recharging......................................................13
Quick Charge................................................13
Put It To The Test & Shaving Tips ..............14
How To Shave With An
Electric Razor..........................................14-15
Trimming.........................................................16
Cleaning....................................................16-19
Storage............................................................20
Assistance.......................................................20
Accessories....................................................21
Warranty.........................................................23
Spanish ............................................................24
7
8160XLCDFU021_16_05Norelco.qxd 3/4/05 3:49 PM Page 7 (Zwart plate)

ENGLISH88

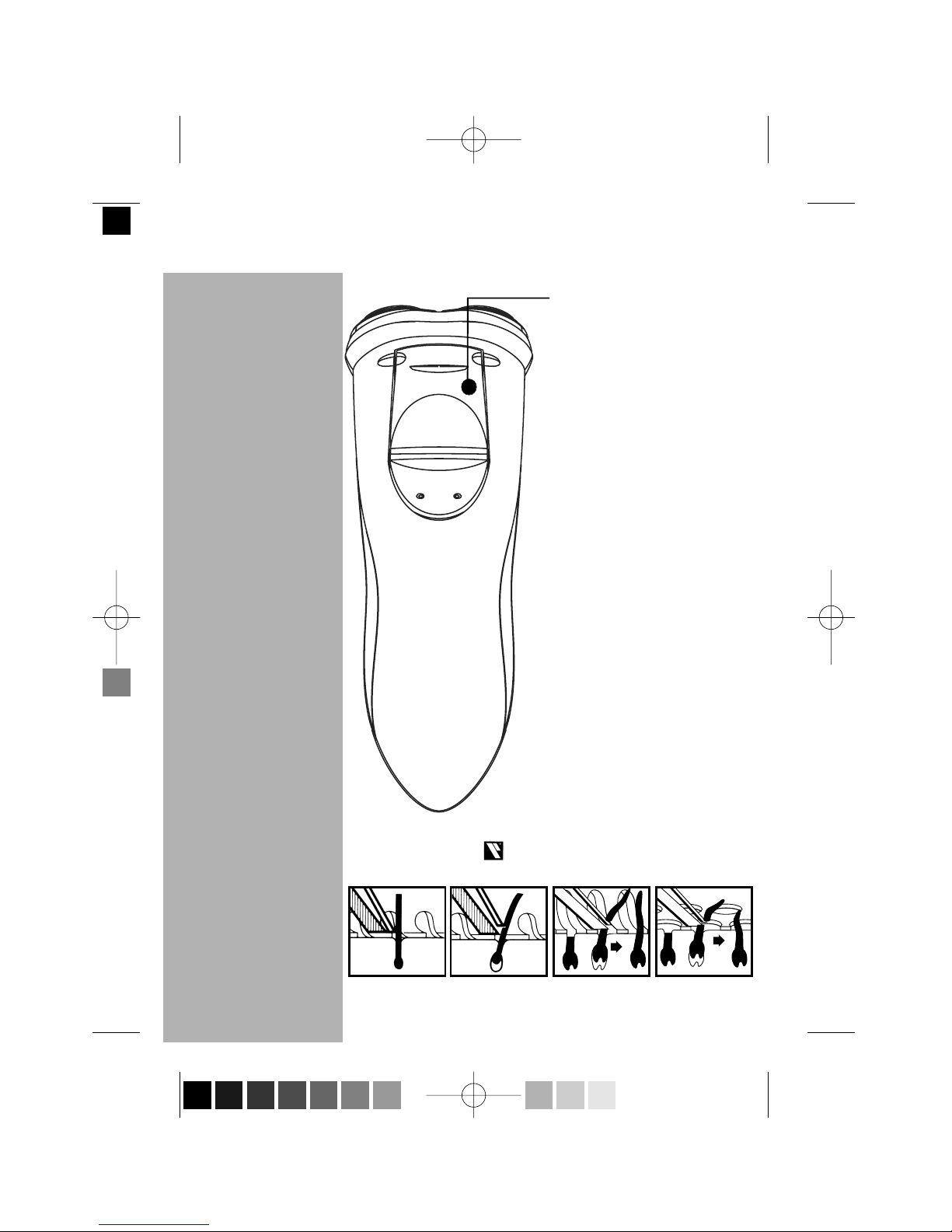

Features
