Philips S3520 User manual

S3520, S3510, S3120, S3110

S3520
S3510
1
9
2
3
4
5
10
8
7
6

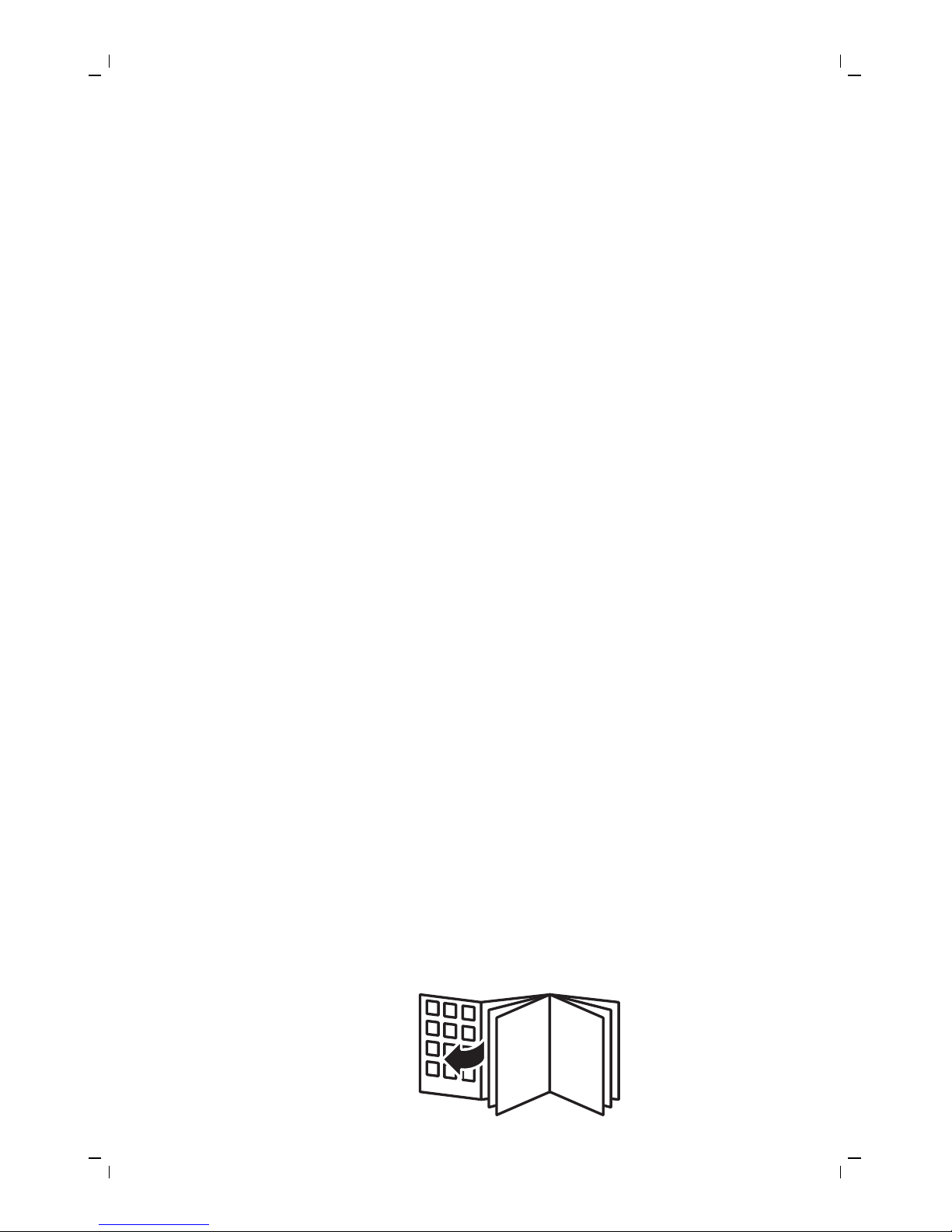

empty page before TOC

English 6
Bahasa Indonesia 21
Bahasa Melayu 35
Tiếng Việt 50
ภาษาไทย 64
简体中文 77
繁體中文 90
한국의 102
ﺔﻴﺑﺮﻌﻟﺍ 115
یسرﺍف 128
תירבע 142

English
Introduction
Congratulations on your purchase and welcome to
Philips! To fully benefit from the support that
Philips offers, register your product at
www.philips.com/welcome.
General description (Fig. 1)
1 Protection cap
2 Shaving unit
3 Shaving unit release button
4 On/off button
5 Shaving head symbol
6 Charging light
7 Trimmer (S3520, S3510 only)
8 Trimmer release slide (S3520, S3510 only)
9 Supply unit (adapter, type HQ8505)
10 Small plug
Important safety information
Read this important information carefully before
you use the appliance and its accessories and
save it for future reference. The accessories
supplied may vary for different products.
Danger
- Keep the supply unit dry.
6English

Warning
- To charge the battery, only use
the detachable supply unit
(type HQ8505) provided with
the appliance.
- The supply unit contains a
transformer. Do not cut off the
supply unit to replace it with
another plug, as this causes a
hazardous situation.
- This appliance can be used by
children aged from 8 years and
above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge if
they have been given
supervision or instruction
concerning use of the
appliance in a safe way and
understand the hazards
involved. Children shall not play
with the appliance. Cleaning
and user maintenance shall not
be made by children without
supervision.
7
English

- Always unplug the shaver
before you clean it under the
tap.
- Always check the appliance
before you use it. Do not use
the appliance if it is damaged,
as this may cause injury. Always
replace a damaged part with
one of the original type.
- Do not open the appliance to
replace the rechargeable
battery.
Caution
- Never immerse the cleaning
system or the charging stand in
water and do not rinse it under
the tap.
- Never immerse the shaver in
water. Do not use the shaver in
the bath or in the shower.
- Never use water hotter than
80°C to rinse the shaver.
- Only use this appliance for its
intended purpose as shown in
the user manual.
8English

- For hygienic reasons, the
appliance should only be used
by one person.
- Never use compressed air,
scouring pads, abrasive
cleaning agents or aggressive
liquids such as petrol or
acetone to clean the appliance.
- If your shaver comes with a
cleaning system, always use
the original Philips cleaning
fluid (cartridge or bottle,
depending on the type of
cleaning system).
- Always place the cleaning
system on a stable, level and
horizontal surface to prevent
leakage.
- If your cleaning system uses a
cleaning cartridge, always make
sure the cartridge compartment
is closed before you use the
cleaning system to clean or
charge the shaver.
9
English

- When the cleaning system is
ready for use, do not move it to
prevent leakage of cleaning
fluid.
- Water may drip from the socket
at the bottom of the shaver
when you rinse it. This is normal
and not dangerous because all
electronics are enclosed in a
sealed power unit inside the
shaver.
- Do not use the supply unit in or
near wall sockets that contain
an electric air freshener to
prevent irreparable damage to
the supply unit.
Electromagnetic fields (EMF)
- This Philips appliance complies with all
applicable standards and regulations regarding
exposure to electromagnetic fields.
General
- This shaver can be safely cleaned under the
tap.
- The appliance is suitable for mains voltages
ranging from 100 to 240 volts.
- The supply unit transforms 100-240 volts to a
safe low voltage of less than 24 volts.
10 English

Charging
It takes approx. 1 hour (S3520, S3510) or 8 hours
(S3120, S3110) to fully charge the appliance. When
you charge the appliance for the first time or after
a long period of disuse, let it charge until the
charging light lights up continuously. A fully
charged appliance provides up to 50 minutes
(S3520, S3510) or 45 minutes (S3120, S3110) of
shaving time. The shaving time may be less than
50 or 45 minutes as a result of your shaving
behavior, your cleaning habits or your beard type.
Charging with the adapter
2
1
1Put the small plug in the appliance.
2Put the adapter in the wall socket.
- The charging light shows the charging status of
the appliance (see section ‘Charge indications’
in this chapter).
3After charging, remove the adapter from the
wall socket and pull the small plug out of the
appliance.
Charge indications
Battery low
- When the battery is almost empty (when there
are only 5 or fewer shaving minutes left), the
charging light starts to flash orange.
- When you switch off the appliance, the
charging light continues to flash orange for a
few seconds.
Quick charging
When you start charging the empty battery, the
charging light alternately flashes orange and
green. After approx. 3 minutes the charging light
starts flashing green only. The appliance now
contains enough energy for a 5-minute shave.
11
English

Charging
- When the appliance is charging, the charging
light flashes green.
Battery fully charged
- When the battery is fully charged, the charging
light lights up green continuously.
Note: After approx. 30 minutes, the charging light
goes out to save energy.
Using the appliance
Note: This appliance can be used without cord or
when it is connected to the wall socket.
Shaving tips and tricks
- Make circular movements during use. Circular
movements provide better shaving results than
straight movements.
- Your skin may need 2 or 3 weeks to get
accustomed to the Philips shaving system.
Switching the appliance on and off
1To switch on the appliance, press the on/off
button once.
2To switch off the appliance, press the on/off
button once.
Shaving
1Switch on the appliance.
12 English

2Move the shaving heads in circular movements
over your skin.
3After shaving, switch off the appliance.
4Clean the appliance (see chapter ‘Cleaning and
maintenance’).
Trimming (S3520, S3510 only)
You can use the trimmer to groom your sideburns
and moustache.
1Push the trimmer slide downwards to open the
trimmer.
2Switch on the appliance.
- You can now start trimming.
3After trimming, switch off the appliance.
4Clean the trimmer (see chapter ‘Cleaning and
maintenance’).
5Close the trimmer (‘click’).
Cleaning and maintenance
Danger: Remove the detachable cord
from the handheld part before cleaning
this part in water.
Caution: Never use compressed air, scouring
pads, abrasive cleaning agents or aggressive
13
English

liquids such as petrol or acetone to clean the
appliance.
- Clean the appliance after every shave for
optimal shaving performance.
- Regular cleaning guarantees better shaving
performance.
- Be careful with hot water. Always check if the
water is not too hot, to prevent your hands from
getting burnt.
Note: Water may leak from the socket at the
bottom of the appliance when you rinse it. This is
normal and not dangerous because all electronics
are enclosed in a sealed power unit inside the
shaver.
Cleaning the shaving unit under the tap
1Switch off the appliance and make sure it is
disconnected from the wall socket.
2Press the release button to open the shaving
unit. Rinse the inside of the shaving unit and the
hair chamber under a hot tap for 30 seconds.
- Rinse the outside of the shaving unit.
3Close the shaving unit and shake off excess
water.
Caution: Be careful not to hit the shaving unit
against anything while you shake off excess
water.
Caution: Never dry the shaving unit and the hair
chamber with a towel or tissue, as this may
damage the shaving unit.
4Open the shaving unit again and leave it open
to let the appliance dry completely.
14 English

Thorough cleaning
Clean the shaving heads thoroughly once a month
for optimal performance.
1Switch off the appliance and make sure it is
disconnected from the wall socket.
2Press the release button to open the shaving
unit. Pull the shaving unit off the appliance.
2
1
3Turn the lock anticlockwise and remove the
retaining frame.
4Remove and clean one shaving head at a time.
Each shaving head consists of a cutter and a
guard.
Note: Do not clean more than one cutter and
guard at a time, since they are all matching sets.
If you accidentally mix up the cutters and
guards, it may take several weeks before
optimal shaving performance is restored.
- Remove the cutter from the shaving guard and
clean both parts under the tap.
15
English

5Put the cutter back into the guard.
6Put the shaving heads back into the shaving
unit.
Note: Make sure that the projections of the
shaving heads fit exactly into the recesses of
the shaving head holder.
1
2
7Put the retaining frame back into the shaving
unit and turn the lock clockwise.
8Insert the lug of the shaving unit into the slot in
the top of the appliance. Then close the shaving
unit ('click').
Note: If the shaving unit does not close
smoothly, check if you have inserted the
shaving heads properly and if the retaining
frame is locked.
Cleaning the trimmer under the tap (S3520, S3510
only)
Clean the trimmer every time you have used it.
1Switch off the appliance and make sure it is
disconnected from the wall socket.
16 English

2Push the trimmer slide downwards to open the
trimmer.
3Switch on the appliance and clean the trimmer
under the tap.
4Switch off the appliance and leave the trimmer
open to let it dry.
5Close the trimmer (‘click’).
Tip: For optimal trimming performance, lubricate
the trimmer teeth with a drop of sewing machine
oil every six months.
Storage
Note: We advise you to let the appliance dry
before you put the protection cap on it.
Put the protection cap on the appliance to prevent
damage.
Replacement
2yrs
For maximum shaving performance, we advise you
to replace the shaving heads every two years.
Replace damaged shaving heads immediately.
Always replace the shaving heads with original
Philips shaving heads' (see 'Ordering accessories').
17
English

Replacement reminder
The shaving unit symbol will light up to indicate
that the shaving heads need to be replaced.
1The shaving unit symbol lights up orange
continuously.
2Switch off the appliance and make sure it is
disconnected from the wall socket.
3Press the release button to open the shaving
unit. Pull the shaving unit off the appliance.
2
1
4Turn the lock anticlockwise and remove the
retaining frame.
5Remove the shaving heads from the shaving
unit and throw them away.
6Place new shaving heads in the shaving unit.
Note: Make sure that the projections of the
shaving heads fit exactly into the recesses of
the shaving head holder.
1
2
7Put the retaining frame back into the shaving
unit and turn the lock clockwise.
18 English

8Insert the lug of the shaving unit into the slot in
the top of the appliance. Then close the shaving
unit ('click').
Note: If the shaving unit does not close
smoothly, check if you have inserted the
shaving heads properly and if the retaining
frame is locked.
5 sec.
9Press and hold the on/off button for 5 seconds
to reset the replacement reminder on the
shaver. The orange light goes out.
Ordering accessories
To buy accessories or spare parts, visit
www.shop.philips.com/service or go to your
Philips dealer. You can also contact the Philips
Consumer Care Center in your country (see the
worldwide guarantee leaflet for contact details).
The following accessories and spare parts are
available:
- SH30 Philips Shaving Heads.
- HQ110 Philips shaving head cleaning spray
Recycling
- Do not throw away the product with the normal
household waste at the end of its life, but hand
it in at an official collection point for recycling.
By doing this, you help to preserve the
environment.
Guarantee and support
If you need information or support, please visit
www.philips.com/support or read the separate
worldwide guarantee leaflet.
19
English

Guarantee restrictions
The shaving heads (cutters and guards) are not
covered by the terms of the international
guarantee because they are subject to wear.
Troubleshooting
This chapter summarizes the most common
problems you could encounter with the appliance.
If you are unable to solve the problem with the
information below, visit www.philips.com/support for
a list of frequently asked questions or contact the
Consumer Care Center in your country.
Problem Possible cause Solution
The appliance
does not shave as
well as it used to.
The shaving heads
are damaged or
worn.
Replace the shaving heads
(see chapter
'Replacement').
Long hairs obstruct
the shaving heads.
Clean the shaving heads
one by one (see chapter
'Cleaning and
maintenance').
You have not
inserted the
shaving heads
properly.
Make sure that the
projections of the shaving
heads fit exactly into the
recesses (see chapter
'Cleaning and
maintenance').
The appliance
does not work
when I press the
on/off button.
The rechargeable
battery is empty.
Recharge the battery (see
chapter 'Charging'.
The temperature of
the appliance is too
high. In this case,
the appliance does
not work.
As soon as the
temperature of the
appliance has dropped
sufficiently, you can switch
on the appliance again.
20 English
