Philips AT940 User manual

AT940
AT928
AT921
AT893
AT890
AT752
AT750

1

AT940, AT928, AT921, AT893, AT890, AT752, AT750
ENGLISH 6
FRANÇAIS (CANADA) 23

6
Introduction
Congratulations on your purchase and welcome to
Philips! To fully benet from the support that Philips
offers, register your product at
www.philips.com/welcome.
Please read this user manual, as it contains
information about the wonderful features of this
shaver as well as some tips to make shaving easier
and more enjoyable.

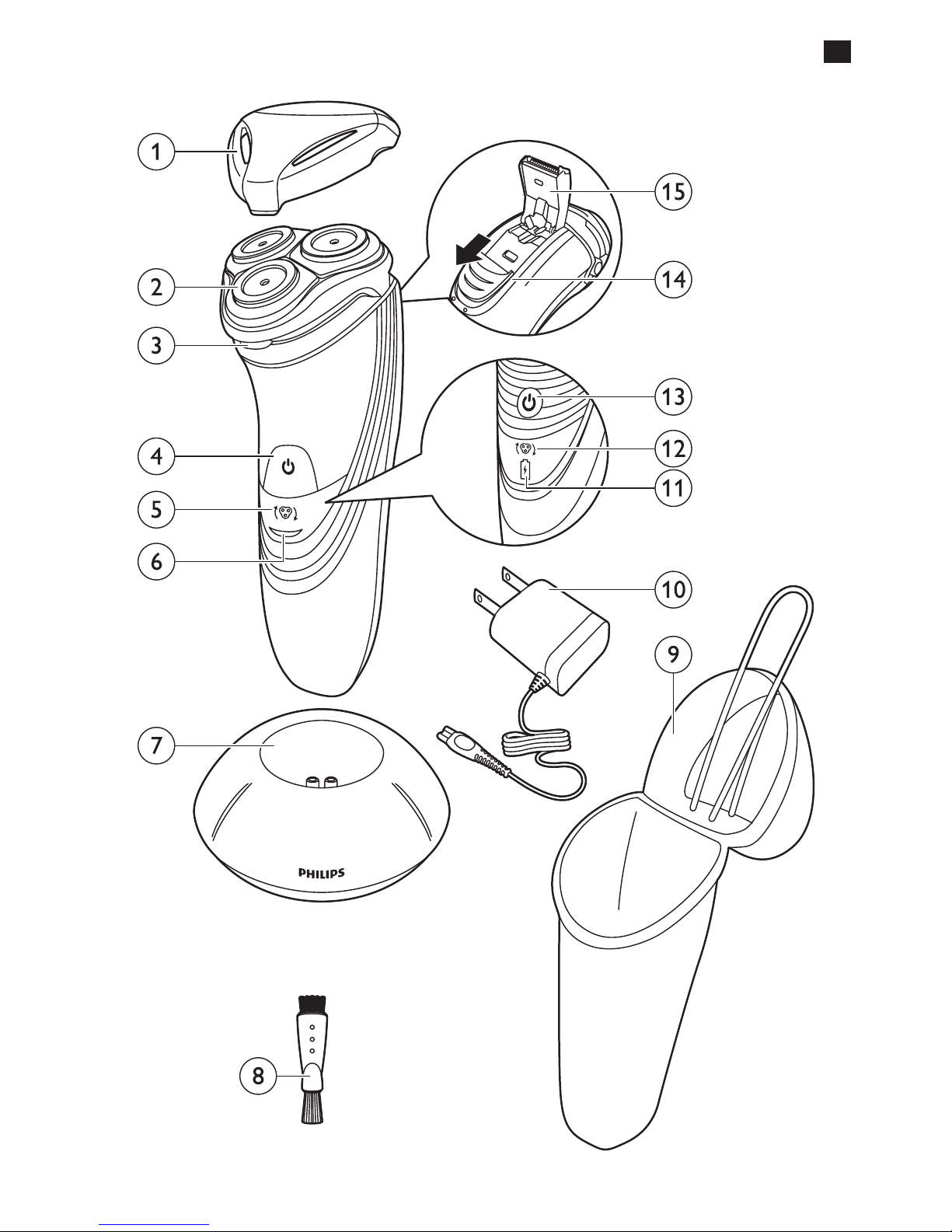

General description (Fig. 1)
1 Protection cap
2 Shaving unit
3 Shaving unit release button
4 Shaver on/off button (AT893/AT890/AT752/
AT750 only)
5 Shaving head symbol
6 Charging light (AT893/AT890/AT752/AT750
only)
7 Charging stand (AT940/AT928/AT921 only)
8 Cleaning brush
9 Pouch (AT940/AT928/ AT921/AT893/AT890 only)
10 Adapter
11 Battery symbol (AT940/AT928/AT921 only)
12 Shaving head symbol
13 Shaver on/off button (AT940/AT928/AT921 only)
14 Trimmer release slide (AT940/AT928/AT921/
AT893/AT890 only)
15
Trimmer (AT940/AT928/AT921/AT893/AT890 only)
Note: You can nd the type number on the back of the
shaver.
ENGLISH

Important
Read this important information carefully before you
use the shaver and the charging stand (specic types
only). Save this leaet for future reference.
Danger
- Keep the adapter dry.
Warning
- The adapter contains a transformer. Do not cut
off the adapter to replace it with another plug,
as this causes a hazardous situation.
- The shaver and the charging stand can be used by
children from 8 years and above and persons with
reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless
they have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. Cleaning and
maintenance shall not be made by children unless
they are older than 8 and supervised.
- Always unplug the shaver before you clean
it under the tap.
Caution
- Never immerse the charging stand in water nor
rinse it under the tap.
- Never use water hotter than 80°C to rinse
the shaver.
- Do not use the shaver, adapter, charging stand or
any other part if it is damaged, as this may cause
injury. Always replace a damaged adapter, charging
stand or part with one of the original type.
- Never use compressed air, scouring pads, abrasive
cleaning agents or aggressive liquids such as petrol
or acetone to clean the appliance.
ENGLISH 7

- Water may leak from the socket at the bottom
of the shaver when you rinse it.This is normal
and not dangerous because all electronics are
enclosed in a sealed power unit inside the shaver.
Compliance with standards
- This shaver is waterproof and complies with the
internationally approved safety regulations. It is
suitable for use in the bath or shower and for
cleaning under the tap. For safety reasons, the
shaver can therefore only be used cordlessly.
- The shaver complies with all applicable
standards and regulations regarding exposure to
electromagnetic elds.
General
- The adapter is equipped with an automatic
voltage selector and is suitable for mains voltages
ranging from 100 to 240 volts.
- The adapter transforms 100-240 volts to a safe
low voltage of less than 24 volts.
- Maximum noise level: Lc = 69dB(A)
Charging
Note: The shaver cannot be used directly from the
mains.
AT940/AT928/AT921/AT893/AT890: It takes approx.
1 hour to fully charge the shaver.
AT752/AT750: It takes approx. 8 hours to fully
charge the shaver.
A fully charged shaver provides up to 60 (AT940/
AT928/AT921), 50 (AT893/AT890) or 40 (AT752/
AT750) shaving minutes.
The shaving time may be less than expected as
a result of your shaving behaviour, your cleaning
habits or your beard type.
ENGLISH8

Charge indications
Battery low
- AT940/AT928/AT921:When the battery is almost
empty (when there are only 5 or fewer shaving
minutes left), the orange battery symbol starts to
ash. When you switch off the shaver, the orange
battery symbol continues to ash for a few
seconds.
- AT893/AT890/AT752/AT750:When the battery
is almost empty (when there are only 5 or fewer
shaving minutes left), the charging light starts to
ash orange. When you switch off the shaver,
the charging light continues to ash orange for a
few seconds.
Quick charging
(AT940/AT928/AT921/AT893/AT890 only)
- AT940/AT928/AT921:When you start charging
the empty battery, the battery symbol ashes
orange and white.
Note: When the battery symbol ashes white and
orange towards only white, you can have a quick shave
of three minutes.
- AT893/AT890:When you start charging the
empty battery, the charging light alternately ashes
orange and white.
Note: When the charging light ashes orange and
white towards only white, you can have a quick shave
of three minutes.
ENGLISH 9

Charging
- AT940/AT928/AT921:When the shaver is
charging, the white battery symbol ashes.
- AT893/AT890/AT752/AT750:When the shaver is
charging, the charging light ashes white.
Battery fully charged
- AT940/AT928/AT921:When the battery is fully
charged, the white battery symbol lights up
continuously.
Note: After approx. 30 minutes, the battery symbol
goes out to save energy.
- AT893/AT890/AT752/AT750:When the battery
is fully charged, the charging light lights up green
continuously.
Note: After approx. 30 minutes, the charging light goes
out to save energy.
Charging with the adapter
1 Put the small plug in the shaver.
2 Put the adapter in the wall socket.
,The charging light shows the charging status of
the shaver (see section ‘Charge indications’
in this chapter).
ENGLISH10

Charging in the charging stand
(AT940/AT928/AT921 only)
1 Put the small plug in the charging stand.
2 Put the adapter in the wall socket.
3 Place the shaver in the charging stand.
,The charging light shows the charging status of
the shaver.
Using the shaver
Note: This shaver can be used in the bath or shower.
It can therefore not be used directly from the mains for
safety reasons.
Shaving tips and tricks
- This shaver is suitable for both wet and dry use.
Use the shaver with shaving gel or foam for extra skin
comfort, or use the shaver dry for extra convenience.
Note: We advise you to use the shaver with shaving gel
or foam when you use it for a wet shave. Do not use
thick shaving cream or shaving oil with this shaver.
- For optimal shaving results, make circular
movements during use.
- The shaver is waterproof and can be used in the
bath or shower.
- Your skin may need 2 or 3 weeks to get
accustomed to the Philips shaving system.
Wet shaving
1 Apply some water to your skin.
ENGLISH 11

2 Apply shaving foam or shaving gel to your skin.
3
Rinse the shaving unit under the tap to ensure that
the shaving unit glides smoothly over your skin.
4 Press the on/off button once to switch on
the shaver.
5 Move the shaving heads in circular movements
over your skin.
Note: Rinse the shaver under the tap regularly to ensure
that it continues to glide smoothly over your skin.
6 After shaving, press the on/off button once to
switch off the shaver and dry your face.
7 Clean the shaver (see chapter ‘Cleaning and
maintenance’).
Note: Make sure you rinse all foam or shaving gel off
the shaver.
Dry shaving
1 Press the on/off button once to switch on the
shaver.
2 Move the shaving heads in circular movements
over your skin.
3 After shaving, press the on/off button once to
switch off the shaver.
4 Clean the shaver (see chapter ‘Cleaning and
maintenance’).
ENGLISH12

Trimming
(AT940/AT928/AT921/AT893/AT890 only)
You can use the trimmer to groom your sideburns
and moustache.
1 Push the trimmer slide downwards to open
the trimmer.
2 Press the on/off button once to switch on the
shaver.
,You can now start trimming.
3 After trimming, press the on/off button once to
switch off the shaver.
4 Clean the trimmer (see chapter ‘Cleaning and
maintenance’).
5 Close the trimmer (‘click’).
Cleaning and maintenance
Never use compressed air, scouring pads, abrasive
cleaning agents or aggressive liquids such as petrol
or acetone to clean the shaver and the charging
stand (AT940/AT928/AT921 only).
Always unplug the shaver before you clean it under
the tap.
- Clean the shaver after every shave for optimal
shaving performance.
- Regular cleaning guarantees better shaving
performance.
- For the best cleaning results, we advise you to use
the Philips Cleaning spray (HQ110).
ENGLISH 13

- Be careful with hot water.Always check if the
water is not too hot, to prevent your hands from
getting burnt.
Note: Water may leak from the socket at the bottom
of the shaver when you rinse it. This is normal and not
dangerous because all electronics are enclosed in a
sealed power unit inside the shaver.
Cleaning the shaving unit under the tap
1 Switch off the shaver.
2 Press the release button to open the shaving unit.
3 Rinse the shaving unit and hair chamber under
a hot tap for 30 seconds.
Be careful with hot water.Always check if the
water is not too hot, to prevent your hands from
getting burnt.
- Rinse the hair chamber and the inside of the
shaving unit.
- Rinse the outside of the shaving unit.
4 Close the shaving unit and shake off excess
water.
Be careful not to hit the shaving unit against
anything while shaking off excess water.
Never dry the shaving unit and the hair chamber with
a towel or tissue, as this may damage the shaving unit.
5 Open the shaving unit again and leave it open
to let the shaver dry completely.
ENGLISH14

Cleaning the shaving unit with the cleaning
brush
1 Switch off the shaver.
2 Press the release button to open the shaving
unit.
3 Pull the shaving unit off the shaver.
4 Turn the lock anticlockwise (A) and remove
the retaining frame (B).
5 Remove and clean one shaving head at a time.
Each shaving head consists of a cutter and a
guard.
Note: Do not clean more than one cutter and guard at a
time, since they are all matching sets. If you accidentally
mix up the cutters and guards, it may take several weeks
before optimal shaving performance is restored.
- Remove the cutter from the shaving guard and
clean it with the brush.
- Clean the inside and outside of the shaving guard
with the brush.
ENGLISH 15

6 Put the shaving heads back into the shaving unit.
Make sure that the projections of the shaving
heads t exactly into the recesses.
7 Put the retaining frame back into the shaving
unit and turn the lock clockwise.
8 Insert the lug of the shaving unit into the slot in
the top of the shaver.Then close the shaving unit.
Note: If the shaving unit does not close smoothly, check
if you have inserted the shaving heads properly and if
the retaining frame is locked.
Cleaning the trimmer with the cleaning brush
(AT940/AT928/AT921/AT893/AT890 only)
Clean the trimmer every time you have used it.
1 Switch off the shaver.
2 Push the trimmer slide downwards to open
the trimmer.
3 Clean the trimmer with the short-bristled side
of the cleaning brush. Brush up and down along
the trimmer teeth.
4 Close the trimmer (‘ click’).
Tip: For optimal trimming performance, lubricate the
trimmer teeth with a drop of sewing machine oil every
six months.
ENGLISH16

Storage
There are several ways to store the shaver or to
take it with you when you travel:
- Always put the protection cap on the shaver to
prevent damage.
- AT940/AT928/AT921/AT893/AT890 only: Store
the shaver in the pouch supplied.
- AT940/AT928/AT921 only: Store the shaver in the
charging stand.
Replacement
For maximum shaving performance, we advise you
to replace the shaving heads every year.
Replacement reminder
The shaving head symbol will light up to indicate
that the shaving heads need to be replaced. Replace
damaged shaving heads right away.
Only replace the shaving heads with original HQ9
(AT940/AT928/AT921) or HQ8 (AT893/AT890/
AT752/AT750) Philips Shaving Heads.
1 The shaving head symbol lights up orange
continuously.
2 Switch off the shaver. Disconnect the shaver
from the mains or remove it from the charging
stand (AT940/AT928/AT921 only).
3 Press the release button to open the shaving unit.
4 Pull the shaving unit off the shaver.
5 Turn the lock anticlockwise (A) and remove
the retaining frame (B).
6 Remove the shaving heads and place new ones
in the shaving unit.
ENGLISH 17

Make sure that the projections of the shaving
heads t exactly into the recesses.
7 Put the retaining frame back into the shaving
unit (A)and turn the lock clockwise (B).
8 Insert the lug of the shaving unit into the slot in
the top of the shaver.Then close the shaving unit.
Note: If the shaving unit does not close smoothly, check
if you have inserted the shaving heads properly and if
the retaining frame is locked.
9 Press and hold the on/off button for 5 seconds
to reset the replacement reminder on the
shaver.The orange light will go out.
Ordering accessories
To retain the top performance of your shaver, make
sure you clean it regularly and replace its shaving
heads at the recommended time.
Shaving heads
- We advise you to replace your shaving heads
every year.Always replace with HQ9 (for AT940/
AT928/AT921) or HQ8 (for AT893/AT890/
AT752/AT750) Philips Shaving Heads.
ENGLISH18

Cleaning
- Use Cleaning spray (HQ110) to clean the shaving
heads thoroughly.
Recycling
- This symbol on a product means that the product
is covered by European Directive 2012/19/EU.
- This symbol means that the product contains a
built-in rechargeable battery covered by European
Directive 2006/66/EC which cannot be disposed
of with normal household waste. Follow the
instructions in section ‘Removing the rechargeable
battery’ to remove the battery.
- Inform yourself about the local separate collection
system for electrical and electronic products and
rechargeable batteries. Follow local rules and
never dispose of the product and rechargeable
batteries with normal household waste. Correct
disposal of old products and rechargeable
batteries helps prevent negative consequences for
the environment and human health.
Removing the rechargeable shaver battery
Note: We strongly advise you to have a professional
remove the rechargeable battery.
Only remove the rechargeable battery when you
discard the shaver. Make sure the rechargeable
battery is completely empty when you remove it.
ENGLISH 19

1 Disconnect the shaver from the mains or
remove it from the charging stand
(AT940/ AT928/AT921 only).
2 Let the shaver run until it stops.
3 Undo the screws in the back of the shaver and
in the hair chamber.
4 Remove the front panel and the back panel.
5 Bend the 6 hooks aside and take out the
power unit.
Be careful, the hooks are sharp.
6 Remove the battery.
Be careful, the battery strips are sharp.
Do not connect the shaver to the mains again
or put it back into the plugged-in charging stand
(AT940/AT928/AT921 only) after you have
removed the rechargeable battery.
Guarantee and support
If you need information or support, please
www.philips.com/support or call toll free:
1-866-800-9311.To locate the nearest Philips
warranty depot, visit our website www.philips.com.
Guarantee restrictions
- Philips Consumer Lifestyle guarantees its products
for a period of two years after the date of
purchase. If any defect due to faulty materials
and workmanship occurs within this two-year
guarantee period, Philips Consumer Lifestyle will
repair or replace the product at its expense.
ENGLISH20
