Introduction
Congratulations on your purchase and welcome to
Philips! To fully benet from the support that Philips
offers, register your product at
www.philips.com/welcome.

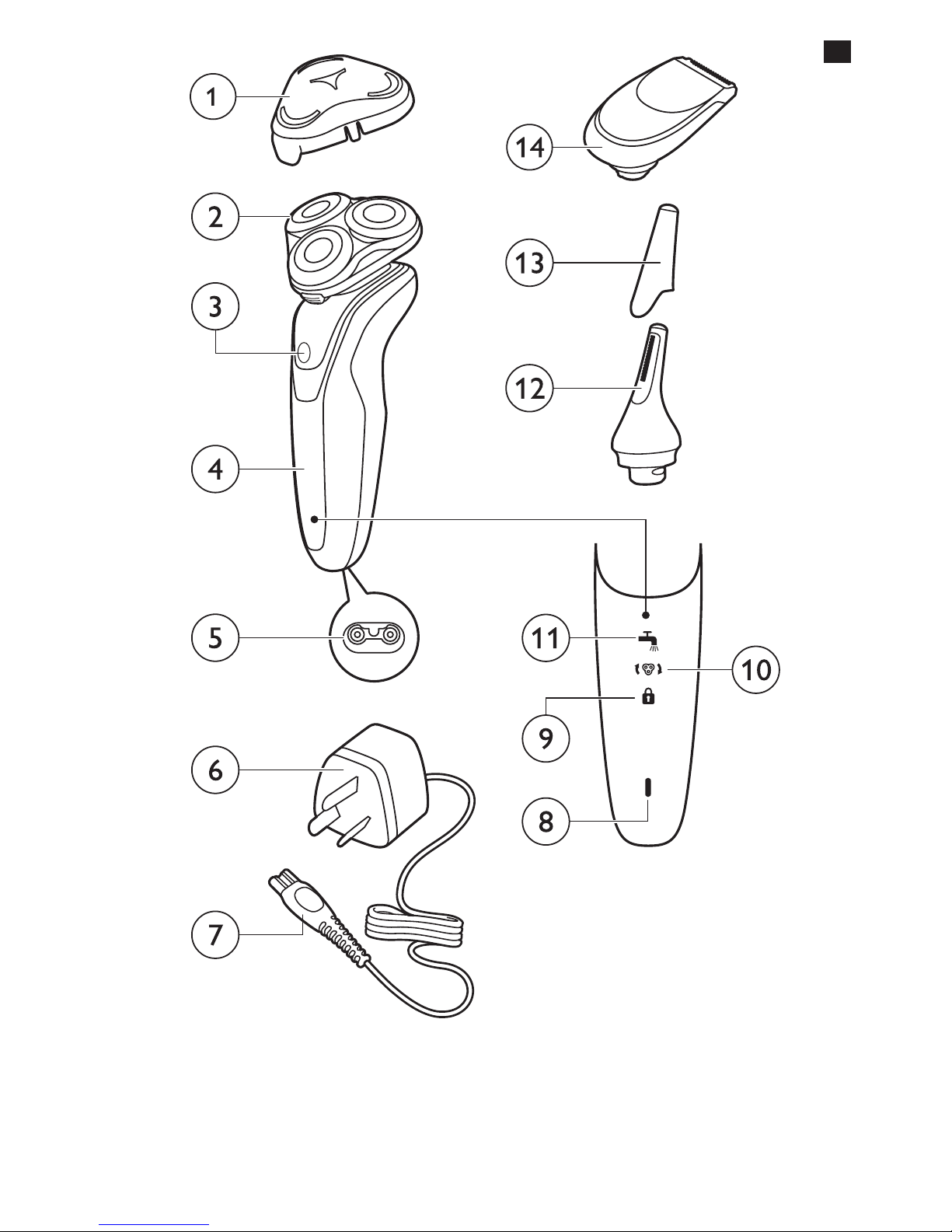

General description (Fig. 1)
1 Protection cap for shaving unit
2 Click-on shaving unit
3 On/off button
4 Handle
5 Socket for small plug
6 Adapter
7 Small plug
8 Battery charge indicator
9 Travel lock symbol
10 Replacement reminder
(S5130/04, S5110/04, S5013/04 only)
11 Cleaning reminder
(S5130/04, S5110/04, S5013/04 only)
12 Click-on nose trimmer attachment
(S5015/61 only)
13 Protection cap for nose trimmer attachment
(S5015/61 only)
14 Click-on trimmer attachment
(S5130/04, S5110/04, S5015/61, S5013/04,
S5011/04, S5008/04 only)
Note:The accessories supplied may vary for different
products.The box shows the accessories that have been
supplied with your appliance.
ENGLISH

Important safety information
Read this important information carefully before you
use the appliance and its accessories and save it for
future reference.The accessories supplied may vary
for different products.
Danger
- Keep the adapter dry.
Warning
- The adapter contains a transformer. Do not cut
off the adapter to replace it with another plug,
as this causes a hazardous situation.
- This appliance is not intended for use by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
- Children should be supervised to ensure that they
do not play with the appliance.
- Always unplug the shaver before you clean it
under the tap.
- Always check the appliance before you use it.
Do not use the appliance if it is damaged, as this
may cause injury. Always replace a damaged part
with one of the original type.
Caution
- Never immerse the cleaning system or the charging
stand in water and do not rinse it under the tap.
- Never immerse the shaver in water. Do not use
the shaver in the bath or in the shower.
-
Never use water hotter than 80°C to rinse the shaver.
- Only use this appliance for its intended purpose as
shown in the user manual.
ENGLISH 7

- For hygienic reasons, the appliance should only be
used by one person.
- Never use compressed air, scouring pads,
abrasive cleaning agents or aggressive liquids such
as petrol or acetone to clean the appliance.
- If your shaver comes with a cleaning system,
always use the original Philips cleaning uid
(cartridge or bottle, depending on the type of
cleaning system).
- Always place the cleaning system on a stable,
level and horizontal surface to prevent leakage.
- If your cleaning system uses a cleaning cartridge,
always make sure that the cartridge compartment
is closed before you use the cleaning system to
clean or charge the shaver.
- When the cleaning system is ready for use,
do not move it to prevent leakage of cleaning uid.
- Water may drip from the socket at the bottom
of the shaver when you rinse it.This is normal
and not dangerous because all electronics are
enclosed in a sealed power unit inside the shaver.
Electromagnetic elds (EMF)
- This Philips appliance complies with all applicable
standards and regulations regarding exposure to
electromagnetic elds.
General
- This shaver can be safely cleaned under the tap.
- The appliance is suitable for mains voltages ranging
from 100 to 240 volts.
- The adapter transforms 100-240 volts to a safe
low voltage of less than 24 volts.
ENGLISH8

The display
Charging
Battery charge indicator
- Charging takes approx. 1 hour (S5130/04,
S5110/04, S5013/04 only) or 8 hours (S5015/61,
S5011/04, S5010/03, S5008/04 only).
- Quick charge (S5130/04, S5110/04, S5013/04
only):When the appliance does not contain
enough energy for one shave, the battery charge
indicator ashes quickly. When the battery charge
indicator starts ashing slowly, the appliance
contains enough energy for one shave.
- If you leave the appliance connected to the mains,
the charging process continues.To indicate that
the appliance is charging, the battery charge
indicator ashes slowly.
Battery fully charged
Note:You can also use this appliance directly from the
mains.
Note:When the battery is full, the display switches off
automatically after 30 minutes.
- When the battery is fully charged, the light of the
battery charge indicator lights up continuously.
Battery low
- When the battery is almost empty, the battery
charge indicator ashes orange.
ENGLISH 9

Cleaning reminder
For optimal shaving performance, we advise you to
clean the shaver after every use.
- When you switch off the shaver, the cleaning
reminder ashes to remind you to clean the
shaver (S5130/04, S5110/04, S5013/04 only).
Travel lock
You can lock the shaver when you are going to
travel.The travel lock prevents the shaver from being
switched on by accident.
Activating the travel lock
1 Press the on/off button for 3 seconds to enter
the travel lock mode.
- While you activate the travel lock, the travel lock
symbol lights up continuously.When the travel
lock is activated, the travel lock symbol ashes.
Deactivating the travel lock
1 Press the on/off button for 3 seconds.
- The travel lock symbol ashes and then lights up
continuously.
The shaver is now ready for use again.
3 sec.
ENGLISH10

Replacing shaving heads
For maximum shaving performance, we advise you
to replace the shaving heads every two years.
- The appliance is equipped with a replacement
reminder (S5130/04, S5110/04, S5013/04 only)
which reminds you to replace the shaving heads.
The replacement reminder lights up white
continuously.
Note:After replacing the shaving heads, you need to
reset the replacement reminder by pressing the on/off
button for 7 seconds.
Charging
Charging takes approx. 1 hour (S5130/04, S5110/04,
S5013/04) or 8 hours (S5015/61, S5011/04,
S5010/03, S5008/04 only).
Note:You can also use this appliance directly from the
mains.
Charge the shaver before you use it for the rst
time and when the display indicates that the battery
is almost empty.
Charging with the adapter
1 Insert the small plug into the appliance and put
the adapter in the wall socket.
ENGLISH 11

Using the shaver
Switching the appliance on and off
1 To switch on the appliance, press the on/off
button once.
2 To switch off the appliance, press the on/off
button once.
Shaving
Skin adaptation period
Your rst shaves may not bring you the result you
expect and your skin may even become slightly
irritated.This is normal.Your skin and beard
need time to adapt to any new shaving system.
We advise you to shave regularly (at least 3 times
a week) with this shaver for a period of 3 weeks to
allow your skin to adapt to the new shaver.
Note:You can also use the shaver directly from the mains.
1 Switch on the appliance.
2 Move the shaving heads over your skin in
circular movements.
Note: Do not make straight movements.
3 Clean the shaver after use
(see chapter ‘Cleaning and maintenance’).
ENGLISH12

Using the click-on attachments
Note:The accessories supplied may vary for different
products.The box shows the accessories that have been
supplied with your appliance.
Removing or attaching the click-on
attachments
1 Make sure the appliance is switched off.
2 Pull the attachment straight off the appliance.
Note: Do not twist the attachment while you pull it off
the appliance.
3 Insert the lug of the attachment into the slot
in the top of the appliance.Then press down
the attachment to attach it to the appliance
(‘click’).
Using the trimmer attachment
(S5130/04, S5110/04, S5015/61, S5013/04,
S5011/04, S5008/04 only)
You can use the trimmer attachment to groom
your sideburns and moustache.
1 Make sure the appliance is switched off.
2 Insert the lug of the attachment into the slot
in the top of the shaver.Then press down
the trimmer attachment to attach it to the
appliance (‘click’).
3 Switch on the appliance.
4 You can now start trimming.
5 Clean the attachment after use
(see chapter ‘Cleaning and maintenance’).
ENGLISH 13

Using the nose trimmer attachment
(S5015/61 only)
You can use the nose trimmer attachment to trim
your nose hair.
Make sure your nostrils are clean.
1 Insert the lug of the attachment into the slot
in the top of the appliance.Then press down
the attachment to attach it to the appliance
(‘click’).
2 Switch on the appliance.
3 Carefully insert the attachment into one of
your nostrils.
Do not insert the attachment more than
0.5cm into your nostrils.
4 Slowly move the attachment around to remove
all unwanted hairs in your nostrils.
5 Clean the attachment after use
(see chapter ‘Cleaning and maintenance’).
Trimming ear hair
You can use the nose trimmer attachment to trim
your ear hair. Make sure your outer ear channels are
clean and free from wax.
1 Insert the lug of the attachment into the slot
in the top of the appliance.Then press down
the attachment to attach it to the appliance
(‘click’).
2 Switch on the appliance.
3 Slowly move the attachment along the rim of
the ear to remove hairs that stick out beyond
the rim.
ENGLISH14

4 Insert the attachment into the outer ear
channel.
Do not insert the attachment more than 0.5cm
into your ear channel, as this could damage the
eardrum.
5 Slowly turn the attachment around to remove
all unwanted hairs from your outer ear
channel.
6 Clean the attachment after use
(see chapter ‘Cleaning and maintenance’).
Cleaning and maintenance
Note:The accessories supplied may vary for different
products.The box shows the accessories that have been
supplied with your appliance.
Cleaning the shaver under the tap
Clean the shaver after every shave for optimal
shaving performance.
Be careful with hot water.Always check if the
water is not too hot, to prevent your hands from
getting burnt.
Never dry the shaving unit with a towel or tissue,
as this may damage the shaving heads.
1 Rinse the shaving unit under a warm tap for
some time.
2 Press the release button and open the shaving
unit.
ENGLISH 15

3 Rinse the shaving head holder under a warm
tap for 30 seconds.
4 Carefully shake off excess water and let the
shaving head holder dry.
5 Close the shaving head holder (‘click’).
Thorough cleaning method
Make sure the appliance is switched off.
1 Press the release button and open the shaving
unit.
2 Pull the shaving head holder off the bottom
part of the shaving unit.
3 Turn the retaining rings anticlockwise and
remove them.
4 Remove the shaving heads from the shaving
head holder. Each shaving head consists of a
cutter and guard.
Note: Do not clean more than one cutter and guard at a
time, since they are all matching sets. If you accidentally
put a cutter in the wrong shaving guard, it may take several
weeks before optimal shaving performance is restored.
ENGLISH16

5 Clean the cutter and guard under the tap.
6 After cleaning, place the cutter back into the
guard.
7 Put the shaving heads back into the shaving
head holder.
Note: Make sure the projections of the shaving heads
t exactly into the recesses of the shaving-head holder.
8 Place the retaining rings back onto the shaving
head holder and turn them clockwise.
ENGLISH 17

- Each retaining ring has two recesses and two
projections that t exactly in the projections and
recesses of the shaving head holder.
- Turn the retaining ring clockwise until your hear
‘click’ and the ring is xed.
Note: Hold the shaving head holder in your hand
when you reinsert the shaving heads and reattach the
retaining rings. Do not place the shaving head holder
on a surface when you do this, as this may cause
damage.
9 Reinsert the hinge of the shaving head holder
into the slot of the shaving unit. Close the
shaving head holder (‘click’).
Cleaning the click-on attachments
Never dry the trimmer attachments with a towel
or tissue, as this may damage the trimming teeth.
Cleaning the trimmer attachment
(S5130/04, S5110/04, S5015/61, S5013/04,
S5011/04, S5008/04 only)
Clean the trimmer attachment every time you have
used it.
ENGLISH18

1 Switch on the appliance with the trimmer
attachment attached.
2 Rinse the trimmer attachment under a hot tap
for some time.
3 After cleaning, switch off the appliance.
4 Carefully shake off excess water and let the
trimmer attachment dry.
Tip: For optimal trimmer performance, lubricate the
trimmer teeth with a drop of sewing machine oil every
six months.
Cleaning the nose trimmer attachment
(S5015/61 only)
Clean the nose trimmer attachment every time you
have used it.
1 Make sure the appliance is switched off.
2 Rinse the cutting element of the nose trimming
head with hot water.
3 Switch on the appliance and rinse the cutting
element once more to remove any remaining
hairs.Then switch off the appliance again.
4 Carefully shake off excess water and let the
nose trimmer attachment dry.
Tip: For optimal trimmer performance, lubricate the
trimmer teeth with a drop of sewing machine oil every
six months.
ENGLISH 19

Storage
Note:The accessories supplied may vary for different
products.The box shows the accessories that have been
supplied with your appliance.
Note:We advise you to let the appliance and its
attachments dry before you put the protection caps on
the attachments and store the shaver in the pouch.
- S5015/61 only: Place the protection cap on the
nose trimming head.
- Put the protection cap on the shaving head to
protect it from dirt accumulation.
Replacement
Replacing the shaving heads
For maximum shaving performance, we advise you
to replace the shaving heads every two years.
Replace damaged shaving heads immediately.
Only replace the shaving heads with original Philips
shaving heads as specied in chapter
‘Ordering accessories’.
Replacement reminder
(S5130/04, S5110/04, S5013/04 only)
The shaving unit symbol will light up to indicate that
the shaving heads need to be replaced.
1
S5130/04, S5110/04, S5013/04 only: The shaving
unit symbol lights up continuously when you
switch off the shaver to indicate that the shaving
heads need to be replaced.
ENGLISH20
