Philips HQ6675 User manual

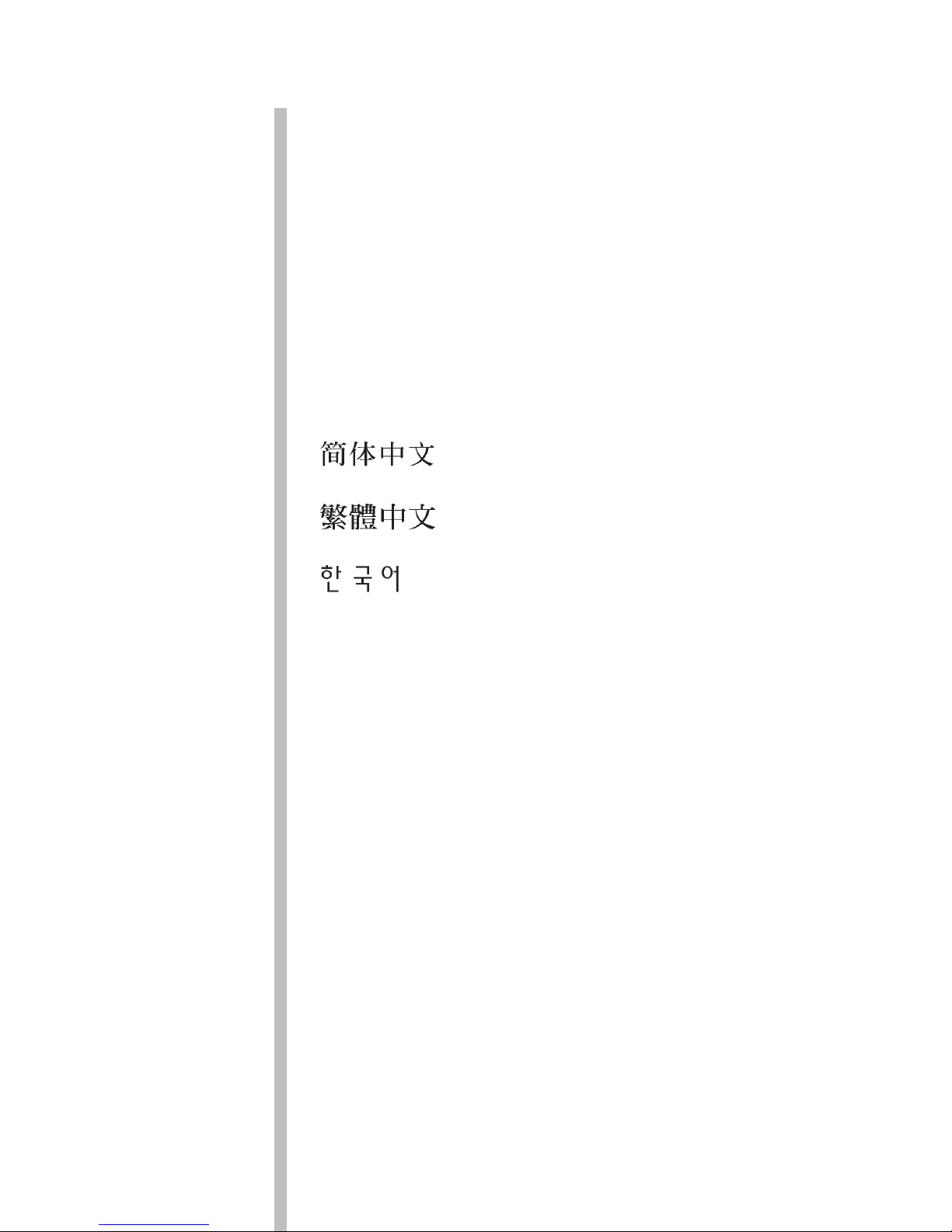

ENGLISH 4
BAHASA MELAYU 14
INDONESIA 25
TI”NG VI◊T 36
 46
55
65
75
HQ6675

Important
Read these instructions for use carefully before
using the appliance and save them for future
reference.
◗Only use the mains cord supplied.
◗Do not use a damaged mains cord.
◗If the mains cord is damaged, always have it
replaced by one of the original type in order
to avoid a hazard.
◗The appliance is equipped with an automatic
voltage selector and is suitable for mains
voltages ranging from 100 to 240 volts.
◗Charge, store and use the appliance at a
temperature between 5cC and 35cC.
◗Do not recharge the shaver in a closed pouch.
C◗Keep the appliance and the mains cord dry.
Charging
Make sure the appliance is switched off before
you start charging it.
Charge the appliance for at least 8 hours, but not
more than 24 hours. Do not leave the appliance
connected to the mains continously.
To prevent the battery from going flat during
shaving, you can also charge the shaver in
between shaves, even if the battery is not
completely empty yet.This will not damage the
battery.
ENGLISH4

Charge indications
Charging
C◗When you start charging the empty shaver,
the charging light goes on.
Charging the appliance
Charge the appliance when:
- the appliance is new or has not been used for a
long time
- motor stops or starts running slower
C1Put the appliance plug in the shaver.
2Put the mains plug in the wall socket.
3Remove the mains plug from the wall
socket and pull the appliance plug out of
the shaver when the battery has been fully
charged.
Cordless shaving time
A fully charged shaver has a cordless shaving time
of up to 10 days.
Using the appliance
◗The shaver cannot be used directly from the
mains.
ENGLISH 5
CHARGE

Shaving
1Switch the shaver on by pushing the on/off
slide to position I.
C2Move the shaving heads quickly over your
skin, making both straight and circular
movements.
Shaving on a dry face gives the best results.
Your skin may need 2 or 3 weeks to get
accustomed to the Philips shaving system.
3Switch the shaver off by pushing the on/off
slide to position 0.
C4Put the protection cap on the shaver every
time you have used it, to prevent damage.
Trimming
For grooming sideburns and moustache.
C1Open the trimmer by pushing the slide
upwards.
The trimmer can be activated while the motor is
running.
2Close the trimmer ('click').
Cleaning and maintenance
Regular cleaning guarantees better shaving
performance.
ENGLISH6

C◗For easy and optimal cleaning, the Philips
Shaving Head Cleaner (type HQ100) is
available.Ask your Philips dealer for
information.
BThe Philips Shaving Head Cleaner may not be
available in all countries. Contact the Customer
Care Centre in your country about the availability
of this accessory.
You can also clean the shaver in the following
way:
Every week: shaving unit and hair chamber
1Switch the shaver off, remove the mains
plug from the wall socket and pull the
appliance plug out of the shaver.
C2Clean the top of the appliance first, using
the brush supplied.
C3Press the release button (1) and remove
the shaving unit (2).
C4Clean the inside of the shaving unit and the
hair chamber with the brush.
ENGLISH 7
2
1

C5Put the shaving unit back onto the shaver.
Every two months: shaving heads
1Switch the shaver off, remove the mains
plug from the wall socket and pull the
appliance plug out of the shaver.
C2Press the release button (1) and remove
the shaving unit (2).
C3Turn the wheel anticlockwise (1) and
remove the retaining frame (2).
C4Remove the cutters and guards and clean
them with the brush supplied.
Do not clean more than one cutter and guard at
a time, since they are all matching sets. If you
accidentally mix up the cutters and guards, it may
take several weeks before optimal shaving
performance is restored.
C5Clean the cutter with the short-bristled
side of the brush.
Brush carefully in the direction of the arrow.
ENGLISH8
2
1
1
2

C6Brush the guard.
C7Put the shaving heads back into the shaving
unit. Put the retaining frame back into the
shaving unit (1) and turn the wheel
clockwise (2).
8Put the shaving unit back onto the shaver.
For extra thorough cleaning, clean the shaving
heads by putting them in a degreasing liquid (e.g.
alcohol) every six months.To remove the shaving
heads, follow steps 1 to 4 described above. After
cleaning, lubricate the central point on the inside
of the guards with a drop of sewing machine oil
to prevent wear of the shaving heads.
Trimmer
Clean the trimmer every time you have used it.
1Switch the shaver off, remove the mains
plug from the wall socket and pull the
appliance plug out of the shaver.
C2Clean the trimmer with the brush
supplied.
ENGLISH 9
1
2

C3Lubricate the trimmer teeth with a drop
of sewing machine oil every six months.
Storage
C◗Put the protection cap on the shaver to
prevent damage to the shaving heads.
◗The appliance can be stored in the pouch
supplied.
Replacement
Replace the shaving heads every two years for
optimal shaving results.
Replace damaged or worn shaving heads with
HQ55 Philips Shaving Heads only.
1Switch the shaver off, remove the mains
plug from the wall socket and pull the
appliance plug out of the shaver.
C2Press the release button (1) and remove
the shaving unit (2).
C3Turn the wheel anticlockwise (1) and
remove the retaining frame (2).
ENGLISH10
2
1
1
2

C4Remove the shaving heads and place new
ones in the shaving unit.
C5Put the retaining frame back into the
shaving unit (1) and turn the wheel
clockwise (2).
6Put the shaving unit back onto the shaver.
Accessories
The following accessories are available:
- HQ55 Philips Shaving Heads.
- HQ100 Philips Shaving Head Cleaner.
- HQ101 Philips Shaving Head Cleaning Fluid.
- HQ110 Philips Shaving Head Cleaning Spray.
Environment
C◗Do not throw the appliance away with the
normal household waste at the end of its life,
but hand it in at an official collection point for
recycling. By doing this you will help to
preserve the environment.
The built-in rechargeable battery contains
substances that may pollute the environment.
Always remove the battery before discarding the
appliance and handing it in at an official collection
point. Dispose of the battery at an official
collection point for batteries. If you have trouble
ENGLISH 11
1
2

removing the battery, you can also take the
appliance to a Philips service centre, which will
remove the battery for you and will dispose of it
in an environmentally safe way.
Disposal of the battery
Only remove the battery if it is completely empty.
1Switch the shaver off, remove the mains
plug from the wall socket and pull the
appliance plug out of the shaver.
C2Let the shaver run until it stops, undo the
screws and open the shaver.
3Remove the battery.
Do not connect the shaver to the mains again
after the battery has been removed.
Guarantee & service
If you need information or if you have a
problem, please visit the Philips website at
www.philips.com or contact the Philips Customer
Care Centre in your country (you will find its
phone number in the worldwide guarantee
leaflet). If there is no Customer Care Centre in
your country, turn to your local Philips dealer or
contact the Service Department of Philips
Domestic Appliances and Personal Care BV.
