Philips HP6493/00 User manual

Satinelle Ice
HP6493, HP6492, HP6491

2

3
1

4

ENGLISH 6
POLSKI 17
ROMÂNĂ 29
РУССКИЙ 41
ČEŠTINA 54
MAGYAR 65
SLOVENSKY 76
УКРАЇНСЬКА 87
HP6493, HP6492, HP6491

Introduction
With your new Satinelle ICE you can remove unwanted hairs quickly,
easily and effectively.The combination of the new ceramic epilating
system with the contour-following skin cooler and the massaging system
constitutes a revolution in epilation.Thanks to the natural numbing
effect of ice and massaging, the new Satinelle ICE makes epilation more
comfortable and less painful than ever.The result is a silky-smooth skin
and a hair growth reduction of up to 50%, assuming you use the
appliance regularly (every 4 weeks).
The Satinelle ICE is suitable for all body parts.Type HP6493 also comes
with a skin cooler that has been specially developed for epilating
sensitive areas (underarms, bikini line).These areas can be particularly
sensitive to pain, which this special skin cooler helps to diminish.
The rapidly rotating epilating discs catch even the shortest hairs (down
to 0.5 millimetre!) and pull them out by the roots. As a result, your skin
stays smooth for up to four weeks and regrowth is soft and downy.

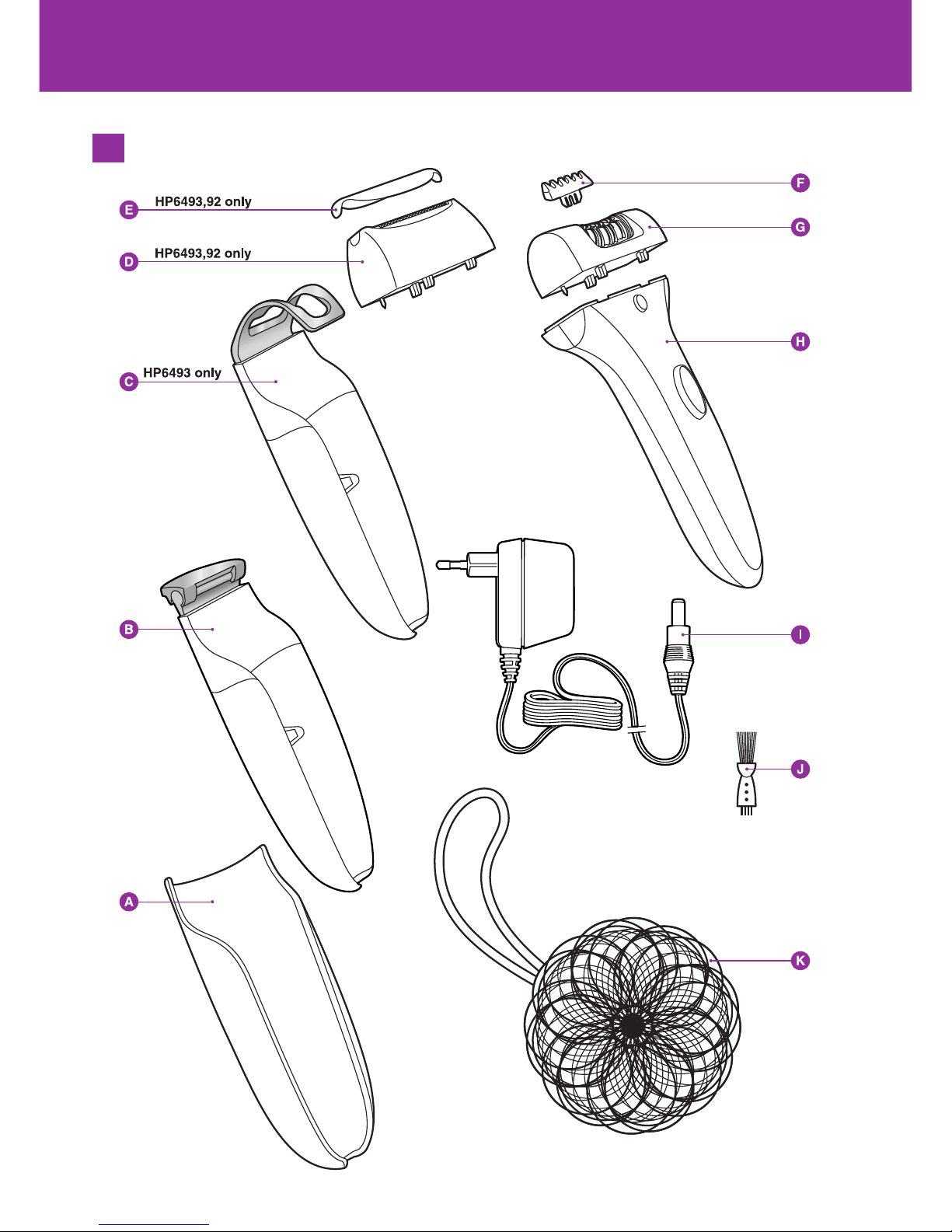

General description (fig. 1)
AInsulating sleeve for skin cooler
BLeg skin cooler with pivoting cooling head
CSkin cooler for underarms and bikini line (HP6493 only)
DShaving head (HP6493 and HP6492 only)
EProtective cap of shaving head (HP6493 and HP6492 only)
FMassaging element
GEpilating head
HAppliance
IAdapter
JCleaning brush
KExfoliating body puff
Important
Read these instructions for use carefully before using the appliance and
save them for future reference.
ENGLISH6

◗Check if the voltage indicated on the adapter corresponds to the
local mains voltage before you connect the appliance.
◗Only use the appliance in combination with the adapter supplied.
◗Do not use the appliance if the adapter or the appliance itself is
damaged.
◗If the adapter is damaged, always have it replaced by one of the
original type in order to avoid a hazard.
◗The adapter contains a transformer. Do not cut off the adapter to
replace it with another plug, as this will cause a hazardous
situation.
◗Keep the appliance and the adapter dry.
◗Keep the appliance out of the reach of children.
◗Do not expose the appliance to temperatures lower than 5cC or
higher than 35cC.
◗To prevent damage and injuries, keep the running appliance away
from your scalp hair, eyebrows, eyelashes, clothes, threads, cords,
brushes etc.
◗Do not use the epilating head on irritated skin or skin with
varicose veins, rashes, spots, moles (with hairs) or wounds
without consulting your doctor first. People with a reduced
immune response or people suffering from diabetes mellitus,
Raynaud's disease or immunodeficiency should contact their
doctor first.
◗Noise level: Lc = 75.8dB [A]
Preparing for use
Freezing the skin cooler
1Put the skin cooler WITHOUT the insulating sleeve in the
freezer or freezing compartment (***) at least 4 hours before
you start epilating.When the fluid has turned completely blue, the
skin cooler is ready for use.
Make sure the outside of the skin cooler is completely dry before you
freeze it.
BTIP: you can store the skin cooler in the freezer permanently.
ENGLISH 7

Using the appliance
General information about epilation
◗Epilation is easier just after taking a bath or shower. Make sure
your skin is completely dry when you start epilating.
◗When you use the appliance for the first time, we advise you to
try it out on an area with only light hair growth to get
accustomed to the epilation process.
◗Before epilating longer hairs on sensitive skin areas, shorten them
with a trimmer or a pair of scissors.
◗Your skin may become a little red and irritated the first few times
you use the epilator.This phenomenon is absolutely normal and
will quickly disappear.As you use the appliance more often, your
skin will get used to epilation, skin irritation will decrease and
regrowth will become thinner and softer. If the irritation has not
disappeared within three days, we advise you to consult a doctor.
◗We advise you to epilate before going to bed at night, as this will
allow any skin irritation that may develop to diminish overnight.
Epilating with the leg skin cooler
Make sure your skin is clean, entirely dry and free from grease. Do not
use any cream before you start epilating.
1Slide the insulating sleeve onto the skin cooler (fig. 2).
The insulating sleeve prevents an unpleasant sensation of coldness in
your hand while using the appliance and keeps the skin cooler cold as
long as possible.
Occasionally the pivoting cooling head may freeze onto the skin cooler
and won't move when you take the skin cooler from the freezer.The
pivoting cooling head will start pivoting again after you have passed it
over your leg a few times.
2Snap the appliance onto the skin cooler (fig. 3).
3Insert the appliance plug into the bottom of the appliance and put
the adapter in the wall socket.
ENGLISH8

4Switch the appliance on by selecting the desired speed (fig. 4).
Select speed I for areas with little hair growth and for areas where
bones are located directly beneath the skin, such as knees and ankles.
Select speed II for larger areas with stronger hair growth.
5Stretch your skin with your free hand to make the hairs stand
upright.
6Place the appliance perpendicularly onto the skin with the
epilating head pointing forward and move it against the direction
of hair growth at a moderate speed (fig. 5).
Make sure both the epilating discs and the skin cooler are in proper
contact with the skin.
Press the appliance lightly onto the skin.
◗If you are not completely satisfied with the epilation result, try
moving the epilator more slowly over your skin.
7Use the tab on the bottom end of the appliance to remove the
appliance from the skin cooler (fig. 6).
Epilating with the skin cooler for underarms and bikini
line (HP6493 only).
The special skin cooler for the underarms and the bikini line reduces
the number of active epilating discs. Combined with the large cooling
surface, this skin cooler makes epilating sensitive areas less painful.
You will get the best results when the hairs are not too long
(max. 1cm).
1Slide the insulating sleeve onto the skin cooler (fig. 7).
2Snap the appliance onto the skin cooler (fig. 8).
3Switch the appliance on by selecting the desired speed (fig. 4).
We advise you to use speed I.
4To epilate the underam area, place one arm behind your head to
stretch the skin and place the appliance perpendiculary onto the
skin with the hand of the other arm (fig. 9).
ENGLISH 9

5To epilate the bikini line, stretch the skin with your free hand and
place the appliance perpendicularly onto your skin, without
exerting any pressure (fig. 10).
6Move the appliance slowly across the skin against the direction of
hair growth.
7Use the tab on the bottom end of the appliance to remove the
appliance from the skin cooler for underarms and bikini line
(HP6493 only) (fig. 11).
Epilating without skin cooler
◗If you do not want to use the skin cooler, for instance because
you have grown accustomed to the sensation of epilation, you can
also use the appliance without the skin cooler.
◗Make sure that you place the epilator perpendicularly onto your
skin and that you move it against the direction of hair growth.
Using the exfoliating body puff
Use the exfoliating body puff in the shower.
Regular massages with the puff may help to prevent ingrown hairs. Do
not use the puff immediately before or after epilation.
Shaving (HP6493 and HP6492 only)
You can use the shaving head to shave sensitive body parts, such as
your underarms and bikini line.With the shaving head you will obtain a
smooth result in a comfortable and gentle way.
1Make sure the appliance is switched off.
2Remove the skin cooler
3Remove the epilating head (fig. 12).
Press the release button (1) and move the epilating head in the
direction of the arrow (2).
ENGLISH10
