Philips HTS3548/98 User manual

3Enjoy DVD HOME THEATER SYSTEM
Quick Start Guide
Connect
Set up
Enjoy
1
2
3
What’s in the box?
HTS3548
Main Unit Remote Control
and 2 batteries
User
Manual
1 center, 2 front, 2 rear speakers
and subwoofer
FM wire
antenna
AM/MW
loop antenna
MP3 LINE-IN cable
Composite
video cable
Power cables
Start disc playback
APress OPEN/CLOSE çto open the disc tray.
BPlace a disc with the disc label facing up.
CPress OPEN/CLOSE çto close the disc tray.
DPlayback starts automatically.
EIf the disc menu appears on the TV, use
  keys or the numeric keypad to
select an option in the menu and press OK
to start playback.
zTo enjoy the powerful surround sound from the
speakers, press SURROUND on the remote
control to turn on the multi-channel surround
mode.
FPress to stop playback.
Note When you press ubutton, playback
resumes from where it last stopped. To start
playback from the beginning, you have to
press .
Playback other supported
devices
USB
USB device
AInsert your USB device to the USB socket.
BPress DISC/USB to switch to ‘USB’ mode.
CPress uto start playback.
DTo stop playback, press DISC/USB to switch to
‘DISC’ mode. You can unplug your USB device now.
Other portable audio player
AUse the supplied MP3 LINE-IN cable to connect the
headphone output socket on your portable audio
player to MP3 LINE-IN socket.
BPress PLAY on your portable audio player.
CPress MP3 LINE-IN to listen to the playback.
-
Need help?
User Manual
See the user manual that came with your Philips DVD Home Theatre System.
Online
Go to www.philips.com/welcome 2007 CKoninklijke Philips N.V.
All rights reserved.
www.philips.com
Screws and Allen key
(for connecting the
tall speakers)
hts3548_98qsg_eng2.indd 1hts3548_98qsg_eng2.indd 1 2007-05-02 10:55:58 AM2007-05-02 10:55:58 AM

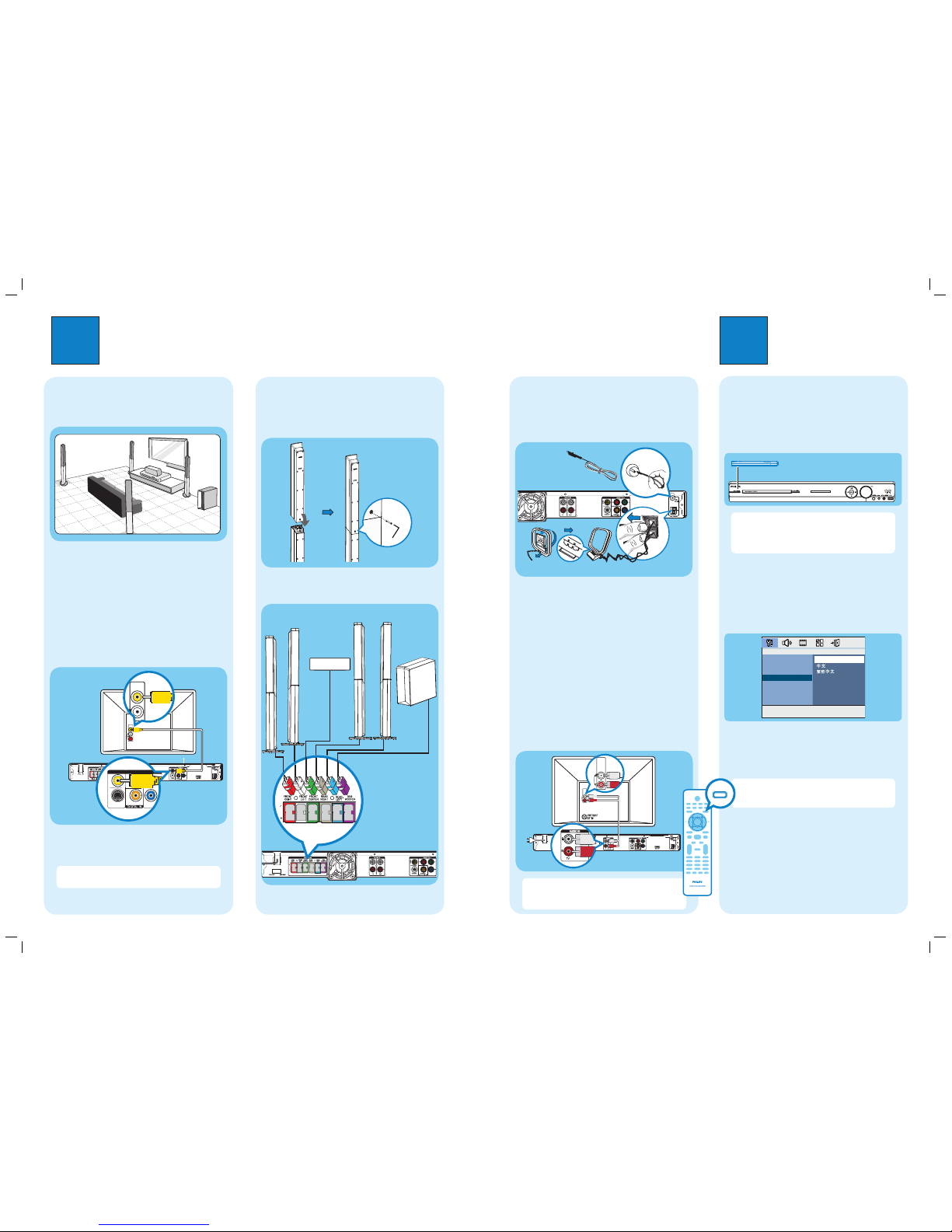

1Connect
A
Placement
Proper speakers system placement is important to
ensure optimum sound performance.
FRONT
RIGHT
FRONT
LEFT
CENTER
REAR
RIGHT
REAR
LEFT
SUBWOOFER
APlace the center speaker above or close to the TV.
BPlace the subwoofer on the floor, at least one meter
away from the TV.
CPlace the front speakers at equal distances from the
TV.
DPlace the rear speakers at the back or beside the
listening position.
B
Connect the main unit to TV
DOCK
Pr
COAXIAL
CVBS
S-VIDEO
Pb
Y
VIDEO OUT
VIDEOIN
(CVBS)
VIDEO IN
(CVBS)
zConnect a composite video cable (supplied) from the
CVBS jack on the main unit to the VIDEO IN jack on
your TV.
Note It is important to connect the main unit
directly to your TV.
2Set up
C
Connect the speakers and
subwoofer
AConnect the tall speakers, secure it with the supplied
screw using the Allen key.
Allen key
BConnect the various colored plugs from the
speakers and subwoofer to the same colored jacks at
the rear of the main unit.
Main Unit (rear)
A
Finding the viewing channel
APress 2(STANDBY ON) on the main unit to turn
it on.
BTurn on the TV. Use the TVs remote control to
select the correct viewing channel.
STANDBY-ON
Note To search for the correct viewing channel,
press the Channel Down button on the TVs remote
control repeatedly (or AV, SELECT, °button) until
you see the Video In channel.
B
Select the display language on the
screen
APress SETUP.
The { General Setup Page } appears.
General Setup Page
Disc Lock
Display Dim
Program
OSD Language
Screen Saver
Sleep
DivX(R) VOD Code
English
Melayu
Русский
ไทย
BPress to select { OSD Language } and press .
CUse  keys to select a language option in the
menu and press OK to confirm.
DPress SETUP to exit.
Note The language set here is only for the menus
that are shown on the TV while operating this Home
Theater system, not for the DVD disc menu.
There are various setup options (Audio Setup, Video
Setup, Preference Setup) available on this Home Theater
System. Refer to the user manual for more information.
D
Connect the radio antennas and
power cable
Keep the antennas away from the electronic devices to
prevent unwanted interference.
A
B
AConnect the FM antenna to the inner pin of the
FM 75 jack. Extend the wire for optimum
reception.
BUnfold the AM/MW loop antenna and fix the claw
into the slot. Push the tabs and insert the wires into
the AM/MW jacks.
CConnect the power cable from the main unit to the
AC power outlet.
E
Connect audio output from TV
(optional)
To hear the TV audio through this home theater system,
use a red and white audio cables (not supplied) to
connect the AUDIO IN-TV jacks on the main unit to the
AUDIO OUT jacks on your TV.
AUDIO
OUT
AUDIOIN
AUDIO
OUT
AUDIOOUT
Note Press TV on the remote control to get the
sound output from the speakers system when watching
the TV programs.
Main Unit (rear)
Television
(rear)
Main Unit (rear)
Television
( rear)
Main Unit (rear)
FM antenna
AM/MW antenna
SUBWOOFER
FRONT
RIGHT
FRONT
LEFT
REAR
RIGHT
REAR
LEFT
FRONT CENTER
SETUP
