Philips HTS6100X/78 User manual

HTS6100
Register your product and get support at
www.philips.com/welcome
EN DVD Home Theatre System 5
ES_LA DVD Home Theatre System 51
BT_BR DVD Home Theatre System 97

2
AVISO IMPORTANTE
México
Es necesario que lea cuidadosamente su instructivo
de manejo.
Descriptión: Reproductor de Disco de Video Digital
Modelo: HTS6100
Alimentacón: 110-127V/220-240V~50-60 Hz
Switcheable
Consumo: 150 W
Importador: Philips Mexicana, S.A. de C.V.
Domicilio: Av. La Palma No. 6,
Col. San Fernando, La Herradura
Huixquilucan, Edo de Mexico
C.P. 52784, Mexico
Localidad y Tel.: Tel. [phone]
Exportador: Philips Electronics HK, Ltd.
País de Origen: China
No de Serie:
LEA CUICADOSAMENTE ESTE INSTRUCTIVO
ANTES DE USAR SU APARATO.
Philips Mexicana, S.A. de C.V. no se hace
responsable por daños o desperfectos causados por:
– Maltrato, descuido o mal uso, presencia de
insectos o roedores (cucarachas, ratones etc.).
– Cuando el aparato no haya sido operarado
de acuerdo con el instructivo del uso, fuera
de los valores nominales y tolerancias de las
tensiones (voltaje), frecuencia (ciclaje) de
alimentación elétrica y las características
que deben renuir las instalaciones auxiliares.
– Por fenómenos naturales tales como:
temblores, inundaciones, incendios, descargas
electricas, rayos etc. o delitos causados por
terceros (choques asaltos, riñas, etc.).

3
“Evite o uso prolongado do aparelho
com volume superior a 85 decibéis pois
isto poderá prejudicar a sua audição.”
Nível de Exemplos
Decibéis
30 Biblioteca silenciosa,
sussurros leves
40 Sala de estar, refrigerador,
quarto longe do trânsito
50 Trânsito leve, conversação
normal, escritório silencioso
60 Ar condicionado a uma distância
de 6 m, máquina de costura
70 Aspirador de pó, secador de cabelo,
restaurante ruidoso
80 Tráfego médio de cidade, coletor
de lixo, alarme de despertador
a uma distância de 60 cm
OS RUÍDOS ABAIXO PODEM SER PERIGOSOS
EM CASO DE EXPOSIÇÃO CONSTANTE
90 Metrô, motocicleta, tráfego de
caminhão, cortador de grama
100 Caminhão de lixo, serra elétrica,
furadeira pneumática
120 Show de banda de rock em frente
às caixas acústicas, trovão
140 Tiro de arma de fogo, avião a jato
180 Lançamento de foguete

4
LASER
Type Semiconductor laser
GaAIAs
Wave length 645 - 660 nm (DVD)
770 - 800 nm (CD)
Output Power 6 mW (DVD)
7 mW (VCD/CD)
Beam divergence 60 degrees
•
•
•
•
Manufactured under license from Dolby
Laboratories. Dolby, Pro Logic and the double-D
symbol are trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent
#’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,487,535 & other U.S. and worldwide patents
issued & pending. DTS and DTS Digital
Surround are registered trademarks and the
DTS logos and Symbol are trademarks of DTS,
Inc. © 1996-2007 DTS, Inc. All Rights Reserved.
DivX, DivX Ultra Certified, and associated logos
are trademarks of DivX, Inc. and are used under
license.
Official DivX® Ultra Certified product.
Plays all versions of DivX ® video (including
DivX ® 6) with enhanced playback of DivX®
media files and the DivX® Media Format.
Windows Media and the Windows logo are
trademarks, or registered trademarks of
Microsoft Corporation in the United States and/
or other countries.
HDMI, and HDMI logo and High-Definition
Multimedia Interface are trademarks or
registered trademarks of HDMI licensing LLC.
The USB-IF Logos are trademarks of Universal
Serial Bus Implementers Forum, Inc.
ENERGY STAR and the ENERGY
STAR mark are registered U.S. marks
CLASS 1
LASER PRODUCT
‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH
DEFINITION TELEVISION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE
ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN
CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE
PROBLEMS, IT IS RECOMMENDED THAT THE USER
SWITCH THE CONNECTION TO THE ‘STANDARD
DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS
REGARDING OUR TV SET COMPATIBILITY WITH THIS
MODEL 525p AND 625p DVD PLAYER, PLEASE
CONTACT OUR CUSTOMER SERVICE CENTER.’

English
EN 5
Contents
Contents
1 Important 6
Safety and important notice 6
2 Your product 7
Features highlight 7
Product overview 8
3 Connect 11

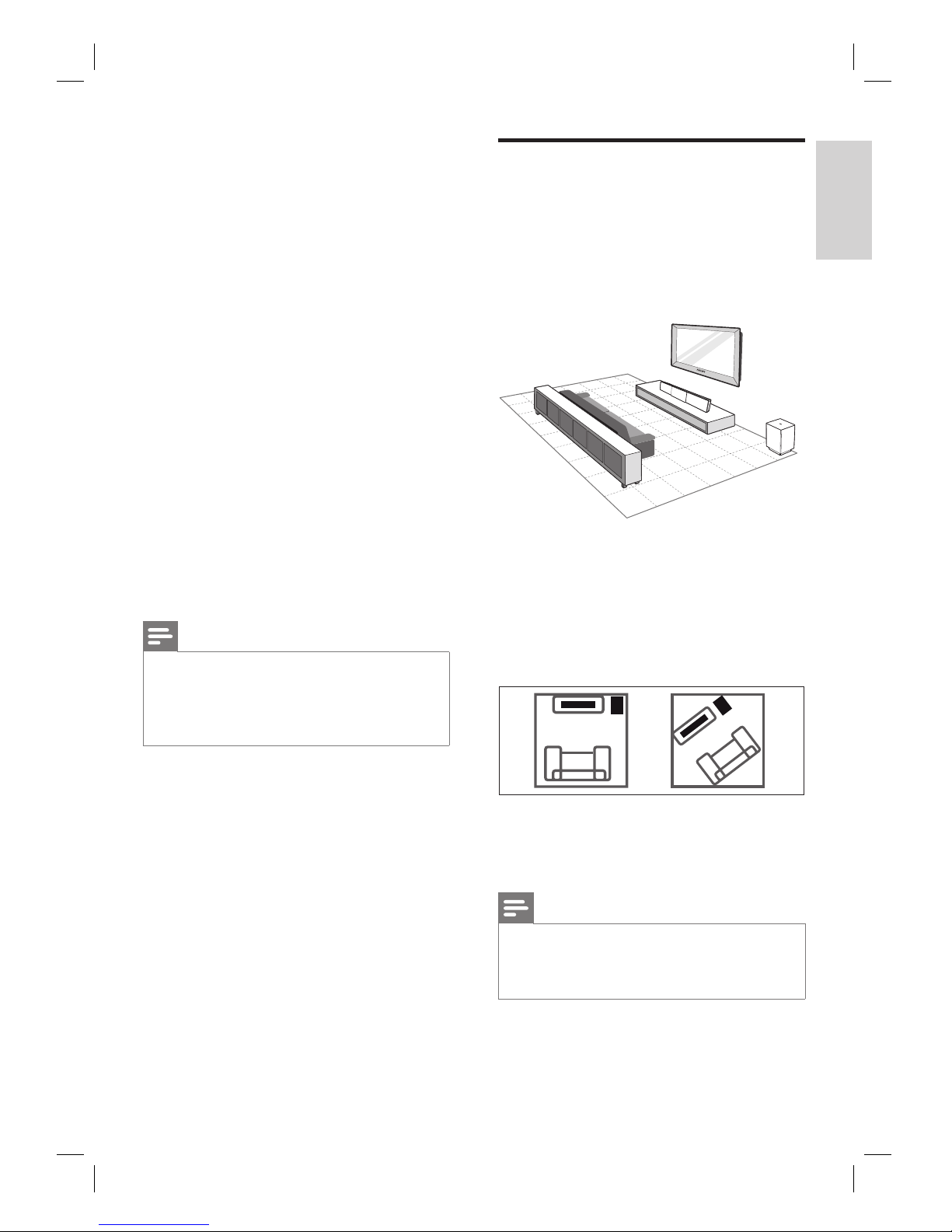

Place the unit 11

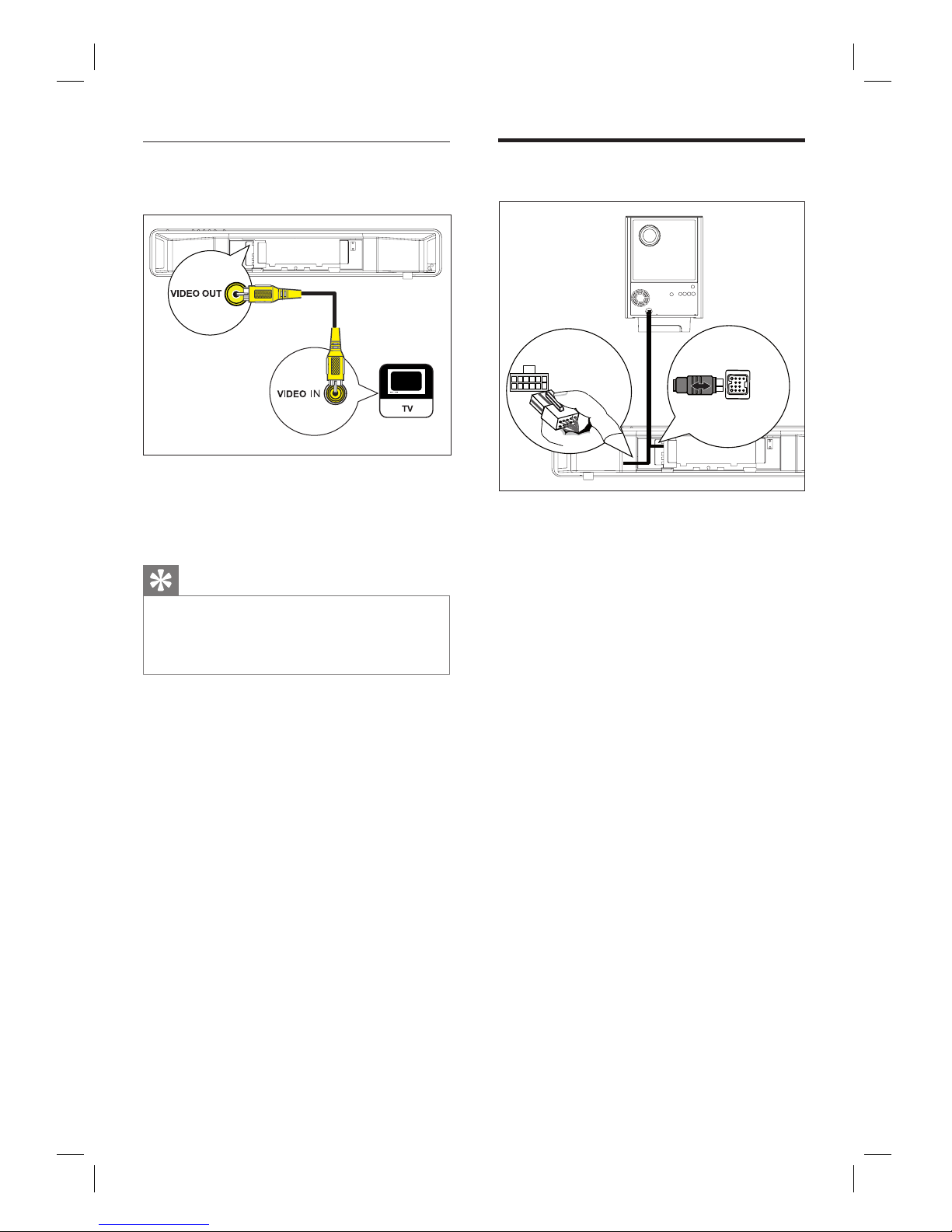

Connect video cables 12
Connect subwoofer 14

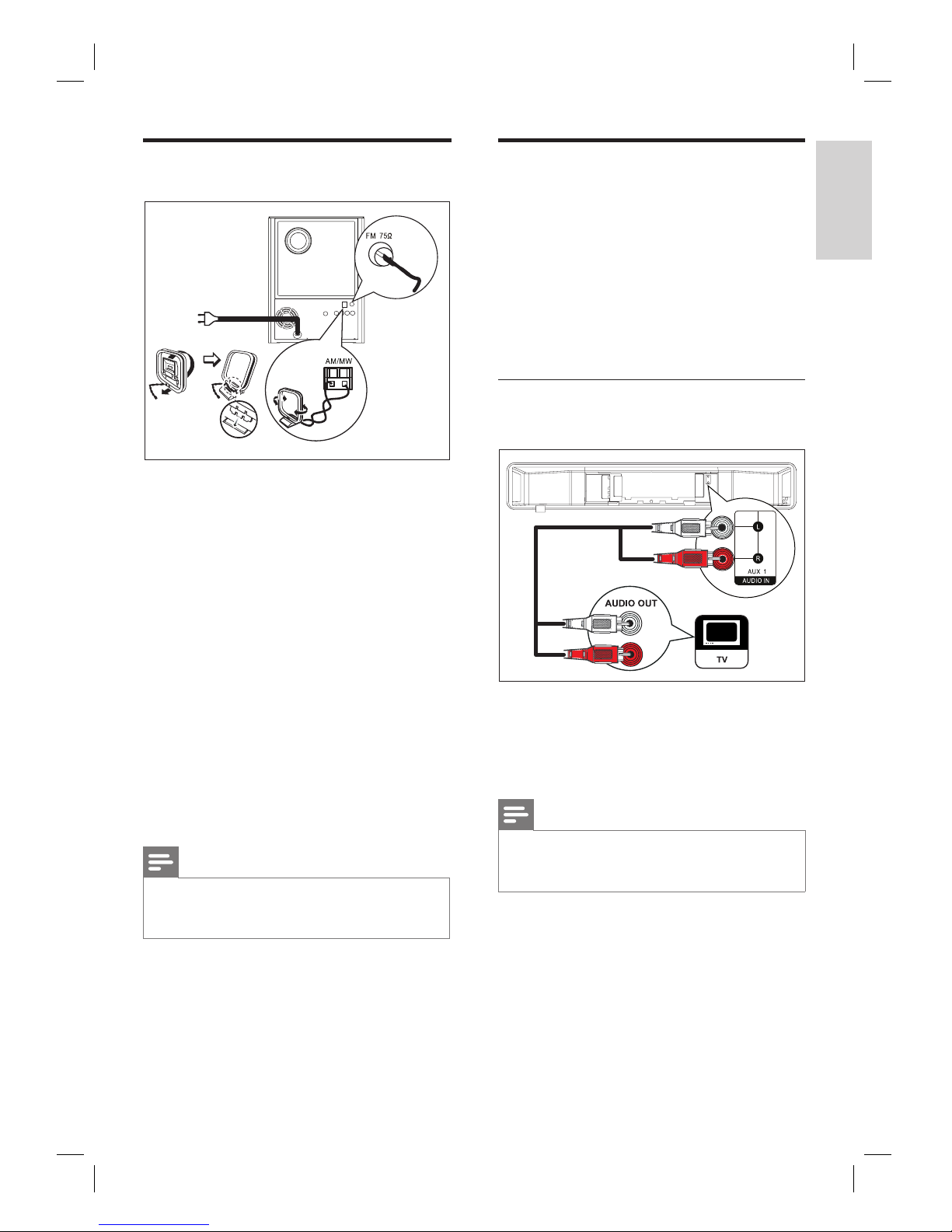

Connect radio antenna 15

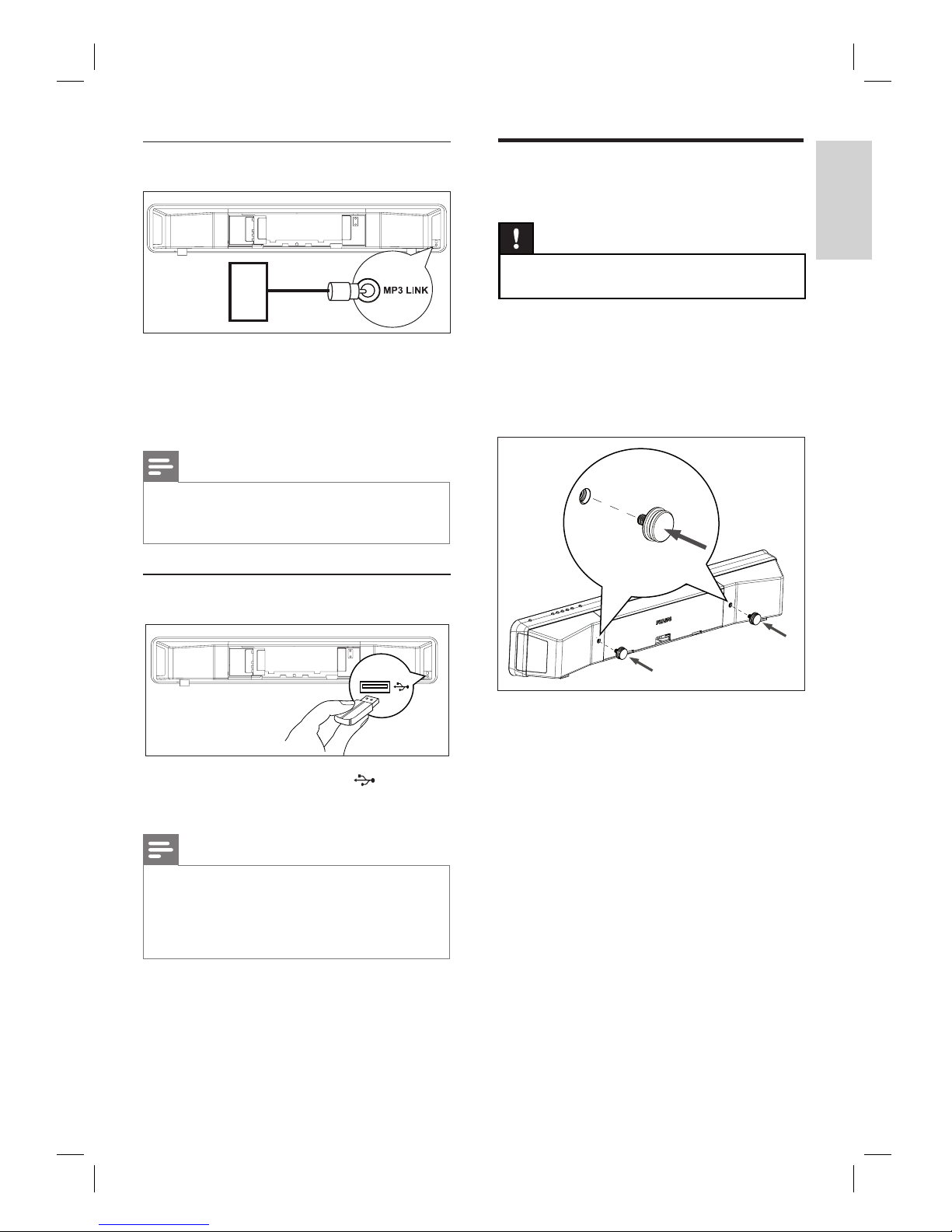

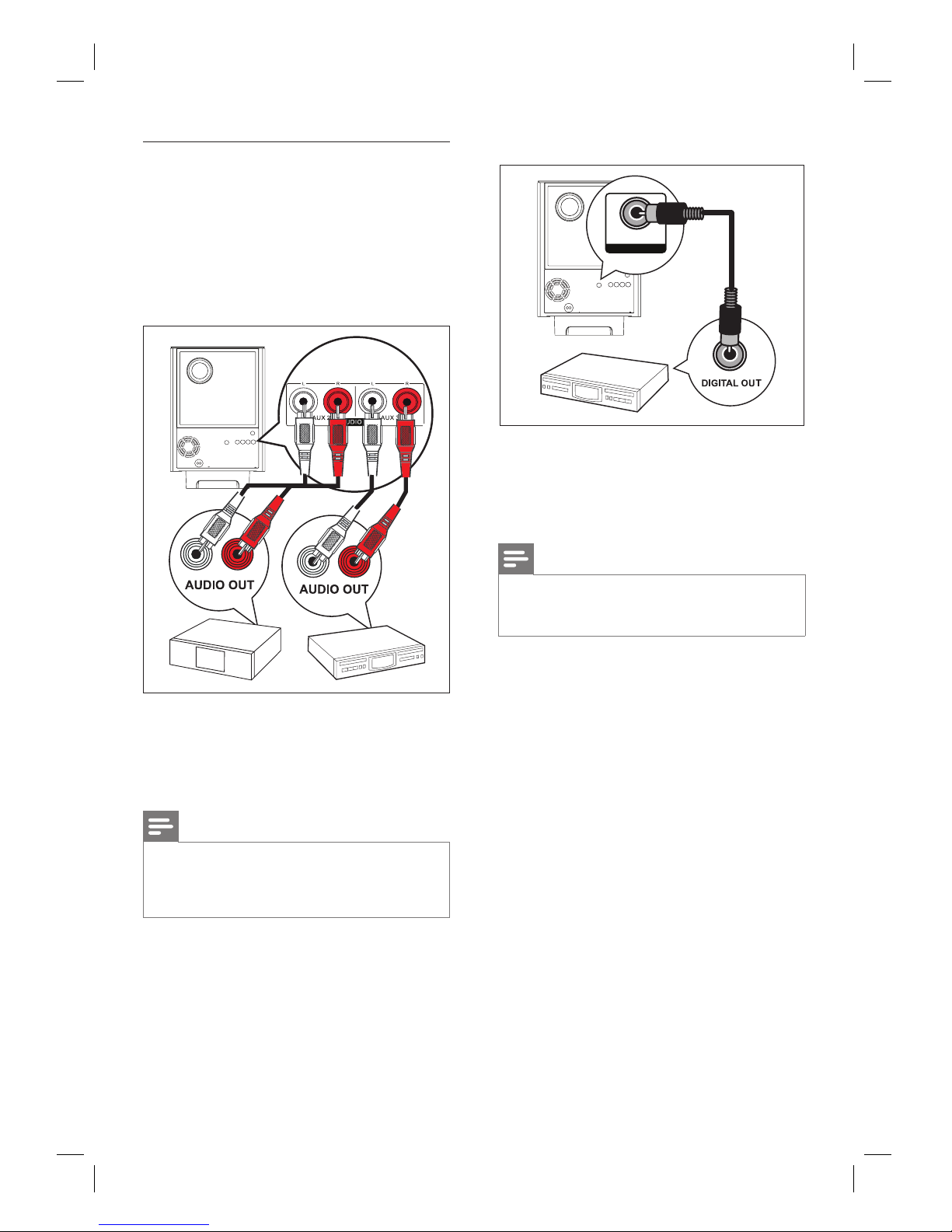

Connect audio cables/other devices 15

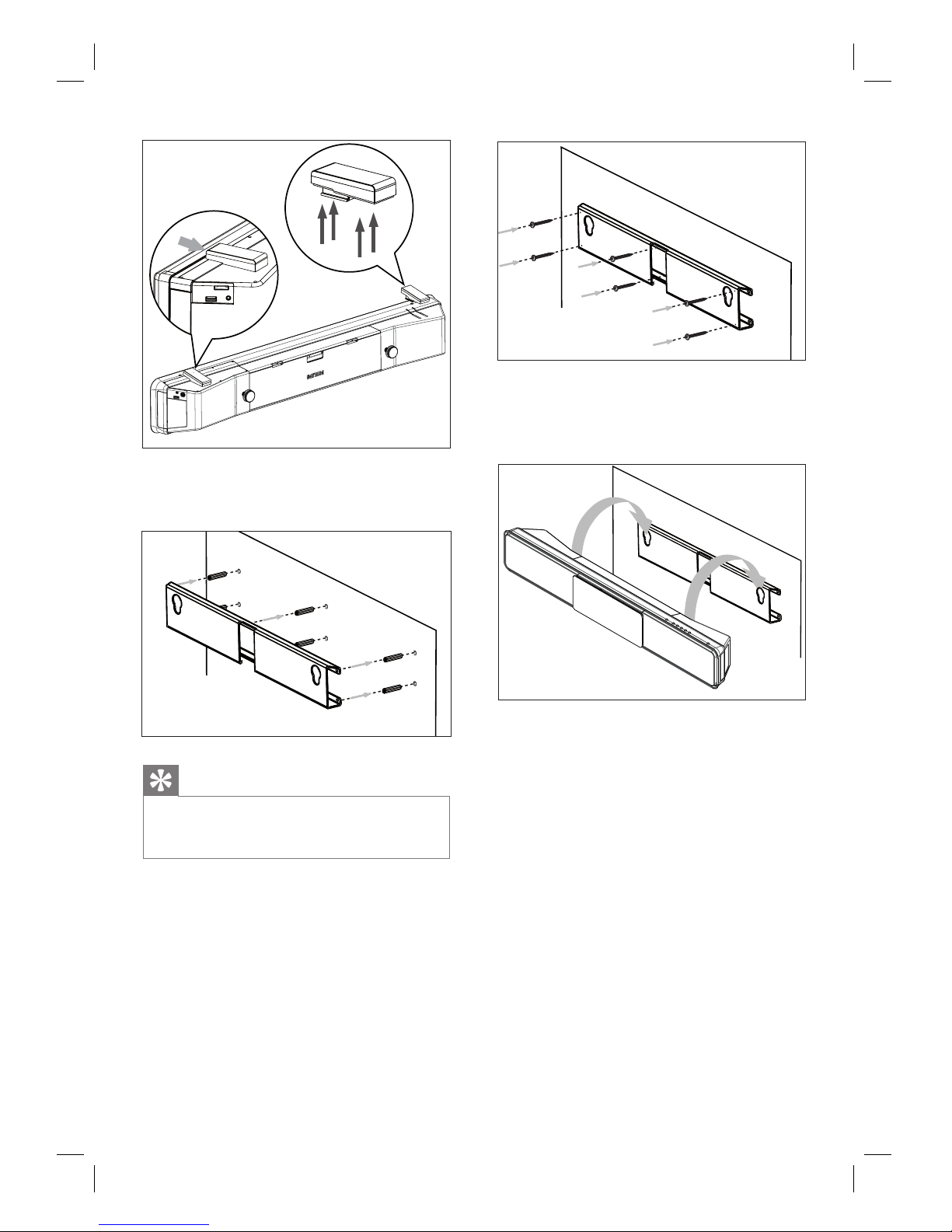

Mount the DVD Home Theatre unit 17
4 Get started 19

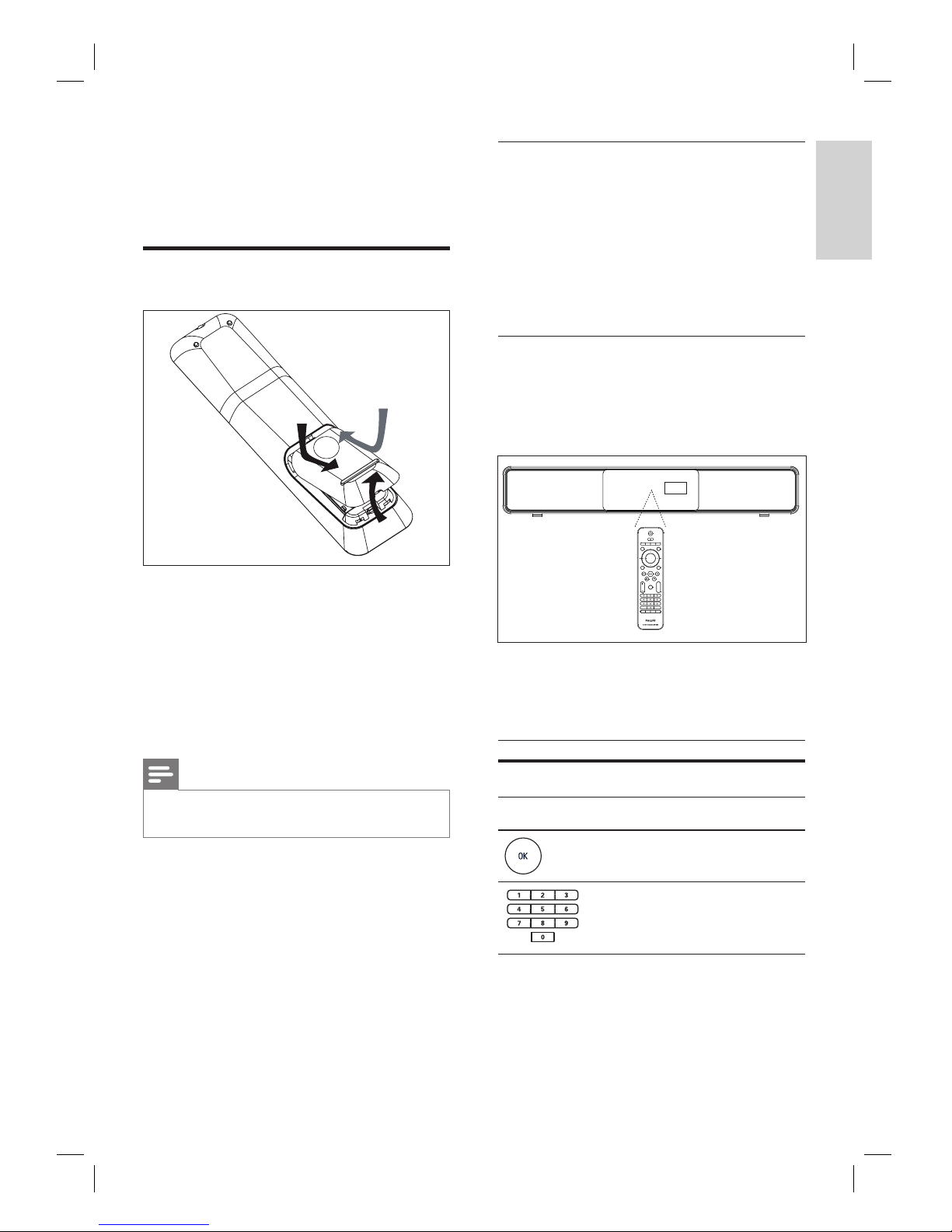

Prepare the remote control 19
Find the correct viewing channel 20
Start Ambisound setup 20
Turn on Progressive Scan 22
Activate EasyLink control 23
Select a play source 24
5 Play 25
Play from disc 25
Play video 26
Play music 29
Play photo 30
Play from USB device 31
Play from portable media player 32
Play from radio 32
6 Adjust sound 35
Control the volume 35
Adjust Bass/Treble 35
Select Ambisound 35
Select a preset sound effect 36
7 Adjust settings 37
General setup 37
Audio setup 39
Video setup 40
Preference Setup 42
8 Additional information 45
Update software 45
Care 45
Specifications 46
9 Troubleshooting 47
10 Glossary 49

6EN
Recycle notice
This electronic equipment contains a large
number of materials that can be recycled or
reused if disassembled by a specialised
company. If you are disposing of an old
machine, please take it to a recycling centre.
Please observe the local regulations regarding
disposal of packaging materials, exhausted
batteries and old equipment.
Copyright notice
This product incorporates copyright protection
technology that is protected by method claims
of certain U.S. patents and other intellectual
property rights owned by Macrovision
Corporation and other rights owners. Use of
this copyright protection technology must be
authorised by Macrovision Corporation, and is
intended for home and other limited viewing
uses only unless otherwise authorised by
Macrovision Corporation. Reverse engineering
or disassembly is prohibited.
1 Important
Safety and important notice
Warning!
Risk of fire or electric shock!
Ensure that air can circulate freely through the
ventilation holes on this unit. Allow at least 5~10 cm
clearance around the unit.
Never expose this unit to direct sunlight, naked
flames or heat.
Never place this unit on other electrical equipment.
Keep away from this unit during lightning storms.
Never remove the casing of this unit. Please leave all
maintenance work to qualified personnel.
Keep this unit away from water, moisture and liquid-
filled objects.
•
•
•
•
•
•
Caution!
Remove batteries if they are exhausted or if the
remote control is not to be used for a long time.
Do not mix batteries (old and new or carbon and
alkaline, etc.).
Batteries contain chemical substances, they should
be disposed of properly.
Visible and invisible laser radiation when open.
Avoid exposure to beam.
Where the MAINS plug or an appliance coupler is
used as the disconnect device, the disconnect device
shall remain readily operable.
•
•
•
•
•

English
EN 7
Your product
2 Your product
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
The all-in-one SoundBar DVD Home Theatre is
designed to complement your home perfectly.
Enjoy the SoundBar DVD Home Theatre with
state-of-the-art Ambisound surround sound and
picture quality without the clutter of multiple
speakers.
Features highlight
Video upscaling to 1080p
You can now watch the DVDs in the highest
picture quality available for your HDTV. This
DVD Home Theatre offers full high-definition
video playback up to 1080p resolution for an
amazing viewing experience. A highly detailed
picture and increased sharpness delivers a more
true-to-life picture.
EasyLink
EasyLink uses the HDMI CEC (Consumer
Electronics Control) industry standard protocol
to share functionality with all HDMI CEC
compliant devices over HDMI. It enables the
connected devices to control each other with a
single remote control.
Note
Philips does not guarantee 100% interoperability
with all HDMI CEC devices.
•
Ambisound
Philips Ambisound technology reproduces
multi-channel surround sound with fewer
speakers to give an embracing surround
experience without the hassle of setting up a
full range of speaker systems.
USB direct and MP3 link
Simply plug your USB device into the USB
socket to play your MP3/WMA/JPEG/DivX files;
or plug your portable media player to the MP3
LINK socket to enjoy the music play in superb
sound quality.
Sync the audio output with the video play
This DVD Home Theatre provides you the
feature of delaying the audio output if the video
signals that go directly to the TV is slower than
the audio streams.
Region codes
DVD movies are usually not released at the
same time in all regions of the world, thus all
DVD players are programmed to a specific
region code.
Countries DVD region code
Latin America
ALL
4

8EN
Product overview
Remote control
a2
Turn on this unit or turn off to standby
mode.
Press and hold to turn off this unit and
all the HDMI CEC compliant TV/
devices (for EasyLink control only).
bZ(Open/Close)
Open or close the disc compartment.
cSource buttons
DISC: switch to DISC mode. While in
disc mode, access or exit disc menu.
USB: switch to USB mode.
RADIO: switch to FM or AM/MW
band.
AUX/DI /MP3 LINK: switch to AUX1
INPUT, AUX2 INPUT, AUX3 INPUT,
DIGITAL INPUT or MP3 LINK that
corresponds to the socket you used to
connect the external device.
dHDMI
Select a video resolution setting for
HDMI output.
eINFO
Display the current status or disc
information.
Display photo files in 12 thumbnails
view.
fOPTIONS
Access or exit Options menu (this
menu provides various setting options).
gu(Play/Pause)
Start or pause disc play.
RADIO: start auto radio installation
(only available for first time setup).
•
•
•
•
•
•
•
•
•
•
•
•
•

English
EN 9
Your product
hx(Stop)
Stop disc play.
RADIO: erase the current preset radio
station.
iTREBLE / BASS
Switch to treble or bass mode. Then
press VOL +- to set its level setting.
jAUDIO SYNC
Select an audio language/channel.
Press and hold to access audio sync
setting. Then press VOL +- to set
the audio delay time.
RADIO: toggle between FM stereo and
mono mode.
kSOUND
Select a predefined sound effect.
lREPEAT / PROGRAM
Select various repeat or shuffle modes;
turns off repeat or shuffle mode.
RADIO: press this button to start
manual radio preset.
RADIO: press and hold this button to
start automatic radio preset.
mOK
Confirm an entry or selection.
nCursor buttons (v V b B)
Navigate through the on-screen menu.
Press left or right for fast backward or
forward search.
RADIO:press up or down to tune the
radio frequency.
RADIO: press left or right to start auto
search.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
oBACK / TITLE
Return to the previous display menu.
For DVD, go to title menu.
For VCD version 2.0 or SVCD with
PBC turned on: return to the menu
during playback.
pí/ ë(Previous/Next)
Skip to the previous or next title/
chapter/track.
RADIO: select a preset radio station.
qH(Mute)
Mute or restore the volume.
rVOL +-
Adjust the volume level.
sAMBISOUND
Select different surround sound
output: auto, multi-channel or stereo.
tNumeric buttons
Enter a preset number or item to play.
uSUBTITLE
• Select DVD or DivX subtitle language.
vZOOM
Zoom in or out the picture on the TV.
wANGLE
Select a different viewing angle of a
DVD movie.
•
•
•
•
•
•
•
•
•
•
•

10 EN
971
2
3
45
6
8
MP3 LINK
Main unit
a2 STANDBY-ON
Turn on this unit or turn off to standby
mode.
Press and hold to turn on this unit from
a low power standby mode.
bSOURCE
Select a play media: DISC, USB, RADIO
FM, RADIO AM/MW, DIGITAL INPUT,
AUX1 INPUT, AUX2 INPUT, AUX3
INPUT or MP3 LINK.
cVOL +-
Adjust the volume level.
dPLAY PAUSE u
Start or pause disc play.
RADIO: start auto radio installation
(only available for first time setup).
STOP x
Stop disc play.
RADIO: erase the current preset radio
station.
eOPEN CLOSE Z
Open or close the disc compartment.
•
•
•
•
•
•
•
•
•
fDisplay panel
gDisc compartment
Note
The following connections are located at the left side
panel of the unit.
•
hMP3 LINK socket
To connect portable audio player.
i(USB) socket
• To connect USB flash drive, USB
memory reader or digital camera.
•

English
EN 11
Connect
3 Connect
This section describes the basic connections
required for this DVD Home Theatre unit
before it can be used.
Basic connections:
Place the unit
Connect video cables
Connect subwoofer
Connect radio antenna
Optional connections:
Connect audio cables/other devices
Connect audio from TV
Connect audio from cable box/
recorder/game console
Connect portable media player
Connect USB device
Mount the DVD Home Theatre unit
Note
Refer to the type plate at the rear or bottom of the
product for identification and supply ratings.
Before you make or change any connections, ensure
that all the devices are disconnected from the power
outlet.
•
•
•
•
•
•
•
•
•
•
•
•
Place the unit
Place this unit on top of a table or mount it
on the wall (see chapter ‘Mount the DVD
Home Theatre unit’).
Never place this unit in an enclosed cabinet.
Install this unit near the AC outlet where
the AC power plug can be easily reached.
1 Place this DVD Home Theatre unit near to
the TV.
Place it at a height that is closest to the
listening ear-level.
2 Position this DVD Home Theatre so that it
is directly parallel to the listening area.
3 Place the subwoofer at the corner of the
room or at least one metre away from the
TV.
Note
You may purchase a separate table top stand that
can support both your Philips Plasma/LCD TV and
this DVD Home Theatre unit from the nearest
Philips retailers.
•
•
•
•
•

12 EN
Connect video cables
This section describes how to connect this
DVD Home Theatre unit to your TV so to
enable viewing of disc play.
Select the best video connection that your TV
can support.
Option 1: Connect to HDMI socket (for a
HDMI, DVI or HDCP-compliant TV).
Option 2: Connect to component video
socket (for a standard TV or Progressive
Scan TV).
Option 3: Connect to video (CVBS) socket
(for a standard TV).
Note
You must connect this unit directly to a TV.•
•
•
•
Before you connect
1 Push up the catches at the bottom of the
rear cover and lift it up.
2 Connect the cables to the corresponding
sockets and direct the cables to the
CABLE OUT point.
3 Once complete, close the rear cover.
Note
All the cables must be placed properly inside the rear
panel in order for the rear cover to close.
•

English
EN 13
Connect
Option 1: Connect to HDMI socket
HDMI IN
HDMI OUT
1 Connect a HDMI cable (supplied) from the
HDMI OUT on this unit to the HDMI IN
socket on your TV.
Note
The HDMI connector is only compatible with HDMI
compliant TVs and DVI-TVs.
•
Tips
To optimise the video output, see chapter ‘Adjust
settings’ > [ Video Setup ] > [ HDMI Setup ] for
details.
This unit is HDMI CEC compatible. It enables
connected TV/device to control each other over
HDMI, see chapter ‘Activate EasyLink control’ for
details.
Use a HDMI/DVI adaptor in case your TV has only
a DVI connection. An extra audio connection is
needed to complete this connection.
To route the audio from your TV to this DVD Home
Theatre unit, connect an audio cable from the audio
input on this unit to the audio output on your TV.
This type of connections provide best picture quality.
•
•
•
•
•
Option 2: Connect to component
video socket
COMPONENT
VIDEO OUT
1Connect the component video cables (not
supplied) from the Y PBPRsockets on this
unit to the component video input sockets
on your TV.
If a progressive scan TV is used, you
may turn on the progressive scan mode
(see chapter ‘Turn on Progressive Scan’
for details).
Tips
The component video input socket on your TV may
be labelled as Y Pb/Cb Pr/Cr or YUV.
This type of connections provide good picture
quality.
•
•
•

14 EN
Option 3: Connect to Video (CVBS)
socket
1 Connect a composite video cable
(supplied) from the VIDEO OUT socket
on this unit to the video input socket on
your TV.
Tips
The video input socket on your TV may be labelled
as A/V IN, VIDEO IN, COMPOSITE or BASEBAND.
This type of connections provide standard picture
quality.
•
•
Connect subwoofer
TO SUBWOOFER
LOUDSPEAKERS
1
23
1 Unwind the subwoofer’s interconnect
cable at TO MAIN UNIT.
2 Connect the white end of the interconnect
cable to the LOUDSPEAKERS socket on
this unit.
3 Connect the grey end of the interconnect
cable to the TO SUBWOOFER socket on
this unit.

English
EN 15
Connect
Connect radio antenna
3
4
1
2
1 Stand the AM/MW loop antenna
(supplied) upright to fix its claw into the
slot.
2 Connect the AM/MW loop antenna to the
AM/MW socket. Then place the AM/MW
loop antenna on a shelf, or attach it to a
stand or wall.
3 Connect the FM antenna (supplied) to the
FM75Ωsocket on this unit (for some
models, this cable has been connected).
Extend the FM antenna and fix its ends to
the wall.
4 Connect the power cord when all the
required connections are complete and
you are ready to enjoy this DVD Home
Theatre unit.
Note
Before connect to power outlet, ensure that the
voltage selector (at the rear of this unit) is set to the
local power line voltage.
•
Connect audio cables/other
devices
This section describes how you can route the
sound from other devices to this DVD Home
Theatre unit in order to enjoy sound output or
audio play with multi-channel surround
capabilities.
Connect audio from TV
(also used for EasyLink control)
1 Connect an audio cable (not supplied)
from the AUDIO IN-AUX1 sockets on
this unit to the AUDIO OUT sockets on
your TV.
Note
To listen to the audio output from this connection,
press AUX/DI /MP3 LINK repeatedly until ‘AUX1
INPUT’ is displayed on the display panel.
•

16 EN
Connect audio from cable box/
recorder/game console
You can choose to connect to analogue or
digital socket depending on the device
capabilities.
Connect to analogue sockets
1 Connect an audio cable (not supplied)
from the AUDIO IN-AUX2 or AUX3
sockets on the subwoofer to the AUDIO
OUT sockets on the device.
Note
To listen to the audio output from this connection,
press AUX/DI /MP3 LINK repeatedly until ‘AUX2
INPUT’ or ‘AUX3 INPUT’ is displayed on the display
panel.
•
Connect to digital socket
COAXIAL
DIGITAL IN
1 Connect a coaxial cable (not supplied)
from the DIGITAL IN-COAXIAL socket
on the subwoofer to the COAXIAL/
DIGITAL OUT socket on the device.
Note
To listen to the audio output from this connection,
press AUX/DI /MP3 LINK repeatedly until ‘DIGITAL
INPUT’ is displayed on the display panel.
•

English
EN 17
Connect
Connect portable media player
MP3
1 Connect a 3.5mm stereo audio cable
(supplied) from the MP3 LINK socket on
this unit to the phone socket on your
portable media player (such as MP3 player).
Note
To listen to the audio output from this connection,
press AUX/DI /MP3 LINK repeatedly until ‘MP3
LINK’ is displayed on the display panel.
•
Connect USB device
1 Connect the USB device to (USB)
socket on this unit.
Note
This DVD Home Theatre unit can only play/view
MP3, WMA, DivX (Ultra) or JPEG files that are
stored on such devices.
To listen to the audio output from this connection,
press USB.
•
•
Mount the DVD Home
Theatre unit
Caution!
Risk of personal injury and damage to the unit.
Allow only qualified persons to mount the unit.
•
1 Ensure all the required cables are
connected to this unit and close the rear
cover.
2 Attach the supplied knobs to the rear of
this unit.
3 Turn this unit over so that its bottom faces
up.
4 Hold this unit firmly while removing the
rubber feet by pushing it towards the back
of this unit. Repeat the step to remove the
other rubber feet.

18 EN
5 Position the supplied bracket on the wall,
drill the screw holes and insert the rubber
wall plugs (not supplied) into the holes.
Tips
To mount this DVD Home Theatre unit below your
TV, leave at least 10cm (4 inches) of space between
the TV and the bracket.
•
6 Secure the bracket onto the wall with
screws (not supplied).
7 Hook the DVD Home Theatre unit firmly
onto the mounted bracket. Slide the
knobs through the key holes and lock into
position.

English
EN 19
Get started
4 Get started
Prepare the remote control
1 Push to open the battery compartment
cover.
2 Insert two batteries type R03 or AAA.
Match the indications (+-) inside the
battery compartment.
3 Close the cover.
Note
If you are not going to use the remote control for a
long time, remove the batteries.
•
Control a play source
1 Select the source you wish to control by
pressing the DISC, USB, RADIO or
AUX/DI/MP3 LINK button.
2 Then select the desired function (for
example í, ë).
Navigate through the menu
1 Point the remote control directly at the
remote sensor on this unit and select the
desired function.
2 Use the following buttons on the remote
control to navigate through the on-screen
menus.
Button Action
v V Move up or down.
b B Move left or right.
Confirm a selection.
Key in numbers.

20 EN
Find the correct viewing
channel
Note
Before you start, remove the door stop tag on top of
the disc compartment door.
•
1 Press 2to turn on the DVD Home
Theatre unit.
2 Press DISC to switch to disc mode
3 Turn on the TV and switch it to the
correct video-in channel.
You may go to the lowest channel on
your TV, then press the Channel Down
button on your TVs remote control
until you see the Video In channel.
You may press °button repeatedly
on your TVs remote control.
Usually this channel is between the
lowest and highest channels and may
be called FRONT, A/V IN, VIDEO, etc..
Tips
Refer to your TVs user manual on how to select the
correct input on your TV.
•
•
•
•
Start Ambisound setup
When you turn on this unit for the first time,
follow the instructions on the TV to complete
the Ambisound setup in order to obtain the
best possible surround sound effect.
Note
Before you start, ensure that you have made all the
required connections.
Complete the Ambisound setup for this unit before
you insert a disc to play.
•
•
1 Press DISC to switch to disc mode
2 Turn on the TV and switch it to the
correct video-in channel.
Language menu is displayed.
Please choose your language:
OSD Language
Select
Change
English
Português
Espanõl
Stop: Exit
3 Select a language for on-screen display,
then press B.
A welcome message is displayed.
To skip the Ambisound setup, press x
to exit.
4 Press Bto continue.
A message on the unit orientation is
displayed.
•
