Philips HTS6600 User manual

3Enjoy DVD HOME THEATER SYSTEM
Quick Start Guide
Connect
Set up
Enjoy
1
2
3
What’s in the box?
Main Unit Remote Control
and 2 batteries
User
Manual
Composite
Video cable
Start disc playback
APress çto open the disc compartment.
BPlace a disc with the disc label facing towards you.
CPress çto close the disc compartment.
DPlayback starts automatically.
EIf the disc menu appears on the TV, use cursor keys
to select an option in the menu and press OK to
start playback.
zTo enjoy the powerful surround sound from the
speakers, press AMBISOUND on the remote
control to turn on the multi-channel surround
mode.
FPress to stop playback.
Note When you press ubutton, playback
resumes from where it last stopped. To start playback
from the beginning, you have to press ..
Speakers and subwoofer
FM wire
antenna
AM/MW
loop antenna
MP3 LINE-IN
cable
Speaker wall
mount brackets
(2x)
AMBISOUND
SAT
HTS6600
Main unit wall
mounting bracket
Micro bre
cleaning cloth
HDMI cable
Place the
disc here
Docking
station
iPod dock
adaptors (8x)
3.5mm video
cable
Playback other supported
devices
The connections to other devices are located at the left
side of the main unit.
A
B
C
Apple iPod
AConnect the Philips HTD7001 docking station to
A.
BTurn on your iPod before you dock it into the
correct cradle.
CPress DOCK to switch to ‘DOCK’ mode.
DPress PLAY on your iPod.
Other portable audio player
AUse the supplied MP3 LINE-IN cable to connect the
headphone output jack on your portable audio
player to B.
BPress PLAY on your portable audio player.
CPress MP3 LINE-IN to listen to the playback.
USB device
AInsert your USB device to C.
BPress DISC/USB to switch to ‘USB’ mode.
CPress uto start playback.
DTo stop playback, press DISC/USB to switch to
‘DISC’ mode. You can unplug your USB device now.
Need help?
User Manual
See the user manual that came with your Philips DVD Home Theatre System.
Online
Go to www.philips.com/welcome 2007 CKoninklijke Philips N.V.
All rights reserved.
12 NC 3139 245 25591
www.philips.com
Power
Cable
Round-to-Flat
pin adaptor

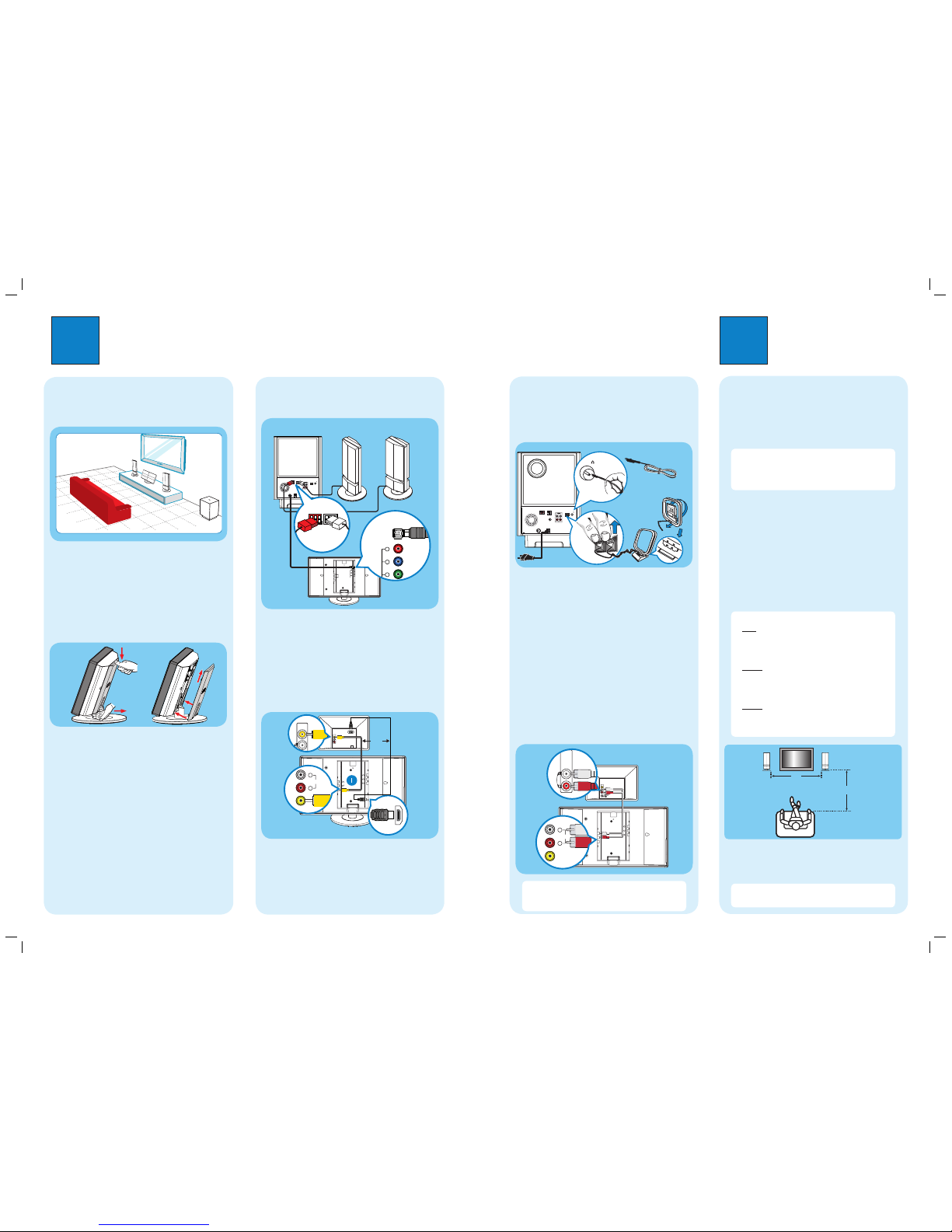

1Connect
A
Placement
Proper speakers system placement is important to
ensure optimum sound performance.
RIGHT
LEFT
APlace the speakers at the normal listening ear level,
equal distance from the TV and face it straight ahead
towards the listening area.
BPlace the subwoofer on the floor, at least one meter
away from the TV.
B
Remove rear cover from main unit
ACarefully push down the rear cover from the top
and detach it from the main unit.
BAfter all the connections have been made (see the
following sections for details), close the rear cover
by fitting the catches into the holes and pushing
upwards.
2Set up
C
Connect the speakers and main unit
to subwoofer
TOMAIN UNIT MAINS
AM
FM/AMANTENNA
SIRIUS
SPEAKERS
COAXIAL
DIGITALIN
AUX1 AUX2
RIGHT LEFT
FM75
R
L
L
Pr
Pb
Y
R
AUDIOIN
COMPONENT
VIDEOOUT
HDMIOUT
VIDEOOUT
TOSUBWOOF ER
TO SUBWOOFER
Y
Pb
Pr
B
LEFT
RIGHT
SPEAKERS
A
AConnect the left speaker to the SPEAKER LEFT jack
and the right speaker to the SPEAKER RIGHT jack at
the rear of the subwoofer.
BConnect the TO MAIN UNIT cable from the
subwoofer to the TO SUBWOOFER jack at the rear
of the main unit.
D
Connect the main unit to TV
L
Pr
Pb
Y
R
AUDIOIN
COMPONENT
VIDEOOUT
HDMIOUT
VIDEOOUT
TOSUBWOOFER
VIDEOIN
(CVBS)
VIDEO IN
(CVBS)
AUDIO IN
VIDEO OUT
L
R
HDMI OUT
zConnect a composite video cable (supplied) from the
VIDEO OUT jack on main unit to the VIDEO IN jack
on your TV.
zIf your TV supports HDMI, connect the HDMI cable
(supplied) from the HDMI OUT to the HDMI IN
jack on your TV.
Main unit (rear)
A
Finding the viewing channel
APress 2(STANDBY ON) on the main unit to turn
it on.
BTurn on the TV. Use the TVs remote control to
select the correct viewing channel.
Note To search for the correct viewing channel,
press the Channel Down button on the TVs remote
control repeatedly (or AV, SELECT, °button) until
you see the Video In channel.
B
Setting up the speakers
When you turn on this unit for the rst time, the
speaker setup message appears on the TV.
APress SETUP on the remote control to enter
‘General Setup Page’.
BPress cursor down to highlight { Ambisound
Setup } followed by pressing cursor right key.
CSelect one of the options below and press cursor
right key.
{ Room Acoustics }
{ Hard } - for concrete or wooden walls.
{ Soft } - for curtains or an open space.
{ Speakers Distance }
{ Near } - ‘X’ is less than 1.2 meters (3.9 ft).
{ Default } - ‘X’ is between 1.2~2 meters (3.9~6.5 ft).
{ Far } - ‘X’ is more than 2 meters (6.5 ft).
{ Listening Position }
{ Near } - ‘Z’ is less than 2 meters (6.5 ft).
{ Default } - ‘Z’ is between 2~3 meters (6.5~9.8 ft).
{ Far } - ‘Z’ is more than 3 meters (9.8 ft).
Note The underlined options are the default setting.
TV
FRONT RFRONT L
X
Z
DSelect a most suitable predefined setting and press
OK to confirm.
EOnce complete, press SETUP to exit the menu.
Note Refer to the accompanying user manual
for other setup options.
E
Connect the radio antennas and
power cable
Keep the antennas away from the electronic devices to
prevent unwanted interference.
TOMAIN UNIT
AM/MW
FM/MWANTENNA
SPEAKERS
COAXIAL
DIGITALIN
AUX1 AUX2
RIGHT LEFT
FM75
R
L
MAINS
A
B
FM 75
C
AConnect the FM antenna to the inner pin of the
FM 75 jack. For optimum reception, extend the
wire and fix its end to the wall.
BUnfold the AM/MW loop antenna and fix the claw
into the slot. Push the tabs and insert the wires into
the AM/MW jacks.
CConnect the power cable from subwoofer to the AC
power outlet.
F
Connect audio output from TV
(optional)
To hear the TV audio through this home theater system,
use the red and white audio cables (not supplied) to
connect the AUDIO IN jacks on the main unit to the
AUDIO OUT jacks on your TV.
VIDEOIN
(CVBS)
L
Pr
Pb
Y
R
AUDIO IN
COMPONENT
VIDEOOUT
HDMIOUT
VIDEOOUT
TOSUBWOOFER
AUDIO
OUT
AUDIO OUT
AUDIO IN
VIDEO OUT
L
R
Note Press TV on the remote control to get the
sound output from the speakers system when watching
the TV program.
Main Unit (rear)
Main Unit (rear)
Television ( rear)
Subwoofer (rear)
Listening
Position
Speakers Distance
FM antenna
AM/MW
antenna
RIGHT
SPEAKER
LEFT
SPEAKER
Subwoofer (rear)
or
