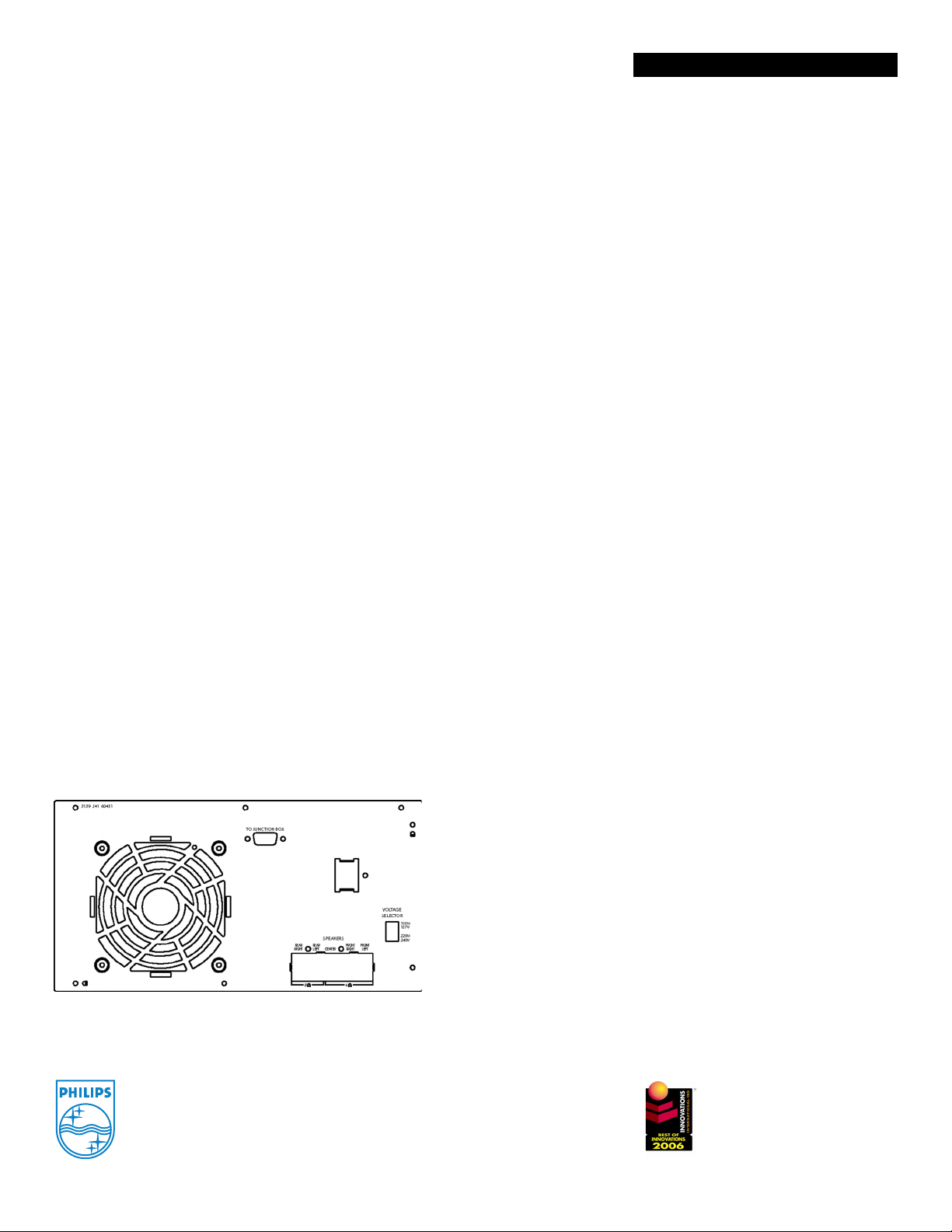

Philips HTS9800W User manual

For preview purpose only
The ultimate cinematic experience
With superb sound quality
Crafted with artistry and precision, this home entertainment system promises
unsurpassed viewing and listening experience. A streamlined design, matching any Flat
TV, blends with your interior thanks to wall-mountable and wireless feature.
Unrivalled audio and video performance
• 6.1 Dolby Digital EX cinematic surround sound
• HDMI out for digital high-definition video and digital audio
• Video Upscaling for improved resolution of up to 1080i
• Neodymium Ribbon Tweeters for crystal clear sound
• Multi-channel SACD for total music immersion
Blends with your interior
• Wireless rear speakers for fewer wires across your room
• Slim and flexible design with optional wall-mounting
• Ultra-slim flat panel speakers to complement your home
Philips Cineos
DVD/SACD Home
Theater System with
Neodymium Ribbon
Tweeters
HTS9800W

For preview purpose only
HTS9800W/37
Technical specifications
DVD/SACD Home Theater System with Neodymium Ribbon Tweeters
Date of issue 2006-10-21
Version: 3.0
12 NC: 9073 100 12606
UPC: 6 09585 11078 6
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
Picture/Display
•Aspect ratio: 4:3, 16:9
•D/A converter: 12bit, 108MHz
•Picture enhancement: High Def (720p,
1080i), Video upsampling, Video upscaling
Sound
•D/A converter: 24 bit, 192 kHz
•Frequency response: 30-50000 Hz
•Signal to noise ratio: >95 dB
•Sound System: DTS, Dolby Digital EX, Dolby
Prologic II, Dolby Digital, Stereo
•Sound Enhancement: Class "D" Digital
Amplifier, Night Mode, Treble and Bass
Control
•Equalizer settings: Action, Classic, Concert,
Digital, Drama, Rock, Jazz, Sci-Fi
•Output power (RMS): 3x125W (Front L/R/
Front Centre) + 2x85W (Rear L/R) + 105W
(Rear Centre) + 150W (Subwoofer)
•Total Sound Power (RMS): 800 W
Video Playback
•Playback Media: DVD-Video, DVD+RW,
DVD+R, DVD-RW (Video mode), DVD-R,
Video CD/SVCD, CD-R/CD-RW, Super
Audio CD
•Compression formats: MPEG1, MPEG2,
DivX 3.11, DivX 4.x, DivX 5.x, DivX 6.0
•Video disc playback system: NTSC, PAL
Audio Playback
•Playback Media: CD, MP3-CD, SACD
Multichannel, SACD Stereo, CD-R, CD-RW
•Compression format: MP3, PCM, WMA
•MP3 bit rates: 32-256 kbps and VBR
•Disc Playback Modes: CD Text display, Fast
Forward/Backward, Next/Previous Track
Search, Next/Previous Album Search,
Repeat one/album/all, Shuffle Play
Still Picture Playback
•Playback Media: Picture CD
•Picture compression format: JPEG
•Picture enhancement: Slideshow with MP3
playback
Tuner/Reception/Transmission
•Tuner Bands: FM Stereo, AM
•Number of Preset Channels: 20
• Auto digital tuning
• Auto store
Connectivity
•Other connections: AUX in, Analog audio
Left/Right in, ComponentVideo out
Progressive, Composite video (CVBS) out,
Digital coaxial in, Easy-Fit speaker
connectors, FM Antenna, HDMI out, S-
Video out, TV in (audio, cinch)
Convenience
•Child Protection: Parental Control
•On-Screen Display languages: English,
Canadian French, Mexican Spanish
•Remote Control: Multi-functional
Power
•Standby power consumption: < 1W
•Power supply: 120V, 60Hz
•Power consumption: 165 W
Loudspeakers
•Satellite Speaker: 4 Floor standing pillars,
Wireless rear speakers, Magnetically
shielded front, 2 way
•Satellite speaker drivers: 2x 3" full range
woofer, 4" ribbon tweeter
•Satellite speaker freq range: 120-50000 Hz
•Satellite speaker impedance: 6ohm
•Center Speaker: 2 way
•Center speaker drivers: 2x 3" full range
woofers, 4" ribbon tweeter
•Center freq range: 120-50000 Hz
•Center speaker impedance: 6ohm
•Subwoofer driver: 6.5" high efficiency
woofer
•Subwoofer freq range: 30-120 Hz
•Subwoofer impedance: 4ohm
Accessories
•Included Accessories: User Manual, Quick start
guide, Remote Control, 1x center speaker, 1x
subwoofer, 2x front satellite speakers, 3x rear
satellite speakers, Interconnect cable, FM antenna,
AM antenna, Screws for wall mounting x2, World
Wide Warranty leaflet
Dimensions
•Set dimensions (W x H x D):
273x284x144mm
•Set weight: 2.8 kg
•Center speaker dimensions (W x H x D):
497x139x32mm
•Center Speaker Weight: 1.5 kg
•Rear Speaker Depth: 32 mm
•Rear Speaker Height: 139 mm
•Rear Speaker Weight: 1.5 kg
•Rear Speaker Width: 497 mm
•Surround Speaker dimensions (W x H x D):
106x497x32mm
•Surround speaker Weight: 1.25 kg
•Subwoofer dimensions (W x H x D):
300x399x300mm
•Subwoofer Weight: 12 kg
•Stand dimensions (W x H x D):
240x830x240mm
•Stand weight: 4.5 kg
•Weight incl. Packaging: 47.5 kg
•

For preview purpose only
HTS9800W/37
Product highlights
DVD/SACD Home Theater System with Neodymium Ribbon Tweeters
6.1 Dolby Digital EX surround
Dolby Digital EX decoding is a new technology that adds
an extra sense of dimensional detail and intensified
involvement to the already thrilling Dolby Digital 5.1-
channel listening experience. The extra surround channel
creates an even more exciting, enveloping surround-sound
effect.
HDMI output
HDMI is a direct digital connection that can carry digital
HD video as well as digital multichannel audio. By
eliminating the conversion to analog signals it delivers
perfect picture and sound quality, completely free from
noise. HDMI is fully backward-compatible with DVI.
Video Upscaling up to 1080i
With Video Upscaling you can increase the resolution of
SD (Standard Definition) video signals that DVD uses to
HD (High Definition) so you’ll be able to see more details
thanks to a sharper, more true-to-life picture.The
resulting HD video output signal can be fed to an HD
display through HDMI (High-Definition Multimedia
Interface).
Wireless rear speakers
Wireless rear speakers give you scalability and mobility
when placing your speakers around the room. Developed
using interference-free technology wireless speakers
provide the purity of surround sound without unsightly
wire connections.
Neodymium Ribbon Tweeters
Enjoy unparalleled, natural and crystal-clear sound quality
with Omni-directional Neodymium Ribbon Tweeter.
Dipoles that radiate high frequency sounds in a full 360-
degree pattern results in a very 'open' wide sound
spectrum that delivers crisp clarity and high-pitched detail
in the higher tones. This further enhances the surround
experience in a multi-channel system and is especially
noticed when listening to Super Audio CD sound where
the clarity in music is excellent.
Multi-channel SACD
Multi-channel SACD prepared. This new generation music
format gives you Ultra high quality music reproduction,
5.1 multi-channel surround sound and full backward and
forward compatibility with CD.
