Philips 105S10/05 Installation and operating instructions

About This Electronic User's Manual
About This Electronic User's Manual
About This Guide • Other Documents You May Need • Notational Descriptions
About This Guide
This electronic user's guide is intended for anyone who uses the Philips 109S Color Monitor. It
describes the monitor's features, setup, operation and all other information, which is the same exact
information described in our printed version.
The sections are as follows:
●Safety and Troubleshooting Information provides tips and solutions for common problems,
and other related information you may need.
●About This Electronic User's Manual gives overview of what information are included as well
as notation icon descriptions and other documentation you can refer to.
●Product Information gives an overview of the monitor's features and as well as the technical
specifications for this monitor.
●Installing Your Monitor describes the initial setup process and gives an overview of how to
use the monitor.
●On Screen Display provides information on adjusting the settings on your monitor.
●Customer Care and Warranty is a list of worldwide Philips consumer information centers
along with the help desk phone numbers and information on the applicable warranty of your
product..
●Glossary provides more information for technical terms.
●Download Option allows you to consumer keep a copy of the entire manual in your hard drive.
RETURN TO TOP OF THE PAGE
Other Documents You May Need
In addition to this Electronic User's Guide, you may need to refer to the following documentation:
file:///E|/MANUAL/ENGLISH/105S/ABOUT/ABOUT.HTM (1 of 3)2004-10-19 下午 01:54:46

About This Electronic User's Manual
●Philips Color Monitor Quick Start Guide which summarizes the steps for setting up the
monitor. This is included with this product.
RETURN TO TOP OF THE PAGE
Notational Descriptions
The following subsections describe notational conventions used in this document.
Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in
italic type. These blocks are notes, cautions, and warnings, and they are used as follows:
NOTE: This icon indicates important information and tips that help you make
better use of your computer system.
CAUTION: This icon indicates information that tells you how to avoid either
potential damage to hardware or loss of data.
WARNING: This icon indicates the potential for bodily harm and tells you how
to avoid the problem.
SMART HELP: This icon indicates helpful information when adjusting the On
Screen Display of your monitor.
Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such
cases, the specific presentation of the warning is mandated by regulatory authority.
RETURN TO TOP OF THE PAGE
file:///E|/MANUAL/ENGLISH/105S/ABOUT/ABOUT.HTM (2 of 3)2004-10-19 下午 01:54:46

About This Electronic User's Manual
©1999 Koninklijke Philips Electronics N.V.
All rights reserved. Reproduction, copying, usage, modifying, hiring, renting, public performance, transmission and/or
broadcasting in whole or in part is prohibited without written consent of Philips Electronics N.V.
file:///E|/MANUAL/ENGLISH/105S/ABOUT/ABOUT.HTM (3 of 3)2004-10-19 下午 01:54:46

Safety & Troubleshooting
Safety and Troubleshooting Information
Safety Precautions and Maintenance • Troubleshooting • Regulatory Information • Other
Related Information
Safety precautions and maintenance
WARNING: Use of controls, adjustments, or procedures other than those
specified in this documentation may result in exposure to shock, electrical
hazards, and/or mechanical hazards.
Read and follow these instructions when connecting and using your computer monitor:
●Disconnect the monitor from the power supply if the monitor is not to be used for an
extended period of time.
●Do not attempt to remove the back cover, as you will be exposed to a shock hazard. The
back cover should only be removed by qualified service personnel.
●Do not place objects on top of the monitor cabinet, objects could fall into vents or cover them
and prevent proper cooling of the monitor's electronic devices.
●To avoid the risk of shock or permanent damage to the set, do not expose the monitor to rain
or excessive moisture.
●Do not use alcohol or ammonia-based liquid to clean the monitor. If necessary, clean with a
slightly damp cloth. Disconnect the monitor from the power supply before cleaning.
●When positioning the monitor, make sure the power plug and outlet are easily accessible.
Consult a service technician if the monitor does not operate normally when operating instructions of
this manual are followed.
RETURN TO TOP OF THE PAGE
file:///E|/MANUAL/ENGLISH/105S/safety/safety.htm2004-10-19 下午 02:02:11

105S Product Information
Product Information
Product Features • Technical Specifications • Automatic Power Saving • Physical
Specification • Pin Assignment • Product Views
Product Features
105S10
●15-inch (14.0" VIS) color monitor with excellent front of screen performance for use with
MACs and PCs
●Autoscan covers horizontal frequencies up to 60 kHz offering a maximum resolution of 1280
x 960 with flicker free display of 800 x 600 at up to 96 Hz
●Flat square CRT with high-resolution 0.28 mm dot pitch (0.24 hdp).
●Smallest footprint in its class requires minimum desk space: maximum depth is only 379
mm/14.9"
●Multimedia Base and USB Hub option
●TCO99, E2000, NUTEK, EPA, FCC, CE and ISO9241 certified
105S11
●15-inch (14.0" VIS) color monitor with excellent front of screen performance for use with
MACs and PCs
●Autoscan covers horizontal frequencies up to 60 kHz offering a maximum resolution of 1280
x 960 with flicker free display of 800 x 600 at up to 96 Hz
●Flat square CRT with high-resolution 0.28 mm dot pitch (0.24 hdp).
●Smallest footprint in its class requires minimum desk space: maximum depth is only 379
mm/14.9"
●Multimedia Base and USB Hub option
●MPR-II, NUTEK, EPA, FCC, CE and ISO9241 certified
105S15 (TCO99) / 105S16 (MPR II)
file:///E|/MANUAL/ENGLISH/105S/product/product.htm (1 of 6)2004-10-19 下午 02:02:12

105S Product Information
●15-inch (14.0" VIS) color monitor with excellent front of screen performance for use with
MACs and PCs
●Autoscan covers horizontal frequencies up to 60 kHz offering a maximum resolution of 1280
x 960 with flicker free display of 800 x 600 at up to 96 Hz
●Flat square CRT with high-resolution 0.28 mm dot pitch (0.24 hdp).
●Smallest footprint in its class requires minimum desk space: maximum depth is only 379
mm/14.9"
●Multimedia Base complete with 32 W PMPO stereo output, bass boost, headphones and
microphone connector
●TCO99, MPR II, E2000 (105S15), NUTEK, EPA, FCC, CE and ISO9241 certified
RETURN TO TOP OF THE PAGE
Technical Specifications*
CRT
• Size and deflection 15 inch / 36 cm ; 90° deflection angle
• Dot pitch / Grille pitch 0.28 mm
• Horizontal pitch 0.24 mm
• Tube type Shadow mask, flat square, high contrast, anti-glare, anti-
static, anti reflection, light transmission 57%
• Phosphor P22
• Recommended display area 10.6" x 7.95" / 270 x 202 mm
• Maximum display area 11.2" x 8.4" / 284 x 213 mm
SCANNING
• Horizontal scanning 30 - 60 KHz
• Vertical scanning 50 - 120 Hz
VIDEO
• Video dot rate 108 MHz
• Input impedance
- Video 75 ohm
file:///E|/MANUAL/ENGLISH/105S/product/product.htm (2 of 6)2004-10-19 下午 02:02:12

105S Product Information
- Sync 2.2 kOhm
• Input signal levels 0.7 Vpp
• Sync input signal
Separate sync
Composite sync
• Sync polarities Positive and negative
WHITE COLOR TEMPERATURE
Chromaticity CIE coordinates:
• at 9300 K degrees x = 0.283 / y = 0.297
• at 6500 K degrees x = 0.313 / y = 0.329
* These information are subject to change without notice.
RETURN TO TOP OF THE PAGE
Automatic Power Saving
If you have VESA's DPMS compliance display card or software installed in your PC, the monitor
can automatically reduce its power consumption when not in use. And if an input from a keyboard,
mouse or other input device is detected, the monitor will automatically "wake up". The following
table shows the power consumption and signaling of this automatic power saving features:
Power Management Definition
VESA's
Mode Video H-sync V-sync Power Used
Power
Saving
(%)
LED color
ON Active Yes Yes < 65W 0 % Green
Stand-by Blanked No Yes < 10W 85% Yellow
Suspend Blanked Yes No < 10W 85% Yellow
file:///E|/MANUAL/ENGLISH/105S/product/product.htm (3 of 6)2004-10-19 下午 02:02:12

105S Product Information
OFF Blanked No No
< 3W (105S10,
105S15)
< 8W (105S11,
105S16)
95%
88% Amber
This monitor is ENERGY STAR®compliant. As an ENERGY STAR®Partner, PHILIPS has
determined that this product meets the ENERGY STAR®guidelines for energy efficiency.
RETURN TO TOP OF THE PAGE
Physical Specifications
• Dimensions
14.1"
x 14.6" x 14.9" / 358 x 370 x 379 mm (including base) 14.1"
x 13.2" x 14.9" / 358 x 335 x 379 mm (excluding base)
• Weight 11.9 kg
• Power supply 90 - 264 VAC, 50/60Hz
• Temperature (operating) 0° to 40°C / 32° to 104°F
• Temperature (storage) -25° to +65°C / -13° to -149°F
• Relative humidity 5% to 95%
* Resolution 1280 x 1024, standard size, contrast max., brightness 50%, 9300°, full white pattern.
* These information are subject to change without notice.
RETURN TO TOP OF THE PAGE
file:///E|/MANUAL/ENGLISH/105S/product/product.htm (4 of 6)2004-10-19 下午 02:02:12

105S Product Information
Pin Assignment
The 15-pin D-sub connector (male) of the signal cable (IBM systems):
Pin
No. Assignment
Pin
No. Assignment
1 Red video input 9 No pin
2 Green video input 10 Logic ground
3 Blue video input 11 Identical output -
connected to pin 10
4Identical output -
connected to pin 10 12 Serial data line (SDA)
5 Ground 13 H. Sync / H+V
6 Red video ground 14 V. Sync (VCLK for DDC)
7 Green video ground 15 Data clock line (SCL)
8 Blue video ground
RETURN TO TOP OF THE PAGE
Views
Follow the links to see various views of the monitor and its components.

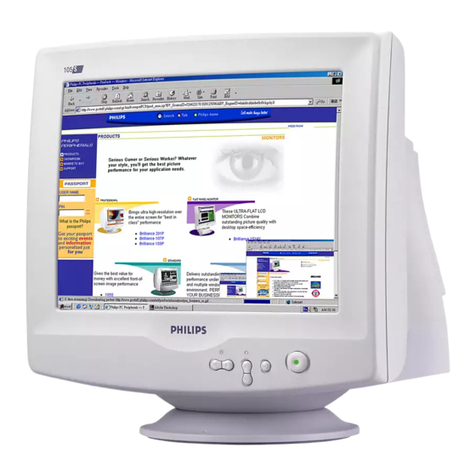

Front View
file:///E|/MANUAL/ENGLISH/105S/product/product.htm (5 of 6)2004-10-19 下午 02:02:12

105S Product Information
Rear View
RETURN TO TOP OF THE PAGE
file:///E|/MANUAL/ENGLISH/105S/product/product.htm (6 of 6)2004-10-19 下午 02:02:12

Installing your Monitor
Installing your Monitor
Front View • Rear View • 6G3B10 Multimedia Base (option) • PCUH411 USB Hub (option)
Front View
Power button switches your monitor on.
OK button which when pressed will take you to the OSD controls
Contrast hotkey. When the UP arrow is pressed, the adjustment
controls for the CONTRAST will show up.
file:///E|/MANUAL/ENGLISH/105S/install/install.htm (1 of 3)2004-10-19 下午 02:02:12

Installing your Monitor
UP and DOWN buttons are used when adjusting the OSD of your
monitor
Brightness hotkey. When both the LEFT and RIGHT arrows are
pressed at the same time, then the adjustment controls for
BRIGHTNESS will show up.
LEFT and RIGHT buttons, like the UP and DOWN buttons, are also
used in adjusting the OSD of your monitor.
RETURN TO TOP OF THE PAGE
Rear View
file:///E|/MANUAL/ENGLISH/105S/install/install.htm (2 of 3)2004-10-19 下午 02:02:12

Installing your Monitor
1. Power in - attach power cable here.
2. Video In - this is a cable which is already attached to your monitor. Connect
the other end of the cable to your PC.
RETURN TO TOP OF THE PAGE
file:///E|/MANUAL/ENGLISH/105S/install/install.htm (3 of 3)2004-10-19 下午 02:02:12

On-Screen Display
On-Screen Display
Description of the On-Screen Display • The OSD Tree • The OSD Controls
Description of the On Screen Display
What is the On-Screen Display?
This is a feature in all Philips monitors which allows an end-user to adjust screen performance of
monitors directly though an on-screen instruction window. The user interface provides user-
friendliness and ease-of-use when operating the monitor.
Basic and simple instruction on the control keys.
On the front controls of your monitor, once you press the button, the On Screen Display (OSD)
Main Controls window will pop up and you can now start making adjustments to your monitor's
various features. Use the or the keys to make your adjustments within.
file:///E|/MANUAL/ENGLISH/105S/osd/osddesc.htm (1 of 4)2004-10-19 下午 02:02:13

On-Screen Display
RETURN TO TOP OF THE PAGE
The OSD Tree
Below is an overall view of the structure of the On-Screen Display. You can use this as reference
when you want to later on work your way around the different adjustments.
file:///E|/MANUAL/ENGLISH/105S/osd/osddesc.htm (2 of 4)2004-10-19 下午 02:02:13

On-Screen Display
file:///E|/MANUAL/ENGLISH/105S/osd/osddesc.htm (3 of 4)2004-10-19 下午 02:02:13

On-Screen Display
RETURN TO TOP OF THE PAGE
file:///E|/MANUAL/ENGLISH/105S/osd/osddesc.htm (4 of 4)2004-10-19 下午 02:02:13

Customer Care and Warranty
Customer Care & Warranty
PLEASE SELECT YOUR COUNTRY/AREA TO READ THE WARRANTY COVERED:
WESTERN EUROPE: Austria • Belgium • Cyprus • Denmark • France • Germany • Greece •
Finland • Ireland • Italy • Luxembourg • the Netherlands • Norway • Portugal • Sweden •
Switzerland • Spain • United Kingdom
EASTERN EUROPE: Czech Republic • Hungary • Poland • Russia • Turkey
LATIN AMERICA: Antilles • Argentina • Brasil • Chile • Colombia • Mexico • Paraguay •
Peru • Uruguay • Venezuela
NORTH AMERICA: Canada • USA
PACIFIC: Australia • New Zealand
ASIA: Bangladesh • China • Hong Kong • India • Indonesia • Japan • Korea • Malaysia •
Pakistan • Philippines • Singapore • Taiwan • Thailand
AFRICA: Morocco • South Africa
MIDDLE EAST: Dubai • Egypt
file:///E|/MANUAL/ENGLISH/warranty/warranty.htm2004-10-19 下午 02:02:14

Glossary
Glossary
ABCDEFG HIJ K LMNOPQ RSTUVW X Y Z
A
Autoscan
A microprocessor-based feature of Philips Brilliance monitors is able to detect automatically
horizontal and vertical frequencies of input signals with those of the installed video card. An
autoscan monitor can thus operate with a wide range of video cards. MultiSync, a registered
trademark of NEC, provides a similar function.
RETURN TO TOP OF THE PAGE
B
Balanced pincushion
See Geometric distortion
BNC connection
A special construction of connector used in some monitors with higher horizontal scanning
frequency. The BNC connection can provide the optimum shielding and matching characteristic
impedance of video signal path to ensure the best video performance.
file:///E|/MANUAL/ENGLISH/105S/glossary/glossary.htm (1 of 22)2004-10-19 下午 02:02:15

Glossary
RETURN TO TOP OF THE PAGE
C
CE Mark
CE mark is displayed on products per EMC and LV ( low Voltage Device ) directives in compliance
with European Community safety, EMI and EMS requirements and is compulsory on products for
sale in the European Community.
Color temperature
A way of describing the color of a radiating source in terms of the temperature (in degrees Kelvin) of
a black body radiating with the same dominant frequency as the source.
Most Philips monitors offer the possibility of setting the color temperature to any desired value.
Contrast
The ratio between the brightness of the brightest and darkest parts of a picture. The darkest part of a
file:///E|/MANUAL/ENGLISH/105S/glossary/glossary.htm (2 of 22)2004-10-19 下午 02:02:15
