Philips 45B1U6900CH/00 User manual

Monitor
SmartControl
User Manual

Table of Contents
1. Windows Installation ................. 1
2. Open Methods .............................2
3. Software Update .........................2
4. Home .............................................3
4.1 Picture ............................................ 3
4.1.1 Picture Format.................... 3
4.1.2 Brightness ............................ 3
4.1.3 Contrast................................ 3
4.1.4 Resolution ........................... 3
4.1.5 Input...................................... 4
4.1.6 BIP/PIP.................................. 4
4.2 Color ............................................... 4
4.2.1 Color temperature............. 4
4.2.2 Gamma................................. 5
4.2.3 SmartImage ......................... 5
4.2.4 Application Preset Mode 5
4.3 Audio .............................................. 6
4.4 ECO Power ................................... 6
4.4.1 Power Schedule................. 6
4.4.2 Power LED........................... 6
4.5 Smart Desktop .............................7
4.6 Settings .......................................... 9
4.6.1 Multi Display ....................... 9
4.6.2 Screen Rotate ..................... 9
4.6.3 Reset ..................................... 9
4.6.4 Information.......................... 9
4.6.5 Version upgrade................10
4.6.6 Monitor Language ............10
4.6.7 Remote control .................. 11
4.7 Tray ................................................. 11
4.7.1 Automatic upgrade ........... 11
4.7.2 Run at startup..................... 11
4.7.3 Rescan ................................. 12
4.7.4 Language ............................ 12
4.7.5 Multi-monitor setup ........ 12
4.7.6 Exit ....................................... 12

1

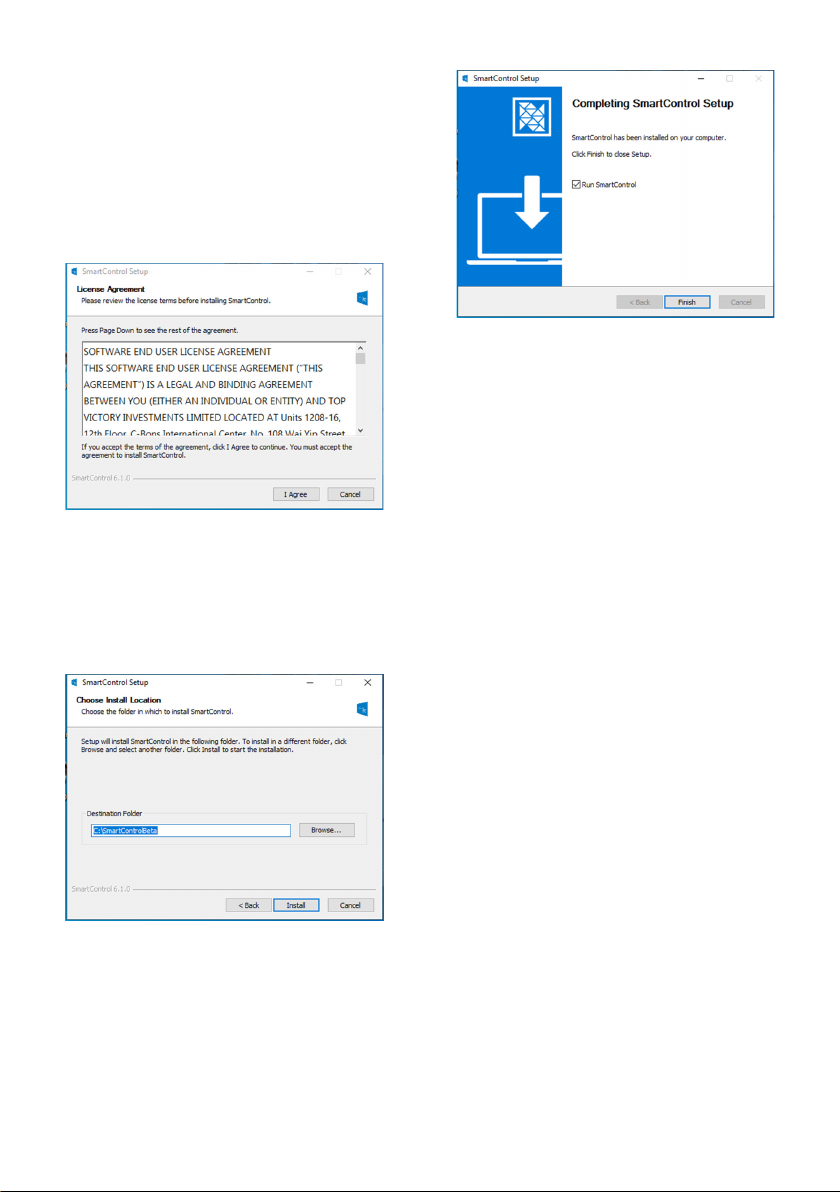

1. Windows Installation
1. Download the SmartControl
executable program, and double
click the EXE file to start the
installation.
2. Accept the license agreement by
selecting the I Agree button.
3. Select the installation folder.
Selecting the Browse button will
open a Browse for Folder dialog
box.
4. Confirm Installation by pressing the
Install button.
5. Complete the installation by
pressing the Done button.
Congratulations on installing
SmartControl!

2

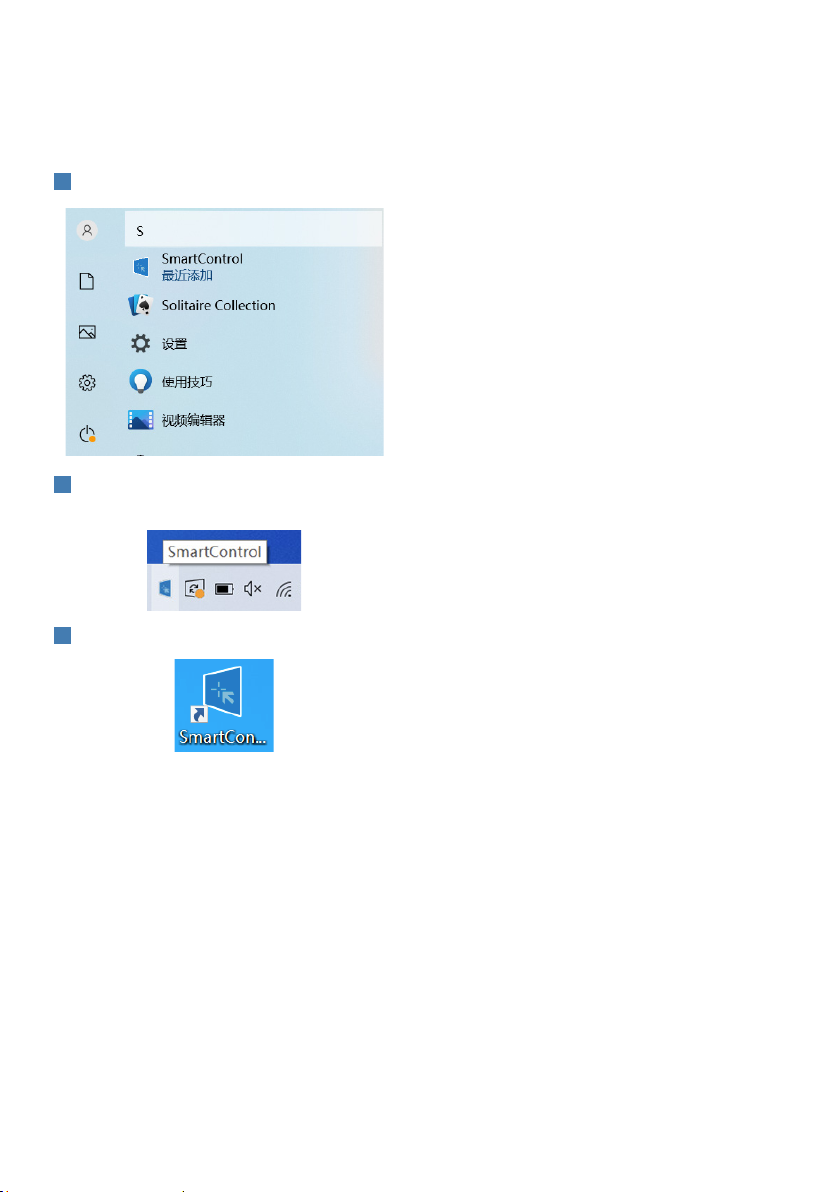

2. Open Methods
There are 3 ways to access the
SmartControl application.
1Start Menu> SmartControl
2Taskbar>Right click on the taskbar
icon
3Shortcut on Desktop
3. Software Update
• Tick automatic upgrade in the
tray then when you enter the
SmartControl home page, the
software will automatically check for
updates.
• Note: If there is no network
connection, SmartControl will not
be able to detect updates.

3
4. Home
• Open SmartControl application and
enter the home page.
1. Close——Click to close the
application interface, the actual
application is still running in the
background.
2. Minimize/Restore——Click to switch
the interface to zoom in/restore the
display.
3. Navigation: Picture/Color/Audio/
Eco Power/Smart Desktop/Settings.
4.1 Picture
4.1.1 Picture Format
• Screen format selection in different
proportions.
4.1.2 Brightness
• Slider 0-100, default 50.
• Adjust the output of the backlight to
reduce eyestrain.
4.1.3 Contrast
• Slider 0-100, default 50.
• Adjust the contrast ratio between
the luminance of the brightest white
and darkest black.
4.1.4 Resolution
• The resolution can be set through
the application.
• The "Resolution" drop-down
list will display all supported
resolutions in the EDID report and
in the "Display Properties".
• Selecting other resolutions will be
applied automatically.

4
• Resolution notification, when
checked, when checked, when
changing resolutions, a dialog box
will appear allowing the user to
keep the changes, or revert to the
current resolution after 16 seconds
of inactivity.
• The Keep Changes button will
accept the new setting
• The reset button will revert to
the previous setting
• When the 16 second timer ex-
pires, it will revert to the previ-
ous setting
4.1.5 Input
• Display the input supported by the
monitor.
• Selecting another input will switch
to the newly selected input.
4.1.6 BIP/PIP
• Display settings according to
the specific device (Mode/Size/
Position/Input).
• Apply
• Click Apply button to save the
setting.
• Swap
• After the display PBP is turned
on, there are two signal sources
input, click to make the output
screen of the two signal sources
switch positions.
4.2 Color
4.2.1 Color temperature
• Color temperature is a way to
describe the light appearance
provided by a light bulb.

5
User Define
• Three sliders of red, green and blue.
• Slider 0-100, default 50.
• Slider to increase/decrease the
color value.
• Reset--Button
• Click to restore the User Dene
to factory settings.
4.2.2 Gamma
The gamma level adjusts pixel
luminance at each brightness level.
Lower gamma increases brightness
making shadows look brighter and can
result in a flatter, washed out image
with brighter highlights. Higher gamma
reduces brightness making it more
difficult to see details in shadows.
4.2.3 SmartImage

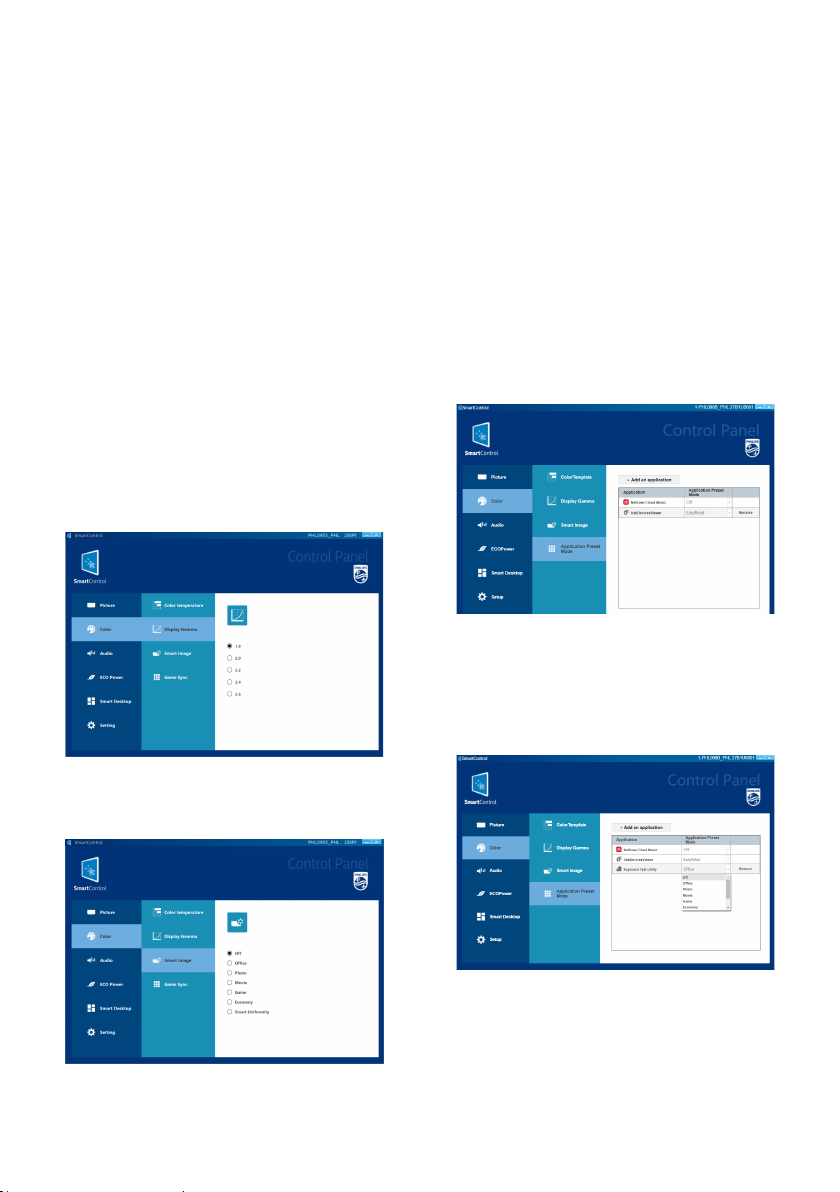

4.2.4 Application Preset Mode
Application Preset Mode enable you
to associate a specific Preset Mode
with a specific application, and apply it
automatically.
The Preset Mode assigned to a
particular application may be the same
on each connected monitor, or it can
vary from one monitor to the next.
1. Add an application
• Click Add an application, enter
the file manager and select the
application.
2. Assigning Preset Modes to
Applications
• Click the drop-down box of Apply
Preset Mode to specify a preset
mode.
3. Remove Apps
• You can click the application in
the list, the remove option will be
displayed on the right, click Remove

6
to delete the application from the
list.
4.3 Audio
• Adjust Volume Slider 0 (off) – 100
(maximum). Default is 0.
• Mute
• Enabled: Turns o sound.
• Disabled: Turns on sound, and
enables volume slider. The
volume will restored to the state
before muting.
4.4 ECO Power
4.4.1 Power Schedule
1. Power Saving
• Enable - Enable power saving
mode.
• Disable - Disable power saving
mode.
• Idle Timer
• Control how long the screen is
idle before it goes into sleep
mode.
• Power off Schedule
• The power timer controls when
the display turns o. You can
turn the display back on using
the power button on the edge of
the display hardware.
2. Schedule daily power off
• Enable - enable timed shut-
down.
• Disable - disable timer shut-
down.
• Choose when to power off the
monitor.
• Set the shutdown time.
• Set the date of timed shutdown,
you can choose more than one.
4.4.2 Power LED

7

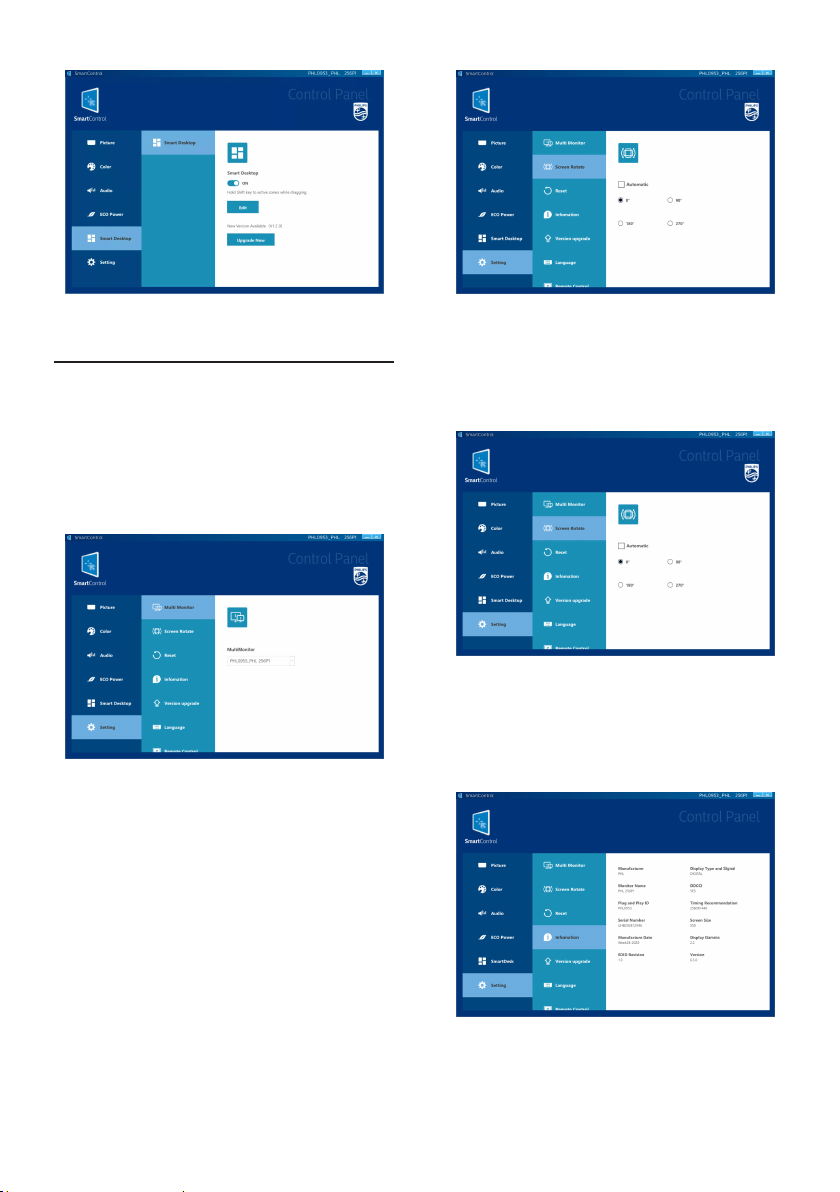

4.5 Smart Desktop
Smart Desktop enables you to easily
arrange the open windows in one of the
predefined layouts by dragging them in
the zones.
1. Download Smart Desktop
• You only need to download it for
the first time, and you can use it
directly afterwards.
2. Enable Smart Desktop
• Enable desktop layout settings.
3. Select a layout
• Click Edit to open the layout style
editor interface.
• The layout editor appears with the
built-in templates on display. Each
layout is designed for a specific
number of windows and a specific
format, such as rows or columns.
• Select a layout and a preview of the
layout will appear on the monitor.
• Double-clicking on a layout will
apply the layout and automatically
close the editor.
• If multiple monitors are being used,
the editor will detect the available
monitors and display them for
you to choose from. The selected
monitor will then be the target of
the selected layout.
• Press the Shift key and drag the
window by its title bar. You'll then
see the layout you selected. Drag
the window into one of the zones,
and it will fit into place.
4. Edit zone layout
• Click the pencil icon for a layout you
want to modify.

8
• First, you can increase or decrease
the number of zones. You're adding
or subtracting the number of rows
for a row layout. You're adding or
subtracting the number of columns
for a column or grid layout. Click the
field for Number of zones and either
click the up or down arrow or type a
specific number.
• To increase or decrease the space,
or padding, around each zone, click
in the field for Space around zones
and click the up or down arrow or
type a specific number. Turn off the
switch completely to eliminate the
spacing.
• Next, the setting for Highlight
distance determines the amount of
space between two zones until they
snap or merge together. Again, click
in the field and adjust the number
by clicking the up or down arrow or
typing a specific number.
• When done, click Save to save the
changes to the template.
5. Create a New Layout
• If you'd like to create a new layout
from scratch. Select the + Create
New Layout button.
• There are two ways to create
custom area layouts: Grid layout
and Canvas layout.
• The Grid model begins with a three-
column grid and allows regions to
be created by splitting and merging
regions, and resizing the spacing
between regions as needed. This is
a relative layout and will be resized
with different screen sizes.
• The next screen is where you define
the format of the new layout. The
redefinition can be completed
according to the interface prompts.
• When done, click Save & apply.
6. New version upgrade
• When there is a new version that
can be updated, you can click
Upgrade Now to download the
lasted version.

9
4.6 Settings
4.6.1 Multi Display
• Click the drop-down box to select
appropriate connected displays.
• Switch to another display, all
settings will be updated accordingly.
4.6.2 Screen Rotate
• Automatic
• Enable-- the screen rotates
adaptively.
• Disable--the screen orientation
is xed.
• 4 options: 0°,90°,180°,270°
4.6.3 Reset
Click Reset to restore the monitor
settings to their default state.
4.6.4 Information
View the basic information of the
display.

10

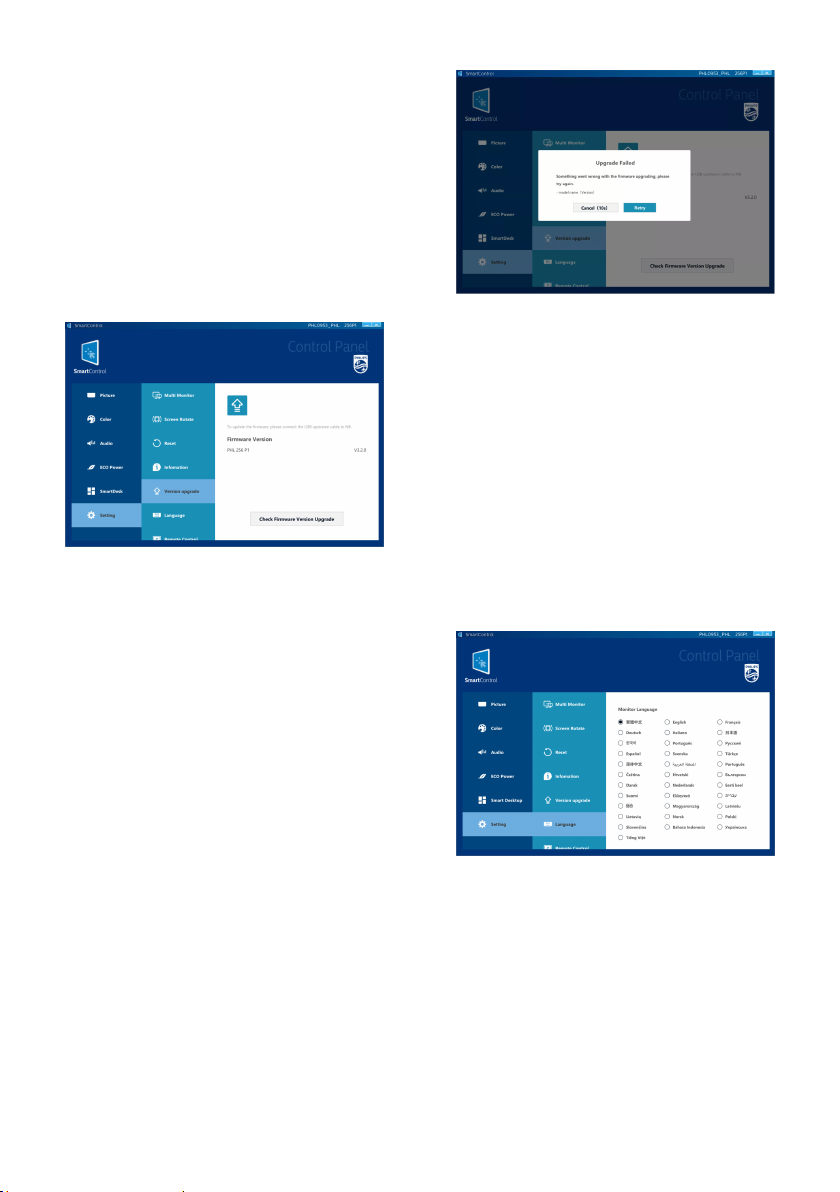

4.6.5 Version upgrade
• View the current firmware version of
the monitor.
• To update the firmware, please
connect the USB upstream cable to
NB.
• Click the Check Firmware Version
Upgrade to perform upgrade
detection, you need to keep the
network connection.
Firmware upgrade
• If the latest firmware version
is detected, a pop-up box will
prompt.
• During the upgrade process, please
keep the USB upstream cable
connected and do not power off
your PC.
• Upgrade error
• If the upgrade fails due to
abnormal communication dur-
ing programming. You can click
Retry according to the prompts
on the page, please note that if
you click Cancel, the subsequent
devices will need to manually
install the rmware.
• If the USB upstream cable is
disconnected during the upgrade,
you can reconnect the cable and
click Retry according to the interface
prompts.
• If the device is shut down during
the upgrade, you need to manually
reinstall the firmware.
4.6.6 Monitor Language
• Click the appropriate language
button to switch monitor languages
immediately.

11
4.6.7 Remote control

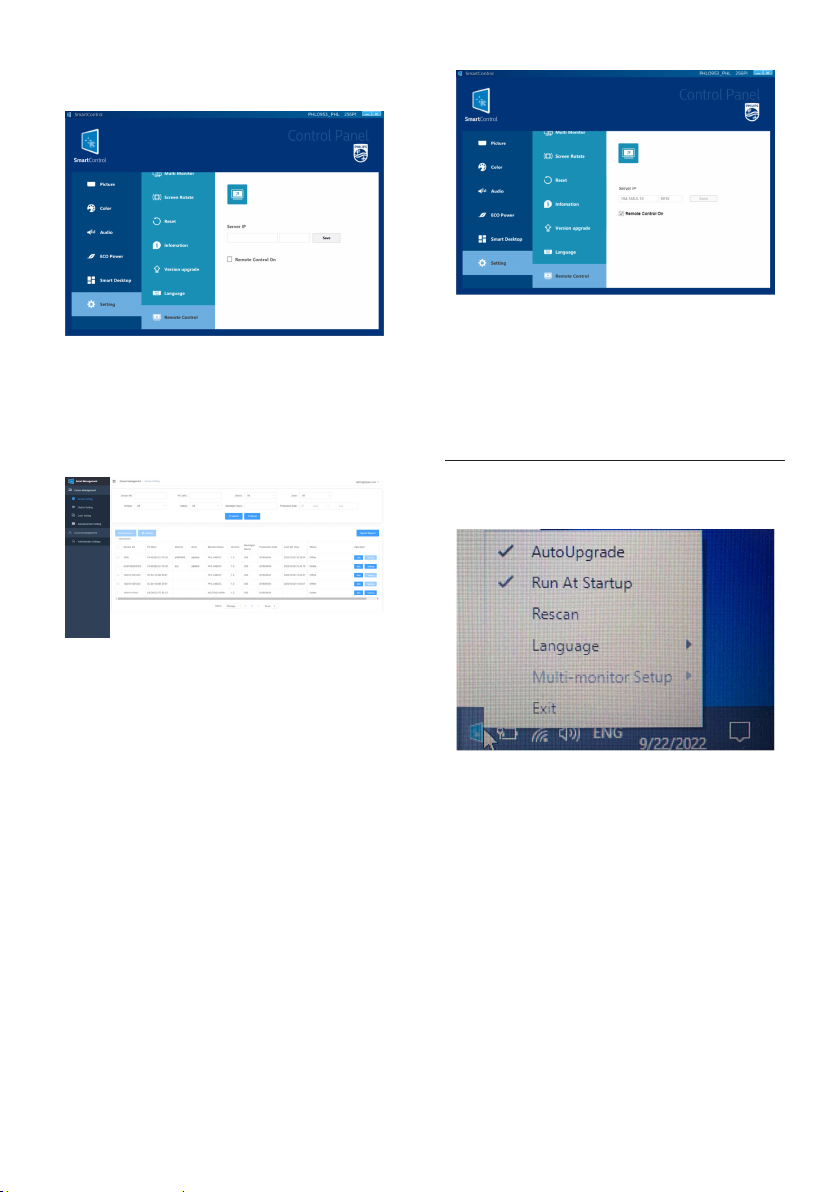

This function is mainly linked with
SmartManagement as shown below,
which is a management platform for
Philips monitors by remotely setting
SmartControl
If you allow SmartManagement to
remote control the device, you need
to entered Server IP manually and
check remote control on to enable.
And SmartManagement can connect
to the device to obtain the monitor
information.
• Server IP Input
• The rst input box is the server
IP address (the PC where the
server SmartManagement is
located), and the second is the
port input box.
• Click Save to save the entered
server IP.
If you do not allow SmartManagement
to remotely control the device, you
don't need to enter IP address and tick
remote control on.
4.7 Tray
In the tray, you can make basic Settings
for the system.
4.7.1 Automatic upgrade
• Enable--when a new version is
detected, it will automatically
download and upgrade
• Disable--do not detect new version
upgrades.
4.7.2 Run at startup
• Only works as administrator.
• Enabled--the application will run at
system startup.

12
• Disabled--the application will not
run at system startup.
4.7.3 Rescan
• Click to reloads the software
information
4.7.4 Language
• Click to change SmartControl
software language
4.7.5 Multi-monitor setup
• Display on main monitor only
(default).
• Clone
• The display contents of multiple
connected display interfaces
are the same. When one display
is operated, the other display
changes synchronously.
• Expansion
• Multiple display interfaces are
used as a single display screen
that has been cut to form a com-
plete screen, and the mouse can
go from the rst display to the
second display.
• Display on secondary display only.
4.7.6 Exit
• Click to exit SmartControl.

2022 © TOP Victory Investments Ltd. All rights reserved.
This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top
Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered
trademarks of Koninklijke Philips N.V. and are used under license.
Specications are subject to change without notice.
Version No: 1.6.0
Release Date: 10/19/2022
