Philips BDH5031V.00 User manual

EN
Philips Professional
&
Business Solutions

 

User Manual BDH5031V
 

The meaning of the symbol on the product, its accessory or packaging indicates that this product
shall not be treated as household waste. Please, dispose of this equipment at your applicable collec-
tion point for the recycling of electrical & electronic equipments waste. In the European Union and
Other European countries which there are separate collection systems for used electrical and electronic prod-
uct. By ensuring the correct disposal of this product, you will help prevent potentially hazardous to the environ-
ment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The
recycling of materials will help conserve natural resources. Please do not therefore dispose of your old electrical
and electronic equipment with your household waste. For more detailed information about recycling of this
product, please contact your local city office, your household waste disposal service or the shop where you
purchased the product.

This environment-friendly product does not contain the EU RoHS restricted substances (Pb, Hg, Cd,
Cr6+, PBB, and PBDE).

• All the safety and operating instructions should be read before the product is operated. If anything strange
happens, unplug this product from the wall outlet.
• Do not disassemble or replace any parts of the Monitor. Refer to a qualified service personnel for repair.

You can be killed or seriously injured if you do not follow these instructions.
 

• Improper grounding may cause malfunction or electric shock.
• When proper grounding is not possible, install circuit breaker.
• Do not ground to gas pipe, water pipe, lightning rod, or telephone
line.
• An apparatus with CLASS I construction shall be connected to a
MAINS socket outlet with a protective earthing connection.


• It can result in fire.

User Manual BDH5031V
 

• It can result in fire or electric shock due to damaged power cord.


• Failure to follow this instruction can result in electric shock or per-
sonal injury.


• It can result in a risk of electric shock.
 

• It may cause the product and cart to overturn, damaging equipment
or causing possible injury.


• It can result in electric shock or fire.



User Manual BDH5031V

• It may cause malfunction.



• It may cause malfunction.


• Due to the increase of temperature inside the Monitor, it may cause fire.
 
Due to the increase of temperature inside the Monitor, it may cause a fire.


• Failure to do so may cause damage to product and injury to human.

User Manual BDH5031V
 


• It may cause electric shock.


• It may cause fire or electric shock.

        

• Spilled liquids may cause electric shock or fire.

• These actions may tip it over, causing personal injury.

• If these fall into the inside of the Monitor, it may cause a fire or ex-
plosion.

User Manual BDH5031V


• Heavy metal may contaminate environment, and can be harmful or
detrimental to human health. (If children swallow the batteries, go
to hospital and consult with a doctor.) Batteries could explode if fit-
ted incorrectly. Align the batteries according to the (+) and (-) indica-
tion inside the case.

• It may cause an electric shock or fire.


• Leaving the Monitor on in this condition, may cause fire or electric
shock.
    





• Examples of still pictures include logos, video games, computer im-
ages, teletext and images displayed in 4:3 mode. The warranty does
not cover any damage caused by image retention.


• The Monitor appearance may be marred.
(Unplug the power plug and wipe with soft cloth.)

User Manual BDH5031V

• It may damage the power cord, causing fire or electric shock.

• In an event of improper ventilation, the Monitor will be overheated
causing fire.



• Watching the Monitor for a long time may hurt your eye sight.

  
• When the Monitor is not cleaned for a long period of time, dust in it
may cause fire or malfunction.


• Unbalance may cause the Monitor to drop, resulting in personal
injury or equipment malfunction and damage.

User Manual BDH5031V
P.MODE PICTURE FMT AV
S.MODE S.EFFECT PIXEL SHIFT
PIP POSITION COLOR TEMP
PIP SOURCE SWAP RECALL
VOLVOL
MENU
TIMER STILL
R-48F01
MUTE
 
 
Check to be sure that the following items are packed with your Plas-
ma panel.
1. Remote Control 1 UNIT
2. Batteries 2 UNIT
3. EDFU 1 UNIT
4. VGA Cable 1 UNIT
5. Ferrite Core 1 UNIT
6. AC Power Cable 2 UNITS
(UK, Europe)
Remote Control Batteries EDFU VGA Cable Ferrite Core
Power Cable Europe Power Cable UK

User Manual BDH5031V

 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 

User Manual BDH5031V
 
RETURN TO THE CONTENTS
 
 

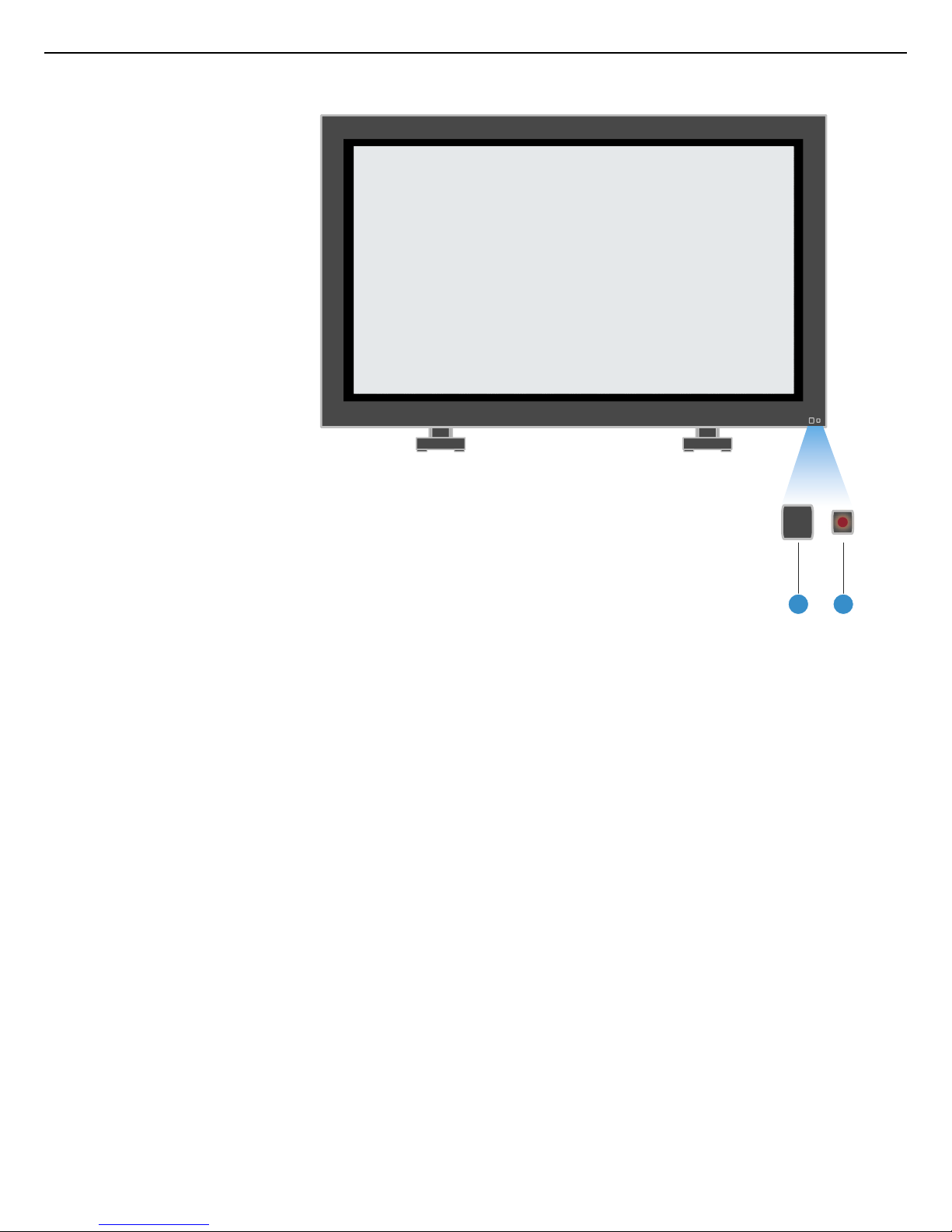

* Items having the same name on the plasma display and the remote
control would function in exactly the same way.
1. Power control sensor
2. Power Stand by:
Red : Stand by
Green : ON

User Manual BDH5031V
DIGITAL
AUDIO
OPTICAL
INPUT
PC AUDIO
SERVICE
PC IN PC OUT
AUDIO
HDMI
COMPONENT
INPUT
AV1 AV2
AUDIO
VIDEO
MENU
MOVE
DIG ITAL
AUDI O
OPTICAL
INPUT
PC AUDIO
SERVICE
PC IN PC OUT
AUDIO
HDMI
COMPONENT
INPUT
AV1 AV2
AUDIO
VIDEO
MENU MOVE
    
     



RETURN TO THE CONTENTS
 

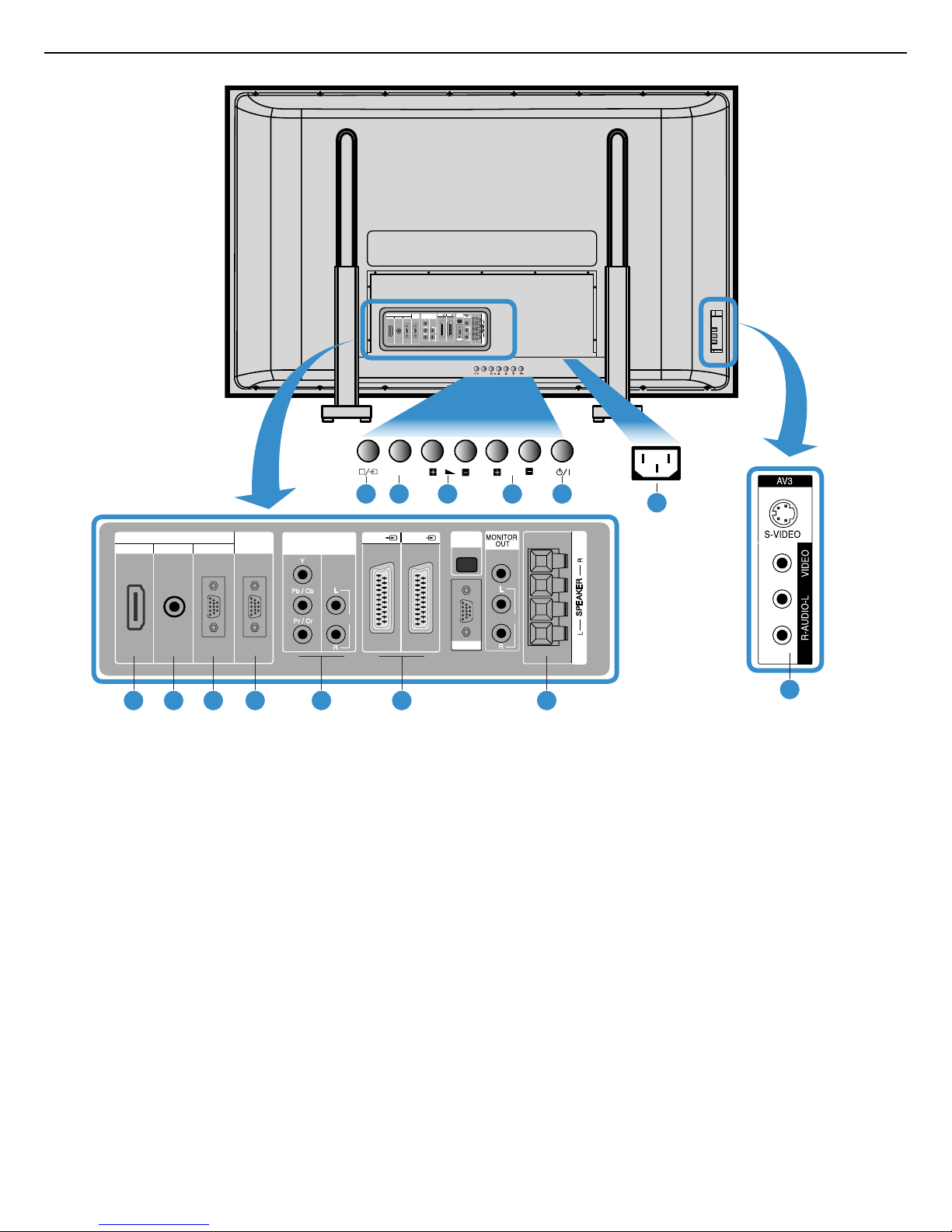

1. 
2. 
3. 
Use this button to enter and exit the MENU.
4. 
Use these buttons to change your TV’s volume or to
move the cursor in the menu.
5.

Use these buttons to navigate through the the On
Screen Display menu.
6. 
Use this button to switch TV to Stand By mode or TV
ON mode.
7.  INPUT
8.  INPUT
9.  INPUT (15 pin D-sub)
10.  (15 pin D-sub)
11.  jacks
12. , A/V INPUT/OUTPUT
13. 
14. 

User Manual BDH5031V
P.MODE PICTURE FMT AV
S.MODE S.EFFECT PIXEL SHIFT
PIP POSITION COLOR TEMP
PIP SOURCE SWAP RECALL
VOLVOL
MENU
TIMER STILL
R-48F01
MUTE
RETURN TO THE CONTENTS
 
Note:
• Use two “AAA” batteries.
• Be sure to use replacement batteries of the same type as the original ones.
• The life of a battery depends on how much it has been used.
 
 - while the AC power cord is connected, turn the dis-
play ON (Green light) or OFF (red light stand-by).
- Whenever pressing the button, it cycles in the follow-
ing order. Normal  Dynamic  Cinema  User
 - Adjusts the size of the screen (Normal, 16:9,
etc).
 - Use this function to make video input selection. It changes
in the following sequence: AV 1  AV 2  AV 3  Component  PC 
HDMI.
 - Whenever pressing the button, it cycles in the follow-
ing order: Normal  Movie  Music  News  User.
 - Press to use a spatial sound effect.
 - The whole screen shifts up/down, left/right at 25
sec interval to minimize image sticking.
- PIP buttons.
 - Change the colour mood of the panel.
 - Indicates the current state and resolution.
 - Used to display a desired menu.
 “ / ”
 - Each time you press this button, a different input mode
appears. The sequence is as follows: 15Min.  30Min.  60Min. 
90Min.  120Min.  OFF
After the time is selected, it automatically becomes stand-by state.
 - Press this button to freeze the picture.
 - Mute sound.

User Manual BDH5031V
RETURN TO THE CONTENTS
 

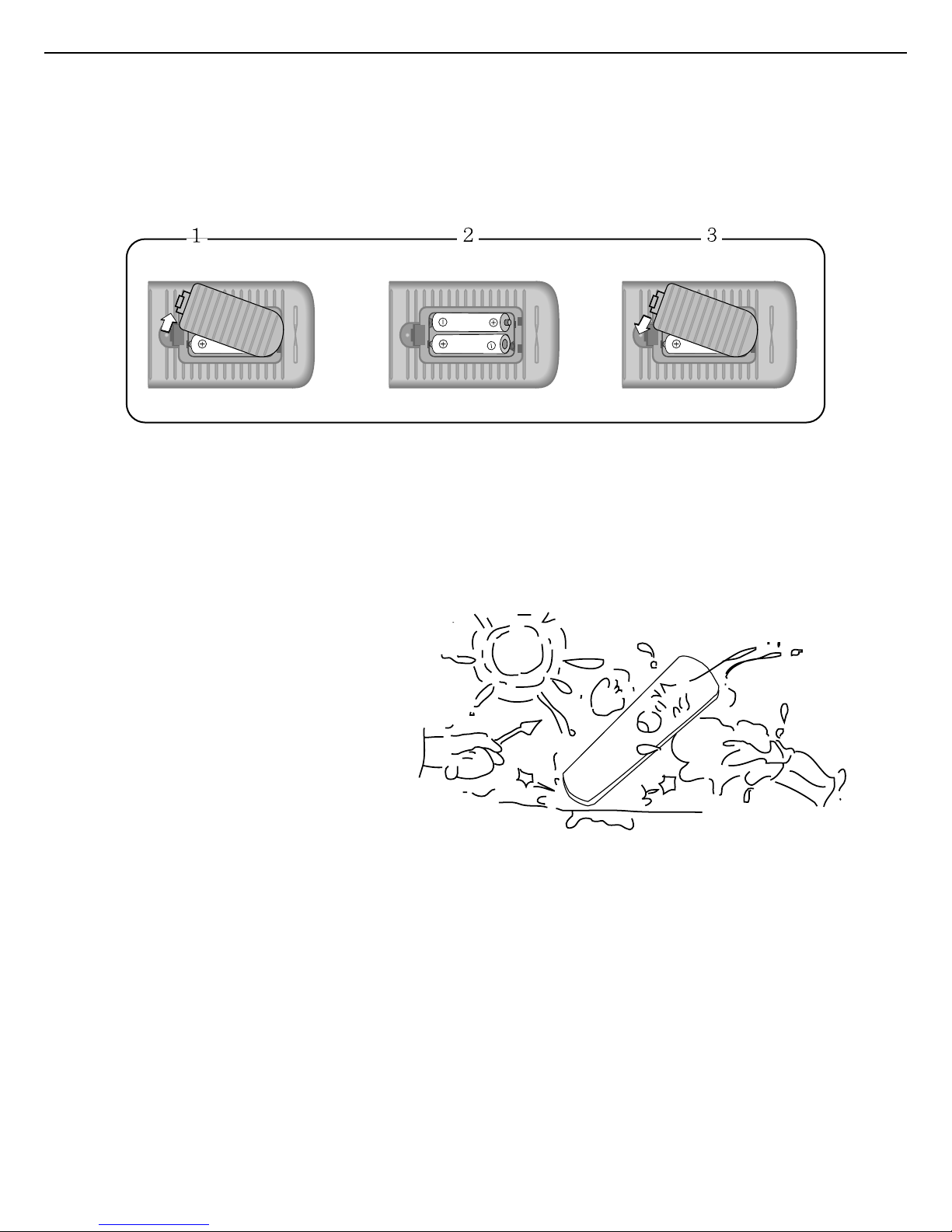

1. Open the battery compartment on the back of the remote control.
2. Install two AAA-size batteries (not included) as shown. Make sure the
“+” and “-” terminals are oriented correctly.
3. Replace the cover.
 
• Be sure not to allow the remote control to drop or to become wet.
• Keep it away from hot or moist locations.

User Manual BDH5031V
DIG ITAL
AUDI O
OPTICAL
INPUT
PC AUDIO
SERVICE
PC IN PC OUT
AUDIO
HDMI
COMPONENT
INPUT
AV1 AV2
AUDIO
VIDEO
DIGITAL
AUDIO
OPTICAL
INPUT
PC AUDIO
SERVICE
PC IN PC OUT
AUDIO
HDMI
COMPONENT
INPUT
AV1 AV2
AUDIO
VIDEO
MENU
MOVE
Component
Video
Audio
Digital Broadcasting
Receiver
(Set-Top Box)
AV 1
AV 2
AV 3
Component
PC
HDMI
Sound
Screen
Feature
Input
Move Select Exit
RETURN TO THE CONTENTS
 
 

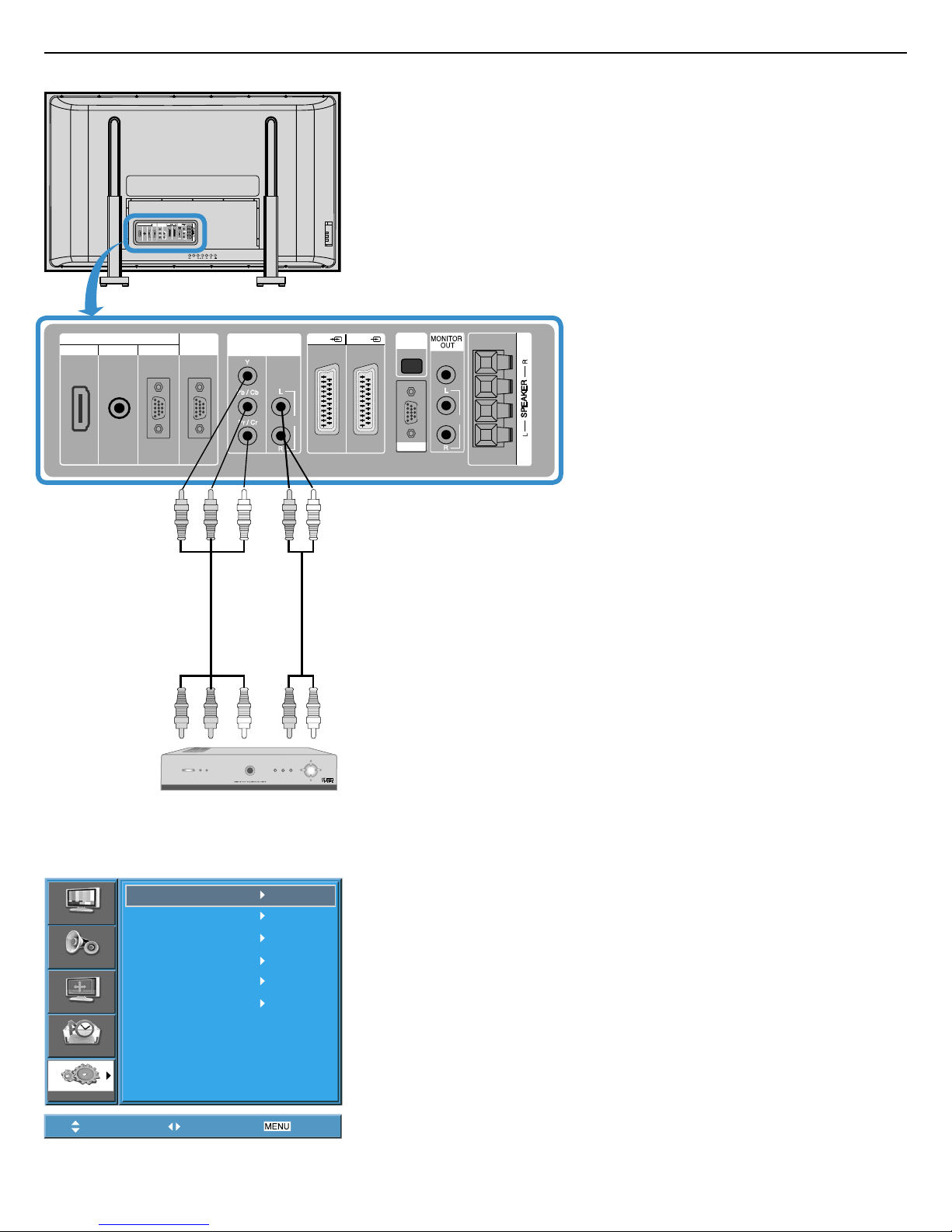

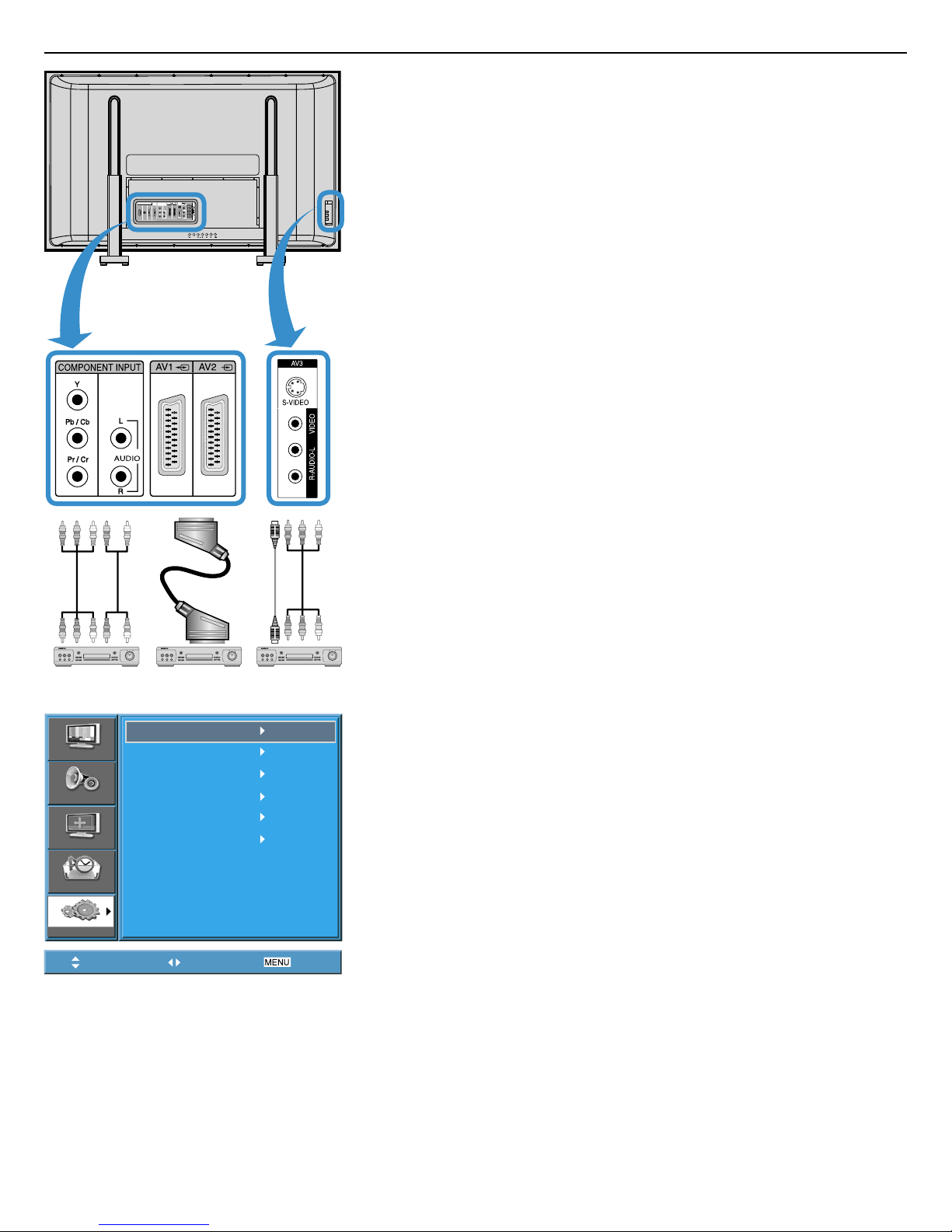

• To watch digital broadcasts:
- Purchase a separate Digital Broadcasting Receiver (SET-TOP BOX).
- Connect the PDP to a Digital Broadcasting Receiver as shown left.

• Prepare A/V cables.
• Connect the cables from the digital TV Receiver output terminal to the
PDP (Component ) input terminal.
• When connecting the cables, be sure to match the cable colours.

• Turn the PDP and the receiver ON.

• Select [Component] by pressing the “AV” button of the remote control
or using the button of the PDP unit.
• When you press the “AV” button, you will see the OSD as shown. You
can move using “/“ and select desire input mode with “/“ but-
ton.

• Select the desired channel and function by using the remote control
of the Digital Broadcasting Receiver.
Notes:
1) Possible digital broadcasting signals: 1080i, 720p, 576p, 576i, 480p, 480i.
2) What is a component? : Signals with which luminance and chrominance
are separated, producing a sharp picture.
3) If the Digital Broadcasting Receiver has PC output terminal or HDMI
output terminal, connect to ‘PC INPUT’ or ‘HDMI INPUT’ at the rear of the
panel of the PDP.

User Manual BDH5031V
DIGITAL
AUDIO
OPTICAL
INPUT
PC AUDIO
SERVICE
PC IN PC OUT
AUDIO
HDMI
COMPONENT
INPUT
AV1 AV2
AUDIO
VIDEO
MENU
MOVE
Cable Broadcasting
Receiver
Video/Audio
S-Video Video/
Audio
AV 1
AV 2
AV 3
Component
PC
HDMI
Sound
Screen
Feature
Input
Move Select Exit
RETURN TO THE CONTENTS
 

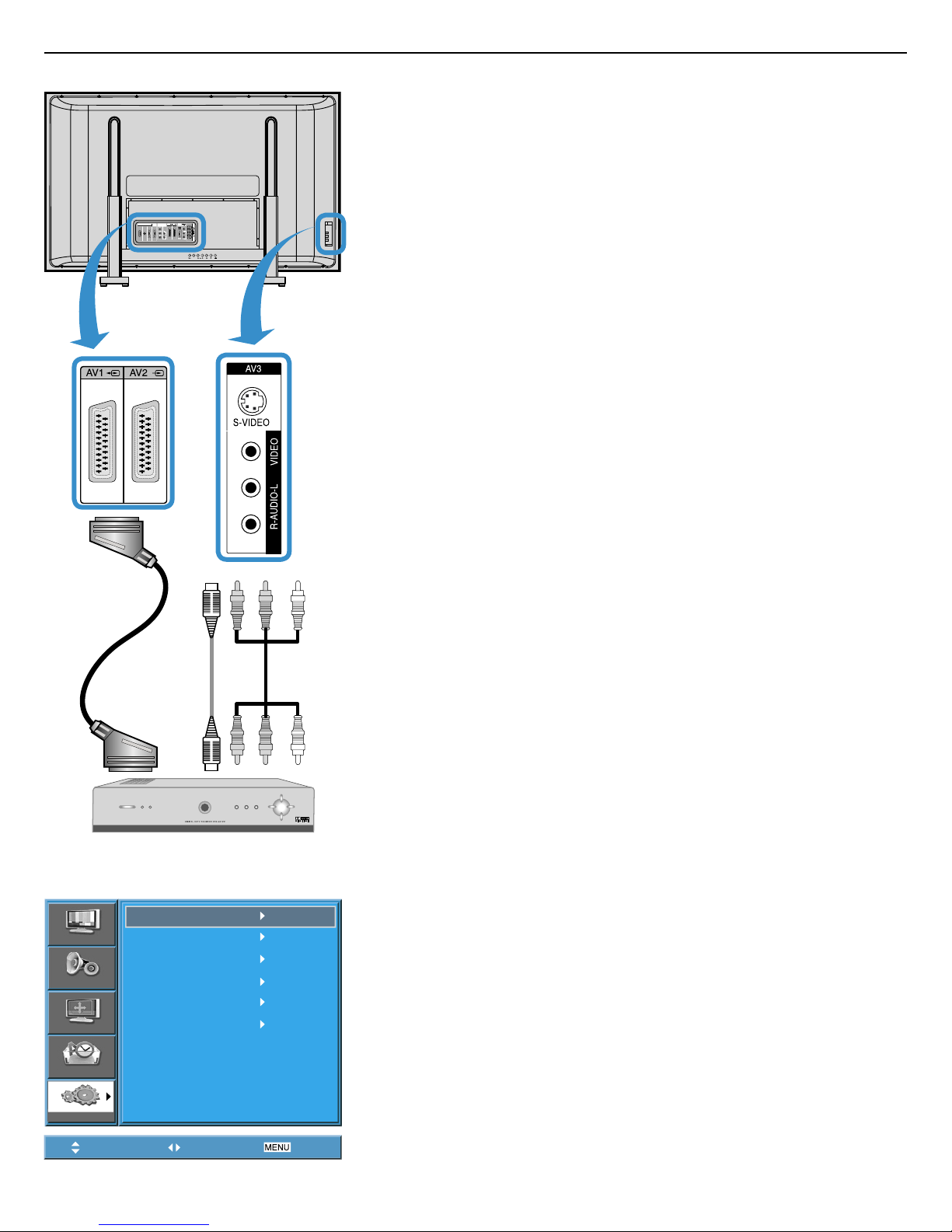

• To watch cable broadcasts, subscribe to your local cable TV broadcast-
ing, and then connect a cable Broadcasting Receiver to the PDP as
shown left.

• Prepare the A/V cable.
• Connect the receiver (Output) to PDP (Video Input) as shown below.
• N.B. : If both S-Video and Video/Audio (RCA) cables are connected to-
gether in AV3 input, S-Video always takes precedence. However, the left
and right audio leads should be connected for the sound even though you
would like to use S-Video as AV3 input.

• Turn the PDP and the receiver ON.

• Select [AV 1 (Scart), AV 2 (Scart) or AV3 (S-Video)] by pressing the “AV”
button of the remote control or the in keypad of the PDP unit.
• When you press the “AV” button, you will see the OSD as shown. You
can move using “/“ and select desire input mode with “/“ but-
ton.

• Select the desired program and function by using the remote control
of the Cable Broadcasting Receiver.
Notes:
1) If your local cable company re-transmits digital broadcasts, you may
watch normal broadcasts and digital broadcasts simultaneously. For
detailed information, refer to your local cable company.
2) Only AV1 provides ‘Monitor Out’ function.
3) AV1 full scart (RGB/CVBS).
4) AV2 half scart (CVBS).

User Manual BDH5031V
DIGITAL
AUDIO
OPTICAL
INPUT
PC AUDIO
SERVICE
PC IN PC OUT
AUDIO
HDMI
COMPONENT
INPUT
AV1 AV2
AUDIO
VIDEO
MENU
MOVE
Satellite Broadcasting
Receiver
Video/Audio
S-Video Video/
Audio
AV 1
AV 2
AV 3
Component
PC
HDMI
Sound
Screen
Feature
Input
Move Select Exit
RETURN TO THE CONTENTS
 
• To watch satellite broadcasting, subscribe to Digital Satellite Broad-
casting, then connect the satellite Broadcasting Receiver to the PDP as
shown left.

• Prepare the A/V cable.
• Connect the receiver (Output) to PDP (Video Input) as shown left.
• When connecting to an external AV source, be sure to match the col-
ours.
• N.B. : If both S-Video and Video/Audio (RCA) cables are connected to-
gether in AV3 input, S-Video always takes precedence. However, the left
and right audio leads should be connected for the sound even though you
would like to use S-Video as AV3 input.

• Turn the PDP and the Satellite receiver ON.

• Select [AV 1 (Scart), AV 2 (Scart) or AV3 (S-Video)] by pressing the [AV]
button of the remote control or the in keypad of the PDP unit.
• When you press the “AV” button, you will see the OSD as shown. You
can move using “/“ and select desire input mode with “/“ but-
ton.

• Select the desired program and function by using the Remote Control
of the Satellite Broadcasting Receiver.

User Manual BDH5031V
DIGITAL
AUDIO
OPTICAL
INPUT
PC AUDIO
SERVICE
PC IN PC OUT
AUDIO
HDMI
COMPONENT
INPUT
AV1 AV2
AUDIO
VIDEO
MENU
MOVE
AV 1
AV 2
AV 3
Component
PC
HDMI
Sound
Screen
Feature
Input
Move Select Exit
DVD DVD DVD
Component
Video
Audio
Video/
Audio
S-Video Video/
Audio
RETURN TO THE CONTENTS
 
• Component Input is set to 480i/576i and 480p/576p mode.
• Connect the cable from the DVD Video output (Y, Pb/Cb, Pr/Cr) to the
Component Input at the back of PDP, and connect the cable from DVD
audio output (Left, Right) to the Audio Input at the back of PDP.

• Prepare the AV cable.
• Connect the DVD (Output) to the PDP (Component or Video Input) as
shown below.
• When connecting to an external AV source, be sure to match the col-
ours.
• N.B. : Video input can be via scart cable, S-Video, or Yellow phone. The red
and white plugs are for left and right audio to accompany the yellow video
lead or to be used with the S-Video lead to produce sound.

• Turn the PDP and the DVD ON.

• Select [Component, AV1 (Scart), AV2 (Scart) or AV3 (S-Video)] by press-
ing the [AV] button of the remote control or the in keypad of the PDP
unit.
• When you press the “AV” button, you will see the OSD as shown. You
can move using “/“ and select desire input mode with “/“ but-
ton.

• Select the desired title and function by using the remote control of the
DVD.
Notes:
1) Y/Cb/Cr, which stands for component video DVD player’s output can also
be written as Y/B-Y/R-Y, Y/Pb/Pr depending on the kinds of DVD model.
2) The way of connecting the DVD to the PDP is as follows:
Y  Y, Cb  Pb, B-Y, Cr  Pr, R-Y
3) The DVD output can be Video, S-Video or Component Video depending
on the DVD model. There are various output modes, so be sure to check
when you purchase it.
4) When connecting S-Video and Video simultaneously, only S-Video will be
displayed on the screen as it takes precedence.

User Manual BDH5031V
DIGITAL
AUDIO
OPTICAL
INPUT
PC AUDIO
SERVICE
PC IN PC OUT
AUDIO
HDMI
COMPONENT
INPUT
AV1 AV2
AUDIO
VIDEO
MENU
MOVE
AV 1
AV 2
AV 3
Component
PC
HDMI
Sound
Screen
Feature
Input
Move Select Exit
VCR
Video/
Audio
S-Video
Video/
Audio
RETURN TO THE CONTENTS
 
• Video can use either the video terminal or the S-video terminal.

• Prepare the AV cable.
• Connect the Video (Output) to PDP (Video Input) as shown left.

• Turn the PDP and the VCR ON.

• Select [AV 1 (Scart), AV 2 (Scart) or AV 3 (S-Video)] by pressing the [AV]
button of the remote control or the in keypad of the PDP unit.
• When you press the “AV” button, you will see the OSD as shown. You
can move using “/“ and select desire input mode with “/“ but-
ton.

• Select the desired title and function by using the remote control of the
VCR.
Notes:
1) When connecting a VCR, the S-Video terminal provides a better image
than the Video terminal.
2) When connecting to the Video terminal, connect 3 colour AV cables
(video, left audio, right audio) to the PDP; for the S-Video terminal, con-
nect the Audio terminal (Left, Right) in the same way, and connect the
S-Video cable (sold separately).
3) When connecting the Video terminal and the S-Video simultaneously,
the S-Video terminal is selected. This can be checked by the [Recall] but-
ton of the remote control.

User Manual BDH5031V
AV 1
AV 2
AV 3
Component
PC
HDMI
Sound
Screen
Feature
Input
Move Select Exit
Game Console/Camcorder
Video/
Audio
S-Video
Video/
Audio
DIGITAL
AUDIO
OPTICAL
INPUT
PC AUDIO
SERVICE
PC IN PC OUT
AUDIO
HDMI
COMPONENT
INPUT
AV1 AV2
AUDIO
VIDEO
MENU
MOVE
RETURN TO THE CONTENTS
 

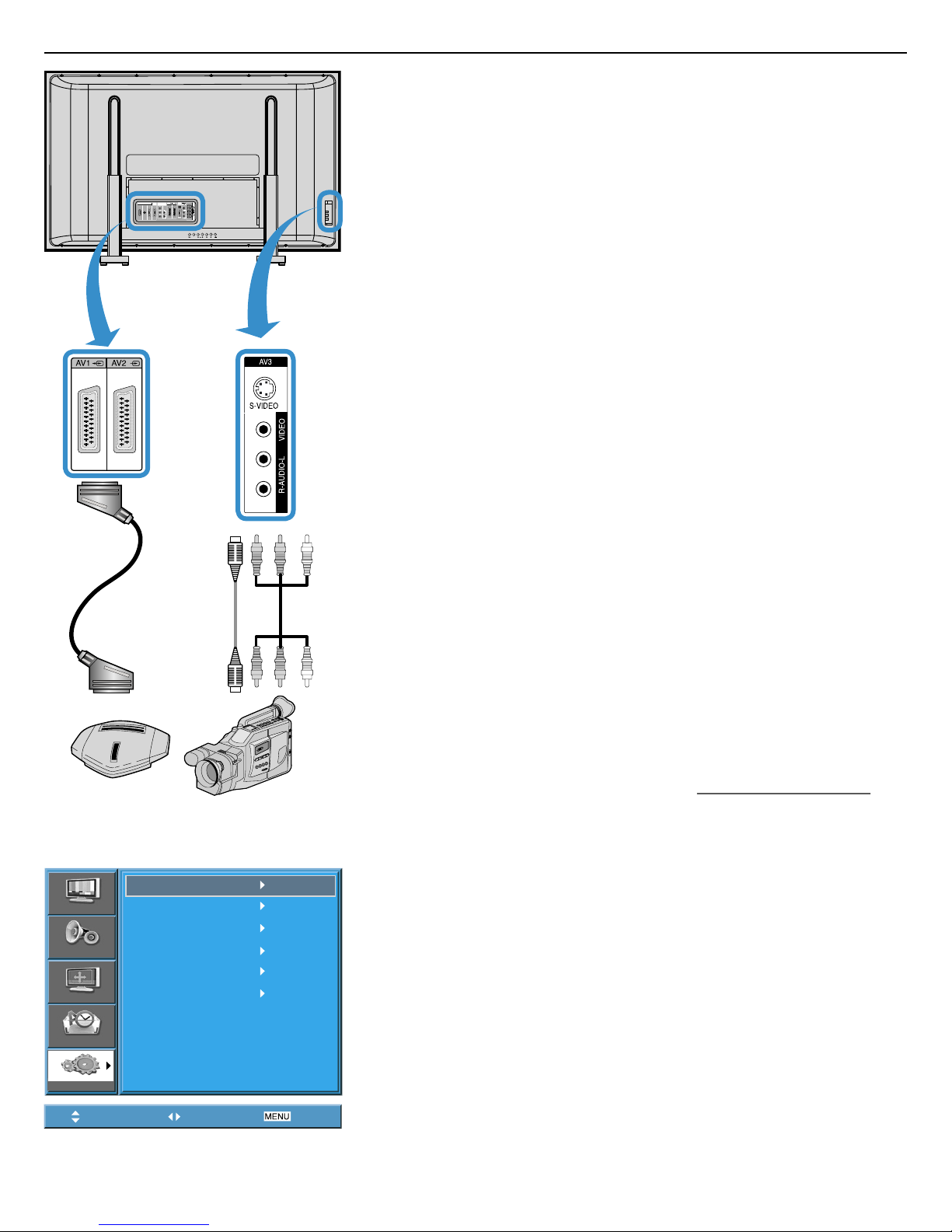

• Enjoy images recorded by camcorder or the game console after con-
necting to the PDP.

• Prepare the AV cable.
• Connect the Video (Output) to the PDP (Video Input) as shown below.
• When connecting to an external AV source, be sure to match the col-
ours.

• Turn the PDP and the Camcorder/Game Console ON.

• Select [AV 1 (Scart), AV 2 (Scart) or AV 3] by pressing the [AV] button of
the Remote Control or the in keypad of the PDP unit.
• When you press the “AV” button, you will see the OSD as shown. You
can move using “/” and select desire input mode with “/” but-
ton.

• Select the function by using the remote control of camcorder or game
console.
Notes:
1) When connecting the device, the S-Video terminal provides a better im-
age than the Video terminal.
2) When connecting to the Video terminal, connect 3 colour AV cables
(video, left audio, right audio) to the PDP; for the S-Video terminal, con-
nect the Audio terminal (Left, Right) in the same way, and connect the
S-Video cable (sold separately).
3) If connecting via component video, refer to “Watching a DVD Image”.

User Manual BDH5031V
DIGITAL
AUDIO
OPTICAL
INPUT
PC AUDIO
SERVICE
PC IN PC OUT
AUDIO
HDMI
COMPONENT
INPUT
AV1 AV2
AUDIO
VIDEO
MENU
MOVE
DIGITAL
AUDIO
OPTICAL
INPUT
PC AUDIO
SERVICE
PC IN PC OUT
AUDIO
HDMI
COMPONENT
INPUT
AV1 AV2
AUDIO
VIDEO
MENU
MOVE
Audio 15 PIN
D-sub
Output connect
Ferrite Core
RETURN TO THE CONTENTS
 

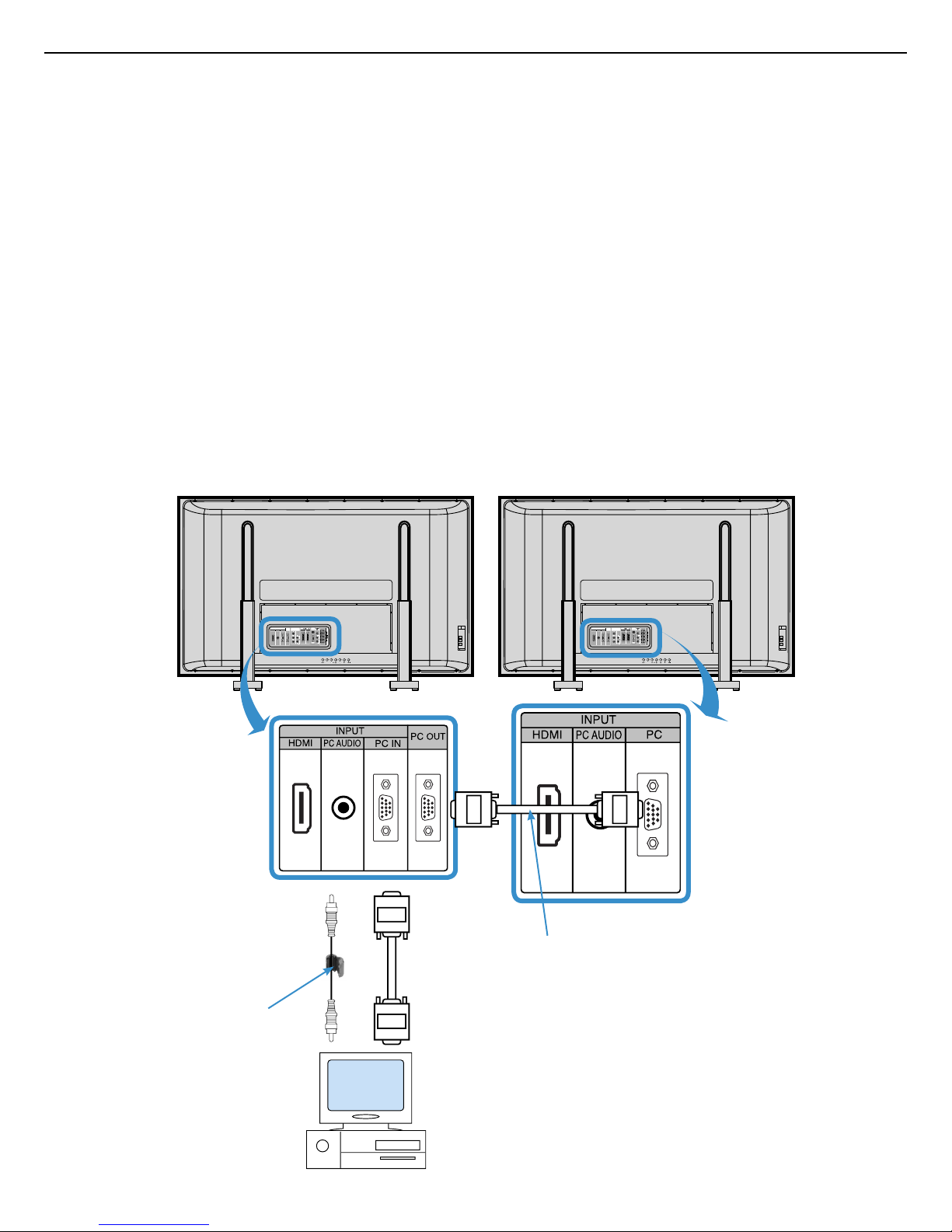

• This product supports resolutions of VGA, SVGA, XGA, WXGA, SXGA.
• Before connecting a PC to the PDP, be sure to adjust the resolution of
the PC.

• Go to SETUP-CONTROL PANEL-DISPLAY PROPERTIES in Window Screen
of the PC.
• Choose the SETTINGS tab in the DISPLAY menu.
• In the SETTINGS menu, select 640 x 480, 800 x 600, 1024 x 768 or 1280
x 1024

• Prepare the PC cable (D-sub 15 pin) and the PC audio cable.
• Connect the PC (Output) to the PDP (Input) as shown below.
• If using the audio cable for connection, put the ferrite core to the mid-
dle of the cable for preventing EMI.
