Philips BRILLIANCE 200P3M User manual

Philips 200P3M/200P3G Electronic User's Manual
file:///D|/K1/english/200p3mg/index.htm [1/3/2003 3:34:16 PM]

Safety and Troubleshooting Information
Safety Precautions and Maintenance • Installation Locations • FAQs • Troubleshooting •
Regulatory Information • Other Related Information
Safety precautions and maintenance
WARNING: Use of controls, adjustments or procedures other than those
specified in this documentation may result in exposure to shock, electrical
hazards and/or mechanical hazards.
Read and follow these instructions when connecting and using your computer monitor:
Unplug the monitor if you are not going to use it for an extensive period of time.● Unplug the monitor if you need to clean it with a slightly damp cloth. The screen many be wiped with
a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids.
●
Consult a service technician if the monitor does not operate normally when you have followed the
instructions in this manual.
●
The casing cover should be opened only by qualified service personnel.● Keep the monitor out of direct sunlight and away from stoves or any other heat source.● Remove any object that could fall into the vents or prevent proper cooling of the monitor’s electronics.● Do not block the ventilation holes on the cabinet.● Keep the monitor dry. To avoid electric shock, do not expose it to rain or excessive moisture.● When positioning the monitor make sure the power plug and outlet are easily accessible.● If turning off the monitor by detaching power cable or DC power cord, wait for 6 seconds before
attaching the power cable or DC power cord for normal operation.
●
To avoid the risk of shock or permanent damage to the set do not expose the monitor to rain or
excessive moisture.
●
When positioning the monitor, make sure the power plug and outlet are easily accessible.● IMPORTANT: Always activate a screen saver program during your application. If a still image in high
contrast remains on the screen for an extended period of time, it may leave an 'after-image' or 'ghost
image' on front of the screen. This is a well-known phenomenon that is caused by the shortcomings
inherent in LCD technology. In most cases the after-image will disappear gradually over a period of
time after the power has been switched off. Be aware that the after-image symptom cannot be
repaired and is not covered under warranty.
●
Consult a service technician if the monitor does not operate normally when the operating instructions given
in this manual have been followed.
RETURN TO TOP OF THE PAGE
Installation Locations
Avoid exposure to heat and extreme cold●
Safety & Troubleshooting
file:///D|/K1/english/200p3mg/safety/safety.htm (1 of 2) [1/3/2003 3:34:22 PM]

Do not store or use the LCD monitor in locations exposed to heat, direct sunlight or extreme cold.● Avoid moving the LCD monitor between locations with large temperature differences. Choose a site
that falls within the following temperature and humidity ranges.
Temperature: 5-35°C 41-95°F
❍ Humidity: 20-80% RH❍
●
Do not subject the LCD monitor to severe vibration or high impact conditions. Do not place the LCD
monitor inside a car boot.
●
Take care not to mishandle this product by either knocking or dropping during operation or
transportation.
●
Do not store or use the LCD monitor in locations where there is a high level of humidity or in dusty
environments. Do not allow water or other liquids to spill on or into the LCD monitor.
●
RETURN TO TOP OF THE PAGE
Safety & Troubleshooting
file:///D|/K1/english/200p3mg/safety/safety.htm (2 of 2) [1/3/2003 3:34:22 PM]

About This Manual
About This Guide • Notational Descriptions
About This Guide
This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It describes the LCD
monitor's features, setup, operation and other important information. Its contents are identical to the
information in our printed version.
It includes the following sections:
Safety and Troubleshooting Information provides tips and solutions for common problems as well as
other related information you may need.
●
About This Electronic User's Manual gives an overview of information included, along with notation
icon descriptions and other documentation for your reference.
●
Product Information gives an overview of the monitor's features as well as the technical specifications
for this monitor.
●
Installing Your Monitor describes the initial setup process and gives an overview of how to use the
monitor.
●
On-Screen Display provides information on adjusting the settings on your monitor.●
Customer Care and Warranty contains a list of worldwide Philips Consumer Information Centers
along with help desk phone numbers and information on the warranty applicable to your product.
●
Glossary defines technical terms.●
Download and Print Option transfers this entire manual to your hard drive for easy reference.●
RETURN TO TOP OF THE PAGE
Notational Descriptions
The following subsections describe notational conventions used in this document.
Notes, Cautions and Warnings
Throughout this guide blocks of text may be accompanied by an icon and printed in bold or italic type.
These blocks contain notes, cautions or warnings. They are used as follows:
NOTE: This icon indicates important information and tips that help you make better
use of your computer system.
About This Electronic User's Manual
file:///D|/K1/english/200p3mg/about/about.htm (1 of 2) [1/3/2003 3:34:24 PM]

CAUTION: This icon indicates information that tells you how to avoid either potential
damage to hardware or loss of data.
WARNING: This icon indicates the potential for bodily harm and tells you how to
avoid the problem.
Some warnings may appear in alternate formats and may not be accompanied by an icon. In such cases,
the specific presentation of the warning is mandated by the relevant regulatory authority.
RETURN TO TOP OF THE PAGE
©2002 Koninklijke Philips Electronics N.V.
All rights reserved. Reproduction, copying, usage, modifying, hiring, renting, public performance, transmission and/or broadcasting in whole or in
part is prohibited without written consent of Philips Electronics N.V.
About This Electronic User's Manual
file:///D|/K1/english/200p3mg/about/about.htm (2 of 2) [1/3/2003 3:34:24 PM]

Product Information
Product Features • Technical Specifications • Resolution & Preset Modes • Philips Pixel
Defect Policy • Automatic Power Saving • Physical Specification • Pin Assignment •
Product Views • Physical Function
Product Features
BRILLIANCE 200P3M/200P3G
20-inch color LCD monitor with excellent display performance● Multiple video input allowing displaying of DVI-I digital/ analog, VGA analog, S-Video & CVBS
Video inputs.
●
Picture-in-Picture (PIP) function for displaying both PC and video simultaneous on the screen● Embedded AC power supply● Front firing speakers with stereo 2x2W RMS stereo sound output● Advanced AUTO adjustment optimizes picture quality● Adjustable tilt and swivel function● RETURN TO TOP OF THE PAGE
Technical Specifications*
LCD PANEL
• Type TFT LCD
• Screen size 20.1" / 51cm
• Pixel Pitch 0.255 x 0.255mm
• LCD Panel type 1600 x 1200 pixels
R.G.B. vertical stripe
Anti-glare polarizer, hard coated
• Effective viewing area 408 x 306 mm
• Display Colors 8 bits interface (16M colors)
SCANNING
Vertical refresh rate 56Hz-85Hz
Horizontal Frequency 30kHz-94kHz (Analog input), 30kHz-92kHz(Digital input)
200P3M/200P3G Product Information
file:///D|/K1/english/200p3mg/product/product.htm (1 of 7) [1/3/2003 3:34:27 PM]

VIDEO
• Video dot rate 202 MHz
• Input impedance
- Video 75 ohm
- Sync 2K ohm
• Input signal levels 0.7 Vpp
• Sync input signal Separate sync
Composite sync
Sync on green
• Sync polarities Positive and negative
• S-Video Y input 1.0Vpp, C input 0.3Vpp, 75ohm input impedance
• CVBS Composite, 1.0Vpp, 75ohm input impedance
•Video interface Triple input(two connectors): D-Sub(analog) and DVI-I(accepts
both digital and analog) are available and user selectable
S-Video & CVBS
AUDIO-IN
• Input signal level 0.7 Vpp
• Headphone out signal level 32 20+20mW
• Input signal connector 3.5mm mini jack
• Loudspeaker 4W Stereo Audio (2W/channel RMSx2, 200Hz-12kHz, 4
ohm,THD=10%)
MICROPHONE
• Sensitivity -45dB re 1V/Pa at 1kHz
• Output impedance 2.2K max.
• Directivity -5dB at 180°
• Frequency range 300Hz-3kHz
Optical characteristics
• Contrast ratio: 300 (typ.)
• Brightness: 250 cd/m2(typ.)
• Peak contrast angle 6 o'clock
• White Chromatcity: x: 0.281 y: 0.311 (at 9300°K)
x: 0.312 y: 0.338 (at 6500°K)
200P3M/200P3G Product Information
file:///D|/K1/english/200p3mg/product/product.htm (2 of 7) [1/3/2003 3:34:27 PM]

• Viewing Angle:
(C/R>10)
Upper >85° (typ.)
Lower >85° (typ.)
Left >85° (typ.)
Right >85° (typ.)
• Response time <30ms (typ.)
* This data is subject to change without notice.
RETURN TO TOP OF THE PAGE
Resolution & Preset Modes
• Maximum 1600 x 1200 at 75Hz(analog input)
1600 x 1200 at 60Hz(digtal input)
• Recommended 1600 x 1200 at 60Hz
50 user definable modes
18 factory preset modes:
H. freq (kHz) Resolution V. freq (Hz)
31.5 640*350 70 (IBM VGA 10h)
31.5 720*400 70
31.5 640*480 60
35.0 640*480 67
37.5 640*480 75
35.2 800*600 56
37.9 800*600 60
46.9 800*600 75
49.7 832*624 75
48.4 1024*768 60
60.0 1024*768 75
69.0 1152*870 75
71.8 1152*900 76 (SUN Mode II)
63.9 1280*1024 60
80 1280*1024 75
200P3M/200P3G Product Information
file:///D|/K1/english/200p3mg/product/product.htm (3 of 7) [1/3/2003 3:34:27 PM]

91.1 1280*1024 85
75.0 1600*1200 60
93.8 1600*1200 75
RETURN TO TOP OF THE PAGE
Automatic Power Saving
If you have VESA DPMS compliance display card or software installed in your PC, the monitor can
automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other
input device is detected, the monitor will 'wake up' automatically. The following table shows the power
consumption and signaling of this automatic power saving feature:
Power Management Definition
VESA Mode Video H-sync V-sync Power Used LED color
ON Active Yes Yes < 60W Green
OFF Blanked No No < 3W Amber
This monitor is ENERGY STAR®compliant. As an ENERGY STAR®Partner, PHILIPS has
determined that this product meets the ENERGY STAR®guidelines for energy efficiency.
RETURN TO TOP OF THE PAGE
Physical Specifications
• Dimension (WxHxD) 488 x 459 x220 mm (incl. Pedestal)
• Weight 10.0 Kg
• Tilt / Swivel -5° ~ 25° / + - 175°
• Power supply 100 — 240 VAC, 50/60 Hz
• Power consumption 52 W (typ.)
200P3M/200P3G Product Information
file:///D|/K1/english/200p3mg/product/product.htm (4 of 7) [1/3/2003 3:34:27 PM]

• Temperature 5° C to 35° C (operating)
-20° C to 60° C (storage)
• Relative humidity 20% to 80%
• System MTBF 50K hrs (including CCFL 40K hrs)
• Cabinet color 200P3M: Light Gray
200P3G: Black
* This data is subject to change without notice.
* Resolution 1600x1200, standard size, contrast max., brightness 50%, 9300° K, full white pattern,
without audio/USB.
RETURN TO TOP OF THE PAGE
Pin Assignment
1. The digital/analog DVI-I onnector contains 29 signal contacts organized in three rows of eight contacts.
Signal pin assignments are listed in the following table:
Pin
No. Signal Assignment Pin No. Signal Assignment Pin No. Signal Assignment Pin No. Signal Assignment
1 TMDS Data 2- 9 TMDS Data 1- 17 TMDS Data
0- C1 Analog Red Video Out
2 TMDS Data 2+ 10 TMDS Data 1+ 18 TMDS Data
0+ C2 Analog Green Video Out
3TMDS Data 2/4
Shield 11 TMDS Data 1/3 Shield 19 TMDS Data 0/5 Shield C3 Analog Blue Video Out
4 TMDS Data 4- 12 TMDS Data 3- 20 TMDS Data
5- C4 Analog Horizontal Sync
5 TMDS Data 4+ 13 TMDS Data 3+ 21 TMDS Data
5+ C5 Analog Common
Ground Return
(Red, Green, Blue
Video Out)
6 DDC Clock 14 +5V Power 22 TMDS Clock
Shield
7 DDC Data 15 Ground (+5V,
Analog H/V Sync) 23 TMDS Clock+
8Analog Vertical
Sync 16 Hot Plug Detect 24 TMDS Clock-
200P3M/200P3G Product Information
file:///D|/K1/english/200p3mg/product/product.htm (5 of 7) [1/3/2003 3:34:27 PM]

2. The 15-pin D-sub connector (male) of the signal cable:
Pin
No. Assignment
Pin
No. Assignment
1 Red video input 9 +5V
2 Green video input/SOG 10 Logic ground
3 Blue video input 11 Identical output - connected
to pin 10
4 Sense (GND) 12 Serial data line (SDA)
5 Not connected 13 H. Sync / H+V
6 Red video ground 14 V. Sync (VCLK for DDC)
7 Green video ground 15 Data clock line (SCL)
8 Blue video ground
RETURN TO TOP OF THE PAGE
Product Views
Follow the links to see various views of the monitor and its components.
Front View Product Description
RETURN TO TOP OF THE PAGE

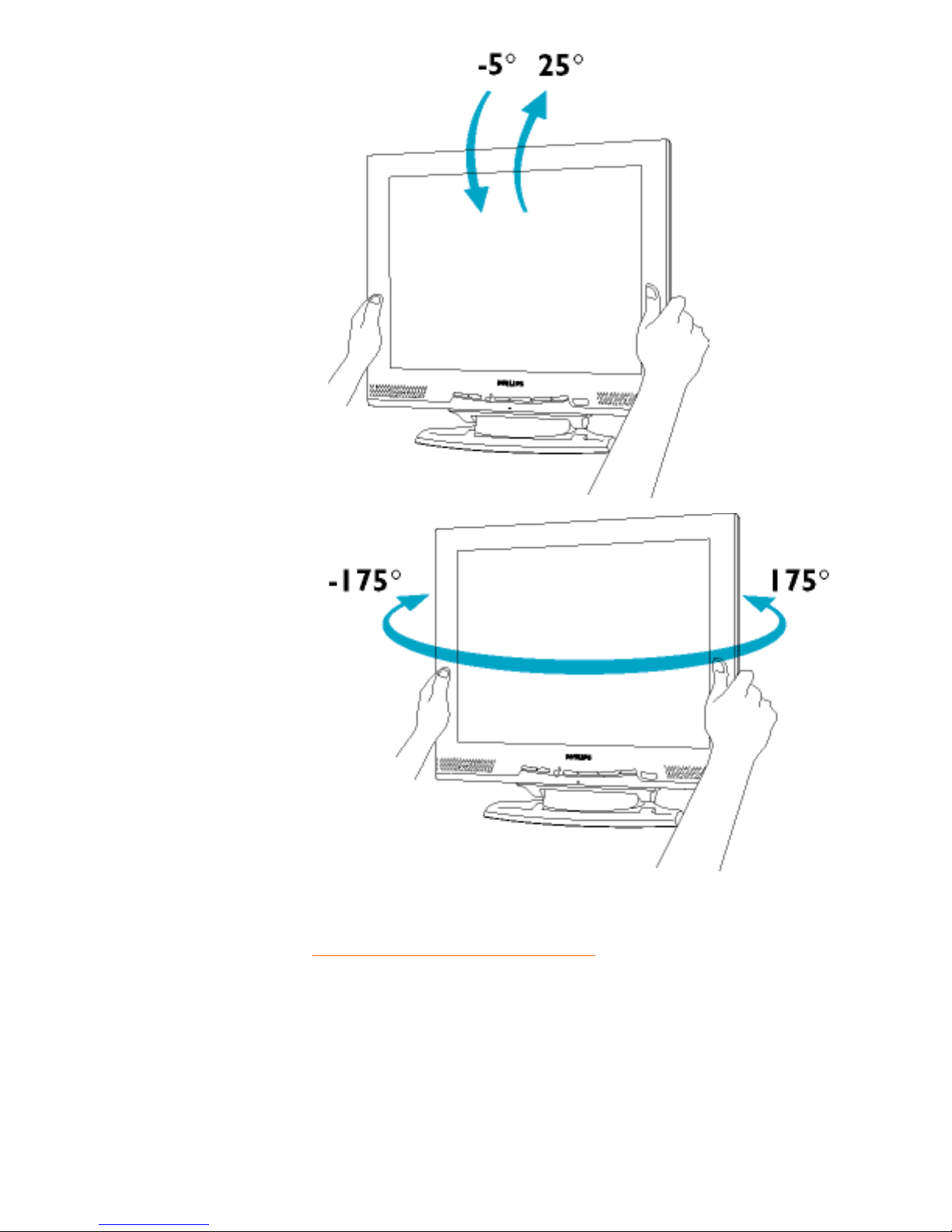

Physical Function
200P3M/200P3G Product Information
file:///D|/K1/english/200p3mg/product/product.htm (6 of 7) [1/3/2003 3:34:27 PM]

1) Tilt
2) Swivel
RETURN TO TOP OF THE PAGE
200P3M/200P3G Product Information
file:///D|/K1/english/200p3mg/product/product.htm (7 of 7) [1/3/2003 3:34:27 PM]

Installing your LCD Monitor
Your LCD Monitor : Front View Product Description • Setting up and connecting your
monitor • VESA Standard Mounting • Getting Started • Optimizing Performance

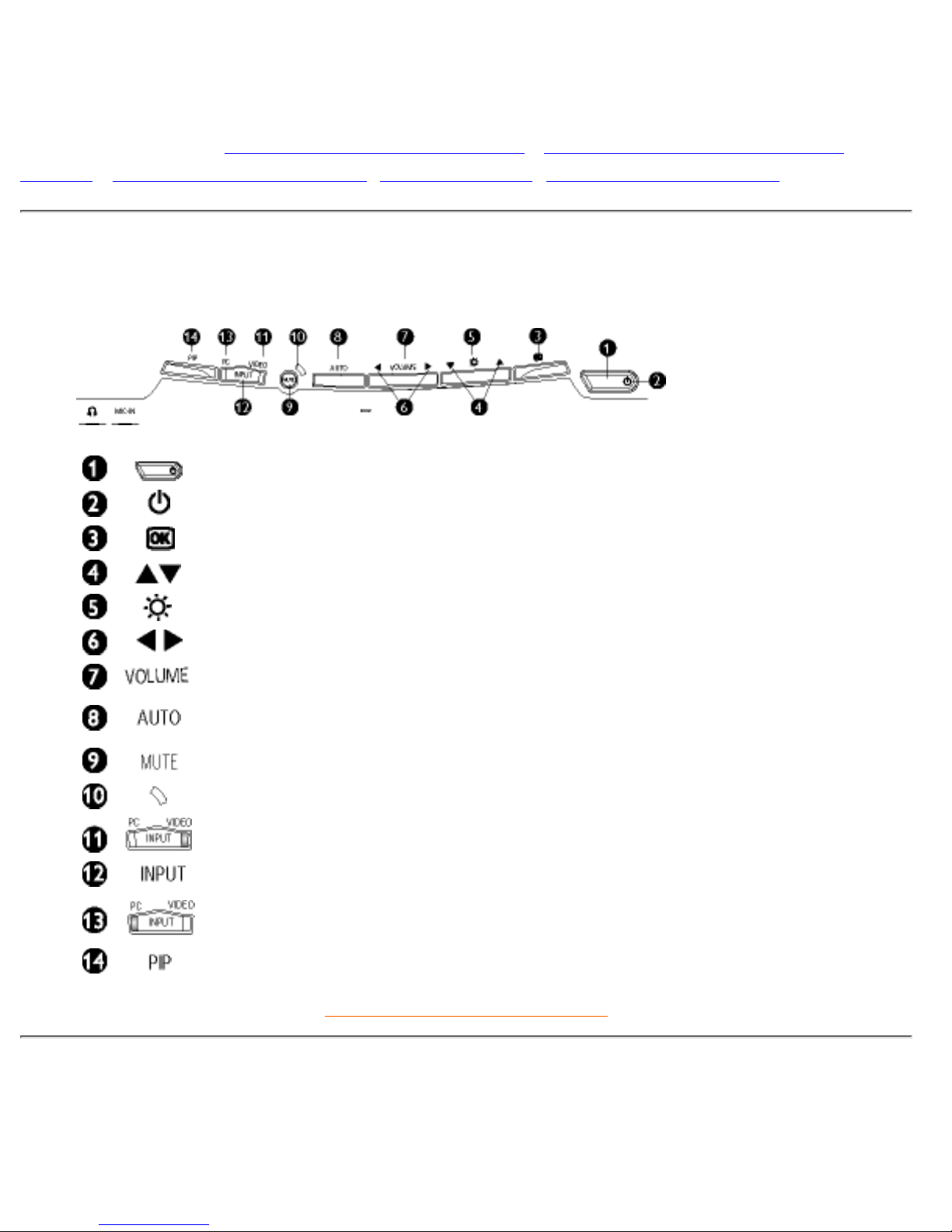

Front View Product Description
To switch monitor's power On and Off
Power LED
To access OSD menu
To adjust the OSD
To adjust brightness of the display
To adjust the OSD
To adjust speakers volume
Automatically adjust the horizontal position, vertical position, phase and
clock setting
To mute the audio sound
MUTE LED
Video input LED, lit when CVBS or S-Video activated
Signal inputs selection
PC input LED, lit when VGA or DVI activated
Activated PIP (Picture in Picture) window
RETURN TO TOP OF THE PAGE
Rear View
Installing your LCD Monitor
file:///D|/K1/english/200p3mg/install/install.htm (1 of 3) [1/3/2003 3:34:30 PM]

1 CVBS video input
2 S-Video video input
3 VGA input
4 DVI-I input
5 AC power in
6 Mic out
7 Audio in
8 Audio L input
9 Audio R input
RETURN TO TOP OF THE PAGE
Optimizing Performance
For best performance, ensure that your display settings are set at 1600x1200@60Hz●
Installing your LCD Monitor
file:///D|/K1/english/200p3mg/install/install.htm (2 of 3) [1/3/2003 3:34:30 PM]

Note: You can check the current display settings by pressing the "OK" button once.
Go into the Product Information. The current display mode is shown on the item
called RESOLUTION.
You can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best
performance out of your monitor. This included on this CD. Step-by-step instructions are provided to
guide you through the installtion process. Click on the link to know more about this program.
More about FP_setup03.exe
●
RETURN TO TOP OF THE PAGE
Installing your LCD Monitor
file:///D|/K1/english/200p3mg/install/install.htm (3 of 3) [1/3/2003 3:34:30 PM]

On-Screen Display
Description of the On-Screen Display • The OSD Tree
Description of the On Screen Display
What is the On-Screen Display?
This is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance of the
monitors directly though an on-screen instruction window. The user interface provides user-friendliness and
ease-of-use when the user is operating the monitor.
Basic and simple instruction on the control keys.
When you press the button on the front control of your monitor, the On-Screen Display (OSD) Main
Controls window will pop up and you can then start making adjustments to your monitor's various features.
Use the or the keys to make your adjustments.
RETURN TO TOP OF THE PAGE
On-Screen Display
file:///D|/K1/english/200p3mg/osd/osddesc.htm (1 of 7) [1/3/2003 3:34:34 PM]

The OSD Tree
Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when
you want to work your way around the different adjustments later on.
On-Screen Display
file:///D|/K1/english/200p3mg/osd/osddesc.htm (2 of 7) [1/3/2003 3:34:34 PM]

On-Screen Display
file:///D|/K1/english/200p3mg/osd/osddesc.htm (3 of 7) [1/3/2003 3:34:34 PM]

On-Screen Display
file:///D|/K1/english/200p3mg/osd/osddesc.htm (4 of 7) [1/3/2003 3:34:34 PM]

On-Screen Display
file:///D|/K1/english/200p3mg/osd/osddesc.htm (5 of 7) [1/3/2003 3:34:34 PM]
