Philips Business 107MB User manual

1
E
N
Introduction
The PHILIPS 107MB color monitor displays sharp and brilliant images
of text and graphics with a maximum resolution up to 1280x1024 pixels.
It is optimal for Windows, CAD / CAM / CAE, desktop publishing,
spread sheets, multi-media, and any other application which demands
large screen size and high resolutions.
This monitor automatically scans horizontal frequencies from 30KHz to
86KHz, and vertical frequencies from 50Hz to 160Hz. With
microprocessor based digital controlled circuit, the monitor can
automatically adjust itself to the video card’s scanning frequency and
displays an image with precise parameters you desire. The wide range
of scanning frequency supports variety of operating platforms, such as
IBM PC and compatibles, Apple’s Macintosh, Quadra and Centris
families, Power PC and workstations.
Feature Highlights
•On-Screen-Display function provides more informations when the
user operates the control functions. This feature provides user-
friendliness and ease-of-use when operating the monitor.
•Anti-Glare and Anti-Static screen coating eliminate any bad effects
caused by the screen surface such as reflection of the room lights
and dust attraction.
• With Color Adjustment function you can easily choose different
preset color temperatures or set your own customized color
parameters.
•Image Tilt Adjustment function provides correction of rotated image.
This correction can minimize the distortions caused by outside
environments, such as earth magnetic field.
•Green Design including automatic power saving function (NUTEK)
and low emission TCO'95 (MPRII for 17B2302N) compliance shows
our commitment in environmental care.
•DDC1/DDC2B allows communication between the monitor and PC
system for optimal video configuration.
Safety precautions and maintenance

2
E
N
Note: If you experienced your monitor display is changing from color to
mono, it's possible that you are using a non-VESA-DDC-standard video
card. Please consult with your local Philips dealer for more information.
ENERGY STAR is an U.S. registered mark.
As an Energy Star partner, PHILIPS, has determined that this product
meets the Energy Star guidelines for energy effficiency.
IBM, IBM PC and Power PC are registered trademarks of International
Business Machines Corporation.
Apple, Macintosh, Quadra and Centris are registered trademarks of
Apple Computer, Inc.

3
E
N
◆Disconnect the monitor from the mains supply if the monitor is not to
be used for an extended period of time.
◆Do not attempt to remove the back cover, as you will be exposed to
a shock hazard. The back cover should only be removed by qualified
service personnel.
◆Do not place objects on top of the monitor cabinet, which could fall
into vents or which could cover them and prevent proper cooling of
the monitor’s electronic devices.
Do not expose the monitor to rain or excessive moisture to avoid the
risk of shock or permanent damage to the set.
◆Do not use alcohol or ammonia based liquid to clean the monitor. If
necessary, clean with a slightly damp cloth. Disconnect the monitor
from the mains supply before cleaning.
◆Consult a service technician if the monitor does not operate normally
when operating instructions of this manual are followed.
Package
Your PHILIPS 107MB package includes the following items:
• The monitor (integrated with tilt / swivel pedestal)
•Power cord
• Interface cable (flying-in)
• Audio and microphone cables
• Disk for Windows 95 driver
• Cable cover
Installation
End of life disposal
Your new set contains materials which can be recycled and reused.
Specialized companies can recycle your product to increase the amount
of reusable materials and to minimize the amount of materials to be
disposed of.
Please inform yourself on local regulations on disposal of your old set.
◆

4
E
NImportant: Please refer to the user’s manuals of your computer
and video adapter to make sure these equipments are properly
installed and configured before installing the monitor.
Positioning / Ventilation
◆Avoid exposing the monitor to direct sunlight, stoves or any other
heat sources.
◆To prevent overheating, make sure that the ventilation openings of
the monitor are not covered.
◆Keep moisture and dust away.
◆Keep away from any magnetic objects, such as speakers, electric
motors, transformers, ...etc.
◆When positioning this monitor, make sure that the mains plug and
socket are easily accessible.

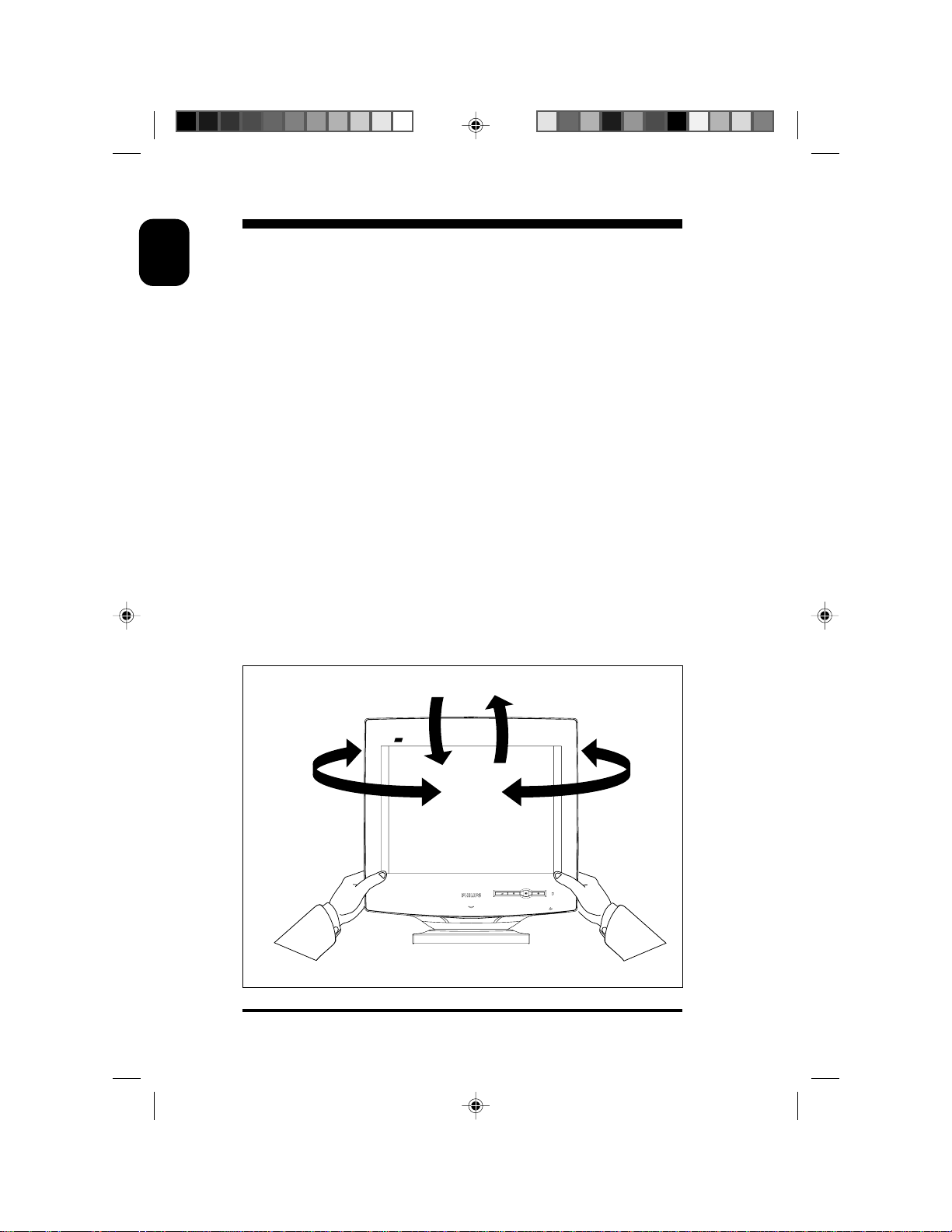

Pedestal
With the built-in pedestal you can tilt and / or swivel the monitor for a
most comfortable viewing angle.
107 B
M

5
E
N

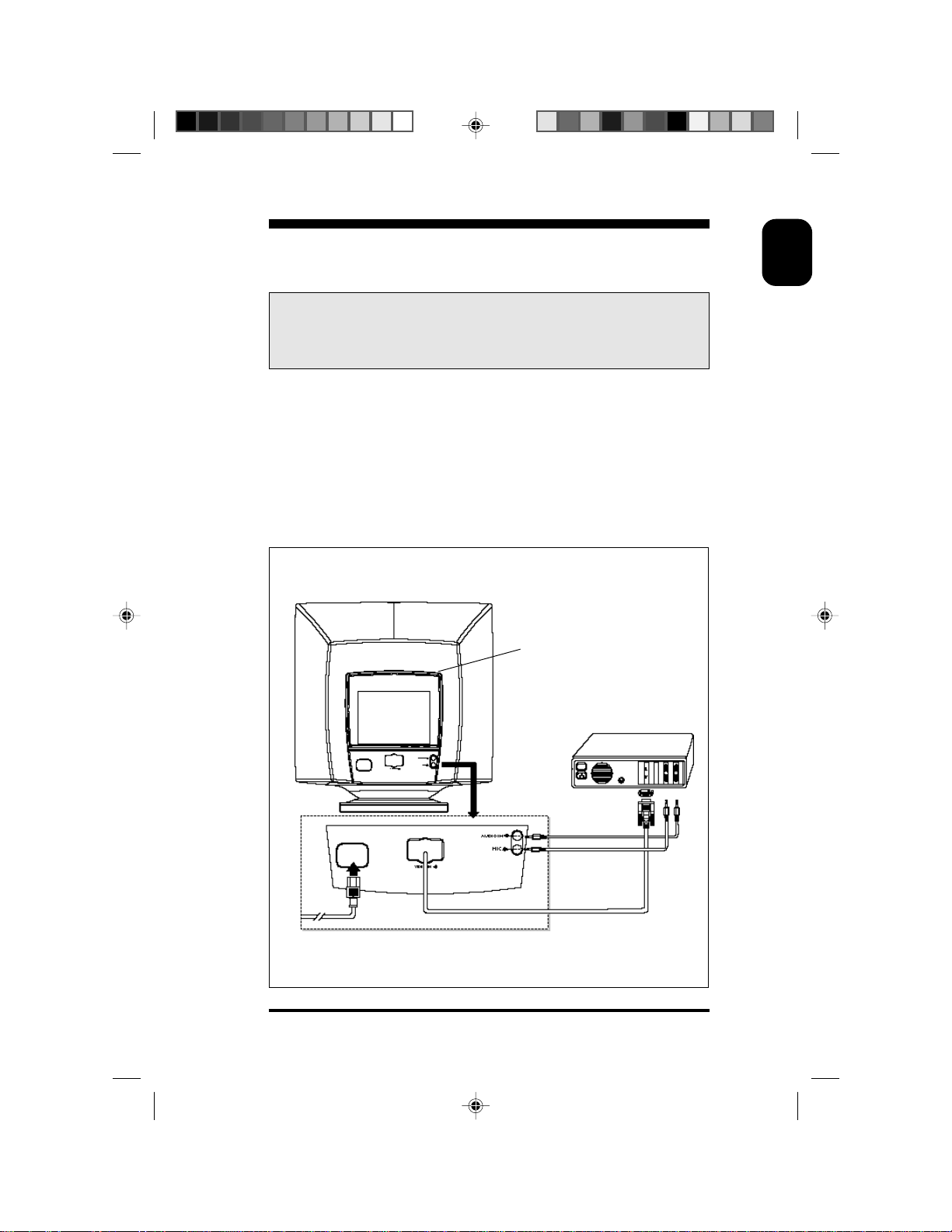

Connection
• Connect the monitor to the computer using the supplied interface
cables. Connection with computer system other than IBM PC may
need different type of adapters. Please consult your computer supplier
for these adapters. Connect the power cord to a wall outlet after the
interface cable is properly connected.
Important: Please make sure the AC power to your computer is
“OFF” before connecting or disconnecting any display
peripheral. Failure to do so may cause serious personal injury
as well as permanent damage to your computer equipments.
Monitor rear view
mains connection
cable cover

6
E
NControl locations and functions
a. Front Controls
Descriptions of knobs and keypads on front control panel
➀• Adjust volume of internal speakers and earphone output.
➁• Adjust brightness of the display.
➂• To access OSD menu.
åAdjust contrast of the display.
➄•To scroll the OSD function and adjust the scale of the selected
function.
①②③④⑤

7
E
N
b. Upper Control
c. Side Control
➀• Press this knob to switch ON and OFF of monitor's power.
cable cover
(Snaps onto the back of the monitor to conceal cable connections.)

8
E
NOSD menu tree structure
First Level Second Level Third Level
SIZE & POSITION
HORIZONTAL POSITION
ZOOM
HORIZONTAL SIZE
VERTICAL POSITION
VERTICAL SIZE
SAVE & RETURN TO MAIN MENU
RECALL
GEOMETRY
COLOR TEMPERATURE
ADVANCED CONTROLS
MONITOR STATUS
USER 1
USER 2
RED (RED COLOR)
GREEN (GREEN COLOR)
BLUE (BLUE COLOR)
SAVE & RETURN TO
MAIN MENU
RECALL
9300°
6500°
POWER SAVING ON / OFF
LANGUAGES
DDC1/2B ON / OFF
OSD TIMER
DEGAUSS
MUTE OFF / ON
EXIT OSD
RESET
RED (RED COLOR)
GREEN (GREEN COLOR)
BLUE (BLUE COLOR)
ROTATION
PINCUSHION
TRAPEZOID
BALANCED PINCUSHION
PARALLELOGRAM
SAVE & RETURN TO MAIN MENU
RECALL
SAVE & RETURN TO MAIN MENU
RECALL
SAVE & RETURN TO MAIN MENU
RECALL
ENGLISH
DEUTSCH
FRANÇAIS
ITALIANO
ESPAÑOL
5
10
25
50
PRESET MODE
NEW MODE
NO
YES
MOIRÉ H
V
SAVE & RETURN TO MAIN MENU
CANCEL
SYNC INPUT SELECT
SAVE & RETURN TO MAIN MENU
RECALL
TTL SYNC
SYNC ON GREEN
SAVE & RETURN TO MAIN MENU
RECALL

9
E
N
Adjustment via On-Screen-Display
Brightness / Contrast / Volume
adjustment of brightness, contrast & volume
●Press , then use OSD rotary
encoder to adjust.
●The adjusted parameters are
automatically saved and the OSD
menu will disappear within 5
seconds if there is not any
adjustment/action has been made.
●Press , then use OSD rotary
encoder to adjust.
●The adjusted parameters are
automatically saved and the OSD
menu will disappear within 5
seconds if there is not any
adjustment/action has been made.
●Press , then use OSD rotary
encoder to adjust.
●The adjusted parameters are
automatically saved and the OSD
menu will disappear within 5
seconds if there is not any
adjustment/action has been made.
resolution and frequency of the display
layer of the OSD menu
MUTE ON / OFF
adjustment functions
●Press , you will see an OSD
window (main menu) on the
screen.
●Use OSD rotary encoder to move
the bar to "MUTE OFF".
●Press , you can change "MUTE
OFF" to "MUTE ON".
BR GH
INESST
80%
CONTRAST
80%
VOLUME
80%
MUTE ON
OSIZE & P TIONSI
GEOMETRYMCOLOR TE RATUREPE
ADVANCED NTROLSCO
EXI T OSD
RESET
7
1024x768 68. Z 85HZKH
DEGAUSS SMON I TOR TUSTA
AMINMENU
OSIZE & P TIONSI
GEOMETRYMCOLOR TE RATUREPE
ADVANCED NTROLSCO
DEGAUSS
EXI T OSD
RESET
SMON I TOR TUSTA
7
1024x768 68 . Z 85HZKH
MUTE OF F
AMINMENU

10
E
NSIZE & POSITION
Adjustments of zoom, horizontal position, horizontal size, vertical
position, vertical size:
●Press , to access OSD menu.
●Use OSD rotary encoder to move
the bar to "SIZE & POSITION".
●Press to access the 2nd lelel
menu. Use OSD rotary encoder
to select the function you want to
adjust.
●Press , then use OSD rotary
encoder to adjust.
●Press , return to 2nd level
menu.
●The adjusted parameters are
automatically saved and the OSD
menu will disappear within the
time you selected on OSD TIMER
(e.g.10 seconds) if there is not
any adjustment/action has been
made.
●Press , return to the OSD
main menu.
main menu
2nd level menu
TSIZE & POSI NIO
ZOOM AHOR I ZONT POS I T I ONL
AHOR I ZONT S I Z EL
VERT ICAL S ITIONPO
VERTICAL ZESI
SAVE & RETURN TO MAIN MENU
RECALL
OSIZE & P TIONSI
GEOMETRYMCOLOR TE RATUREPE
ADVANCED NTROLSCO
EXI T OSD
MUTE OF F
RESET
7
1024x768 68. Z 85HZKH
DEGAUSS SMON I TOR TUSTA
AMINMENU

11
E
N

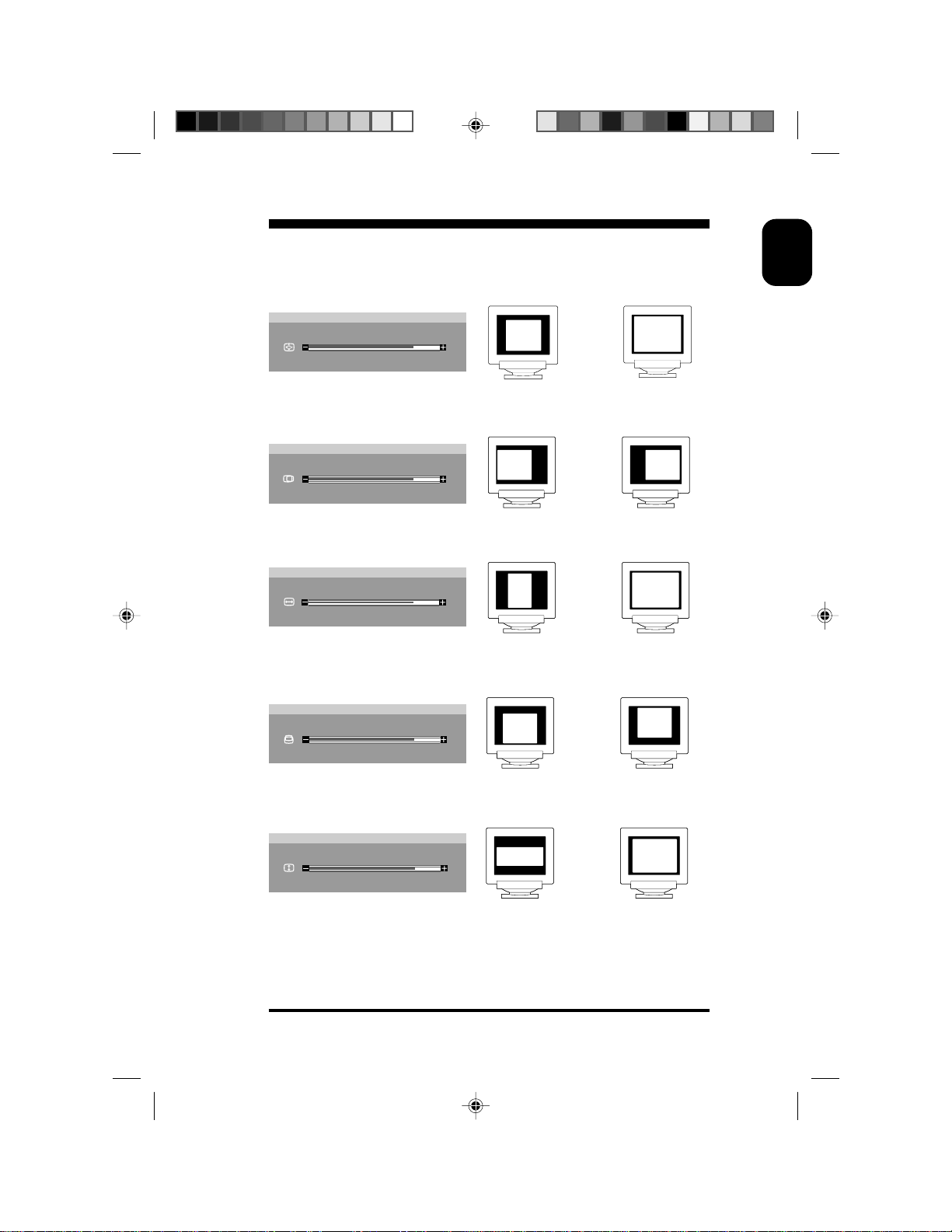

SIZE & POSITION 3rd level menu
ZOOM
HORIZONTAL POSITION
HORIZONTAL SIZE
AA
AA
VERTICAL POSITION
AA
VERTICAL SIZE
A A
A
A
MZOO
80%
PHOR I ZONTAL I T I ONOS
80%
SHOR I ZONTAL EIZ
80%
SVERTICAL PO IONIT
80%
ZVERTICAL S I E
80%

12
E
NGEOMETRY
adjustments of rotation, pincushion, trapezoid, balanced
pincushion, parallelogram:
●Press , to access OSD
menu.
●Use OSD rotary encoder to
move the bar to
"GEOMETRY".
●Press to access the 2nd
level menu. Use OSD rotary
encoder to select the function
you want to adjust.
●Press , then use OSD
rotary encoder to adjust.
●Press , return to 2nd level
menu.
●The adjusted parameters are
automatically saved and the
OSD menu will disappear
within the time you selected
on OSD TIMER (e.g. 10
seconds) if there is not any
adjustment/action has been
made.
●Press , return to the OSD
main menu.
main menu
2nd level menu
(2) PINCUSHION
AA
GEOMETRY 3rd level menu
(1) ROTATION
A
A
GEOMETRY
OPI NCUSHI N
DTRAPEZOI
BALA
PARANCE D NCUS HI ONPI
OLLEL AMGR
SAVE &RETURN TO MAIN MENU
RECALL
ROTATI ON
OSI ZE & P TIONSI
GEOMETRYMCOLOR TE RATUREPE
ADVANCED NTROLSCO
EXIT OSD
MUTE OF F
RESET
7
1024x768 68. Z 85HZKH
DEGAUS S SMON I TOR TUSTA
AMINMENU
ROTATION
80%
PINCUSHION
80%

13
E
N

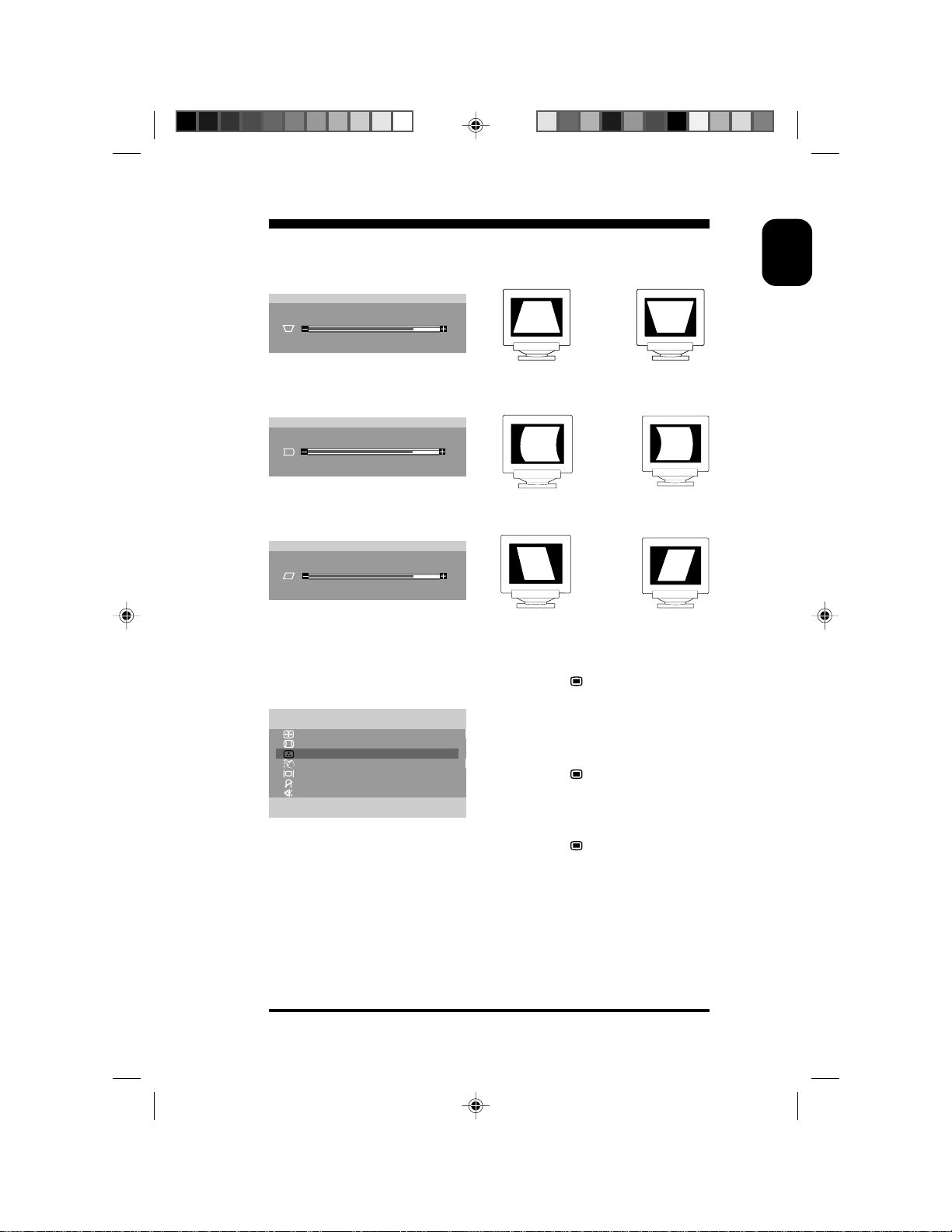

(3) TRAPEZOID
AA
(4) BALANCED PINCUSHION
(5) PARALLELOGRAM
COLOR TEMPERATURE
●Press , to access OSD
menu.
●Use OSD rotary encoder to
move the bar to
"COLOR TEMPERATURE".
●Press to access the 2nd
level menu. Use OSD rotary
encoder to select the function
you want to adjust.
●Press , the screen will
show the color you selected
(9300°K or 6500°K). Or use
OSD rotary encoder to adjust
your own.
main menu
A
A
A
A
80%
PARA OLLEL AMGR
OSIZE & P TIONSI
GEOMETRYMCOLOR TE RATUREPE
ADVANCED NTROLSCO
EXI T OSD
MUTE OF F
RESET
7
1024x768 68. Z 85HZKH
DEGAUSS SMON I TOR TUSTA
AMINMENU
TRAPEZOID
80%
80%
BALANCED NCUSHIONPI

14
E
N●The adjusted parameters are
automatically saved and the
OSD menu will disappear
within 10 seconds if there is
not any adjustment/action has
been made.
●Press , return to the OSD
main menu.
COLOR TEMPERATURE 3rd level menu
(1) USER 1
●Use OSD rotary encoder to the
function you need, then press
and use OSD rotary encoder to
adjust it.
●Press and use OSD rotary
encoder to choose "SAVE &
RETURN TO MAIN MENU" or
"RECALL".
2nd level menu
RCOLOR T EMP E UR EAT
9300ºK
6500ºKUSER 1
USER 2
SAVE & RETURN TO MAIN MENU
RECALL
05%
08%
06%
USER 1
GREEN
BLUE
RED
SAVE & RETURN TOMAIN MENU
RECALL
(2) USER 2
●Use OSD rotary encoder to the
function you need, then press
and use OSD rotary encoder to
adjust it.
●Press and use OSD rotary
encoder to choose "SAVE &
RETURN TO MAIN MENU" or
"RECALL".
05%
08%
06%
USER 2
GREEN
BLUE
RED
SAVE & RETURN TOMAI MNENU
RECALL

15
E
N
ADVANCED CONTROLS
●Press , to access OSD
menu.
●Use OSD rotary encoder to
move the bar to
"ADVANCED CONTROLS".
●Press to access the 2nd
level menu. Use OSD rotary
encoder to select the function
you want to adjust.
●Press , use OSD rotary
encoder to adjust.
●Press , return to 2nd level
menu.
●The adjusted parameters are
automatically saved and the
OSD menu will disappear
within the time you selected
on OSD TIMER (e.g. 10
seconds) if there is not any
adjustment/action has been
made.
●Press , return to the OSD
main menu.
main menu
2nd level menu
ADVANCED CONTROLS 3rd level menu
(1) LANGUAGE
LANGUAGE
ENGL I SH
AN A I SFR
DEUTSCH
AL IANOIT
ESPA OL
N
~
(2) OSD TIMER
EOSD
10
25
50
TIM R
5
NADVANCE D CO OL STR
VPOWER SA G ONIN
LANGUAGEO
DDC1/2B N
SAVE & RETURN TO MAIN MENU
RECALL
MO I R É ROSD T MEI
SYNC I NPUT LECTSE
OSIZE & P TIONSI
GEOMETRYMCOLOR TE RATUREPE
ADVANCED NTROLSCO
EXI T OSD
MUTE OF F
RESET
7
1024x768 68 . Z 85HZKH
DEGAUSS SMON I TOR TUSTA
AMINMENU

16
E
N(3) MOIRE
●Use OSD rotary encoder to
choose "H" or "V".
●Press then use OSD rotary
encoder to adjust.
●Press and use OSD rotary
encoder to choose "SAVE &
RETURN TO MAIN MENU" or
"RECALL".
MONITOR STATUS
(4) SYNC INPUT SELECT
TMON I TOR S TA U S
NEW MODE .6ABCD12 4
SERIAL NO 78 0
953
.
556 H70
Z
HZK
TMON I TOR S TA U S
1024x768 ..6ABCD12 4
SERIAL NO 78 0
953
68 7 H85
Z
HZK
main menu
2nd level menu
2nd level menu
●Press to access OSD main
menu.
●Use OSD rotary encoder to move
the bar to "MONITOR STATUS".
●Press to access the 2nd level
menu.
80%
80%
MO I R É
S
H
AVE & RETURN TO MA NIMENU
RECALL
V
SYNC I NPUT LECTSE
SYN E
CONGRE N
SAVE & RETURN TO MA NIMENU
RECALL
TTL
NC
SY
SYNC I NPUT LECTSE
SAVE & RETURN TO MA NIMENU
RECALL
TTL
SYN E
CONGRE N
NC
SY
OSIZE & P TIONSI
GEOMETRYMCOLOR TE RATUREPE
ADVANCED NTROLSCO
EXI T OSD
MUTE OF F
RESET
7
1024x768 68 . Z 85HZKH
DEGAUSS SMON I TOR TUSTA
AMINMENU
IATTENT ON
KPLEASE MA SURE YOURE
VIDEO RD HASCA
OSYNC GREENN

17
E
N
DEGAUSS
EXIT OSD
RESET
main menu
main menu
main menu
SYE
NO
ERESET ALL S INGSTT
●Press to access main menu.
●Use OSD rotary encoder to
move the bar to "RESET".
●Press to access the 2nd level
menu.At this moment, it shows
preset parameters status on
the screen and you can select
"NO" to go back to the previous
setting or "YES" to reset all
settings.
●If there is no action made, then
OSD menu will disappear within
the time you selected on OSD
TIMER (e.g. 10 seconds) and
the parameters will return to the
previous setting.
How if you get lost in OSD tree stucture?
You can press to go back to OSD main menu and select "RESET"
in main menu to reset all settings.
7
OSIZE & P TIONSI
GEOMETRYMCOLOR TE RATUREPE
ADVANCED NTROLSCO
EXI T OSD
MUTE OF F
1024x768 68. Z 85HZKH
RESET
DEGAUSS SMON I TOR TUSTA
AMINMENU
OSIZE & P TIONSI
GEOMETRYMCOLOR TE RATUREPE
ADVANCED NTROLSCO
EXI T OSD
MUTE OF F
7
1024x768 68. Z 85HZKH
RESET
DEGAUSS SMON I TOR TUSTA
AMINMENU
OSIZE & P TIONSI
GEOMETRYMCOLOR TE RATUREPE
ADVANCED NTROLSCO
EXI T OSD
MUTE OF F
7
1024x768 68 . Z 85HZKH
RESET
DEGAUSS SMON I TOR TUSTA
AMINMENU
2nd level menu

18
E
N
Frequence Sync polarity
Mode Resolution H(KHz) V(Hz) H V
M01 VGA 600x400 31.5 70 – +
M02 VGA 640x480 31.5 60 – –
M03 VGA 640x480 43.3 85 – –
M04 SVGA 800x600 46.9 75 + +
M05 SVGA 800x600 53.7 85 + +
M06 EVGA 1024x768 60.0 75 + +
M07 EVGA 1024x768 68.7 85 + +
M08 1280x1024 80.0 75 + +
M09 1280x960 85.9 85 + +
Data Storage
(A) Factory preset mode:
This monitor has 9 factory-preset modes as indicated in the following
table:
(C) New mode
The monitor is reversed for 4 new modes in case non-standard video
modes are used.
(B) User mode
In addition to factory preset modes, the monitor can also provides
additional 9 User-defined modes.
If the input video signal is different from our factory-preset modes,the
new timing data will be automatically stored. However, the displayed
parameters may need to be adjusted. User can adjust the parameters
via OSD, as preceding procedures which already described on
"Adjustment via On-Screen-Display" section.

19
E
N
Automatic Power Saving
If you have VESA's DPMS compliance display card or software installed
in your PC, the monitor can automatically reduce its power consumption
when not in use. And if an input from keyboard, mouse or other input
devices is detected, the monitor will automatically “wake up”. The
following table shows the power consumption and signalling of this
automatic power saving feature:
Power Management Definition
VESA's mode Video H-sync V-sync Power Power LED
used saving(%) color
ON Active Yes Yes < 110W 0% Green
Stand-by Blanked No Yes < 15W 86% Yellow
Suspend Blanked Yes No < 15W 86% Yellow
OFF Blanked No No < 5W 95% Amber
This monitor is Energy Star compliant and TCO'92 power
management compatible.
AS AN ENERGY STAR PARTNER, PHILIPS, HAS DETERMINED
THAT THIS PRODUCT MEETS THE ENERGY STAR
GUIDELINES FOR ENERGY EFFICIENCY.

20
E
NSpecification*
(I) General
CRT
Screen size : 17" (43.2 cm) flat & square
Focusing method : Dynamic focus
Dot pitch : 0.26 mm
Phosphor : P22 or equivalent, medium short
persistence
Screen treatment : Anti-glare, anti-static
Display area
Factory preset : 306 mm (H) x 230 mm (V)
Maximum usable : 323 mm (H) x 242 mm (V)
Scanning frequency
Horizontal (line) : 30-86 kHz (AutoScan)
Vertical (frame) : 50-160 Hz (AutoScan)
Input power : 100-240 VAC, 50- 60 Hz
Power consumption : 110 Watt maximum
Input signal
Video : 0.7 Vpp, 75 Ohm impedance
Audio : 800mVrms linear/22K Ohm
Sync : . Separate sync. TTL level
. Composite sync. TTL level
. Sync. on green video
Pedestal
Tilt : 5°forward, 11°backward
Swivel : 90°leftward, 90°rightward
Physical
Unit dimension (WxHxD) : 417 x 432 x 467 (mm)
Net weight : 18.0 kg
Operating condition
Temperature : 0°C - 40°C
Humidity : 10% - 90%
Storage condition
Temperature : -25°C - 65°C
Humidity : 5% - 95%
White Color Coordinates:
9300°K x= 0.281 y= 0.311
6500°K x= 0.313 y= 0.329
* Because of a policy of continuous product improvement, the above specifications
are subjected to change without notice.
