Philips AE5010/05 User manual

Register your product and get support at
www.philips.com/welcome
EN User manual
AE5010
AE5010_05_UM_V1.3.indd 1 8/9/2011 10:35:15 AM

2EN
AE5010_05_UM_V1.3.indd 2 8/9/2011 10:35:15 AM

3EN
Contents
1 Important 5
Safety 5
Notice 6
2 Your FM/DAB radio 8
Introduction 8
What’s in the box 8
Overview of the main unit 9
3 Get started 11
Prepare FM/DAB antenna 11
Connect power 11
Turn on 13
Adjust the volume level 13
4 Listen to FM radio 14
Tune to FM radio 14
Store FM stations manually 14
Select a preset FM radio station 15
Use FM menu 15
5 Listen to DAB radio 16
Tune to DAB radio 16
Change DAB station 16
Scan DAB radio stations 17
Display station information 17
Store DAB stations manually 18
Select a preset DAB radio station 18
Use DAB menu 19
Contents
AE5010_05_UM_V1.3.indd 3 8/9/2011 10:35:15 AM

4EN
6 Product information 21
Tuner (FM) 21
Tuner (DAB) 21
General information 22
7 Troubleshooting 23
8 About DAB 24
AE5010_05_UM_V1.3.indd 4 8/9/2011 10:35:15 AM

5
1 Important
Safety
• The device shall not exposed to dripping or splashing.
• Donoplaceanysourceofdangeronthedevice(e.g.liquidlledobjects.lit
candles).
• Where the mains plug or an appliance coupler is used as the disconnect
device, the disconnect device shall remain readily operable.
Warning
•Never remove the casing of this unit.
•Never lubricate any part of this unit.
•Placethisunitonaat,hardandstablesurface.
•Never place this unit on other electrical equipment.
•Onlyusethisunitindoors.Keepthisunitawayfromwater,moistureandliquid-lledobjects.
•Keepthisunitawayfromdirectsunlight,nakedamesorheat.
Hearing safety
Listen at a moderate volume.
• Using headphones at a high volume can impair your hearing.This product can
produce sounds in decibel ranges that may cause hearing loss for a normal
person, even for exposure less than a minute.The higher decibel ranges are
offered for those that may have already experienced some hearing loss.
• Sound can be deceiving. Over time your hearing ‘comfort level’ adapts to
higher volumes of sound. So after prolonged listening, what sounds ‘normal’
can actually be loud and harmful to your hearing.To guard against this, set
your volume to a safe level before your hearing adapts and leave it there.
To establish a safe volume level:
• Set your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly,
without distortion.
EN
AE5010_05_UM_V1.3.indd 5 8/9/2011 10:35:15 AM

6
Listen for reasonable periods of time:
• Prolonged exposure to sound, even at normally ‘safe’ levels, can also cause
hearing loss.
• Be sure to use your equipment reasonably and take appropriate breaks.
Be sure to observe the following guidelines when using your headphones.
• Listen at reasonable volumes for reasonable periods of time.
• Be careful not to adjust the volume as your hearing adapts.
• Do not turn up the volume so high that you can’t hear what’s around you.
• You should use caution or temporarily discontinue use in potentially
hazardous situations. Do not use headphones while operating a motorized
vehicle,cycling,skateboarding,etc.;itmaycreateatrafchazardandisillegal
in many areas.
Notice
Anychangesormodicationsmadetothisdevicethatarenotexpresslyapproved
by Philips Consumer Lifestyle may void the user’s authority to operate the
equipment.
This product complies with the radio interference requirements of the European
Community.
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it means that
the product is covered by the European Directive 2002/96/EC.
Please inform yourself about the local separate collection system for electrical and
electronic products.
EN
AE5010_05_UM_V1.3.indd 6 8/9/2011 10:35:16 AM

7
Please act according to your local rules and do not dispose of your old products
with your normal household waste. Correct disposal of your old product helps to
prevent potential negative consequences for the environment and human health.
Your product contains batteries covered by the European Directive 2006/66/EC,
which cannot be disposed with normal household waste.Please inform yourself
about the local rules on separate collection of batteries because correct disposal
helps to prevent negative consequences for the environmental and human health.
Environmental information
All unnecessary packaging has been omitted.We have tried to make the packaging
easy to separate into three materials: cardboard (box), polystyrene foam (buffer)
and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused if disassembled
by a specialized company. Please observe the local regulations regarding the
disposal of packaging materials, exhausted batteries and old equipment.
EN
AE5010_05_UM_V1.3.indd 7 8/9/2011 10:35:16 AM

8
2 Your FM/DAB radio
Congratulationsonyourpurchase,andwelcometoPhilips!Tofullybenetfrom
the support that Philips offers, register your product at www.philips.com/welcome.
Introduction
With this unit, you can enjoy both FM radio and Digital Audio Broadcasting (DAB)
radio.
Digital Audio Broadcasting (DAB), is a way of broadcasting radio digitally through
a network of transmitters. It provides you with more choice, better sound quality
and more information.
What’s in the box
Check and identify the contents of your package:
• Main unit
• AC adaptor
• User manual
EN
AE5010_05_UM_V1.3.indd 8 8/9/2011 10:35:16 AM

9

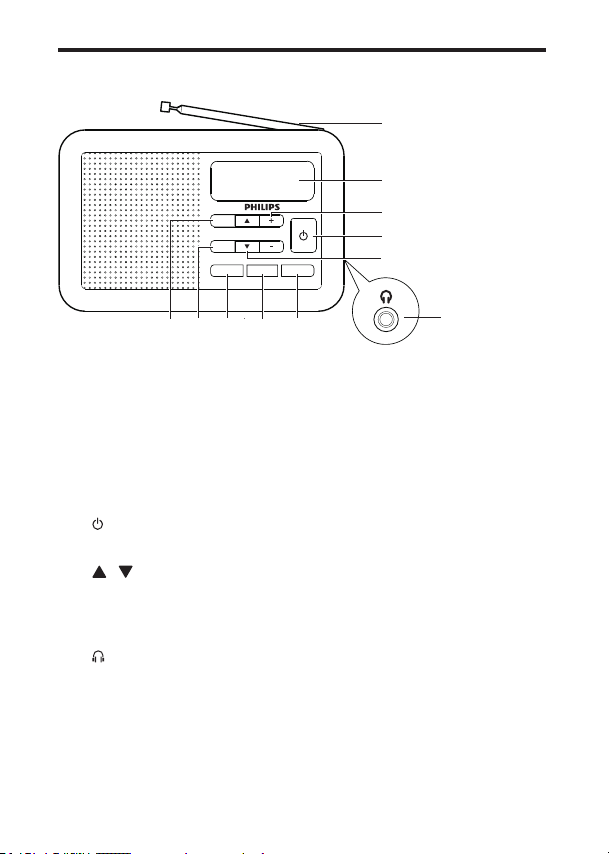

Overview of the main unit
aFM/DAB antenna
• Improve FM/DAB reception.
bDisplay panel
• Display the status.
c+/-
• Adjust volume.
d
• Turn on or off the unit.
e/
• Tune to an FM radio station.
• Go to a DAB service list.
• Scroll through menu list.
f
• Socket for the headphone.
gPRESET
• Program radio stations.
• Select a preset radio station.
SCAN
INFO
DAB/FM ENTERPRESET
hijk f g
b
c
d
e
a
EN
AE5010_05_UM_V1.3.indd 9 8/9/2011 10:35:17 AM

10
hENTER
• Conrmaselection.
iDAB/FM
• Select DAB or FM radio.
jINFO
• Display DAB station information.
• Access DAB/FM menu.
kSCAN
• Search FM/DAB radio stations.
EN
AE5010_05_UM_V1.3.indd 10 8/9/2011 10:35:17 AM

11
3 Get started
Caution
•Use of controls or adjustments or performance of procedures other than herein may result in
hazardous radiation exposure or other unsafe operation.
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number of this
apparatus.The model number and serial number are on the back of the apparatus.
Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Prepare FM/DAB antenna
For optimal reception, fully extend and adjust the position of the FM/DAB antenna.
Tip
•Position the antenna as far away as possible from your TV,VCR or other radiation source to prevent
interference.
Connect power
You can use this radio player on AC power or battery power.
Battery Life (Approx. hours)
When using FM DAB
alkaline R6 (size AA) 12 12
EN
AE5010_05_UM_V1.3.indd 11 8/9/2011 10:35:17 AM

12
Option 1:AC power
Caution
•Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed
on the back or the underside of the product.
•Risk of electric shock! When you unplug the AC adaptor, always pull the plug from the socket.
Never pull the cord.
•UseonlytheACadaptorspeciedbythemanufacturerorsoldwiththisunit.
Note
•The type plate is on the back of the apparatus.
1Connect one end of the AC adaptor to the DC socket on the main unit.
2Connect the other end of the AC adaptor to the wall outlet.
Option 2: Battery power
Caution
•Riskofexplosion!Keepbatteriesawayfromheat,sunshineorre.Neverdiscardbatteriesinre.
•Do not mix batteries (old and new or carbon and alkaline, etc.).
•Remove batteries if they are exhausted or if the unit is not to be used for a long time.

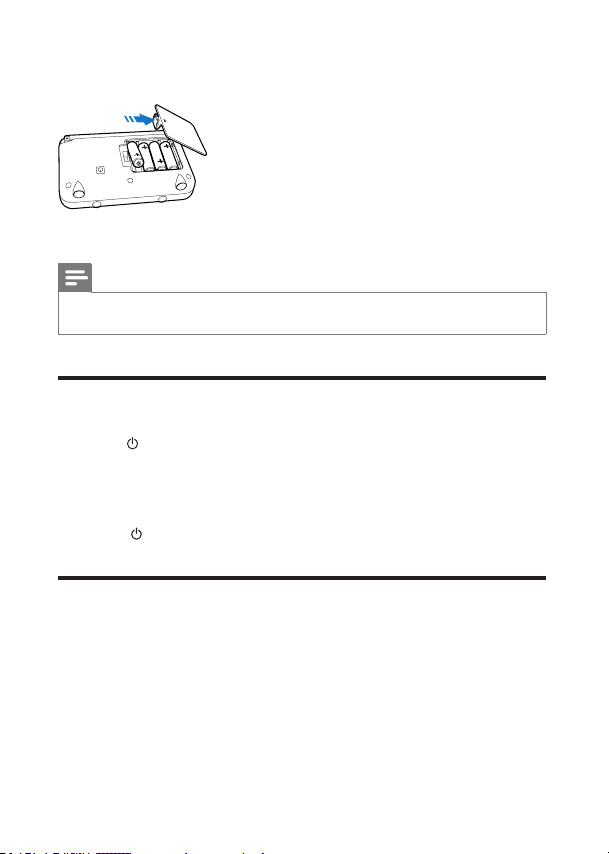

1Open the battery compartment at the back of the unit.
EN
AE5010_05_UM_V1.3.indd 12 8/9/2011 10:35:17 AM

13
2Insert 4 AA size batteries (not supplied) with correct polarity (+/-) as
indicated, then close the battery compartment.
3The unit is ready to operate.
Note
•Batteries contain chemical substances, so they should be disposed of properly.
Turn on/off
1Press .
»[Welcome to Philips Audio] is displayed.
»The radio goes to the last selected source.
To turn off the unit:
1Press aga i n.
Adjust the volume level
1During play, press +/- to increase/decrease the volume level.
EN
AE5010_05_UM_V1.3.indd 13 8/9/2011 10:35:17 AM

14
4 Listen to FM radio
Tune to FM radio
1Press DAB/FM repeatedly to select FM radio.
2Press / to tune to a radio station.
Search FM radio stations
1Tune to FM radio.
2Press and hold / for more than two seconds to start searching stations.
»The FM tuner tunes to a station with strong reception automatically.
3 Repeatstep2ifnecessaryuntilyoundthedesiredstation.
Store FM stations manually
You can program a maximum of 10 preset FM radio stations.
1Tune to your desired FM station.
2Press and hold PRESET for two second,
»The preset number is displayed.
3Press / to select the desired preset number.
4Press ENTERtoconrmtheselection.
»The stored radio frequency and number are displayed.
Note
•To overwrite a preset station, store another station in its place.
EN
AE5010_05_UM_V1.3.indd 14 8/9/2011 10:35:17 AM

15
Select a preset FM radio station
1Press DAB/FM repeatedly to select FM radio.
2Press PRESET to enter the preset channel list.
3Press / tondyourdesiredstation.
4Press ENTERtoconrmtheselection.
Note
•When you go through the preset station list, if no button is pressed within three seconds, the radio
tunes to the showed preset station.
Use FM menu
1In FM mode, press and hold INFO to enter the FM menu.
2Press / to scroll the menu options:
• [Audio setting]
• [System]
3To select an option, press ENTER.
4Repeat step 2-3 if sub-option is available under one option.
[Audio setting]
This function enables you to select mono or stereo
• [Forced mono] Select mono broadcast.
• [Stereo allowed] Select stereo broadcast.
[System]
• [Factory reset] Resets all the settings of this radio player to factory
default.
• [SW version] Software version of the radio player is shown.
Note
•If no button is pressed within 10 seconds, the menu exits.
EN
AE5010_05_UM_V1.3.indd 15 8/9/2011 10:35:18 AM

16
5 Listen to DAB radio
Tune to DAB radio
WhenyouentertheDABmodeforthersttime,theradioplayershows[DAB
mode] for two seconds and enters the DAB menu. Press ENTER to start the
scanning.Then station list is retained in memory so the next time the radio player
is switched on, the station scan does not take place.
1Press DAB/FM repeatedly to select DAB radio.
»A bar graph indicates the progress of the search and the number of
stations found increase as the scan progresses.
AWhen the scan is completed, the stations are listed in numerical then
alphabetic order.
»First available station is played.
BIf there is no DAB coverage currently available
»[No DAB Station] is displayed.
aChange the location or adjust antenna.
bPress SCAN to search again.
Change DAB station
1Tune to a DAB station.
2Use / to navigate through available stations.
Number of
Stations found
Progress bar
EN
AE5010_05_UM_V1.3.indd 16 8/9/2011 10:35:18 AM

17
3Press ENTER to select the station.
Note
•If no button is pressed within three seconds, the radio tunes to the current station automatically.
Scan DAB radio stations
1When playing a DAB station, or the current station is not available, press
SCAN for more than two seconds.
»The radio player scans all available DAB radio stations and broadcasts
the current station.
Tip
•New stations and services will be added in the DAB broadcast.To make new DAB stations and
services available on your radio player, do the scan on a regular base.
Display station information
1Tune to a DAB radio station.
2Press INFO repeatedly to scroll through the following information (if
available):
»Dynamic label segment (DLS)
»Strength
»Program type (PTY)
»Ensemble Name
»Channel and frequency
»Signal error rate
EN
AE5010_05_UM_V1.3.indd 17 8/9/2011 10:35:18 AM

18
»Bit rate and audio status
»Time
Store DAB stations manually
You can store a maximum of 10 preset DAB radio stations.
1Tune to your desired DAB station.
2Press and hold PRESET for two seconds.
»[Preset X stored] is displayed.
3To select a preset number, press / ; then press ENTER toconrmthe
selection.
»The preset number of the saved station is displayed.
Note
•To overwrite a preset station, store another station in its place.
Select a preset DAB radio station
1Press DAB/FMrepeatedly to select DAB radio.
2Press PRESET to enter the present channel list.
3Press / to select a preset number.
4Press ENTERtoconrmtheselection.
Note
•When you go through the preset station list, if no button is pressed within three seconds, the radio
tunes to the showed preset station.
EN
AE5010_05_UM_V1.3.indd 18 8/9/2011 10:35:18 AM

19
Use DAB menu
1In DAB mode, press and hold INFO for two seconds to enter the DAB
menu.
2Press / to scroll the menu options:
• [Station list]
• [System]
• [DRC] (dynamic range control)
• [Manual tune]
• [Full scan]
3To select an option, press ENTER.
4Repeat step 2-3 if sub-option is available under one option.
[System]
• [Info] (Software version of the radio player is shown.)
• [Factory reset] (Resets all the settings of this radio player to factory
default.)
• Press’ENTERtoconrmreset.
[DRC]
Dynamic range control (DRC) adds or removes a degree of compensation for the
differences in the dynamic range between radio stations.
• [DRC high] (DRC is switched on; the default setting recommended for
noisy environment.)
• [DRC low] (DRC is set to half normal level.)
• [DRC off] (DRC is switched off.)
[Manual tune]
Itispossibletomanuallytunetoaspecicchannel/frequencyandaddthistothe
station list.
Thisfunctioncanbeusedtoobtaintheoptimumreceptionforaspecicchannel/
frequency, taking into account the position of the aerial.
»Therstlineofthedisplayshowstheselectedchannelanditsfrequency.
Therstlineofthedisplayshowsarectangle.
»A rectangle will be displayed on the second line of the display.The
position of this rectangle indicates the signal strength (the further
towards the right, the greater the signal strength).
EN
AE5010_05_UM_V1.3.indd 19 8/9/2011 10:35:18 AM

20
Tip
•Adjust the position of the antenna to obtain the optimum signal strength.
[Full scan]
Full scan is used to perform a wide range of DAB radio search (outside UK).
Note
•If no button is pressed within 10 seconds, the menu exits.
EN
AE5010_05_UM_V1.3.indd 20 8/9/2011 10:35:18 AM
