1 Important
Safety
This 'bolt of lightning' indicates uninsulated
material within your unit may cause an electrical
shock. For the safety of everyone in your
household, please do not remove product
covering.
The 'exclamation point' calls attention to
features for which you should read the enclosed
literature closely to prevent operating and
maintenance problems.

shock, this apparatus should not be exposed to

such as vases, should not be placed on this
apparatus.
CAUTION:To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
 Read these instructions.
 Heed all warnings.
 Follow all instructions.
 Do not block any ventilation openings.
Install in accordance with the
manufacturer's instructions.
 Do not install near any heat sources such
as radiators, heat registers, stoves, or

produce heat.
 Protect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the unit.
 
by the manufacturer.
 Unplug this unit during lightning storms or
when unused for long periods of time.
 

unit has been damaged in any way, such
as power-supply cord or plug is damaged,

into the unit, the unit has been exposed to
rain or moisture, does not operate normally,
or has been dropped.
 This unit shall not be exposed to dripping
or splashing.
 Do not place any sources of danger on


 Where the plug of the Direct Plug-in
Adapter is used as the disconnect device,
the disconnect device shall remain readily
operable.

5
English
EN
2 Your Android
docking system
Congratulations on your purchase, and

support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With this docking system, you can:
 enjoy audio from the Android phone;
 listen to FM radio;
 be waken up by buzzer alarm, radio, or
audio in Android phone; and
 experience a variety of features brought by
Philips Fidelio and Songbird.
What's in the box
Check and identify the contents of your
package:
 Main unit
 Power adapter
 MP3 link cable x 1
 Quick start guide
 Safety sheet

6EN

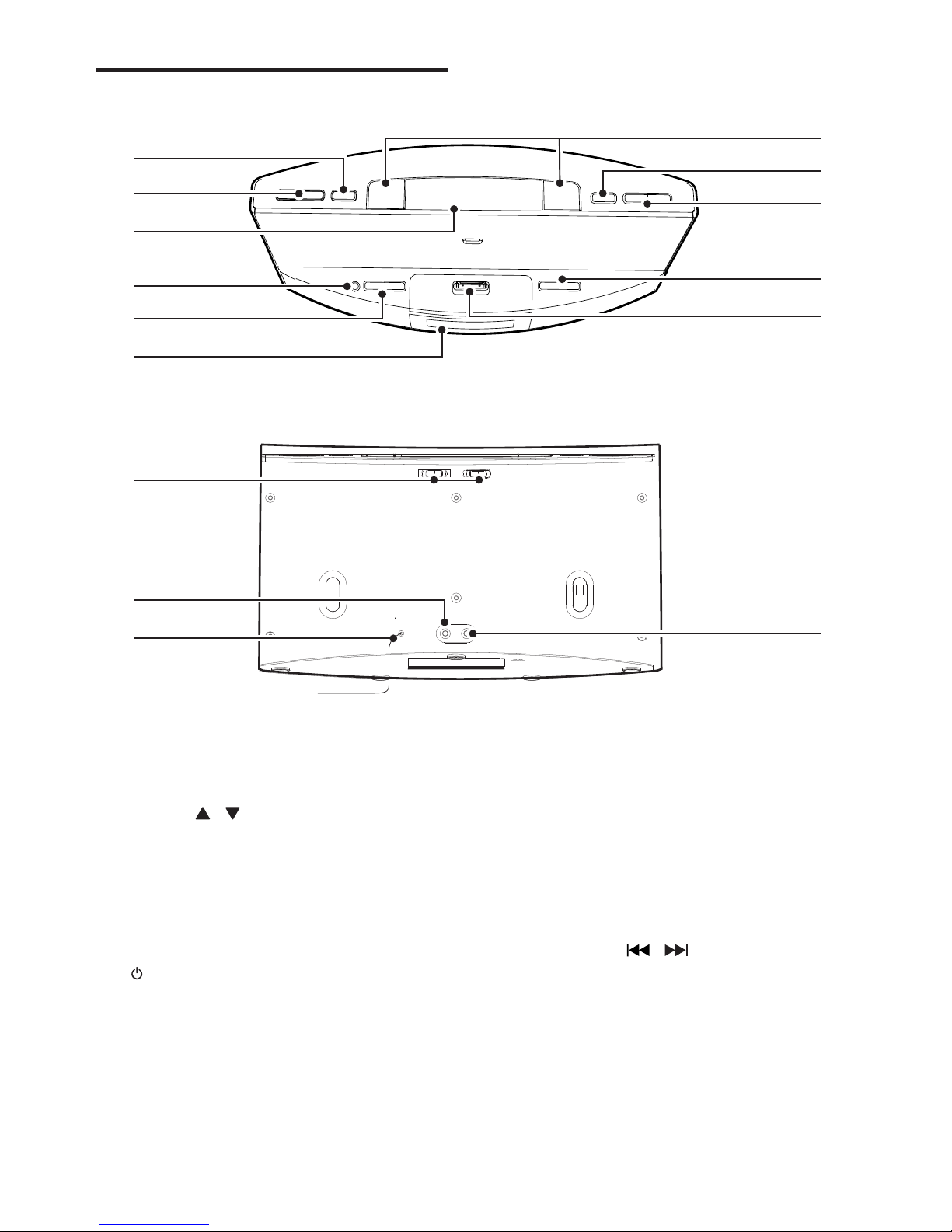

Overview of the main unit
a SET TIME/PROG
 Set clock.
 Store FM radio stations.
b PRESET /
 Select a preset radio station.
 Adjust hour and hour format.
c SNOOZE/BRIGHTNESS
 Snooze alarm.
 Adjust display brightness.
d
 Turn the device on/off .
 Switch the device to standby mode.
e SOURCE
 Select a source: FM tuner, Bluetooth
device, or MP3 link.
a
b
c
d
e
f
l
m
n
g
h
i
j
k
o
f Display panel
 Show current information.
g AL1/AL2
 Set alarm.
 View alarm settings.
 Activate/deactivate alarm timer.
h SLEEP
 Set sleep timer.
i TUNING · /
 Tune to an FM radio station.
 Adjust minute.
j VOLUME +/-
 Adjust volume.
k Dock for Android phone

7
English
EN
l AL1/AL2 RADIO·BUZZ·DOCK
 Select alarm source for Alarm 1 or
Alarm 2.
m MP3 LINK
 Connect an external audio device.
n FM ANTENNA
 Improve FM reception.
o DC IN
 Power supply socket.

8EN
3 Get started
Always follow the instructions in this chapter in

Caution
 Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
Connect power
Caution
 Risk of product damage! Ensure that the power voltage
corresponds to the voltage printed on the back or
underside of the device.
 Risk of electric shock! When you unplug the power
adapter, always pull the plug from the socket. Never
pull the cord.
Note
 The type plate is located on the bottom of the docking
system.

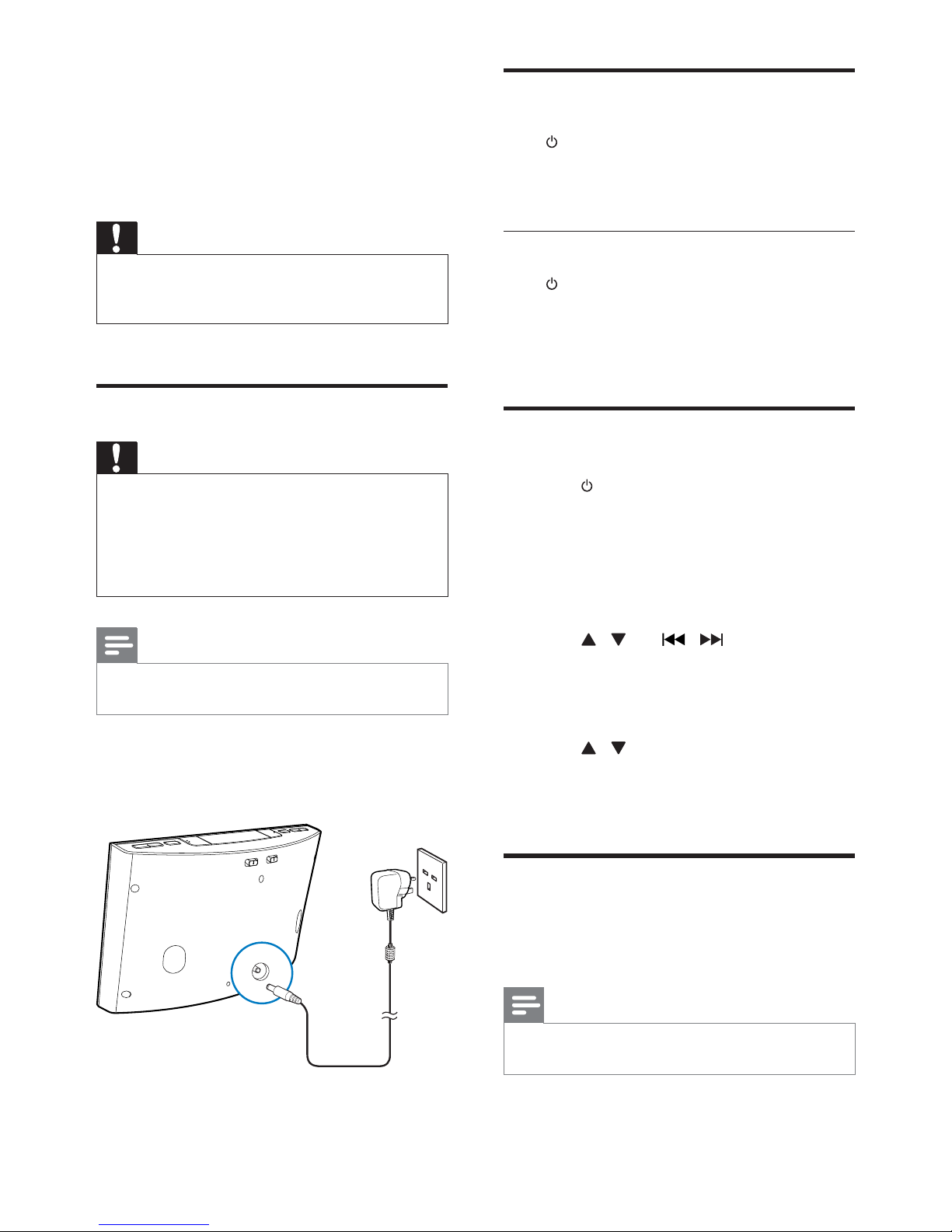

Connect the power adapter to:
 the DC IN socket of the docking system.
 the wall socket.
Turn on
Press .
» The docking system switches to the last
selected source.
Switch to standby mode
Press again to switch the docking system to
standby mode.
» [OFF] appears for one second, then the

Set clock
1 Press to switch the device to standby
mode.
2 Press and hold SET TIME for two seconds
to activate clock setting mode.
» The hour and minute digits begin to
blink.
3 Press / and / repeatedly to set
the hour and minute.
4 Press SET TIME
» [12H] or [24H] begins to blink.
5 Press / to select 12/24 hour format.
6 Press SET TIME
» The set time is displayed.
Select source
Press SOURCE repeatedly to select a source:
bluetooth, FM tuner, or MP3 link.
Note
 When an android phone is docked, the system
automatically switches to bluetooth mode.

9
English
EN
Set bluetooth connection
Note
 Before you connect a Bluetooth device to this
docking system, familiarize yourself with the Bluetooth
capabilities of the device.
1 Press to turn on Bluetooth function of
the docking system.
» blinks on the display panel.
2 On your Android phone, select [Settings]
[Wireless and networks]
[Bluetooth
settings] 
3 Tap [Bluetooth] 
Bluetooth function.
4 Tap [Scan devices] 
» [PHILIPS AS140] 
displayed.
5 Tap [PHILIPS AS140] on the screen.
» When you hear "Du-du" sound, your
phone and the docking system are
connected successfully.
Note
 After Bluetooth connection, you can play music on your
phone through the docking system.

10 EN
4 Play from
Android phone
Compatible Android phone
This docking system is made for Android
phones with
 Android operation system (Version 2.1 or

 
and
 a micro USB connector.
Tip
 For more details, go to www.philips.com/FlexiDock.
Install "Fidelio" onto Android
phone
Philips Fidelio app brings a suite of new
features to your docking system, including music
playback controls, Internet radio and a multi-
function alarm clock.To enjoy more features,
you are recommended to download and install
free "Fidelio" application.
You have two ways to install "Fidelio" application
on your Android phone.
Install "Fidelio" through QR code
Note
 Make sure that your Android phone is connected to
the internet.
 Make sure that your phone has barcode scanner such
as "QR Droid". If not, download one from the Android
market.
1 Use the barcode scanner to scan the QR
code on the package.

11
English
EN
2 Tap [Open] 
"Fidelio" application.
3 Tap the downloaded Fidelio application.
» A prompt window asking whether you
want to install Fidelio is displayed.
4 Select [Install] 
application.
Android_Fidelio.apk
Install

12 EN
5 When installation is complete, tap [Done]

» Fidelio icon is displayed on the home
screen.
Done
Install "Fidelio" through Android
market
You can also search "Fidelio" application in the
Android market directly, and then download
and install "Fidelio".
Note
 Make sure that your phone is connected to the
internet.
 Make sure that Android Market is available in your
Android phone.
1 Tap the Android Market icon on your
phone screen.

13
English
EN
2 Tap the search icon on the screen to
access search bar.
3 In the search bar, input "Fidelio" to search
"Fidelio" application.
Fidelio
4 
"Fidelio" to start downloading Fidelio.
5 Tap the downloaded Fidelio application.
6 Follow the screen instructions to complete
the installation.
Android_Fidelio.apk

14 EN
Install "Songbird" to enjoy
music
Philips Songbird is a simple media player that
can play various audio and video formats.With
this free application, you can synchronize music
from a computer to the Android phone.
Install Songbird on your Android
phone

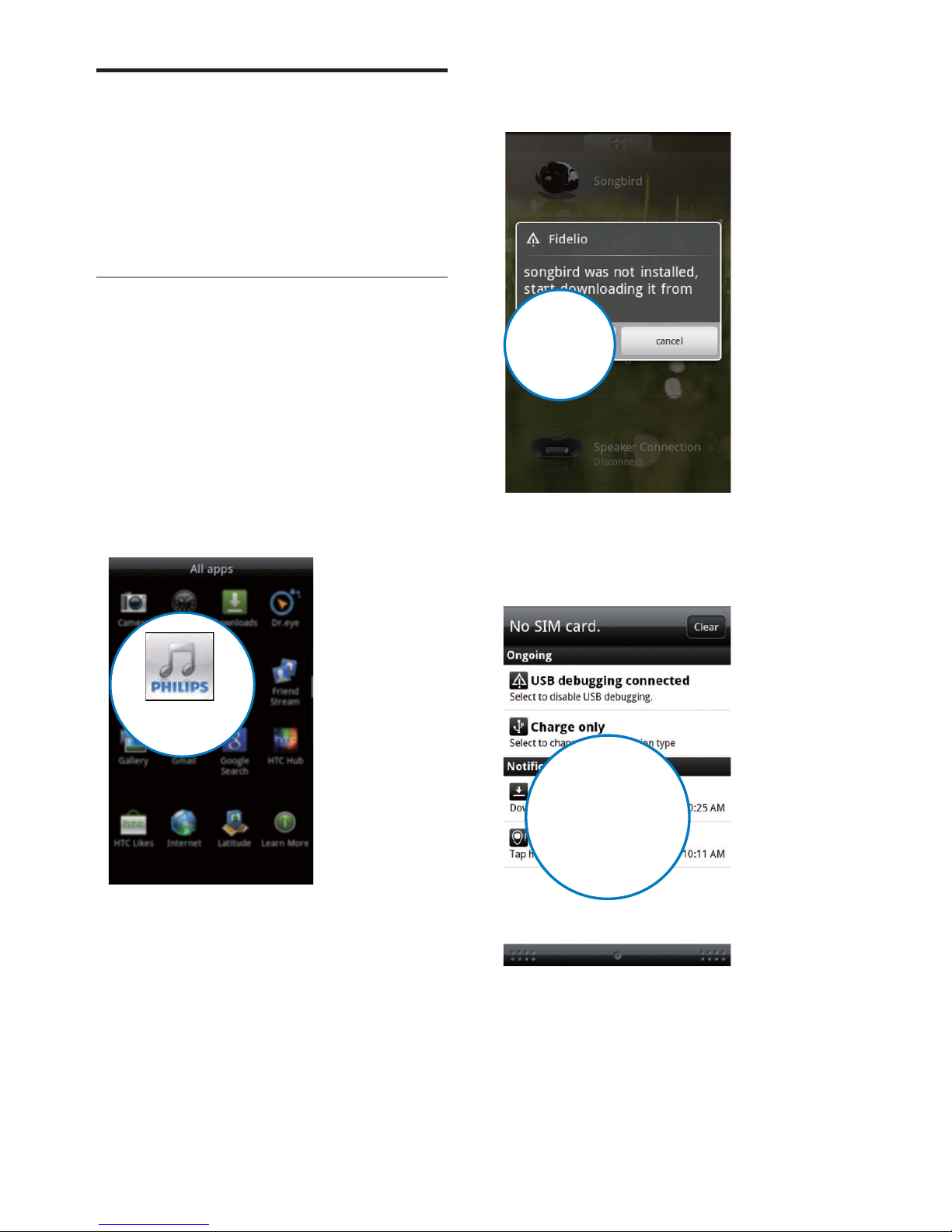

When Fidelio application is launched for the

Songbird.
1 Tap the Fidelio icon on your phone to
launch the Fidelio application.
» A prompt window asking you to
download Songbird appears.
Fidelio
2 Tap [download] 
» Songbird is downloaded automatically.
3 Tap the downloaded songbird application.
» The system asks whether you want to
install songbird.
download
Songbird.apk

15
English
EN
4 Tap [Install] 
» Songbird is installed on your phone.
5 Tap [Open] 
menu.
Install
Open
6 Select a track, and then tap to play music.
Note
 


download again.

16 EN
Install Songbird on your computer
1 Go to www.philips.com/songbird.
2 Download the latest Songbird application.
3 Follow on-screen instructions to install
Songbird on your computer.
Sync music from PC to your phone
Note
 Make sure that both your computer and phone are
installed with Songbird application.

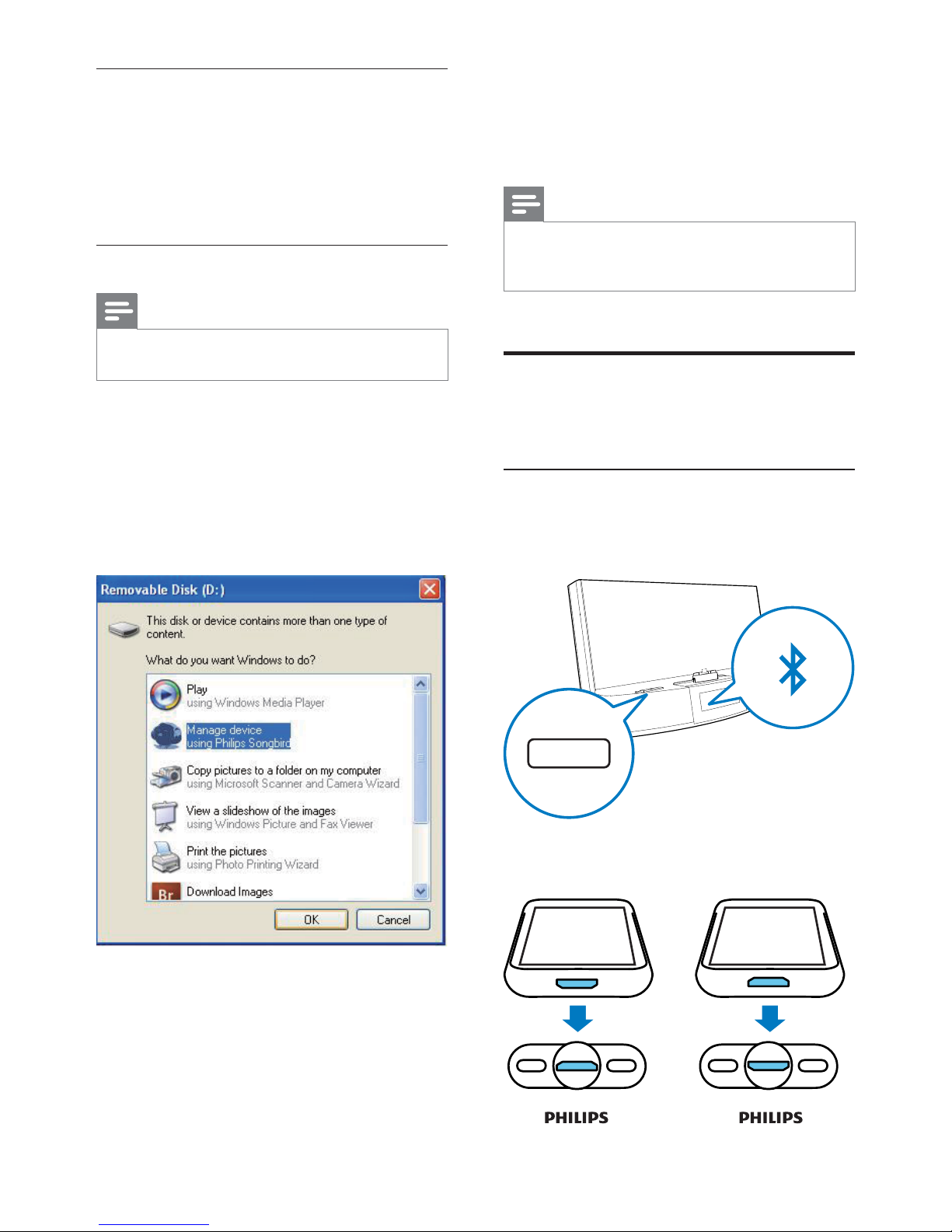

1 Connect your Android phone to the
computer with a USB cable.
» A prompt window appears.
2 Select [Managing device using Philips
Songbird] (Managing device using Philips

» The songbird user interface is
displayed.
3 Select [Auto Sync Music] (Auto Syn
[Sync all music and playlists]

4 Click [Sync] 
interface.
» The music on your computer is
synchronized into your phone.
Note
 Next time when your Android phone is connected to
this computer, music is synchronized from PC to the
phone automatically.
Connect Android phone to
the docking system
Load the Android phone
1 Press SOURCE repeatedly to select
bluetooth mode.
2 Check the orientation of the micro USB
connector on the Android phone.
SOURCE

17
English
EN
3 Rotate the Android dock connector on the
docking system if necessary, then place the
Android phone into the dock.
4 Slide the connector to the center of the
docking system.
5 Rotate the knob on both sides of the
connector to make the phone stable.
Note
 If the micro USB connector is located at the top, and
your are using Android system of Version 2.3 or above,
screen auto-rotation is available.
Sync time with Android phone
Note
 Make sure that bluetooth function is enabled and
Fidelio is installed on your phone.

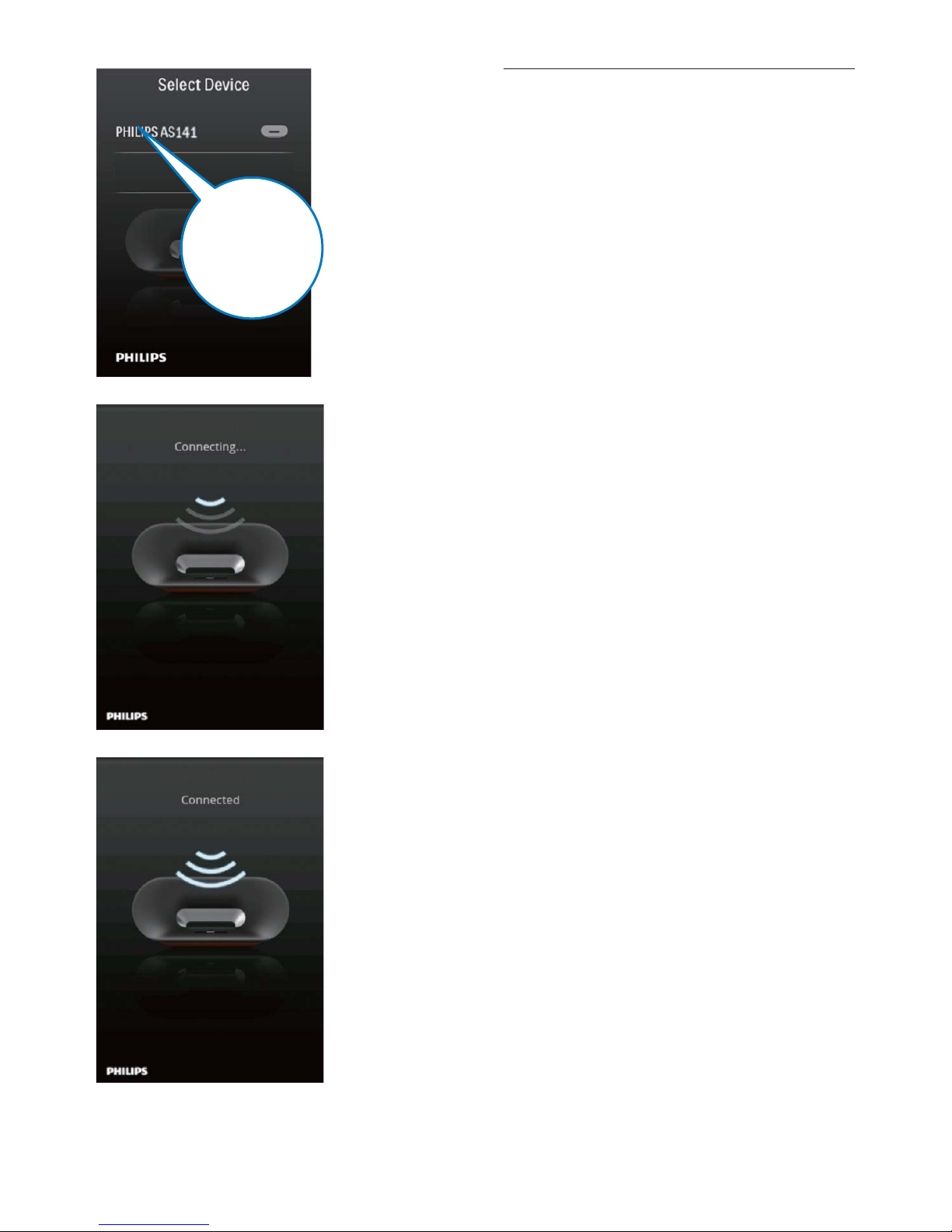

1 Load your Android phone correctly.
» The phone begins to scan Philips
bluetooth device.
2 Tap [PHILIPS AS140]
the screen.
» The phone is connected to the
docking system.
» When bluetooth connection is
complete, you will hear "Du-du" sound.
Then time on the docking system
synchronizes with that on the Android
phone.

18 EN
PHILIPS
AS141
Charge the Android phone
When the docking system is connected to
power, the docked Android phone starts
charging automatically.

19
English
EN
5 Listen to FM
radio
Tune to FM radio stations
Tip
 Position the antenna as far as possible from TV,VCR, or
other radiation source.
 For better reception, fully extend and adjust the
position of the antenna.
1 Press SOURCE repeatedly to select FM
tuner source.
2 Press and hold / for two seconds.
» The docking system tunes to a station
with strong reception automatically.
3 Repeat step 2 to tune to more radio
stations.
To tune to a station manually:
1 Press / 
optimal reception.
Store FM radio stations
automatically
Note
 You can store a maximum of 20 FM radio stations.
In tuner mode, press an hold PROG for two
seconds.
» The docking system stores all the available

available station automatically.
Store FM radio stations
manually
1 Tune to an FM radio station.
2 Press PROG.
» The preset number begins to blink.
3 Press / repeatedly to select a number.
4 Press PROG
5 Repeat steps 1 to 4 to store other stations.
Note
 To remove a pre-stored station, store another station
in its place.
Select a preset radio station
In tuner mode, press / repeatedly to select
a preset number.

20 EN
6 Other features
Set alarm timer
Set alarm
In standby mode, you can set two alarms to ring
at different time.
Note
 Make sure that you have set the clock correctly.
1 Press and hold AL1/AL2 for two seconds
to activate alarm setting mode.
» The hour and minute digits begin to
blink.
2 Press / and / repeatedly to set
the hour and minute.
3 Press AL1/AL2
Select alarm source
Note
 For alarm sound, you can select buzzer, your last
listened radio chanel, or the latest played track in your
Android phone.
Adjust AL1/AL2 RADIO·BUZZ·DOCK
control to select alarm source for both alarms.
Tip
 If DOCK is selected as alarm source, while no Android
phone is connected, the system switches to buzzer
source instead.
Activate/deactivate alarm timer
1 Press AL1/AL2 to view alarm settings.
2 Press AL1/AL2 again to activate or
deactivate the alarm timer.
» The alarm icon appears if alarm timer
is on and disappears if it is off.
 To stop the ringing alarm, press the
corresponding AL1/AL2.
» The alarm repeats ringing for the next
day.
Snooze alarm
When alarm sounds, press SNOOZE.
» The alarm snoozes and repeats ringing nine
minutes later.
Set sleep timer
This docking system can switch to standby
mode automatically after a preset period.
Press SLEEP repeatedly to select the sleep

» When the sleep timer is activated,
appears.
To deactivate the sleep timer, press SLEEP
repeatedly until [OFF] 
Play audio from an external
device
You can listen to audio from an external device
through this device.
1 Connect the MP3 link cable to:
 the MP3 LINK socket.
 the headphone socket of an external
device.
2 Press SOURCE repeatedly to select MP3
link source.
» is displayed.

21
English
EN
3 Play audio in the external device (see the

Adjust display brightness
Press BRIGHTNESS repeatedly to select
different brightness levels.
