FB 602-603-605 Centre & ia lo Sound Speakers
J
00 004278
000
DIGITAL “6
a
SETTE n
MPAGT
E Y
dE Sl
SS
uce from

Australia

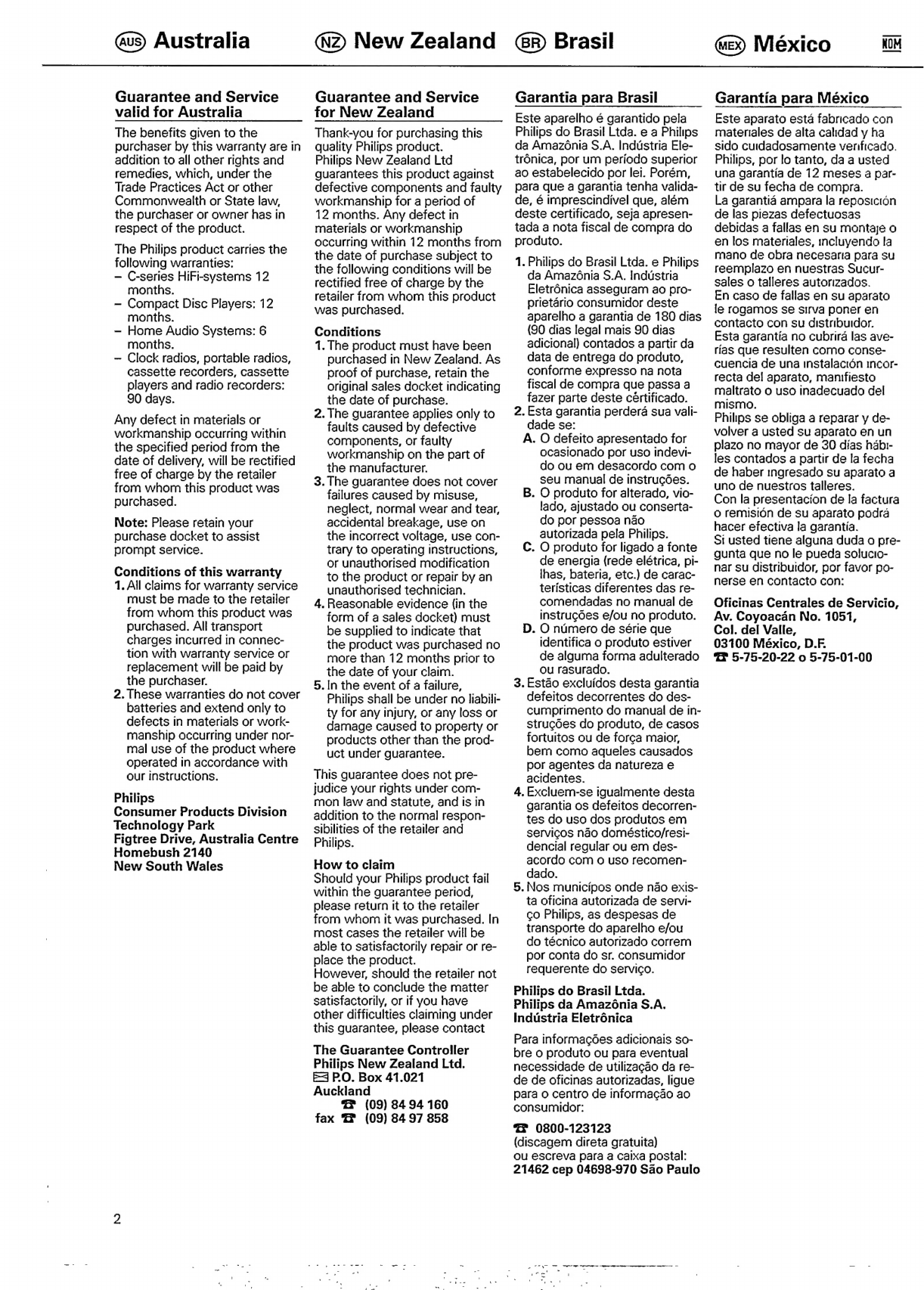

Guarantee and Service
valid for Australia
The benefits given to the
purchaser by this warranty are in
addition to all other rights and
remedies, which, under the
Trade Practices Act or other
Commonwealth or State law,
the purchaser or owner has in
respect of the product.
The Philips product carries the
following warranties:
— C-series HiFi-systems 12
months.
— Compact Disc Players: 12
months.
— Home Audio Systems: 6
months.
— Clock radios, portable radios,
cassette recorders, cassette
players and radio recorders:
90 days.
Any defect in materials or
workmanship occurring within
the specified period from the
date of delivery, will be rectified
free of charge by the retailer
from whom this product was
purchased.
Note: Please retain your
purchase docket to assist
prompt service.
Conditions of this warranty
1. All claims for warranty service
must be made to the retailer
from whom this product was
purchased. All transport
charges incurred in connec-
tion with warranty service or
replacement will be paid by
the purchaser.
2. These warranties do not cover
batteries and extend only to
defects in materials or work-
manship occurring under nor-
mal use of the product where
operated in accordance with
our instructions.
Philips
Consumer Products Division
Technology Park
Figtree Drive, Australia Centre
Homebush 2140
New South Wales
(NZ) New Zealand
Guarantee and Service
for New Zealand
Thank-you for purchasing this
quality Philips product.
Philips New Zealand Ltd
guarantees this product against
defective components and faulty
workmanship for a period of
12 months. Any defect in
materials or workmanship
occurring within 12 months from
the date of purchase subject to
the following conditions will be
rectified free of charge by the
retailer from whom this product
was purchased.
Conditions
1. The product must have been
purchased in New Zealand. As
proof of purchase, retain the
original sales docket indicating
the date of purchase.
2. The guarantee applies only to
faults caused by defective
components, or faulty
workmanship on the part of
the manufacturer.
3. The guarantee does not cover
failures caused by misuse,
neglect, normal wear and tear,
accidental breakage, use on
the incorrect voltage, use con-
trary to operating instructions,
or unauthorised modification
to the product or repair by an
unauthorised technician.
4. Reasonable evidence (in the
form of a sales docket) must
be supplied to indicate that
the product was purchased no
more than 12 months prior to
the date of your claim.
5. In the event of a failure,
Philips shall be under no liabili-
ty for any injury, or any loss or
damage caused to property or
products other than the prod-
uct under guarantee.
This guarantee does not pre-
judice your rights under com-
mon law and statute, and is in
addition to the normal respon-
sibilities of the retailer and
Philips.
How to claim
Should your Philips product fail
within the guarantee period,
please return it to the retailer
from whom it was purchased. In
most cases the retailer will be
able to satisfactorily repair or re-
place the product.
However, should the retailer not
be able to conclude the matter
satisfactorily, or if you have
other difficulties claiming under
this guarantee, please contact
The Guarantee Controller
Philips New Zealand Ltd.
E43 PO. Box 41.021
Auckland
@ (09) 84 94 160
fax @ (09) 84 97 858
Brasil
Garantia para Brasil
Este aparelho é garantido pela
Philips do Brasil Ltda. e a Philips
da Amazónia S.A. Indústria Ele-
trónica, por um período superior
ao estabelecido por lei. Porém,
para que a garantia tenha valida-
de, é imprescindivel que, além
deste certificado, seja apresen-
tada a nota fiscal de compra do
produto.
1. Philips do Brasil Ltda. e Philips
da Amazônia S.A. Indústria
Eletrónica asseguram ao pro-
prietário consumidor deste
aparelho a garantia de 180 dias
(90 dias legal mais 90 dias
adicional) contados a partir da
data de entrega do produto,
conforme expresso na nota
fiscal de compra que passa a
fazer parte deste cértificado.
2. Esta garantia perderá sua vali-
dade se:
A. O defeito apresentado for
ocasionado por uso indevi-
do ou em desacordo com o
seu manual de instrucóes.
B. O produto for alterado, vio-
lado, ajustado ou conserta-
do por pessoa náo
autorizada pela Philips.
C. O produto for ligado a fonte
de energia (rede elétrica, pi-
lhas, bateria, etc.) de carac-
terísticas diferentes das re-
comendadas no manual de
instruções e/ou no produto.
D. O número de série que
Identifica o produto estiver
de alguma forma adulterado
ou rasurado.
3. Estão excluídos desta garantia
defeitos decorrentes do des-
cumprimento do manual de in-
struções do produto, de casos
fortuitos ou de força maior,
bem como aqueles causados
por agentes da natureza e
acidentes.
4. Excluem-se igualmente desta
garantia os defeitos decorren-
tes do uso dos produtos em
serviços não doméstico/resi-
dencial regular ou em des-
acordo com o uso recomen-
dado.
5. Nos municípos onde não exis-
ta oficina autorizada de servi-
ço Philips, as despesas de
transporte do aparelho e/ou
do técnico autorizado correm
por conta do sr. consumidor
requerente do serviço.
Philips do Brasil Ltda.
Philips da Amazônia S.A.
Indústria Eletrônica
Para informações adicionais so-
bre o produto ou para eventual
necessidade de utilização da re-
de de oficinas autorizadas, ligue
para O centro de informação ao
consumidor:
= 0800-123123
(discagem direta gratuita)
ou escreva para a caixa postal:
21462 cep 04698-970 São Paulo
ex) México
T
Garantía para México
Este aparato está fabricado con
materiales de alta calidad y ha
sido cuidadosamente verificado.
Philips, por lo tanto, da a usted
una garantía de 12 meses a par-
tir de su fecha de compra.
La garantiá ampara la reposición
de las piezas defectuosas
debidas a fallas en su montaje o
en los materiales, incluyendo la
mano de obra necesaria para su
reemplazo en nuestras Sucur-
sales o talleres autorizados.
En caso de fallas en su aparato
le rogamos se sirva poner en
contacto con su distribuidor.
Esta garantía no cubrirá las ave-
rías que resulten como conse-
cuencia de una instalación incor-
recta del aparato, manifiesto
maltrato o uso Inadecuado del
mismo.
Philips se obliga a reparar y de-
volver a usted su aparato en un
plazo no mayor de 30 dias habr-
les contados a partir de la recha
de haber ingresado su aparato a
uno de nuestros talleres.
Con la presentacion de la factura
o remisión de su aparato podrá
hacer efectiva la garantía.
Si usted tiene alguna duda o pre-
gunta que no le pueda solucio-
nar su distribuidor, por favor po-
nerse en contacto con:
Oficinas Centrales de Servicio,
Av. Coyoacán No. 1051,
Col. del Valle,
03100 México, D.F.
T 5-75-20-22 o 5-75-01-00

Australia
Guarantee and Service nia ini page 2
42 New Zealand
Guarantee and service rires page 2
Brasil
Garantia T página 2
e) México
CATANIA a e os página 2
Es necesario que lea cuidadosamente su instructivo de manejo
- ea mr —æ ee

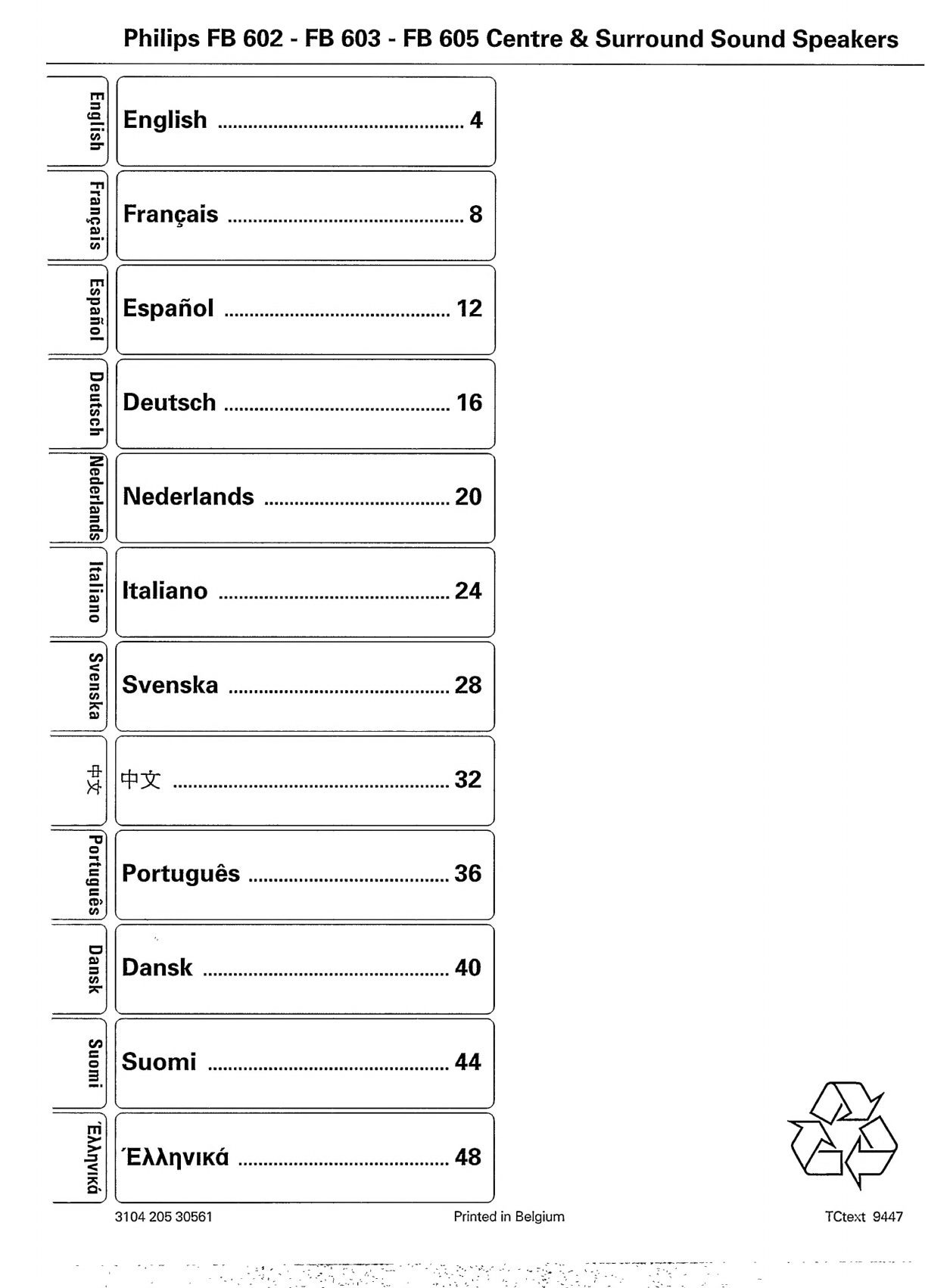

INDEX
3
Italiano ew | Deutsch | Espanol | nu
en | Suomi | Dansk | chy | ns

ys!¡Bug
1. INTRODUCTION
INTRODUCTION
We would like to thank you for purchasing these quality Philips
Surround Sound Speakers. These speakers have been devel-
oped to produce superb sound for many years of listening
pleasure.
Please read this manual carefully before connecting your
speakers. You will find a number of useful tips for getting the
best out of these high-quality speakers.
FB 602 - FB 603 - FB 605
This booklet contains the Instructions-for-Use for as well the
centre speaker as the surround speakers. Please read only the
applicable chapters.
FB 605
This package contains:
e Two Surround speakers with M5 screwthread for mounting
on a floor stand or wall bracket.
e One Centre speaker, magnetically shielded for use near the
TV set.
e Stand for the Centre speaker, to tilt the speaker at an angle
of +15? or —15º.
FB 602
e One Centre speaker, magnetically shielded for use near the
TV set.
e Stand for the Centre speaker, to set the speaker at an angle
of +15" or -15°.
FB 603
e Two Surround speakers with M5 screwthread for mounting
on a floor stand or wall bracket.
RECYCLING
e All redundant packaging material has been omitted. The
packaging is easy separable into three mono-materials:
— cardboard (box)
-- expandable polystyrene (buffer)
— polyethylene (bags, protective foam sheet)
e Your set consists of materials which can be recycled if disas-
sembled by a specialized company.
e Please observe the local regulations regarding the disposal
of packing materials and old equipment.
The type plate can be found on the bottom or the back of the
speaker
This product complies with the radio interference
requirements of the European Community.
2. TECHNICAL DATA
TECHNICAL DATA
(subject to modification)
Centre speaker
e A nn Le aeb 6 Ohms
veL e TANDO. san ninet 130 - 20 000 Hz
e Power handling capacity - continuous sese 50 Watts
e Power handling capacity - peak ....... so 100 Watts
e SENSINI sans 89 dB (2.83 Volts / 1 Metre)
© EQUOSDEARETS: in ar a a 2 4" woofer
18 mm Polydome tweeter
e Crossover frequency sese eee ee eee 4 500 Hz
e: CONNMECIOS airis screw type, gold-plated
o Material cabinet esse 15 mm H2
o Material baffle urine 15 mm H2
e PINON a ad grey foll
A IÓ fixed cloth
e Volume internal/external ......... raro 7/7.5 tres
e Dimensions (w xh xd) e 435 + 135: 155 mm
O A A AI .. approx 3.4 Ig
e Supplied stand, angle ....... a +15" or -15°
Surround speakers
AAA cure. diffuse sound held
© Tee T ani mena 6 Ohms
s Frequency range encina 200 - 15 000 Hz
e Power handling capacity - continuous ss» 30 Watts
e Power handling capacity - peak hu 60 Watts
è SONISICIVILY - anidan 89 dB (2.83 Volts / 1 Metre)
é Loudspeakers durante 2 x 5V4" full range
© GCORMMECUOIS. iia screw type, gold-plated
© Material cabinet vu io polystyrene
OTIS sa a EE grey pamted
AAA A A Dre fixed cloth
e Volume internal/external ee eee 3.6/4.2 litres
e Dimensions (w xh xd) see 213: 150.213 mm
e Weight
e Stand connection
ás approx 1.6 kg each
TE TS RENNES A M5 screwthread
AVAILABLE ACCESSORIES
e Two floor stands for the surround speakers.
e Two wall brackets for mounting the surround speakers to the
wall.
qem qm quam mae a — — qui
r

3. ADJUSTMENTS
ADJUSTING THE RELATIVE SPEAKER BALANCE
After installing your Surround and/or Centre speakers, you will
have to find a good sound balance between the Surround, the
Centre and the Front speakers.
e On the amplifier or receiver, switch on the SURROUND
mode.
In the instruction booklet of the amplifier or receiver you will
find a section describing how to adjust the sound level of the
Centre and the Surround speakers.
For the Surround speakers, it may be possible to adjust the
delay time as well. This means that the surround sound is
reproduced somewhat later than the sound of the front
speakers, giving the sound impression of a larger room or
even a hall.
Adjust the sound level of the surround and centre speakers
and also the delay time for the Surround speakers at your
personal taste. The settings are kept by the amplifier or
receiver.
POWER HANDLING
Each amplifier or receiver used at high power over a long
period of time can produce distortions which may seriously
damage your speakers.
Your ears will warn you, since the speakers will indicate
overloading by giving severe distortion.
If this happens, reduce the volume and tone controls to a level
where the sound Is acceptable again.
Remember
Speakers are most often damaged when they are overdriven
by under-powered amplifiers.
MAINTENANCE
e A chamois leather slightly moistened with water is sufficient
for cleaning the speakers.
e Do not use cleaning agents containing alcohol, spirits, am-
monia or abrasives.
e Do not leave the speakers for any length of time in direct
sunlight or other places where high temperatures can occur,
such as in the vicinity of heating apparatus.
e Do not expose the speakers to humidity or rain.
rs wee ARA
4. TROUBLESHOOTING
TROUBLESHOOTING
If a fault occurs, first check the points listed below before
taking the speakers for repair
If you are unable to remedy a problem by following these
hints, consult your dealer or service centre
WARNING
Under no circumstances you should try to repair the speaker
yourself, as this would invalidate the guarantee
English
PROBLEM -POSSIBLE CAUSE < REMEDY
No sound
— VOLUME is not turned up
e Turn up the VOLUME
— SPEAKERS A/B switches on the amplifier or receiver are in
position off
e Press the relevant SPEAKERS A or B switch
— Headphones are connected
e Disconnect headphones
— Speakers are not (or wrongly) connected
e Connect the speakers securely
No sound on left or right side
— BALANCE control on the amplifier or receiver is not in the
middle position
e Set the BALANCE control to the middle position
— One speaker is wrongly connected or the speaker cable
damaged
e Connect the speaker properly or replace the cable
Reversed left and right sound
— Speakers are wrongly connected
e Connect speakers properly, L to left, R to right; check with
BALANCE control
No sound at the surround or Centre speakers
— SURROUND mode is not switched on
e On the amplifier or receiver, switch on the SURROUND
mode
— Surround and/or Centre speakers are not (properly)
connected
e Connect the speakers properly
— Only one Surround speaker is connected
e Always connect both Surround speakers
— One speaker is wrongly connected or the speaker cable
damaged
e Connect the speaker properly or replace the cable
Poor bass sound
— Speakers are not in phase
e Connect speakers properly, & to ® -pole (red marked or
sleeved cable); O to O -pole (unmarked cable)
Bad sound
~ Badly matching SURROUND setting for the given type of
music
e On the amplifier or receiver, choose a matching
SURROUND setting for the given type of music
Surround sound level is too low or too high
— The sound level of the Surround sound is not properly
adjusted
e On the amplifier or receiver, adjust the level and the delay
time of the Surround sound
Centre sound level is too low or too high
— The sound level of the Centre channel is not properly
adjusted
e On the amplifier or receiver, adjust the level of the Centre
channel

ysi|bug
5. POSITIONING THE SPEAKERS
surround
right
surround
left
GENERAL HINTS FOR POSITIONING
e Avoid positioning the speakers in a corner or on the floor, as
this will boost the bass tones too much.
Placing the speakers behind curtains, furniture etc. will
reduce the treble response, thus reducing the stereo effect
considerably. The listener should still be able to ‘see’ all
speakers.
Each room has different acoustic characteristics and the
positioning possibilities are often limited. You can find the
best position for your speakers by experimenting. In general,
the speakers should be arranged as symmetrically as
possible in the room.
POSITIONING THE FRONT SPEAKERS
e The front speakers (not supplied) should be arranged so that,
viewed from the listener's position, the speaker connected
to the ‘Left’ terminals of the amplifier/receiver is on the left
and the speaker connected to the ‘Right’ terminals is on the
right in front of the listener in the room. This can be checked
with the balance control on the amplifier/receiver.
e The best stereo effect is obtained when the 2 front speakers
and the listener build an equilateral triangle.
e The best height for the front speakers is when the high tone
speakers (tweeter) are at ear height (while seated).
surround
front right
right ho
center
e
|
m we
PA dA
POSITIONING THE CENTRE SPEAKER
e The centre speaker should be placed in the centre between
both FRONT speaker, e.g. underneath or on top of the TV.
e The best height for the centre speaker is at the height of
your ears (while seated).
e lí necessary, the centre speaker can be directed to the
listening position by using the supplied stand. In this way
you can tilt the centre speaker at an angle of +15* or -15°.
POSITIONING THE SURROUND SPEAKERS
e The surround speaker connected to the ‘Surround Left'
terminals of the amplifier/receiver should be on the left and
the speaker connected to the ‘Surround Right’ terminals on
the right the listener in the room. This can be checked with
the balance control on the amplifier/receiver.
e The surround speakers should face each other and be tn line
with the listening position.
e The best height for the surround speakers is about 1 metre/-
3ft above ear height (while seated).
e For optimal positioning of the surround speakers, you can
use floor stands or wall mounting brackets which are
separately available.
e When positioning the surround speakers, note that the
screw connectors are facing down and the Philips wordmark
is facing the room.

- NR te e o mr l
6. CONNECTING THE SPEAKERS
English
surround
right
Important ! Always switch off your amplifier/receiver before making any connections !
SPEAKER CABLE
Preferably use special speaker
cable having a section area of at
least 0.75 mm?.
Strip off the insulation from the
end of each of the two wires;
approx, 7 mm.
One of both speaker wires is
usually marked with a colour or a
sleeve so that you can distin-
guish between them. In order to prevent phase problems,
make a habit of connecting the marked (coloured) wire to
the coloured ® speaker terminal and the unmarked wire to
the black O speaker terminal.
CONNECTORS ON THE SPEAKERS
At the rear or bottom of the speakers you will find the screw
connectors, marked © and ©.
Connect the marked or sleeved speaker wire to the O
terminal, and the unmarked wire to the © terminal of the
speaker.
CONNECTIONS ON THE AMPLIFIER/RECEIVER
The loudspeaker connections on the amplifier or receiver may
be screw connectors or click-fit connectors.
* At the rear of the amplifier/receiver you will find a red or O
terminal and a black or © terminal for each speaker.
e Connect the marked or sleeved speaker wire to the red or ©
terminal, and the unmarked wire to the black or © terminal
of the amplifier/receiver.
e After connecting the speakers, do not forget to adjust the
relative sound level between the speakers, see chapter
‘Adjusting the relative speaker balance’.

usura yos}neq | jouedsz | siejuel | ys1]¡6u3
ouelje]
AN
=
CD
ma
YN
==
o
E
nel
©
kaa 4
ES
=
[de
=
D>
N
O
©
es
N
~
Y)
a
©
3,
E
>
D
—
=
A
a
Philips FB 602 - FB 603 - FB 605 Centre €: Surround Sound Speakers
ae
3104 205 30561 Printed in Belgium TCtext 9447
ne ee re mg a C M
S =
~ +
- =
`
