Philips 26HFL5008D/10 User manual

Philips Hospitality TV
Installation manual for
26HFL5008D/10
32HFL5008D/10
40HFL5008D/10
46HFL5008D/10
55HFL5008D/10
Status: Approved
Version 1.0
Date: June 2013
Author: Marian Pufulete

1
Contents
1. Requirements before starting the installation.......................................................................................................... 2
2. Find out the state of the TV ...................................................................................................................................... 3
3. Re-install TV .............................................................................................................................................................. 4
4. Installation wizard..................................................................................................................................................... 6
5. Channel options ...................................................................................................................................................... 15
a. Reordering channels ...........................................................................................................................................15
b. Rename channels................................................................................................................................................18
c. Hide channels...................................................................................................................................................... 18
6. Professional Setup ..................................................................................................................................................19
7. Welcome Logo.........................................................................................................................................................33
8. Clone /Upgrade .......................................................................................................................................................34
9. Feature settings.......................................................................................................................................................35
10. CSM (Consumer Setup menu) ................................................................................................................................. 39

2
1. Requirements before starting the installation
Before starting the installation, make sure that you have everything you need at hand.
Master remote control 22AV8573 or Guest remote control 22AV1109A
And
USB stick
You will need the master remote control or the guest remote control to access the menus.
To access the setup menu press the ‘RC5 SETUP’ key, and then press the ‘Home/Menu’button.
For the guest remote control, press the following keys sequential: 3, 1, 9, 7, 5, 3, ‘MUTE’.
Note: The sequence: 3,1,9,7,5,3, ‘MUTE’ will not show the Setup Menu if High Security Menu is enabled. (See. Page
19).
For cloning settings from one TV to another TV, you will need to have a USB stick. This stick needs to be formatted as
FAT32 and should be empty.
For the best guest experience check if the software version on the TV is the latest one. This can be done using the
Master Remote control by pressing Recall Button and checking on page ‘2.1 - Current Main Software’. This also can
be done with the Guest Remote by pressing 1,2,3,6,5,4.
Go to: http://www.support.philips.com/support
Enter the model number and check to confirm you have the latest version available.
Confirm the software version present on TV is identical with the one from website. If not please download the latest
version from website, unzip and save on to a USB key The USB key must be format FAT32 and preferably empty to
avoid and accidental upload of wrong setting and software. Follow the instruction how to upgrade the software.
If the software version from your TV is identical with the one available on website it is not necessary to upgrade.
If an upgrade is necessary you can upgrade and clone files at the same time automatically. (Upgrade -> Reboot ->
Clone) --- See Instant Initial Cloning (page 32)
Initial instant cloning option can only be used if you reinstall TV or TV is out the box.

3
2. Find out the state of the TV
It is important to know if a TV is in ‘virgin mode’ (out of the box) or installed before.
If you can see this screen below, you know that the TV is in ‘virgin mode’ and you can install the set. See chapter 4 of
this manual.
If you power on the set and then press the ‘Home’ button on the guest remote, you will see this screen appear, if the
TV already has been installed or if the wizard was already skipped.
Professional Settings mode on
Professional Settings mode off
You can start the installation wizard again by reinstalling the TV as explained in chapter 3 of this manual.
Disable the Professional Settings Mode
Access the setup menu by pressing the ‘RC5 SETUP’ key, and then press the ‘Home/Menu’ button. (For the guest
remote control, press the following keys in sequence: 3,1,9,7,5,3, ‘MUTE’).
Go to Professional Settings Professional Mode and select the OFF option and confirm with “OK”. Go back with
the arrow keys and select Store settings. Confirm with “OK”. After restart the TV will have the Professional Settings
mode set to OFF.

4
3. Re-install TV
If you want to start an installation from scratch you can always re-install the TV. This can be done by using the
option: Re-install TV set.
If Professional Settings are active you can access the setup menu press the ‘RC5 SETUP’ key, and then press the
‘Home/Menu’ button (For the guest remote control, press the following keys in sequence: 3,1,9,7,5,3, ‘MUTE’) , then
go to TV Setup, confirm with “OK”. This menu will appear:

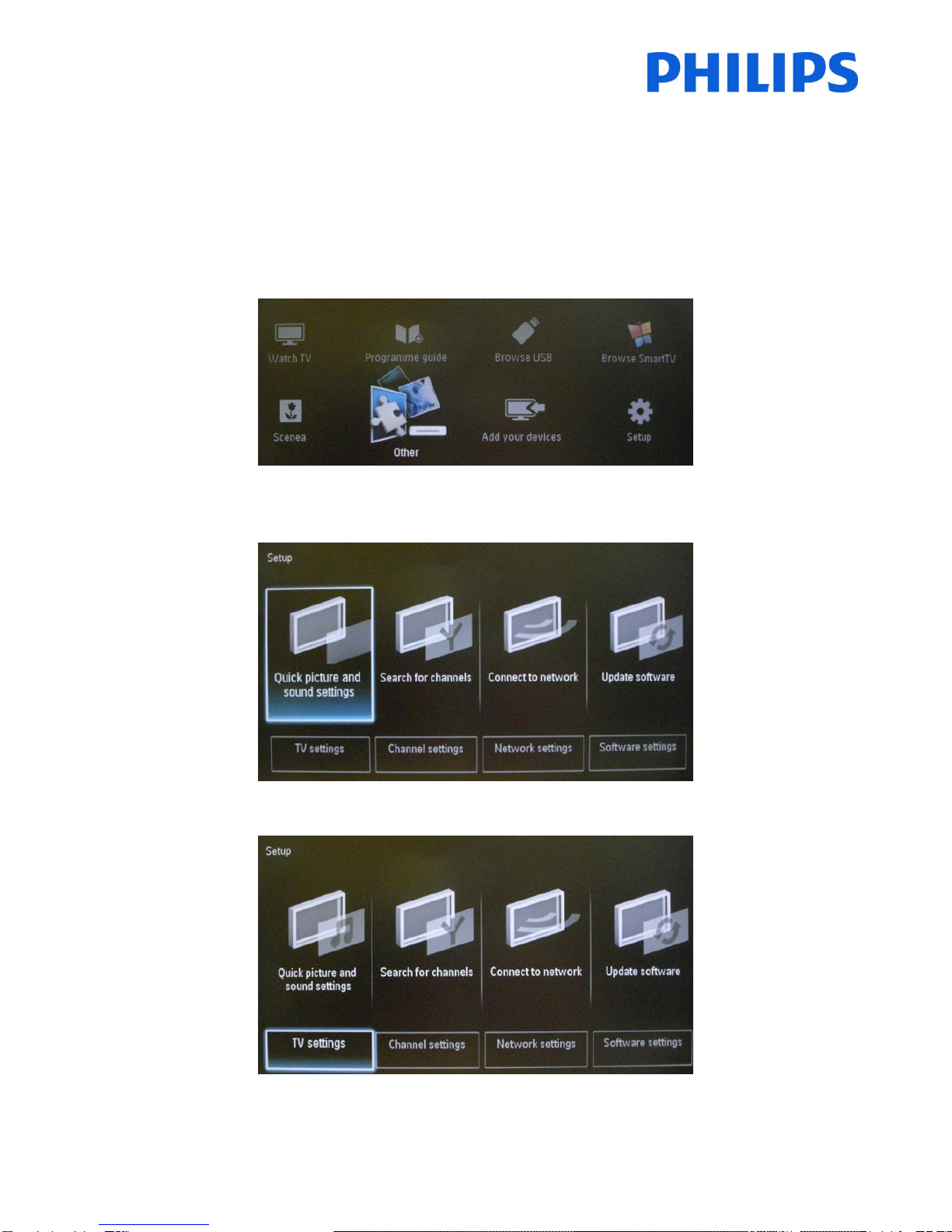

If the Professional Settings Menu is disabled, you can access the Setup menu with the guest remote control. Select
“Setup” and press “OK”.
Select the option TV settings for this menu:

5
Press “OK” to access the sub-menu, navigate to “Reinstall TV”.
Press “OK” to reinstall the TV set.
If all is correct select “YES” and press “OK”.
After this operation the TV will power off and on and display the installation wizard.
Note: All settings are at default values and no channel plan is available.
After reinstalling, the PROFESSIONAL SETTINGS menu will keep the PROFESSIONAL SETTINGS Mode and Room ID, all other parameters will be
reseted to default values.

6
4. Installation wizard
When you turn on the TV for the first time, or you have reinstalled the TV, you should see the following screen.
Here you will need to select your preferred language.
After this, you will need to select the country. Depending on the country selection, some pre-defined settings will be
activated, because of local broadcast requirements. Example: digital/analog channels could be disabled; reordering
and deleting channels can in some cases not be possible.
Note: If you are experiencing some issues after selecting your country, please select ‘Others’ in the menu.

7

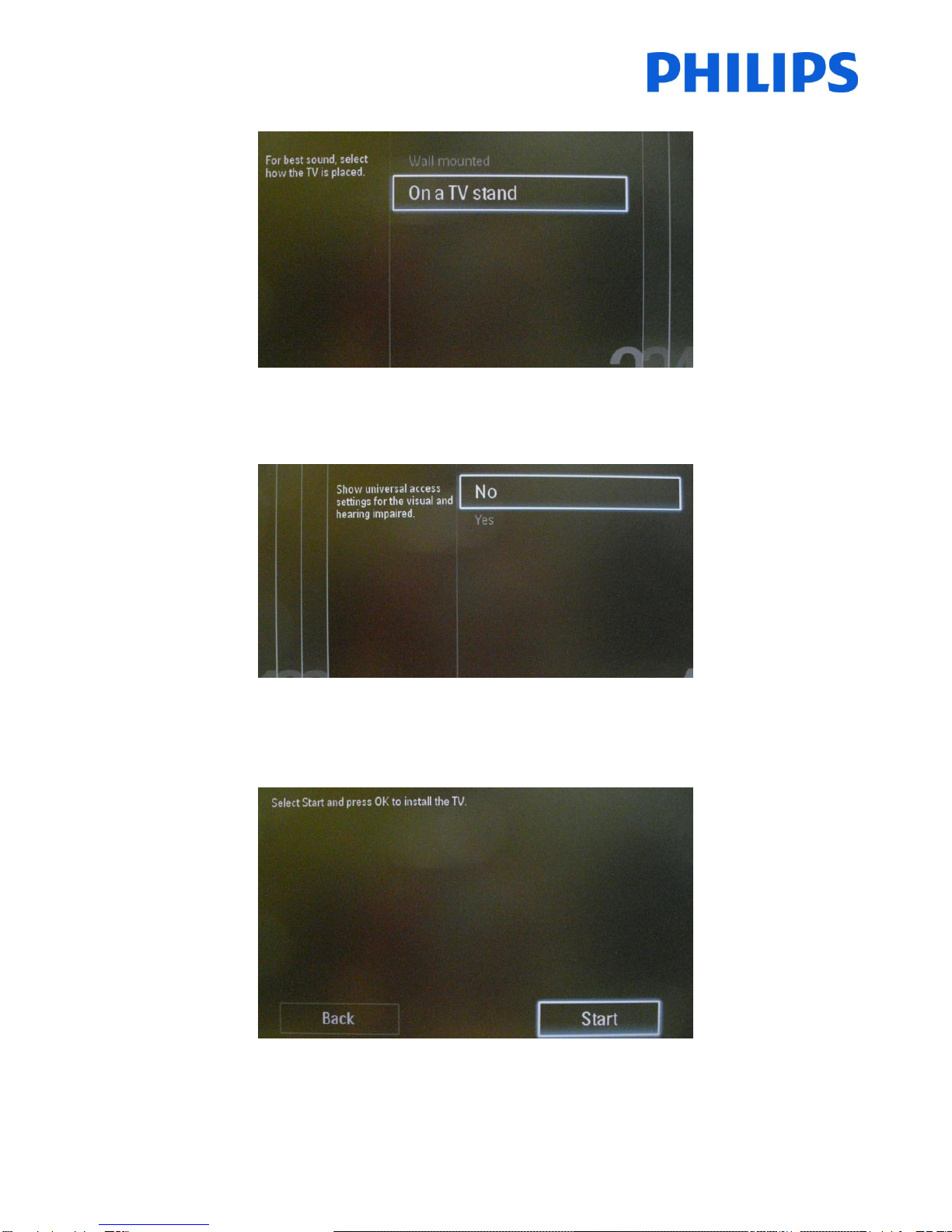

The next step is to select ‘Wall mounted’ or ‘On a TV stand’. This option changes some settings for the audio and
image of the TV.
Now you can select the visual and hearing impaired options. If you select ‘On’, your TV will automatically turn on
settings to help visual and hearing impaired people. THE MOST COMMON OPTION IS TO TURN THIS FUNCTION OFF.
On the following page we can start the channel installation wizard. You can also press “Back”to correct any previous
setting. We recommend you only select your preferred options as this will result in longer installation times.

8

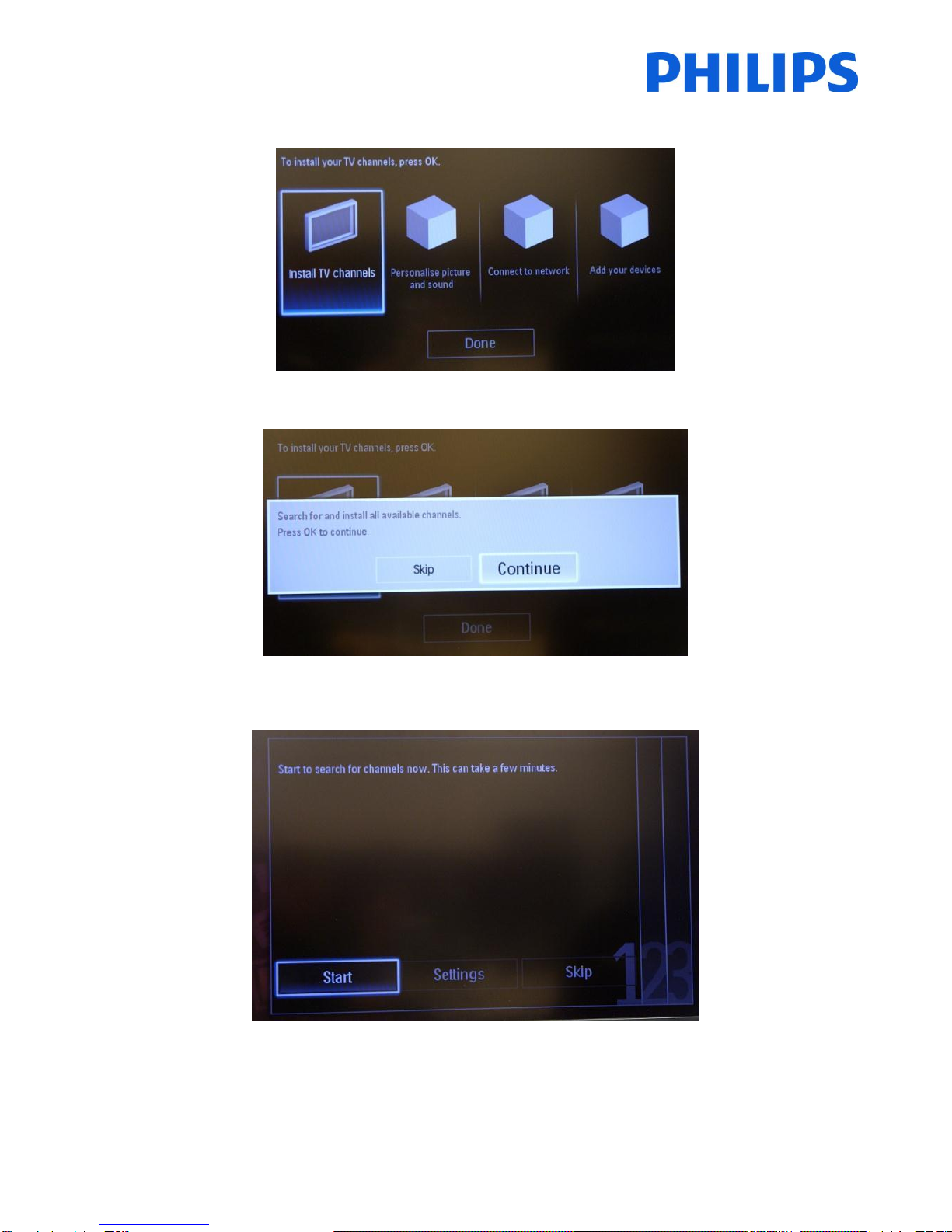

For the channel installations, select ‘Install TV channels’ and press ‘OK’
Then you can select ‘Continue’ and press ‘OK’ again.

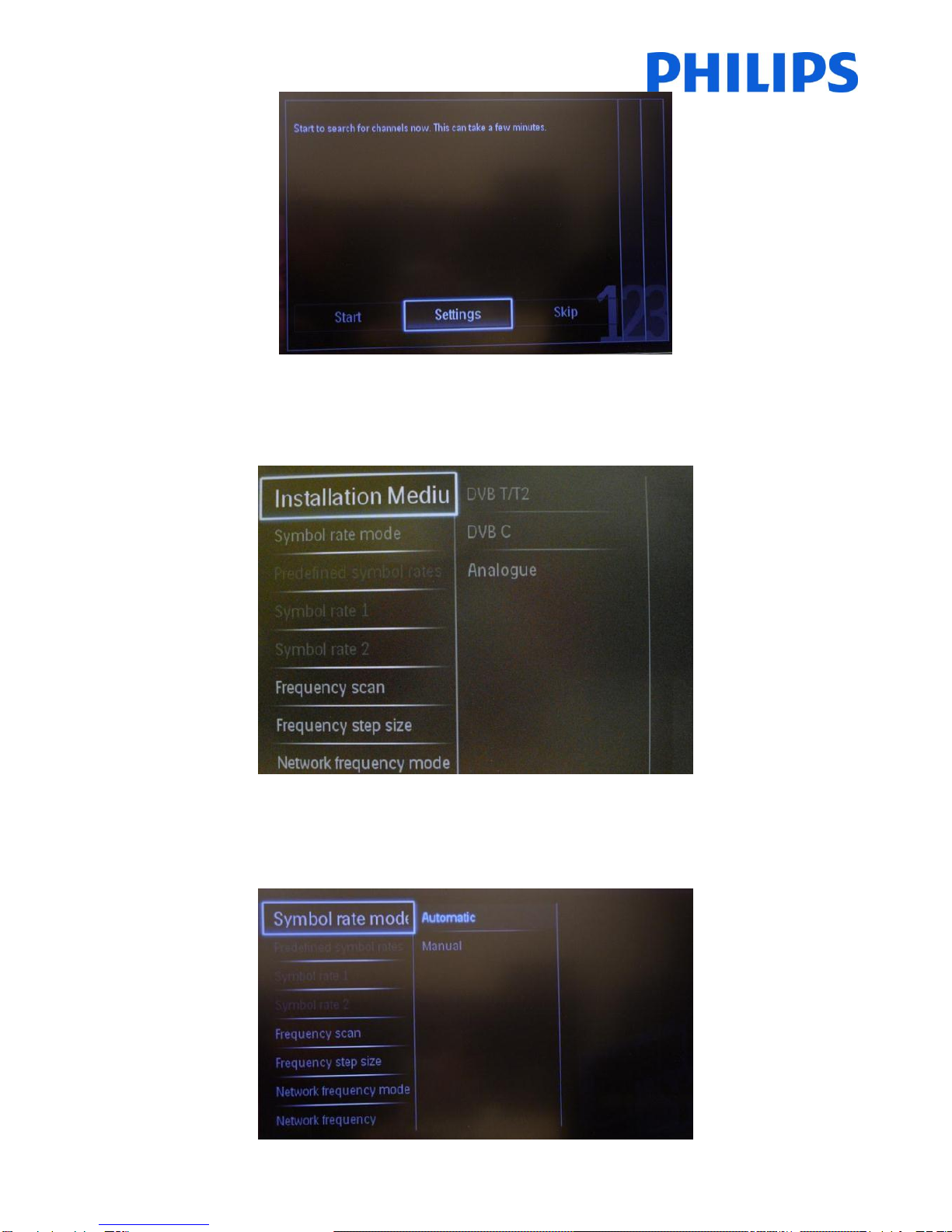

Here you can select the type of channels you would like to install and what preference you will use.
It is advisable to check the settings before starting the search.

9
Note: If all options are disabled you have to go down to the Digital channels option and set the digital channels to ON.
Installation medium: Allows you to define what type of channels will be installed. Depending on country settings
some channel types might be disabled.
A screen is displayed to make changes to set the channel list/map configuration:
[Symbol rate mode]: Automatic TV will use the preset Symbol rate (6.900/6.875)
Manual Option to set Symbol rate 1 and Symbol rate 2
[Symbol rate 1]: 0.000 (to set)
[Symbol rate 2]: 0.000 (to set)

10

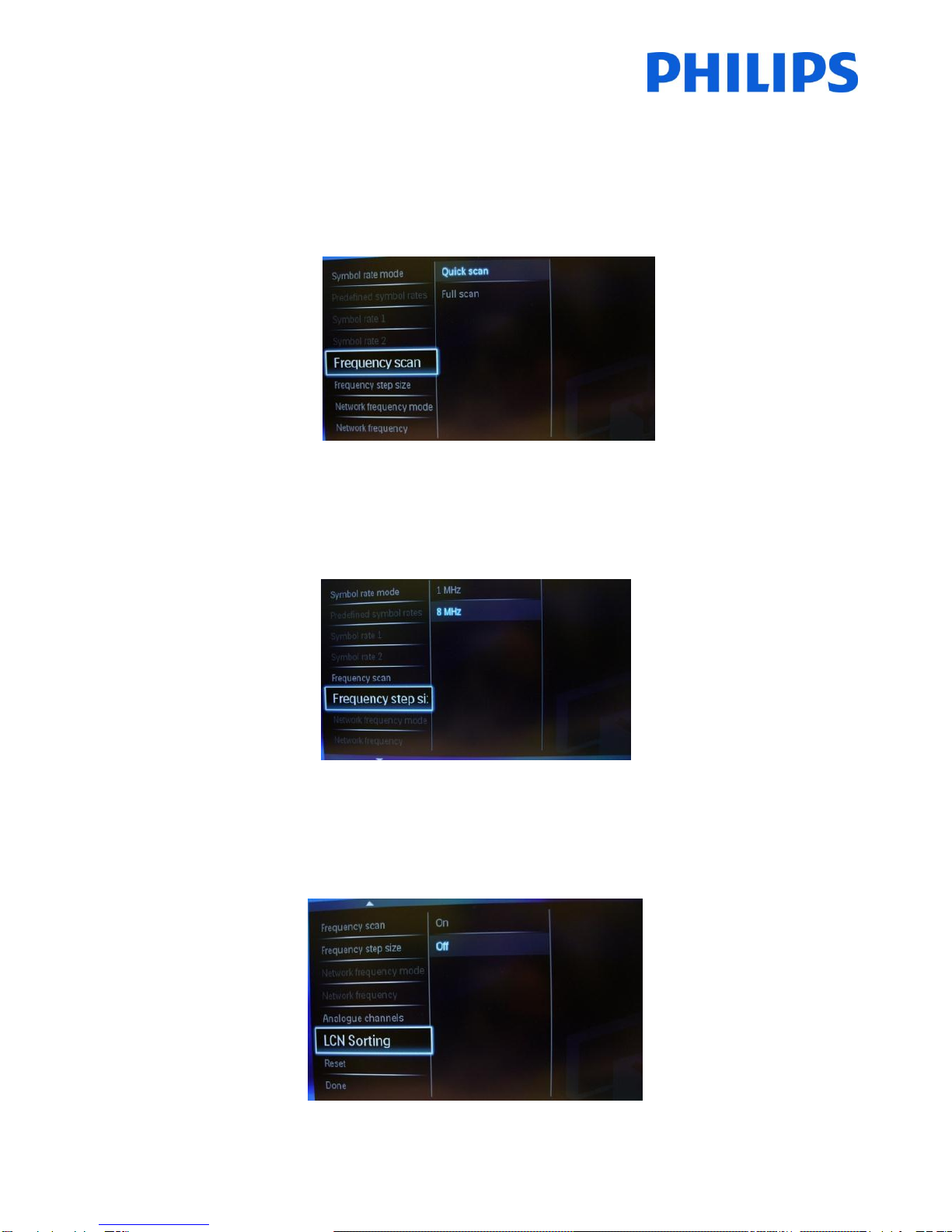

The “Frequency scan”contains two options:
-“Quick”: this is a fast method to search channels but it might skip some channels (depending on the
network).
-“Full”: the scan will search on all frequencies and will store all channels available. This is the safe method if
you don’t know the network parameters, but it takes more time.
Frequency step size has two options:
1. “1 MHz”–With Full scan, the step size to search for channels is 1 MHz The scan will take more time but
will find also channels broadcasted not according to the channel grid.
2. “8 MHz (default)”–With Full scan, the step size to search for channels is 8 MHz. The scan will be shorter
in time but some channels which are not in the expected channel grid (local head-end) will not be found.
When details of the local network are known they can be filled out in this menu. If the details are not known leave
everything as the default values.
LCN sorting: With the LCN function (Logical Channel Number), the channel list is ordered automatically. This function
can be disabled and the TV will not change channel order according to the LCN table.
Note: Only applicable if this is supported on the local network.

11
The “Reset”option will reset the search settings to default. After you have checked or changed settings, you can
select “Done”and select “Start”to start the channel search.
During the channel search you can see the progress bar and how many channels are found at that time.
When the search is done, you should see “Channel search complete”and a summary of the channels found. In this
case:
Digital channels found: 53
Analogue channels found: 0
Press the “OK”button on the remote control to finish the search.
If you would like to change the picture and sound settings, you can go to “Optimize TV picture and sound”and press
the “OK”button on the remote control.

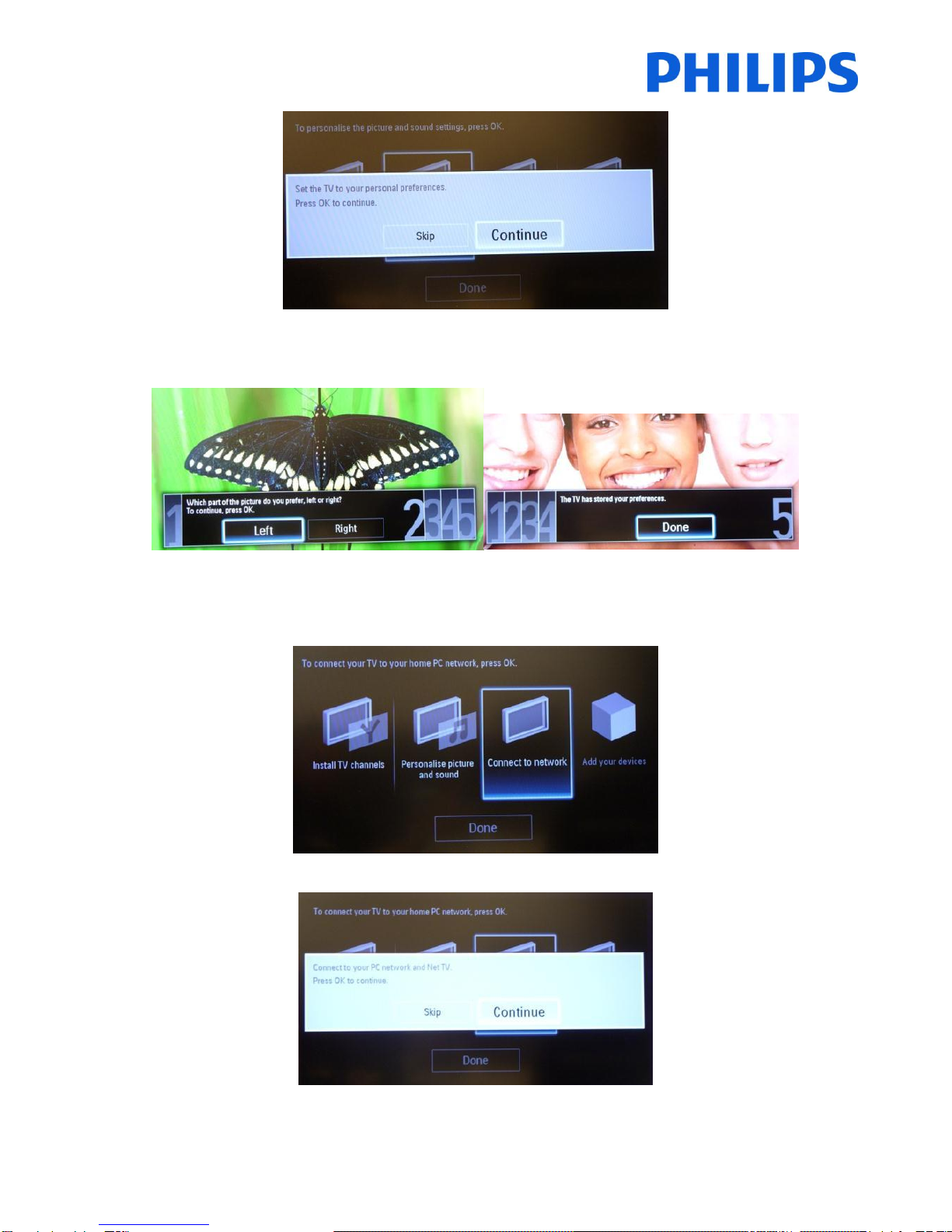

A wizard will start to guide you through the process of setting the sound and picture on the TV set.

12
Select “Continue”to start the wizard and press “OK”on the remote control.
The wizard will ask you some questions about which image you prefer, select the option you desire and press “OK”
on the remote control.
Once this wizard is done, you will return to the installation menu again. The network wizard will guide you through
network setup.
This wizard will popup:
Please select “Next” and press OK to continue

13
The connection will be made to a wireless network or via a wired network, depending on preferences. The TV will
automatically acquire an IP address if this is available via DHCP.
After the connection is made, the result is shown on the TV.
The last option in this menu is “Add your devices”. This can be done if you would like to add a DVD player or STB.

14
When you are done with this, select “Done”and press ‘OK’ on the remote control.
After pressing “Done”you have completed the installation of the TV and you should see this screen. Press “OK” on
the remote control to exit this wizard.
Note: This wizard will not be available anymore when you start the TV the next time.
The only way to re-use this wizard is to reinstall the TV set.

15
5. Channel options
a. Reordering channels
For reordering TV channels, the channel plan from the Professional Settings menu must be used. In the consumer
menu you cannot rearrange channels. The Channel Setup can be accessed by using the Yellow remote (RC 22AV8573
Master Remote control) and pressing the MENU Button or with the TV remote press 3,1,9,7,5,3, MUTE).
The Professional Settings menu will appear like in picture. Go to the option Channel setup and press “OK” to access
the submenu.
The channel grid will contain all installed channels.

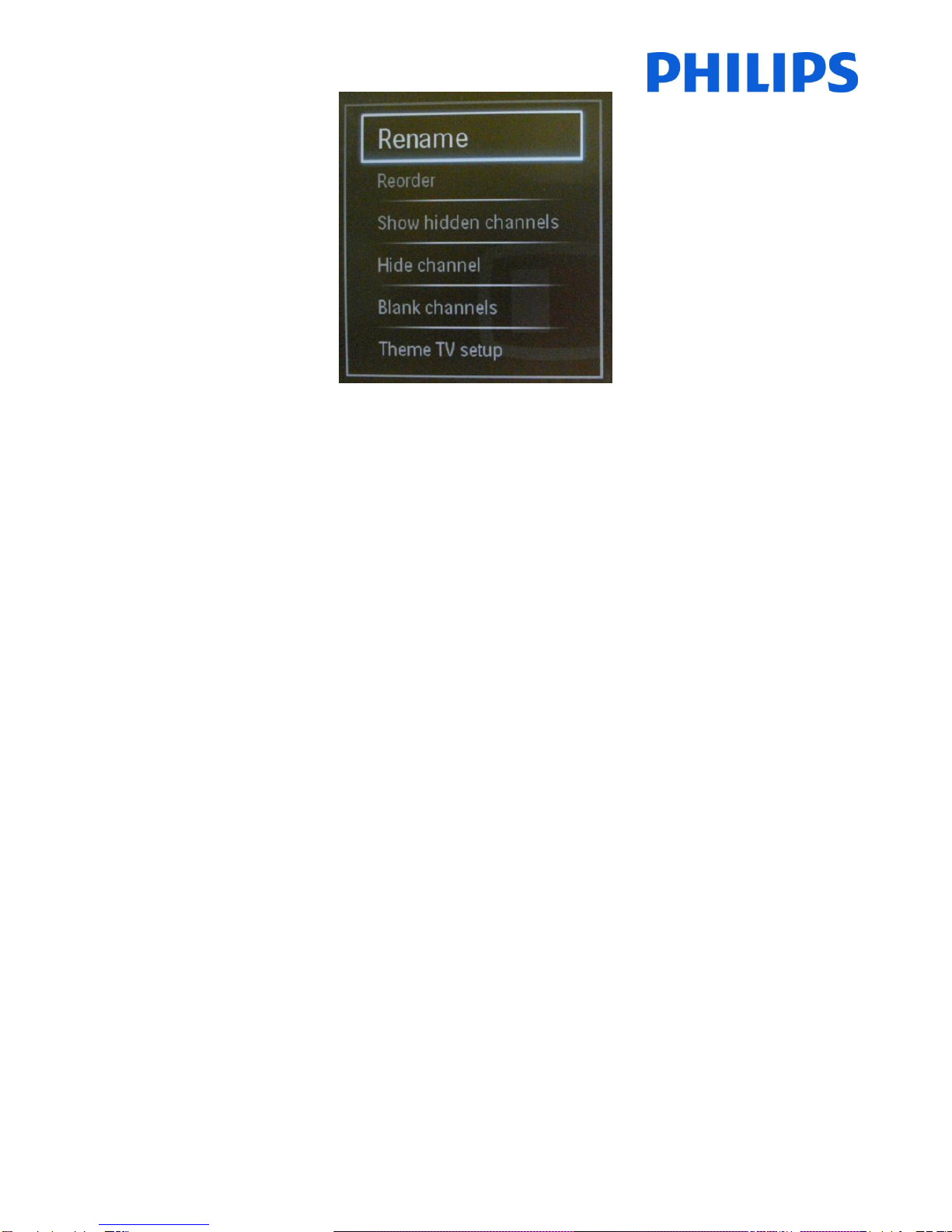

With the channel grid displayed, press the “OPTION” button on the remote control to display settings for channels.
Select “Reorder” and Press the “OK” button on the remote control to reorder channels.

16

17
Navigate to the channel that you want to move and press “OK” on the remote control to select that channel.
The arrows around the channel indicate that the channel is selected and can be moved. Use the arrow keys to move
the channel to the new position.
When you reached the new position press “OK” on the remote control to confirm the new position of the channels.
Once you are finished with the reordering, press “Options” on the remote control again.

18
Press “OK” on the remote control to confirm that you are done with the re-ordering.
b. Rename channels
Select the channel, press the “Options” button on the remote control and select “Rename”to change the name of a
channel. If you then press the “OK” button a virtual QWERTY keyboard will pop up.
c. Hide channels
Important: You cannot delete channels from the channel grid, but you can use the option to hide the channels.
Select the Channel, press the “Options” button and select “Hide channels”. You will see an “H”in the channel square.
Note: Select “Show hidden channels” if you want to see all channels, hidden or not hidden. Using this option will not remove the hidden
attribute.

19
6. Professional Setup
[Professional Settings]
Select the Setup menu language to be in English, French, German or
Italian.
[Professional Mode]
[Off]: The TV operates as a basic (consumer) TV.
[On]: All settings in the Professional Settings mode Setup menu are
active.
Only by switching on this mode the TV will act as a Hospitality TV.
[Native UI Source]
Change the source of the user interface to browser or native (HTML
or Flash).
[SmartTV Settings]
[NetTV]
[Configure Net TV] allows you to disable/enable the Net TV portal
provided by the Philips Net TV server.
If you select [Configuration], [Hotelier] and [Profile], options become
visible -- [Hotelier] and [Profile] are text entry fields that allow you
to configure the Net TV portal for the hotel.
